Garland MCO GS/GD-10 MU User manual

Toll Free Phone, (US & Canada): [phone]
Toll Free Fax, (US & Canada): [phone]
http://www.garland-group.com

DESCRIPTION PAGE
Manual Control Panel 4
Digital Control Panel 6
Control Option Section 8
Burner Package Section 10
Dependent Door Section 12
Oven Components 14
Main Exterior 18
Revision History 20
MODEL: MCO-GS/GD-10 MU - CE UNITS
Oven Manufactured Up To May 29, 2008

QTY FROM UP TO
11802599 Control Panel Top 1
21789605 Overlay Top Control Panel Gas 1
31802504 Control Panel Mechanical 1 Sep-95
1789603 Overlay Gas Man. Control 2 Speed 1
1789604 Overlay Gas Man. Control 1 Speed 1
1019203 Rocker Power Switch 2 Pos 1 Speed On/Off 1
1019207 Rocker Power Switch 3 Pos 2 Speed On/Off/On 1
6101920
9
Rocker Power Switch 2 Pos On/Of
f
1
7127000
0
Pilot Light Amber 28V 1
8G02716-1 Dial - (Universal) Small Shaf
t
2
8A G02725-1
7
Dial Insert (OFF/150F/550F) Oven
F
1
8B 131413
4
Dial Insert 0 - 60 MIN. 1
9G01296-
3
Pilot Green 1 Aug-95
10 G03053-1 Momentary Switch Push Button 1
11 1749201 Panel Restraining Bracket 1 Aug-95
12 1285701 Mallory Timer 1 hr 240V 50/60H 1
13 103240
0
Thermostat (Use G02902-01) 1
14 1804704 Wire Harness - Mechanical Gas 1
14A* 1804702 Wire Harness - Spark Ignition 1
14B* 1804703 Wire Harness - Power Supply
15 257980
0
Direct Spark Ignition Modul
e
1
16 1787341 Ignition Module Mtg Bracket 1
17 163600
0
Transformer - 24V / 240
V
1
18 1802101 Top Control Panel Mounting Bracket 1
19 1774401 Cooling Fan Mounting Bracket 1 Jan-95 Mar-99
1671101 Cooling Fan 208 / 240 V. 1 Sep-97 Feb-98
167110
3
Cooling Fan 208 / 240 V. 1 Feb-98 Oct-99
21 1848101 Hi-Limit Bulb Clamp 1 Jun-97
22 1848201 Hi-Limit 1 Jun-97
23 1848102 Hi-Limit Bracket 1 Jun-97
24* 1804713 Hi-Limit Harness 1 Jun-97
25* 1028402 Ground Lug (208/240) 1
1028804 Snap Bushing 2
1028807 Snap Bushing 2
27* 1804721 Wire Harness - 208/240V - 2 Speed Only 1
GARLAND PARTS IDENTIFICATION
MANUAL CONTROL PANEL MCO-GS/GD-10 MU MODELS-CE UNITS
ITEM PART # DESCRIPTION MCO-GS/GD-10 MU
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
4
20
5
26*
9608C5147

QTY FROM TO
1 1802599 Control Panel Top 1
2 1789605 Overlay Top Control Panel Gas 1
3A 1802597 Control Panel COM6000 1 Sep-95
3B 1802598 Control Panel Tiered Timer 1 Nov-89
1789601 Overlay Gas COM6000 2 Speed 1
1789602 Overlay Gas COM6000 1 Speed 1
1789607 Overlay Tiered Timer - 15 Button 1 Nov-89
1019203 Rocker Power Switch 2 Pos 1 Speed On/Off 1
1019207 Rocker Power Switch 3 Pos 2 Speed On/Off/On 1
61019209 Rocker Power Switch 2 Pos On/Off 1
71270000 Pilot Light Amber 28V 1
81720501 Time/Temp Knob 2
9G03053-1 Momentary Switch Push Button 1
10 1749201 Panel Restraining Bracket 1
1517706 Gas/Electrical MCO Control NLA 1
1623403 Control -ULT-2 Key Gas (NLA) 1 Jun-95
9006800 Sensor Probe 5" W/36"Teflon 1 Feb-97
1842901 Flange Mount Oven Probe (Rear Mount) 1 Feb-97
12B 1842902 Probe Interconnect Harness 1 Feb-97
13 1771602 Relay 240V 2 Pole 1
14 1636000 Transformer - 24V / 240V 1
15 2579800 Direct Spark Ignition Module 1
16 1787341 Ignition Module Mtg Bracket 1
1804701 Wire Harness - COM6000 1
1804703 Wire Harness - Power Supply 1
1804706 Wire Harness - Tiered Timer 1
18 1802101 Top Control Panel Mounting Bracket 1
19 1665200 Tiered Timer - 15 Button 1 Nov-89
20 1516600 Key Lock W/Backing Nut - Tiered Timer 1
21 1848101 Hi-Limit Bulb Clamp 1 Jun-97
22 1848201 Hi-Limit 1 Jun-97
23 1848102 Hi-Limit Bracket 1 Jun-97
24* 1804713 Hi-Limit Harness 1 Jun-97
25* 1841701 Thermocouple Juntion Box 1 Feb-97
1028804 Snap Bushing 2
1028807 Snap Bushing 2
1671101 Cooling Fan 208 / 240 V. 1 Sep-97 Feb-98
1671103 Cooling Fan 208 / 240 V. 1 Feb-98 Oct-99
28 1774401 Cooling Fan Mounting Bracket 1 Jan-95 Mar-99
29* 1804721 Wire Harness - 208/240V - 2 Speed Only 1
30* 1028402 Ground Lug (208/240) 1
Note: Contact factory for the correct replacemente control kit part number.
Please provide equipment nodel and serial numbers.
11
MCO GS/GD - 10 - Manual To Electronic
27
GARLAND PARTS IDENTIFICATION
DIGITAL CONTROL PANEL MCO-GS/GD-10 EU MODELS-CE UNITS
ITEM PART # DESCRIPTION MCO-GS/GD-10 EU
9608CJ147
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
4
5
12A
17
26*
CONVERSION KIT
CK4025

QTY FROM UP TO
1 1787341 Ignition Module Mtg Bracket 1
21960401
A
ir Pressure Switch 1
3163600
0
Transformer - 240V / 24
V
1
4257980
0
Direct Spark Ignition Modul
e
1
5 2475600 Relay Socket 2
62475501 Relay 240
V
2
7 250SILTUB 1/4 Silicone Tubing 1
8 1029801 4" Cable Ties 2
9 1034701 Straight Connector - 1/4 x 7/16cc 1
10 1004806 1/4 NPT Pipe Coupling 1
11 1848701 Hose Barb Fitting 1
12 1900801 Air Supply Tube - 7/16 Tubing (NLA) 1
13 1095499 Straight Connector 3/8x7/16 CC 2
14 1814898 Outer Oven Vent Ass'y 1
15 1848501 Flared Air Sensing Tube 1
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS

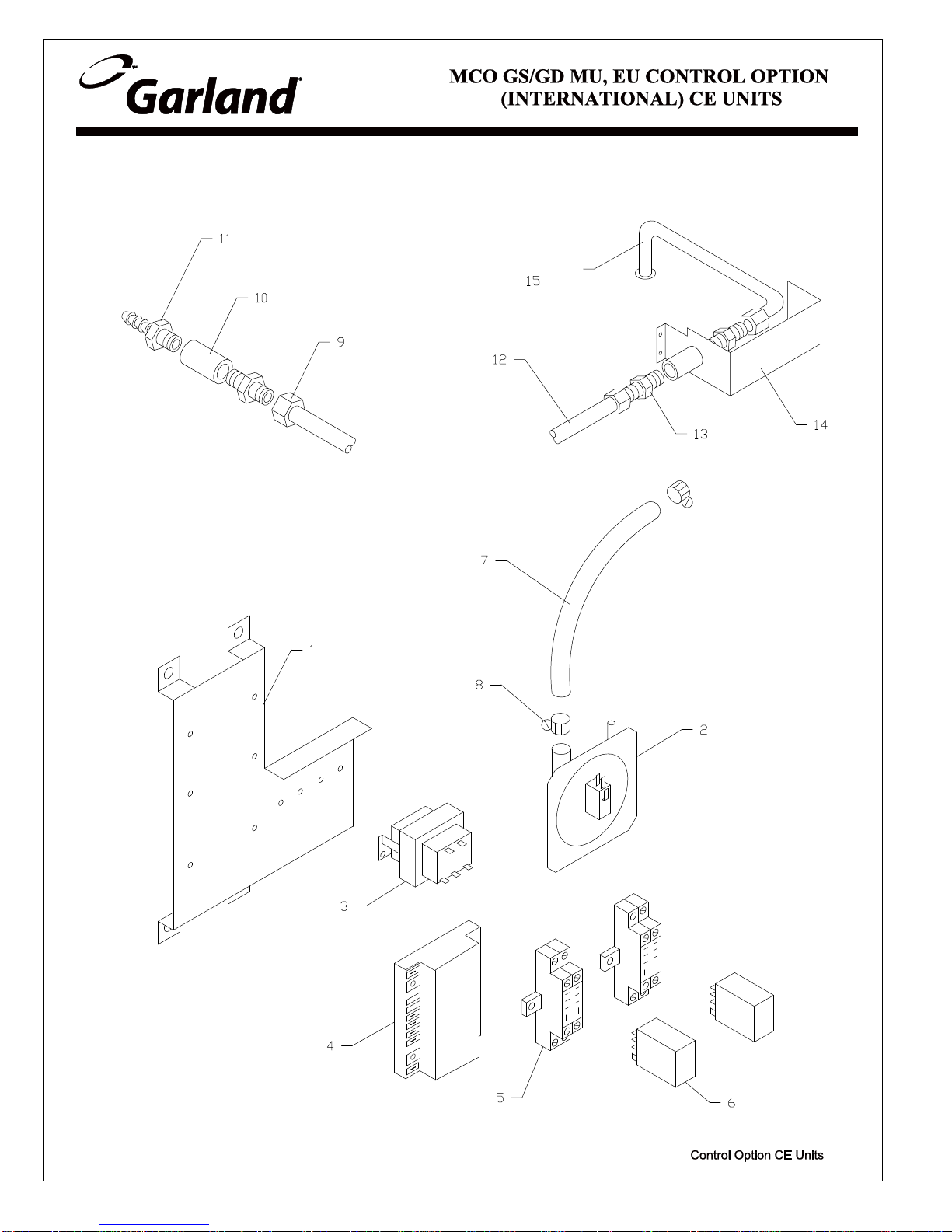

GARLAND PARTS IDENTIFICATION
CONTROL OPTION SECTION MCO-GS/GD-10 MU, EU MODELS-CE UNITS
ITEM PART # DESCRIPTION MCO-GS/GD-10 MU, EU

QTY FROM UP TO
1786449 Tail Pipe Std 1
1786448 Tail Pipe Deep 1
2 1026733 1/2 NPT Street Elbow 90 Deg. 1
3 1026903 Union 1/2" NPT 3
4 1004640 Close Nipple 1/2"NPT x 1" Lg 1
5257970
0
Multi Function Gas Valv
e
1
6 1004642 Nipple 1/2" NPT x 2" 1
7 1838501 Supply Manifold 1/2" Pipe 1
1800902 Venturi Plate 60K BTU 1 Feb-97
1800903 Venturi Plate 60K / 80K BTU 1 Feb-97
9 1801298 Burner Mounting Bracket RT S/W 1
10 1801299 Burner Mounting Bracker LT S/W 1
11 1814601 Burner Pkg Mounting Bracket 2
12A 1786801 Burner Rest 1
12B 1847602 Carry Over Shield (as required) 3
1803501 Inshot Burner 3 Feb-97
1803501 Inshot Burner 4 Feb-97
1804348 Natural Orifice 80K BTU. (.078") 3 Feb-97
1804350 #50 - Natural Orifice 60K BTU 4 Feb-97
1804355 #55 - LP Burner Orifice 3 Feb-97
1804356 #56 - Propane Orifice - 60K BTU 4 Feb-97
15 G02251-1 Pressure Test Spigot 1
16 1784442 Manifold Pipe 1
4523601 Service Kit - Ignitor & Bracket MCO C
E
1
1902001 Electrode Assembly (cw 36" wire) 1 Jan-98
190200
2
Direct Spark Ignition 1 Jan-98
CK403
8
Spark Igniter & Sensor Conv. Kit 1
18 181500
2
Hi Tension Ignition Wire 1
19 1815003 Flame Sensor Wire 48" 1
2579701 Plug With Cord 1
2579702 Gasket & Screw 1
21 4520002 Adapter Bracket Inshot Burner 1 11-Apr-05
GARLAND PARTS IDENTIFICATION
BURNER PACKAGE SECTION MCO-GS/GD-10 MU, EU MODELS-CE UNITS
ITEM PART # DESCRIPTION MCO-GS/GD-10 MU, EU
20
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
1
8
13
14
17

QTY
FROM
UP TO
1A 1664802 Door Handle - Black 1Feb-97
1B 1840999 Door Handle - Black 1Feb-97
2 1562604 Door Handle End Black - Bottom 1Feb-97
3 1562605 Door Handle End Black - Top 1Feb-97
4 8003800 Set Screw Socket (3 PC. Handle Only) 2Apr-98
1803703 Left Door Panel - Window 1
1803704 Left Door Panel - Solid 1
6 1010999 Oven Door Window (3/16" Glass) 1
7 1757998 Latch Bench Assy. 1Aug-95
1810201 Door Catch 1Apr-97
1841201 Door Catch 1Apr-97
9* 1803797 Left Door Frame W/A NLA Replaced By CK1803795 -A or CK1803796 -A
10 1302800 Upper Door Bearing Retainer 2
11 1010589 Hinge Bracket Ass'y W/Bearing 2
12 1011201 Steel Tubing Chrome Spacer 2
1803706 Left Door Liner Only-Window-NLA-Replaced by CK1803795 -A
1803705 Lt.Door Liner Only-Solid-NLA-Replaced by CK1803796 -A
CK1803795-A Lt Door Liner + Frame-Window, with Welded Cam 1Apr-97
CK1803796-A Lt Door Liner + Frame - Solid, with Welded Cam 1Apr-97
1803711 Rt Door Panel - Window 1
1803712 Rt Door Panel - Solid 1
1803798 Rt Door Frame-Window, with Welded Cam-NLA (R/B CK1803793-A or B)
1803799 Rt Door Frame-Solid with Welded Cam-NLA (R/B-CK1803794-A )
1803709 Rt Door Liner Only-Window-NLA (R/B CK1803793 -A or B)
1803710 Rt Door Liner Only-Solid-NLA (R/B CK1803794 - A or B)
CK1803791-A Rt Door Liner + Frame-Window,W/Welded Cam. (before Mar-99)
CK1803794-A Rt Door Liner + Frame-Solid,W/Welded Cam (before Mar-99)
17 1805801 Micro Switch Mounting Bracket 1Mar-99
18 1019600 Door Micro Switch 1Mar-99
19A 1663201 Handle Bracket Plate (used with 3 pc handle only) 1May-96 Feb-97
19B 8003406 Hex Head Machine Screw 1/4-20 X 1" 2Feb-97
20 1014201 Connecting Door Rod - Short (Not sold separately) 2
21 1014200 Connecting Door Rod - Long (Not sold separately) 2
22 1015000 Turnbuckle 1/4-20 with 4" Take Up (Dependent Door Only) 2
Door Chain Assembly
Included 23A & 23B Fully Assembled
23A 1021100 Roller Chain #40 (Dependent Door Only) 2
23B 1021299 Connecting Links #40 Components 4
1679301 Bottom Door Seal 1Feb-97
1841401 Bottom Door Seal Froward 1Feb-97
1679303 Side Door Seal 2Feb-97
1841403 Side Door Seal Forward 2Feb-97
1679302 Top Door Seal 1Feb-97
1841402 Top Door Seal Forward 1Feb-97
27 1841404 Side Door Seal Std. / Retro Fit 1Feb-97
Rt Door Ass'y Solid, W/Welded Cam, Dep. (before Mar-99)
CK1803785-A
CK1803784-A
24
25
26
23 4520166 2
16
CK1803789-A
CK1803788-A
COMPLETE DOOR ASSEMBLY PART NUMBERS
Lt Door Ass'y W/ Window, Welded Cam, 1 pc. Handle Dep. (all MCO-GS/GD models)
Lt Door Ass'y Solid, W/Welded Cam, 1 pc. Handle, Dep. (all MCO-GS/GD models)
8
13
14
15*
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
GARLAND PARTS IDENTIFICATION
DEPENDENT DOOR SECTION MCO-GS/GD-10 MU, EU MODELS-CE UNITS
ITEM PART # DESCRIPTION MCO-GS/GD-10 MU, EU
5
Rt Door Ass'y W/Window,Welded Cam,Dep.(before Mar-99)

QTY
FROM
UP TO
1
G02952-01P
Blower Wheel Assembly Plated
1
2 1782198 Motor Pocket 1
31686712 Motor 3/4 HP, 208/240V, 2 Speed 1Jun-97
1784301 Oven Vent Cap - 40K 2
1784302 Oven Vent Cap - 60K 2
1784303 Oven Vent Cap - 80K 2
5 8004005 Allen Head Cap Screws - 1/4 - 20 4
6 1802999 Fan Cover, SS S/W 1
7A 1782599 Fan Cover Duct, Left 1
7B 1782598 Fan Cover Duct, Right 1
1785997 Fan Duct Restrictor - 80K 2
1785998 Fan Duct Restrictor - 60K 2
1785999 Fan Duct Restrictor - 40K 2
8 1025900 Light Socket Gasket 2
9 1623900 Light Bulb 40W 2
10 1676901 Glass Hi Temp 1
11 1606801 Glass Frame Left 1
12 1606802 Glass Frame 1
13 1025800 Lamp Socket - Porcelain 2
14 1678701 Light Box 1
1607000 Master Conv Oven Rack- Standard 23" x 28" 6
1607010 Master Conv Oven Rack - Deep 27 "x 28" 6
1607001 Oven Rack Guide - Standard 23" x 28" 2Feb-97
1704531 Oven Rack Guide 10 Pos. Left - 21" x 23" 1Feb-97
1704532 Oven Rack Guide 10 Pos. Right - 21" x 23" 1Feb-97
1704511 Oven Rack Guide 13 Pos. Standard - 24" x 20" 2Feb-97
1704535 Oven Rack Guide 13 Pos. Left - 20" x 23" 1Feb-97
1704536 Oven Rack Guide 13 Pos. Right - 20" x 23" 1Feb-97
1704502 Oven Rack Guide - Deep - 28" x 20" 2Feb-97
1704533 Oven Rack Guide - 10 Pos. Left -Deep - 20" x 27" 1Feb-97
1704534 Oven Rack Guide - 10 Pos. Right- Deep -20" x 27" 1Feb-97
1704512 Oven Rack Guide - 13 Pos. Deep - 20" x 28" 2Feb-97
1704537 Oven Rack Guide - 13 Pos. Left - Deep - 20" x 27" 1Feb-97
1704538 Oven Rack Guide - 13 Pos. Right - Deep - 20" x 27" 1Feb-97
17A 1317600 Rack Guide Clip 4Jun-95
1676801 Rack Guide Clip 6Jun-95 May-96
1676801 Rack Guide Clip 4May-96 Feb-97
17C 1765209 Rack Mounting Clip 2Feb-97 Sep-98
17D 1765212 Rack Clip 4Sep-98
17E 1765210 Lower Rack Guide Clip - A 2Mar-97
17F 1765211 Lower Rack Guide Clip - B 2Mar-97
18 1317601 Rack Guide Hold Down Bracket 2May-97
19 1014500 Blower Inlet Cover 1
20 1015799 Capillary Tube Guard 1Sep-95 Dec-98
4
15
16
7C
17B
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
GARLAND PARTS IDENTIFICATION
OVEN COMPONENTS MCO-GS/GD-10 MU, EU MODELS-CE UNITS
ITEM PART # DESCRIPTION MCO-GS/GD-10 MU, EU

QTY
FROM
UP TO
21 1800801 Sensing Probe Bulb Shield 1Dec-98
22 1676811 Rack Guide Clip 2May-96 Apr-98
23 1803813 Front Frame Hinge Channel Bottom 1
1809699 Oven Light Patch - Porcelain 1
1809601 Oven Light Patch - SS 1
25*
CK1003091
Motor Ass'y - 2 Speed - 208/240V
GARLAND PARTS IDENTIFICATION
OVEN COMPONENTS MCO-GS/GD-10 MU, EU MODELS-CE UNITS
ITEM PART # DESCRIPTION MCO-GS/GD-10 MU, EU
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
24

NOTES

QTY
FROM
UP TO
1802801 Main Top GG 1
1802802 Main Top SS 1
1785402 Body Side Left SS 1
1785404 Body Side Left GG 1
1785401 Body Side Right SS 1
1785403 Body Side Right GG 1
1785398 Control Panel Right S/W 1
1785399 Control Panel Right SS S/W 1
5 1802701 Control Panel Left 1
6 1807201 Combustion Chamber Gas 1
7 1802299 Trim Cap Veneer S/W 1
8 1829101 Main Top Side Trim 2
1818201 Oven Vent Protection Plate - Std 1
1818203 Oven Vent Protection Plate - Deep 1
1805299 Leg - Single Deck - Black - 23 15/16" 4
1805298 Leg - Single Deck - SS - 23 15/16" 4
1805399 Leg - Double Deck - Black - 5" 4
1805398 Leg - Double Deck - SS - 5" 4
11A 1236100 1-1/2" Square Foot Insert 4
11B CK1236100 Deck Fastener / Bolt-Down Leg (optional) 1 PER LEG
12 1775102 Caster Insert - Single Deck Only 4
1027500 Caster - Single Deck Only 2
1027501 Caster W/Brake - Single Deck Only 2
1821598 Caster - Double Deck Only 2
1821599 Caster W/Brake - Double Deck Only 2
1821596 Lo-Profile Caster - Double Deck Only 2
1821597 Lo-Profile Caster W/Brake - Double Deck Only 2
15 1029426 3/8 BX Cable 26" Long 1
16 1823001 Element Wire Raceway 1
17 1827901 Transformer Shield 1
18 1032504 Knockout Plate 1Sep-95
19 1029501 8' Long Power Supply Cord 1
1030801 Transformer 240V 0.15 KVA (Hi Voltage Gas Units) 1
1030802 Transformer 208V 0.15 KVA (Hi Voltage Gas Units) 1
21 1193900 Terminal Block - 3 Pole-Hi Voltage 1
22 1809201 Element Patch 1
1820301 Main Back Std SS 1
1820302 Main Back Std GG 1
1820303 Main Back - Deep SS 1
1820304 Main Back - Deep GG 1
24 1919001 Cooling Fan Guard (OBS) 1Mar-99
25* 1782001 Instruction Label 1May-96
9004500 Garland Logo (Use 1902919) 1Feb-96 Apr-98
1902917 10" GARLAND Nameplate 1
20
23
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
9608CJ146
9608CJ146
26
1
2
3
4
9
10
13
14
GARLAND PARTS IDENTIFICATION
MAIN EXTERIOR MCO-GS/GD-10 MU, EU MODELS-CE UNITS
ITEM PART # DESCRIPTION MCO-GS/GD-10 MU, EU

REV. # PAGE # ITEM # NOTE DATE
1 Book reformated Nov 8/05
2 10,11 21 Part number added Dec 20/05
Front page title changed
5 Part # deleted, was CK4028 (MCO GS/GD -10 - Digital To Manual 240V)
7 11 Note Added
2 Part # changed - was 2579900
7 Part # changed - was 1839402 (1/4" Blue Rubber Tubing - 16" LG)
8 Part # changed - was 1518100 (Mini Hose Clamp)
12 No Longer Available
15 Part # changed - was 1900802
11 17 Part # changed - was 2580800 (Ign Electrode / Flame Sensor) by 4523601
May 3/10
9
3
GARLAND PARTS IDENTIFICATION
Revision History
