Garland A&W CG-24/36/48/60RFB User manual

G_GC_PL_CHAINCOUNTER_AWCGRFB (Rev 11)
Phone (US & Canada): 1 800 427 6668
Fax (US & Canada): 1 800 361 7745
http://www.Garland-Group.com
A&W GAS CHAIN GRIDDLE
models CG-24/36/48/60RFB

Page 3G_GC_PL_CHAINCOUNTER_AWCGRFB (Rev 11)
Contents:
Gas Chain Griddle Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
Equipment Stands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 10
A&W GAS CHAIN GRIDDLE
models CG-24/36/48/60RFB

Page 4 G_GC_PL_CHAINCOUNTER_AWCGRFB (Rev 11)

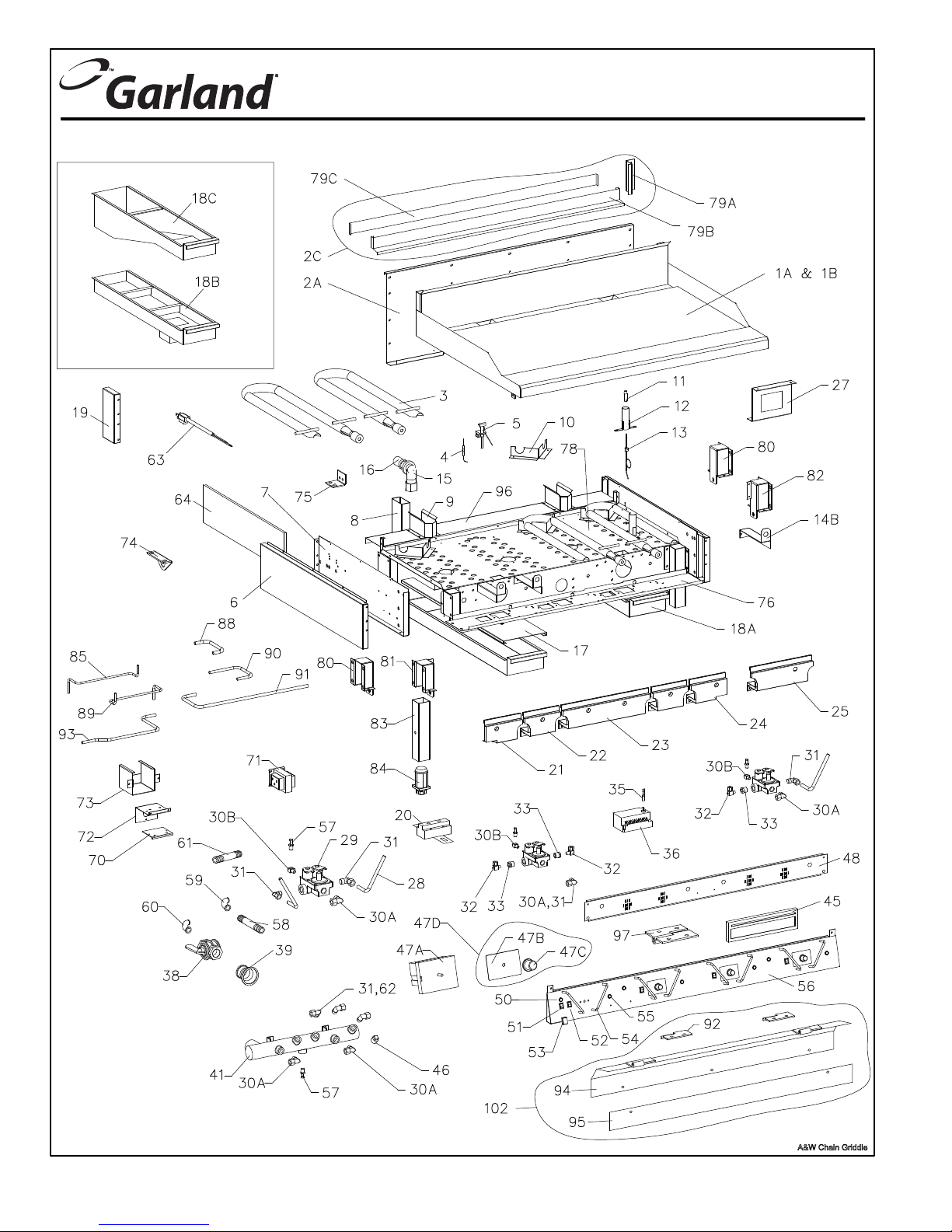

A&W Front Burnter Gas Chain Griddle Components
models: CG-24/36/48/60RFB

Page 5G_GC_PL_CHAINCOUNTER_AWCGRFB (Rev 11)
GARLAND PARTS IDENTIFICATION
A&W Front Burner Gas Chain Griddle Components
MODELS CG-24/36/48/60RFB
ITEM PART# DESCRIPTION QUANTITY CRITICAL
24RFB 36RFB 48RFB 60RFB
1A
2473699 Rear Standard Griddle Plate Assy 24” 1
2449699 Rear Standard Griddle Plate Assy 36” 1
2428699 Rear Standard Griddle Plate Assy 48” 1
2440999 Rear Standard Griddle Plate Assy 60” 1
1B
2473698 Rear Griddle Assy 24” Satin (Option) 1
2449698 Rear Griddle Assy 36” Satin (Option) 1
2428698 Rear Griddle Assy 48” Satin (Option) 1
2440998 Rear Griddle Assy 60” Satin (Option) 1
2A
2465600 Flue Panel 1
2449200 Flue Panel 1
2403500 Flue Panel 1
2440700 Flue Panel 1
2C
4525607 Kit – CG Flue Extend 24” (Propane Gas Only) 1
4525608 Kit – CG Flue Extend 36” (Propane Gas Only) 1
4525609 Kit – CG Flue Extend 48” (Propane Gas Only) 1
4525610 Kit – CG Flue Extend 60” (Propane Gas Only) 1
3
4523314 CG Burner Assembly Natural FB – L/H 1122 C
4524177 CG Burner Propane FB – L/H Assembly 1122 C
4523313 CG Burner Assembly Natural FB – R/H 1223 C
4524176 CG Burner Propane, FB – R/H Assembly 1223 C
3A*
Units manufactured before serial# 07071001000010 will require the following burner kits:
4523318 Kit – CG Burner Assembly Natural, FB – L/H C
4524182 Kit _ CG Burner Propane FB – L/H C
4523319 Kit – CG Burner Assembly ,Natural FB – R/H C
4524181 Kit – CG Burner Propane, FB – R/H C
41466100 Flame Sensor 1223 C
52290404 Pilot Assembly - Natural Gas 1223 C
2290401 Pilot Assembly - Propane Gas 1223 C
6 2513899 Side Panel Assembly 2222
72513798 Body End Assembly - Left 1111
2513799 Body End Assembly - Right 1111
8 2401499 Rear Grease Chute Assembly 1122
9 2429900 Grease Chute Seal 1122
10 2408900 Rear Burner Support Griddle 2345
11 2423600 Bayonet Adapter 2345
12 2400699 Probe Shield Assembly 2345
13 4522537
Kit “J” Thermocouple w/Thermal Compound
NOTE: Kit Includes a “J”Thermocouple Bayonet Mount P/N
2423501 & Thermal Compound P/N 4522185.
2345 C
13A* 4522185 Thermal Compound, 4 Grams 120-SA (for item# 13)
14B 2443000 Single Burner Mounting Bkt 2345
15 2431900 Orice Fitting Assembly - (Orice hood not included) 2345
16 M8-38 Orice Hood - Natural 2345 C
M8-52 Orice Hood - Propane 2345 C
17 2429000 Pan Slide 1122
18A 2430099 Rear Grease Pan Assembly (Standard) 1122
18B 2430098 Rear Grease Pan Assembly w/ Grease Spout (Option) 1122
18C 2538399 Grease Drawer Assembly Deep (Option) 1122
19 2674400 Bracket Rear Stando 2222
20 3050400 Miniature Terminal Block Assembly 1111
21 4520470 End Radiation Shield Assembly LH 1111
22 4520472 Double Burner Radiation Shield Assembly 1121
23 4520469 Double Radiation Shield Assembly 1 2
24 4520471 End Radiation Shield Assembly RH 1111
25 4520486 Burner Shield Assembly End 1 1
27 2432900 Grease Tray Slide Support 1122
28 2439200 Burner Tube 2244
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS

Page 6 G_GC_PL_CHAINCOUNTER_AWCGRFB (Rev 11)
GARLAND PARTS IDENTIFICATION
A&W Front Burner Gas Chain Griddle Components
MODELS CG-24/36/48/60RFB
ITEM PART# DESCRIPTION QUANTITY CRITICAL
24RFB 36RFB 48RFB 60RFB
29
2405100 Gas Control Regulator Natural 60Hz 2334 C
2405102 Gas Control Regulator Natural 50Hz 2334 C
2405101 Gas Control Regulator Propane 60Hz 2334 C
2405103 Gas Control Regulator Propane 50Hz 2334 C
30A G02352-1 Elbow 3/8 NPT to 7/16cc 2346
30B G01917-1 Elbow 1/8 NPT - STR Brass 2223
31 076050-26 Elbow Comp. 69-6C.3/8T X 3/8M. 4368
32 G03674-3 1/8” NPT Pilot Valve 1223
33 076029-1 44 Reducing Bushing 3/8 X 1/8 1223
35 2043600 Spark Plug Cover 1223
36
2152700
Ignition Control - No Longer Available
To service an equipment manufactured up to June 8/10,
use Ignition Module Service Kit 4530028.
1223 C
4530025
Ignition Module - 3-Tries Fenwal
For equipments manufactured after: (date) June 9/10,
(model) CG-72R-0016, (serial#) 1006100100101.
1223 C
38 G01518-1 Shut-O Valve 1111
39 2437100 1” - 3/4” Reducing Adapter 1 1
41 2450099 Manifold Assembly 1 1
2411099 Manifold Assembly 1 1
45 4529725 Nameplate - Garland 1111
46 G01747-3 Pipe Plug 3/8 NPT 1121
47A 2432000 Electronic Thermostat 2345
47B 4515805 Dial Scale Deg F 450 (Insert 150 To 450) 2345
47C 4516733 Dial W/Pointer 1.71” Dia. 2345
47D 4516847 Dial and Scale Kit (Includes Item# 47B & 47C) 2345
48
2448800 Upper Front Panel 1
2402200 Upper Front Panel 1
2440500 Upper Front Panel 1
2448900 Upper Front Panel
50 G04055-2 Green Light 2334
51 2423301 Switch SPST 1801 - 1119 Marquard 1111 C
52 2423300 Switch SPST 1801 - 1146 Marquard 2345 C
53 2423400 Protection Cap 3456
54 2432100 Handle (Knob Guard) 4 6 8 10
55 G04055-1 Amber Light 2345
56
2673200 Lower Front Panel 1
2449099 Lower Front Panel 1
2402399 Lower Front Panel 1
2440699 Lower Front Panel 1
2449199 Lower Front Panel
57 G02251-1 Pressure Test Spigot 3445
58 G01738-4 3/4” NPT x 2 1/2” Nipple 1111
59 G01474-3 3/4” NPT to 1” NPT 90° Elbow Reducer
60 G01474-5 3/4” NPT Elbow
61 G01738-5 3/4” NPT x 6 1/2” Nipple
62 076050-90 7/16 CC X 1/4 NPT Compre Elbow 2 3
63 4523399 Power Cord 9Ft. 3/14GA 15Amps SJ00W 1111
64 078100-15 32.5” x 8” x 0.5” Insulation 2222
70 2437500 Transformer Support Plate 1 1 1
2501400 Transformer Bracket - Export 1 1 1
71
G03559-1 Transformer - 24V - 120V 1 1 1 C
2582500 Transformer - 115V - 208V - 240V 1 C
2283700 Transformer - 208V - 240V, 50/60Hz 1 1 1 C
72 2501200 Electrical Box - Top 1111
73 2501300 Electrical Box - Bottom 1111
74 2452800 Restraining Bracket 2222
75 2426700 Pilot Bracket 1223
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS

Page 7G_GC_PL_CHAINCOUNTER_AWCGRFB (Rev 11)
GARLAND PARTS IDENTIFICATION
A&W Front Burner Gas Chain Griddle Components
MODELS CG-24/36/48/60RFB
ITEM PART# DESCRIPTION QUANTITY CRITICAL
24RFB 36RFB 48RFB 60RFB
76
2456700 Valve Panel - 24” 1
2477400 Valve Panel - 36” 1
2435600 Valve Panel - 48” 1
2441000 Valve Panel - 60” 1
78
2516700 Body Frame 1
2516701 Body Frame 1
2516702 Body Frame 1
2516703 Body Frame 1
79A 2428900 Flue Spacer 2233
79B
4525002 Flue Extension Front 24” 1
4524178 Flue Extension Front 36” 1
4524185 Flue Extension Front 48” 1
4525006 Flue Extension Front 60” 1
79C
4525003 Flue Extension Back 24” 1
4524179 Flue Extension Back 36” 1
4524186 Flue Extension Back 48” 1
4525007 Flue Extension Back 60” 1
80 3063100 Leg Mount 2222
81 3063198 Leg Mount Assembly Left 1111
82 3063199 Leg Mount Assembly Right 1111
83 3073602 Griddle Leg 4444
84 G02954-1 2” Square Foot Insert 4444
85 4520494 1/4” Dia. Tubing - Solenoid - Pilot Left 1111
88 4520493 7/16” Dia. Tubing - Solenoid - Manifold Centre 1 1
89 4520495 1/4” Dia. Tubing - Solenoid - Pilot Right 1 1
90 4520491 3/8” Dia. Tubing - Solenoid - Manifold Centre 1 1
91 4520492 7/16” Dia. Tubing - Solenoid - Manifold Left 1 1
92 2585300 Half Hinge 2222
93 4520497 3/8” Dia. Tubing - Solenoid - Manifold Right 1
94
4515980 Guard Mount Assembly 24” 1
4515981 Guard Mount Assembly 36” 1
4515982 Guard Mount Assembly 48” 1
4515983 Guard Mount Assembly 60” 1
95
4515777 Control Guard 24” 1
4515778 Control Guard 36” 1
4515779 Control Guard 48” 1
4515780 Control Guard 60” 1
96
2428804 24” Flue Filler 1
2428802 36” Flue Filler 1
2428800 48” Flue Filler 1
2428801 60” Flue Filler 1
97 2471400 Hinge Set w/Holes - Lower Front Panel Assembly 2222
98* F12 Screw 10-24 x 1/2” HD Slot/SS
(Fastener For Mounting Panel) 2345
99* F90 Nut 10-24 Steel Nickel
(Fastener For Mounting Shield) 2345
100*
2436501 Wiring Diagram 24”
2436601 Wiring Diagram 36”
2436701 Wiring Diagram 48”
2436801 Wiring Diagram 60”
101*
2436600 Schematic 36”
2436700 Schematic 48”
2436800 Schematic 60”
4522248 Owners Manual
102
4516842 Guard Kit 24” (Includes Item# 92, 94 & 95) 1
4516843 Guard Kit 36” (Includes Item# 92, 94 & 95) 1
4516844 Guard Kit 48” (Includes Item# 92, 94 & 95) 1
4516845 Guard Kit 60” (Includes Item# 92, 94 & 95) 1
4516846 Guard Kit 72” (Includes Item# 92, 94 & 95)
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS

STAND ASSEMBLY - CASTERS
STAND ASSEMBLY - BULLET LEG
+


*
"

Stand Griddle
Page 8 G_GC_PL_CHAINCOUNTER_AWCGRFB (Rev 11)
A&W Gas Chain Griddle - Equipment Stand
models: CG-24/36/48/60RFB

Page 9G_GC_PL_CHAINCOUNTER_AWCGRFB (Rev 11)
GARLAND PARTS IDENTIFICATION
A&W Gas Chain Griddle Equipment Stands
MODELS CG-24/36/48/60RFB
ITEM PART# DESCRIPTION QUANTITY
24RFB 36RFB 48RFB 60RFB
109 G02954-1 2” Square Foot Insert 4444
110 4518094 Swivel Caster W/Brake 2222
4518093 Swivel Caster 2222
111
3098302 Stand Shelf 24” 1
3098303 Stand Shelf 36” 1
3098300 Stand Shelf 48” 1
3098304 Stand Shelf 60” 1
112A
3098096 Stand Assembly 24” Bullet Leg 1
3098094 Stand Assembly 36” Bullet Leg 1
3098098 Stand Assembly 48” Bullet Leg 1
3098092 Stand Assembly 60” Bullet Leg 1
112B
3098097 Stand Assembly 24” Casters
3098095 Stand Assembly 36” Casters
3098099 Stand Assembly 48” Casters
3098093 Stand Assembly 60” Casters
113* 2437200 Lighting Instructions Label 1111
114* 4523119 Label – Regulator 1111
115* 4523374 Label – Keep Flue Clean 1111
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS

Page 10 G_GC_PL_CHAINCOUNTER_AWCGRFB (Rev 11)
GARLAND PARTS IDENTIFICATION
Revision History
REV# PAGE# ITEM# NOTES DATE
0 New Parts List May 17/07
15 5
Part Number 2290404 Quantity On
Model 24RFB Changed to 1 Aug 10/07
2
4,5 14A Part # Deleted – Was 2403000
(Double Burner Mounting Bracket)
Dec 03/07
5
14B Quantity Changes In All Models
3
Part # Deleted – Was 4522144
(Burner w/Front Tube L/H Grill)
Part # Deleted – Was 4522143
(Burner w/Front Tube R/H Grill)
3A Part Kit Part Number Added – Units before
Serial # 07071001000010
9 112,113,114 New Part Number Added
5,6,7 Critical Column Added
3
4 New Drawing – 2C part Added
Mar 10/08
5
2C New Part Number Added
3, 3A Description Changed
3Part Number 4524177 Added – Critical Part
Part Number 4524176 Added – Critical Part
3A Part Number 4524182 Added – Critical Part
Part Number 4524181 Added – Critical Part
4
4 New Drawing
May 5/085 2B
Item Number Removed - Part Numbers Were:
4522148 (Flue Restricter – 24”(Natural Gas Only))
4522149 (Flue Restricter – 36”(Natural Gas Only))
4522150 (Flue Restricter – 48”(Natural Gas Only))
4522151 (Flue Restricter– 60”(Natural Gas Only))
2C Note Added , (Propane Only)
7 79B, 79C New Part Numbers Added
5 6 63 New Part Number – Was G2840-2 (Cord & Plug 9FT 3/14 wire 15A) Jul 09/08
65 2C
New part number 4525607 was 4525005
New part number 4525608 was 4524183
New part number 4525609 was 4524184
New part number 4525610 was 4525009
Aug 20/08
7
4 New Drawing
Jan 29/096 47D New Part Number Added
7 102
8 5 13 Part number changed - was 2423501(J Thermocouple) Aug 07/09
9 6 36 Part added for use with equipment manufactured after June 9, 2010 Jun 17/10
10 636
• Service Kit Part# changed from 4527306 to 4530028.
• New module 4530025 replaced module 4527002 as
of: (date) Sep 23/11, (model) CG-48R-0036, (serial#)
1109100101108.
Nov 21/11
645
New Garland nameplate 4529725 replaced the old 3077101.
11 6 71 Transformer - New 2283700 replaced 1636000. Jan 13/12
