Garland PASTA MAGIC User manual

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/21
Users are cautioned that maintenance and repairs must be performed by a Garland authorized service agent
using genuine Garland replacement parts. Garland will have no obligation with respect to any product that has been
improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation
instructions provided with the product, or any product that has its serial number defaced, obliterated or removed, or
which has been modified or repaired using unauthorized parts or by unauthorized service agents.
For a list of authorized service agents, please refer to the Garland web site at http://www.garland-group.com.
The information contained herein, (including design and parts specifications), may be superseded and is subject
to change without notice.
WARNING:
IMPROPER INSTALLATION, ADJUSTMENT,
ALTERATION, SERVICE OR MAINTENANCE
CAN CAUSE PROPERTY DAMAGE, INJURY,
OR DEATH. READ THE INSTALLATION,
OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR
SERVICING THIS EQUIPMENT
PLEASE READ ALL SECTIONS OF THIS MANUAL
ANDRETAIN FOR FUTURE REFERENCE.
THIS PRODUCT HAS BEEN CERTIFIED AS COM-
MERCIALCOOKING EQUIPMENT AND MUST BE
INSTALLED BYPROFESSIONAL PERSONNEL AS
SPECIFIED.
IN THE COMMONWEALTH OF MASSACHU-
SETTS THISPRODUCT MUST BE INSTALLED BY A
LICENSED PLUMBEROR GAS FITTER. APPROVAL
NUMBER: G-1-07-05-28
Original Document
Bring Your Passion to the Surface
INSTALLATION AND
OPERATION MANUAL
“PASTA MAGIC”
GAS PASTA COOKER
C
US

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/212
IMPORTANT INFORMATION
DANGER
FOR YOUR SAFETY, DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE LIQUIDS OR VAPORS IN THE VICINITY OF THIS
OR ANY OTHER APPLIANCE.
DANGER
THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND/OR BIRTH DEFECTS
OR OTHER REPRODUCTIVE HARM.
Operation, installation, and servicing of this product could expose you to airborne particles of glasswool or ceramic fibers,
crystalline silica, and/or carbon monoxide. Inhalation of airborne particles of glasswool or ceramic fibers is known to the
State of California to cause cancer. Inhalation of carbon monoxide is known to the State of California to cause birth defects
or other reproductive harm.
DANGER
POST IN A PROMINENT LOCATION THE INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE USER SMELLS GAS. THIS
INFORMATION SHALL BE OBTAINED BY CONSULTING THE LOCAL GAS SUPPLIER
THIS EQUIPMENT IS TO BE INSTALLED IN COMPLIANCE WITH THE BASIC PLUMBING CODE OF THE BUILDING OFFICIALS AND
CODE ADMINISTRATORS INTERNATIONAL, INC. (BOCA) AND THE FOOD SERVICE SANITATION MANUAL OF THE FOOD AND
DRUG ADMINISTRATION.
GARLAND PASTA COOKERS EQUIPPED WITH LEGS ARE FOR PERMANENT INSTALLATION. FOR MOVEABLE OR PORTABLE
INSTALLATION, GARLAND OPTIONAL EQUIPMENT CASTERS MUST BE USED.
For Questions CALL 1-844-724-2273.
Do not use deliming solution to clean water bath units. Use of deliming solution will damage all stainless steel parts
COMPUTERS
FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device
may not cause harmful interference, and 2) This device must accept any interference received, including interference that
may cause undesired operation. While this device is a verified Class A device, it has been shown to meet the Class B limits.
CANADA
This digital apparatus does not exceed the Class A or B limits for radio noise emissions as set out by the ICES-003 standard
of the Canadian Department of Communications.
Cet appareil numerique n’emet pas de bruits radioelectriques depassany les limites de classe A et B prescrites dans la
norme NMB-003 edictee par le Ministre des Communcations du Canada.

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/21 3
TABLE OF CONTENTS
IMPORTANT INFORMATION........................2
General Information ..............................4
Parts Ordering and Service Information ......................4
Safety Information ..........................................4
Equipment Description ......................................4
Model Comparison ..........................................5
Installation, Operating and Service Personnel ................5
Shipping Damage Claim Procedure ..........................5
Installation Instructions ...........................6
General Installation Requirements ...........................6
Caster/Leg Installation.......................................7
Pre-Connection Preparations ................................7
Connection to Gas Line ......................................8
Converting to Another Gas Type .............................9
Operating Instructions ...........................10
Finding Your Way Around the Pasta Cooker .................10

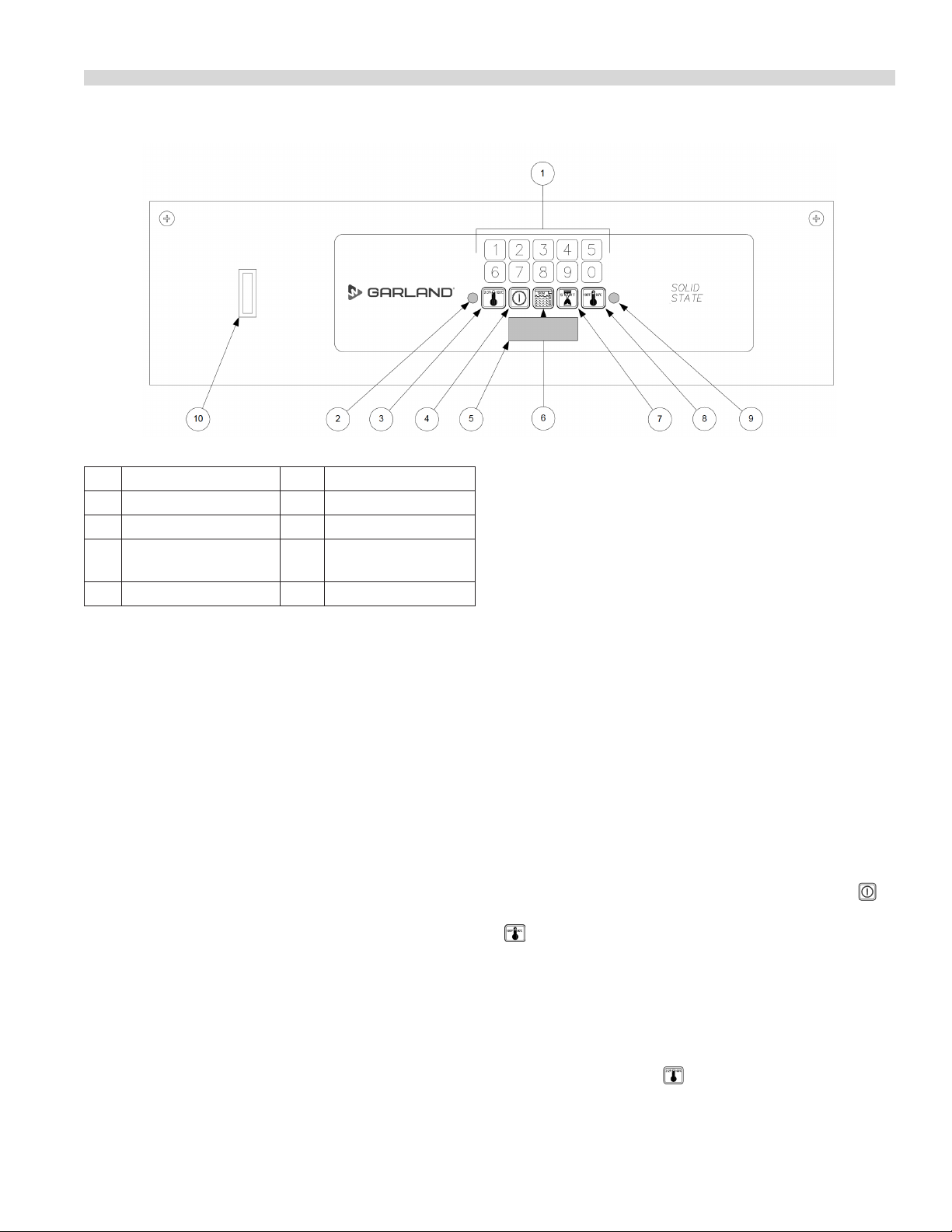

Controller ..................................................11
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Start-up Procedure .........................................12
Normal Operation ..........................................12
Boiling Out the Cookpot ....................................13
Shutting the Cooker Down .................................13
Preventive Maintenance..........................14
Daily Preventive Maintenance ..............................14
Cleaning the Gas Valve Vent Tube ...........................14
Cleaning and Adjusting the Combustion Air Blower .........14

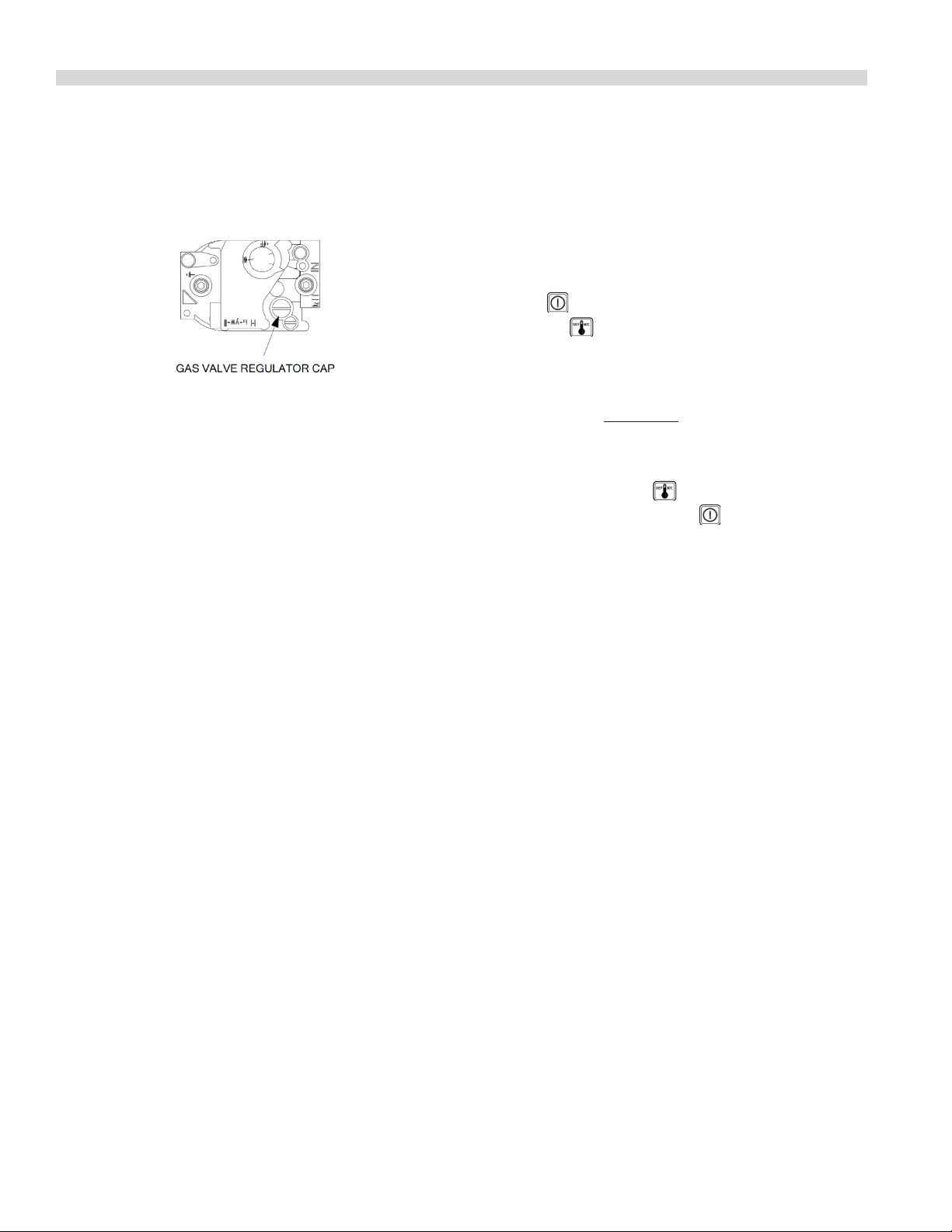

Adjusting the Burner Gas Pressure ..........................15
Measuring Flame Current ...................................16
Controller Simmer Mode Adjustment .......................16
Operator Troubleshooting.................... 18
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Operator Troubleshooting Guides ..........................19

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/214
GENERAL INFORMATION
RETAIN AND STORE THIS MANUAL IN A SAFE
PLACE FOR FUTURE USE
This appliance is only for professional use and
shall be used by qualied personnel only, as
dened in section - Installation, Operating and
Service Personnel.
Parts Ordering and Service Information
In order to assist you quickly, the Garland Factory Authorized
Servicer (FAS) or Service Department representative
requires certain information about your equipment. Most
of this information is printed on the data plate axed to
the inside of the cooker door. Part numbers are found
in the Installation, Operation, Service, and Parts Manual.
Parts orders may be placed directly with your local
FAS or distributor. A list of Garland Factory Authorized
Servicers (FAS’s) is located on the Garland website at www.
garlandcanada.ca. If you do not have access to this list,
contact Welbilt KitchenCare at 844-724-2273. When ordering
parts, the following information is required:
Model Number: ____________________________________
Serial Number: _____________________________________
Type of Gas or Voltage: ______________________________
Item Part Number: __________________________________
Quantity Needed: ___________________________________
Service information may be obtained by contacting your
local FAS/Distributor. Service may also be obtained by calling
Welbilt KitchenCare at 844-724-2273. When requesting
service, please have the following information ready:
Model Number: ____________________________________
Serial Number: _____________________________________
Type of Gas: _______________________________________
In addition to the model number, serial number, and type
of gas, please be prepared to describe the nature of the
problem and have ready any other information that you
think may be helpful in solving your problem.
Safety Information
Before attempting to operate your unit, read the instructions
in this manual thoroughly.
Throughout this manual, you will nd notations enclosed
in double-bordered Caution, Warning, and Danger boxes
similar to the ones below.
,CAUTION
Caution boxes contain information about actions or
conditions that may cause or result in a malfunction of
your system.
nWARNING
Caution boxes contain information about actions or
conditions that may cause or result in a malfunction of
your system.
DANGER
Danger boxes contain information about actions
or conditions that may cause or result in injury to
personnel, and may cause damage to your system and/
or cause your system to malfunction.
You will also find information boxes like the one below
containing valuable information regarding the safe
operation of the unit. The following is an example:
Standard for Incoming Gas Pressures
Gas Minimum Maximum
Natural 6.0”WC
1.62 kPa
16.19 mbar
14”WC
3.48 kPa
34.87 mbar
Propane 11”WC
2.74 kPa
27.37 mbar
14”WC
3.48 kPa
34.87 mbar
Equipment Description
Garland Pasta Magic gas cookers are specically designed
to deliver high volumes of cooked or blanched food
automatically. All models feature a unique infrared
burner system that delivers 80,000 BTUs (23.4 kW – 84.4,
megajoules) to cook 7.22 pounds (3.25kg) of dry pasta per
bulk basket. The unit can cook 30 pounds of dry pasta per
hour, the equivalent of 136 eight-ounce servings. It can also
retherm 12 individual servings of pasta, or other vacuum-
sealed foods, at a time. The cookpot measures 18 x 24 x 8
inches (457 x 610 x 203 mm) and holds 12.7 gallons (48-liters)
of water.

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/21 5
GENERAL INFORMATION Continued
Model Comparison
GPCRB/GPCR: The “Gas Pasta Magic System” consists of a
gas cooker and rinse tank combination. The unit is equipped
with a programmable controller, which controls water
temperature, water level, and cooking times. A swing-
away water faucet is standard. GPCRB units are equipped
with a programmable basket lift system, which lowers and
raises bulk or individualized portions of pasta.; GPCR units
are not equipped with a basket lift system. The cookpot
is safeguarded against over lling and boilover by a large
overow drain.
GPCB/GPC: These standalone cookers are essentially the
same as the GPCRB, but without the built-in rinse tank. GPCB
models have an automatic basket lift, automatic water lling,
and optional starch skimming. GPC models have no basket
lifts. The cookpot in both is safeguarded against over lling
and boilover by a large overow drain.
All Models: All units are equipped with automatic water
lling (Autoll). The Autoll feature maintains the cookpot
water level approximately 1-inch (32mm) below the overow
drain.
The optional Autoskim feature adds eight gallons at the
top of the cooker over a three minute interval. This causes
the water to swirl, moving surface starch to the overow
drain. The Autoskim feature eliminates the need for manual
skimming.
Installation, Operating, and Service Personnel
All installation and service on Garland equipment must be
performed by qualied, certied, licensed, and/or authorized
installation or service personnel.
QUALIFIED INSTALLATION PERSONNEL
Qualied installation personnel are individuals, rms,
corporations, and/or companies which, either in person or
through a representative, are engaged in and are responsible
for the installation of gas red appliances. Qualied
personnel must be experienced in such work, be familiar
with all gas precautions involved, and have complied with all
requirements of applicable national and local codes.
QUALIFIED OPERATING PERSONNEL
Qualied operating personnel are those who have carefully
read the information in this manual and have familiarized
themselves with the equipment functions, or who have had
previous experience with the operation of the equipment
covered in this manual.
QUALIFIED SERVICE PERSONNEL
Qualied service personnel are those who are familiar
with Garland equipment and who have been authorized
by Garland to perform service on Garland equipment. All
authorized service personnel are required to be equipped
with a complete set of service and parts manuals, and to
stock a minimum amount of parts for Garland equipment.
A list of Garland Factory Authorized Servicers (FAS’s) is
located on the Garland website at www.garlandcanada.ca.
Failure to use qualied service personnel will void the
Garland Warranty on your equipment.
Shipping Damage Claim Procedure
Your Garland equipment was carefully inspected and
packed before leaving the factory. The transportation
company assumes full responsibility for safe delivery upon
its acceptance of the equipment for transport.
What to do if your equipment arrives damaged:
1. File a claim for damages immediately, regardless of
the extent of damages.
2. Inspect for and record all visible loss or damage, and
ensure that this information is noted on the freight bill
or express receipt and is signed by the person making
the delivery.
3. Concealed loss or damage that was unnoticed until
the equipment was unpacked should be recorded and
reported to the freight company or carrier immediately
upon discovery. A concealed damage claim must be
submitted within 15 days of the date of delivery. Ensure
that the shipping container is retained for inspection.
GARLAND DOES NOT ASSUME RESPONSIBILITY FOR
DAMAGE OR LOSS INCURRED IN TRANSIT.

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/216
INSTALLATION INSTRUCTIONS
burner operation.
The cooker ue opening must not be placed close to the
intake of the exhaust fan, and the cooker must never have its
ue extended in a “chimney” fashion. An extended ue will
change the combustion characteristics of the cooker, causing
longer recovery time. It also frequently causes delayed
ignition.
When installed beneath a ventilation hood, adequate
distance must be maintained from the ue outlet of the
cooker to the lower edge of the ventilation lter bank. Filters
should be installed at an angle of 45° with a drip tray placed
beneath the lowest edge of the lter. For U.S. installation,
NFPA standard No. 96 states,“A minimum distance of 18
inches (450mm) should be maintained between the ue
outlet and the lower edge of the lter.”
For installations in other than the United States, installers
should contact the appropriate local or national agency
for information on the construction and installation of
ventilating hoods.
,CAUTION
DO NOT install this appliance directly over a drain
opening.
ELECTRICAL GROUNDING REQUIREMENTS
All electrically operated appliances must be grounded in
accordance with all applicable national and local codes. A
wiring diagram is located on the inside of the cooker door.
Refer to the rating plate on the inside of the cooker door for
the proper voltages.
DANGER
If this appliance is equipped with three-prong
(grounding) plug, it must be plugged directly into a
properly grounded receptacle. Do not cut or remove the
grounding prong from the plug.
DANGER
This equipment requires electrical power for operation.
Place the gas control valve in the OFF position in case of
a prolonged power outage.
Do not attempt to use the equipment during a power
outage.
General Installation Requirements
Qualied, licensed, and/or authorized installation
or service personnel, as dened in Section 1.5 of this
manual, should perform all installation and service on
Garland equipment.
Conversion of this appliance from one type of gas to
another should only be performed by qualied, licensed,
and/or authorized installation or service personnel as
dened in section - Installation, Operating and Service
Personnel.
Failure to use qualied, licensed, and/or authorized
installation or service personnel as dened in section -
Installation, Operating and Service Personnel, to install,
convert to another gas type, or otherwise service this
equipment will void the Garland warranty and may result
in damage to the equipment or injury to personnel.
Where conicts exist between instructions and
information in this manual and local or national codes or
regulations, installation and operation shall comply with
the codes or regulations in force in the country in which
the equipment is installed.
Upon arrival, inspect the cooker carefully for visible or
concealed damage. (See Shipping Damage Claim
Procedure.)
CLEARANCE AND VENTILATION
The cooker(s) must be installed with 6 inches (150mm)
clearance at both sides and back when installed adjacent
to combustible construction; no clearance is required
when installed adjacent to noncombustible construction.
A minimum of 24 inches (600mm) clearance should be
provided at the front of the cooker. To provide the airow
necessary for good combustion and burner operation, the
areas surrounding the cooker front, sides and rear must be
kept clear and unobstructed.
DANGER
This appliance must be installed with sufficient
ventilation to prevent the occurrence of unacceptable
concentrations of substances harmful to the health of
personnel in the room in which it is installed.
One of the most important considerations of ecient cooker
operation is ventilation. Cookers must be installed in an area
with an adequate air supply and adequate ventilation. Make
sure the cooker is installed so that products of combustion
are removed eciently, and that the kitchen ventilation
system does not produce drafts that interfere with proper

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/21 7
INSTALLATION INSTRUCTIONS Continued
and Resolve Radio-TV Interference Problems”helpful. It
is prepared by the Federal Communications Commission
and is available from the U.S. Government Printing Oce,
Washington, DC 20402, Stock No. 004-000-00345-4.
Caster / Leg Installation
Depending upon the specic conguration ordered your
cooker may have been shipped without installed casters or
legs. If casters or legs are installed, you may skip this section
and proceed to Pre-Connection Preparations.
If your cooker requires the installation of casters or legs,
install them in accordance with the instructions included
in your accessory package.
Pre-Connection Preparations
DANGER
Do not connect cooker to gas supply before completing
each step in this section.
After the cooker has been positioned under the exhaust
hood, ensure the following has been accomplished:
1. Adequate means must be provided to limit the
movement of cookers without depending upon the
gas line connections. If a exible gas hose is used, a
restraining cable must be connected at all times when
the cooker is in use. The restraining cable and installation
instructions are packed with the exible hose in the
accessories box that was shipped with your unit.
2. Single unit cookers (GPC) must be stabilized by installing
restraining chains on cookers equipped with casters or
anchor straps on cookers equipped with legs. Follow the
instructions shipped with the casters/legs to properly
install the chains or straps.
DANGER
Do not attach an apron drain board to a single cooker.
The cooker may become unstable, tip over, and cause
injury. The appliance area must be free and clear of
combustible material at all times.
3. Level cookers equipped with legs by screwing out the
legs approximately 1 inch then adjusting them so that
the cooker is level and at the proper height under the
exhaust hood.
NOTE: There are no built-in leveling devices on cookers
equipped with casters. The oor where the cooker is to
be installed must be level.
NATIONAL CODE REQUIREMENTS
Pasta Magic cookers are manufactured to use the type of gas
specied on the rating plate. The rating plate is attached to
the inside of the cooker door. Connect a cooker only to the
type of gas indicated on the rating plate.
Installation shall be made with a gas connector that complies
with the national and local codes or regulations in force in
the country in which the appliance is being installed. Quick-
disconnect devices, if used, shall likewise comply with the
national and local codes or regulations in force in the country
in which the appliance is being installed
When installing Pasta Magic cookers in the UNITED STATES,
the installation must conform to the latest edition of the
Nation Fuel Gas Code, ANSI Z223.1. In addition, installation
must comply with all local codes. In CANADA, installation
must conform to Standard CAN/CGA B149.1 or CAN/
CGA-B149.2, Installation Codes for Gas Burning Appliances
and Equipment. In addition, installation must comply with
all local codes. In AUSTRALIA, this appliance must be
installed by an authorized person in accordance with these
instructions, local gas and electrical regulations, and the
requirements of AA601, Installation Requirements for Gas
Burning Appliances.
For countries not specically listed above, installation shall
comply with the national and local codes or regulations in
force in the country in which the appliance is being installed.
FCC COMPLIANCE
The user is cautioned that any changes or modications to
Garland controllers not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
Garland controllers have been tested and found to comply
with the limits for a Class A digital device, pursuant to Part
15 of the FCC rules. While these devices are veried as Class
A devices, they have been shown to meet the Class B limits.
These limits are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of the equipment in residential
areas is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense. If necessary, the user should consult the dealer or
an experienced radio and television technician for additional
suggestions. The user may nd the booklet “How to Identify

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/218
INSTALLATION INSTRUCTIONS Continued
being supplied before connecting the quick-disconnect
device or piping from the gas supply line.
9. Refer to the table below to verify the minimum and
maximum gas supply pressures for the type of gas being
used.
Standard for Incoming Gas Pressures
Gas Minimum Maximum
Natural 6.0”WC
1.62 kPa
16.19 mbar
14”WC
3.48 kPa
34.87 mbar
Propane 11”WC
2.74 kPa
27.37 mbar
14”WC
3.48 kPa
34.87 mbar
Connection to Gas Line
The Pasta Magic family of gas cookers has been approved for
use with natural and propane (LP) gas.
The size of the gas line used for installation is very important.
If the line is too small, the gas pressure at the burner
manifold will be low. This may cause slow recovery and
delayed ignition. Garland recommends the incoming gas
supply line be a minimum of 1 ½”(38mm) in diameter. Refer
to the chart below for the minimum sizes of connection
piping.
Gas Connection Pipe Sizes
(Minimum incoming pipe size should be 1½” (38 mm))
Gas Single Unit 2-3 Units
Natural ¾” (19 mm) 1” (25 mm)
Propane ½” (13 mm) ¾” (19 mm)
Note: For distances of more than 20 feet (6m) and/or
more than four ttingsor elbows, increase the connection
by one pipe size.
Before connecting new pipe to your unit, the pipe must be
thoroughly blown out to remove any foreign particles. If
these foreign particles get into the burner and controls, they
will cause improper and sometimes dangerous operation.
1. Connect the quick-disconnect hose to the cooker quick-
disconnect tting at the rear of the cooker and to the
building gas line.
NOTE: Some cookers are congured for a rigid
connection to the gas supply line. These units must
be connected to the gas supply line at the rear of the
unit using ttings approved for that purpose by the
appropriate regulatory agency of the country in which
the appliance is installed.
4. For units equipped with basket lifts, install the basket lift
arms onto the rods (located at the top rear of the cabinet)
to ensure that the lift arms are guided by the basket lift
rollers.
5. Connect the water supply to the faucet and, on units with
the autoll option, the water solenoid valve. (The valve is
located on the lower frame behind the doorpost.)
,CAUTION
Before connecting the water supply to units equipped
with solenoid valves, purge the water line to ensure
there is no trash in the line.
DANGER
The maximum allowable incoming water pressure to the
regulator for all units is 80 PSI (56.3 kg/cm2).
The maximum allowable incoming water temperature
for all units is 180°F (82°C).
NOTE: Either hot or cold water supplies may be
connected to the water solenoid valve. However,
connecting to a hot water supply will minimize the
amount of time required to attain operating temperature
when lling the cooker with fresh water.
NOTE: In order for the water level sensors to work
properly, a certain amount of mineral content is
necessary in the water. For that reason, puried,
deionized, or highly ltered water should not be used.
6. Connect the desired drain plumbing to the 1¼–inch
drain valve. NOTE: Ensure drain plumbing is connected
in accordance with local codes. Waste water from the
water bath unit should not be discharged directly below
the appliance. Rising steam can harm the cabinet and the
electrical components.
7. Test the cooker electrical system:
a. Plug the cooker electrical cord into a grounded
electrical receptacle of appropriate voltage. (Check
the rating plate on the cooker door to determine the
proper voltage).
b. Place the power switch in the ON position and verify
that the display indicates LO.
c. Place the cooker power switch in the OFF position.
Verify that the display is blank.
8. Refer to the rating plate on the inside of the cooker door
to verify that the cooker is congured for the type of gas

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/21 9
INSTALLATION INSTRUCTIONS Continued
NOTE: When using thread compound, use very small
amounts on male threads only. Use a pipe thread
compound that is not aected by the chemical action of
LP gases (i.e. propane, G31) (Loctite™ PST56765 Sealant is
one such compound). DO NOT apply compound to the
rst two threads. This will ensure that the burner orices
and control valve do not become clogged.
2. Open the gas supply to the cooker and check all piping,
ttings, and gas connections for leaks. A soap solution
should be used for this purpose.
DANGER
Never use matches, candles, or any other ignition source
to check for leaks. If gas odors are detected, shut off the
gas supply to the cooker at the main shut-off valve and
contact the local gas company or an authorized service
agency for service.
3. Close the cooker drain valve and ll the cookpot with
water and detergent. Light the cooker and perform the
boil-out procedures that are described in the“Boiling Out
the Cookpot”section.
nWARNING
“Dry-firing” this equipment will cause damage to the
cookpot. Always ensure that water is in the cookpot
before firing your unit.
4. It is recommended that the burner gas pressure be
checked at this time by the local gas company or an
authorized service agent. Refer to“Adjusting the Burner
Gas Pressure”section of this manual for the proper
procedure. The accompanying tables list the burner gas
pressures for the various gas types that can be used with
this equipment.
Standard for Incoming Gas Pressures
Gas Pressure
Natural 3”WC
.87 kPa
8.718 mbar
Propane 8.25”WC
2.054 kPa
20.55 mbar
Converting to Another Gas Type
DANGER
Your cooker is configured at the factory for a specific
type of gas. If you desire to switch from one type of gas
to another, specific gas-conversion components must be
installed.
Switching to a different type of gas without installing
the proper conversion components may result in fire or
explosion! NEVER attach your cooker to a gas supply for
which it is not configured.
Conversion of this appliance from one type of gas to
another should only be performed by qualified, licensed,
and/or authorized installation or service personnel, as
defined in section - Installation, Operating and Service
Personnel.
Gas Conversion Components
Natural Gas to LP (Propane)
Gas:
LP (Propane) Gas to Natural
Gas:
Orifice: 810-0386 (2
required)
Ignitor Kit: 826-0982 (2
required)
Regulator: 807-1848 (1
required)
Conversion Rating Label
802-2144.
Orifice: 810-0403 (2 required)
Ignitor Kit: 826-0981 (2 required)
Regulator: 807-1847 (1 required)
Conversion Rating Label 802-
2144.
Gas Conversion Instructions
1. Change the orices.
2. Change the ignitors.
3. Install the regulator kit in the gas valve in accordance
with the instructions furnished with the kit.
4. Adjust the incoming gas pressure for the new gas. (Refer to
the Standard for Incoming Gas Pressures table on this page.)
5. Adjust the gas pressure at the gas valve regulator. (Refer
to the Standard for Burner Gas Pressures table on this page
and section - Adjusting the Burner Gas Pressure. )
6. Ax the new label included with the conversion kit
next to the existing rating plate stating that the gas
type has been converted. Remove any references to the
previously used gas from the existing rating plate. Label
PN 802-2144.
7. If the destination language changes, replace the labels.
(You must contact your local service agency. The
language of reference is indicated on the corner of the
label.)

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/2110
OPERATING INSTRUCTIONS
Finding Your Way Around the Pasta Cooker
Overow Low-water sensor
High-water
sensor
Temp probe
Drain Cook pot
Trouble
light
Controller
Drain valve
Gas valve
Blower

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/21 11
OPERATING INSTRUCTIONS Continued
1Numeric Keypad 6Skim Switch
2Boil Mode Indicator 7Timer Start Switch
3Boil Mode Switch 8Simmer Mode Switch
4Power Switch 9Simmer Mode
Indicator
5LED Display 10 Trouble Light
Controller
The Pasta Magic Controller allows the operator to specify
a cook time in minutes and seconds, and then initiate
a cooking cycle. This controller is available in three
congurations. The standard conguration has both
automatic lling (Autoll) and automatic skimming
(Autoskim) features. Options include Autoll only, or neither
Autoll nor Autoskim.
When in the BOIL mode, the burners are lit at all times. It is
used when actually cooking pasta.
The SIMMER mode feature maintains the water temperature
just below boiling, which conserves energy and water. This
feature is designed for rethermalizing previously cooked
packaged products and for keeping the cooker in standby.
The AUTOSKIM and SKIM features are independent of each
other. The AUTOSKIM feature, on units so equipped, adds
water for approximately 3 seconds once a minute. It cannot
be turned o.
The SKIM feature, when activated by pressing the skim
button on the controller, delivers a continuous spray of
water for approximately 2 minutes, and then stops until
the button is again pressed. In both cases, the purpose
is to cause the water in the cookpot to overow into the
drain, carrying oating starch with it. (A buildup of starch
reduces the eciency of the cooker and can cause erroneous
temperature and water level sensing.) NOTE: Do not use
deliming solution to clean these units. Use of deliming
solution will damage all stainless steel parts).
LOW WATER SENSING automatically closes the gas valve
(thereby extinguishing the burner ame) if the water in the
cookpot drops too low. When the water level in the cookpot
is below the low-water sensor, such as when draining and
cleaning the cookpot, the controller display will read LO.
NORMAL WATER LEVEL SENSING, on units congured with
the Autoll feature, water is automatically added during or
after a cooking cycle if the water in the cookpot drops to
a level lower than approximately 1¼-inch (32 mm) below
the overow drain. With this automatic lling feature, the
water level does not have to be continuously monitored. The
cookpot always has the correct amount of water.
FAHRENHEIT OR CELSIUS TEMPERATURE DISPLAY.
There are two versions of the SMS Controller: one that can
be toggled between Fahrenheit and Celsius temperature
display, and one that cannot. To determine which version
you have, turn the controller o by pressing the power
switch. The display will go blank. Press the Simmer button
(right thermometer icon). If CODE appears in the display,
the temperature display can be changed. If not, the display
cannot be changed.
1. If CODE appears in the display, press 1, 6, 5, 8. The display
will be toggled from Fahrenheit to Celsius or from Celsius
to Fahrenheit.
2. Press the Boil button (left thermometer icon) to
display the cookpot temperature. If an Ffollows the
temperature, the display is in Fahrenheit; if a Cfollows the
temperature, the display is in Celsius.

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/2112
OPERATING INSTRUCTIONS Continued
Operating Instructions
Before turning the cooker on, ensure that:
• the unit is connected to the water supply.
• the water supply is turned on
• the unit is plugged in to an appropriate outlet.
• the electrical power supply is turned on
• the gas supply is turned on.
Start-up Procedure
,CAUTION
If this is the first time the unit is being used after
installation, refer also to section - Boiling Out the Cookpot
1. Press the power switch to the ON position. If the
cooker is equipped with the Autoll option, the cookpot
will automatically begin to ll with water. If not, manually
ll the cookpot using the faucet until the water level is
above the upper water level sensor located at the left
front of the cookpot as you face the unit. (On units with
Autoll, the water will automatically shut o when the
water in the cookpot has reached the correct level.)
2. Turn the gas valve knob to the ON position (see
illustration below.)
The burners should light for several seconds and then
go out. A few seconds later they should light again.
This cycle will repeat about 10 times, at which time the
burners should remain lit until the setpoint is reached.
If the burners fail to light, press the power switch to
the OFF position, wait 60 seconds, then repeat this step.
3. After the burners have been lit continuously for at least
90 seconds, observe the burners through the burner
viewports. They should display a bright orange-red glow.
If a blue ame is observed, or if there are dark spots on a
burner face, the air gas mixture requires adjustment, as
explained below.
NOTE: Adjusting the Air/Gas Mixture:
On the side of the blower housing opposite the motor is
a plate with one or two locking nuts. Loosen the nut(s)
enough to allow the plate to be moved, then adjust
the position of the plate to open or close the air intake
opening until a bright orange-red glow. Carefully hold
the plate in position and tighten the lock nut(s).
Normal Operation
1. Turn the controller on by pressing the power button .
2. The unit will automatically enter the boil mode and the
boil mode indicator will illuminate. If you do not intend
to immediately begin cooking, press the Simmer Mode
button . The simmer mode indicator will illuminate.
To re-enter the boil mode, press the Boil Mode button
.
3. Enter the desired cooking time using the numeric
keypad. The time entered appears in the LED display.
4. When ready to initiate a cooking cycle, press the Start
Timer button . The basket lift (on units so equipped)
will automatically lower the basket or portion cups
into the cookpot and the LED display will begin to
count down. At the end of the cooking cycle, an alarm
will sound briey to alert you and the basket lift will
automatically raise the basket or portion cups out of the
water.
The display will automatically return to the previously
set cooking time. If the same time is desired for the next
batch, simply press the Start Timer switch when ready,
otherwise enter the new cooking time before pressing
the switch.
5. To initiate the skim feature, press the Skim switch.

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/21 13
OPERATING INSTRUCTIONS Continued
Boiling Out the Cookpot
To ensure that the cooker is free of contamination from
manufacture, shipping, or handling during installation, the
cookpot must be boiled out before rst use.
1. Close the drain valve and ll the cookpot with a mixture
of cold water and 1 cup of detergent.
2. Place the unit into operation (see page 12).
3. Press the Simmer Mode button and allow the
solution to simmer for at least 1 hour.
4. After the solution simmers for 1 hour, turn the unit o
and add cold water until the solution is cool. Drain
the solution and clean the cookpot thoroughly with a
solution of dishwashing detergent and hot water.
5. Rinse the cookpot at least twice by lling with clean
water and draining. Dry the cookpot thoroughly with
clean, dry towel.
6. For units equipped with a rinse tank, clean the tank with
a solution of dishwashing detergent and hot water. Drain
the tank and dry it thoroughly with a clean, dry towel.
Shutting the Cooker Down
Turn the unit o by pressing the power button . If
shutting down at the end of the day, place the gas valve in
the OFF position, drain and clean the cookpot (and rinse
tank, if so equipped), and put the cookpot and rinse tank
covers in place.

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/2114
PREVENTIVE MAINTENANCE
Daily Preventive Maintenance
It is normal for a coating of starch to form on the sensors
and temperature probes during operation. If the coating is
allowed to build-up, it will adversely aect the operation of
the equipment. The preventive maintenance routines below
should be performed at least daily to keep your equipment
functioning at peak eciency. The cookpot and rinse tank –
especially the water-level sensors and the temperature probe
– may require more frequent cleaning, depending upon the
product volume. NOTE: Do not use deliming solution to
clean these units. Use of deliming solution will damage all
stainless steel parts.
Inspect Equipment and Accessories for Damage
Look for loose or frayed wires and cords, leaks, foreign
material in cookpot or inside cabinet, and any other
indications that the equipment and accessories are not ready
for safe operation.
Clean Cabinet Inside and Out
Clean inside the cabinet with a dry, clean cloth. Wipe all
accessible metal surfaces and components to remove
accumulations of oil, dust, or cooking residue.
Clean the outside of the cabinet with a clean cloth
dampened with dishwashing detergent, removing oil, dust,
or cooking residue.
DANGER
Never attempt to clean this equipment during the
cooking process or when the cook-pot is filled with hot
water and/or food products.
Clean Water-Level Sensors, Temperature Probe, Cookpot,
and Rinse Tank
1. Turn the equipment o and drain the cookpot (and rinse
tank, if so equipped).
2. Remove the probe cover and clean the water-level
sensors and temperature probe using a Scotchbrite™
or similar abrasive pad and a solution of detergent and
water.
3. Using a Scotchbrite™ or similar abrasive pad and a
solution of detergent and water, clean the in-side of the
cookpot (and rinse the tank, if so equipped).
4. Rinse the cookpot (and rinse tank, if so equipped)
thoroughly with clean water at least twice.
WARNING
Do not use deliming solution to clean these units. Use of
deliming solution will damage all stainless steel parts.
Cleaning the Gas Valve Vent Tube
This procedure should be performed at least once every 90
days.
1. Set the power switch and the gas valve to the OFF
position.
2. Carefully unscrew the vent tube from the gas valve.
NOTE: The vent tube may be straightened for ease in
removal.
3. Pass a piece of wire through the tube to remove any
obstruction.
4. Remove the wire and blow through the tube to ensure it
is clear.
5. Reinstall the tube and bend it so that the opening is
pointing downward.
Cleaning and Adjusting the Combustion Air
Blower
1. Unplug the cooker. Mark and disconnect the four wires
running from the motor at the inline con-nectors.
2. Remove the four nuts and bolts securing the blower to
mounting bracket. Remove the blower from the cooker.
3. Remove the three fasteners that secure the blower motor
assembly to the blower housing, and separate the two
components.

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/21 15
PREVENTIVE MAINTENANCE Continued
4. Wrap the motor with plastic wrap to prevent water from
entering it. Spray degreaser or detergent on the blower
wheel and the blower housing. Allow it to soak for ve
minutes. Rinse the wheel and housing with hot tap
water, then dry with a clean cloth.
5. Remove the plastic wrap from the blower motor
assembly. Reassemble the blower motor assembly and
blower housing. Reinstall the blower assembly in the
cooker and reconnect the wires disconnected in Step 1.
4. Reinstall the blower shield or shield assembly.
5. Light the cooker in accordance with the procedure
described in section - Operating Instructions.
6. After the burners have been lit for at least 90 seconds,
observe the ames through the burner view-ing ports.
The air/gas mixture is properly adjusted when the burner
manifold pressure is in accordance with the applicable
table (Burner Gas Pressure- on this page) and the burners
display a bright orange-red glow. If a blue ame is
observed, or if there are dark spots on a burner face, the
air/gas mixture requires ad-justment.
On the side of the blower housing opposite the motor is
a plate with one or two locking nuts. Loosen the nut(s)
enough to allow the plate to be moved, then adjust the
position of the plate to open or close the air intake opening
until a bright orange-red glow is obtained. Carefully hold the
plate in position and tighten the locking nut(s).
Adjusting the Burner Gas Pressure
DANGER
Garland recommends that ONLY qualified service
personnel perform this task.
1. Ensure that the gas valve knob is in the OFF position.
2. Remove the pressure tap plug from the gas valve
assembly.
3. Insert the tting for a gas pressure-measuring device into
the pressure tap hole
4. Place the gas valve in the ON position.
5. Place the power switch in the ON position. When the
burner has lit and burned steadily for at least one minute,
compare the gas pressure reading to the pressure for the
corresponding gas in the appropriate table below.
Burner Gas Pressure
Gas Pressure
Natural 3”WC
.087 kPa
8.718 mbar
Propane 8.25”WC
2.05 kPa
20.55 mbar

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/2116
PREVENTIVE MAINTENANCE Continued
6. To adjust the burner gas pressure, remove the cap from
the gas valve regulator and use a at tipped screwdriver
to adjust the regulator to obtain the correct pressure.
7. Place the power switch and the gas valve in the OFF
position. Remove the tting from the pressure tap hole
and reinstall the pressure tap plug.
Measuring Flame Current
When the burner ame is properly adjusted, it will produce
a current between 2.5 A and 3.5 A. Flame current is
measured by placing a microamp (not milliamp) meter in
series with the white sensing wire on one of the ignitors. This
is accomplished as follows:
1. Place the power switch in the OFF position.
2. Disconnect the sensing wire from one of the burner
ignitors and connect it to the positive lead of the meter.
Connect the negative lead of the meter to the terminal
from which the sensing wire was removed.
3. Place the power switch in the ON position to light the
burners. After the cookpot temperature reaches 2000F
(930C), wait at least one minute before checking the
reading. NOTE: The closer the unit is to normal operation
temperature, the more accurate the reading will be.
Controller Simmer Mode Adjustment
NOTE: The controller simmer temperature is adjustable
from 185°F to 215°F (85°C to 102°C). There are two versions
of this controller; one is adjusted by programming, the
other is manually adjusted. To determine which version of
the controller you have, turn the controller o by pressing
the power switch. The display will go blank. Press the
Simmer Mode (right thermometer icon) switch. CODE
appears in the display.
1. Press 1, 6, 5, 0 to enter the programming mode. The
currently programmed simmer setpoint will be displayed.
If the setpoint is not correct, enter the desired setpoint
(for example, press 2, 0, 0 to program the simmer setpoint
to 200°).
2. Press the Simmer Mode switch again to lock the
setpoint, then press the power switch to turn the
controller on and return to the normal operating mode.

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/21 17
THIS PAGE INTENTIONALLY LEFT BLANK

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/2118
OPERATOR TROUBLESHOOTING
Introduction
This chapter provides a reference guide to the more
common problems that may occur during the operation of
this equipment. The troubleshooting guides in this chapter
are intended to help you diagnose problems with the
equipment.
If your have doubts as to the proper action to take, do not
hesitate to call Welbilt KitchenCare or your local Garland
Factory Authorized Servicer for assistance.
Before calling a servicer or the Welbilt KitchenCare
HOTLINE [phone]):
• Verify that electrical cords are plugged in and that
circuit breakers are on.
• Verify that water supply valves are open and that the
drain valves are fully closed.
• Verify that the main gas supply valve is open.
DANGER
Hot water can cause severe burns. Never attempt to
move a cooker containing hot water or to transfer hot
water from one container to another.
DANGER
Use extreme care when performing electrical circuit
tests. Live circuits will be exposed.
DANGER
Inspection, testing and repair of electrical components
should be performed only by qualified service personnel.
The equipment should be unplugged when servicing,
except when electrical tests are required.

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/21 19
OPERATOR TROUBLESHOOTING Continued
Problem Probable Causes Corrective Action
BURNERS DO NOT LIGHT
(Main gas supply valve veried to be
open, the gas valve is veried to be ON,
and power switch is veried to be ON.)
A. Ignition module lockout (the
burners failed to light within 4
seconds).
Indicator: Red trouble light on
control panel is illuminated.
A. Turn the controller OFF. Open the
control panel by removing the
screws in the upper corners. If there
are two ignition modules, check for
blown 2-amp fuses and replace as
necessary. Close the control panel
and press the power switch. Wait at
least 4 minutes.
B. Dirty water level sensors. (If the
computer does not sense sucient
water in the cookpot, it will not
allow the burners to re.)
B. Remove the probe block cover
and clean the sensors using a
Scotchbrite™ or similar pad and a
solution of detergent and water.
NOTE: Do not use deliming solution.
C. Failed controller. C. Order replacement controller from
FASC or distributor.
D. Failed ignition module or gas valve,
or broken or loose wiring
C. Call FASC.
ON UNIT WITH AUTOFILL, COOKPOT
DID NOT FILL WHEN UNIT WAS
TURNED ON
(Water supply to unit veried to be ON.)
A. Dirty water level sensors. A. Remove the probe block cover
and clean the sensors using a
Scotchbrite™ or similar pad and a
solution of detergent and water.
NOTE: Do not use deliming solution.
B. Failed controller. B. Order replacement controller from
FASC or distributor.
C. Shorted upper water level sensor,
failed water solenoid valve, or loose/
broken wiring.
C. Call FASC.
Operator Troubeshooting Guides

Document # G_GHD_OM_PASTACUISINE_4607873 – 08/2120
OPERATOR TROUBLESHOOTING Continued
Problem Probable Causes Corrective Action
ON UNIT WITH AUTOFILL, WATER DID
NOT SHUT OFF WHEN COOKPOT WAS
FULL
A. Dirty water level sensors. A. A. Remove the probe block
cover and clean the sensors using
a Scotchbrite™ or similar pad and
a solution of detergent and water.
NOTE: Do not use deliming solution.
B. Insucient mineral content in water. B. B. Add 1/8-cup of baking soda
to the water in the cookpot as the
unit lls. DO NOT USE SALT! Doing
so will damage the cookpot. Avoid
using distilled, highly ltered, or
deionized water.
C. Failed upper water level sensor,
loose or broken upper water level
sensor wiring, failed water solenoid
valve.
C. Call FASC.
AUTOSKIM DOES NOT WORK
(AUTOFILL functions correctly.)
A. Failed controller. (If the AUTOFILL
functions correctly, the only cause
possible is a failed controller.)
A. Order replacement controller from
FASC or distributor.
WATER WILL NOT BOIL
(Cookpot veried to be full of water
with Boil Mode selected, i.e., left
indicator is lit and burners are lit.)
A. Failed controller. A. Order replacement controller from
FASC or distributor.
WATER BOILS IN SIMMER MODE
A. Controller out of adjustment. A. Adjust controller in accordance with
procedure in Chapter 4.
B. Failed controller. B. Order replacement controller from
FASC or distributor.
B. Failed/shorted temperature probe. C. Call FASC.
WATER TEMPERATURE IS TOO LOW IN
SIMMER MODE
A. Controller out of adjustment. A. Adjust controller in accordance with
procedure in Chapter 4.
B. Failed controller. B. Order replacement controller from
FASC or distributor.
C. Open temperature probe or loose
probe wire.
C. Call FASC.
BASKET LIFT MOVEMENT IS JERKY OR
NOISY
A. Lack of lubrication on basket lift
rods.
A. Lubricate lifter rods with a
lightweight lubricant.
