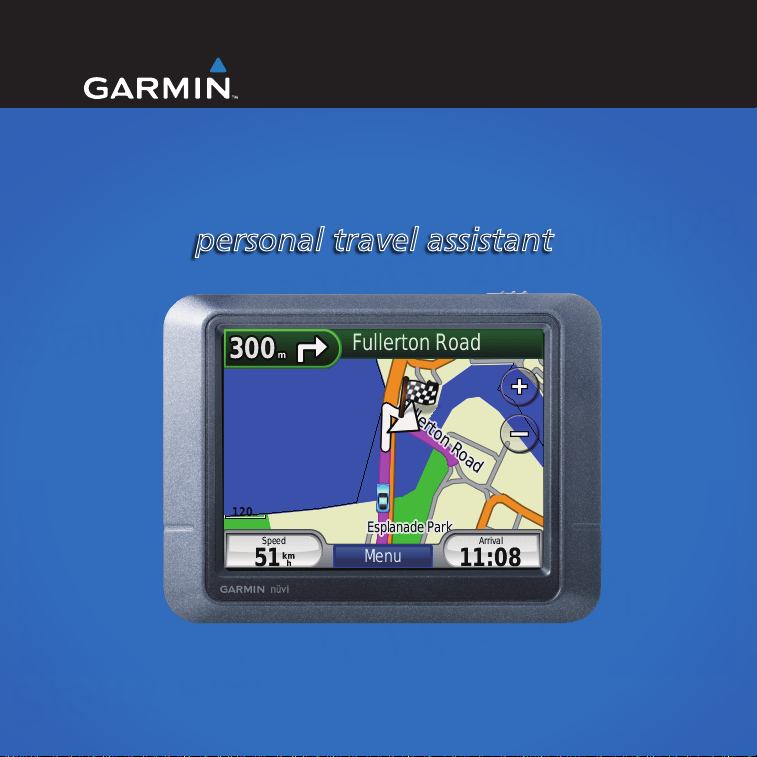

nüvi®205 Series
personal travel assistant
quick start manual

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
E N
nüvi 205 Series quick start manual EN-1
Your nüvi Unit
Power and USB
connector
Speaker
RESET button
microSD card slot
Power key:
Slide to the left to turn the nüvi on/off;
slide to the right to lock the screen

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
E N
EN-2 nüvi 205 Series quick start manual
Step 1: Mount Your nüvi
Select a suitable location to mount your
nüvi on your windshield. Clean and dry
the suction cup and the selected area of
your windshield.
1. Plug the power cable into the back of
your nüvi.
2. Fit the ball on the end of the mount
into the round socket on the cradle and
press rmly until they snap together.
3. Place the suction cup on the
windshield, and ip the lever back
toward the windshield.
4. Press the bottom of your nüvi into the
cradle, and snap the top of the nüvi
into place.
5. Plug the power cable into a power
outlet in your vehicle. Your nüvi should
turn on automatically if it is getting
power.
You can also mount your nüvi to your
dashboard. See pages 10–11 for more
information.
Vehicle power
cable
Suction-cup mount
Cradle
Step 2: Congure Your nüvi
To turn your nüvi on, slide the
Power key to the left. Follow the
on-screen instructions. To turn your nüvi
off, slide the Power key to the left.
Step 3: Acquire Satellites
Before the nüvi can nd your current
location and navigate a route, you must
do the following:

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
E N
nüvi 205 Series quick start manual EN-3
1. Go outdoors to an open area, away
from tall buildings and trees.
2. Turn the nüvi on. Acquiring satellite
signals can take a few minutes.
The bars indicate satellite strength.
When at least one of the bars is green,
your nüvi has acquired satellite signals.
Now you can select a destination and
navigate to it.
Step 4: Use Your nüvi
Menu Page
➌ ➍
➎➏
➊➋
➊
GPS satellite strength
➋
Battery status
➌
Touch to nd a destination.
➍
Touch to view the map.
➎
Touch to adjust the volume.
➏
Touch to open the Tools menu.
Help When You Need It
To get more information when and where
you need it, use the built-in Help system
in your nüvi. Touch Tools > Help. Touch
a topic to view information about it.
How to Charge Your nüvi
Connect the vehicle power cable to•
your nüvi and to a power outlet in your
vehicle. The vehicle key may need to
be turned to ON/ACC for the nüvi to
charge.
Connect an AC adapter (optional•
accessory) to the nüvi and a wall outlet.
Connect your nüvi to a computer using•
a USB cable (optional accessory). The
computer must be on for the nüvi to
charge.

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
E N
EN-4 nüvi 205 Series quick start manual
Finding a Destination
Finding a Restaurant
1. On the Menu page, touch Where to? >
Points of Interest > Food.
2. Select a category. Touch and
to see more choices.
3. Select a destination. The Go! page
displays.
4. Touch Go!.
Finding an Address
1. On the Menu page, touch Where to? >
Address.
2. Select a country, state, or province if
necessary.
3. Touch Spell City, and then enter
the name of a city until a list of cities
appears. If you are not sure of the city,
touch Search All.
4. Enter the address number, and then
touch Done.
5. Enter the street name, and then touch
Done.
6. Select the street.
7. Select the address if necessary. The
Go! page displays.
8. Touch Go!.
Using the Go! Page
After you have found a location, your
nüvi displays the Go! page.
➌➍
➊ ➋
➊
Touch Route Info to view a
turn-by-turn map to this location.
➋
Touch Go! to create a turn-by-turn
route to this location.
➌
Touch Map to view this location and
surrounding areas on the map.
➍
Touch Save to save this location to
your Favorites.

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
E N
nüvi 205 Series quick start manual EN-5
Changing the Search Area
Your nüvi automatically searches for
places near your current location. To
search in a different area:
1. Touch Where to? > Near.
2. Select an option, and touch OK.
Setting Your Home
Location
Set your home location for the place you
return to most often.
1. To set your home location, touch
Where to? > Go Home.
2. Select an option:
Enter your address.•
Use your current location.•
Choose from a list of recently found•
locations.
Going Home
To navigate home after you have set your
home location, touch Where to? > Go
Home.
Changing Your Home
Location
To set a different home location:
1. Touch Tools > My Data > Set Home
Location.
2. Select an option:
Enter your address.•
Use your current location.•
Choose from a list of recently found•
locations.
To edit information about your home
location:
1. Touch Where to? > Favorites > All
Favorites > Home.
2. Touch Edit, enter your changes, and
then touch Done.
Adding a Stop to Your
Route
You can add an additional stop (called a
via point) to your route. The nüvi gives
you directions to the via point, and then
to your nal destination.

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
E N
EN-6 nüvi 205 Series quick start manual
1. While navigating a route, touch
Menu > Where to?.
2. Search for and select another location
to add to the route. Touch Go!.
3. Touch Add as Via Point to stop at this
location before your nal destination.
Touch Set as new destination
to make the location your nal
destination.
Taking a Detour
If you need to take a detour when you are
navigating a route, return to the Menu
page and touch Detour. The nüvi creates
a new route if possible. If the route you
are currently taking is the only reasonable
option, the nüvi might not calculate a
detour.
Stopping the Route
To stop navigating a route, touch
Menu > Stop.
Using Photo Navigation
Panoramio™provides photos that include
location information called geotags. You
can load these photos onto your nüvi or
microSD card, and then create routes to
them. Visit http://connect.garmin.com/
photos for more information.
To load geotagged photos to your
nüvi:
1. Connect your nüvi to your computer.
2. Go to http://connect.garmin.com
/photos, and select a photo.
3. Select Send to Garmin Device to
save the photo to your nüvi.
To navigate to a photo:
1. Touch Where to? > Favorites >
Panoramio Photos. Photos you have
saved on the nüvi drive or memory
card are listed.
2. Select a Panoramio photo.
3. Touch Go! to navigate to the location.
Touch Map to view the location on the
map.

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
E N
nüvi 205 Series quick start manual EN-7
Touch View map to open the Map page. Touch the map and drag to view different
parts of the map. The vehicle icon shows your current location. Touch to
view the Where Am I? page, which provides information about your current location,
including nearby hospitals, police stations, and fuel. You can also save your current
location as a Favorite.
After you touch Go!, the Map page opens with your route marked with a magenta
line. As you travel, your nüvi guides you to your destination with arrows on the map
and directions at the top of the Map page. A checkered ag marks your destination. If
you depart from the original route, your nüvi recalculates the route.
➊
Touch the turn indicator to view information
about the next turn in your route and to
repeat the instructions for your next turn.
➋
Touch the text bar to preview the upcoming
turns in your route.
➌
Touch to zoom in. Touch to zoom
out.
➍ Touch Speed to view information about your
trip, such as the odometer.
➎ Touch Menu to return to the Menu page.
➏
Touch Arrival to display a map of your route.
Using the Map Page
Map Page
➌
➍➎
➊➋
➏

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
E N
EN-8 nüvi 205 Series quick start manual
Customizing Your nüvi
Securing Your nüvi
Garmin Lock™is a security feature that
locks your nüvi. When you turn your
nüvi on, you can unlock it by entering a
PIN or by going to the place you have set
as your security location. Your security
location is a location that you return to
often, such as your ofce. Your nüvi
automatically unlocks when you are at
your security location.
NOTE: If you forget your PIN and
your security location, you must
send your nüvi with a valid product
registration or proof of purchase to
Garmin to be unlocked.
To secure your nüvi:
1. Make sure that you are at your security
location and that your nüvi is receiving
satellite signals.
2. Touch Tools > Settings > Security.
3. Touch the button below Garmin Lock.
4. Enter a four-digit PIN.
5. Touch Set.
Adjusting the Volume
Touch Volume. Touch to lower the
volume or to raise the volume.
Adjusting the Screen
Brightness
Touch Tools > Settings > Display >
Brightness. Touch to lower the
brightness or to raise it.
Locking the Screen
To prevent accidental screen taps, slide
the Power key to the right ( ). To
unlock the screen, slide the Power
key to the center position.
myGarmin™
Go to http://my.garmin.com to access the
latest services for your Garmin products
and to register your nüvi.

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
E N
nüvi 205 Series quick start manual EN-9
Resetting Your nüvi
If your nüvi stops responding, turn the
nüvi off, and then turn it back on. If this
does not help, reset your nüvi. Press and
hold the RESET button on the bottom of
the nüvi for several seconds.
Clearing User Data

CAUTION: This deletes all user-
entered information.
1. Hold your nger on the lower-right
corner of the nüvi screen while turning
on the nüvi.
2. Keep your nger pressed until the
pop-up window appears.
3. Touch Yes to clear all user data.
All original settings are restored. Any
items that you have saved are erased.
Extras and Optional
Accessories
For more information about optional
accessories, go to https://buy.garmin
.com/shop or www.garmin.com/extras, or
contact your Garmin dealer.
Mounting on Your
Dashboard
Use the enclosed mounting disk to
mount your nüvi on the dashboard and to
comply with certain state regulations.
IMPORTANT: The permanent
mounting adhesive is extremely
difcult to remove after it is installed.
1. Clean and dry the dashboard where
you are placing the disk.
2. Remove the backing from the
permanent mounting adhesive on the
bottom of the disk.
3. Place the disk on the dashboard.
Appendix

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
E N
EN-10 nüvi 205 Series quick start manual
4. Place the suction cup mount on top of
the disk. Flip the lever down (toward
the disk).
Changing the Fuse

CAUTION: When replacing the fuse,
do not lose any of the small pieces
and make sure they are put back in the
proper place.
If your nüvi will not charge in your
vehicle, you may need to replace the fuse
located at the tip of the vehicle adapter.
1. Unscrew and remove the silver or
black round end piece.
2. Remove the fuse
(glass and silver
cylinder) and replace
with a 1A-fast blow
fuse.
3. Ensure that the silver
tip is placed in the end
piece. Screw on the
end piece.
Caring for Your nüvi
Your nüvi contains sensitive electronic
components that can be permanently
damaged if exposed to excessive shock
or vibration. To minimize the risk of
damage to your nüvi, avoid dropping
your nüvi and operating it in high-shock
and high-vibration environments.
Do not store the nüvi where prolonged•
exposure to extreme temperatures can
occur, because it can cause permanent
damage.
Do not expose the nüvi to water.•
Contact with water can cause the nüvi
to malfunction.
Never use a hard object or a sharp•
object to operate the touch screen or
damage may result.
Cleaning Your nüvi
Your nüvi is constructed of high-quality
materials and does not require user
maintenance other than cleaning. Clean
the outer casing of the nüvi (not the
touch screen) using a cloth dampened
Unscrew
End
piece
Silver
tip
Fuse

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
E N
nüvi 205 Series quick start manual EN-11
with a mild detergent solution, and
then wipe dry. Avoid chemical cleaners
and solvents that can damage plastic
components.
Avoiding Theft
To avoid theft, remove the nüvi and•
mount from sight when it is not in use.
Remove the residue on the windshield
left by the suction cup.
Do not keep your nüvi in the glove•
compartment.
Use the Garmin Lock feature. See• page
12 for more information.
Declaration of Conformity
(DoC)
Hereby, Garmin declares that this
nüvi product is in compliance with the
essential requirements and other relevant
provisions of Directive 1999/5/EC.
To view the full Declaration of
Conformity, see the Garmin Web site for
your Garmin product: www.garmin.com.
Specications
Size: 3.86 in. W × 2.95 in. H × 0.77 in. D
(98.0 × 75.0 × 19.5 mm)
Weight: 0.31 pounds (138.7 g)
Display: 2.8 in. W × 2.1 in. H (72.0 × 54.0
mm); 320 × 240 pixels; bright,16-bit LCD,
white backlight, touch screen
Data storage: Internal memory and optional
removable microSD card.
Computer interface: USB mass storage
Power input: DC vehicle power using
included vehicle power cable
Usage: 5 W max.
Charge time: Approximately 4 hours
Battery life: up to 4 hours

CAUTION: The nüvi is not
waterproof.
For a complete list of specications, see
the Web page for your product on the
Garmin Web site: www.garmin.com.

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
E N
EN-12 nüvi 205 Series quick start manual
Software License Agreement
BY USING THE PRODUCT, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THE
FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY.
Garmin grants you a limited license to use the software embedded in this device (the “Software”) in binary
executable form in the normal operation of the product. Title, ownership rights, and intellectual property rights in
and to the Software remain in Garmin.
You acknowledge that the Software is the property of Garmin and is protected under the United States of America
copyright laws and international copyright treaties. You further acknowledge that the structure, organization, and
code of the Software are valuable trade secrets of Garmin and that the Software in source code form remains
a valuable trade secret of Garmin. You agree not to decompile, disassemble, modify, reverse assemble, reverse
engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based
on the Software. You agree not to export or re-export the Software to any country in violation of the export control
laws of the United States of America.

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
M A
nüvi 205 Series quick start manual MA-13
Unit nüvi Anda
Kuasa dan
penyambung Mini-
USB.
Pembesar suara
Butang RESET Slot kad microSD
Kunci Kuasa
seret ke kiri untuk menyalakan atau
memadamkan unit;
seret ke kanan untuk mengunci skrin

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
M A
MA-14 nüvi 205 Series quick start manual
Langkah 1: Lekapkan nüvi
1. Menyumbat tenaga kabel di belakang
nüvi
2. Masukkan biji di hujung mount,
masukkan di bulatan soket di kradel
dan tekan kuat hingga membentak
sama.
3. Letakkan sedutan di cermin depan
dan klip pengumpil menghala cermin
depan.
4. Tekan bahagian bawah nüvi dan
kemudian masukkan dalam kradel
dan membentak di atas nüvi dalam
tempatan.
5. Menyumbat tenaga kabel di kuasa
saluran luar di dalam kereta. Unik
anda harus menyala automatik kecuali
anda memasang soket elektrik dan
kunci kereta anda sudahpun diputarke
ON/ACC.
Anda juga boleh melekapkan nüvi anda
pada papan muka anda. Lihat halaman
25-26 untuk maklumat lanjut.
Kuasa kenderaan
Kabel
Mangkok sedutan pemegang
Kradel
Langkah 2: Kongurasikan
nüvi
Untuk menyalakan nüvi anda, seretkan
kunci Kuasa ke kiri. Ikut arahan di
atas skrin.

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
M A
nüvi 205 Series quick start manual MA-15
Langkah 3: Dapatkan
Satellite
Sebelum nüvi dapat mencari lokasi anda
dan untuk pandu arah, beberapa arahan
anda harus ikuti:
1. Anda perlu berada di kawasan lapang,
jauh dari bangunan tinggi dan pokok-
pokok tinggi.
2. Hidupkan nüvi untuk mendapatkan
isyarat satellite, ini mengambil
beberapa minit.
Tanda bars menunjuk kekuatan
satellite. Apabila salah satu bars menyala
hijau, nüvi sudah pun ada isyarat
mandapat satellite.
Langkah 4:Kegunaan nüvi
Halaman Menu
➌ ➍
➎➏
➊➋
➊
Kekuatan satelit GPS
➋
Status bateri
➌
Sentuh untuk mencari arahan /
destinasi.
➍
Sentuh untuk melihat peta
➎
Sentuh untuk menyesuaikan suara
➏
Sentuh untuk membuka alat Kit

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
M A
MA-16 nüvi 205 Series quick start manual
Membantu Apabila Anda
Memerlukannya
Untuk mendapatkan maklumat lanjut
bila dan di mana anda memerlukannya,
gunakan Sistem bantuan terbina dalam,
dalam nüvi anda. Sentuh Alatan >
Bantuan. Sentuh topik untuk melihat
maklumat mengenainya.
Bagaimana untuk
Mengecas nüvi Anda
Sambungkan kabel kuasa kenderaan•
ke nüvi anda dan pada alur keluar
kuasa dalam kenderaan anda. Kunci
kenderaan perlu DIHIDUPKAN/ACC
untuk mengecas nüvi.
Sambungkan plag penyesuai AC•
(aksesori pilihan) pada nüvi dan alur
keluar dinding.
Sambungkan nüvi anda pada komputer•
dengan menggunakan kabel USB
(aksesori pilihan). Komputer perlu
dihidupkan untuk mengecas nüvi.

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
M A
nüvi 205 Series quick start manual MA-17
Mencari Restoran
1. Pada Halaman menu, sentuh Ke
mana? > Titik Menarik > Makanan.
2. Pilih kategori. Sentuh dan
untuk melihat lebih banyak pilihan.
3. Pilih destinasi. Halaman Jalankan!
dipaparkan.
4. Sentuh Pergi!
Mencari Alamat
1. Pada Halaman menu, sentuh Ke
mana? > Alamat.
2. Pilih negara, negeri atau wilayah jika
perlu.
3. Sentuh Eja Bandar, dan kemudian
masukkan nama bandar sehingga
senarai bandar muncul. Jika anda
tidak pasti mengenai bandar tersebut,
sentuh Cari Semua.
4. Masukkan nombor alamat dan
kemudian sentuh Siap.
5. Masukkan nama jalan dan kemudian
sentuh Siap.
6. Pilih jalan.
7. Pilih alamat jika perlu. Halaman
Jalankan! dipaparkan.
8. Sentuh Pergi!
Menggunakan Halaman
Jalankan!
Selepas anda telah menjumpai lokasi,
nüvi anda memaparkan halaman
Jalankan!
➌➍
➊ ➋
➊
Sentuh Route Info untuk melihat
peta selekoh demi selekoh ke lokasi
ini.
➋
Sentuh Pergi! untuk membuat
perjalanan selekoh demi selekoh ke
lokasi ini.
Mencari Destinasi

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
M A
MA-18 nüvi 205 Series quick start manual
➌
Sentuh Peta untuk melihat lokasi ini
dan kawasan sekeliling pada peta.
➍
Sentuh Simpan untuk menyimpan
lokasi ini pada Favorite.
Menukar Kawasan Carian
nüvi anda mencari tempat berdekatan
dengan lokasi semasa anda secara
automatik. Untuk mencari di kawasan
yang berbeza:
1. Sentuh Ke mana? > Near
Berdekatan.
2. Pilih pilihan dan sentuh OK.
Menetapkan Lokasi Rumah
Anda
Tetapkan lokasi rumah anda bagi tempat
yang paling kerap anda kembali.
1. Untuk menetapkan lokasi rumah anda,
sentuh Ke mana? > Balik Rumah.
2. Pilih pilihan:
Masukkan alamat anda.•
Gunakan lokasi semasa anda.•
Pilih daripada senarai lokasi terkini•
yang dijumpai.
Pulang Ke Rumah
Untuk menavigasi ke rumah selepas anda
telah menetapkan lokasi rumah, sentuh
Ke mana? > Balik Rumah.
Menukar Lokasi Rumah
Anda
Untuk menetapkan lokasi rumah
yang berbeza:
1. Sentuh Alatan > Data Saya > Set
Lokasi Rumah.
2. Pilih pilihan:
Masukkan alamat anda.•
Gunakan lokasi semasa anda.•
Pilih daripada senarai lokasi terkini•
yang dijumpai.
Untuk menyunting maklumat
mengenai lokasi rumah anda:
1. Sentuh Ke mana? > Favourite >
Semua Favourite > Rumah.
2. Sentuh Sunting, masukkan perubahan
anda, dan kemudian sentuh Siap.

Starry Liu, 11643, 2010/09/28
Starry Liu, 11643, 2010/09/28
M A
nüvi 205 Series quick start manual MA-19
Menambah Hentian pada
Jalan Anda
Anda boleh menambah hentian tambahan
(dipanggil titik laluan) pada perjalanan
anda. nüvi memberikan arahan kepada
anda ke titik laluan dan kemudian ke
destinasi terakhir anda.
1. Semasa menavigasi perjalanan,
sentuh Ke mana?
2. Mencari dan pilih lokasi lain untuk
ditambah pada perjalanan. Sentuh
Pergi!
3. Sentuh Tambah sebagai Titik Laluan
untuk berhenti di lokasi ini sebelum
destinasi terakhir anda.Sentuh Set
sebagai Destinasi baru untuk
menjadikan lokasi tersebut destinasi
terakhir anda.
Mengambil Lencongan
Jika anda perlu membuat lencongan
semasa anda menavigasi perjalanan,
kembali ke halaman Menu dan sentuh
Lencongan. nüvi membuat perjalanan
baru jika boleh. Jika perjalanan semasa
yang anda ambil merupakan satu-satunya
pilihan munasabah, nüvi mungkin tidak
mengira lencongan.
Menghentikan Perjalanan
Untuk berhenti menavigasi perjalanan,
sentuh Menu > Berhenti.
