ECHOMAP™UHD2 6/7/9 SV
INSTALLATION INSTRUCTIONS
Important Safety Information
WARNING
Failure to follow these warnings, cautions, and notices could result in personal injury, damage to the vessel or
device, or poor product performance.
See the Important Safety and Product Information guide in the product box for product warnings and other
important information.
When connecting the power cable, do not remove the in-line fuse holder. To prevent the possibility of injury or
product damage caused by fire or overheating, the appropriate fuse must be in place as indicated in the product
specifications. In addition, connecting the power cable without the appropriate fuse in place voids the product
warranty.
CAUTION
To avoid possible personal injury, always wear safety goggles, ear protection, and a dust mask when drilling,
cutting, or sanding.
To avoid possible personal injury or damage to the device and vessel, disconnect the vessel's power supply
before beginning to install the device.
To avoid possible personal injury or damage to the device or vessel, before applying power to the device, make
sure that it has been properly grounded, following the instructions in the guide.
To avoid possible personal injury or damage to this device and vessel, only install this device when the vessel is
on land, or when properly secured and docked in calm water conditions.
NOTICE
For the best possible performance, the device must be installed according to these instructions.
When drilling or cutting, always check what is on the opposite side of the surface to avoid damaging the vessel.
Read all installation instructions before proceeding with the installation. If you experience difficulty during the
installation, contact Garmin® Product Support.
Software Update
You may need to update the chartplotter software after installation. For the instructions on how to update the
software, see the owner's manual at garmin.com/manuals/ECHOMAP_UHD2_679sv.
GUID-B4327979-40C0-487D-8117-A36D7AD0FA51 v1December 2022

Tools Needed
• Drill
• Drill bits
◦Bail mount, fixed or swivel: 3mm (1/8in.) drill bit or drill bits appropriate for the surface and hardware
◦Flush mount: 3mm (1/8in.) and 12.7mm (1/2in.) drill bits
• #2 Phillips screwdriver
• Jigsaw or rotary tool (flush mount)
• File and sandpaper (flush mount)
• Marine sealant (optional)
Mounting Considerations
You can mount the device using one of three methods.
Bail mount: You can mount the device using the bail mount, which allows you to tilt the device.
Swivel mount: You can mount the device using the swivel base and bail mount, which allows you to swivel and
tilt the device.
NOTE: The swivel base is not available for ECHOMAP UHD2 9 sv models.
Flush mount: You can mount the device in the dashboard, which provides a more integrated installation.
Before permanently installing any part of your device, you should plan the installation by determining the
location of the various components.
• The mounting location must provide a clear view of the screen and access to the keys on the device.
• The mounting location must be sturdy enough to support the device and the mount.
• The cables must be long enough to connect the components to each other and to power.
• To avoid interference with a magnetic compass, do not install the device closer to a compass than the
compass-safe distance value listed in the product specifications (Specifications, page11).
2

Fixed-Bail Mounting the Device
NOTICE
If you are mounting the bracket on fiberglass with screws, it is recommended to use a countersink bit to drill a
clearance counterbore through only the top gel-coat layer. This will help to avoid cracking in the gel-coat layer
when the screws are tightened.
1If you do not want to use the included wood screws to secure the bail-mount bracket, select the mounting
hardware appropriate for the bail-mount bracket and your mounting surface.
NOTICE
Only pan-head machine bolts or self-tapping screws should be used to secure the swivel base. If you use
screws with countersunk heads, you may damage the mounting bracket.
2Using the bail-mount bracket as a template , mark the pilot holes through the screw holes.
3Complete an action:
• If you are using the included wood screws , drill the four pilot holes using a 3mm (1/8in.) drill bit.
• If you are using your own mounting hardware, drill the four pilot holes using a drill bit appropriate for your
hardware.
4Secure the bail-mount bracket to the mounting surface using the included wood screws or your mounting
hardware.
5Loosely install the bail-mount knobs on the sides of the cradle.
6Place the cradle in the bail-mount bracket.
7Tighten the bail-mount knobs.
3

Bail Mounting a Device with a Swivel Base
NOTICE
If you are mounting the bracket on fiberglass with screws, it is recommended to use a countersink bit to drill a
clearance counterbore through only the top gel-coat layer. This will help to avoid cracking in the gel-coat layer
when the screws are tightened.
You can install the optional swivel base (included) on the bail mount, so you can turn the device for a wider
range of viewing angles.
NOTE: The swivel base is not available for ECHOMAP UHD2 9 sv models.
1If you do not want to use the included wood screws to secure the swivel base, select the mounting hardware
appropriate for the swivel base and your mounting surface.
NOTICE
Only pan-head machine bolts or self-tapping screws should be used to secure the swivel base. If you use
screws with countersunk heads, you may damage the mounting bracket.
2Using the swivel base as a template, mark the pilot holes through the outer three screw holes.
3Complete an action:
• If you are using the included wood screws, drill the three pilot holes using a 3mm (1/8in.) drill bit.
• If you are using your own mounting hardware, drill the three pilot holes using a drill bit appropriate for your
hardware.

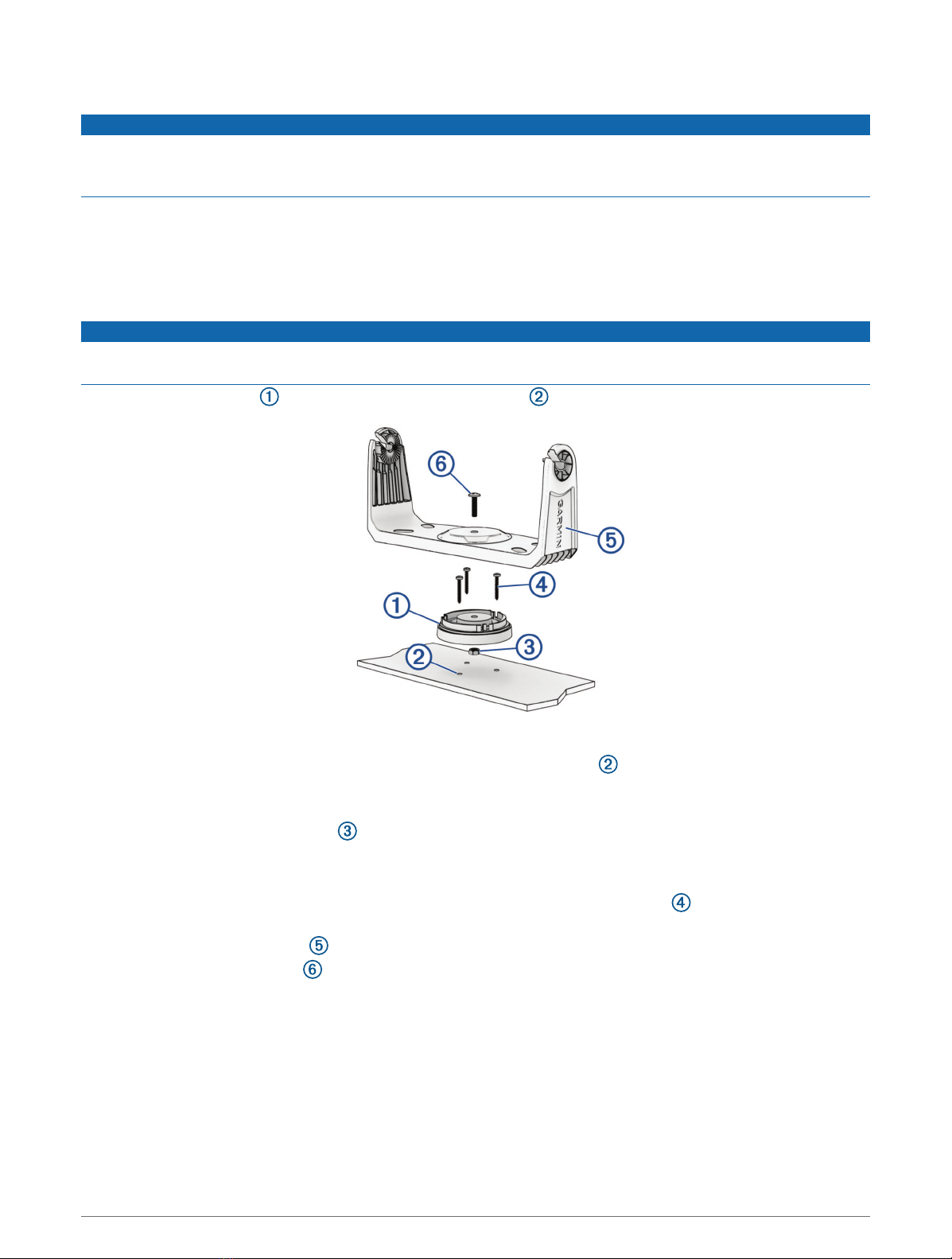

4Press the hex end of the lock nut into the center recess on the underside of the swivel base.
The dome end of the lock nut must face the mounting surface.
5Align the outer three screw holes in the swivel base with the pilot holes.
6Secure the swivel base to the mounting surface using the included wood screws or your mounting
hardware.
7Place the bail-mount bracket on the swivel base.
8Insert the swivel-mount bolt through the center hole in the bail mount.
9Tighten the swivel-mount bolt with a #2 Phillips screwdriver to securely assemble the bail-mount bracket,
swivel base, and lock nut.
Do not over-tighten.
10 Loosely install the bail-mount knobs on the sides of the cradle.
11 Place the cradle in the bail-mount bracket.
12 Tighten the bail-mount knobs.
4

Flush Mounting the Device
NOTICE
Be careful when cutting the hole to flush mount the device. There is only a small amount of clearance between
the case and the mounting holes, and cutting the hole too large could compromise the stability of the device
after it is mounted.
Using a metal pry tool such as a screwdriver can damage the trim caps and the device. Use a plastic pry tool
when possible.
You can mount the device in your dashboard using the provided flush-mount template and hardware.
1Trim the included template and make sure it fits in the location where you want to mount the device.
NOTE: The sun cover provided with this device has a release latch on the right side, as indicated on the
template. Be sure to allow enough clearance to access and pull the latch when selecting a location.
2Secure the template to the mounting location.
3Using a 12.7mm (1/2in.) drill bit, drill one or more of the holes inside the corners of the solid line on the
template to prepare the mounting surface for cutting.
4Using a rotary cutting tool or jigsaw, cut the mounting surface along the inside of the solid line indicated on
the template.
5Secure the cradle to the back of the device (Installing the Device in the Cradle, page10).
6Place the device into the cutout to test the fit.
7If necessary, use a file and sandpaper to refine the size of the hole.

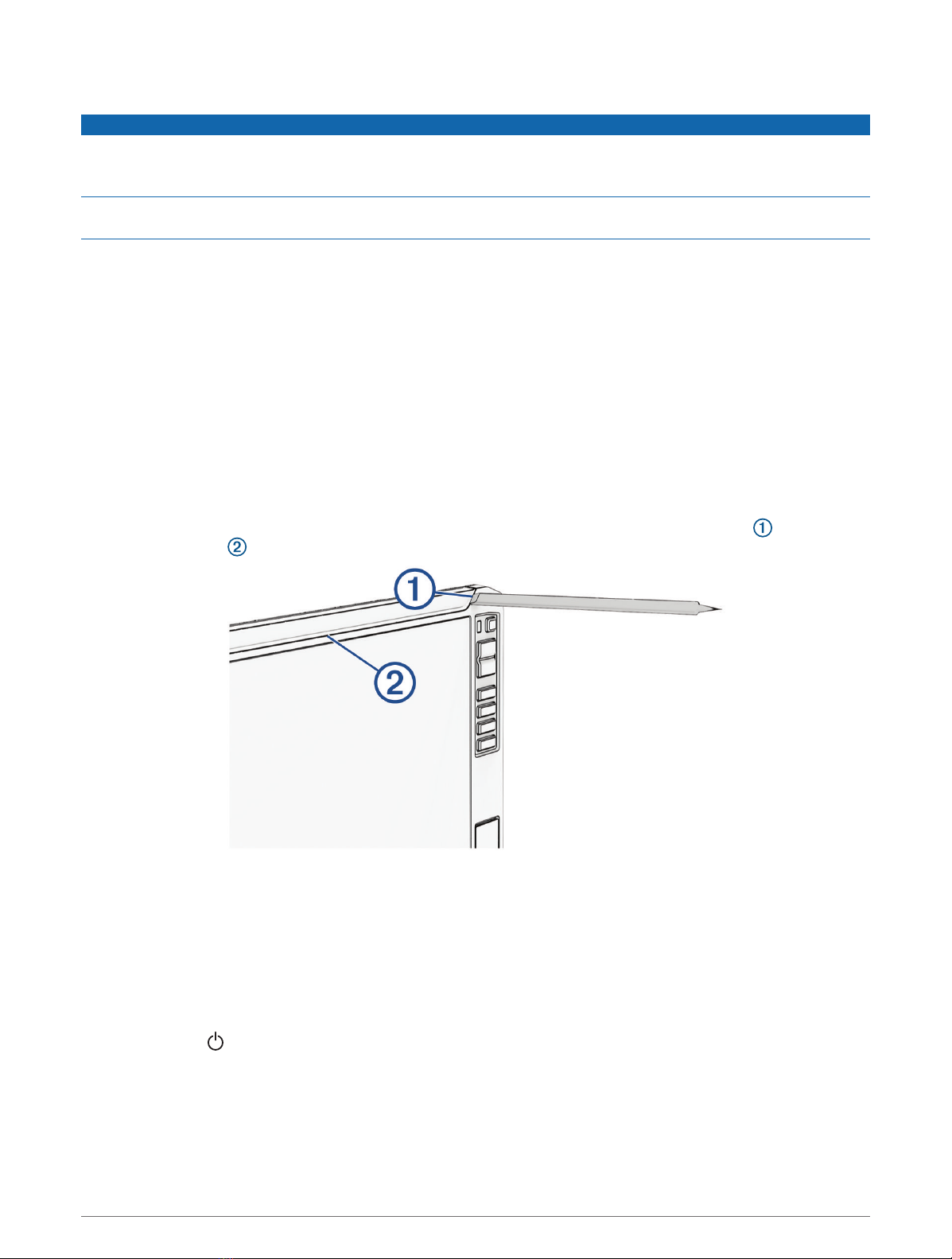

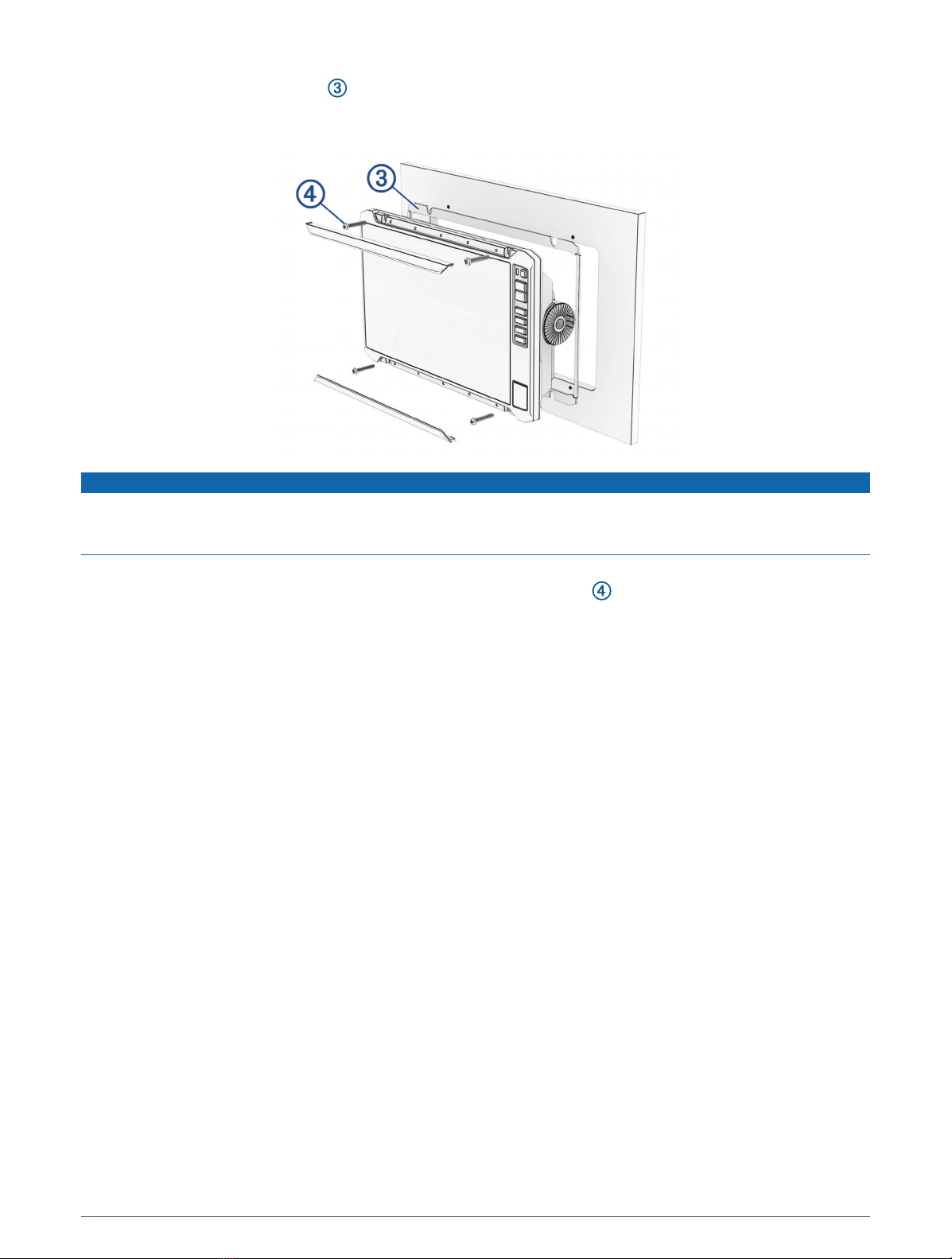

8Use a plastic pry tool or a flat piece of plastic to carefully pry up the corners of the trim caps , slide the pry
tool to the center , and remove the trim caps.
9Ensure the mounting holes on the device line up with the pilot holes on the template.
10 If the mounting holes on the device do not line up with the pilot holes on the template, mark the new
pilot-hole locations on your template.
11 Using a 3mm (1/8in.) drill bit, drill the pilot holes.
12 Remove the template from the mounting surface.
13 If you will not have access to the back of the device after you mount it, route the necessary cables through
the hole and connect them to the cradle.
You can press to power the device on and off to test the connections.
5

14 Install the rubber gasket pieces on the back of the device.
The pieces of the rubber gasket have adhesive on the back. Make sure you remove the protective liner before
installing them on the device.
NOTICE
On ECHOMAP UHD2 9 sv models, the top and bottom gasket pieces are not interchangeable and are labeled to
help install correctly. Be sure to use the appropriate gasket pieces on the top and bottom to avoid water ingress
behind the mounting surface.
15 Place the device into the cutout.
16 Secure the device to the mounting surface using the included screws .
17 Install the trim caps by snapping them in place around the edges of the device.
6

Connection Considerations
Connector View
POWER Power cable port
NMEA 2000 NMEA 2000® cable port
SONAR Transducer cable port
NETWORK
Garmin Marine Network cable port for connection to compatible Panoptix™, GCV™, and ECHOMAP
devices
NOTE: This device is not compatible with some Garmin Marine Network devices such as
GPSMAP®, GSD™, and radar devices.
NOTICE
To prevent corrosion of the metal contacts, cover unused connectors with weather caps.
Connecting the Power Cable
WARNING
When connecting the power cable, do not remove the in-line fuse holder. To prevent the possibility of injury or
product damage caused by fire or overheating, the appropriate fuse must be in place as indicated in the product
specifications. In addition, connecting the power cable without the appropriate fuse in place voids the product
warranty.
1Route the power cable to the power source and to the device.
2Connect the red wire to the positive (+) battery terminal, and connect the black wire to the negative (-) battery
terminal.
3Insert the power-cable connector into the POWER port on the back of the cradle, pushing firmly.
4Turn the locking ring clockwise to secure the cable to the device.
7

Connecting the Device to a Transducer
Go to garmin.com/transducers or contact your local Garmin dealer to determine the appropriate type of
transducer for your needs.
NOTE: If you use an existing transducer and the transducer cable pin connector does not match the device port,
you may be able to use a transducer cable adapter to connect your existing transducer to this device. Go to
garmin.com for more information about transducer accessories.
1Follow the instructions provided with your transducer to correctly install it on your boat.
2Route the transducer cable to the back of your device, away from sources of electrical interference.
3Connect the transducer cable to the appropriate port on the cradle.
If the device behaves erratically, the cable connector may not be fully seated. Disconnect the cable connector
from the port, check the pin alignment, and firmly push the connector into the port.
NMEA 2000 Considerations
NOTICE
If you are connecting to an existing NMEA 2000 network, identify the NMEA 2000 power cable. Only one NMEA
2000 power cable is required for the NMEA 2000 network to operate properly.
A NMEA 2000 Power Isolator (010-11580-00) should be used in installations where the existing NMEA 2000
network manufacturer is unknown.
If you are installing a NMEA 2000 power cable, you must connect it to the boat ignition switch or through
another in-line switch. NMEA 2000 devices will drain your battery if the NMEA 2000 power cable is connected to
the battery directly.
You can connect your device to a NMEA 2000 network on your boat to share data from NMEA 2000 compatible
devices such as a GPS antenna or a VHF radio. The necessary NMEA 2000 cables and connectors are sold
separately.
This device is not powered through the NMEA 2000 network. You must connect the device to a power source
(Connecting the Power Cable, page7).
If you are unfamiliar with NMEA 2000, you should read the Technical Reference for NMEA 2000 Products at
garmin.com/manuals/nmea_2000.
The port labeled NMEA 2000 on the cradle is used to connect it to a standard NMEA 2000 network.
8

Item Description
ECHOMAP UHD2 6/7/9 sv device
GPS antenna or other NMEA 2000 device
Ignition or in-line switch
NMEA 2000 power cable
NMEA 2000 drop cable
12Vdc power source
NMEA 2000 female terminator or backbone extension cable
NMEA 2000 T-connector
NMEA 2000 male terminator or backbone extension cable
Connecting Devices Wirelessly to Share User Data and Sonar
You can connect two ECHOMAP UHD2 devices wirelessly to share user data and sonar.
See your Owner's Manual for more information.
Installing Locking Rings on the Cables
To help make the cable-routing process easier, some locking rings are packaged separately from the cables.
When installing a cable that does not have a locking ring installed at the factory, you must install the split-collar
locking ring on the cable to ensure a tight connection.
1Separate the two halves of the locking ring .
2Align the two halves of the locking ring over the cable and snap them together.
3Insert the O-ring into the end of the connector.
4After connecting the cable to the port, turn the locking ring clockwise to tighten it.
9

Installing the Device in the Cradle
After the cables are connected to the cradle, you can quickly place the device in the cradle.

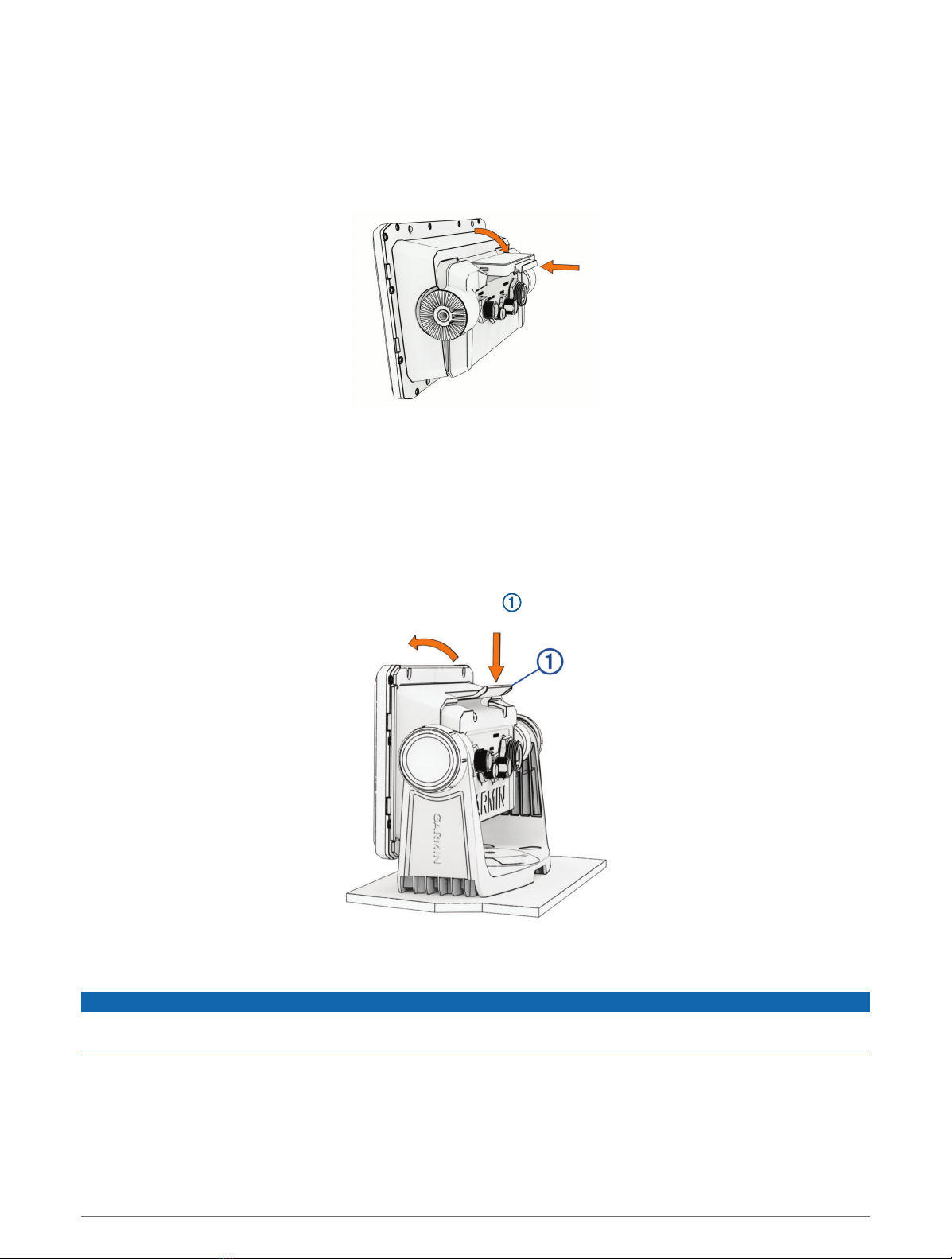

1On a 7xsv or 9xsv device, press the button on the release lever, and lift the lever to unlock it.
2Place the base of the device in the bottom of the cradle.
3Tilt the top of the device toward the cradle.
4Perform an action:
• On a 7xsv or 9xsv device, press the button on the lever, and push the lever down until the device clicks in
place.
• On a 6xsv device, press the device into the cradle until it clicks in place.
Removing the Device from the Cradle
1Perform an action:
• On a 7 sv or 9 sv device, press the button on the release lever on the cradle, and pull the lever up.
• On a 6 sv device, press the release lever on the cradle until you can tilt the device forward.
2Tilt the device forward, and lift the device out of the cradle.
3Install the weather cap on the cradle connector.
NOTICE
Failure to install the weather cap on the cradle connector may result in corrosion that interferes with the
connection between the cradle and the device.
10

Specifications
All Models
Material Polycarbonate plastic
Water rating IEC60529IPX71
Temperature range From -20° to 55°C (from -4° to 131°F)
Clearance to nearest obstruction behind chartplotter 118mm (45/8in.)
Input voltage From 9 to 18Vdc
Fuse 3A, fast-acting (included)
Memory card 1 microSD® card slot; 32GB max. card size
Wireless frequency 2.4 GHz @ 18.7 dBm maximum
Sonar frequencies2
Traditional L, M, H CHIRP: 50/77/83/200kHz
Garmin ClearVü CHIRP: 260/455/800/1000/1200kHz
Garmin SideVü™ CHIRP: 260/455/800/1000/1200kHz
Sonar transmit power (RMS)3CHIRP: 500W
Garmin ClearVü and Garmin SideVü CHIRP: 500W
Sonar depth4701m (2,300 ft.) at 77kHz
6Xsv Models
Dimensions, device and cradle only (W x H x D) 206 x 131 x 67mm (81/8x53/16x25/8in.)
Dimensions, in bail mount with sun cover (W x H x D) 244x155x99mm (95/8x61/8x37/8in.)
Display size (W x H) 138x78mm (57/16x31/16in.)
157mm (6in.)diagonal
Display resolution (W x H) 800 x 480 pixels
Display type WVGA
Weight 0.8kg (1.8lb.)
Max. power draw 18.3 W
Typical current draw at 12Vdc (RMS) 1.53A
Max. current draw at 12Vdc (peak) 3.2A
Compass-safe distance 28cm (11in.)
1 The device withstands incidental exposure to water of up to 1m for up to 30min. For more information, go to www.garmin.com/waterrating.
2 Dependent upon the transducer.
3 Dependent upon the transducer rating and depth.
4 Dependent upon the transducer, water salinity, bottom type, and other water conditions.
11

7Xsv Models
Dimensions, device and cradle only (W x H x D) 218x142x81mm (89/16x55/8x33/16in.)
Dimensions, in bail mount with sun cover (W x H x D) 261x166x99mm (105/16x69/16x37/8in.)
Display size (W x H) 155x87mm (61/8x37/16in.)
178mm(7in.) diagonal
Display resolution (W x H) 800 x 480 pixels
Display type WVGA
Weight 1.0kg (2.2lb.)
Max. power draw 18.3W
Typical current draw at 12Vdc (RMS) 1.52 A
Max. current draw at 12Vdc (peak) 3.2A
Compass-safe distance 25.5cm (10in.)
9Xsv Models
Dimensions, device only (W x H x D) 264x166x80mm (103/8x69/16x33/16in.)
Dimensions, in bail mount with sun cover (W x H x D) 303x182x99mm (1115/16x73/16x37/8in.)
Display size (W x H) 198 x115mm (713/16x49/16in.)
229mm(9in.) diagonal
Display resolution (W x H) 1024 x 600 pixels
Display type WSVGA
Weight 1.3kg (2.9lb.)
Max. power draw 20.7W
Typical current draw at 12Vdc (RMS) 1.72 A
Max. current draw at 12Vdc (peak) 3.5A
Compass-safe distance 22.5cm (9in.)
12

物質宣言
部件名称
有毒有害物质或元素
铅 汞 镉 六价铬 多溴联苯 多溴二苯
醚
邻苯二甲酸
二(2-乙基
己)酯
邻苯二甲
酸丁苄酯
邻苯二甲
酸二丁酯
邻苯二甲
酸二异丁
酯
印刷电路板组件
屏幕/背光
金属零件
电缆 电缆组件
连接器
塑料和橡胶零件
本表格依据 SJ/T11364 的规定编制。
: 代表此种部件的所有均质材料中所含的该种有害物质均低于
(GB/T26572) 规定的限量
: 代表此种部件所用的均质材料中, 至少有一类材料其所含的有害物质高于
(GB/T26572) 规定的限量
* 该产品说明书应提供在环保使用期限和特殊标记的部分详细讲解产品的担保使用条件。
产品
联系信息
制造厂商 : 台湾国际航电股份有限公司
销售厂商 : 上海佳明航电企业管理有限公司
联络地址 : 上海市徐汇区桂平路 391 号 ( 新漕河泾国际商务中心 A 座 37 层 )
电 话 : 021-60737675
客服专线 : 400-819-1899
連絡地址
製造銷售:台灣國際航電股份有限公司
聯絡地址:新北市汐止區樟樹二路 68 號
電 話:[phone]
客服專線:[phone]
低功率電波輻射器材管理宣告
本產品謹遵循中華民國國家通訊傳播委員會所頒布電信管理法，並經驗證通過合格，請使用者遵循相關電信法規
以避免違反規定受罰。若使用者欲攜帶本機至其他國家應用，也請遵循該地區或國家之相關法令限制。根據國家
通訊傳播委員會低功率射頻器材技術規範規定
3.8.2 章節：
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計
之特性及功能。
低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾
時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。低功率射頻器材須忍受合法通信或工業、科學及醫療用電波
輻射性電機設備之干擾。
13

中国微功率无线电发射设备合规
一 ) 工作于 2400–2483.5MHz 频段的 ANT 技术无线遥控设备 , 使用频率 : 2400–2483.5MHz, 发射功率限值 : 10
mW(e.i.r.p), 频率容限 : 75 kHz
二） 不得擅自改变使用场景或使用条件、扩大发射频率范围、加大发射功率（包括额外加装射频功率放大器），
不得擅自更改发射天线；
三） 不得对其他合法的无线电台（站）产生有害干扰，也不得提出免受有害干扰保护；
四） 应当承受辐射射频能量的工业、科学及医疗（ ISM ）应用设备的干扰或其他合法的无线电台（站）干扰；
五） 如对其他合法的无线电台（站）产生有害干扰时，应立即停止使用，并采取措施消除干扰后方可继续使用；
六） 在航空器内和依据法律法规、国家有关规定、标准划设的射电天文台、气象雷达站、卫星地球站（含测控、
测距、接收、导航站）等军民用无线电台（站）、机场等的电磁环境保护 区域内使用微功率设备，应当遵守电磁
环境保护及相关行业主管部门的规定；
七） 禁止在以机场跑道中心点为圆心、半径 5000 米的区域内使用各类模型遥控器；
八） 微功率设备使用时温度 15–55℃ 直流电压 9–18Vdc 。
© 2022 Garmin Ltd. or its subsidiaries
Garmin® and the Garmin logo, are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. ECHOMAP™ is a trademark of Garmin Ltd. or its
subsidiaries. These trademarks may not be used without the express permission of Garmin.
microSD® and the microSD logo are trademarks of SD-3C, LLC.
M/N: B04266 / A04266 / A04396
IC: 1792A-04266 / 1792A-04396
航海电子设备
© 2022 Garmin Ltd. or its subsidiaries support.garmin.com
