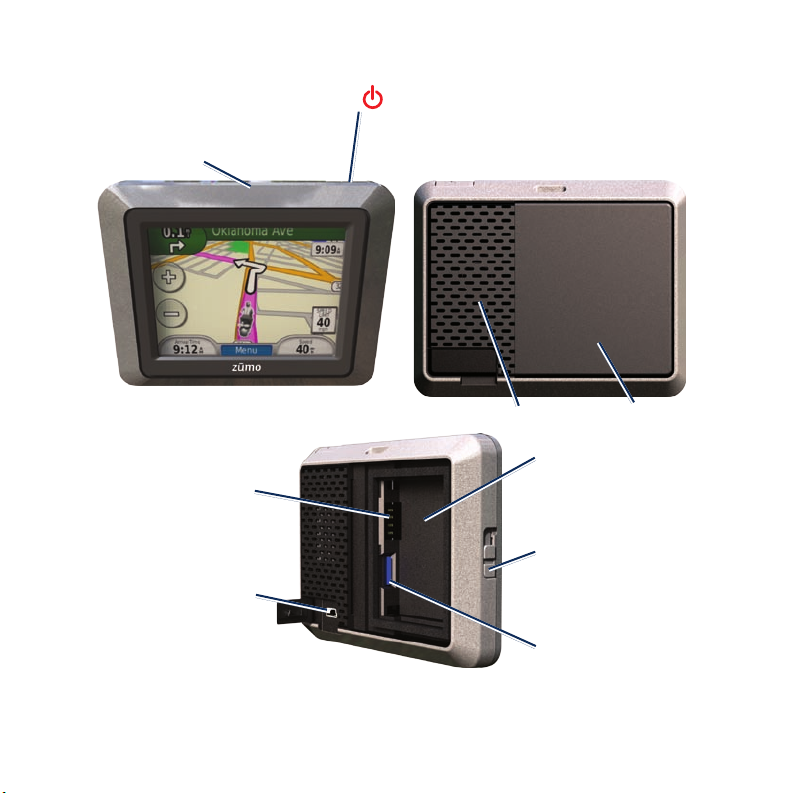

Your zūmo
Serialnumber
underthebattery
Mini-USB
connectorunder
theweathercap microSD
™
cardslot
underthebattery
Releasekey:Slide
uptoopenthe
batterycover.
Battery
contacts
Powerbutton:
Pressandholdtoturnon/offthezūmo.
Pressquicklytoadjustthebacklight
brightness.
GPSantenna
Speaker Batterycover

zūmo0QuickStartManual 
Important Information
‹ Warning
See the Important Safety and Product
Information guide in the product box for product
warnings and other important information.
This product contains a lithium-ion battery.
To prevent the possibility of personal injury or
product damage caused by battery exposure to
extreme heat, remove the device from the vehicle
when exiting or store it out of direct sunlight.
Before mounting the zūmo, see the Important
Safety and Product Information guide for
information about laws pertaining to windshield
mounting.
Getting Started
Installing the Battery
1. Locate the lithium-ion battery that came in the
product box.
2. Slide the release key up to open the battery
cover on the back of the zūmo.
3. Locate the metal contacts on the end of the
lithium-ion battery.

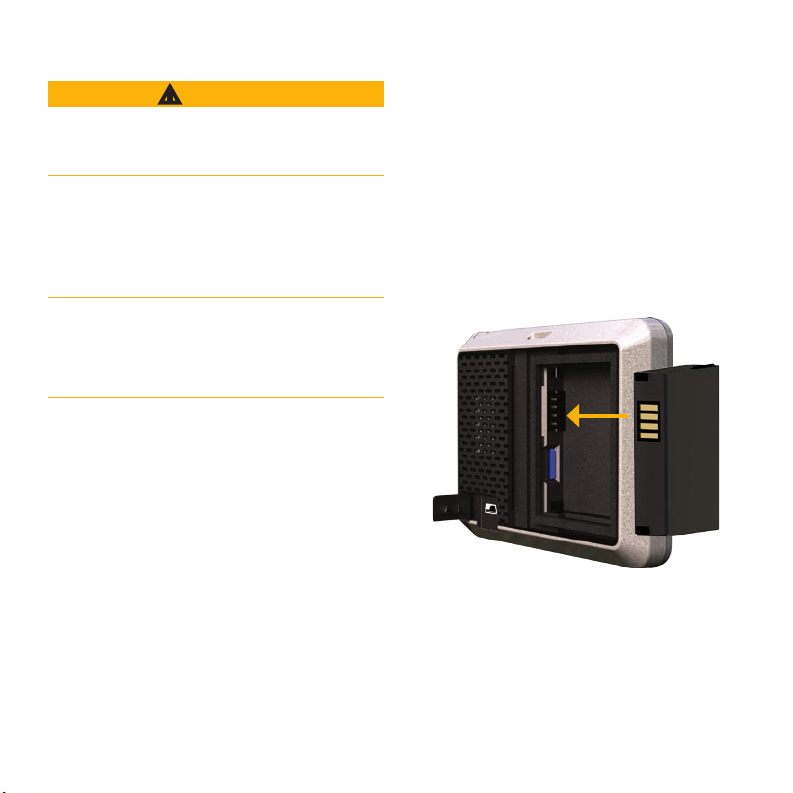

4. Insert the battery so that the metal contacts
on the battery match up with the metal
contacts inside the battery compartment.
5. Press the battery into place.
6. Slide the battery cover back on until it clicks
into place.

 zūmo0QuickStartManual
Connecting Power to the zūmo
1. Pull back the weather cap from the mini-USB
connector located on the back of your zūmo.
2. Plug the vehicle power cable into the mini-
USB connector.
Charging Your zūmo
Charge your zūmo for at least 4 hours before
using on battery power.
Use the automotive power cable.
Use the USB cable.
Use an optional AC adapter cable.
Use an optional battery charger.
Mount Your zūmo in an
Automobile
1. Pull back the weather cap from the mini-USB
connector located on the back of your zūmo.
Cradle Lever
Suctioncup
arm
•
•
•
•
2. Plug the vehicle power cable into the mini-
USB connector.

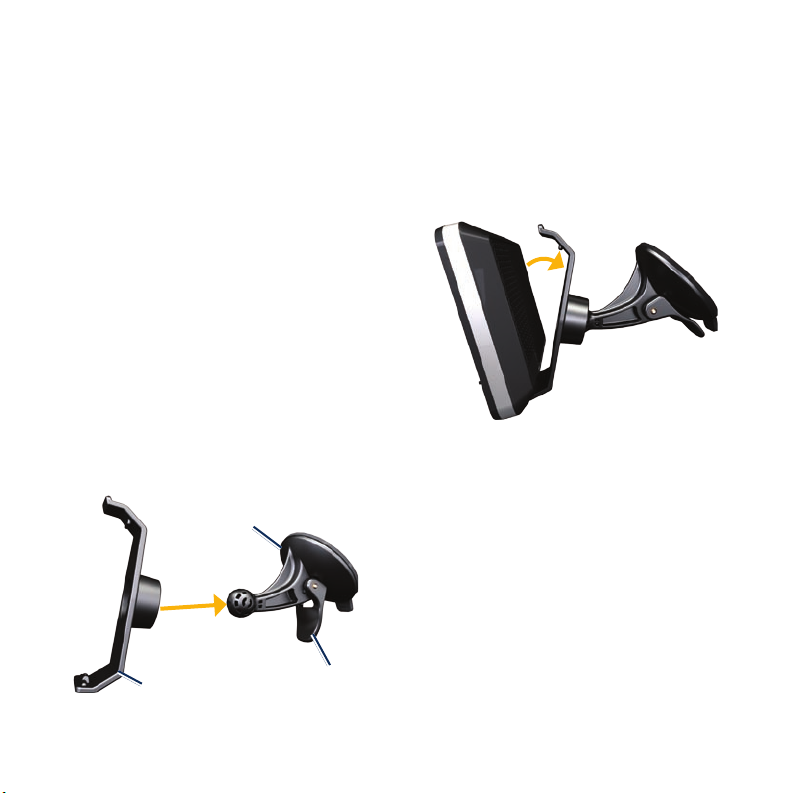

3. Snap the cradle onto the suction cup arm.
4. Remove the clear plastic from the suction
cup. Clean and dry your windshield and the
suction cup with a lint-free cloth.
5. Place the suction cup on the windshield.
6. Flip the lever back, toward the windshield.
7. Fit the bottom of your zūmo into the cradle.
8. Tilt the zūmo back until it snaps into place.
9. Plug the other end of the vehicle power cable
into a power outlet in your vehicle. Your zūmo
should turn on automatically if it is plugged in
and the vehicle is running.

zūmo0QuickStartManual 
Mount Your zūmo on the
Motorcycle
‹ Warning
Incorrectly wiring the power cable with bare
wire leads can result in damage to the vehicle or
the battery and can cause bodily injury. Garmin
strongly recommends having an experienced
installer with the proper knowledge of electrical
systems install the unit.
Notice
To avoid draining the motorcycle battery,
disconnect the power cable from your zūmo
device when you are not riding.
NOTE: Select a suitable and secure location to
mount the zūmo on your motorcycle, based on
available power sources and safe cable routing.
Install the Handlebar Base
The zūmo includes parts for two handlebar
installation solutions. Custom mounts can
require additional hardware (www.ram-mount
.com).

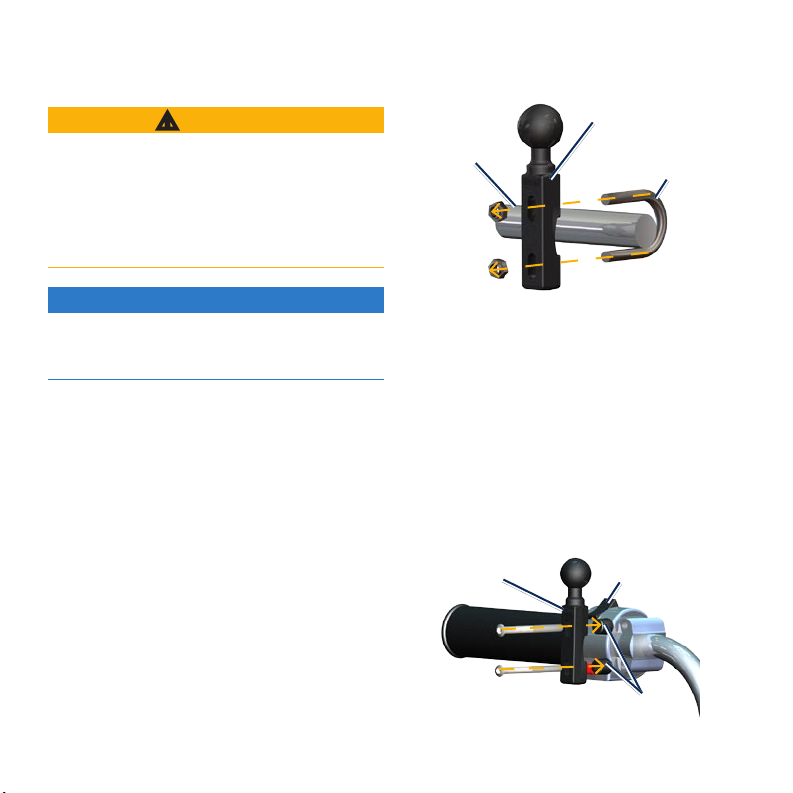

Installing the U-bolt and handlebar base:
1. Place the U-bolt around the handlebar, and
thread the ends through the handlebar base.
2. Tighten the nuts to secure the base. Do not
overtighten.
NOTE: The recommended torque is 50 lbf-in.
Do not exceed torque of 80 lbf-in.
Handlebar
base
Handlebar
U-bolt
Installing the handlebar base to the clutch/
brake clamp bracket:
NOTE: Both 1/4 in. standard and M6 bolts are
included. Match the size of the factory bolts on
your clutch/brake clamp bracket.
1. Remove the two factory bolts on your clutch/
brake clamp bracket.
2. Thread the new bolts through the handlebar
base, spacers, and clamp bracket.
3. Tighten the bolts to secure the base.
Clutch/brake
clampbracket
Handlebar
base
Spacers

 zūmo0QuickStartManual
Baseplate
Cradle
Panheadscrews
Washers
Spacers
Nuts
Attach the Base Plate to the zūmo
Mount
1. Thread the M4 × 40 mm panhead screws
through the washers, cradle, spacers, and
base plate.
2. Tighten the nuts to secure the base plate.
Attach the Base Plate to the Handlebar
Base
1. Align the ball of the handlebar base and the
ball of the base plate with the double-socket
arm.
2. Tighten the knob slightly.
3. Adjust for better viewing and operation.
4. Tighten the knob to secure the mount.
Cradle
Baseplate
Double-socketarm
Knob
Handlebarbase

zūmo0QuickStartManual 
Install Your zūmo in the Mount
1. Fit the bottom of your zūmo into the cradle.
2. Tilt the zūmo back into the cradle.
3. Press down the release lever.
Cradle
Releaselever
Remove Your zūmo from Either Mount
1. Press the release lever on the top of the
mount to release the zūmo.
2. Lift out the zūmo.
Conguring the zūmo
To turn on your zūmo, press and hold . Follow
the on-screen instructions.
Acquiring Satellites
Go outdoors to an open area, out of garages, and
away from tall buildings. Stop your vehicle, and
turn on the zūmo. Acquiring satellite signals may
take a few minutes.
The bars indicate satellite strength.
When the bars are green, the zūmo has
acquired satellite signals. Now you can select a
destination and navigate to it.
Resetting the zūmo
If the zūmo stops functioning, turn the zūmo
off and on again. If this does not help, press and
hold for 10 seconds. The zūmo should operate
normally. You can also remove the battery, and
then reinstall it.

 zūmo0QuickStartManual

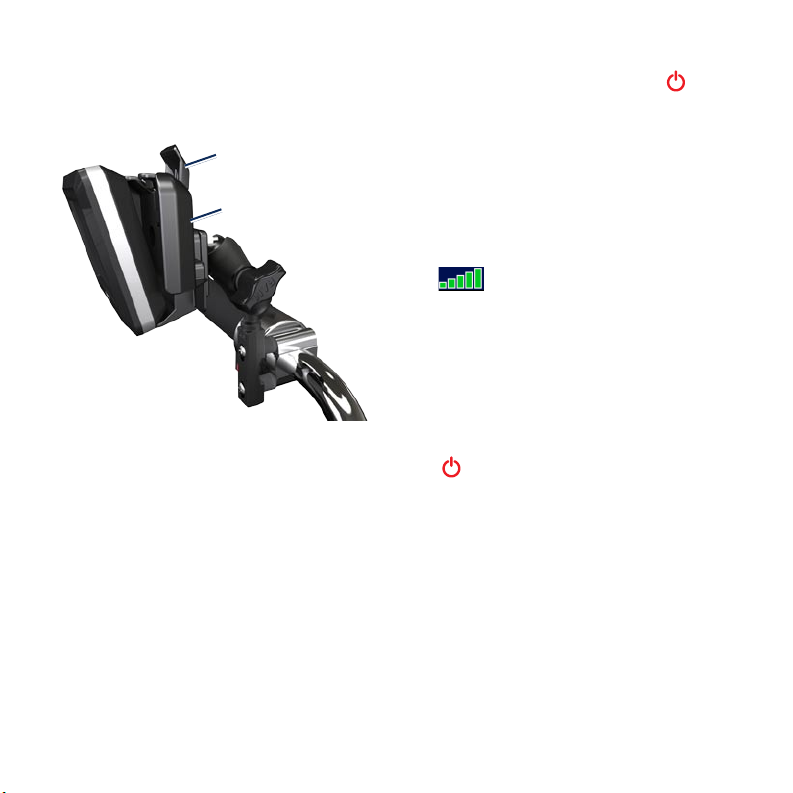

Using the Menu Page
➊➋ ➌
➍
➎
➏ ➐
➑➒
➊ GPS satellite strength.
➋ Bluetooth headset status.
NOTE: Pages appear differently based on your
usage mode and settings.
➌ Touch to change usage mode.
➍ Battery status.
➎ Current time. Touch to change time
settings.
➏ Touch to nd a destination.
➐ Touch to view the map.
➑ Touch to adjust the volume.
➒ Touch to use the tools such as settings,
Where Am I?, Help, and routes.
Finding Points of Interest
1. Touch Where To? > Points of Interest.
2. Select a category.
3. Select a destination, and touch go!.
To search by name, touch Where To? > Points
of Interest > Spell Name.
To search in a different area, touch Where To?
> Near.
Using the Go! Page
➊➋
➌➍
➊ Touch to view the route on the map.
➋ Touch to start navigating the route.
➌ Touch to view this location and surrounding
areas on the map.
➍ Touch to save this location to your
Favorites.

zūmo0QuickStartManual 

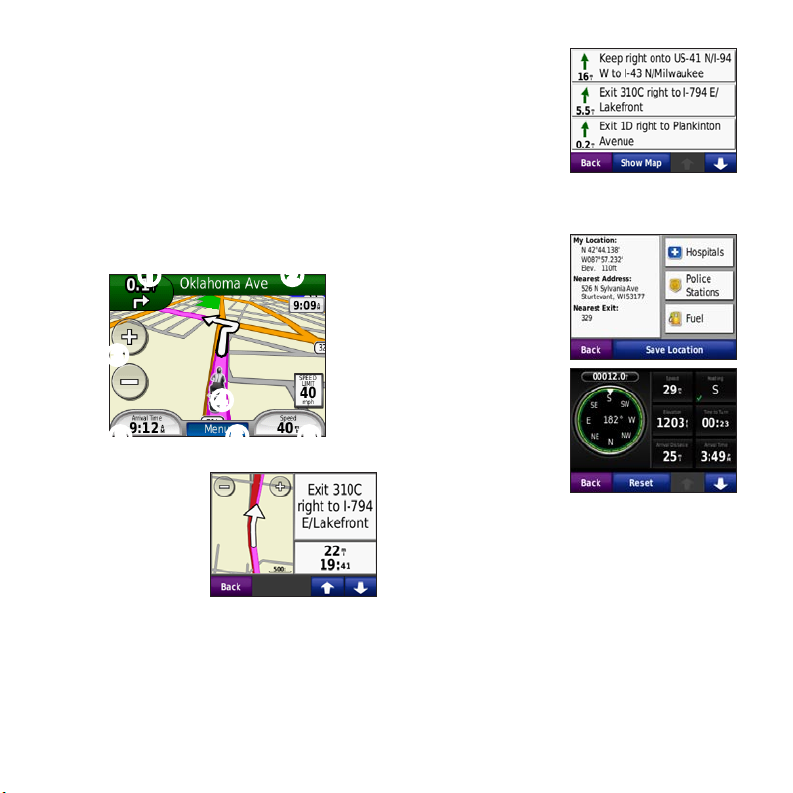

Using the Map Page
Your route is marked with a magenta line.
As you travel, your zūmo guides you to your
destination with voice prompts, arrows on
the map, and directions at the top of the map.
A checkered ag marks your destination.
If you depart from the original route, your
zūmo recalculates the route and provides new
directions.
➊ ➋
➎ ➏
➍
➌
➎
➊ Touch to view
the next turn
(navigating on
road).
➋ Touch the text
bar to view the
turn list.
➌ Touch to zoom
in and out.
➍ Touch the
vehicle icon to
view the Where
Am I? page.
➎ Touch to
view the trip
computer.
➏ Touch to view
the Menu page.

10 zūmo0QuickStartManual
Taking a Detour
If the road ahead is closed, you can take a detour.
NOTE: Detour is not available when navigating
off road.
1. With a route active, touch Menu.
2. Touch Detour.
The zūmo attempts to nd an alternate route
that avoids the current road or the next road on
your turn list, and then returns to your original
route. If the route you are currently navigating is
the only reasonable option, the zūmo might not
calculate a detour.
Adding a Stop to Your Route
1. With a route active, touch Menu > Where
To?.
2. Search for the extra stop.
3. Touch go!.
4. Touch Add as Via Point to add this stop
before your destination.
OR
Touch Set as new Destination to make this
your new nal destination.
TIP: To add more than one stop, edit the current
route. Touch Where To? > Custom Routes.
Navigating Off Road
When you choose a destination while the off
road feature is enabled, the zūmo plots a straight
line to the destination.
1. Touch Tools > Settings > Navigation.
2. Under Route Preference, touch Off Road.

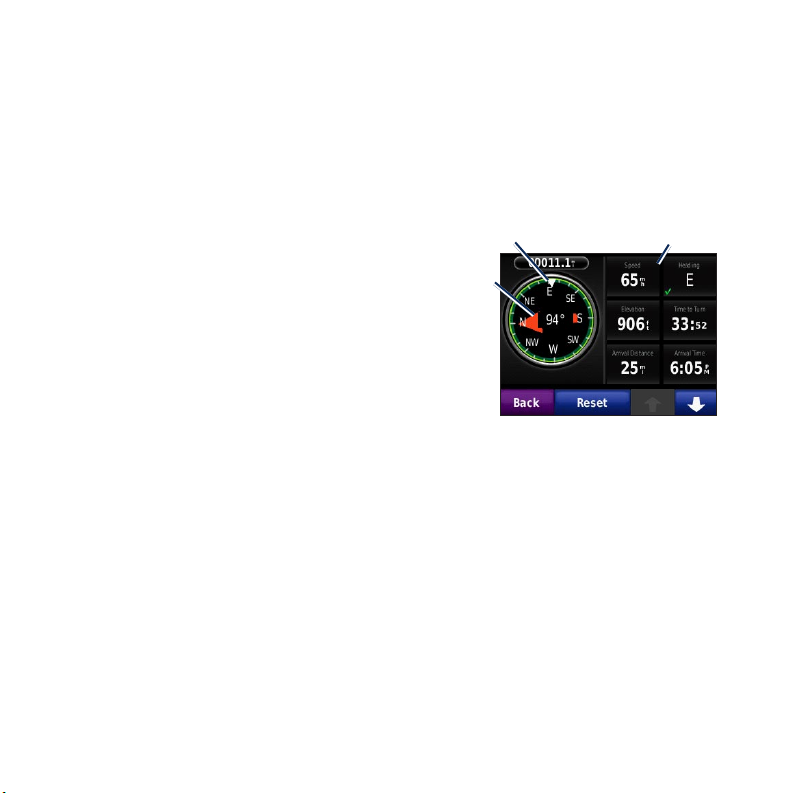

Directionto
destination
Customizable
dataelds
Heading
Pairing your Bluetooth® Headset
You can listen to zūmo audio with your
Bluetooth headset. The rst time you use two
devices together, you must “pair” them. Your
Bluetooth headset and the zūmo must be turned
on and be within 10 meters of each other. After
the initial pairing, the two devices can connect
automatically each time you turn them on.
1. Touch Tools > Settings > Bluetooth.
2. Enable Bluetooth technology on your zūmo.
3. Under Connections, touch Add or Change.
4. Enable Find Me/Discoverable/Visible mode
on your headset.

zūmo0QuickStartManual 11
5. Touch OK on the zūmo.
6. Select your headset, and touch OK.
7. Enter the Bluetooth PIN for your headset, if
necessary, and touch Done.
8. Touch OK.
Using TracBack®
Touch Where To? > TracBack to view your
recent track. Touch Save to save the track to
your Favorites. Touch Go! to retrace your recent
path of travel.
Securing Your zūmo
1. Touch Tools > Settings > Security > Garmin
Lock.
2. Enter a 4-digit PIN and drive to a security
location.
NOTE: If you forget your PIN and your security
location, you must send your zūmo to Garmin
to get it unlocked. You must also send a valid
product registration or proof of purchase.
Product Registration
Help us better support you by completing our
online registration today. Go to http://my.garmin
.com. Keep the original sales receipt, or a
photocopy, in a safe place.
Contact Garmin
Contact Garmin if you have any questions while
using your zūmo. In the USA, go to www
.garmin.com/support, or contact Garmin USA by
phone at [phone] or [phone].
In the UK, contact Garmin (Europe) Ltd. by
phone at 0808 2380000.
In Europe, go to www.garmin.com
/support and click Contact Support for in-
country support information, or contact Garmin
(Europe) Ltd. by phone at +44 (0) 870.8501241.
More Information
For more information about your zūmo, touch
Tools > Help. You can download the latest
version of the owner’s manual from www
.garmin.com. For information about accessories,
go to http://buy.garmin.com or contact your
Garmin dealer.

Garmin
®
, the Garmin logo, zūmo
®
, and TracBack
®
are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other
countries. Garmin Lock
™
is a trademark of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express
permission of Garmin. microSD
™
is a trademark of the SD Card Association. Other trademarks and trade names are those of their
respective owners. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin
is under license.
For the latest free software updates (excluding map data) throughout the life of your Garmin
products, visit the Garmin Web site at www.garmin.com.
© 2010 Garmin Ltd. or its subsidiaries
Garmin International, Inc.
1200 East 151st Street, Olathe, Kansas 66062, USA
Garmin (Europe) Ltd.
Liberty House, Hounsdown Business Park, Southampton, Hampshire, SO40 9LR UK
Garmin Corporation
No. 68, Jangshu 2nd Road, Sijhih, Taipei County, Taiwan
www.garmin.com
March 2010 Part Number 190-01144-01 Rev. B Printed in Taiwan
