Apollo™SRX400 Installation Instructions
Important Safety Information
WARNING
Failure to follow these warnings and cautions could result in personal injury, damage to the vessel, or poor
product performance.
See the Important Safety and Product Information guide in the product box for product warnings and other
important information.
This device must be installed according to these instructions.
Disconnect the vessel's power supply before beginning to install this product.
Before applying power to this product, make sure it has been correctly grounded according to these
instructions.
CAUTION
To avoid possible personal injury, always wear safety goggles, ear protection, and a dust mask when drilling,
cutting, or sanding.
NOTICE
When drilling or cutting, always check what is on the opposite side of the surface to avoid damaging the vessel.
Do not use the stereo as a template when drilling the mounting holes because this may damage the glass
display and void the warranty. You must only use the included template to correctly drill the mounting holes.
You must read all installation instructions before beginning the installation. If you experience difficulty during
the installation, contact Fusion® Product Support.
What's In the Box
• Mounting gasket
• Mounting template
• Four 8-gauge, self-tapping screws
• Two screw covers
• Power, speaker, line-out, and subwoofer-out wiring harness
Tools Needed
• Phillips screwdriver
• Electric drill
• Drill bit (size varies based on surface material and screws used)
• Rotary cutting tool or jigsaw
• Silicone-based marine sealant (optional)
GUID-FF0E2FF3-6582-49AF-A641-C26455B2A8CF v5May 2021

Mounting Considerations
• You must mount the stereo on a flat surface that provides open airflow around the rear of the stereo for heat
ventilation.
• If you are installing the stereo in a location that may be exposed to water, you must mount it within 45
degrees of the horizontal plane.
• If you are installing the stereo in a location that may be exposed to water, add a drip loop to the cable to
allow water to drip off of the cable and avoid damage to the stereo.
• If you need to mount the stereo outside a boat, you must mount it in a location far above the waterline, where
it is not submerged, and where it cannot be damaged by docks, pilings, or other pieces of equipment.
• To avoid interference with a magnetic compass, you must install the stereo at least 10 cm (3.9 in.) away
from a compass.
2 Apollo SRX400 Installation Instructions

Mounting the Stereo
NOTICE
Do not use the stereo as a template when drilling the mounting holes because this may damage the display and
void the warranty. You must only use the included template to correctly drill the mounting holes.
Be careful when cutting the hole to mount the stereo. There is only a small amount of clearance between the
case and the mounting holes, and cutting the hole too large could compromise the stability of the stereo after it
is mounted.
Be careful when installing the stereo in an aluminum boat or a boat with a conductive hull, if you require the
electrical system to be isolated from the boat hull.
Do not apply grease or lubricant to the screws when fastening the stereo to the mounting surface. Grease or
other lubricants can cause damage to the stereo housing.
Before you can mount the stereo in a new location on the mounting surface, you must select a location in
accordance with the mounting considerations.

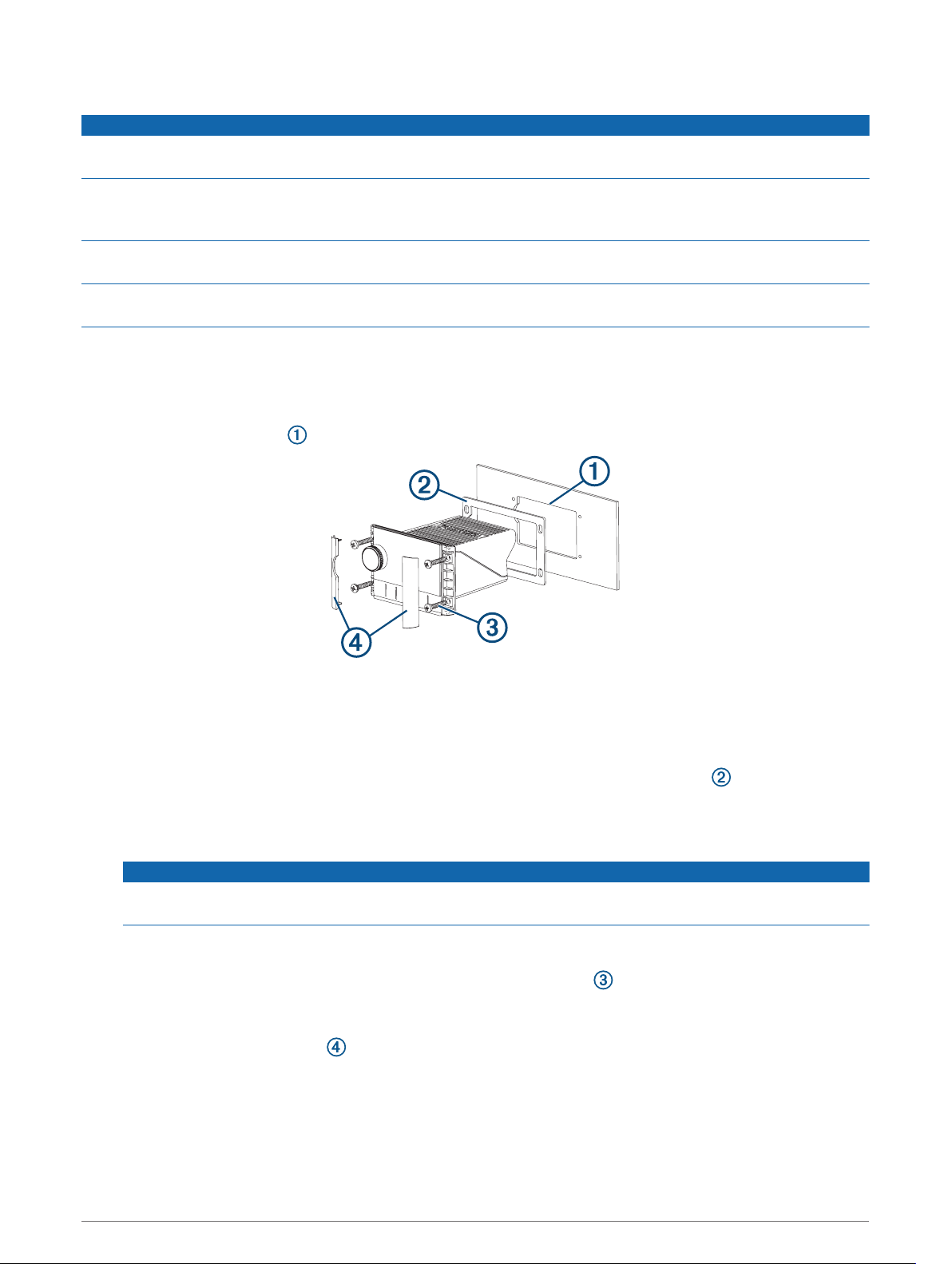

1Adhere the template to the mounting surface.
2Drill a hole inside the corner of the dashed line on the template.
3Cut the mounting surface along the inside of the dashed line on the template.
4Ensure the mounting holes on the stereo line up with the pilot holes on the template.
5Using an appropriately sized drill bit for the mounting surface and screw type, drill the pilot holes.
6Remove the template from the mounting surface.
7Complete an action:
• If you are installing the stereo in a dry location, place the included mounting gasket on the back of the
stereo.
• If you are installing the stereo in a location that is exposed to water, apply silicone-based marine sealant
on the mounting surface around the cutout.
NOTICE
Do not install the included mounting gasket if you applied sealant to the mounting surface. Using sealant
and the mounting gasket may reduce water resistance.
8If you will not have access to the back of the stereo after installation, make the necessary wiring
connections.
9Secure the stereo to the mounting surface using the included screws .
You should hand-tighten the screws when securing the stereo to the mounting surface to avoid over
tightening them.
10 Snap the screw covers in place .
Connection Considerations

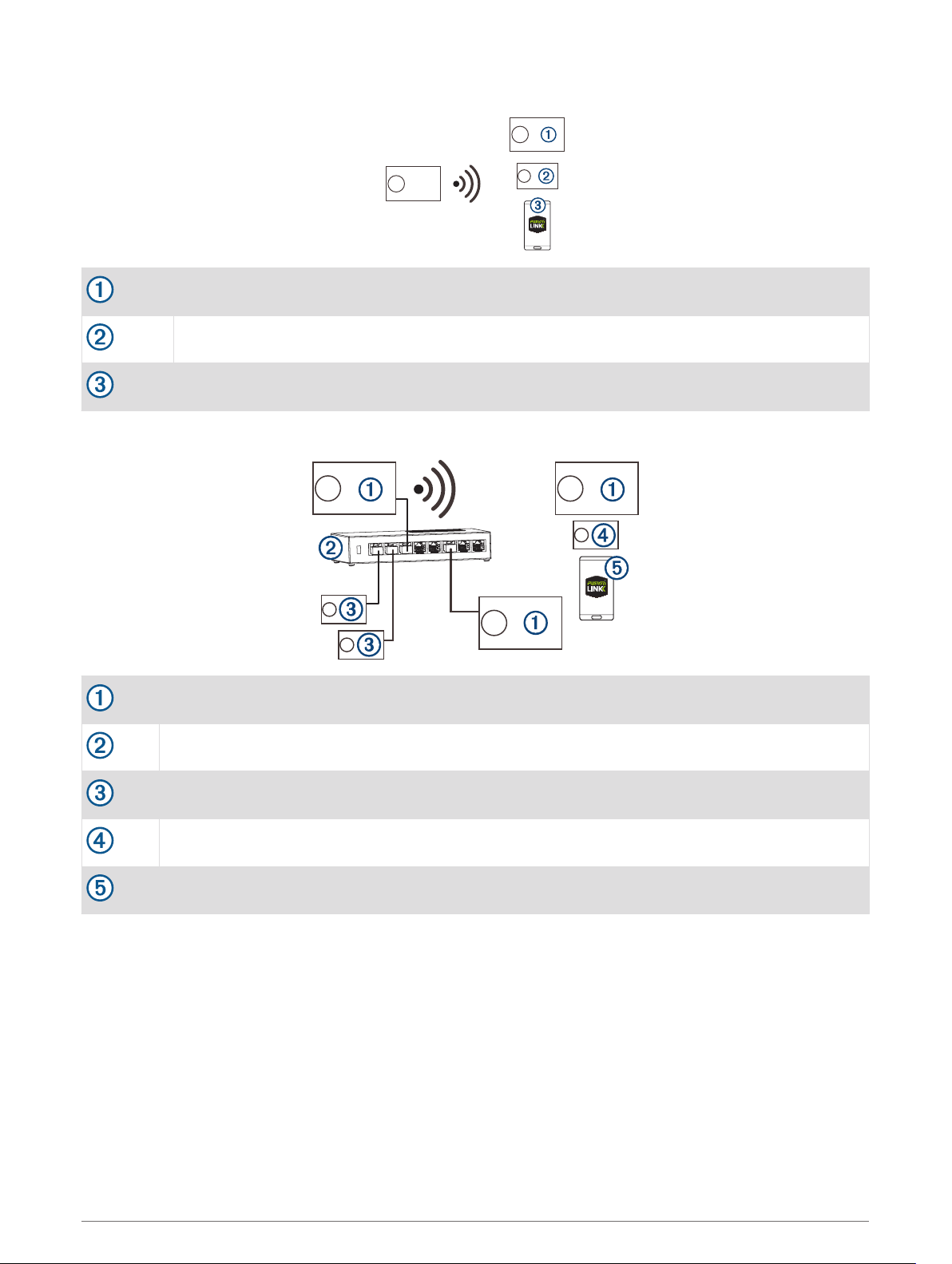

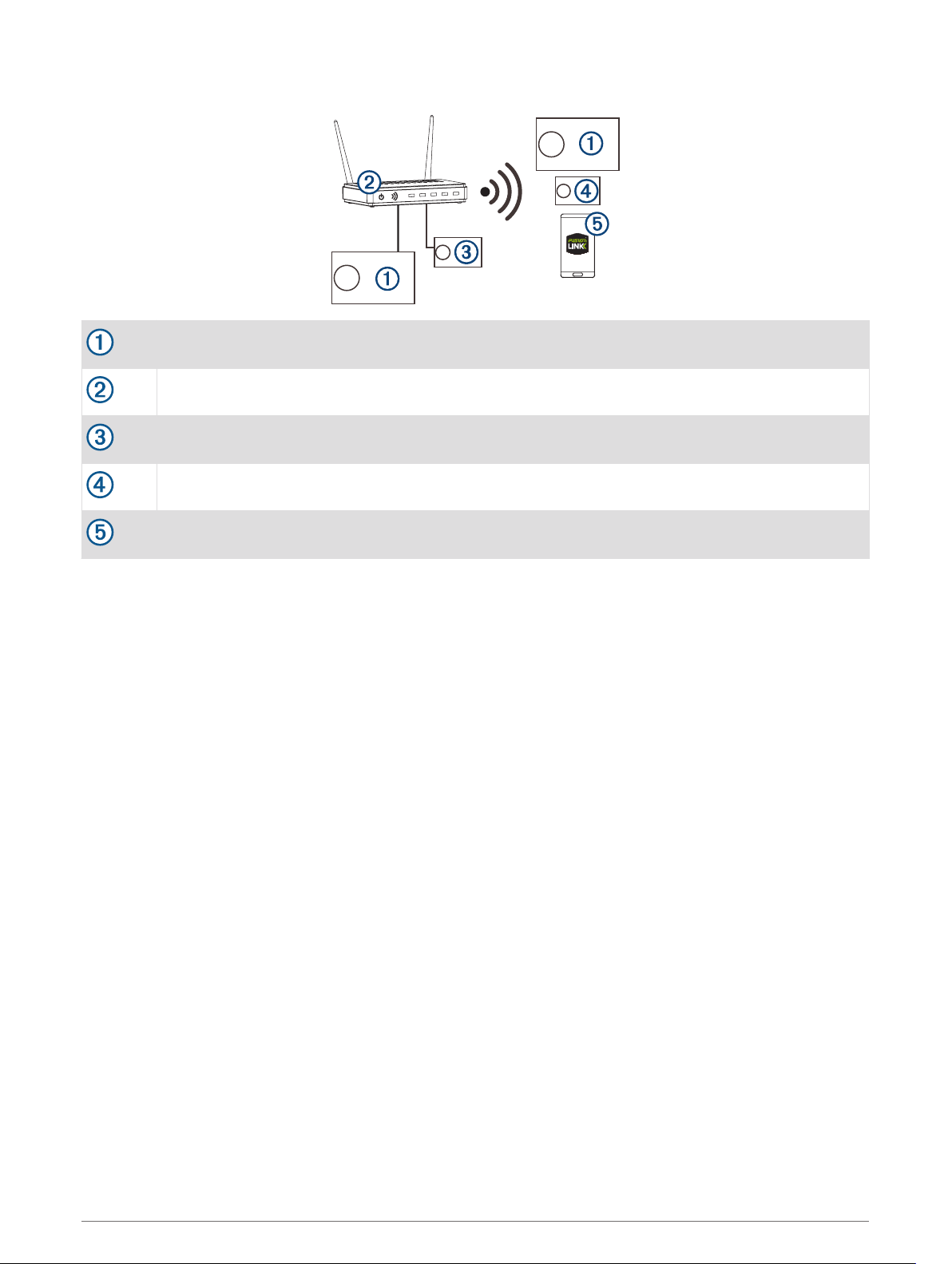

You must connect the stereo to power, to speakers, and to media input sources. You should carefully plan the
layout of the stereo, speakers, input sources, and optional Fusion PartyBus™ devices and Fusion PartyBus
network before making any connections.
Apollo SRX400 Installation Instructions 3

Port Identification

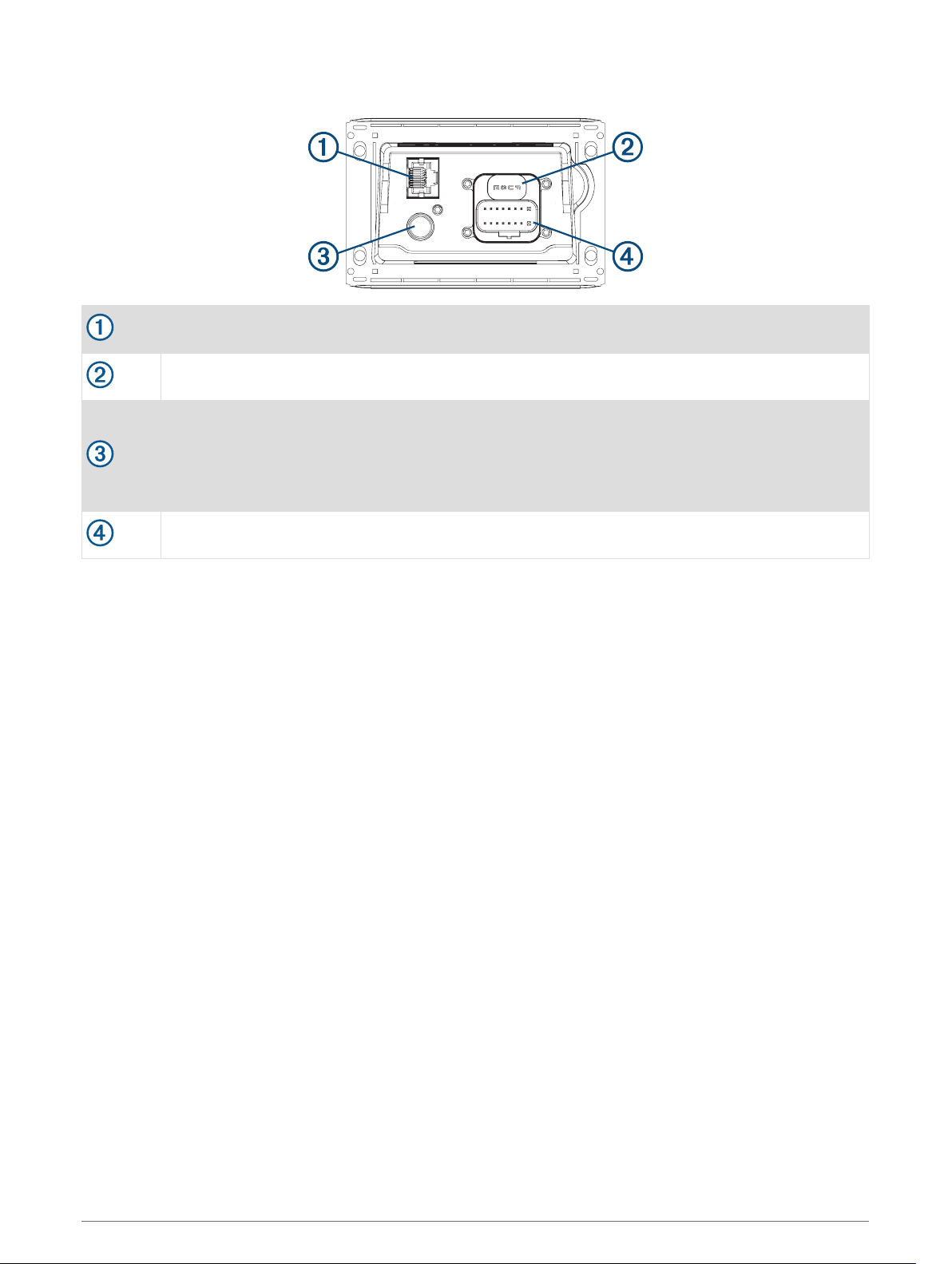

Connects to a Fusion PartyBus stereo or network (Fusion PartyBus Networking, page 10).
FUSE Contains the 15 A fuse.
Connects to a typical AM/FM antenna.
If you are installing the stereo on a boat with a metal hull, you must use a ground-dependent
antenna. If you are installing the stereo on a boat with a non-metal hull, you must use a ground-
independent antenna. See the installation instructions provided with your antenna for more infor
mation.
Connects to the wiring harness
4 Apollo SRX400 Installation Instructions

Wiring Harness
Wire Function Wire Color/
Label Notes
Ground (-) Black Connects to the power source (Power Connection, page 6).
Power (+) Yellow Connects to the power source (Power Connection, page 6).
Ignition Red Connects to the power source (Power Connection, page 6).
Amplifier on Blue
Connects to an optional external amplifier to turn on he amplifier when
the stereo turns on.
A connected amplifier must use the same ground (-) as the stereo for this
signal wire to function correctly.
Dim Orange
Connects to the boat's illumination wire to dim the stereo screen when
the boat's lights are on.
The gauge of the illumination wire must be suitable for the fuse supplying
the circuit it is connected to.
Speaker left (+) White
Speaker left (-) White/black
Speaker right (+) Gray
Speaker right (-) Gray/black
Line out (left)
Line out (right)
ZONE 1 LINE
OUT
Provides output to an external amplifier, and is associated with the
volume control for zone 1.
Subwoofer out SUB OUT
Provides a single, mono output to a powered subwoofer or subwoofer
amplifier. A connected subwoofer is associated with the volume control
for zone 1.
Apollo SRX400 Installation Instructions 5

Power Connection
When connecting the stereo to power, you must connect the yellow, red, and black wires to the power source.
The yellow and red wires have different functions, and the method you use to connect them to power depends
on how you plan to use the stereo on your vessel.
Yellow wire
• This wire provides power to the stereo.
• This wire should be connected through a 15 A circuit breaker, if one is available on the vessel.
NOTICE
If a 15 A circuit breaker is not available on the vessel, you must connect this wire to power through a 15 A
fuse (not included).
• This wire provides power to the stereo at all times, and it will drain the battery even when the stereo is not
in use. You should install a manual switch on this wire if a 15 A circuit breaker is not available on the
vessel, or if you cannot toggle the breaker to remove power to the stereo when storing the vessel.
• If it is necessary to extend this wire, use 14 AWG (2.08 mm2) wire. For extensions longer than 1 m (3 ft.),
use 12 AWG (3.31 mm²) wire.
Red wire
• This wire can be connected to the same power source as the yellow wire through the ignition or through a
manual switch. This enables you to turn the stereo on and off automatically when you turn the vessel on
and off, or when you activate the switch.
• Using this wire to turn the stereo on and off behaves in the same way as using the power button on the
stereo to turn it on and off. It is not necessary to connect this wire to a switch if you plan to toggle the
power using the power button on the stereo or using a connected chartplotter or remote control. This wire
must be connected to turn the stereo on.
• When you turn off the stereo using this switch or the power button, it enters a standby mode that allows
the stereo to start up again faster than if you switch the power off using the yellow wire. When it is in
standby mode, the stereo uses up to 200 mA, and you must turn off power to the stereo on the yellow wire
thorough the circuit breaker or manual switch when you are not using the vessel to avoid draining the
battery.
•NOTICE
You must connect this wire to power through a 1 A fuse (not included), whether or not you connect it to
the ignition or manual switch.
• If it is necessary to extend this wire, use 22 AWG (0.33 mm2) wire.
Black wire
• This is the ground wire, and you must connect it to the negative terminal of the power source or to a
common ground.
• If it is necessary to extend this wire, use 14 AWG (2.08 mm2) wire. For extensions longer than 1 m (3 ft.),
use 12 AWG (3.31 mm²) wire.
6 Apollo SRX400 Installation Instructions

Connecting to Power Without Using an Ignition Switch
This method of connection is used most often on larger vessels and on vessels with multiple networked
stereos and other marine devices. For these installations, a faster startup time is typically less critical, and it is
more effective to use the breaker or a dedicated switch on the electrical panel to turn off the stereo and ensure
that no unexpected power drain occurs.
1Consult this diagram to plan the wire connections.
Item Description Notes
Yellow wire You should connect this wire to the red wire before you connect both
wires to the manual switch or circuit breaker.
Red wire You should connect this wire to the yellow wire so that it does not act as a
physical standby switch.
1 A fuse (not included) You must install this fuse on the red wire before you connect the red wire
to the yellow wire.
Manual switch
(optional)
This switch is needed only if a circuit breaker is not available or if it
provides a more convenient method of cutting power to the stereo.
Black wire Ground (-)
15 A fuse (not included)
This fuse is required if you are not able to connect to power through a
15 A circuit breaker .
15 A circuit breaker If a circuit breaker is not available, you must connect a 15 A fuse on
the yellow wire
2Route all wires to the stereo wiring harness, the circuit breaker or switch, and the power source as
necessary.
Do not connect the wiring harness to the stereo until after you have made all of the bare wire connections.
3Install all of the necessary fuses on the red and yellow wires.
4Connect the wiring harness to the stereo.
When the circuit breaker or manual switch is closed, the stereo is always on. You can use the power button on
the stereo or a connected chartplotter or remote control to place the stereo in a low-power standby mode if
needed.
NOTE: When you are not using the vessel, you should remove power to the stereo using the circuit breaker or
manual switch to avoid draining the battery.
Apollo SRX400 Installation Instructions 7

Connecting to Power Through an Ignition Switch
This method of connection is used most often on ski boats, wake boats, and similar sport or recreational
vessels where power to the engines is toggled often. For these installations, a quick standby and faster startup
time is desired so that music can be stopped and begin playing again as quickly as possible after restarting the
engines. When in standby mode, the stereo uses up to 200 mA, and you should connect the power wires
through a circuit breaker or manual switch to avoid draining the battery when you are not using the boat.
1Consult this diagram to plan the wire connections.
Item Description Notes
Yellow wire You must connect this wire to the same power source as the ignition or
ACC switch.
Red wire You must connect this wire to the ignition or ACC switch before you
connect it to the same power source as the yellow wire.
1 A fuse (not included) You must install this fuse on the red wire before you connect the red wire to
the ignition or ACC switch.
Ignition or ACC switch
Connecting the red wire to this switch allows the stereo to enter a low-
power standby mode when you turn off the engines, so it can start up faster
when you turn on the engines again.
Black wire Ground (-)
15 A fuse (not
included)
This fuse is required if you are not able to connect to power through a 15 A
circuit breaker .
15 A circuit breaker or
manual switch
If a circuit breaker is not available, you must connect a 15 A fuse on the
yellow wire. You should also connect the yellow wire to power using a
manual switch, so you can remove power to the stereo when you are not
using the boat.
2Route all wires to the stereo wiring harness, the ignition or ACC switch, the circuit breaker, and the power
source as necessary.
Do not connect the wiring harness to the stereo until after you have made all of the bare wire connections.
3Install all of the necessary fuses on the red and yellow wires.
4Connect the wiring harness to the stereo.
When you turn on the ignition switch, the stereo turns on along with other accessory electronics. When you turn
off the ignition switch, the stereo enters a low-power standby mode.
NOTE: When you are not using the vessel for an extended period of time, you should remove power to the
stereo using the circuit breaker or other manual switch on the yellow wire to avoid draining the battery.
8 Apollo SRX400 Installation Instructions

Speaker System Wiring Using the Internal Stereo Amplifier
Speakers
Water-tight connection
Speaker System Wiring Using the Line Out
Item Description
Speakers
Powered amplifier
Line out and subwoofer out
The subwoofer cable provides a single mono output to a powered subwoofer or subwoofer amplifier.
You may need to use an RCA splitter to connect this to an amplifier.
Amplifier-on signal wire
A connected amplifier must use the same ground (-) as the stereo for this signal wire to function
correctly.
Subwoofer
NOTE: You can connect speakers to the speaker wires for the internal stereo amplifier while using the line out,
although adjusting the volume affects both the speakers connected to the internal amplifier and the line out.
This may result in uneven volume levels.
Apollo SRX400 Installation Instructions 9

Fusion PartyBus Networking
The Fusion PartyBus networking feature allows you to connect multiple compatible stereos together on a
network, using a combination of wired or wireless connections.
You can group a compatible stereo, such as the Apollo RA770 stereo, with other compatible stereos connected
to the network. Grouped stereos can share available sources and control media playback on all of the stereos
in the group, which allows for a synchronized audio experience across the vessel. You can quickly create, edit,
and break up groups as needed from any compatible stereo or remote control on the network.
NOTE: A zone stereo, such as the SRX400, can create or join a group to control and play sources from other
stereos, but it cannot share its sources with the group.
For additional considerations when sharing sources, see the owner's manual.
You can use compatible stereos and remote controls, whether they are grouped or not, to adjust the volume of
the available speaker zones for any stereo on the network.
You can connect up to eight Fusion PartyBus stereos on a network wirelessly.
Wired Networking Considerations
When you are planning your network installation, observe the following considerations for all wired
connections.
• You must connect devices using standard Cat5e or Cat6 network cables with RJ45 connectors.
• You can use one network cable to directly connect two compatible devices.
• You must use wired network switches and wired or wireless network routers when you connect more than
two compatible devices to a network.
• If you install a router on the network, it should be configured to be a DHCP server by default. See your router
instructions for more information.
• If you do not install a router, and there are no other DHCP servers on the network, you should configure one
Fusion PartyBus stereo to be a DHCP server (Setting the Fusion PartyBus Device as the DHCP Server,
page 14).
Wired Network Example for Direct Connections
No network setting changes are needed when connecting two devices together directly, but for the best results,
you should configure one device to be a DHCP server (Setting the Fusion PartyBus Device as the DHCP Server,
page 14).
Fusion PartyBus stereo
Fusion PartyBus zone stereo or remote control
10 Apollo SRX400 Installation Instructions

Wired Network Example with a Switch or Router
You must use wired network switches, a wired network router, or both to connect more than two devices.
If you did not install a router, and there are no other DHCP servers on the network, you should configure one
Fusion PartyBus stereo to be a DHCP server (Setting the Fusion PartyBus Device as the DHCP Server, page 14).
If you installed a router, you may need to configure it to be a DHCP server. See your router instructions for more
information.
Fusion PartyBus stereo
Wired network switch or wired network router
Fusion PartyBus zone stereo or remote control
Wireless Networking Considerations
When you are planning your network, observe the following considerations for all wireless connections.
• Wired connections are more reliable than wireless connections. You should plan your network to use
network cables, but if it is not possible, many Fusion PartyBus devices are Wi‑Fi® compatible. You can
connect them to wireless routers or access points.
• If you install a wireless router on the network, it should be configured to be the DHCP server by default. See
your wireless router instructions for more information.
• If you are not using a wireless router, you can configure this device as a wireless access point, so you can
connect other devices within wireless range.
NOTE: You should not configure this device as a wireless access point if you have a router installed on the
network, because it may introduce DHCP conflicts and result in poor network performance.
• If you connect a Fusion PartyBus device to the network as a WI-FI CLIENT, you cannot connect any
additional wired Fusion PartyBus devices to that device.
• You can connect a smartphone to the wireless network to control any stereo on the network using the
Fusion-Link™ app.
• You can connect an Apple® device to the wireless network to stream media to multiple stereos on the
network using Apple AirPlay® 2.
• Connecting a Bluetooth® device to the stereo may interfere with some Wi‑Fi connections.
• Wi‑Fi signals may interfere with Bluetooth device connections. You should turn off the Wi‑Fi setting on your
stereo if you are not using it to connect to a wireless network or to provide a wireless access point.
Apollo SRX400 Installation Instructions 11

Wireless Access Point Example
Fusion PartyBus stereo
Fusion PartyBus zone stereo
Smartphone using the Fusion-Link app
Wireless Network Example with a Wired Switch or Router
Fusion PartyBus stereo
Wired network switch or wired network router
Fusion PartyBus zone stereo or remote control
Fusion PartyBus zone stereo
Smartphone using the Fusion-Link app.
12 Apollo SRX400 Installation Instructions

Wireless Network Example with a Wireless Router or Access Point
Fusion PartyBus stereo
Wireless network router or wireless access point
Fusion PartyBus zone stereo or remote control
Fusion PartyBus zone stereo
Smartphone using the Fusion-Link app
Apollo SRX400 Installation Instructions 13

Constructing a Network
You should have a basic understanding of networking when building a network for Fusion PartyBus devices.
These instructions guide you through the basics of building and configuring a network, and should apply to
most situations. If you need to perform advanced networking tasks, such as assigning static IP addresses to
devices on the network or configuring advanced settings on a connected router, you may need to consult a
networking professional.
1Determine the installation location of the Fusion PartyBus devices you want to connect to the network.
NOTE: Wired connections are more reliable than wireless connections. When planning your network, you
should run network cables instead of using wireless connections when possible.
2Determine the installation location of any needed network routers or switches.
3Route Cat5e or Cat6 network cable to the installation locations of the stereos, switches, and router.
4Connect the network cables to the stereos, switches, and router.
NOTICE
Do not completely install the stereos yet. You should test the network before you install the stereos.
5Turn on all devices connected to the network, including wireless devices.
6Select an option:
• If you are using a network router (wired or wireless), consult the documentation provided with your router
to configure the router as the DHCP server, if necessary. When using a router as the DHCP server, all
stereos on the network should use their default configuration (DHCP client).
• If you are not using a wireless router, you should configure a stereo as a wireless access point, if
necessary (Setting the Fusion PartyBus Device as a Wireless Access Point, page 15). Configuring a
stereo as a wireless access point makes that stereo the DHCP server, and all of the other stereos on the
network should use their default configuration (DHCP client).
• If you are not using a network router, not using a stereo as a wireless access point, and there are no other
DHCP servers on the network, you should configure one of the stereos as the DHCP server (Setting the
Fusion PartyBus Device as the DHCP Server, page 14).
7Test the network by selecting > GROUPS to view a list of devices connected to the on the network, and
select an option:
• If any Fusion PartyBus devices are not available to the network, troubleshoot the network (Network
Troubleshooting, page 16).
• If all Fusion PartyBus devices are available on the network, complete the installation for each stereo, if
necessary.
Network Configuration
Setting the Fusion PartyBus Device as the DHCP Server
If you connected more than two network devices together using a network switch or wireless access point but
you did not install a router, you should configure only one Fusion PartyBus stereo to be a DHCP server.
NOTICE
Having more than one DHCP server on the network causes instability and poor performance for all devices on
the network.
NOTE: If you have set up this stereo as a WI-FI ACCESS POINT, it is configured as a DHCP server by default, and
no further settings changes are needed (Setting the Fusion PartyBus Device as a Wireless Access Point,
page 15).
1If the device is connected to the network using an Ethernet cable, select > SETTINGS > NETWORK > WI-
FI OFF.
2If the device is connected to the network using an Ethernet cable, select STATIC IP > SAVE.
3Select ADVANCED > DHCP SERVER > DHCP ENABLED > SAVE.
14 Apollo SRX400 Installation Instructions

Configuring the Stereo for use with a Garmin®Marine Network
You can connect this stereo to a Garmin Marine Network in order to view and control the stereo using a
compatible Garmin chartplotter.
NOTE: When you configure the stereo for use with a Garmin Marine Network, you are limited to using only
Garmin and Fusion devices. You may not be able to use third-party routers, storage devices, or other network
products with this stereo directly.
When the stereo is connected to a Garmin Marine Network, you can connect a smartphone to a wireless access
point on a connected Garmin chartplotter and use the Fusion-Link app to control the stereo.
You cannot use Wi‑Fi networking on a stereo configured for use with a Garmin Marine Network. This
functionality is compatible with wired network connections only.
Select > SETTINGS > NETWORK > WI-FI OFF > GARMIN MARINE NETWORK.
Setting the Fusion PartyBus Device as a Wireless Access Point
Before you can connect additional Fusion PartyBus devices or smartphones to a Fusion PartyBus device
wirelessly, you must configure one device as a wireless access point. This is not necessary if you installed a
wireless router or other wireless access point on the network.
NOTE: You should not configure this device as a wireless access point if you have a router installed on the
network. Doing so may introduce DHCP conflicts and result in poor network performance.
For more detailed configuration instructions, see the owner's manual.
1Select > SETTINGS > NETWORK > WI-FI ACCESS POINT.
2Select USE DEFAULTS and wait for the device to save the network settings.
NOTE: After the default settings are saved, you can scroll down to the bottom of the NETWORK menu to
view and change the SSID and password assigned to the access point.
NOTE: When you configure the stereo as a wireless access point, you can also use the wired network
connection without changing any additional settings. The wired and wireless networks are bridged.
Connecting the Fusion PartyBus Device to a Wireless Access Point
You can connect this device to a wireless access point on a router or compatible Fusion PartyBus device on the
network. This device can connect using Wi‑Fi Protected Setup (WPS), if it is supported by your access point.
1Select > SETTINGS > NETWORK > WI-FI CLIENT > SSID.
A list of wireless access points within rage appears.
2Select the Fusion PartyBus wireless access point.
3If necessary, select PASSWORD, enter the password, and select .
4Select SAVE.
NOTE: When you connect the stereo to a wireless access point, you cannot use the wired network connection.
Resetting Network Settings
You can reset all network settings for this stereo to the factory default values.
Select > SETTINGS > NETWORK > RESET > YES.
Advanced Network Configuration
You can perform advanced networking tasks on a Fusion PartyBus device, such as defining DHCP ranges and
setting static IP addresses. See the owner's manual for more information.
Apollo SRX400 Installation Instructions 15

Network Troubleshooting
If you cannot see or connect to Fusion PartyBus devices on the network, check the following:
• Verify that only one device, either a stereo or a router, is configured as a DHCP server.
• Verify that all Fusion PartyBus devices, network switches, routers, and wireless access points are connected
to the network and turned on.
• Verify that wireless Fusion PartyBus devices are connected to a wireless router or wireless access point on
the network.
NOTE: Wired connections are more reliable than wireless connections. If possible, you should connect
devices to the network using an Ethernet cable.
• You may experience wireless interference if there are many nearby wireless access points. Change the
channel on your router or wireless access point to test for and correct interference.
• Connecting a Bluetooth device to a stereo configured as a wireless access point or client may reduce
wireless performance. Disconnect Bluetooth devices to test for and correct interference.
• If you configured static IP addresses, verify that every device has a unique IP address, that the first three
sets of numbers in the IP addresses match, and that the subnet masks on every device are identical.
• If you have made configuration changes that might be causing networking issues, reset all network settings
to the factory default values.
16 Apollo SRX400 Installation Instructions

Stereo Information
Specifications
General
Weight 340 g (12.0 oz.)
Water resistance IEC 60529 IPX7 (front of stereo only, when properly installed)
Operating temperature range From 0 to 50°C (from 32 to 122°F)
Storage temperature range From -20 to 70°C (from -4 to 158°F)
Input voltage From 10.8 to 16 Vdc
Current (max.) 8 A
Current (muted) Less than 400 mA
Current (off) Less than 200 mA
Fuse 15 A blade type
Wi‑Fi wireless range Up to 32 m (105 ft.)
Bluetooth wireless range Up to 10 m (30 ft.)
Wireless frequencies/protocols Wi‑Fi 2.4 GHz @ 15 dBm nominal
Bluetooth 2.4 GHz @ 10 dBm nominal
Compass-safe distance 10 cm (3.9 in.)
On-board, Class D Amplifier
Output music power per channel 70 W max. x 2 at 2 ohm per channel
Total output peak power 140 W max.
Output power per channel12 x 43 W RMS at 14.4 Vdc input, 2 ohm, 10% THD
2 x 26 W RMS at 14.4 Vdc input, 4 ohm, 10% THD
Tuner frequencies
Tuner Europe and Australasia USA Japan
FM radio frequency range 87.5 to 108 MHz 87.5 to 107.9 MHz 76 to 95 MHz
FM frequency step 50 kHz 200 kHz 50 kHz
AM radio frequency range 522 to 1620 kHz 530 to 1710 kHz 522 to 1620 kHz
AM frequency step 9 kHz 10 kHz 9 kHz
1 The stereo may limit the output power to prevent the amplifier from overheating, and to maintain the audio dynamics.
Apollo SRX400 Installation Instructions 17

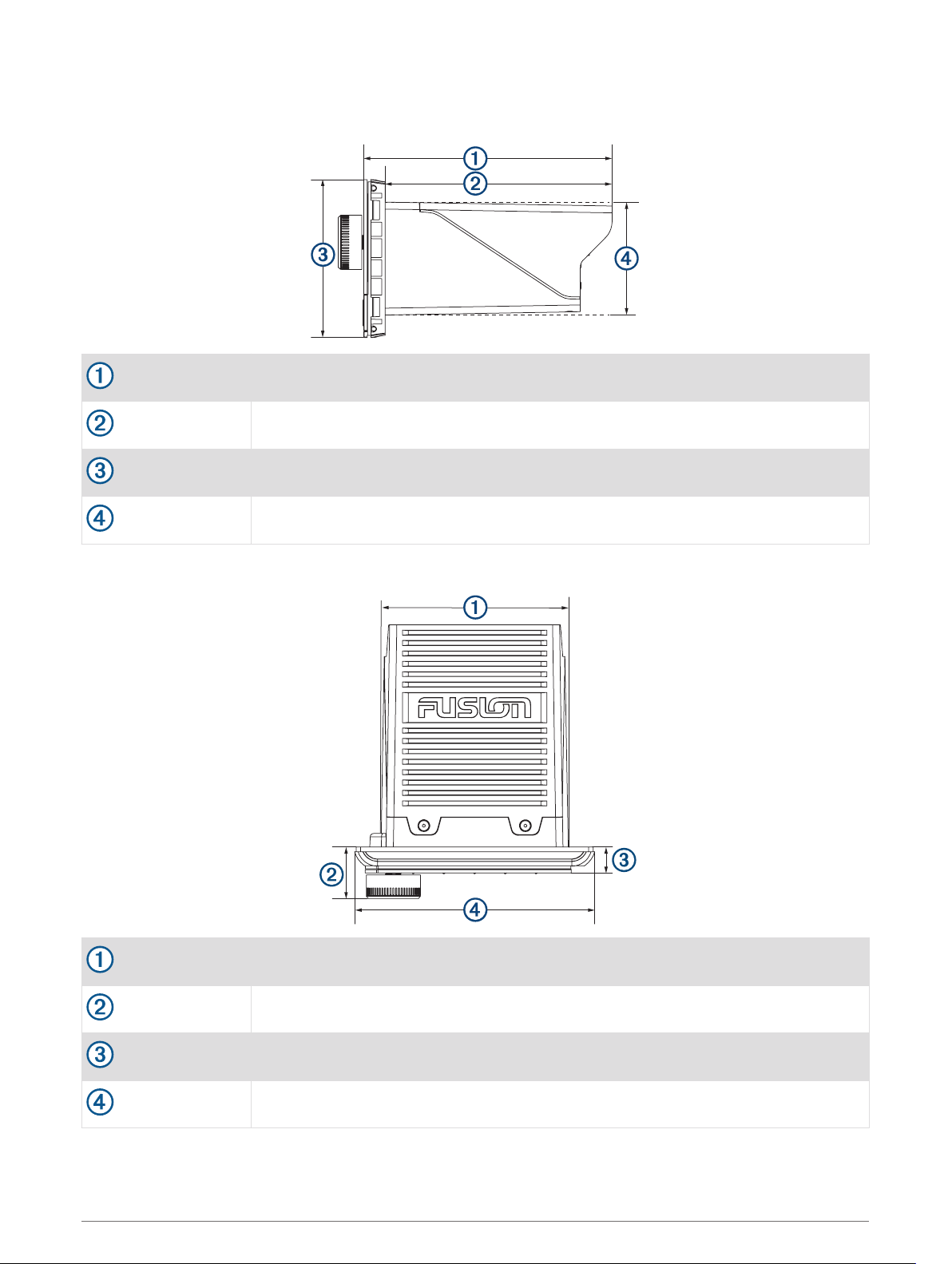

Stereo Dimension Drawings
Side Dimensions
110 mm (4.33 in.)
100 mm (3.94 in.)
70 mm (2.76 in.)
50 mm (1.97 in.)
Top Dimensions
83 mm (3.27 in.)
22 mm (0.87 in.)
10 mm (0.39 in.)
110 mm (4.33 in.)
18 Apollo SRX400 Installation Instructions

Software Updates
Go to support.garmin.com to find software updates and information for your device.
連絡地址
製造銷售:台灣國際航電股份有限公司
聯絡地址:新北市汐止區樟樹二路 68 號
電 話:[phone]
客服專線:[phone]
Apollo SRX400 Installation Instructions 19

© 2018–2021 Garmin Ltd. or its subsidiaries support.garmin.com
