Garrick BS260 User manual

METAL CUTTING BAND SAW
Model BS260
INSTRUCTION MANUAL
For your safety, read all instructions carefully.
** This product carries the following approvals. CE, GS, CSA, and CU-L
ISO-9001:2008 Certied

CONTENTS
SECTION 1—DESCRIPTION AND MAIN FEATURES P2
1.1Forward P2
1.2Pieceinventory P2
1.3 Machine description and use P2
1.4 Unintended use of the machine P3
1.5 Sound level P3
1.6Technicalcharacteristics P3
SECTION 2—SAFETY REGULATIONS P6
2.1Safety P6
2.2Safetysigns P7
2.3Clothing P7
2.4 Ecology and pollution P7
2.5Safeuse P7
SECTION 3—HANDLE AND INSTALLATION P9
3.1 Handling P9
3.2Installation P10
3.3 General controls P11
SECTION 4—INSTRUCTIONS FOR USE P12
4.1Beforeuse P12
4.2Use P12
4.3Operation P12
4.4Control P12
4.5Normalcutting P13
4.6Mitrecutting P13
4.7Viceunit P14
4.8 Adjusting the band tension P14
4.9 Replacing the saw blade P14
4.10Adjustingthebowreturnstroke P15
4.11Adjustingthebowpivotstroke P15
4.12 Adjusting the front blade guide unit P15
4.13 Stopping the saw P15
4.14Afteruse P16
4.15Shutdown P16
SECTION 5—MAINTENANCE P16
5.1 Maintenance P16
5.2 Electrical system P16
SECTION 6—PARTLISTS AND DIAGRAMS P18
1

SECTION 1
DESCRIPTION AND MAIN FEATURES
1.1 FOREWORD
This manual provides all the information necessary
for a full understanding, effective use and routine
maintenance of this band saw.
The information featured in this manual does not
represent a complete description of the different machine
parts nor a detailed explanation of their function: the user
however is given the normal information required for using
the machine safely and for keeping it in good condition.
The correct function, durability and cost-effectiveness of
the machine depend on the observance of these
regulations, negligence, incorrect or unsuitable use of the
machine and the execution of unauthorized modifications
can result in cancellation by the manufacturing company
of the guarantee it provided with the machine.
WARNING!
The manufacture declines all responsibility for damage
caused by negligence and/or the non-observance of the
instructions described this manual.
For any repairs or revisions of a complex mature, contact
the authorized assistance centers, where specialized
personnel are available, or the manufacturing company
directly.
The manufacturing company is however at the customer’s
complete disposal for ensuring quick and accurate
technical assistance and all the measures necessary for
ensuring ideal function and major productivity of the
machine.
DANGER!
This annual is an integral part of the machine and must
accompany the machine whenever it is resold or moved. It
must be stored in a safe place which is easily accessible to
all personnel involved in running the machine. It is the
responsibility of the personnel involved in running the
machine to ensure that the manual is kept intact for the
entire life of the machine. If it is damage or lost contact the
manufacturer for a new copy immediately.
2
1.1.1 WHO SHOULD USE THIS MANUAL
This manual is the basic tool for the personnel involved in using
the machine, whatever their duties:
·operators involved in transporting and handling and handling
the machine.
· operators involved in running the machine.
·operators involved in maintenance.
·operators involved in demolishing themachine.
1.2 PIECE INVENTORY
THE BAND SAW IS SUPPLIED COMPJLETE WITH:
·Sheet pedestal
·quick lock vice
·bar-stop with rod
·splash guard
·spanners supplied for routine interventions
·instructions manual for use and maintenance
1.3 MACHINE DESCRIPTION AND USE
1.3.1 MACHINE DESCRIPTION
The machine basically consists of a metal bearing
structure, to which is mounted an electrically driven motor
and two flywheels, one of which is driven by a reduction
unit, which is in turn activated by an electric motor.
The other flywheel is free-rotating and only starts rotating
when the band saw blade is mounted.
The machine must be fixed to a base which is capable of
bearing its weight and any unbalancing movements
caused by the use of the machine.
1.3.2 USE
The band saw has been exclusively designed and
manufactured for cutting ferrous materials with tubular,
open or filled sections.
Use of the machine for cutting other materials or for other
processes not in compliance with the uses described in
this manual is not only to be considered improper and
prohibited, but also releases the manufacturing company
from any responsibility.

1.4 UNINTENDED USE OF THE MACHINE
DANGER!
The operator must use the machine in accordance
with the guidelines set forth in this manual,
specifically the regulations in force relating to
accident prevention, the conditions for use and
technical characteristics of the machine itself.
USE OF THE MACHINE FOR ANY PURPOSE OTHER
THAN THAT FOR WHICH IT WAS INTENDED AS SET
FORTH IN THIS MANUAL RELEASE THE
MANUFACTURED FROM ANY AND ALL
RESPONSIBILITY FOR INJURY TO PERSONS OR
ANIMLS AND/OR DAMAGE TO THINGS.
1.5 SOUND LEVEL
The noise level was determined in accordance with the
standard “EN ISO 3746-acoustics” with the following
results:
Average equivalent level determined by sound
pressure: LpAm = dB(A)67.8
Sound power level: LwA= dB(A)84.7
Continuous average equivalent level of sound
pressure at operator’s station LpA dB (A)68.9
3

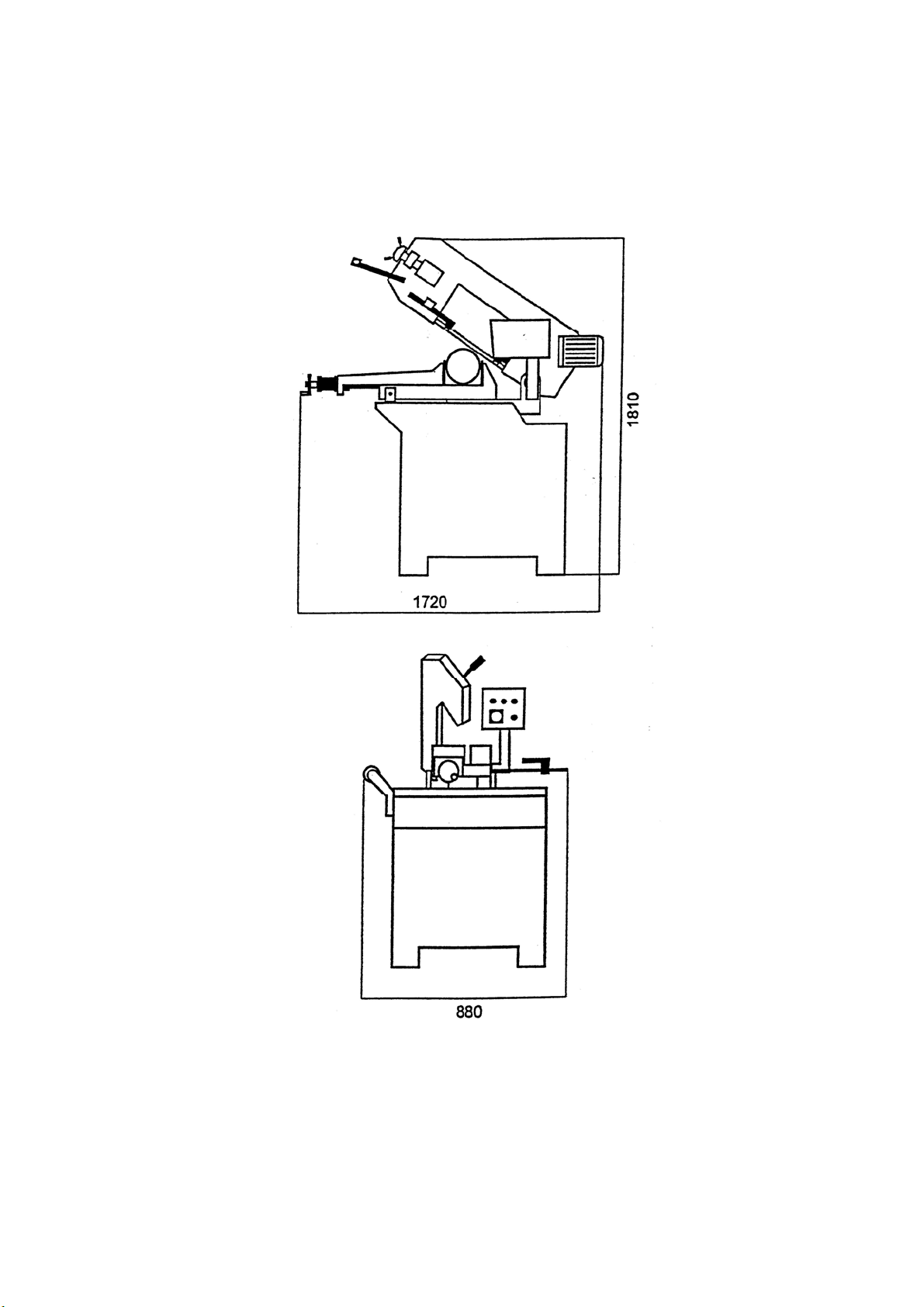

1.6 TECHNICAL CHARACTERISTICS
Saw band size mm 2460 x 27 x 0.9
Two-speed motor RPM 1400/700 50Hz
One-speed motorr RPM 1400 50Hz
1700 60Hz
Motor power KW 1.1/0.59 * *
1.1 *
Coolant pump power W 25
Band rotating speed m/min
72/36 50Hz * *
72 50Hz *
88 60Hz
Fiywheel diameter mm 295
Vice max opening mm 260
Total machine weight kg 210
Pivoting bandholder bow 0°- 60°
Hard metal adjusting sawblade guides
Adjustable band tension
Note: * Single speed machine
* * Two-speed machine

4

5

SECTION 2
SAFETY REGULATIONS
2.1 SAFETY
The user must provide instruction for the personnel involved in
running the machine regarding accident hazards, the safety
devices provided for the operator and the general accident
prevention guideline set ort in the directives and legislations of
the country in which the machine is used.
Operator safety is one of the main concerns of machine
designers and manufacturers. During the conception of a mew
machine, the aim is to foresee all possible hazardous
situations and, of course, to adopt the suitable protective
measures. The number of accidents caused by careless and
clumsy use of the various machines however remains
extremely high.
Lack of concentration, carelessness and over-confidence, as
will as tiredness and sleepiness, are often the direct causes of
accidents.
It is therefore recommended to read this manual, and
particularly the safety regulations, extremely carefully, paying
specific attention to the particularlydangerous operations.
DANGER!
The Manufacturer declines all responsibility for failure to
observe the safety and accident prevention regulations
set out by the legislation in the country where the
machine is used and described in the following pages.
Pay attention to the danger sign used in this manual.
It always precedes warnings of potential danger.
THESE DANGERS CAN BE OF THREE LWVELS:
DANGER!
Signals maximum danger and warns that the operations
concerned, if not correctly performed, Cause serious
injuries, death or long tern health risks.
WARNING!
The “WARNING” signal indicates that the operations
6
Concerned, if not correctly performed, may cause
serious injuries, death or long term health risks.
CAUTION!
This sign warns that the operations concerned, if not
correctly performed, may result in damage to the
machine or to persons.
2.1.1 TERMINOLOGY USE
For a more detailed description of the various danger
levels, there follows a description of a number of
situations, and specific definitions, which could
directly involve the machine and /or persons.
·USER: The user is the person, body or company
that has bought or rented the machine and intends
using it for those purposed for which it was
designed. The user is responsible for the machine
and the training of all the personnel involved in
running the machine.
·DANGER ZONE: Any area inside and/or close to the
machine in which the presence of an exposed
person represents a danger for the safety and
health of that person.
·Exposed person: Any person found entirely or
partially in a danger zone.
·OPERATOR: The person or appointed to install,
operate, adjust, maintain, clean, repair and
transport the machine.
·SPECIALIZED PERSONNEL: Understood to be those
persons specifically trained and able to perform
maintenance or repair interventions which require a
particular knowledge of the machine, its function, the
safety elements, the intervention procedures and
who are able to recognize and avoid the dangers
resulting from use of the machine.
·AUTHORIZED ASSISTANCE CENTRE: The
authorized assistance centre is the structure,
legally authorized by the manufacturing company,
which has specialized and able personnel
available for carrying out all the necessary
assistance operations, maintenance and repairs,
even of a complex nature, for maintaining the
machine in perfect working order.

2.2 SAFETY SIGNS
The machine has been designed to incorporate all
possible safety devices for the health and safety of the
operators. However, any residual risks which cannot be
avoided are signaled on the machine by means of
adhesive signs.
The safety signs (pictogram) described in Fig.3 are
positioned on the machine and signal the various
hazardous situations.
Keep them clean and replace them should they come
away or are illegible or damaged.
Refer to Fig.3, read the following information carefully and
memorize it.
1. Wear safety glasses. When using the machine
safety eyewear must be used.
2. Before starting operation, carefully read the
instructions manual.
3. Use protective gloves.
4. Use ear muffs.
5. Before carrying out any maintenance operation,
stop the machine and consult the instructions manual.
6. Safety footwear must be worn. When using the
machine safety footwear must be worn.
7. High voltage. Before any maintenance operation,
disconnect the electrical feed.
2.3 CLOTHING
DANGER!
·Wear suitable clothing. Do not wear loose-fitting clothes,
they could get caught in the rotating parts. Long hair
must be protected by hairnets.
·When carrying out maintenance and repairs, protective
clothing, cut-proof gloves, and slip and crush resistant
footwear must be worn.
2.4 ECOLOGY AND PLLLUTION
CAUTION!
·Observe noise pollution guideline and regulations.
·Observe the laws in force and the specific
manufacturer’s directions for the use and disposal of
7
products used for cleaning and maintaining the
machine.
·Keep the labels and the instructions for the products
used; if fuel oils or other chemical substances are
swallowed contact Emergency Services immediately,
and consult the relevant labels and/or instructions.
· Dispose of any remaining packaging in the appropriate
waste recycling or disposal containers.
·When the machine is dismantled follow the a nti-pollution
guidelines of the country in which the machine is used,
particularly for the lubricants and electrical parts.
2.5 SAFE USE
When using electrical tools or equipment, suitable safety
precautions must be adopted in order to reduce the risks
of fore, electric shocks, and injuries to persons. Before
using the machine, it is therefore recommended to read
the following safety rules carefully and to memorize them.
After having read this manual, keep it carefully.
·Keep the work area clean and tidy. Untidy areas and
environments increase the risks of accidents.
·Before starting working, chick that the band saw and its
relevant protections are in perfect working order. Ensure
that the moving parts work correctly, that there are no
damaged or broken elements and that the machine is
free of obstructions. Damaged or broken parts should be
repaired or replaced by authorized and skilled staff.
·Repairing or having parts repaired by personnel not
authorized by the Manufacturing Company, in addition to
risking cancellation of the guarantee, means operating
with unsafe and potentially dangerous equipment.
·While the band saw is in use, do not touch its moving
parts.
·All checks, controls, cleaning and maintenance
operations, changing or replacement of parts must be
carried out with the machine off and unplugged.
·It is absolutely forbidden to allow children, unauthorized
personnel, inexperienced persons or persons not in
good health to touch or use the machine.
·While using the machine, it is recommended to wear
suitable clothing. It is imperative to avoid wearing
jewellery or baggy clothing with loose parts that could
become entangled in the rotating or moving parts
resulting in injuries to the operator. Long hair should be

kept under a suitable protective cap. If the floor is
particularly slippery, wear non-slip shoes.
·Ensure the power supply system complies with the
standards.
·Check that the outlet is suitable, complies with the
standards and is equipped with and in-built automatic
protection switch.
·If the extension lead for the electrical cable is used, this
must feature plug/socket and cable with ear thing, as
stipulated by the standards.
·Never leave the machine unattended while it is in
motion.
·Never stop the machine by unplugging it.
·Do not unplug the machine by pulling the cable.
·Periodically check the condition of the cable. Replace it
if damaged, this operation must be carried out by
authorized and skilled staff only.
·Use authorized and coded extension cables only.
·Protect the cables again high temperatures, lubricants
and sharp edges. Also avoid twisting and knotting the
cable.
·Do not allow children and strangers to touch the cable
with the plug connected.
·Should the machine exceed the acoustic pressure level
of 85 dB, suitable protections such as headphones
must be used to protect the hearing.
·Do not expose the machine to rain or use it in damp or
wet environments. Ensure that cables do not come into
contact with damp or wet areas.
·During operation of the machine, do not allow children,
people or domestic animals near the machine. Ensure a
safe distance is always kept from the machine.
·Do not use the machine or its tools for any other uses
than those for which they were designed.
·On finishing work, thoroughly clean the machine and its
working area.
·Do not tamper with or try to remove the protections.
·Only the interventions described in this manual can be
performed on the machine.
·Only authorized tools and those described in these
operating instructions or included in the Manufacturing
Company’s catalogues must be used. Failure to
observe this advice means operating with unsafe and
potentially dangerous equipment.
·Operate only in suitably lit environments, in a safe and
stable position, free from any obstructions.
Fig 3-Poaition of the safety signs (pictograms) on the machine.
8

SECTION 3
HANDLING AND INSTALLATION
3.1 HANDLING
For long distance the machine may be transported on
lorries or train wagons.
See “1.7 Technical Characteristics” for the weight and size
of the machine.
The saw is usually supplied packaged in plastic or
strapped, and palletized. If so, the machine can be easily
moved, loaded or unloaded with a normal lift truck of
suitable lifting capacity (Fig. 5).
If , on the other hand, the machine is shipped without
being palletized then it must be lifted using a crane and
ropes or chains with a suitable capacity and marked as
such. The ropes or chains must be attached to bade of
vise. (Fig. 4)
WARNING!
Before starting to lift the machine make sure that all
movable parts have been securely fastened.
Ensure that the crane’s lifting capacity is suitable for the
machine. Lift the machine carefully and move it slowly,
avoiding bumps or sudden movements.
Fig.4-Lift ropes for lifting the machine 9
DANGER!
The lifting and transporting operations can be extremely
dangerous if not carried out with maximum caution. Move
all unqualified personnel away from the area. Clean, clear
and close off the installation area. Check the condition
and suitability of the equipment available. Do not touch
the suspended loads and remain at a safe distance from
them. During transportation, the loads must not be lifted
more than 20 centimeters from the ground. Finally,
prepare an adequate space as an escape route in the
event that the load should fall.
WARNING!
The surface onto which the machine is to be placed
must be perfectly level in order to prevent any
possible shifting of the load.
Once the machine has been lifted onto the lorry or train
wagon male sure that it is locked into position, by securing
it firmly to the base by means of ropes or chains.
When it has reached its destination, before releasing the
machine from its constraints check that the condition and
position of the machine are not hazardous. Then remove
the ropes or chains and unload the machine using the
same means and methods used to load it.

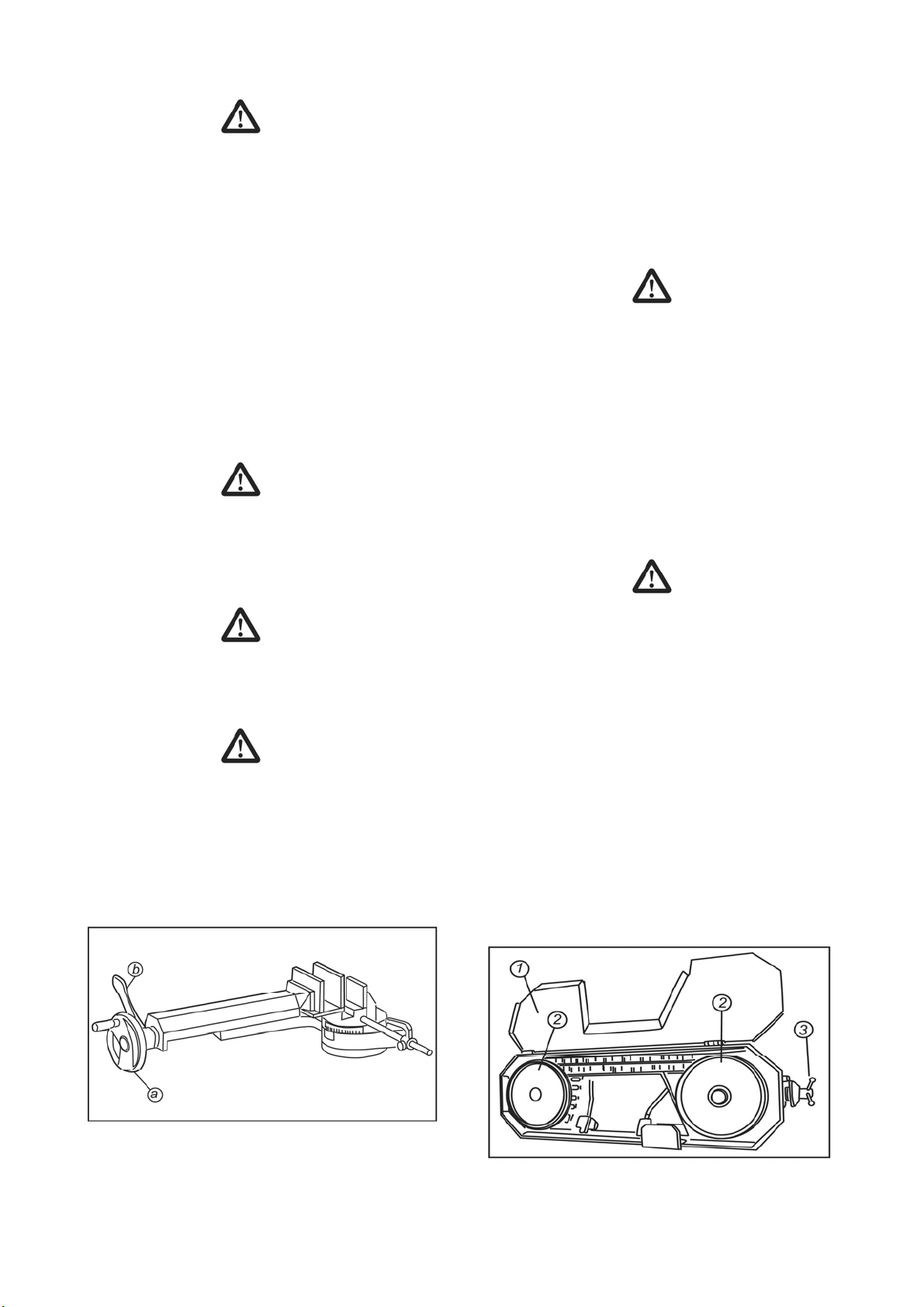

Fig.5

Fig.6
3.2 INSTALLATION
Inspect the machine to ensure that it is not damaged and
proceed with its positioning.
When choosing the machine position it is recommended
to consider:
· That the chosen position is not humid and that it is
sheltered from atmospheric agents;
·That the surface is perfectly level, it is a non-slip surface
and that its bearing capacity is suitable for the weight of
the machine;
·That there is adequate, free space around the machine;
· That the location in which the machine is installed is
guarded or enclosed, to prevent children or
unauthorized persons from accessing the machine;
·That suitable, approved lighting is provided;
·That it is located near a main switch equipped with an
overload cutout;
·That the power supply system is equipped with earthing
which complies with the relevant standards;
·That the ambient temperature ranges between 0oC and
45oC;
·That the workplace is not in an explosive atmosphere.
After positioning the machine proceed ad follows:
·Make the position of the fixing holes (16 fig.1);
·Lift the machine and place it to the side;
·Use an appropriate size bit to drill the holes in the
ground and insert the threaded screw anchors;
10
·Reposition the machine with its base in its position then
secure the base with the screws provided.
If the machine is supplied without a base, then it must
be secured by means of the two holes (15 Fig.1) to a
special structure capable of supporting the weight of
the machine and any unbalancing created when using
it.
WARNING!
The Manufacturing Company declines any
responsibility for damages caused by incorrect
installation and the use of unsuitable bases.
3.2.1 CLEANING THE MACHINE
After positioning the machine (with the work bench level,
and before making the connections) clean off all the
protective oils on the painted and unpainted surfaces with
detergent or mineral naphtha.
These liquids must not be sprayed on; use a cloth
dampened with the liquid, then dispose of the cloth in
accordance with the relevant antipollution regulations.
3.2.2 CONNECTIONS
·Ensure that the mains voltage corresponds to that of the
machine motor indicated on the identification plate (17
Fig.1)
·Connect the line cable of the machine to an electrical
board equipped with an automatic main switch (magneto
thermal type), with earth connection ad stipulated by the
safety standards in force, capable of protecting the
machine from overloading and short-circuiting.
·Ensure that the cutting band rotates in the direction of the
arrow on the safety guard which covers it and that the saw
teeth are facing the correct direction (Fig.6).
Remove the handgrip control and the rod with bar-stop from
the supplied accessories and proceed as follows:
Rod with bar-stop
·Insert the threaded rod into its seat (14 Fig.1) and lock it.
Coolant
·Pour the coolant, which consists of water and emulsifiable
oil (13 l.) into the recovery tank (13 Fig.1). Dilute the

emulsifiable oil as directed by the manufacturer
(normally approx. 10%oil).
·Make sure that the quantity of coolant which is
distributed during the cutting operation is sufficient. The
blade must be well lubricated.
·Before operating the machine, check its general
efficiency and familiarize yourself with the control
devices and their functions.
3.3 GENERAL CONTROLS
WARNING!
Before starting the saw check that the machine is
working correctly, that the safety devices are
perfectly operational and that the blade slides
smoothly.
Check that there are mo damaged elements, that all
the parts have been assembled correctly and that they
are on perfect working order. Doubtful safety devices
and damaged parts must be repaired or replaced by
specialized personnel or through a service centre
authorized by the Manufacturer.
DANGER!
If the operator has any doubts whatsoever about the
safety of the machine, he must stop the machine
immediately, determine the cause for the problem and,
if necessary, contact the manufacturer’s assistance
service.
11

SECTION 4
INSTRCTIONS FOR USE
4.1 BEFORE USE
WARNING!
Before starting up the machine the operator must read
and assimilate this entire manual, particularly Section 2
which deals with safety.
Furthermore, before starting work, check that the machine
is in order and that all the parts subject to wear and
deterioration are in perfect condition.
4.2 USE
The band saw has been exclusively designed and
manufactured for cutting ferrous materials with tubular,
open or filled sections.
Use of the machine for cutting other materials or for
different processing that do not comply with the uses
described in this manual, is not only to be considered
improper and prohibited, but also release the
Manufacturing Company from any responsibility, both
direct and indirect.
Before inserting the plug into the socket, ensure that the
voltage corresponds to that marked on the identification
plate (17 Fig.1).
4.3 OPERATION
·Connect the machine plug and switch on the machine.
·Turn the total switch (8 Fig.1). Apilot light switches (8.1
Fig.1) on to signal that the machine is energized.
·Check that the band tensioning microswitch is pressed
down, otherwise the machine will not work(1 Fig.7).
·Raise the saw bow, ensure setting bracket is
disconnected from limit switch.
Start
1. Turn Emergency (red mushroom) (6 Fig.1).
2. Start the band saw.
·Turning the option switch to position “handgrip
control” (7.1 Fig.1), press the button (2 Fig.1).
·Turning the option switch to position “ main switch”
(7.1 Fig.1), press the main switch (7 Fig.1).
Stop
To stop the band saw 12
·Push the Emergency (red mushroom) (6 Fig.1).
·Turn the total switch (8 Fig.1) to “OFF” (or position “0”).
Fig.7
4.4 CONTROL DEVICES
The machine is equipped with the following control
devices:
1. Total switch (8 Fig,1)
The function of this switch is to power supply the machine.
When it is on, a pilot light indicates that the machine is
energized.
(3∽Motor only ) (“0” position: the saw blade does not
rotate; POSITION “1”: This is the position of the lowest
speed; POSITION “2”: This is the position of the fastest
speed.)
2. Emergency stop (6 Fig.1)
The machine is equipped with an emergency push button
used to stop the machine in an emergency. The stop push
button must be released before the machine is restarted
after an emergency stop.
3. Option switch (7.1 Fig.1)
The function of this switch is option circuit. (“handgrip
control” or “main switch”)
4. Main switch (7 Fig.1)
Press this switch, the band saw is running.
5. Handgrip with control push button (1 Fig.1)
The handgrip control (the operator must e present ) is
used to lift or lower the bow, in order to carry out the
cutting operation. This handgrip consists of a tube,
secured to the machine head: the handgrip control with its
push button is fitted to the end of the tube.
Press the button(2 Fig.1) to star rotating the saw blade;
release the button to stop it.
Furthermore, the handgrip is equipped with a safety
device to guard against accidental star up.

6. Guard opening microswitch ( Fig.8 )
The machine is equipped with a position action
microswitch.
The function of this device is to stop the band from
rotating if the FLYWHEEL GUARD opens ( 4 Fig.1).
7. Limit switch (25 Fig.1)
When the cutting is completed, the band saw is stopped.
4.5 NORMAL CUTTING
After carrying out the operations required for machine
start – up, follow the instructions below:
·Place the material to be cut in the vice and clamp it
firmly.
·Press the main switch (7 Fig.1) in order to energize the
machine.
·Select the required cutting position on the option switch
(7.1 Fig.1).
·The band saw is now ready to cut.
(1) Grasp the handgrip control (1 Fig.1) and press the
push button (2 Fig.1), in order to start the blade
rotation.
(2) Press the main switch (7 Fig.1), in order to start the
blade rotation.
Rest the blade lightly on the piece to be cut , in order to
avoid breaking the teeth, and execute the cut.
Ensure that the coolant comes out in a sufficient quantity
during the cutting operations. The blade must be well
lubricated.
WARNING!
The machine is equipped with a low voltage electrical
system (24V) with a minimum voltage and thermal
protection device. With this device, if voltage is
disconnected, the machine stops and does not restart
work, the start push button (1 Fig.1) must be activated. In
this way, risks from accidental restarting of the machine
are avoided.
13
Fig.8
CAUTION!
During normal operation if the band saw stops and the
main switch has not been turned to “OFF” (or “0” ) and
press emergency “red mushroom”, determine the cause
for the stop, but take care as this is a hazardous situation.
DANGER!
ALL THE PRELIMINARY OPERATIONS FOR THE CUT
MUST BE CARRIED OUT WHEN THE MACHINE BOW
IS IN STANDBY POSITION AND THE SAW BLADE IS
NOT RATATING.
CUTTING CAPACITY in mm.
Angle ●▇▅
0o 220 220 260 x 110
45o 150 145
60o 90 85
4.6 MITRE CUTTING
It is possible to perform mitre cutting ( max. 60o).
To perform this operation, simple loosen the vice lock
lever ( 11 Fig.1) positioned on the machine base and
rotate the head to the angle required; finally tighten the
above mentioned lock lever.

DANGER!
This operation must be performed with the machine
off and voltage disconnected.
The lock lever must be tightened securely to avoid
any movement of the head during cutting.
4.7 VICE UNIT
The vice unit is equipped with a quick lock system with a
shifting is approx. 4mm. Use the handwheel (a Fig.9) to bring
the jaws to approx. 2mm from the piece to be cut and then
clamp the piece by means of the quick lock lever. (b Fig.9)
WARNING!
Before executing the cut, ensure that the workpiece is
firmly secured in the vice to prevent it from moving
during the cutting operation.
WARNING!
Do not position the pieces to be cut on the vice unit
while a workpiece is already inserted in the vice.
DANGER!
THE OPERATION MUST BE CARRIED OUT WITH THE
MACHINE HEAD IN THE STANDBY POSITION AND
THE SAW BAND STOPPED.
CUT OFF THE POWER SUPPLY TO THE MACHINE.
Fig.9
14
4.8 ADJUSTING THE BAND TENSION
For an optimum band tension adjustment operate as follows:
·Turn the handwheel (23 fig.1) until the stop rests
against the microswitch, located immediately below
the handwheel support flange. (1 fig.7)
·Press the push button on the handgrip control (1 fig.1) ,
the blade starts to rotate.
WARNING!
If the microswitch is not pressed the machine will not
operate. Moreover, if the band is broken or missing,
the machine will not start.
THIS OPERATION MUST BE CARRIED OUT WHEN
THE MACHINE BOW IS IN STANDBY POSITION AND
THE SAW BLADE IS AT A STANDSTILL.
DISCONNECT THE MACHINE.
4.9 REPLACING THE SAW BLADE
WARNING!
Before replacing the saw blade disconnect the
machine from the power supply.
To replace the saw blade:
·Lift the bow completely;
·Unhook and lift off the flywheel safety guard (1 Fig.10);
·Secure the open guard by means of the special hook, to
make sure it does not close during the operation;
·Loosen the band by means of the handwheel (3 Fig.10);
·Remove the worn band from the flywheel (2 Fig.10) and
extract it from the blade guides;
·Fit in the new band on the blade guides and
subsequently on the flywheels.
Fig.10

WARNING!
Ensure the blade teeth rotate in the correct direction
(see the arrow on the flywheel safety guard—Fig.6)
·Tighten the band by means of the special handwheel
(3 Fig.10);
· Close the flywheel safety guard and secure it with the
special clamps.
WARNING!
Ensure that the microswitch located under the
handwheel is pressed by the stop (1 fig.7) on the
handwheel otherwise the machine will not function.
The band is perfectly tensioned when the microswitch
is pressed by the stop of the handwheel. If the
flywheel safety guard is not properly closed the
machine does not work because of the safety
microswitch. (1 Fig.8)
THIS OPERATION MUST BE CARRIED OUT WHEN
THE MACHINE BOW IS IN STANDBY POSITION AND
THE SAW BLADE IS AT A STANDSTILL. DISCONNECT
THE MACHINE.
4.10 ADJUSTING THE BOW RETURN STROKE
It is possible to adjust the bow return stroke (this is a
useful operation if several repeated cuts are needed), in
this way the complete return stroke for each single cut be
avoided.
Proceed as follows:
·Release the hex nut (1 Fig.11).
·Screw in or out the hex bolt (2 Fig.11) to adjust.
·Then tighten the hex nut.
Now the bow return stroke will stop at the set position.
4.11 ADJUSTING THE BOW PIVOT STROKE
The bow can pivots from 0oto 60o. To adjust the 0oand
60o, proceed as follows:
·Release the hex nut (1 Fig.12).
·Screw in or out the hex bolt (2 Fig.12) to adjust.
·Then tighten the hex nut.
15
Fig.11
Fig.12
4.12 ADJUSTING THE FRONT BLADE GUIDE UNIT
WARNING!
This adjustment must be repeated every time the
section of the workpiece changes.
To get the maximum accuracy and safety during the cut
(i.e with a very small portion of blade not covered by the
guard) the blade guide unit must be as possible to the
piece to be cut.
Release the blade guide arm by operating the piece to be cut.
This way the arm will not make contact with the piece
during its stroke; then retighten the arm.
4.13 STOP THE SAW
To stop the saw band from rotating while operating simple
release the handgrip control (1 Fig.1).
The machine can also be brought to a stop by pushing the
emergency (6 Fig.1).
The machine can also be brought to a stop by turning the
total switch (8 Fig.1) to position “OFF” (or “0” ).
The machine can also stop when the cut I completed.

4.14 AFTER USE
After use all machining residues or other humid or dusty
materials must be cleaned from the machine. Keep the
machine clean and in good condition. It will continue to
give better results.
WARNING!
After use always make sure that the electric power
supply has been disconnected.
4.15 SHUTDOWN
If the machine is to be shut sown for a prolonged
period of time the parts subject to wear must be
lubricated and the machine covered with a plastic
sheet and stored in a sheltered, dry place. If these
instructions are observed when work with the saw is
resumed the machine will be in perfect working order.
16
SECTION 5 MAINTENANCE
5.1 MAINTENANCE
WARNING!
It is essential for all maintenance operations to be
performed with the motor off and the machine
unplugged from the power supply.
Apart from the oil change in gear-motor, the machine does
not require any particular maintenance operations. It is
however important to remember the following:
·Clean the machine and the work area regularly.
·Use saw blades with teeth that are suitable for the
materials to be cut; this ensures optimum cutting
results. Your saw blade supplier can provide you with
helpful advice.
·Replace the saw blade when it is worn, in order to avoid
vibrations and inaccurate cuts.
·Clean the coolant tank when necessary, or at least,
twice a year, through the special opening on the tank
itself.
·Check the cooling pump regularly.
·Ensure that the safety guard completely covers the
blade.
WARNING!
FOR ANY PROBLEMS OTHER THAN THOSE
DESCRIBED ABOVE CONTACT THE
MANUFACTURER IMMEDIATELY.
5.2 ELECTRICAL SYSTEM
The saw is equipped with a 24 Volt low voltage electrical
system.

17

PART LIST
Part
NO. Description Size No. Qty Part NO. Description Size No. Qty
1 Base (right part) 1 38 Hand Wheel 1
2 Nut M12 2 39 Set Screw M8 x 10 1
3 Hex. Cap Bolt M12 x40 2 40 Nut 1
4 Nut M8 8 41 Bearing Bushing 1
5 Washer 8 8 42 Thrust Ball Bearing #51104 1
6 Hex. Cap Bolt M8 x 16 8 43 Lock Handle 1
7 Base Plate 2 44 Bushing 1
8 Base (left part) 1 45 Hex. Socket Cap Screw M6 x 100 x 25 2
9 Hex. Socket Cap Screw M8 x 20 2 46 Table 1
10 Spring Washer 8 2 47 Plate 1
10-1 Nut M8 2 48 Flat Head Machine Screw M6 x 20 2
10-2 Washer 8 2 49 Compressed Spring 1
11 Hex. Socket Cap Screw M8 x 20 2 50 Lead Screw 1
12 Spring Washer 8 2
13 Washer 8 2 52 Washer (larger) 8 1
14 Supporting Plate 1 53 Set Screw M8 x 10 1
15 Roller Stand Bracket 1 54 Vise 1
16 Washer 10 2 55 Bar-Stop-Rod 1
17 Spring Washer 10 2 56 Bracket 1
18 Hex. Cap Bolt M10 x 20 2 57 Butterfly Screw 5/16 x 3/4 1
58 Washer 5/16 1
59
Spring Washer 5/16 1
60 Hex. Cap Bolt 5/16/1” 1
61 Rod 1
23-1 Block Plate 1 62 Nut 5/16 1
23 Filter Net 1 63 Hex. Cap Bolt 5/16 x 2” 1
24 Round Head Screw M5 x 10 4 64 Set Screw M8 x 10 1
24-1 Washer 5 4 64-1 Hex. Socket Cap Screw M5 x 8 2
25 Hex. Socket Cap Screw M6 x 15 2 64-2 Scale Point 1
26 Washer 6 2 65 Pivot 1
27 Hose Clamp 1 66 Cover 1
27-1 Hose 5/16”x130cm 1 67 Ball Bearing #32006zz 2
28 Pump 1 68 Nut M10 2
29 Hex. Cap Bolt M10 x 20 4 69 Hex. Cap Bolt M10 x 30 2
30 Coolant and Chip Tray 1 69-1 Hex. Cap Bolt M10 x 25 1
31 Hex. Cap Bolt M12 x 40 2 70 Spring Hook 1
32 Nut M12 2 72 Star Washer 30 1
33 Hex. Socket Cap Screw M5 x 8 4 73 Nut M30 1
34 Base Front Plate 1 74 Start Button 1
18

PART LIST
Part
NO. Description Size No. Qty Part NO. Description Size No. Qty
75 Emergency Switch 1 107 Nut M12 1
76 Main Connect Switch 1 108 Handle 1
77 Power Indicator Light 1 109 Hex. Socket Cap Screw M10 x 30 4
78 Hex. Socket Cap Screw M5 x 8 4 110 Spring Washer 10 4
79 Washer 5 2 111 Gib 1
80 Hex. Socket Cap Screw M5 x 8 2 112 Spring Washer 8 6
81 Cover 1 113 Hex. Socket Cap Screw M8 x 20 6
82 Hex. Socket Cap Screw M5 x 8 4 115 Front Ball Bearing Bracket 1
83 Control Box Bottom Plat 1 116 Set Screw M6 x 12 1
83-1 Transformer 1 117 Hex. Socket Cap Screw M8 x 25 2
83-2 Contacts 1 118 Hex. Socket Cap Screw M12 x 50 1
83-3 Fuse Seat 1 119 Setting Bracket 1
83-4 Overload Rely 1 120 Hex. Socket Cap Screw M6x 8 2
83-5 Magnetic Connector 1 121 Plastic Handle 1
84 Control Box Bottom Part 1 122 Hex. Socket Cap Screw M6x 8 2
85-H Control Box Panel 1 123 Cover Plate 1
85-H1 Manual/Auto Selector 1 127A Slide 1
86 Support 1 127A-1 Spring Washer 10 3
88 Hex. Socket Cap Screw M5 x 8 4 127A-2 Hex. Socket Cap Screw M10 x 45 3
89 Hex. Socket Cap Screw M8 x 20 2 127A-3 Set Screw M10 x 16 1
90 Spring Washer 8 2 128 Nut M16x2.0x8t 1
91 Setting Bracket 1 131 Handle 2
92 Spring Washer 8 4 132 Handle Wheel 1
93 Hex. Socket Cap Screw M8 x 20 4 133 Thrust Spring Washer 10
94 Swivel Arm 1 134 Tension Shaft 1
94-1 Scale 1 137 Set Screw M8 x 25 2
94-2 Rivet 2mm 2 138 Rod 1
95 Disk 1 139 Nut M16x2.0x8t 1
140 Trigger Switch 1
97 Oil Seal 1 141A Shaft 1
98 Shaft 1 142 Ball Bearing #32006zz 2
99 Nut 1 143 Idle Flywheel 1
100 Hex. Socket Cap Screw M8 x 25 4
101 Spring Washer 8 4 145 Star Washer 30 1
102 Set Screw M8 x 10 1 146 Jam Nut M30 1
103 Hex. Socket Cap Screw M10 x 35 1 147 Oil Inlet 1
104 Spring Washer 10 1 148 SawArm 1
105 Set Screw M10 x 10 1 149 Blade Cover 1
106 Locking Lever 1 150 Knob Bolt M6 x 10 4
19
