GASLAND BE Series User manual

Available Colours
GAS WATER HEATER
BE SERIES PORTABLE TANKLESS
Installation Instructions
02-8764-8621
www.gaslandchef.com.au

Safety Precautions
Use Precautions
Product Features & Appearance
Safety Features
How To Use The Connectors
Troubleshooting
Major Components
Technical Parameter
In The Box
Warranty
1-2
3-6
7-8
8-10
11-13
14-22
22
23-24
24-26
27-28
Contents
01

Congratulations
You've just purchased a new Gasland BE series portable gas water heater.
This will open a world of enjoyment to going tankless. We highly suggest
you
take the time to read through all of the safety and installation procedures in
this manual, before attempting to install your new water heater. Should you
have any questions, please feel free to contact us via email at ozmyhomeap-
Safety Precautions
Caution
● This appliance is for outdoor use only. This appliance can produce carbon
monoxide which has no odor. Using it in an enclosed space will cause death.
Do not use in caravans, tents, marine craft, cars, mobile homes or similar
locations.
● This appliance is not intended for the supply of drinking water. This appliance is
intended for the supply of heated water, for the purpose of showering, washing
and cleaning only.
● Always cover the appliance when not in use, and this appliance could not be
exposed to strong wind or rain.
Warning
● Use two shifting spanners when connecting the gas regulator hose to the
appliance or damage to the gas valve may occur.
● Check and confirm safe water temperature before using this appliance water
from this appliance may be very hot.
● If the outside temperature is near or below freezing 0°C ensure that the system
is properly drained. See instructions inside.
02

Danger
Install and properly vent the appliance. Failure to properly install the appliance in
this manual can result in unsafe operation of the appliance. To avoid the risk of
fire, explosion, or asphyxiation from carbon monoxide, never operate this
appliance unless it is installed properly and has an adequate air supply for proper
operation. Be sure to inspect the flue terminal for proper installation at initial
start-up, and at least annually thereafter.
Safety Instructions
This appliance shall only be used in an open-air situation with natural ventilation,
without stagnant areas, where gas leakage and products of combustion can
rapidly dispersed by wind and natural convection.
The following figures are show suitable outdoor areas for use with this appliance.
Rectangular areas have been use in these figures, the same principles apply to
any other shaped areas.

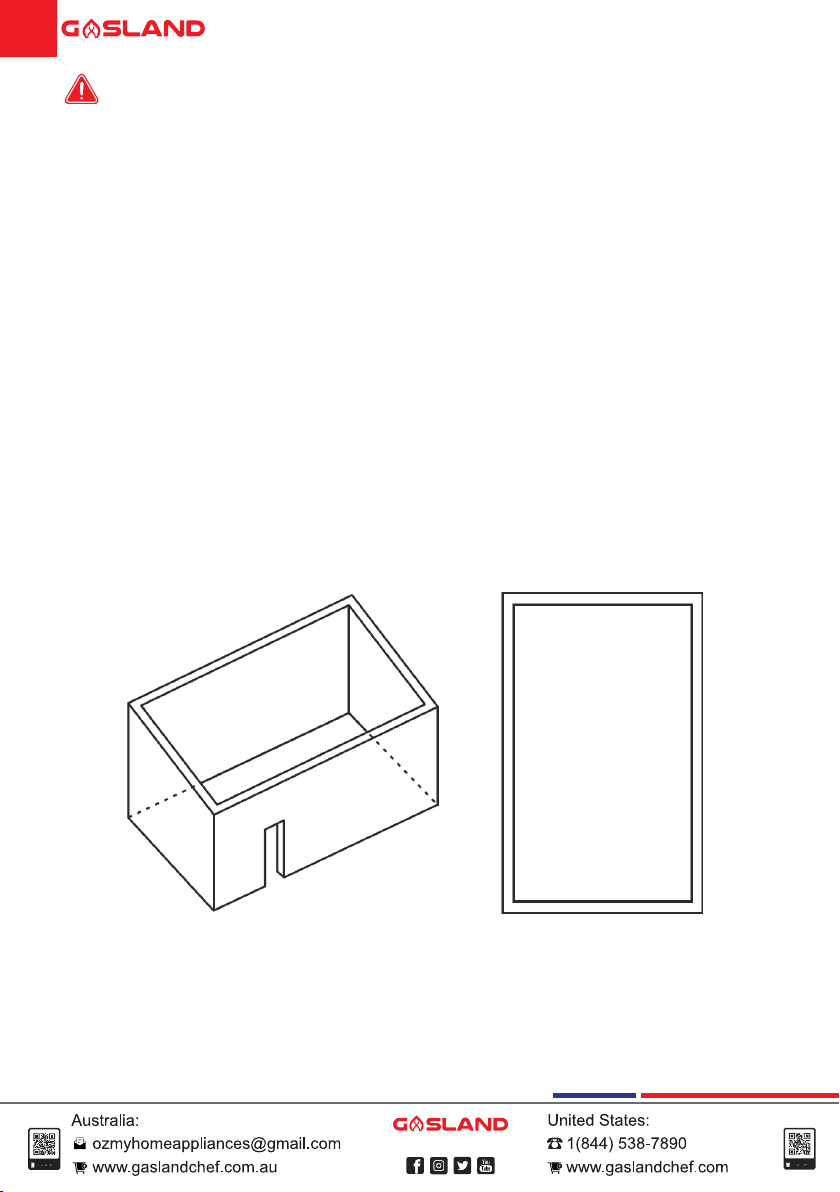

1) An area with walls on all sides but without overhead cover:
03

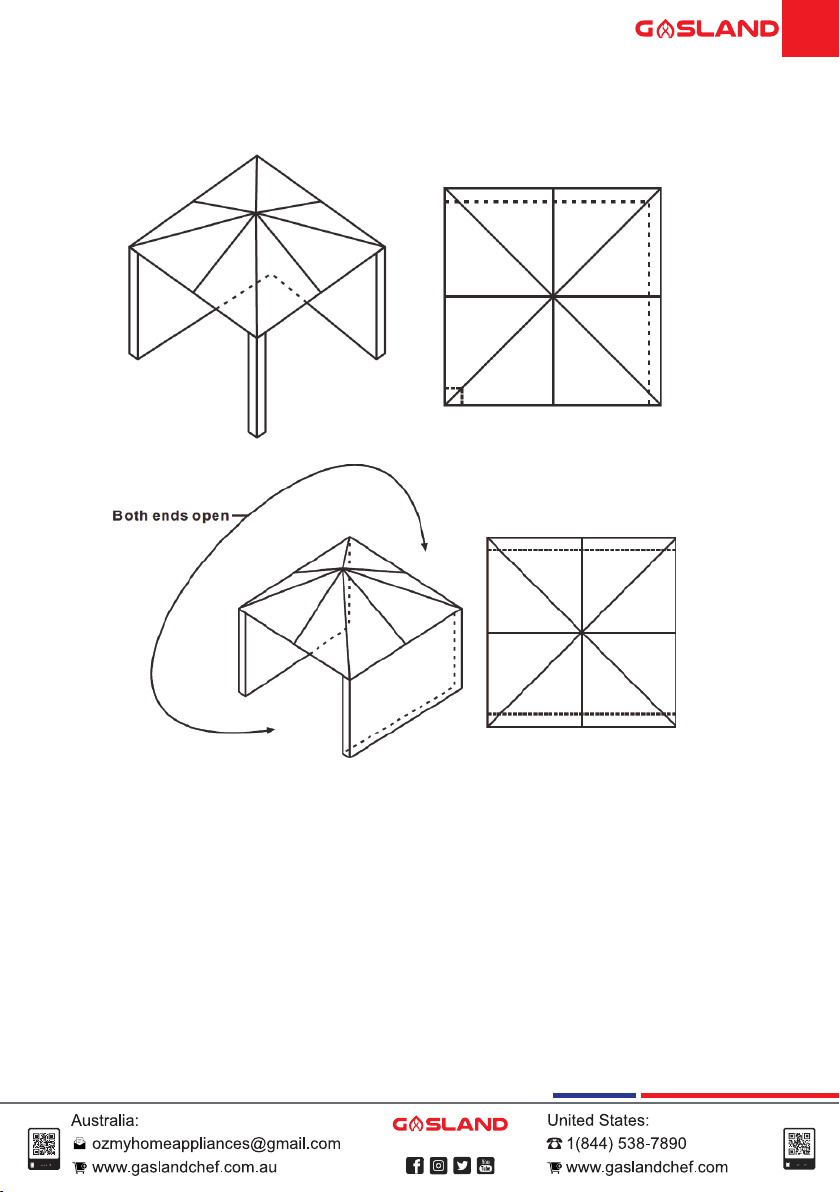

2) With a partial enclosure and include an overhead cover and no more than two
walls.

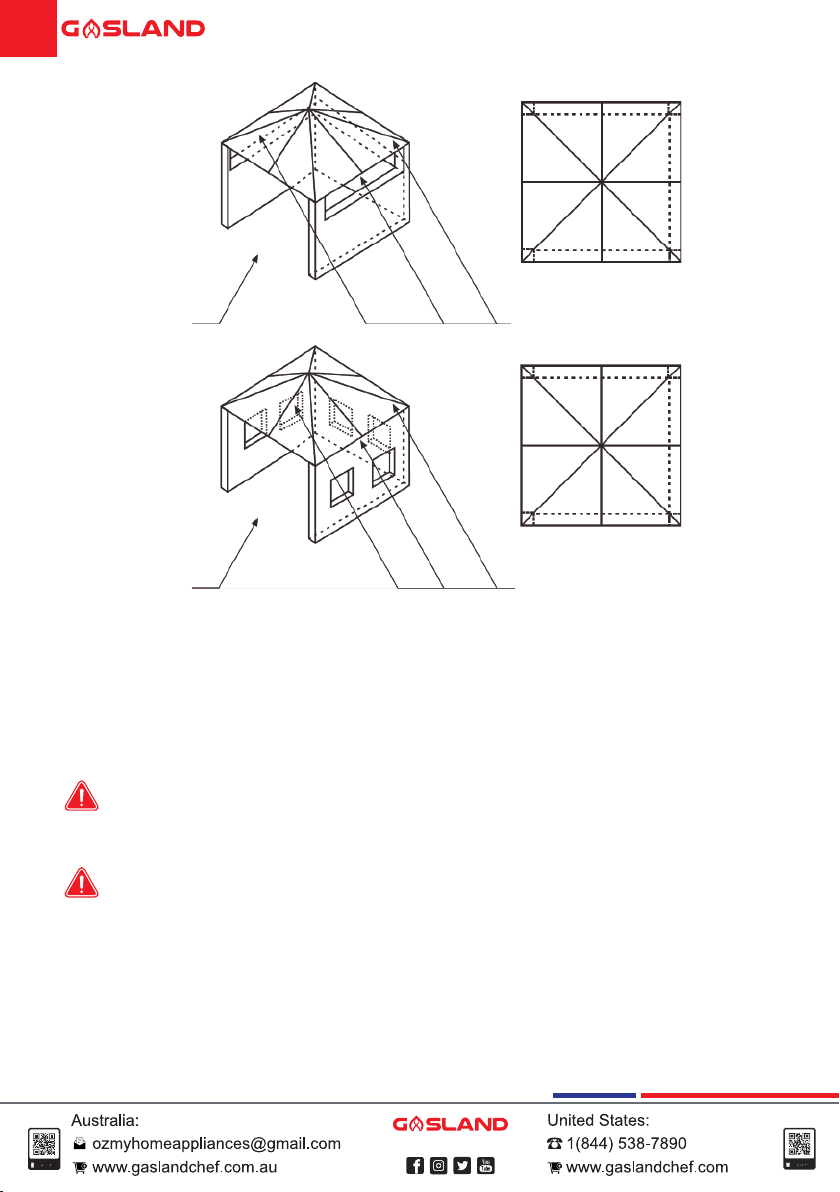

3) With a partial enclosure and include an overhead cover and more than two
walls, the following shall need to fulfilled:
A) At least 25% of the total wall area is completely open.
B) 30% or more in total of the remaining wall side, back and front wall areas is
open and unrestricted.
C) In the case of balconies, 20% or more of the total wall area shall remain
open and unrestricted.
04

Symbols Explanation
According to the danger and damage to distinguish different warning notice:
Caution
Neglect this notice and execute illegal operations may result in injury or death.
Attention
Neglect this notice and execute illegal operations may result in injury, death
and/or property damage.
Requirement in order to use the appliance safely and comfortably, please
understand the content presented.
Open Sideat
Least 25% Of
Total Wall Area
Open Sideat
Least 25% Of
Total Wall Area
30 Percent Or More In Total
Of The Remaining Wall Area
Is Open And Unestricted
30 Percent Or More In Total
Of The Remaining Wall Area
Is Open And Unestricted
05

Additional Warnings
● Do not leave unattended when the appliance is operating.
● Do not use this appliance if it has damaged or worn seals.
● Do not use this appliance if it is leaking, damaged or does not operate properly.
● Do not operate from a non-upright position.
● CAUTION: Accessible parts may be very hot. Keep young children away.
● The exhaust gas and top of the appliance is hot! Do not place hands or any
other object near the top of the appliance.
● Do not use in high wind conditions. Rated for up to 10 MPH.
● If there is a leak on your appliance (or smell of gas), immediately turn off the
gas container valve, remove the appliance to a well-ventilated location away
from any ignition sources. Check for leaks by using soapy water. Do not try to
detect leaks using a flame.
● It may be hazardous to attempt to fit other types of gas containers.
● Gas container shall be changed in a well-ventilated location, preferably outside
away from people and any sources of ignition, such as naked flame, pilot
flames, electric heaters or similar equipment.
● Use ULPG gas only.
● Use outdoors only. The appliance do not suitable permanent fixed in one place.
Do not use in a building, garage or any other inclosed area. Do not use in a
mobile appliance, such as trolley or similar appliances. Never use this appliance
as a heater.
● Only use the hose assembly as supplied with this appliance for connection to
the container. Do not use adaptors.
● Gas regulator with 1500mm hose connection to the appliance with a shifting
spanner, do not over tighten, this may cause damage in the gas regulator.
Gently tighten with teflon tape, then spray soapy water as a leak detector.
● Avoid kinking and twisting the gas hose. Keep the fuel supply hose away from
any heated surfaces.
● This appliance will be hot during and after use. Do not move the appliance
when in use. Allow appliance to cool to 45℃before moving or storing.
● Should overheating occur or the gas supply fails to shut off turn off the gas
supply at the gas container.
● Always cover the appliance when not in use, it must be protected from rain.
06

● This appliance is to be stored in a dry and well ventilated location free from
direct sunlight heat and ignition sources. If being stored indoors ensure that the
location complies with as/nzs1596.
● This appliance must only be serviced by an authorized servicer.
Use Precautions
Check for gas leaks
1. Check seals between the appliance and the gas container are all the way on
and in a good condition before connecting the gas container.
2. If the O-ring on the POL fitting of the gas hose is missing, damaged or worn,
you must obtain a replacement from an authorized servicer. Suggest replace
the O-ring on the fitting after use 12 months as the life expectancy.
3. For safely check for leaks, spray soapy water on the gas connection to see if
bubbles appear. The information of bubbles indicated a gas leak. If there is a
gas leak present, immediately shut off the gas container and do not try to
operate the appliance. Do not try to detect leaks using a flame.
4. The connection points to check are:
·Between the gas container and the gas hose
·Between the washer and brass parts of the gas hose
·Between the gas hose and the gas connector
·Between the gas connector and the hot water system
5. There is a washer seal inside the gas hose connector. If the washer is missing,
worn or damaged, you must obtain a replacement from an authorized servicer.
6. To check if gas remains in the container, disconnect from the appliance and
hold the gas container in a vertical position then shake from side to side. If
there a sound or feel of liquid movement inside the container contains gas.
7. Change the gas container outside in a well-ventilated location away from
people and ignition sources, such as naked flames, pilot lights and electrical
equipment such as heaters.
07

Avoid Scald
In order to avoid scalding, check the water temperature before showering. During
the use or right after finish, do not touch the outer casing except the knobs to
avoid scald. Children are often injured this way!
Things To Do In An Abnormal Or Emergent
Situation
1. Shut off both the water knob and the gas knob.
2. Do not use shower head.
To prevent accidents like fires, smoke, etc., the gas source, water source must
all be cut off immediately in case any abnormity (like a fuming or smelling
air inlet/ flue gas outlet pipe, etc.) is discovered, and an authorized servicer
must also be contacted.
Uses
Do not use this appliance for any purposes except for producing hot water.
Do not modify this appliance.
No Dismantling The Appliance
To avoid accidents, never dismantle the appliance without authorization.
08

Using Auxiliary Products
When using the appliance in low water pressure area, do not use shower head
avoid scalding.
Avoid Damage From Freezing Water
Be sure to drain off the residual water after each use in winter,
to avoid damage to the appliance should the water freeze.
Not Using For A Long Period
In order to prevent freezing water or gas leakage, please discharge accumulated
water inside the appliance, cut gas and electricity supply when the appliance is
not using for a long period.
Gas Accident Prevention
Make sure it is combusting while using and flameout after use.
Product Features & Appearance
Product Features
1. Water controlled automatic ignition: applicable water pressure between
15kPa-1000kPa opens the ignition circuit for easy and convenient operation.
2. Pulse igniter, 100% rate of ignition.
3. Auto cut off protection, the auto cut off protection will shut the gas supply off
immediately in the event of flameout of reduce the risk of gas leakage.
4. Removable drain valve to avoid water pipe and regulator damage caused by
freezing water. Please do not adjust the screw inside of the drain plug, remove
the plug as whole unit.

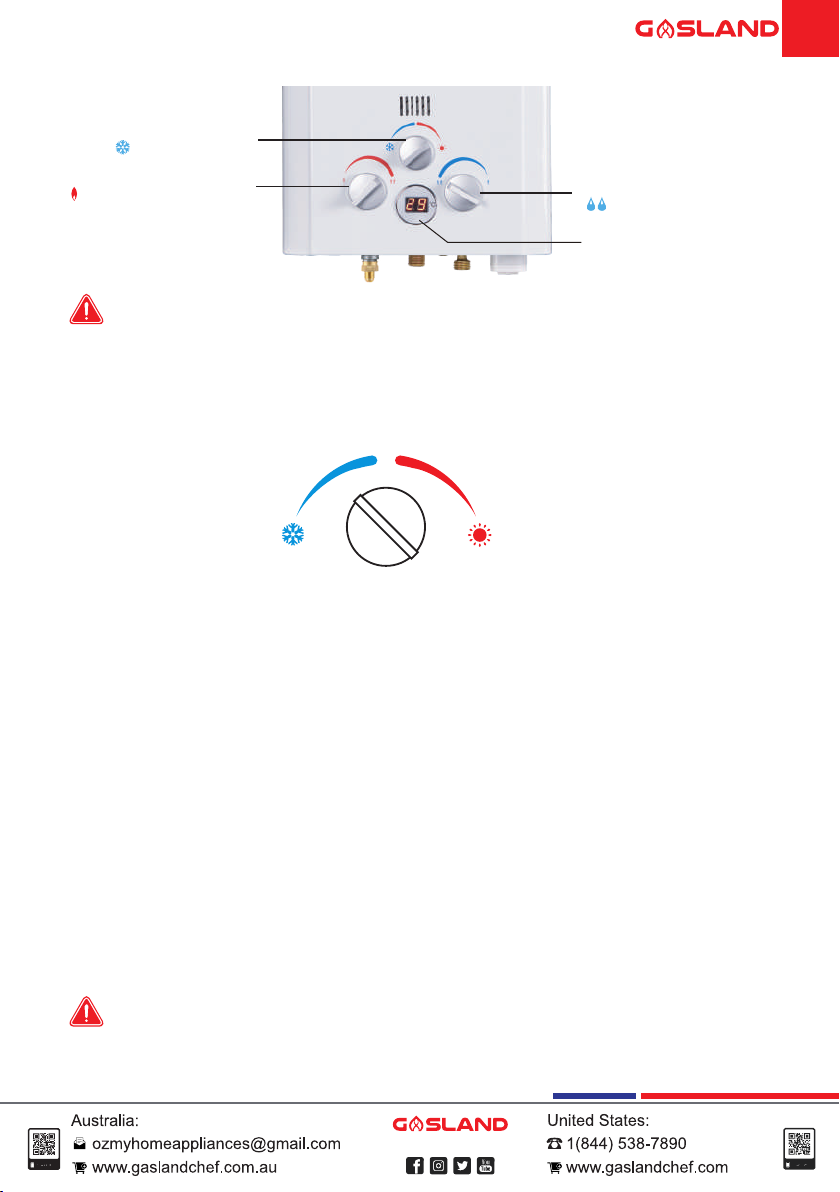

5. The water temperature can be adjusted freely.
6. Winter/Summer switch for energy saving during summer and winter time.
7. 20 minute timer, the appliance will be shut off automatically after 20 minutes of
use.
09

8. LED temperature display.
9. Handle for easy carrying during transportation.
Safety Features
1. Auto-cut off protection
The auto-cut-off protection will shut off the gas supply immediately if the flame
goes out for any reason.
2. Anti-dry combustion protection
Should dry combustion occur for any reason, the gas supply will be
immediately and automatically shut off.
3. Anti-freezing protection
When the temperature is below freezing, remove the water discharge valve to
discharge accumulated standing water inside the internal pipes. This will keep
the appliance from freezing.
4. Over water pressure protection
When water pressure is over 1000kPa, the appliance will automatically relieve
the excessive pressure to avoid damage to its internal components.

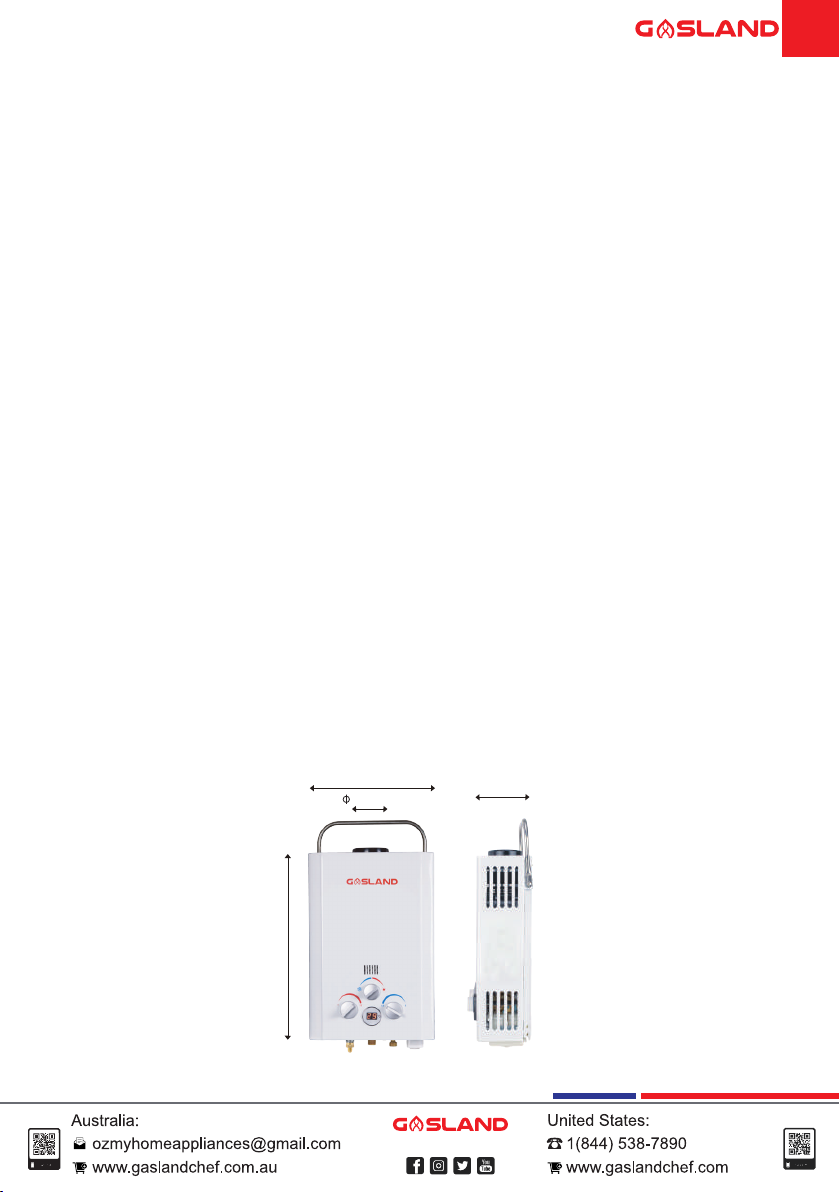

Product Appearance & Dimension In Millimetre
300mm 130mm
400mm
80mm
10

How To Use The Connector
1. Connector
For use with water input sources, such as 12V low voltage pump, please consult
2. Preparation
a. Only use in well-ventilated areas. Carbon moxoxide hazard-using this
appliance in an inclosed space will cause death-do not use in caravans, tents,
marine craft, cars, mobile homes or similar locations.
b. Find a suitable sturdy, non-combustible vertical surface to hang the
appliance on. The surface should be at least 1000mm clear from the sides and
1000mm from the top of all combustible surfaces, fabrics, flammable materials,
and people.
c. Use ULPG gas only.

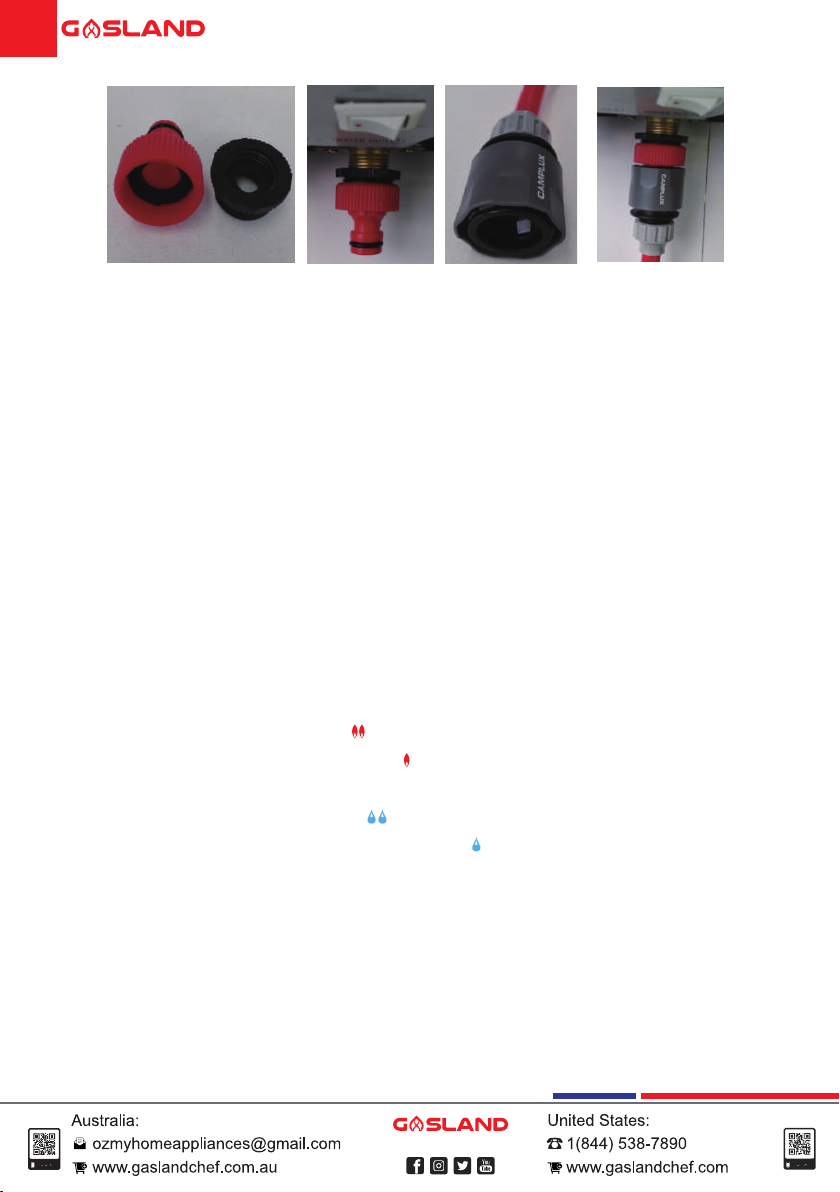

d. Open carton box (Picture 1) and remove appliance from the box and remove all
transit material such as the plastic, foam and plastic connection end caps
(Picture 2 & 3). Hang the appliance on a suitable vertical surface by the handle
attached to the back cover of the appliance or handing kit (Picture 4).
Gas Inlet Connector
BSP1/2''-5/8''-18UNF Male

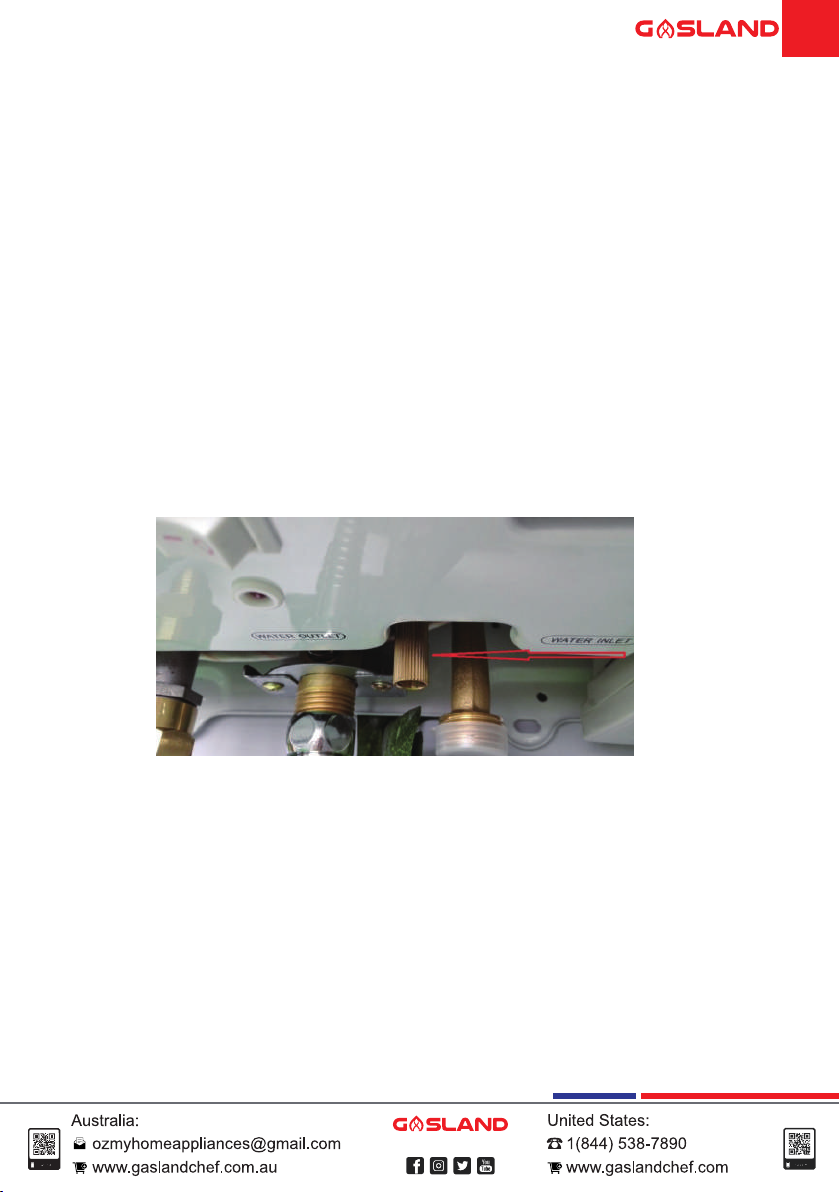

Water Inlet Connector
BSP1/2”-Ø9.5mm Male
Water Outlet Connector
BSP1/2”-Ø9.5mm Male
Picture 1 Picture 2 Picture 3 Picture 4
11

e. Install two “D” cell batteries (included) in the compartment on the bottom of the
appliance. Check the batteries are facing the correct direction.
f. Ensure the ignition switch located on the bottom of the appliance is turned to the
“on” position.
g. This appliance shall only be used with a butane or propane or butane/pro pane
mix refillable gas container certificated to AS2030.1.
h. Use shifting spanner to connect the gas inlet connector (Picture 5) and water
inlet connector (Picture 6) before install gas supply line and water inlet hose to
the appliance. Attached the flexible hose and regulator to the “Gas inlet”
(Picture 7). Do not over tighten. Over tighten may causing a gas leak! Ensur
that you use supplied washers (Picture 8-10) on all connectors and check for
any gas smell before ignition as instruction. Make sure the gas inlet connector
and water inlet connector are screwed all the way on.
i. Connect the other end of the flexible hose and gas regulator to the gas container.
Hand-tighten the connection in an anti-clockwise direction. Do not place the gas
container directly beside or above the appliance.
j. Connect the supplied shower head and flexible hose. Make sure to insert the
supplied washer at the water outlet connection (Picture 11). After that, connect
with the brass part at the bottom of the appliance marked “Water outlet” (Picture
12), the last step is use the shower fast connector(Picture 13) connect with the
water outlet connector(Picture 14).
Caution
Make sure the shower head direction is not face to the appliance during showering,
to avoid the flameout problem.
Picture 5 Picture 6 Picture 7 Picture 8 Picture 9 Picture 10
12

k. Place at a comfortable height without putting stress on the gas hose.
l. Before opening gas container valve, check the coupling nut for tightness. When
appliance is not in use, turn off gas container valve on supply con tainer. Do not
try to detect leaks using a flame.
m.Spray soapy water to test the gas leaks before operation, after make sure all
parts are connected well, turn the gas container on in an anticlockwise direction
one full turn.
n. Never use gas container if visibly rusted, damaged or out of date.
o. Clean and inspect the hose before each use. If there is evidence of abrasion,
wear, cuts or leaks, the hose must be replaced prior to operation.
3. Starting
a. Turn the gas valve on your gas container all the way open.
b. Adjust the temperature of the water flowing from the shower head by turning
the “gas” and “water” knobs.
c. Turn the gas knob towards to “ ” (symbol in Red) direction will increase gas
flow. Turn the gas knob towards to “ "(symbol in Red) direction will decrease
gas flow.
d. Turn the water knob towards to “ ” (symbol in Blue) direction will increase
water flow. Turn the water knob towards to “ ” (symbol in Blue) direction will
decrease water flow.
e. For higher temperature, increase the gas flow and decrease the water flow.
f. Turn on the incoming water supply. Ensure that you have adequate water
pressure between 15kPa-1000kPa.
g. Once water is flowing through the system, the appliance will ignite. During
ignition there will be a series of audible clicks and then the burner willignite. If
the burner does not ignite after 5 seconds, refer the section on trouble
shooting.
Picture 11 Picture 12 Picture 13 Picture 14
13

Burner Power switch knob
( position is full power)
Water flow adjustment knob
( position is maximum flow)
Gas flow adjustment knob
( position is lowest temperature)
Caution
Take care to test the temperature of the water follow from the shower head,
as it may be hot enough to cause scalded.
4. Winter/summer temperature control
a. This model has Winter/Summer switch, the user can adjust the appliance use
of water and gas until it’s comfortable.
b. In case those who install the water valves themselves, cold water should not
be turned up too much, in order to avoid the less pressure by diffluent will
affect this appliance’s normal running.
c. In some place, the water pressure may be too strong and thus water cannot
be heated. In this case, please turn down the water-in valve.
5. Shut off
To temporarily stop the operation of this appliance, merely shut off water knob
control or water inlet valve to cease water flow and the flame fire will extinguish
automatically.
After you have finished using the water, please shut off the water knob control
and gas knob control.
Caution
The appliance should not be used continuously for an extended period so as
to ensure its lifetime.
Water temperature display
14

6. Storage
a. After using, turn the gas container valve in a clockwise direction to the “off”
(close) position. The burner will continue to operate until all gas has been bled
from the hose and regulator assembly.
b. Wait for the flame to go out, after that to turn the appliance control valve(s) off.
c. Disconnect the shower hose from the “water output”, allow all water to drain out
rom hosing before rolling up and storing away.
d. Disconnect the regulator and hose assembly from the appliance and gas
container and store away.
7. Disconnecting from gas container
1. Check the appliance is fully extinguished, the gas container control valve is in
the fully “off” position and all surfaces are cool enough.
2. Loosen the connection to the gas container in a clockwise direction.
Daily Inspection & Maintenance
The appliance, gas pipes and hoses should be checked and maintained by an
authorized servicer every 6-12 months. If you find joints that are not tightly
secured or if there are cracks or corrosion anywhere, you should stop using the
appliance and perform the necessary maintenance immediately.
Caution
The appliance will still be hot shortly after use. Avoid draining off the residual
water until the water cools down, to avoid being scalded.
Users should regularly using the soapy water to wipe on connecting part of each
pipe to test whether has the gas leakage.
● Clean the accumulated dirt and dust on the casing of the appliance by cloth
regularly. Do not use chemical or volatile solvent.
● Use a neutral detergent to clean all surfaces and areas then wipe it dry. Taking
care not to allow water to enter the top vent.
● Before each use, check the stainless steel filter on the “Water input” pipe is in
place and clean if have any particles.
● Do not submerge the appliance in a sink or container.
● Do not use abrasive cleaners or bleach.
15

Note
Do not drop dirt and dusts into the fire holes of burner and electric parts, do not
loosen or damage other parts as well. To re-fix the parts after cleaning, refer to
the installation requirements.
Drainning The Appliance Avoid Frozen Broken
Below 0°C
1. During the stage of no using, the temperature is same between the inside and
outside of the appliance, the water will expand when temperature reach 0°C,
even broken the water pipe.
2. Operate the drain plug at the base of the appliance to drain off the residual
water from the appliance and then screw it tightly if the environment where the
appliance is installed drops below 0℃. This can prevent the cold from
damaging the appliance. Failure to do so will avoid your warranty.
Before Operate The Drain Plug, Must Be
1. Ensure that the appliance is disconnected from the gas supply.
2. Ensure that the appliance is disconnected from the water supply.
3. Ensure that the shower hose is disconnected from the appliance.
16

Following Phenomena Are Not Real Troubles
If water pressure is over
1000kPa, the water-out valve
will release water and adjust to
lower pressure
Increase the valve
pressure limit according
to local water supply
pressure
After 20 minutes’ using, water
heater will shut off automatically
for safety purpose
Re-start the appliance
Check that the water pressure
is at least 15kPa to activate the
burners
Use the appliance later
when pressure becomes
higher
The power of battery will become
less after use for some time, thus
the appliance cannot be ignited
Change battery and make
sure new battery installed
in the correct position
Water pressure
too high
Protective function Reaction How to do
20-minute
automatically
shut off
Water pressure
too low
Low battery
The appliance automatically
shuts off when water temperature
is over (77℃±3℃)
Re-start the appliance
later when water becomes
cooler
Over heat
protection
17

Troubleshooting Guide
This guide should be followed in case of failure of the appliance to operate correctly.
For more information, please refer to Service Manual or contact service provider.
ABCDEHFHIJ
Overall fuel gas valve is
unopened
Malfunction
Causes
Open overall valve of
gas supply
Water supply valve is
unopened
Improper regulation
method of water
temperature
Improper
Operation
Open valve of water
supply
Inadequate fresh air
supply
Improve ventilation and
ensure air supply
Air exiting inside fuel
gas pipe
Repeat opening and
closing water knob for
several times
Improper position of
water switch
Turn water knob to
hot water point
Electrical leakage
protective switch is not
restored
Restoration of electric
leakage protective
switch
Enlarge gas volume,
reduce water volume
Reduce gas volume,
enlarge water supply
●
●
●
●
● ●
●
● ●
●
● ● ● ● ●
●
● ● ● ●
●
●
Surroundings Fuel gas
pressure
Water
pressure
Too low Check if gas rubber pipe
twists or not
Too high
Regulate pressure relief
valve, reduce overall
gas supply
Too high
Reduce water supply
Too low
Utilize when water
pressure recovers
to normal
18

Gas valve is
half opened ●
●
●
● ●
● ●
● ●
● ●
● ●
● ●
●
●
●
●
●
●
●
Inadequate
supply of
fuel gas
Stop other users' using
fuel gas
Simultaneous
consumption
of fuel gas by
several users
Displace joints of rubber
pipe
Too small
through
diameter of
joints
Shorten rubber pipeToo long pipe
Open gas valve
completely
Blockage of shower Clean shower device
Blockage of water route
system
Clean filtration net on
water admitting orifice
Safety
protection
A. Ignition failure
B. Blasting combustion
C. Flameout during operation
D. Too low temperature
E. Too high temperature
F. Sparks from fire peep hole
G. Removed flame and renegade fire
H. Returned fire
I. Other malfunctions
J. Flameout at point of large water volume
Ask for authorized
person to repair it
Other causes Ask for authorized
person to repair it
20 minute timer
protective device works
Restart water control
knob
Heat protective switch
works
Electrical leakage
protective device works
Displace batteries
Inadequate battery
voltage
Clean flue pipeBlockage of vent pipe
Reduce water volume
Too low water
temperature
Exorbitant air pressure
protective device
Utilize when air pressure
recovers to normal
Surroundings
19
Table of contents
Popular Water Heater manuals by other brands

Modena
Modena Veloce Series User manual book

Lochinvar
Lochinvar CH 600 PG CE Installation, commissioning, user & maintenance instructions

Level Pro
Level Pro Sentinel Series instruction manual

A.O. Smith
A.O. Smith Cyclone Xi Service handbook

ACV
ACV Comfort ME 200 Installation operation & maintenance

Ariston
Ariston PRO1 ECO Series user manual

Rinnai
Rinnai Infinity 24e Installation and user manual

Bradford White
Bradford White UPV75 Series Service manual

Lochinvar
Lochinvar Copper-Fin CB--CW 495 -745 Replacement parts list

Bradford White
Bradford White Combi2 "CDW2" Series Replacement parts list

Kenmore
Kenmore Power Miser 12 153.320392 HT owner's manual

THERMEx
THERMEx SYSTEM Series operating manual
