Rointe D SERIES User manual

Instruction Manual
Assembly, installation, start-up
and operating instructions
D Series with
Water Heater
DELTA Ultimate
technology
EN

Many thanks for your confidence in our Rointe products. Before
you start to use the low-consumption digital electrical D Series
with Delta Ultimate technology water heater we recommend that
you read this manual carefully in order to use the product correctly
with the maximum guaranteed results.
Thank you.

3
INDEX OF CONTENTS
1. INSTALLATION ........................................................................................4
1.1. Accessories ....................................................................................4
1.2. Placement ......................................................................................4
1.3. Location .........................................................................................4
1.4. Water System installation ...............................................................5
1.5. Electrical Installation ......................................................................6
1.6. Safety .............................................................................................9
2. USE .........................................................................................................9
3. ELECTRONIC CONTROL FUNCTION ...................................................10
3.1 Description of the front panel .........................................................11
3.2 Switch On and Off (Stand By) ........................................................13
3.3 Select Temperature ........................................................................14
3.4 Lock the Control Panel ...................................................................14
3.5 Adjust Date and Time .....................................................................15
3.6 Main Menu .....................................................................................16
4. ADVANCED FUNCTIONALITY ...............................................................31
5. FUZZY LOGIC ENERGY CONTROL ......................................................32
6. MAINTENANCE ......................................................................................32
7. CONDITION OF THE GUARANTEE ........................................................33
8. DIMENSIONS AND TECHNICAL CHARACTERISTICS ..........................38

4
1. INTRODUCTION
1.1. Accessories
The electric water heater, or boiler by accumulation under
pressure, is provided with basic elements for its installation,
such as:
• Insulating sockets.
• Safety valve.
These accessories are included within the packaging.
1.2. Placement
In order to fix the heater to the wall, you will have to use suitable
rawlplugs, screws, or other fittings to support the weight of the
heater when it is full.

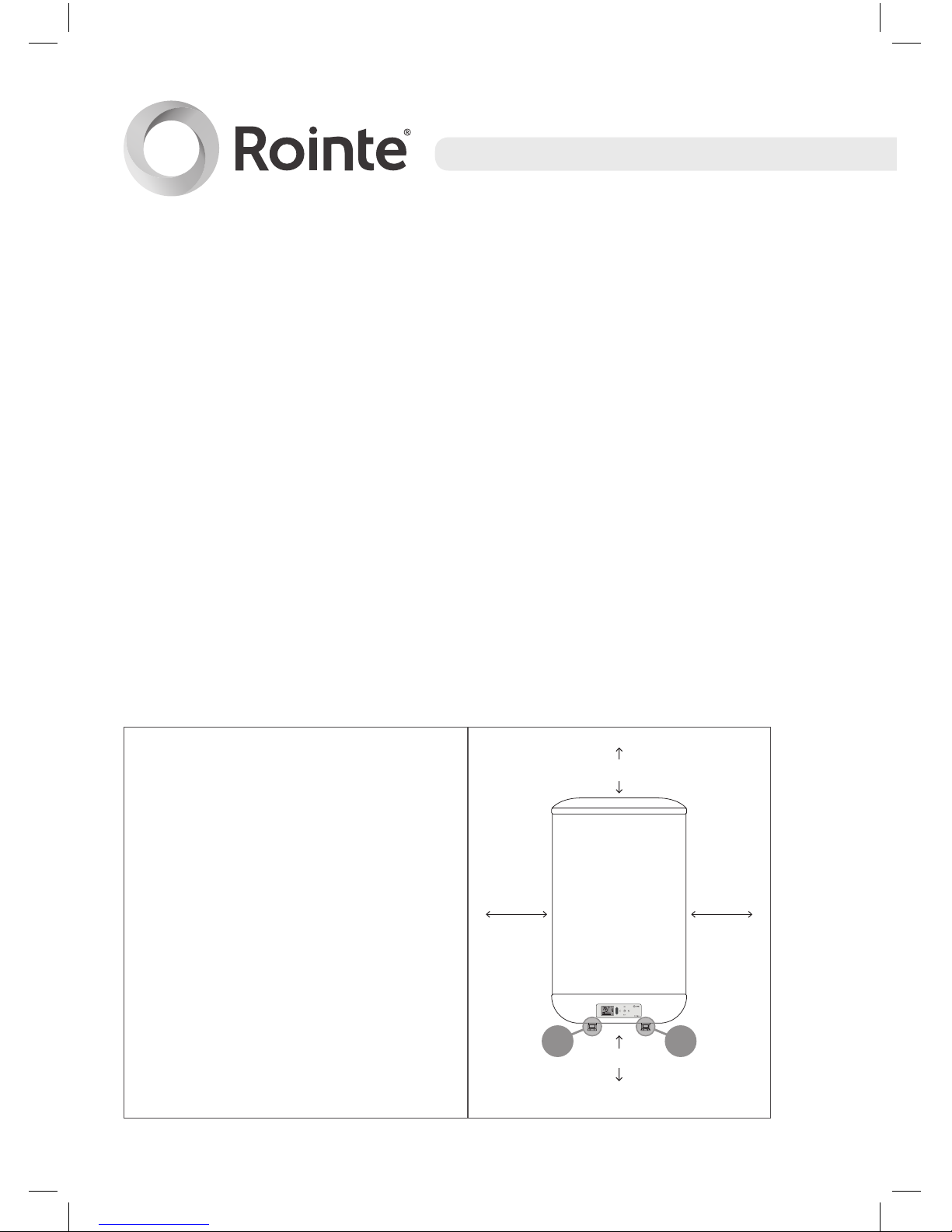

1.3. Location
It is essential that the heater
is situated as near as possible
to the place where hot water
is required. In this way, water
temperature loss in the
pipework can be avoided.
Leave a minimum space of 500
mm below where the pipes
exit the heater to allow access
for maintenance and repair
and any necessary future
maintenance operations
150 mm
100 mm 100 mm
540 mm
H C

5
D Series with DELTA Ultimate technology
Do not install the heater horizontally with the wall supports
horizontal or over the oor.
1.4. Water system installation
WARNING TO THE INSTALLER: the insulating sockets provided
with the heater must be placed on the entrance and exit pipes to
eliminate the risk of galvanic pairs as teon is used in the thread
of the pipes.
A- The heater MUST be installed with the security tting that comes
with it. No water system accessory may be placed between the
security tting and the cold water pipe (stop cock, anti-return, etc).
The security tting drainage outlet MUST be connected to a
water drainage pipe that has to have a diameter that is at least
equal to the diameter of the pipe connected to the boiler, with
a continuous inclination, open to the atmosphere and with a
minimum distance of 20 mm. During the warm-up time the water
expands producing a drip (approximately 3% of its capacity during
each heating cycle). This is not a cause for concern because it
is a normal phenomenon. Please ensure that the water drainage
conduct pipe is protected from frost. To drain the heater, lift the
handle of the security tting. It is also necessary for this handle to
be periodically checked to avoid blockage by, for example: mud
deposits, limescale deposits, etc.
B- When the pressure of the network is higher than 5 bars, it is
necessary to install a pressure reducer as near as possible to
the meter.

6
1.5. Electrical installation
The appliance requires a single-phase 230 V supply. It is
necessary to check carefully that the supply voltage agrees
with the required voltage of the appliance. The heater does not
need installation requirements outside the norm, therefore it is
suitable for installation in accordance with the Electrotechnical
Low Voltage Regulations.
The power supply will have to be wired through a omnipolar
interrupter, circuit breaker or contactor. The installation must
be protected with fuses of a rating that corresponds with the
intensity absorbed. The socket must be placed in such a way
that when the heater is installed the plug is accessible. An
earth connection must be included throughout the electrical
installation. In order to ensure this connection the plug comes
provided with the relevant contact. It is important that the style
of any other plug used is the same type as the one provided
with the appliance.
The electrical system of the premises or house must be
checked to ensure that it is equipped with an “EARTH” wire.
This appliance complies with the regulations on radio-electric
disturbances and interferences.
NOTE: All maintenance and replacement of the ttings is
prohibited (including the feed cable), unless it is authorised by
the Technical Assistance Department.

7
D Series with DELTA Ultimate technology

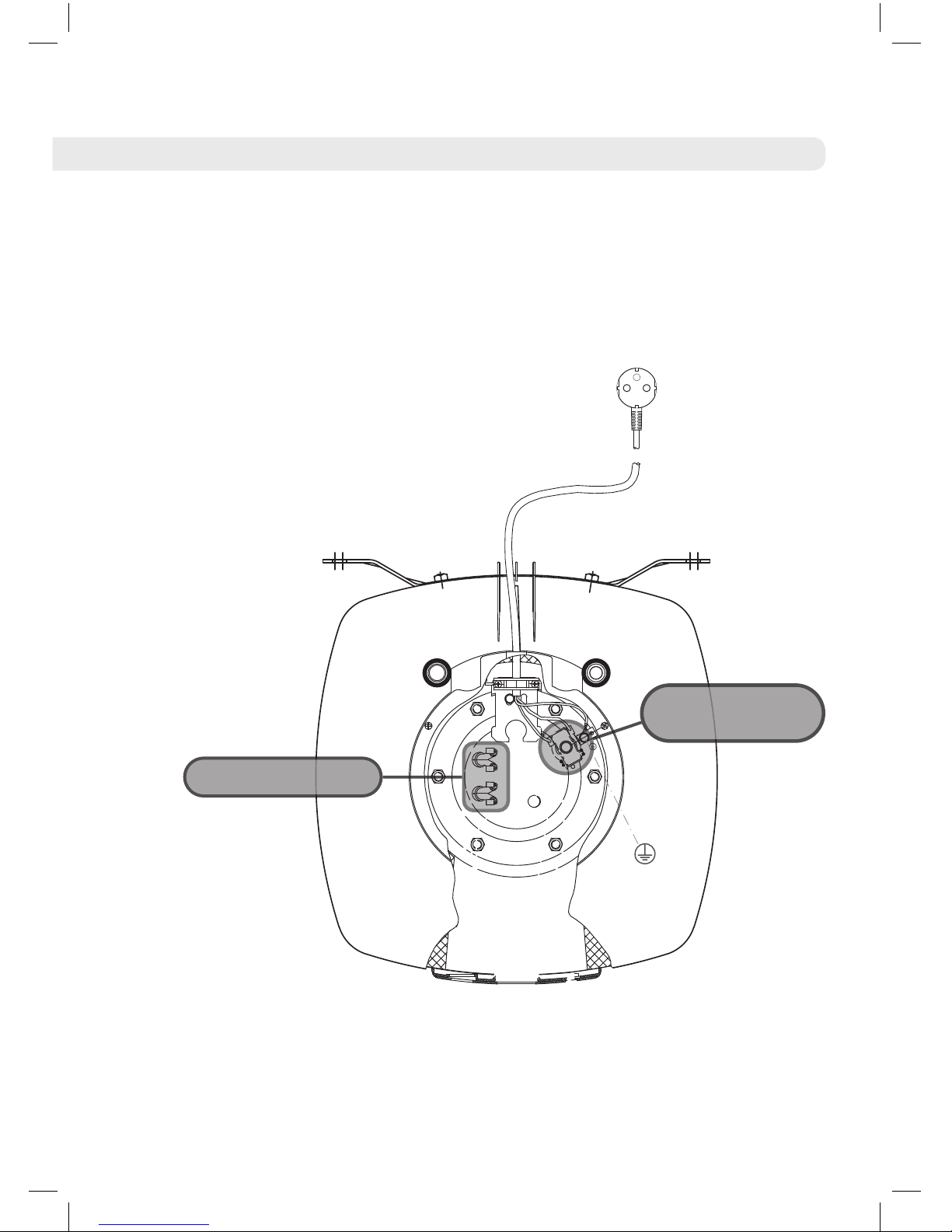

Wiring diagram - D Series water heater.
COLD HOT
EARTH
CONNECTION
HEATING ELEMENTS
THERMAL
CUT OUT

8
RED
RED
BLACK
BLUE
BLUE
THERMAL
CUT OUT
HEATING
ELEMENTS
NTC
SENSOR

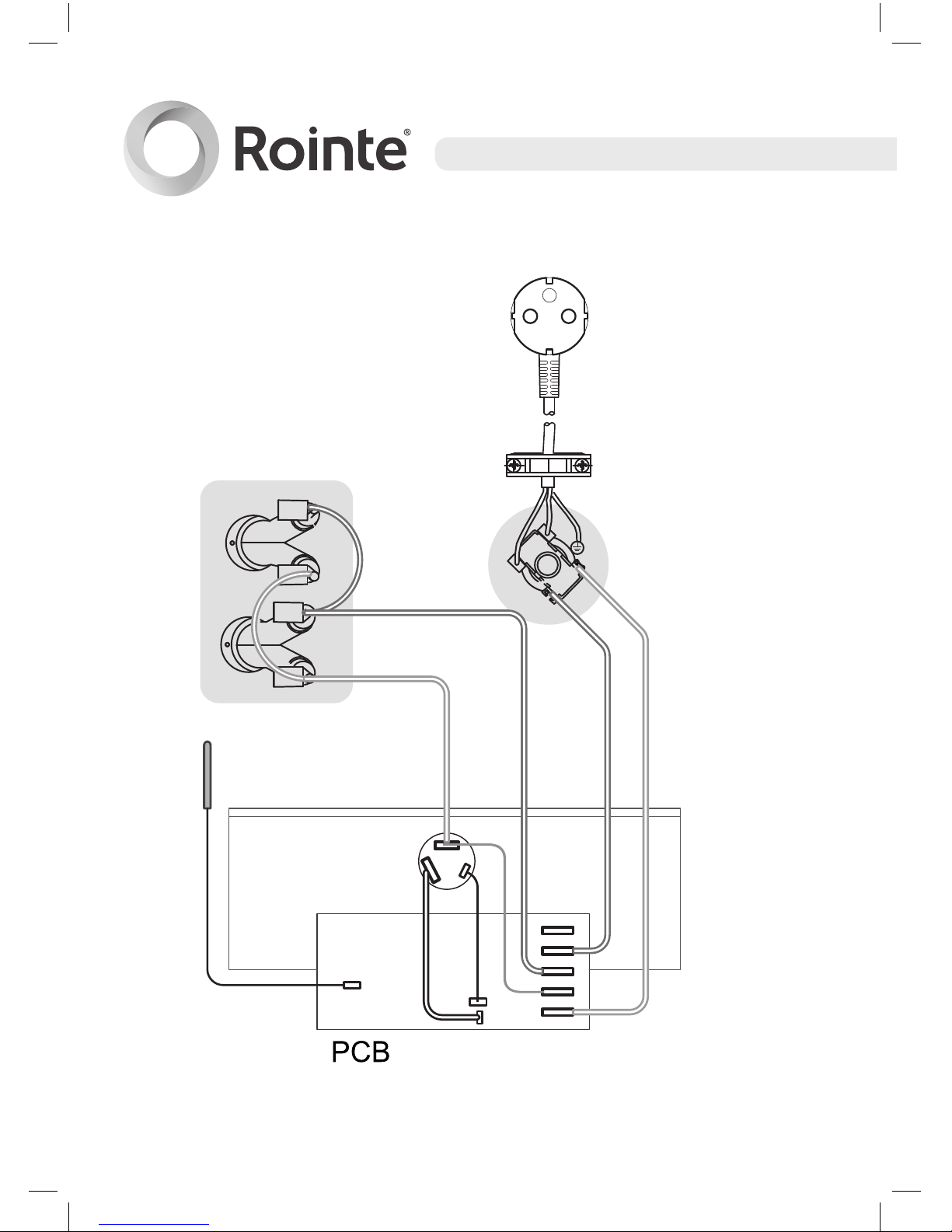

Assembly schematic - D Series water heater.

9
D Series with DELTA Ultimate technology
1.6. Safety
This water heater can be used by children aged 8 years and above
and persons with reduced physical, sensory or mental capabili-
ties or lack of experience and knowledge if they are supervised or
have been given instruction concerning use of the appliance in a
safe way and understand the hazards involved. Cleaning and user
maintenance shall not be made by children without supervision.
Children must be supervised at all times to ensure that they do not
play with the product.
2. USE
2.1. Operation
Filling. Once the heater has been installed, open the stop cock.
Then open the hot water taps. When the water begins to come out
of them the heater is full. Close the taps and check thoroughly that
there are no leaks in the installation. Do not connect the heater to
the mains supply before ensuring that it is full of water.
Electrical connection. Plug in the heater, switch on and leave the
appliance connected to the electricity supply. Once a certain
amount of hot water has been used, the thermostat switches the
heating element back on.
Draining. In prolonged periods without use, and if there is risk of
frosts in the premises where it is installed, the heater must be
drained. It is possible to do this using the safety valve.
In all cases:
• Cut the current

10
• Close the tap where water enters the Installation.
• Drain through the safety group using the lever.
3. DESCRIPTION OF THE D SERIES WATER HEATER

11
D Series with DELTA Ultimate technology
3.1. Description of the front panel
ICON INDICATION
On / Off - Accept
Decrease temperature - Move left
Increase temperature - Move right
Access / Return to Menu - Move up
Access programming Menu - Move down
3.1.1 TFT Display
1
2
3
4
10
9
8
7
6
5

12
NUM. INDICATION
1 Hours programmed - AUTO
2 Days of the week
3Time
4Selected temperature
5Locking the control panel
6 Manual / Automatic / Pilot wire functions
7 Comfort / Economy / Anti-frost modes
8Net connection status
9Heating Element in operation
10 Consumption behaviour indicator
ICON DESCRIPTION
Consumption indicator – green / yellow / red
Water heater heating element on
Connected to the router and server
- sending and receiving
Connected to the router and server
- maximum internet signal
Connected to the router and server
- minimum internet signal
Connected to router but not connected
to server nor internet
Not connected to server. Not connected to the router

13
D Series with DELTA Ultimate technology
Comfort Mode activated
Eco mode activated
Anti-frost mode activated
Automatic mode activated
Manual mode activated
Pilot Wire Control mode activated
Not available in Spain. Only upon demand
Automatic function activated in USER mode
Manual function activated in USER mode
Pilot wire control function on when
USER function is working.
Not available in Spain. Only upon demand
Locked through radiator control panel.
Remote lock. Locked through IR remote
control or Rointe Connect App.

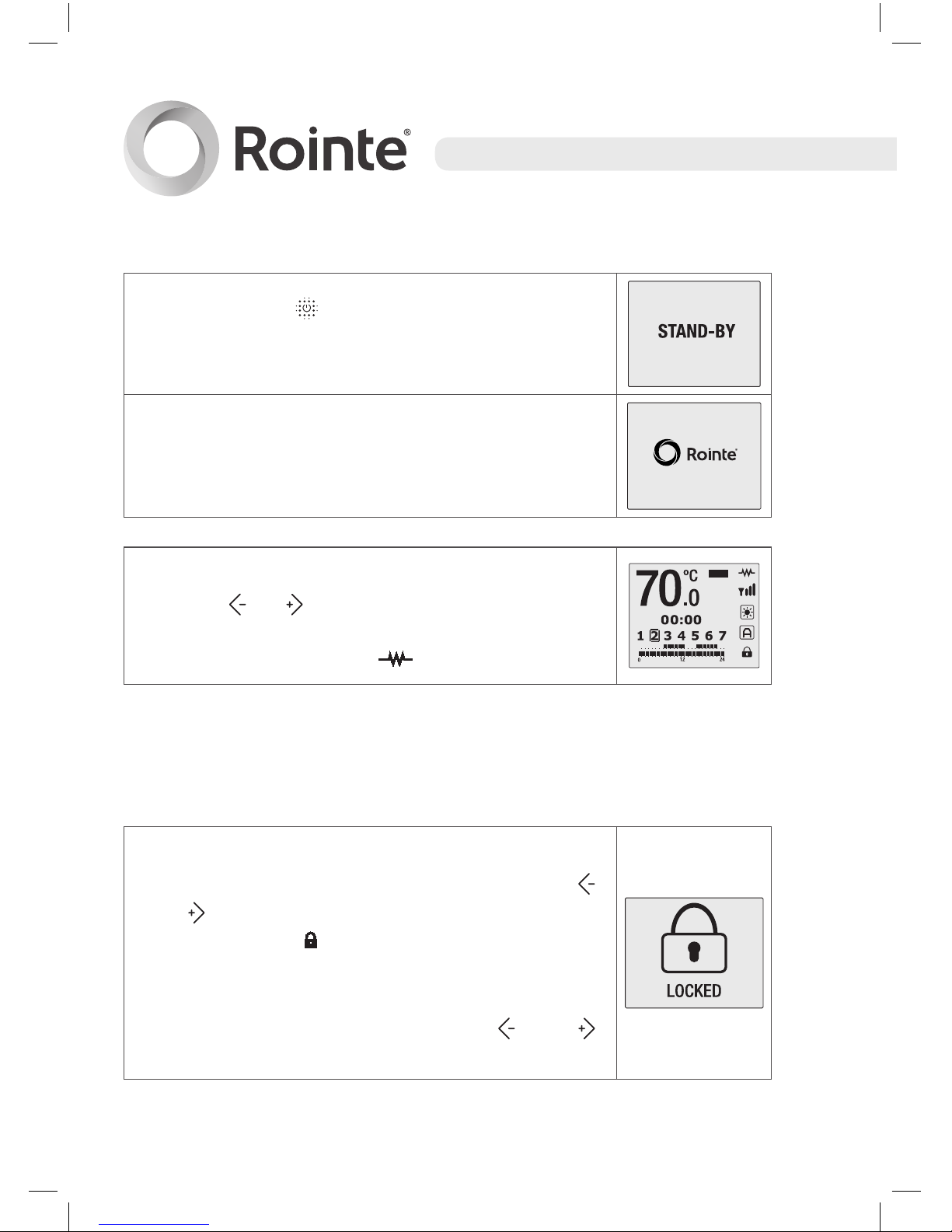

3.2 Switch On and Off (Stand-by)
The D Series with DELTA Ultimate technology water
heater is switched on or off using the button. The
following welcome appears on the TFT screen when
the water heater is switched on.
DELTA Ultimate
The main temperature screen will appear after
5 seconds.

14
If you press the button again when the water
heater is switched on it will revert to stand-by
mode and the words “Stand-By” will appear.
5 seconds later and the Rointe logo will appear.
3.3 Temperature selection
You can change the desired temperature using
the keys or . If the temperature of the room
is less than is desired then the water heater will
begin to heat up and the symbol will appear.
3.4 Locking the control panel
You can lock the product from the actual control panel of the water
heater or remotely via the Rointe Connect App or the Air Control
remote control.
On the product control panel you can lock the
keypad by pressing and holding down the
and buttons at the same time for 3 seconds.
The locked icon will appear. When you press
any button the image on the right will appear on
the screen. You can unlock the product again
by pressing and holding down the and
buttons for 3 seconds.

15
D Series with DELTA Ultimate technology
If we lock the product via the application or
remote control then the remote locked icon will
appear on the screen . When you press any
button on the water heater control panel, the
image on the right will appear on the screen. If
the product is locked in this way, you can only
unlock the water heater via the Rointe Connect
app or the Air Control remote control.

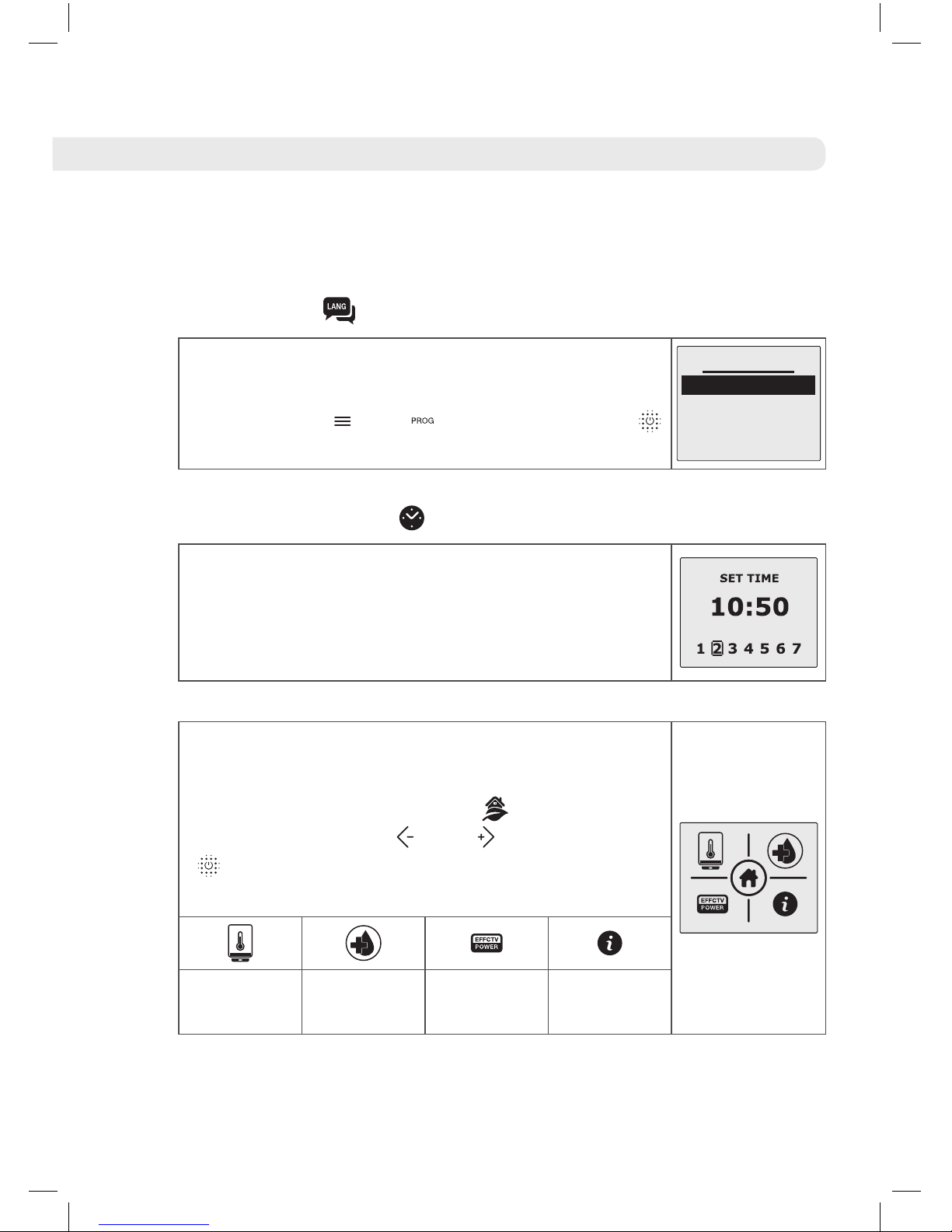

3.5 Adjusting time and date
It is possible to change the time on the water heater from the control
panel. However it is better to wait for the automatic synchronization
once the product has been paired with the Rointe Connect app
and the product is connected to the E-Life technology servers.
Here we explain how to change the time from the water heater
control panel.
Press the menu button to access the main
menu. Select the sub-menu by using the
and buttons then press to access.
In the configuration sub-menu, use the and
buttons to select the clock then press
to access.

16
By pressing the button, the hours, minutes
and days will flash depending on the number of
times the button is pressed (1 for hours, 2 for
minutes and 3 for the day of the week).
We can change any of these by pressing the
or buttons. To confirm, press the button.
To exit the time/day mode wait 30 seconds or press the button
after selecting the day of the week.
3.6 Main menu
Press the button to access the main menu
of your D Series with DELTA Ultimate technology
water heater. You can move between the different
options on the menu by pressing the and
buttons. The sub-menu which you have selected
will be highlighted with a frame. The following
icons allow you to access different sub-menus
which we will now explain:
Configuration
Sub-Menu
Energy
Sub-Menu
Balance
Function
Programming
Sub-Menu

17
D Series with DELTA Ultimate technology
3.6.1 Configuration Sub-menu
The configuration sub-menu consists of 4
technical parameters of the product.
To access this menu, press on the main menu
screen. The screen on the right will appear and
we can move between the various options of the
sub-menu by using the and buttons. We
can access the various sub-menus, which we
can now explain, using the following icons:
Screen
backlight
Internet
settings Language Adjust day / time
• Screen backlight function
This function allows you to change the brightness
of the screen in the STAND-BY and BACKLIGHT
(ON) modes. We can change between the 2
modes by using the and buttons.
We can increase or decrease the brightness by
using the and buttons.
The cursor shows the intensity of the light within
the range. Press the button to confirm and
to exit.

18

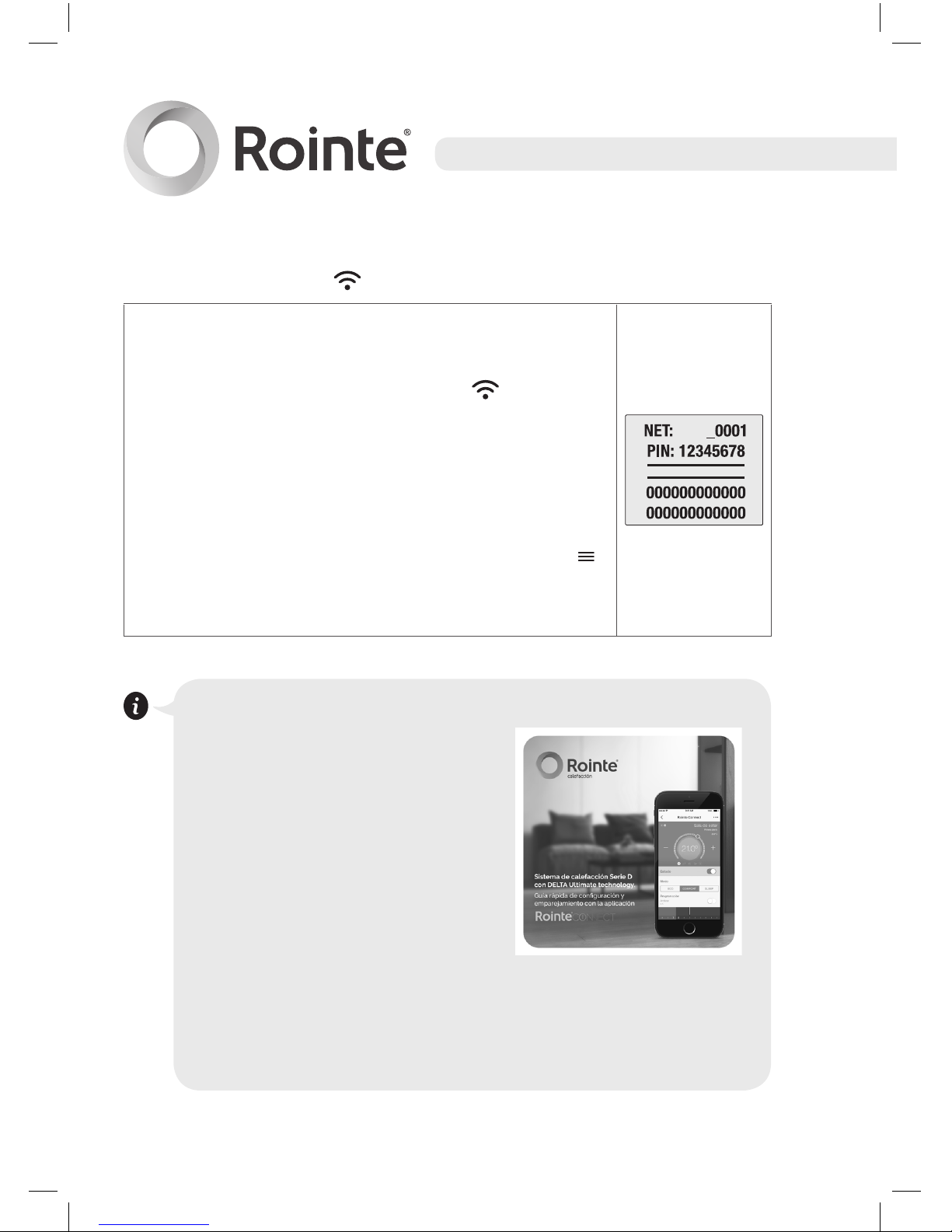

• Internet Settings
This option prepares the product to communicate
with a special network enabling it to be paired.
Press the internet settings option to access
this mode.
On the next screen the name of the WIFI network
(NET) and password (PIN) which have been
created will appear.
Exit the PAIRING mode by pressing the
button which will allow us to return to the main
screen.
ROW
Pairing your product with the
Rointe Connect App
In order to pair your Rointe D
Series with DELTA Ultimate
technology product(s) with your
local WI-FI signal, please follow
the instructions in the attached
document “Delta Ultimate
technology. Quick set-up guide.

19
D Series with DELTA Ultimate technology
• Language
You can select the language you wish using this
function. Select the language you wish by
pressing the and buttons. Press the
button to confirm the language highlighted.
LANGUAGE
ENGLISH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
• Adjust date / time
This function allows you to change the hour,
minutes and day of the week on the product
control panel. To adjust the time/date please
revert to section 3.5.
3.6.2 Energy Sub-menu
The Energy Sub-menu allows access to the
functions relating to the energy management of
the product. Select the icon from the main
menu by using the and buttons. Press
to access this screen. The following icons
allow you to access distinct sub-menus:
Water heating
progress
Anti
legionnaire´s
disease
Effective
power
function
Information

20
• Water heating progress
We can see the progress of the water
heating process towards the user-
established target temperature.
In this image, 100% of the water contained
in the water heater is at the user-defined
target temperature. When the water in the
tank is not yet at the user-defined target
temperature indicated on the TFT screen,
a percentage value is displayed. This
represents the heating progress towards
this target temperature.
• Anti legionnaire´s disease
The water heater is automatically set to
over 60ºC for at least one hour once a
week. Whilst this mode is active, you will
see the following screen.
Within the legionella function you can
choose the time period in days for the
activation of the legionella function. (By
default this period is 7 days)
ANTILEGIONAIRE’ S
DISEASE FUNCTION
PERIOD (DAYS)
7
