Operator's Manual
2021403-026 Revision B
T-2100 Treadmill

T-2 T-2100 Treadmill 2021403-026B
15 August 2007
NOTE
The information in this manual only applies to the T-2100 Treadmill. It does not apply to earlier product
versions. Due to continuing product innovation, specifications in this manual are subject to change
without notice.
CardioSoft, MAC and CASE are trademarks owned by GE Medical Systems Information Technologies
GmbH, a General Electric Company going to market as GE Healthcare.
© 2005, 2007 General Electric Company. All rights reserved.

CE Marking Information
2021403-026B T-2100 Treadmill CE-1
CE Marking Information
Compliance
NOTE
The CE mark information is part of the operator manual and is
applicable for all products marked and delivered by GE Medical
Systems Information Technologies in the European community.
The T-2100 Treadmill bears CE mark CE-0459 indicating its conformity
with the provisions of the Council Directive 93/42/EEC concerning
medical devices and fulfills the essential requirements of Annex I of this
directive. The product is in radio-interference protection class A in
accordance with EN 55011.
The country of manufacture can be found on the equipment labeling.
The product complies with the requirements of standard EN 60601-1-2
“Electromagnetic Compatibility - Medical Electrical Equipment”.
The safety and effectiveness of this device has been verified against
previously distributed devices. Although all standards applicable to
presently marketed devices may not be appropriate for prior devices (i.e.
electromagnetic compatibility standards), this device will not impair the
safe and effective use of those previously distributed devices. See user’s
information.
EMC Immunity Performance
WARNING
RF sources — Users should be aware of known RF
sources, such as radio or TV stations and hand-held or
mobile two-way radios, and consider them when installing
a medical device or system.
Be aware that adding accessories or components, or
modifying the medical device or system may degrade the
EMI performance. Consult with qualified personnel
regarding changes to the system configuration.
Refer to the service manual for detailed exceptions and compliance
information.

CE-2 T-2100 Treadmill 2021403-026B
CE Marking Information

2021403-026B T-2100 Treadmill i
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Manual Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Manual Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Responsibility of the Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Equipment Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Warnings and Dangers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9
Service Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Service Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9
Equipment Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10
Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10
2 T-2100 Treadmill Overview . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Preparation for Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Safe Handling Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Electrical Safety Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Calibrating Treadmill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Operating Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Power Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
Emergency Stop Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
Emergency Stop Switch Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
Controlling the Treadmill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

ii T-2100 Treadmill 2021403-026B
3 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Recommended Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
Inspection and Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Visual Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
Exterior Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
Disposal of the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

2021403-026B T-2100 Treadmill 1-1
1Introduction

1-2 T-2100 Treadmill 2021403-026B
Introduction
Manual Information
Revision History
Each page of the document has the document part number and revision
letter at the bottom of the page. The revision letter identifies the
document’s update level.
The revision history of this document is summarized in the table below.
Manual Purpose
This manual contains the instructions necessary to operate the
equipment safely in accordance with its function and intended use. These
instructions include but are not limited to:
an explanation of the function of controls and indicators,
the sequence of operation,
connection and disconnection of detachable parts and accessories,
and
instructions for operator cleaning, preventive inspection and
maintenance.
Where necessary the manual identifies additional sources of relevant
information and/or technical assistance.
Intended Audience
This manual is geared for clinical professionals. Clinical professionals
are expected to have working knowledge of medical procedures,
practices, and terminology as required for completing these
examinations.
Revision Date Comment
A 7 February 2005 Initial release of manual.
B 15 August 2007 Revised equipment symbols and warnings.

Introduction
2021403-026B T-2100 Treadmill 1-3
Conventions
Below are the conventions used in this manual.
Safety Messages
DANGER safety messages indicate an imminently hazardous situation
which, if not avoided, WILL result in death or serious injury.
WARNING safety messages indicate a potentially hazardous situation
which, if not avoided, COULD result in death or serious injury.
CAUTION safety messages indicate a potentially hazardous situation
which, if not avoided may result in minor or moderate injury.
NOTE messages provide additional user information.
Definitions
Items shown in Bold text are keys on the keyboard, text to be
entered, or hardware items such as buttons or switches on the
equipment.
Items shown in Italicized text are software terms which identify
menu items, buttons, or options in various windows.
To perform an operation which appears with a plus (+)sign between
the names of two keys, you press and hold the first key while
pressing the second key once. This is called a keystroke combination.
For example, “Press Ctrl+Esc” means to press and hold down the
Ctrl key while pressing the Esc key.
When instructions are given for typing a precise text string with one
or more spaces, the point where the spacebar must be pressed is
indicated as: <Space>. The purpose of the < > brackets is to ensure
you press the spacebar when required.
Enter means to press the Enter or Return key on the keyboard. Do
not type Enter.

1-4 T-2100 Treadmill 2021403-026B
Introduction
Safety Information
Responsibility of the Manufacturer
GE Medical Systems Information Technologies is responsible for the
effects of safety, reliability, and performance only if:
Assembly operations, extensions, readjustments, modifications, or
repairs are carried out by persons authorized by GE Medical Systems
Information Technologies.
The electrical installation of the relevant room complies with the
requirements of the appropriate regulations.
The equipment is used in accordance with the instructions for use.
General
This device is intended for use under the direct supervision of a licensed
health care practitioner.
To ensure patient safety, use only parts and accessories manufactured or
recommended by GE Medical Systems Information Technologies.
Contact GE Medical Systems Information Technologies for information
before connecting any devices to this equipment that are not
recommended in this manual.
Parts and accessories used must meet the requirements of the applicable
IEC 601 series safety standards, and/or the system configuration must
meet the requirements of the IEC 60601-1-1 medical electrical systems
standard.
The use of ACCESSORY equipment not complying with the equivalent
safety requirements of this equipment may lead to a reduced level of
safety of the resulting system. Consideration relating to the choice shall
include:
use of the accessory in the PATIENT VICINITY; and
evidence that the safety certification of the ACCESSORY has been
performed in accordance to the appropriate IEC 60601-1 and/or IEC
60601-1-1 harmonized national standard.

Introduction
2021403-026B T-2100 Treadmill 1-5

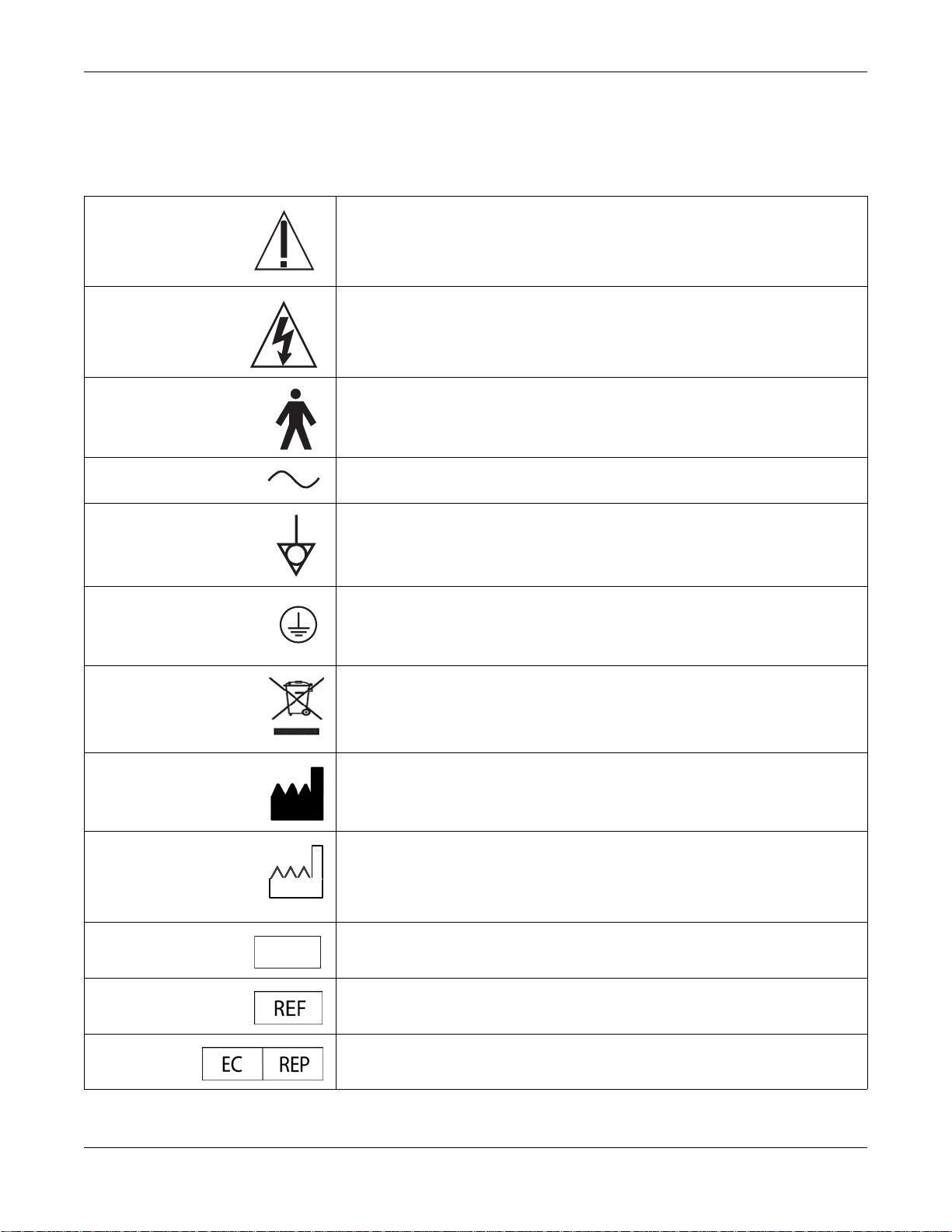

Equipment Symbols
The following symbols may appear on the equipment.
Caution, consult accompanying documents.
Dangerous voltage.
Type B applied part complying with IEC 60601-1.
Alternating current (AC)
Equipotential (This is the ground lug.)
Protective earth (ground)
This symbol indicates that the waste of electrical and electronic equipment must not be
disposed as unsorted municipal waste and must be collected separately.
Pleasecontactan authorized representative ofthe manufacturer for information concerning
the decommissioning of your equipment.
Manufacturer’s identification
Date of manufacture.
The number found under this symbol is the date of manufacture in the YYYY-MM format.
Serial number
Catalogue number
Authorized representative in the European community
YYYY-M
M
SN

1-6 T-2100 Treadmill 2021403-026B
Introduction
Warnings and Dangers
WARNING
CONNECTION TO MAINS — This is class 1, type B
electrical safety equipment.
The mains plug must be connected to an appropriate
power supply.
WARNING
DEFIBRILLATOR PRECAUTIONS — Do not come into
contact with patients or unit during defibrillation.
Otherwise, serious injury or death could result.
WARNING
EMERGENCY STOP — The emergency stop switch is a
safety device for use only in emergency situations to stop
the treadmill. The walking belt will stop quickly. Once
stopped and while the switch is depressed the treadmill
walking belt will not lock to allow for removal of foreign
objects.
Medical Equipment
With Respect to Electric Shock, Fire, and Mechanical Hazard Only, In Accordance with UL
60601-1 and CAN/CSA C22.2 No.601.1
Input/Output
Input
Fuse
Serial Interface
Emergency stop
General symbol for recovery/recyclable
T 0.5AL, 250V Time Lag, 0.5 Amp, Low breaking capacity, 250Vac rated fuse

Introduction
2021403-026B T-2100 Treadmill 1-7
WARNING
EQUIPMENT MALFUNCTION — Replace only with the
same type and rating of fuse.
WARNING
EXPLOSION HAZARD — Flammable anesthetic vapors
or liquids can cause explosions.
Do NOT use in the presence of flammable anesthetic
vapors or liquids.
WARNING
MOVING PARTS — To avoid injury, follow physicians’ or
qualified health care providers’ instructions carefully
during use of the equipment.
WARNING
MOVING PARTS — To avoid injury, keep hands, hair,
jewelry, loose clothing and patient cables away from
moving parts.
WARNING
MOVING PARTS — To avoid injury to patient, operate
the treadmill with 6 feet of clearance at the rear (end
opposite the motor).
WARNING
MOVING PARTS — While the emergency stop switch is
depressed or when power is not applied to the treadmill
the walking belt is not locked. The walking belt in this
condition is allowed to move which could cause a person to
lose balance and fall if they are standing on the belt. Note,
the risk of belt movement is increased with higher
treadmill grades or inclines.

1-8 T-2100 Treadmill 2021403-026B
Introduction
WARNING
SHOCK HAZARD — Improper use of this device
presents a shock hazard. Strictly observe the following
warnings. Failure to do so may endanger the lives of the
patient, the user, and bystanders.
To reduce the risk of electric shock do NOT remove cover
(or back). Refer servicing to qualified personnel.
When disconnecting the device from the power line,
remove the plug from the wall outlet first, before
disconnecting the cable from the device. Otherwise there
is a risk of coming in contact with line voltage by
inadvertently introducing metal parts in the sockets of the
power cord.
Devices may be connected to other devices or to parts of
systems only after making certain that there is no danger
to the patient, the operators, or the environment as a
result. Standards IEC 60601-1-1/EN60601-1-1 must be
complied with in all cases.
WARNING
SITE REQUIREMENTS — Do not route cables in a way
that they may present a stumbling hazard.
Do not route cables underneath the equipment.
For safety reasons, all connectors for patient cables and
leadwires are designed to prevent inadvertent
disconnection, should someone pull on them.
For devices installed above the patient, adequate
precautions must be taken to prevent them from dropping
on the patient.
WARNING
TREADMILL CHANGES — Rapid changes in treadmill
speed and/or grade during a stress test may result in
injury.
DO NOT rapidly change treadmill speed and/or grade
during a stress test.
WARNING
TREADMILL CHANGES — DO NOT place feet under
the treadmill during operation or while decreasing the
treadmill grade to avoid injury.

Introduction
2021403-026B T-2100 Treadmill 1-9
Cautions
CAUTION
INJURY — Do not use the treadmill without proper
footwear as injury to feet may result.
Always wear proper footwear when using the treadmill.
CAUTION
POWER REQUIREMENTS — Before connecting the
device to the power line, check that the voltage and
frequency ratings of the power line are the same as those
indicated on the unit's label. If this is not the case, do not
connect the system to the power line until you adjust the
unit to match the power source.
This equipment is suitable for connection to public mains
as defined in CISPR 11.
CAUTION
RESTRICTED SALE — U.S. federal law restricts this
device to sale by or on the order of a physician.
CAUTION
SUPERVISED USE — This equipment is intended for
use under the direct supervision of a licensed health care
practitioner.
Make sure all users are under the direct supervision of a
licensed health care practitioner.
Service Information
Service Requirements
Refer equipment servicing to GE Medical Systems Information
Technologies authorized service personnel only. Any unauthorized
attempt to repair equipment under warranty voids that warranty.
It is the user’s responsibility to report the need for service to GE Medical
Systems Information Technologies or to one of their authorized agents.
Failure on the part of the responsible individual, hospital, or institution
using this equipment to implement a satisfactory maintenance schedule
may cause undue equipment failure and possible health hazards.

1-10 T-2100 Treadmill 2021403-026B
Introduction
Regular maintenance, irrespective of usage, is essential to ensure that
the T-2100 Treadmill will always be functional when required.
Technical specifications describing the equipment can be found in the T-
2100 Treadmill Service Manual shipped with your system.
Equipment Identification
The Equipment Identification tag contains the Serial Number, and is
located on the back of the treadmill.

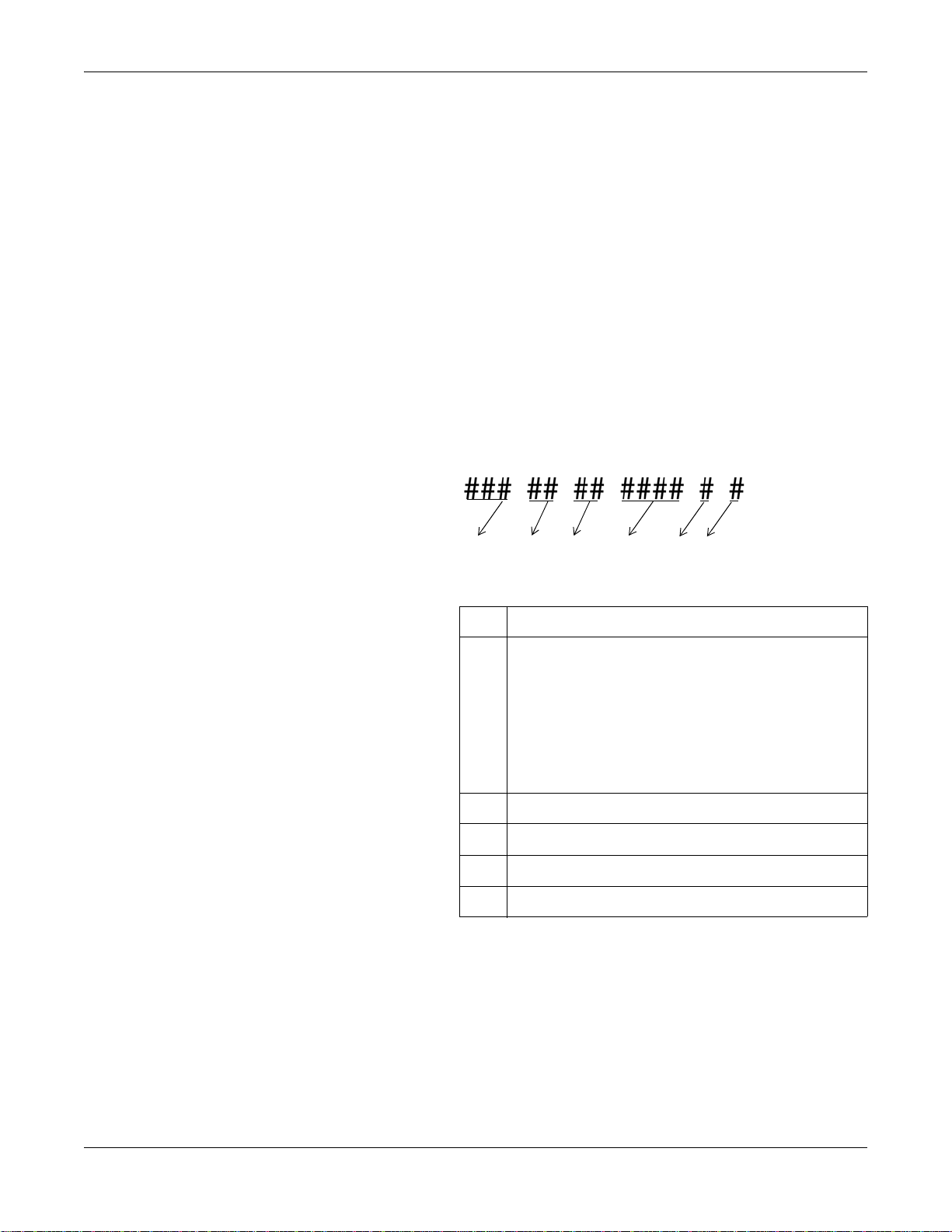

Serial Number
Every GE Medical Systems Information Technologies device has a
unique serial number for identification. An explanation of the Serial
Number code is shown below.
001
A Product Code
B Year Manufactured (00-99)
00 = 2000
01 = 2001
02 = 2002
(and so on)
C Fiscal Week Manufactured
D Production Sequence Number
E Manufacturing Site
F Miscellaneous Characteristic
ABCD
EF

2021403-026B T-2100 Treadmill 2-1
2T-2100 Treadmill
Overview

2-2 T-2100 Treadmill 2021403-026B
T-2100 Treadmill Overview
Intended Use
The T-2100 Treadmill is intended for use with any of the several GE
Medical Systems Information Technologies exercise testing systems or
the MTC-1 (manual treadmill controller), for administering a controlled
exercise load during a diagnostic stress test. Standard features include
the emergency stop switch, a full handrail set, and a long, 60-inch
walking surface.
The emergency stop switch is intended for emergency situations where
immediately stopping the treadmill is required to deliver appropriate
emergency care to the patient or health care provider, as implied by the
American Heart Association “Guidelines for Clinical Exercise Testing
Laboratories” (1995). It is not intended for routinely stopping the
treadmill.
Preparation for Use
Safe Handling Guidelines
The T-2100 Treadmill ships preset with an approximate 2% grade. This
slight elevation provides for free wheel movement and prevents the
shroud from scraping the floor.
Before moving the treadmill after it has been in operation, use the
controlling equipment to set the grade to approximately 7%. Then
remove power and disconnect all cables to the treadmill before moving
the unit.
Follow the steps below to move the treadmill. We recommend that two
people work together since the treadmill may be too heavy for some
individuals to lift and lower safely.
NOTE
We recommend the treadmill not be placed on carpet or carpet tile
floors as a final location, as continual movement of the wheels may
eventually damage the carpet and possibly the treadmill.

T-2100 Treadmill Overview
2021403-026B T-2100 Treadmill 2-3
WARNING
INJURY OR DAMAGE — The treadmill is too heavy to
lift, lower or move safely by one person. Serious bodily
injury or damage to the treadmill may result.
A minimum of two people are required when lifting,
lowering or moving the treadmill.

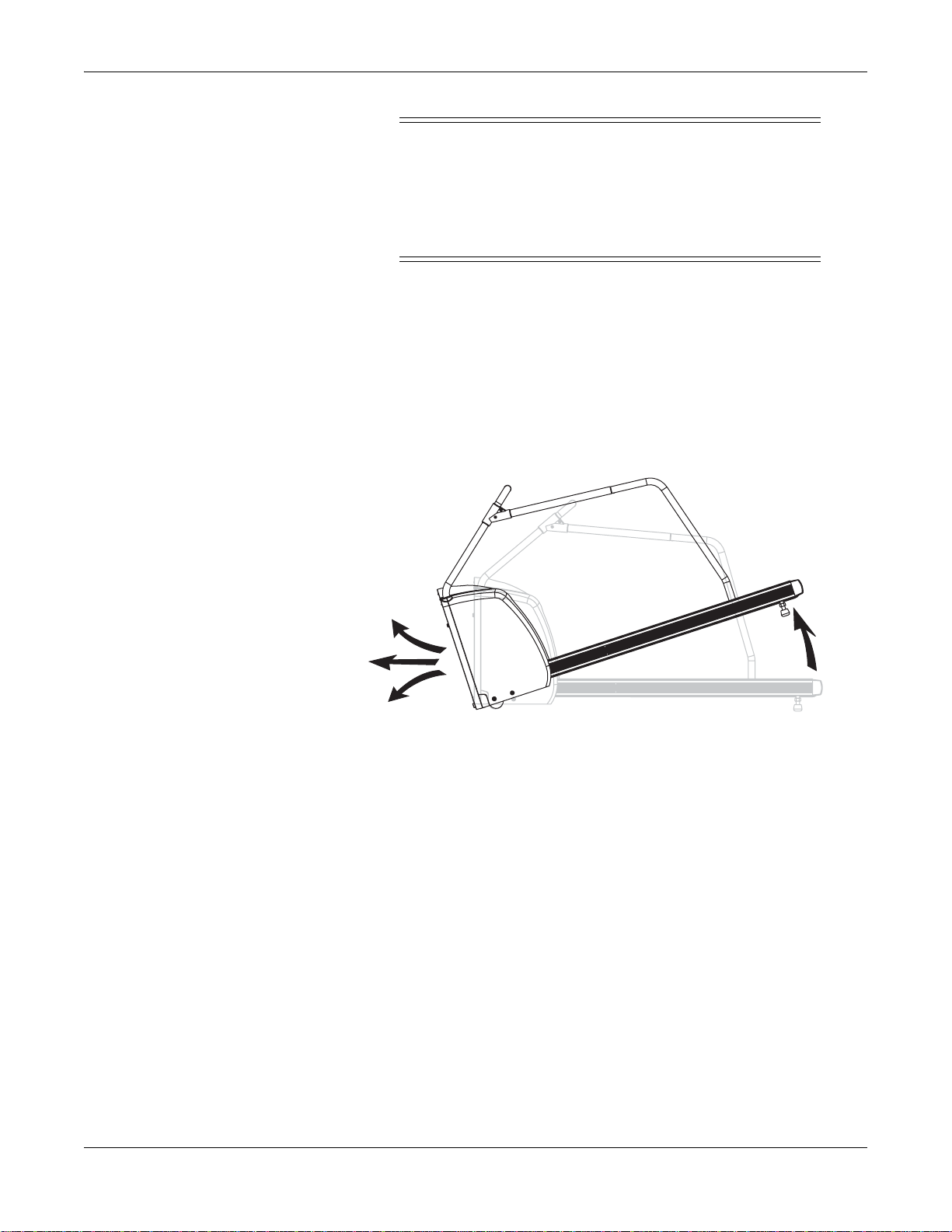

1. Lift the end of the bed assembly to about knee height, keeping knees
bent and backs straight as you lift.
2. Rotate the treadmill in the direction you want to go (the treadmill
will pivot on its wheels) and push forward.
3. When you have maneuvered the treadmill into its new location,
gently lower the end of the bed assembly to the floor.
003
Operating Instructions
Electrical Safety Tests
The electrical safety of this installation is the responsibility of the
customer, not GE Medical Systems Information Technologies. In
hospitals, contact your in-house biomedical technician, electrician, or
technically qualified personnel. Outside of hospitals, contact your
hospital affiliation for these services. Otherwise, contact GE Medical

2-4 T-2100 Treadmill 2021403-026B
T-2100 Treadmill Overview
Systems Information Technologies and open a customer-billable service
call.
Before using the treadmill, have qualified personnel perform the tests
listed below.
AC line voltage test to verify the power outlet is properly wired.
Ground continuity test to verify all exposed metal is properly
grounded.
Leakage tests to verify the equipment passes all applicable leakage
tests.
Your in-house biomedical technician, electrician, or technically qualified
personnel can find instructions for performing these tests in the T-2100
Treadmill Service Manual shipped with your system.
Calibrating Treadmill
It is recommended that the treadmill be calibrated each time it is moved.
Refer to the steps below to activate the T-2100 Treadmill self-calibration
feature:
1. Connect the AC power cable on the treadmill to the wall outlet.
WARNING
POWER CABLES — Route the AC Power cable away
from moving parts.
An AC power cable caught in moving parts could cause
injury to the user and equipment.
2. Turn the power switch on the treadmill to On.
3. Remove controlling device cable or turn off the controlling device.
WARNING
During calibration, the treadmill will move and reach
maximum elevation. Injury may result.
Make sure you monitor the site at all times.
Make sure there are no customers or patients near the
treadmill during calibration.
