GE AGL06 Operating instructions

Safety Instructions . . . . . . . . . . .2, 3
Operating Instructions
Control knob models . . . . . . . . .6, 7
Touch pad models . . . . . . . . . . . .4, 5
Care and Cleaning
Air Filter . . . . . . . . . . . . . . . . . . . . . .8
Front Grille and Case . . . . . . . . . . .8
Normal Operating Sounds . . . . . . .8
Outdoor Coils . . . . . . . . . . . . . . . . .8
Installation Instructions . . . . .9–13
Troubleshooting Tips . . . . . . . . .14
Consumer Support
Consumer Support . . . . . . . . . . . .18
Product Registration . . . . . . . .15, 16
Warranty . . . . . . . . . . . . . . . . . . . . .17
3828A20514C 49-7492 11-04 JR
AGF05
AGM05
AGL06
AGQ06
AGV06
Owner’s Manual and
Installation Instructions
Write the model and serial numbers here:
Model # __________________________
Serial # __________________________
Find these numbers on a label on the
side of the air conditioner.
Air Conditioners
www.GEAppliances.com
Room

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
2
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock
or personal injury.
■ Use this appliance only for its intended
purpose as described in this Owner’s
Manual.
■This air conditioner must be properly
installed in accordance with the Installation
Instructions before it is used.
■Never unplug your air conditioner by
pulling on the power cord. Always grip
plug firmly and pull straight out from the
receptacle.
■ Repair or replace immediately all electric
service cords that have become frayed or
otherwise damaged. Do not use a cord
that shows cracks or abrasion damage
along its length or at either the plug or
connector end.
■ Turn the mode control to OFF and unplug
your air conditioner before making any
repairs or cleaning.
NOTE: We strongly recommend that any
servicing be performed by a qualified
individual.
■ For your safety…do not store or use
combustible materials, gasoline or other
flammable vapors or liquids in the vicinity
of this or any other appliance.
■ All air conditioners contain refrigerants,
which under federal law must be removed
prior to product disposal. If you are getting
rid of an old product with refrigerants, check
with the company handling disposal about
what to do.
SAFETY PRECAUTIONS
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord. For
personal safety, this appliance must be properly
grounded.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall
outlet to minimize the possibility of electric
shock hazard from this appliance.
Power cord may include a current interrupter
device. A test and reset button is provided on
the plug case. The device should be tested on a
periodic basis by first pressing the TEST button
and then the RESET button. If the TEST button
does not trip or if the RESET button will not
stay engaged, discontinue use of the air
conditioner and contact a qualified
service technician.
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
Where a 2-prong wall outlet is encountered,
it is your personal responsibility and obligation
to have it replaced with a properly grounded
3-prong wall outlet.
The air conditioner should always be
plugged into its own individual electrical
outlet which has a voltage rating that matches
the rating plate.
This provides the best performance and also
prevents overloading house wiring circuits
which could cause a fire hazard from
overheated wires.
See the Installation Instructions, Electrical
Requirements section for specific electrical
connection requirements.
HOW TO CONNECT ELECTRICITY

3
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions
WARNING!
Because of potential safety hazards under certain
conditions, we strongly recommend against the
use of an extension cord.
However, if you must use an extension cord,
it is absolutely necessary that it be a UL-listed,
14 gauge, 3-wire grounding type appliance
extension cord having a grounding type plug
and outlet and that the electrical rating of the
cord be 15 amperes (minimum) and 125 volts.
CAUTION:
DO NOT use an extension cord with any of the
230/208 volt models.
USE OF EXTENSION CORDS—115-Volt models only
Because of potential safety hazards under certain
conditions, we strongly recommend against the
use of an adapter plug.
However, if you must use an adapter, where
local codes permit, a temporary connection may
be made to a properly grounded 2-prong wall
outlet by use of a UL-listed adapter available at
most local hardware stores.
The larger slot in the adapter must be
aligned with the larger slot in the wall outlet
to provide proper polarity in the connection
of the power cord.
When disconnecting the power cord from the
adapter, always hold the adapter in place with
one hand while pulling the power cord plug
with the other hand. If this is not done, the
adapter ground terminal is very likely to break
with repeated use.
If the adapter ground terminal breaks, DO NOT
USE the air conditioner until a proper ground
has been established.
Attaching the adapter ground terminal to a wall outlet
cover screw does not ground the appliance unless the
cover screw is metal, and not insulated, and the wall
outlet is grounded through the house wiring. You should
have the circuit checked by a qualified electrician to
make sure the outlet is properly grounded.
USE OF ADAPTER PLUGS—115-Volt models only
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
www.GEAppliances.com

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
■ To ensure proper operation, aim the remote
control at the signal receiver on the air
conditioner.
■ The remote control signal has a range of
up to 21 feet.
■ Make sure nothing is between the air conditioner
and the remote control that could block the
signal.
■ Make sure batteries are fresh and installed
correctly as indicated on the remote control.
About the controls on the air conditioner—models with touch pads.
Features and appearance will vary.
4
Air Conditioner Controls Remote Control
Controls
ON/OFF Pad
Turns air conditioner on and off.
Display
Shows the set temperature or time remaining
on timer.
MODE
Use to set the air conditioner to COOL or
FAN mode.
Increase ▲ /Decrease ▼Pads
Use to set temperature when in COOL mode.
FAN Pad
Use to set the fan speed to LOW (F1), MED (F2)
or HIGH (F3).
ENERGY SAVER (on some models)—Controls
the fan.
ON—The fan and compressor cycle on and
off. This results in wider variations of room
temperature and humidity. Normally used
when the room is unoccupied. NOTE: The fan
will continue to run for a short time after the
compressor cycles off.
OFF—The fan runs all the time, while the
compressor cycles on and off.
This feature must be set at OFF in order to
use the fan settings (on the mode control).
TIMER Pad
ON—When the air conditioner is off, it can be
set to automatically come on in 1 to 12 hours
or 1 to 24 hours (depending on model) at its
previous setting. Each touch will set the timer
in hours.
OFF—When the air conditioner is on, it
can be set to automatically turn off in 1 to
12 hours or 1 to 24 hours (depending on
model). Each touch will set the timer in
hours.
To cancel the timer, press the TIMER pad
until the display time disappears.
Remote Control Signal Receiver
Remote Control
Fan on
Cool on
Timer on
Energy
Saver on

www.GEAppliances.com
Lights next to the touch pads on the air conditioner
control panel indicate the selected settings.
COOL Mode
Use the COOL mode with HIGH (F3), MED (F2) or
LOW (F1) fan for cooling. Use the INCREASE ▲ /
DECREASE ▼ pads to set the desired temperature
between 60°F and 86°F in 1°F increments.
An electronic thermostat is used to maintain the
room temperature. The compressor will cycle on and
off to keep the room at the set level of comfort. Set
the thermostat at a lower number and the indoor air
will become cooler. Set the thermostat at a higher
number and the indoor air will become warmer.
NOTE: If the air conditioner is off and is then turned on
while set to COOL, it will take approximately 3 minutes
for the compressor to start and cooling to begin.
Cooling Descriptions
For Normal Cooling—Select the COOL mode and
HIGH (F3) or MED (F2) fan with a middle set
temperature.
For Maximum Cooling—Select the COOL mode
and HIGH (F3) fan with a lower set temperature.
For Quieter & Nighttime Cooling—Select the
COOL mode and LOW (F1) fan with a middle set
temperature.
NOTE: If you switch from a COOL setting to OFF or to
a fan setting, wait at least 3 minutes before switching
back to a COOL setting.
FAN Mode
Use the FAN at HIGH (F3), MED (F2) or LOW (F1) to
provide air circulation and filtering without cooling.
Since fan only settings do not provide cooling,
a temperature setting will not be displayed.
Consumer SupportTroubleshooting TipsOperating Instructions
Safety Instructions Installation Instructions
5
Air Direction
Fingertip pressure on the louvers lets you control
the air direction left, right, straight ahead or any
combination of these directions.
Additional controls and important information.
Power Outage Recovery Feature
In the case of a power outage or interruption, the
unit will automatically re-start in the settings last
used after the power is restored. The TIMER feature
will reset to the original setting. You may need to
set a new time if desired.

About the controls on the air conditioner—models with control knobs.
Features and appearance will vary.
Controls
Mode Control
HI COOL , MED COOL and LOW COOL provide
cooling with different fan speeds.
HI FAN and LOW FAN provide air circulation
and filtering without cooling.
NOTE: If you move the mode control from a cool
setting to OFF or to a fan setting, wait at least
3 minutes before switching back to a cool setting.
Cooling Descriptions
For Normal Cooling—Select HI COOL or MED COOL
with the temp control at midpoint.
For Maximum Cooling—Select HI COOL with the
temp control at the highest number available
on your knob.
For Quieter & Nighttime Cooling—Select LOW COOL
with the temp control at midpoint.
Temp Control
The temp control is used to maintain the
room temperature. The compressor will cycle
on and off to keep the room at the same
level of comfort. When you turn the knob to
a higher number the indoor air will become
cooler. Turn the knob to a lower number
and the indoor air will become warmer.
MODE
Your model will have one of the above type controls.
TEMP
Your model will have one of the above type controls.
OFF
LOW
FAN
LOW
COOL
HI
FAN
HI
COOL
OFF
LOW
FAN
MED
COOL
HI
FAN
HI
COOL
HI
COOL
LOW
COOL
1
2
34
5
61
2
3
45
6
7
8
Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
6

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions
7
Air Direction
Fingertip pressure on the louvers lets you control
the air direction left, right, straight ahead or any
combination of these directions.
www.GEAppliances.com
Additional controls and important information.

Care and cleaning of the air conditioner.
8
Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
The air filter behind the front grille should be
checked and cleaned at least every 30 days or
more often if necessary.
Clean the filter with warm, soapy water. Rinse and
let the filter dry before replacing it.
CAUTION: DO NOT operate the air
conditioner without a filter because dirt and lint will clog it
and reduce performance.
To remove (on some models):
Grasp the tab and gently pull the filter up and out.
To remove (on some models):
Open the inlet grille downward by pulling out
the upper corners of the inlet grille.
Using the tab, push down on the filter to
release it and pull it out.
Outdoor Coils
The coils on the outdoor side of the air conditioner
should be checked regularly. If they are clogged
with dirt or soot they may be professionally
steam cleaned, a service available through your
GE service outlet.
Air Filter
Filter
tab
Grasp
corner
Grasp
corner
Front Grille and Case
Turn the air conditioner off and remove the plug
from the wall outlet before cleaning.
To clean, use water and a mild detergent. Do not
use bleach or abrasives.
Normal Operating Sounds
■ You may hear a pinging noise caused by
water being picked up and thrown against the
condenser on rainy days or when the humidity is
high. This design feature helps remove moisture
and improve efficiency.
■ You may hear the thermostat click when the
compressor cycles on and off.
■ Water will collect in the base pan during
high humidity or on rainy days. The water may
overflow and drip from the outdoor side of
the unit.
■ The fan may run even when the compressor
does not.

TOOLS YOU WILL NEED
Installation Air Conditioner
Instructions
Phillips head screwdriver
Ruler or tape measure
Pencil
Level
Scissors or knife
9
Flat-blade screwdriver
CAUTION:
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
Do not change the plug on the power cord
of this air conditioner.
Aluminum house wiring may present special
problems—consult a qualified electrician.
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: www.GEAppliances.com
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
•IMPORTANT —Save these
instructions for local inspector’s use.
•IMPORTANT —Observe all
governing codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions
for future reference.
• Skill level – Installation of this appliance
requires basic mechanical skills.
• Completion time – Approximately 1 hour
• We recommend that two people install
this product.
• Proper installation is the responsibility
of the installer.
• Product failure due to improper installation
is not covered under the Warranty.
ELECTRICAL REQUIREMENTS
Some models require a 115/120-volt a.c.,
60 Hz grounded outlet protected with a
15-amp time delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the
possibility of electric shock hazard. If the wall
outlet you plan to use is only a 2-prong outlet,
it is your responsibility to have it replaced
with a properly grounded 3-prong wall outlet.
Some models require 230/208-volt a.c.,
protected with a time delay fuse or
circuit breaker. These models should
be installed on their own single
branch circuit for best performance
and to prevent overloading house or
apartment wiring circuits, which could
cause a possible fire hazard from
overheating wires.
Power cord may include a current interrupter device. A test and reset button is provided on the
plug case. The device should be tested on a periodic basis by first pressing the TEST button and
then the RESET button. If the TEST button does not trip or if the RESET button will not stay
engaged, discontinue use of the air conditioner and contact a qualified service technician.

PARTS INCLUDED
(Appearance may vary)
10
Installation Instructions
Window sash seal
Support brackets (3)Type A (5) Type B (11)
Top mounting rail

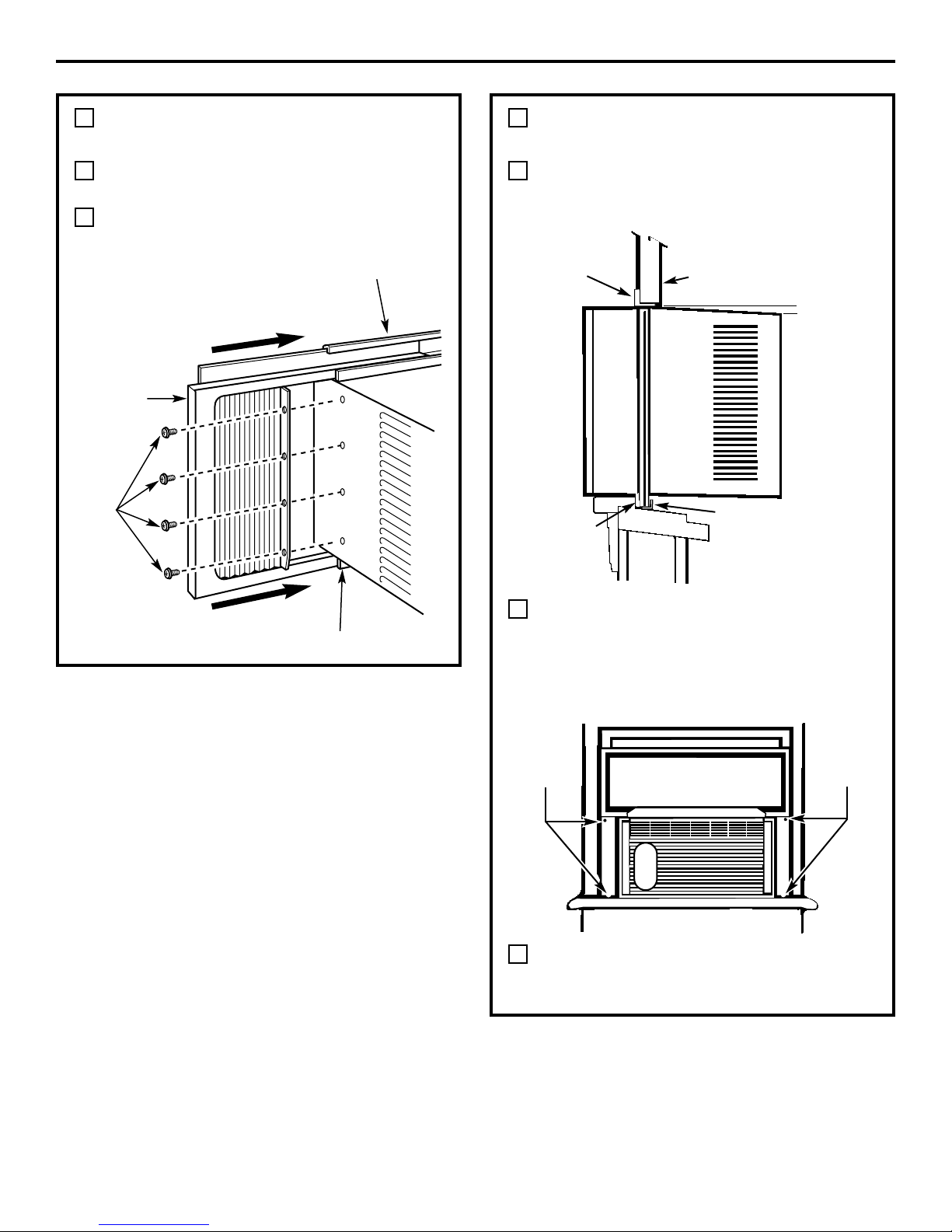

Side
accordion
panels
Security bracket (1)
Foam top window gasket
Air conditioner
