Safety Instructions ........... 2
Operating Instructions
Controls--Dip Switches ......... 3-5
Controls--Terminal
Connections ................... 6, 7
On/Off Switch .................... 8
Ventilation Control ............... 8
Care and Cleaning
Air Filters ........................ 9
Base Pan ........................ 9
Exhaust Coils..................... 9
Installation Instructions

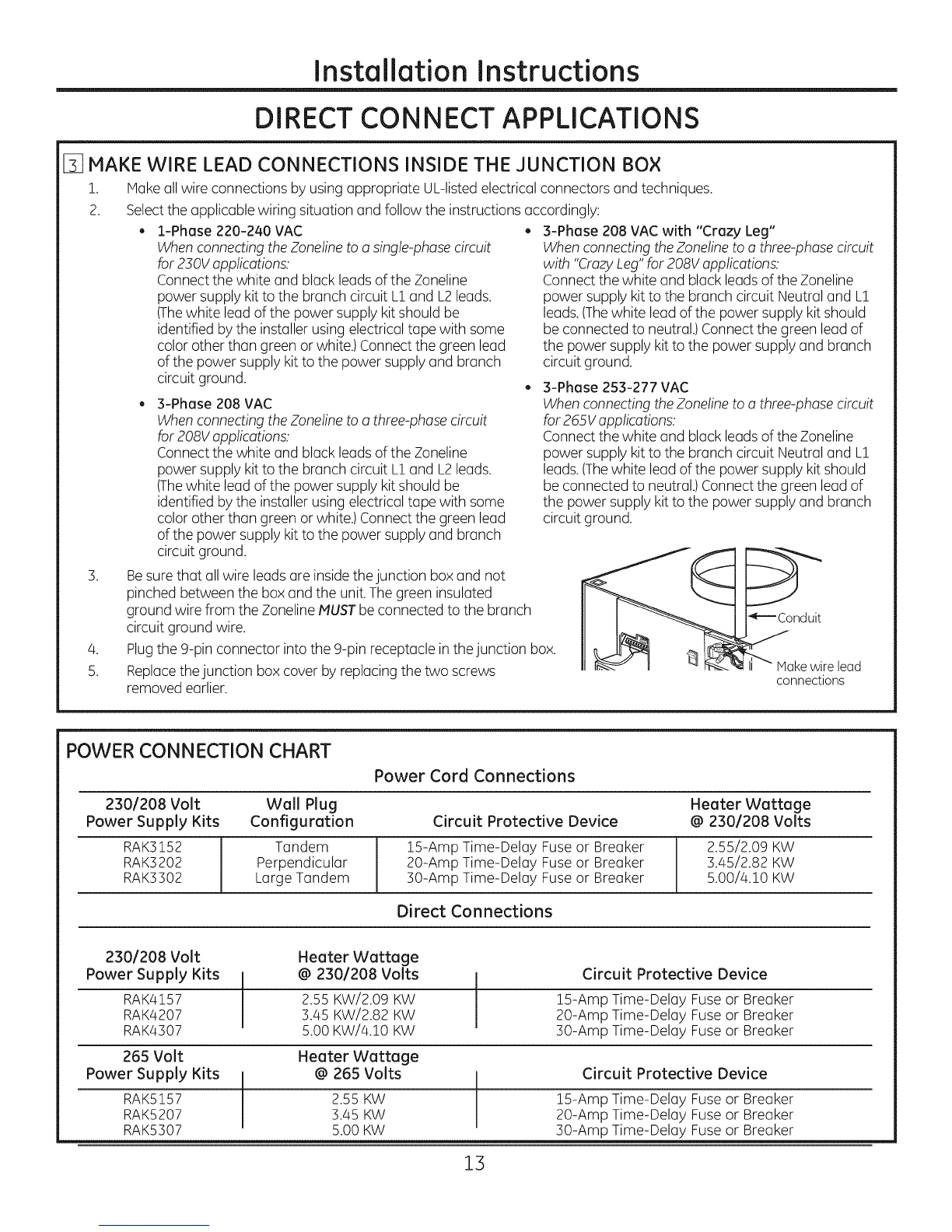

Electrical Supply.............. 11-13
Installing the Zoneline ........ 14-21
Preparation ..................... 10
Servicing........................ 22
Troubleshooting Tips ....... 23
Normal Operating Sounds ....... 24
Consumer Support
Consumer Support ...... Back Cover
Warranty ....................... 27
Cool Only, Heat/Cool and
Heat Pump Hodels
8500 Series
Espaflo!
For a Spanish version of this manual, visit our
Website at GEAppliances.com.
Para consultar una version en espahol deeste
manual de instrucciones, @site nuestrositio
de intemet GEAppliances.com.
Frangaise
For a French version of this manual, visit our
Website at GEAppliances.com.
Pour une version franqaise de ce manuel
d'utilisation, veuillez visiter notre site web 8
I'adresse GEAppliances.com.
!
Write the model and serial numbers
here:
Model #
Serial #
You can find them on a label on the front
case panel.
Printed in China TINSEA612JBRZ 49-7639 01-10 GE

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
AWARNING!
Riskof electric shock. Can cause injury or death. For your safety, the information in this manual
must be followed to minimize the risk of fire, electric shock or personal injury.
SAFETYPRECAUTIONS
[]
[]
[]
[]
This Zoneline must be properly installed
in accordance with the Installation
Instructions before it is used.
See the Installation Instructions
in the back of this manual.
Replace immediately all electric service
cords that have become frayed or
otherwise damaged. A damaged power
supply cord must be replaced with
a new power supply cord obtained
from the manufacturer and not repaired.
Do not use a cord that shows cracks
or abrasion damage along its length
or at either the plug or connector end.
Product must be operated with
the electrical plug supplied with the
product. Do not replace the electrical
plug supplied with the product.
If the receptacle does not match the plug,
the receptacle must be changed out by
a qualified electrician.
[] Unplug or disconnect the Zoneline
at the fuse box or circuit breaker before
making any repairs.
NOTE: We strongly recommend that
any servicing be performed by a qualified
individual.
[] All air conditioners contain refrigerants,
which under federal law must be
removed prior to product disposal.
If you are getting rid of an old product
with refrigerants, check with the
company handling disposal about
what to do.
[]These R410A Air Conditioner Systems
require contractors and technicians to
use tools, equipment and safety standards
approved for use with this refrigerant.
DO NOT use equipment certified for R22
refrigerant only.
READAND FOLLOW THISSAFETYINFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS

Controls-dip switches. GEAppliances.com
Controls-Dip Switches
Thedip switch controls are located behind
the front case panel,through an opening
on the front of the unit.
Toaccessthe dip switches, remove the front
case panel by removing the filter,taking out
the four front screws,the upper two screws from
the top of the paneland the shipping screws on
each side, ifpresent.(Discardthe four sideshipping
screws,if present).
Side
---._shipping
screw
,/
NOTE:Theowner isresponsiblefor setting
the appropriate dip switches and connecting
terminals.
TL3 (C)(Temp. Limit 3-Cool)
TL2 (C)(Temp. Limit 2-Cool)
TL! (C)(Temp. Limit i-Cool)
TL! (H)(Temp. Limit 1-Heat)
_TL2 (H)(Temp. Limit 2-Heat)
_TL3 (H)(Temp. Limit 3-Heat)
ALL 12R(All Electric Heat)(Heat-pump models only)
FREEZ S (Freeze Sentinel)
CONST FAN (Constant ON Fan)
DOWN
_J I J I [ j_N°Functi°n(Reservedf°rfutureuse)_DUCT(BlowerFan)
OCCUPIED(OccupancySensor)
All Electric Heat (Heat pump models only)
When this switch isenabled (UP),heat pump
operation is locked out, causing the unit to provide
only electric resistance heat. [BBBBBBII BBBBBIooO .
hALL 12R(AllElectricHeat)

Controls-dip switches.
Freeze Sentinel (Requiresroom air sensor kit-RAVRMS)
When this switch isenabled (UP),itturns OFF
the freeze sentinel protection feature. With the
switch disabled (DOWN),the freeze sentinel is
activated which automatically provides heat
without userinterface. This helpsto prevent
plumbing damage by turning the heater
and fans ON at 4! ° F and OFF at 46° F.
[BBBBBBiIBITIBBBBI
I
FREEZES (Freeze Sentinel)
Constant ON Fan
When this switch isenabled (UP),it allows the fan
to run continuously. IBBBBBBIIBB BBBI
I
CONST FAN (Constant
ONFan)
Occupancy Sensor (FieldSupplied)
When this switch isenabled (UP),it allows the unit
to utilize an infrared motion sensor and a door
switch for occupancy detection. Thisfeature
combined with field devicesautomatically cycles
the unit between normal operation and a preset
energy management operation. I
OCCUPIED
(OccupancySensor)
Duct
Theduct selectfunction allows the indoor
fan to beoperated at two variable fan speeds.
When this switch isenabled (UP),the unit
automatically selectseither high or middle fun
speed (forlonger ductwork applications).When
set in the down position,the unit isautomatically
operated in either the middle or low fun speed
(forshorter ductwork applications).
rBBBBBBIiBBBB al
I
DUCT
(BlowerFan)

GEAppliances.com
Temperature Limiting (Requiresroom air sensor kit-RAVRMS)
Temperature limitingcan reduce energy costs
by limiting the lowesttemperature that can be
set for cooling and the highest temperature that
can be set for heating. Temperature limiting is
controlled by switches 1-6 on the top block
of auxiliary controls. Thefirst three switchesare
usedto select the cooling limits.Thenext three
switches are usedto control the heating limits.
TL3(C)(Temp. Limit S-Cool)
TL2(C)(Temp. Limit 2-Cool)
TL! (C)(Temp. Limit Z-Cool)
I-L! (H)(Temp. Limit !-Heot)
_]-L2 (H)(Temp. Limit 2-Heot)
_TL3 (H)(Temp. Limit 3-Heot)
Temperature limiting during COOL mode
(oil temperatures shown in °F)
Minimum Maximum
60 ° 85 °
64 ° 85 °
66 ° 85 °
68 ° 85 °
70 ° 85 °
72 ° 85 °
74 ° 85 °
76 ° 85 °
UP DOWN
NONE !, 2, 3
1 2,3
1,2 3
2 1,3
2,3 1
!, 2, 3 NONE
1,3 2
31,2
* Not opplicoble to Cool-Only models
Temperature limiting during HEAT mode
(oil temperatures shown in °F)*
UP DOWN Minimum Maximum
NONE 4, 5, 6 60° 85 °
4 5, 6 60° 80 °
4, 5 6 60° 78 °
5 4, 6 60° 76 °
5,6 4 60° 74 °
4, 5, 6 NONE 60° 72 °
4, 6 5 60° 70 °
6 4, 5 60 °65 °
