GE AJCS 06 LZ User manual

3
Important Safety Information
8
Installation Instructions
Important Electrical Safety
Window Installation
Through-the-Wall Installation
4
Operating Instructions
The Controls on Your Air Conditioner
Care of Product
24
Helpful Information
Things That Are Normal
25
If Something Goes Wrong
Before You Call for Service
GE Service Numbers
Warranty
GE Appliances
Air Conditioner
Owner’s Manual
Standard and Easy Mount
Cool Only: AJCS 06 LZ
AJCS 08, 10 AZ
Heat/Cool: AJES 06 LS
AJES 08 AS
AJES 10 DS
Heat Pump: AJHS 08 AS
GE Answer Center
®
800.626.2000
49-7362-1
2-98 CG

Welcome to the GE family. We’re
proud of our quality products and
we believe in dependable service.
You’ll see it in this easy-to-use
manual and you’ll hear it in the
friendly voices of our customer
service department.
Best of all, you’ll experience
these values each time you enjoy
the comfort of your air conditioner.
That’s important, because your
new air conditioner will be part of
your family for a long time.
Welcome

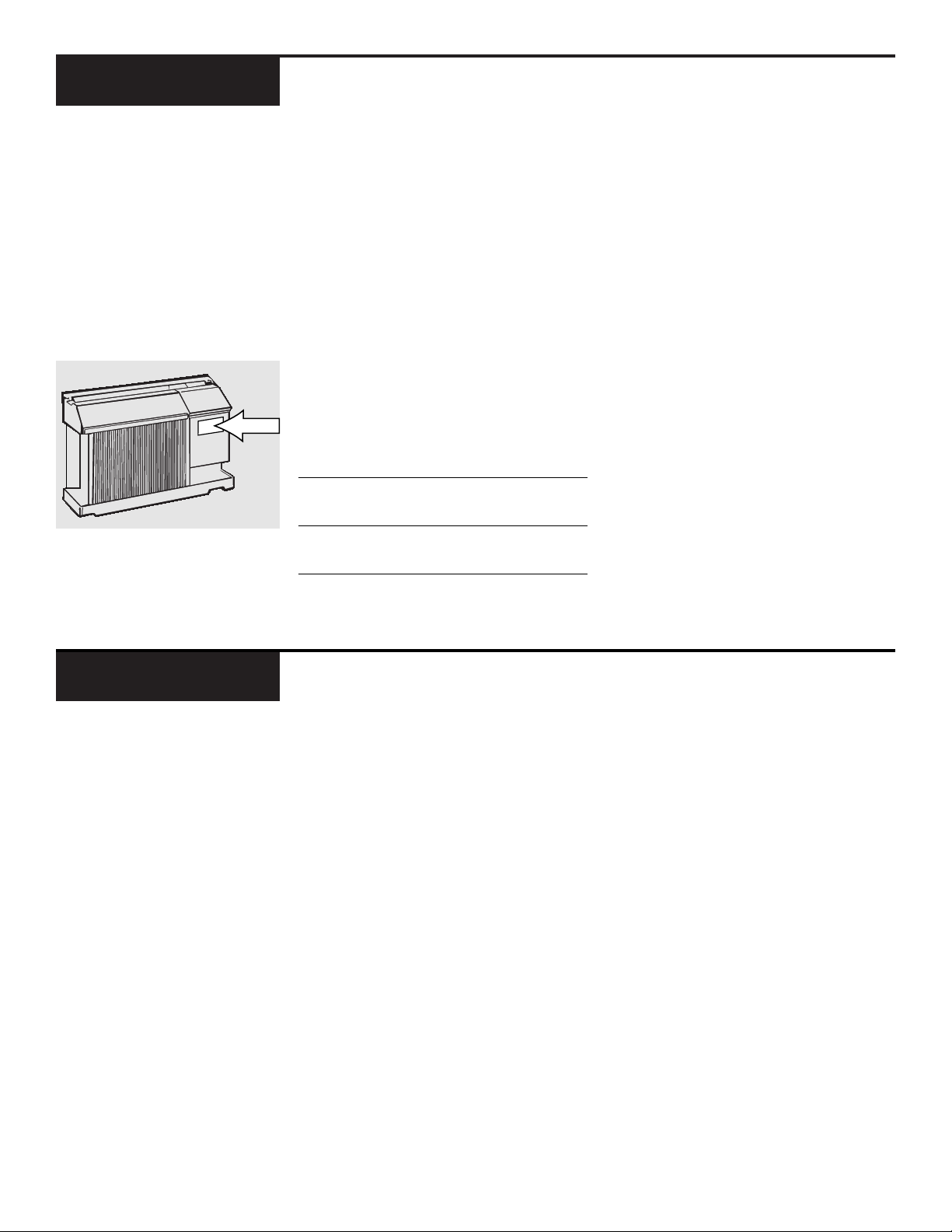

Write down the model and serial
numbers here.
They are on a label
on the front of the control box
behind the front grille.
Model number
Serial number
Date of purchase
Staple your receipt to the inside back
cover of this manual. You will need it
to obtain service under warranty.
Start Here!…Before using your air conditioner
Need Help?
Read this manual. It contains
instructions to help you use and
maintain your air conditioner
properly.
Save time and money. Check the
section titled “If Something Goes
Wrong” before calling. This sec-
tion helps you to solve common
problems that might occur.
If you do need service, you can
relax knowing help is only a
phone call away. A list of toll-free
customer service numbers is
included in the back of this book.
Or call the
GE Answer Center ®
at 800.626.2000, 24 hours a day,
7 days a week.
Help us
help you
800.626.2000
Before you call for service,
there are a few things you
can do to help us serve you
better.
2

IMPORTANT SAFETY INFORMATION
READ ALL SAFETY INFORMATION
BEFORE USING
•This air conditioner must be
properly installed in accordance
with the Installation Instructions
before it is used.
•Repair or replace immediately
all electric service cords that have
become frayed or otherwise
damaged.
•Turn the mode control to
OFF and
unplug your air conditioner before
making any repairs.
NOTE: We strongly recommend
that any servicing be performed by
a qualified individual.
Because most 2-prong outlets are
not grounded, we strongly advise
against using an adapter plug.
However, a temporary connection
may be made where local codes
permit and if the 2-prong wall out-
let is properly grounded.
When you plug the adapter in,
make sure the larger prong goes
into the larger slot to provide the
proper polarity for the power cord.
FOR PROPER GROUNDING:
1 Screw the adapter to the outlet,
using the outlet cover screw.
2 Ground the outlet through the house
wiring.
When disconnecting the power
cord from the adapter, hold the
adapter close to the outlet while
pulling the plug out. If this is not
done, the grounding connector is
likely to break with repeated use.
If the grounding connector breaks,
DO NOT USE the air conditioner
until a proper ground has again
been made.
Adapter Plug
This is a temporary method.
UL-listed adapters are avail-
able at most hardware stores.
The use of an extension cord is not
recommended. However, if an
extension cord is required to reach
the nearest wall receptacle, use only
a UL-listed, 3-wire, grounded, 14
gauge, 15A, 125V appliance exten-
sion cord.
CAUTION:
DO NOT use an extension cord with
any of the 208/230-volt models.
Extension Cord
SAVE THESE INSTRUCTIONS
3

Your model will look like one of these.
4
The temp control is used to maintain the
room temperature. The compressor will cycle
on and off to keep the room at the same level
of comfort. When you turn the knob to
COOLER
(blue) the indoor air will become cooler. Turn
the knob to
WARMER (red) and the indoor air
will become warmer.
HEAT PUMP MODELS
When the outdoor temperature is lower than
25°F., heat is provided by the electric heater in
the air conditioner instead of by the heat pump.
NOTE:
The electric resistance heater in the 115-volt
heat pump model operates during defrost when
the outdoor coil temperature is below 36°F. It is
not intended to provide full heat capability.
HIGH COOL and LOW COOL provide cooling with
different fan speeds.
HIGH HEAT and LOW HEAT provide heating with
different fan speeds.
LOW FAN or HIGH FAN provides air circulation
and filtering without cooling or heating.
NOTE:
If you move the switch from a cool or heat setting
to OFF or to a fan setting, wait at least 3 minutes
before switching back to a cool or heat setting.
A 3-minute delay is automatically provided on the
Heat/Cool and Heat Pump models.
Operating Instructions
The
controls
on your
air
conditioner
21
Temp Control Mode Control
1 2
TEMP CONTROLS MODE CONTROLS
OFF
LOW
FAN
HIGH
FAN HIGH COOL
LOW
COOL
OFF
LOW
FAN HIGH
FAN
HIGH
HEAT HIGH
COOL
LOW
COOL
LOW
HEAT
C
O
O
L
E
R
W
A
R
M
E
R
C
O
O
L
E
R

5
Cooling/Heating Descriptions
FOR NORMAL COOLING
OR HEATING
Select HIGH COOL or HIGH
HEAT
with the thermostat
at mid point.
FOR MAXIMUM COOLING
Select
HIGH COOL with the
thermostat at maximum
cool.
FOR MAXIMUM HEATING
Select
HIGH HEAT with the
thermostat at maximum
heat.
FOR QUIETER &
NIGHTTIME COOLING
Select
LOW COOL or LOW
HEAT
with the thermostat
at mid point.
3 4 5 6
Each position equals
approximately 3° F.
Limits
heat
temp
Limits
cool
temp
OPEN
CLOSE
On Heat/Cool models, the fan switch lever is
located in a hole through the control panel. To
reach it, you need to remove the front grille.
Use a small screwdriver to change the setting.
Cool only models have a rocker switch on the
front of the control box.
When set at
CYCLE (down) the fan cycles on and
off when cooling or heating. When set at
CONT
(continuous, up) the fan runs all the time. The
unit is shipped in the
CONT setting.
The vent control is located behind the front
grille. When set at CLOSE , only the air inside the
room will be circulated and conditioned. You
may adjust it by removing the front grille. When
set at
OPEN , some inside air is exhausted out-
side.
NOTE: The vent lever is taped in the CLOSE
position when it leaves the factory. Remove
the tape before using.
53
Fan Switch Vent Control
Limiting the maximum and minimum settings
prevents users from turning the control to the
extreme heat or cool positions.
The normal range of the temp control is approx-
imately 60° F to 85° F. The control range may be
narrowed by the use of the temperature limiting
screws located behind the control panel.
Horizontal louvers on the front grille let you
control the air direction up and down.
Remove the front grille to adjust the vertical
louvers side-to-side to direct the air left or right.
64
Temperature Limiting Air Direction
Features and appearance may vary.

6
Operating Instructions
Care & Cleaning
Turn the air conditioner off and
remove the plug from the wall out-
let before cleaning.
To clean, use water and a mild
detergent. Do not use bleach or
abrasives.
Grille and Case
The coils on the outdoor side of
the air conditioner should be
checked regularly. It is necessary to
remove the chassis from the wall
case to inspect them. Dirt build-up
occurs on the surface which is not
visible from the outside. If they are
clogged with dirt or soot they may
be professionally steam cleaned, a
service available through your GE
service outlet.

Turn the air conditioner off before
cleaning.
The most important thing you can
do to maintain the air conditioner
is to clean the filter at least every 30
days. Clogged filters reduce cool-
ing, heating and airflow.
Keeping the filter clean will:
•Decrease cost of operation.
•Save energy.
•Prevent clogged heat exchanger
coils.
•Reduce the risk of premature
component failure.
To clean the air filter:
•Vacuum off the heavy soil.
•Run water through the filter
from the back side.
•Dry thoroughly before replacing.
Carefully pull the tab forward, up
and out.
Replace the clean filter by pushing
it back into place.
CAUTION:
DO NOT operate the air conditioner
without the filter in place. If a filter
becomes torn or damaged it should
be replaced immediately.
Operating without the filter in
place or with a damaged filter will
allow dirt and dust to reach the
indoor coil and reduce the cooling,
heating, airflow and efficiency of
the unit.
Replacement filters are available
from your salesperson, GE dealer,
GE Service and Parts Center
or authorized Customer Care®
servicers.

8

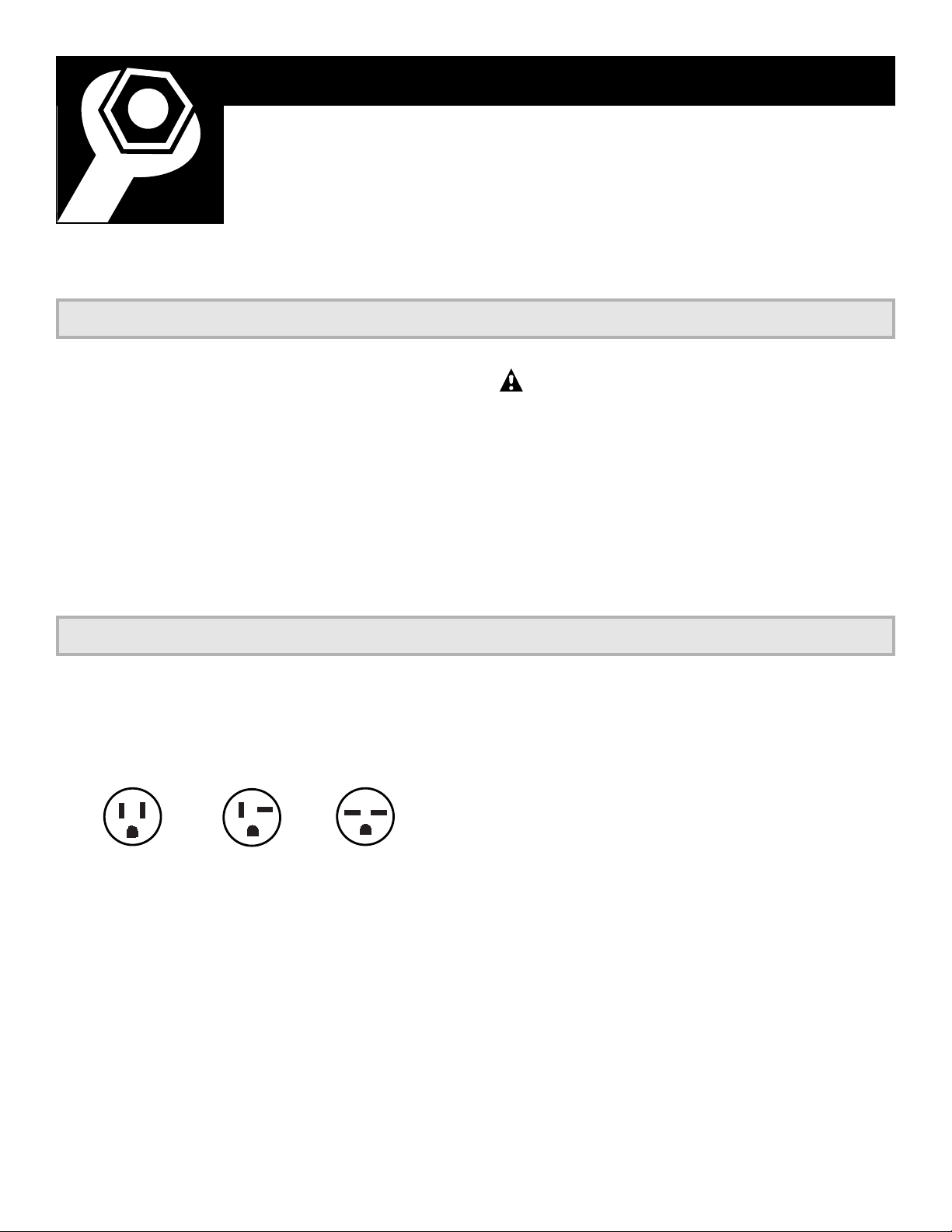

•For personal safety, this air conditioner must be
properly grounded.
•It is important to have the wall outlet and circuit
checked by a qualified electrician if there is any
doubt as to whether a proper ground exists.
•Follow National Electrical Code (NEC) or local
codes and ordinances.
CAUTION:
• Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
• Do not change the plug on the power cord of this
air conditioner.
• Aluminum house wiring may present special
problems—consult a qualified electrician.
We recommend that the 230/208-volt, 60 Hz
models be installed on their own single branch
circuit supplying 230/208-volt a.c., protected
with a time delay fuse or circuit breaker.
PPaarraalllleellPPeerrppeennddiiccuullaarrTTaannddeemm
115V. 230/208V. 230/208V.
15 Amp. 20 Amp. 15Amp.
This is recommended for best performance and
to prevent overloading house or apartment
wiring circuits, which could cause a possible fire
hazard from overheating wires.
The 115-volt models require a 115/120-volt a.c.,
60 Hz grounded outlet protected with a 15-amp
time delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the possi-
bility of electric shock hazard.
If the wall outlet
you plan to use is only a 2-prong outlet, it is your
responsibility to have it replaced with a properly
grounded 3-prong wall outlet.
Important Notes
Installation Instructions
Important Electrical Safety–Read Carefully
Installer: Leave these instructions with the appliance.
Owner: Keep these instructions for future use.
Electrical Requirements

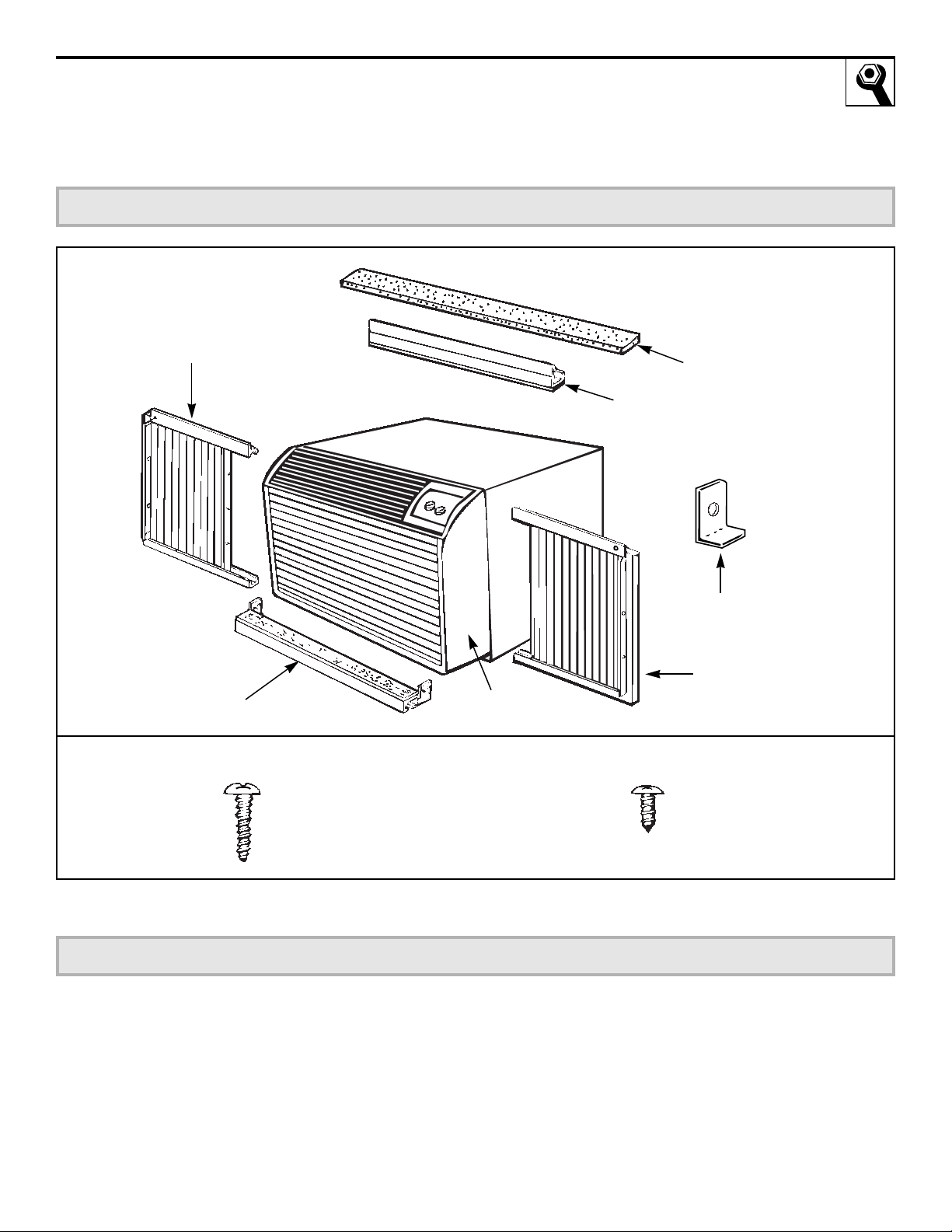

Before you begin AJES and AJHS models have filler panels. Directions begin below.
The installation instructions for AJCS models with accordion curtains
begin on page 17.

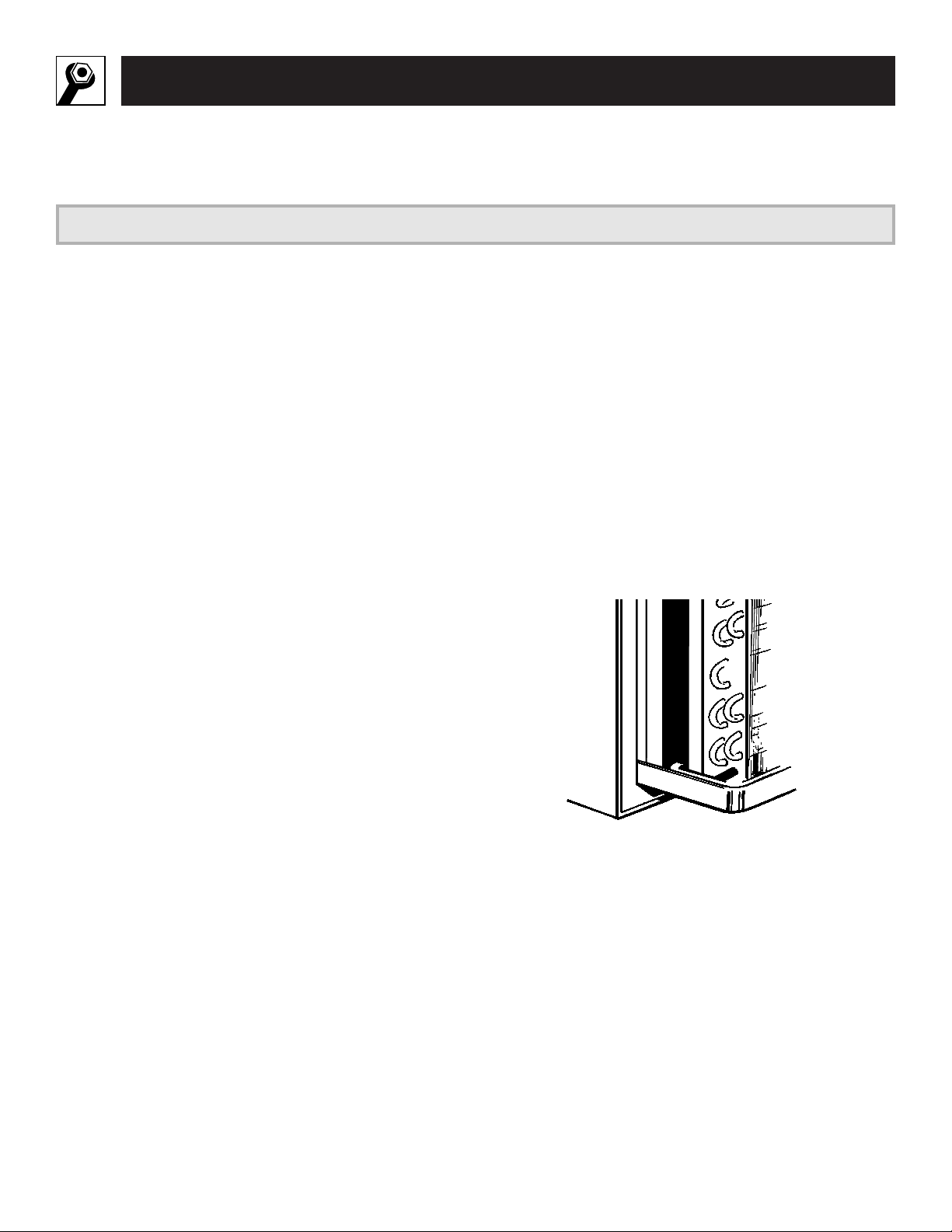

IMPORTANT: Be sure to remove the shipping pad inside the air conditioner next to the compressor.
•Phillips-head
screwdriver
•Wood saw
•Adjustable wrench
•Ruler or tape
measure
•Scissors or knife
•Pencil
•Level
•Drill

10
Installation Instructions
Read completely, then follow step-by-step
•These instructions are for a standard double-
hung window. You will need to modify them for
other types of windows.
•The air conditioner can be installed without
the filler panels if needed to fit in a narrow
window. See the window opening dimensions
to the right.
•All supporting parts must be secured to firm
wood, masonry or metal.
•The electrical outlet must be within reach of
the power cord.
A storm window frame will not allow the air
conditioner to tilt towards the outside and will
keep it from draining properly. To adjust for this,
attach a piece of wood to the sill and the stool.
WOOD PIECES:
WIDTH:
2²
LENGTH: Long enough to fit inside the window
frame.
THICKNESS: To determine the thickness, place a
piece of wood on the stool to make it 1/2²higher
than the top of the storm window frame.
Attach securely with nails or screws provided by
the installer.

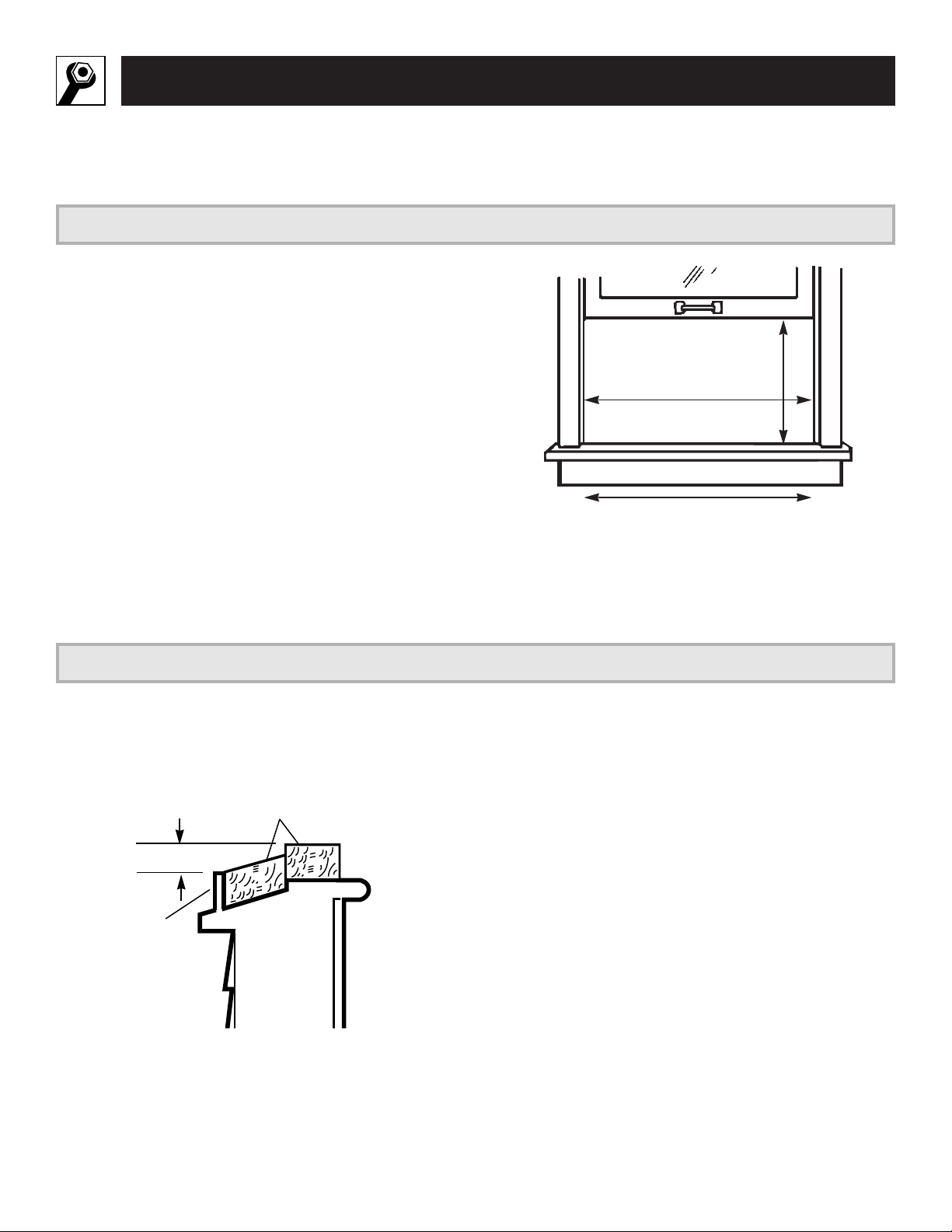

Window opening dimensions are for a standard double-hung
window.
17²min.
31²to 43²
(With filler panels)
261¤4²min.
(Without filler panels)
1/2²higher
than frame
Stool
Sill
Storm window
frame
Wood
Window Requirements
1
Storm Window Requirements
2

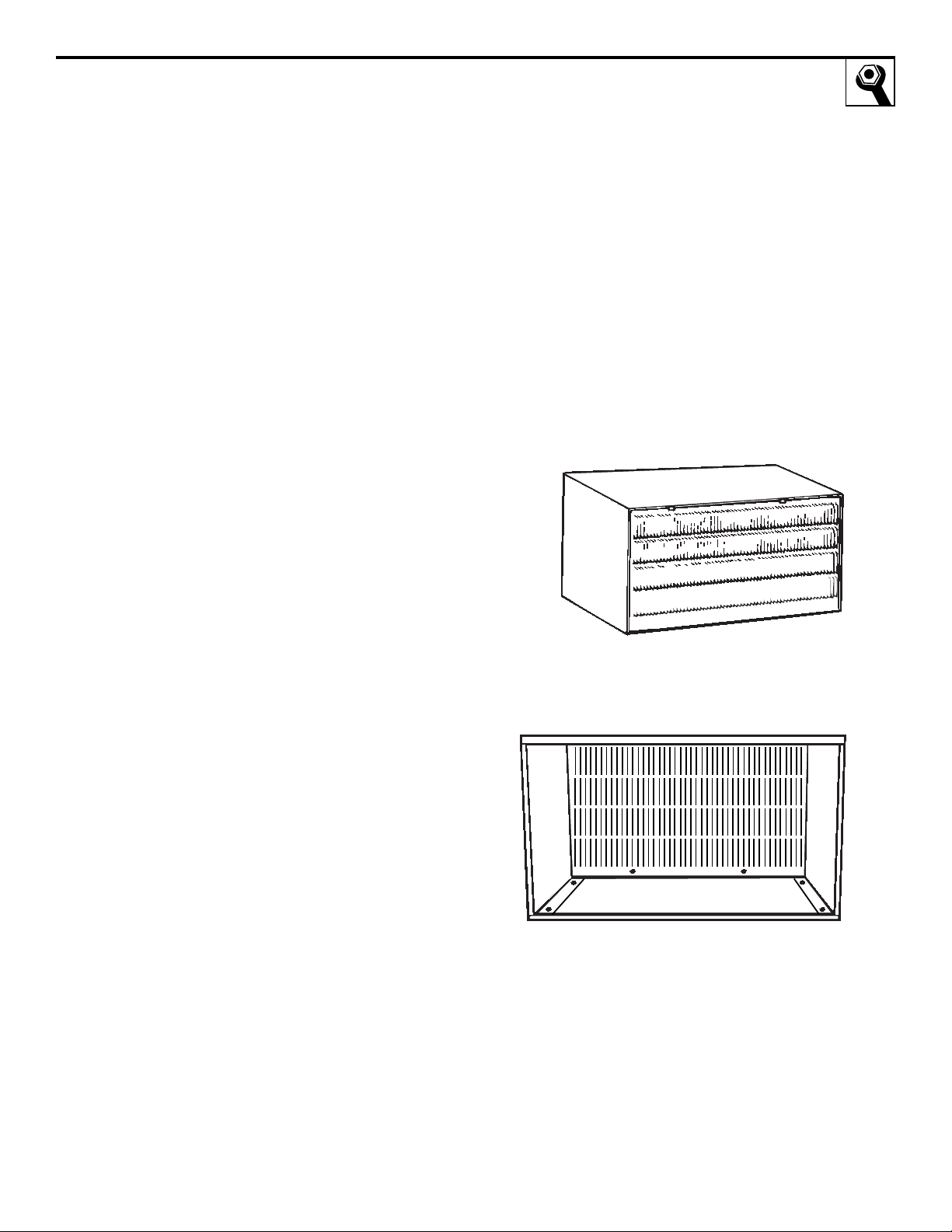

1 Remove the front grille. See the Care and
Cleaning section.
2 Find the locking plate located on the front
left side.
3 Remove the screw and the locking plate to
unlock the air conditioner.
4 Remove and discard the shipping screw on the
back of the air conditioner to allow removal of
the air conditioner from the case.
5 Pull the bottom corners of the air conditioner
and slide it out of the case.
6 Remove the shipping pad inside the air
conditioner next to the compressor.
7 Remove the rear grille that is taped to the back
of the case. Remove the packet of screws taped
to the back of the grille. While holding the
grille at a 45° angle, insert it into the clips at
the top of the case and push the bottom in.
Keep slight upward pressure on the grille until
it fits flush with the bottom of the case.
If attaching the grille from the outside of the
case use the 2 long screws.
If attaching the grille on the inside of the case
use the 2 short screws.
REMOVE SHIP PAD!
REMOVE TAPE ON
VENT LEVER!
Clips
Insert the 2 long screws on the outside
Insert the 2 short screws on the inside
Locking
plate
Remove
screw
Remove
screw
Shipping pad
Remove the Air Conditioner From the Case
3
11

Installation Instructions
1 Assemble the sill supports. Do not fully tighten
the spacer mounting screws at this time.
2 Before attaching the sill supports, place them
on the window stool. Select the spacer position
that will place the spacer near the outermost
point on the sill. Tighten the spacer mounting
screws.
3 Turn the bolts and tighten the lock nuts to
make the sill supports level or tilt down 1/8²
to the outside. Line up the “V” notch with
123¤8²marks. Drill pilot holes and attach the
sill supports.
1 Mark the centerline of the stool. Measure
from the centerline 133¤8²on both sides for the
panel cuts.
2 Measure 123¤8² from the centerline on both
sides for the sill support brackets.
Large washer
Spacer
Type B
Type E
Spacer mounting screws
Type (A)
(For use with wood sills)
Adjusting bolt
Lock nut
Sill support
Bolt
Sill
Stool
Prepare the Window
4
Install the Sill Supports
5
Stool
Sill
Centerline
123¤8²
133¤8²
Centerline
Sill support
“V” notch
Screws are in
position
12

Measure, Cut and Install the Filler Panels

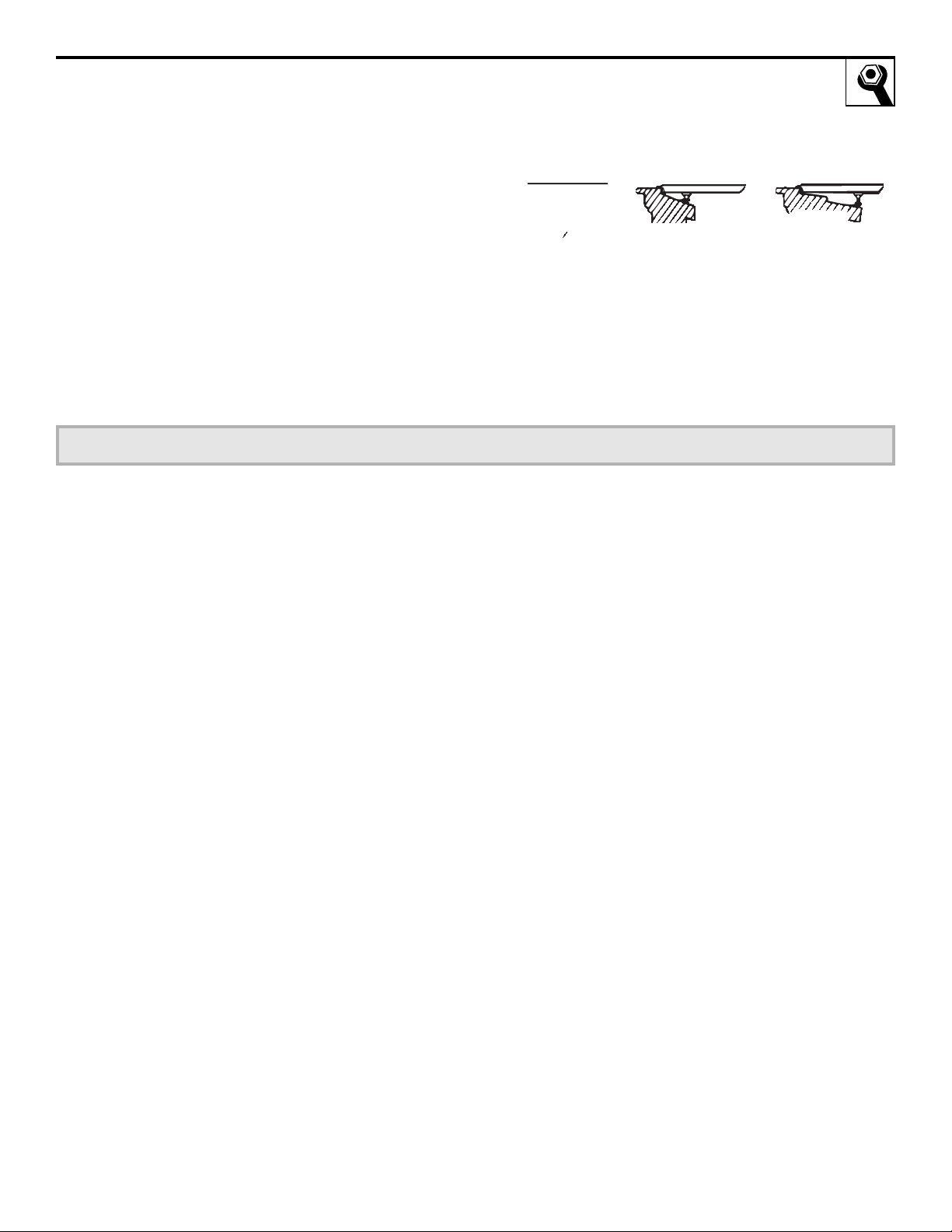

NOTES:
•On narrow sills, there may not be enough room
to use the lock nut.
•A deep offset sill may require a longer adjusting
bolt than the standard hex head bolt provided.
•On wood sills use the large washer between the
bolt head and the sill. This prevents the bolt
from digging into the wood.

Installation Instructions
1 Peel off the backing from the bottom window
gasket.
2 Place the gasket on the stool and over the
brackets, even with the rear edge, sticky side
down.
3 Carefully slide the empty case into the window
until the holes in the case line up with the
holes in the panel angles.
NOTES:
•The case should have a 1/8²minimum tilt
toward the outside.
•Be sure the seal gasket and panel gaskets
remain in position and do not roll with the case.
4 Lower the window so it fits behind the panel
tabs. Insert the 4 type A screws through the
holes in the case and into the panel angles,
2 on each side.
5 With the window closed, mark where the
window sash meets the case.
6 Peel off the backing from the case top gasket.
7 Hold on to the case, open the window, and
place the gasket along the mark on the case.
Install the Case in the Window
7
Bottom window gasket
Case holes
Panel
tabs
Case
screws
Put the gasket on
top of the case
where the window
will close.
14

15

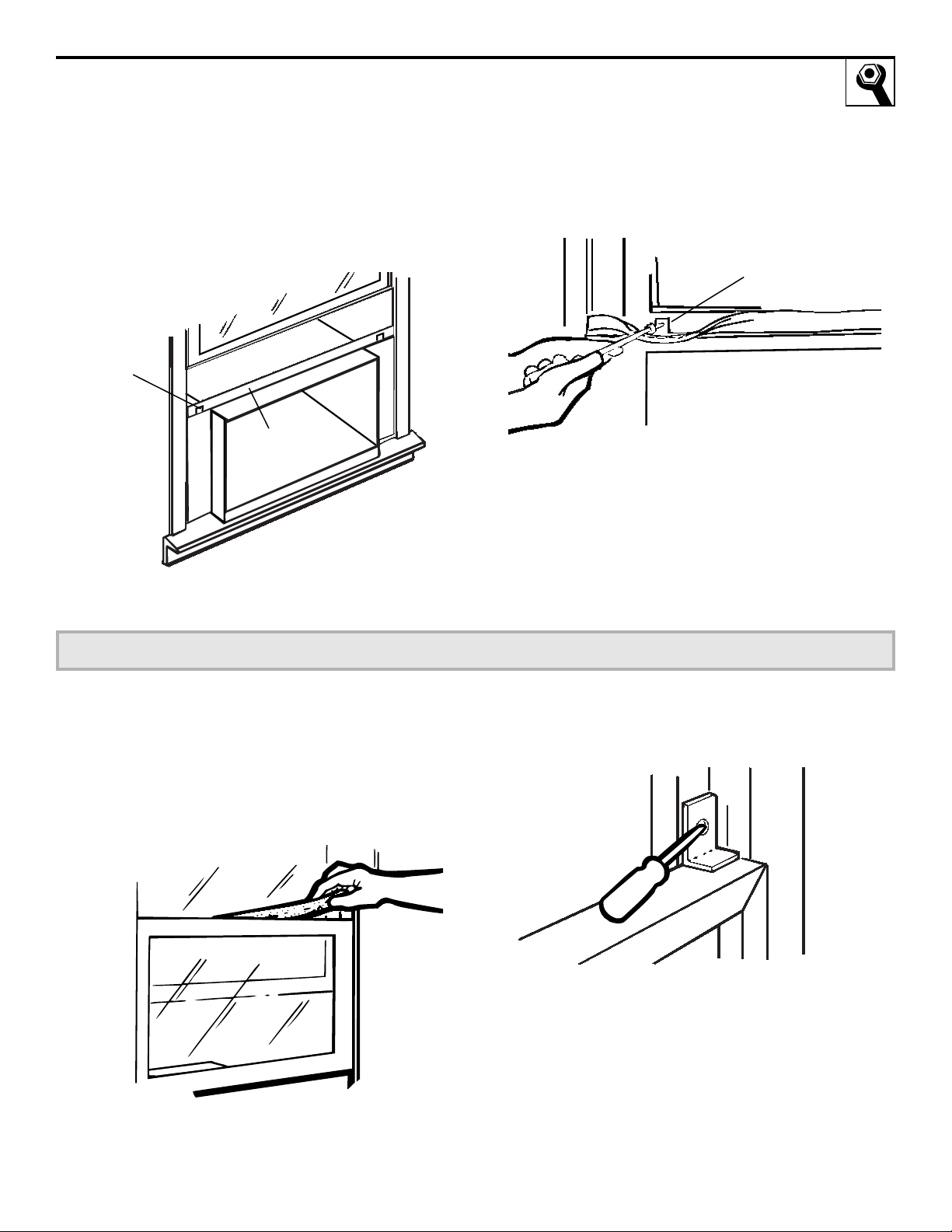

7 Place the vinyl window gasket over the case top
gasket. Insert the panel tabs through the slits in
the gasket. Cut the gasket on each side to the
width of the window.
8 Close the window tightly on the vinyl gasket.
Bend the gasket forward to expose the panel
tabs. Drill pilot holes into the window sash.
Panel tab
Vinyl window
gasket
Attach the panel tab to
the window on each side
with a type D screw.
Install the Window Gasket and the Locking Bracket
1 Cut the foam top window gasket to the window
width.
2 Stuff the foam between the glass and the
window to prevent air and insects from getting
into the room.
3 Attach the window locking bracket with 1 type
E screw.
8

16
Installation Instructions
Replace the Air Conditioner in the Case
1 Carefully slide the air conditioner back into
the case.
2 Attach the power cord to the base pan with
the clamp.
3 When the wall outlet is to the left, extend the
cord under the unit and hold it in place with
the clamp.
4 Reinstall the locking plate with the tab behind
the wall case flange. Tighten the screw.
5 Reattach the front grille. An opening for the
power cord is on the bottom of the front grille.
6 Fill holes and cracks with caulking provided by
the installer.

For models with accordion curtains
Parts Included
Air conditioner
Type A (6) Type B (15)
Window
locking
bracket
Foam top window gasket
Top mounting rail
Accordion curtain
(left)
Accordion curtain
(right)
Sill channel
•Phillips-head screwdriver
•Ruler or tape measure
•Level
•Scissors or knife
•Pencil
•Drill
Tools Needed
17

18
Installation Instructions
Read carefully, then follow step-by-step
•These instructions are for a standard double-
hung window. You will need to modify them for
other types of windows.
•The air conditioner can be installed without
the accordion curtains if needed to fit in a
narrow window. See the window opening
dimensions to the right.
•All supporting parts must be secured to firm
wood, masonry or metal.
•The electrical outlet must be within reach of
the power cord.
Window opening dimensions are for a standard double-hung
window.
17²min.
29²to 49²
(With accordion curtains)
261¤4²min.
(Without accordion curtains)
Window Requirements
1
A storm window frame will not allow the air
conditioner to tilt towards the outside and will
keep it from draining properly. To adjust for this,
attach a piece of wood to the sill and the stool.
WOOD PIECES:
WIDTH:
2²
LENGTH: Long enough to fit inside the window
frame.
THICKNESS: To determine the thickness, place a
piece of wood on the stool to make it 1/2²higher
than the top of the storm window frame.
Attach securely with nails or screws provided by
the installer.
1/2²higher
than frame
Stool
Sill
Storm window
frame
Wood
Storm Window Requirements
2

1 Remove the front grille. See the Care and
Cleaning section.
2 Find the locking plate located on the front
left side.
3 Remove the screw and the locking plate to
unlock the air conditioner.
4 Remove and discard the shipping screw on the
back of the air conditioner to allow removal of
the air conditioner from the case.
5 Pull the bottom corners of the air conditioner
and slide it out of the case.
6 Remove the rear grille that is taped to the back
of the case. Remove the packet of screws taped
to the back of the grille. While holding the
grille at a 45° angle, insert it into the clips at
the top of the case and push the bottom in.
Keep slight upward pressure on the grille until
it fits flush with the bottom of the case.
If attaching the grille from the outside of the
case use the 2 long screws.
If attaching the grille on the inside of the case
use the 2 short screws.

20
Installation Instructions
Read carefully, then follow step-by-step

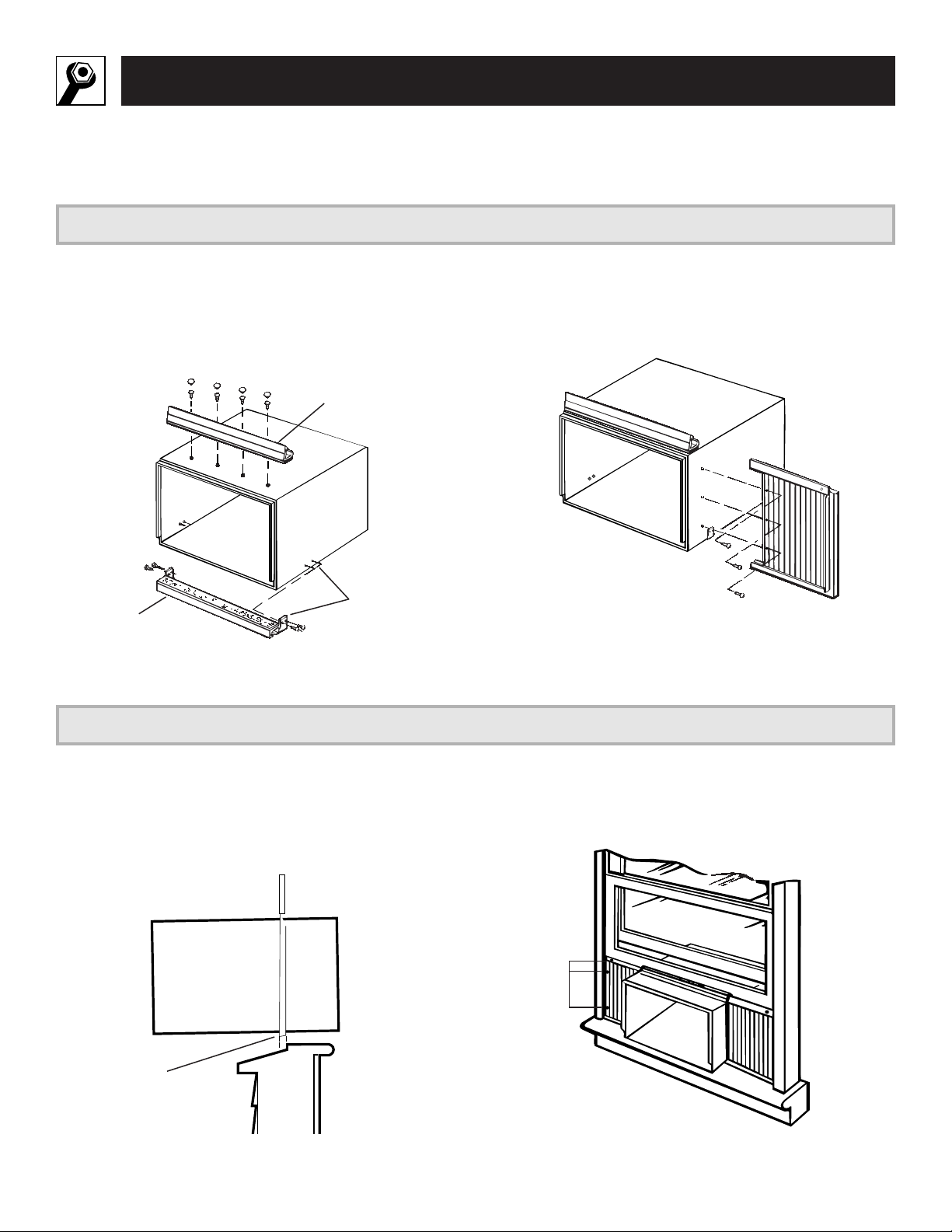

1 Install the top mounting rail with type B screws.
2 Attach the sill channel with type B screws.
Align the holes on the bracket of the sill
channel with the holes in the case.
3 Slide the right and left accordion curtains into
the top mounting rail and sill channel. Secure
with type B screws.
1 Open the window and center the case in the
window. Lower the window behind the top
mounting rail. This should provide a 1/8²tilt
toward the outside.
2 Extend curtains and drill pilot holes in the side
of the window and the window sash. Attach the
curtains with 3 screws on each side.
Prepare the Case
4
Install the Case in the Window
5
Align
holes
Mounting rail
Sill channel
Place the sill
channel into
the stool offset.
Case should have
a slight tilt down
to the outside.
Type A
screws
