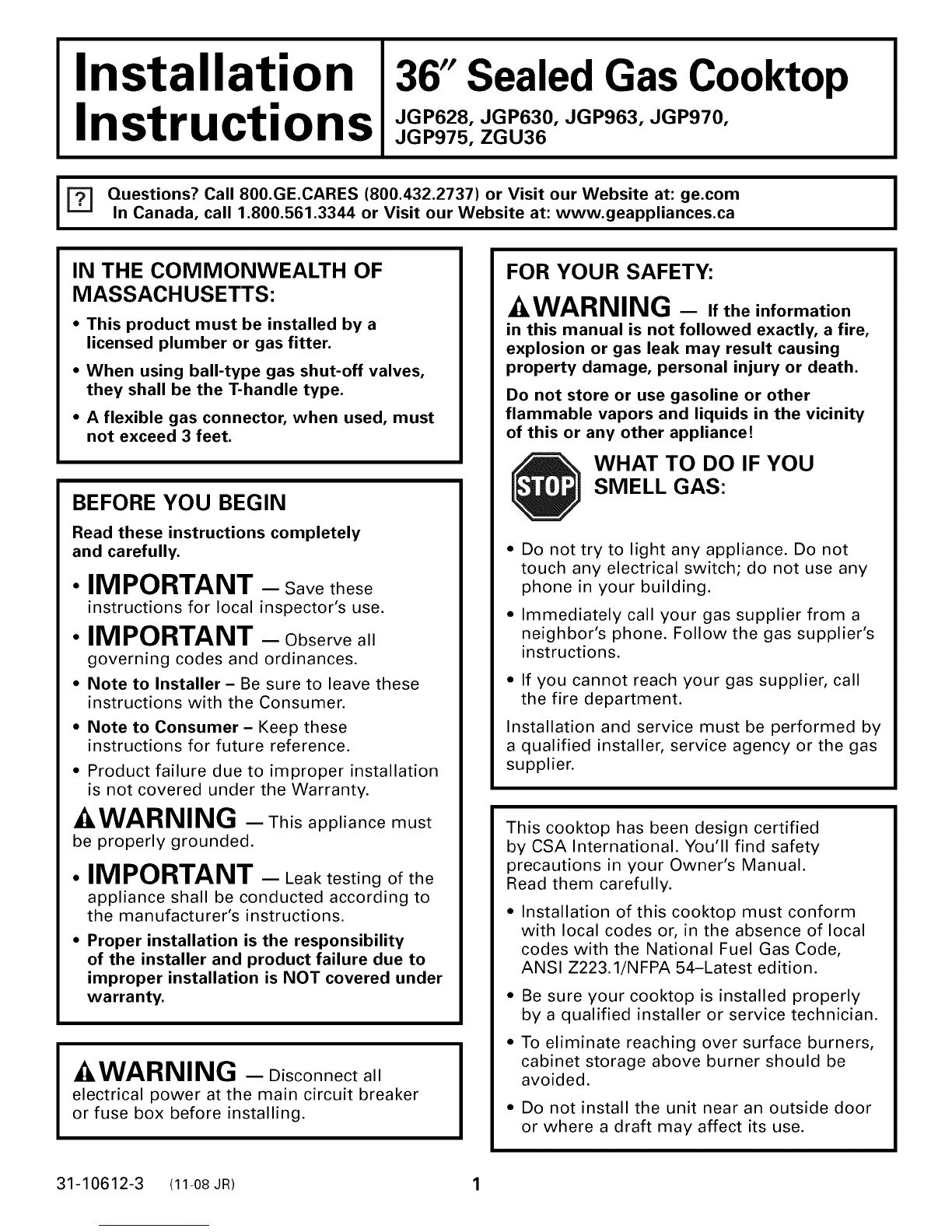

Installation
Instructions 36" Sealed Gas Cooktop
JGP628, JGP630, JGP963, JGP970,
JGP975, ZGU36
=_ Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.comIn Canada, call 1.800.561.3344 or Visit our Website at: www.geappliances.ca I
IN THE COMMONWEALTH OF
MASSACHUSETTS:
•This product must be installed by a
licensed plumber or gas fitter.
•When using ball-type gas shut-off valves,
they shall be the T-handle type.
•A flexible gas connector, when used, must
not exceed 3 feet.
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
•IMPORTANT - Savethese
instructions for local inspector's use.
•IMPORTANT - Observeall
governing codes and ordinances.
•Note to Installer- Be sure to leave these
instructions with the Consumer.
•Note to Consumer- Keep these
instructions for future reference.
• Product failure due to improper installation
is not covered under the Warranty.
_kWARNING - Thisappliance must
be properly grounded.
•IMPORTANT - Leak testing of the
appliance shall be conducted according to
the manufacturer's instructions.
•Proper installation is the responsibility
of the installer and product failure due to
improper installation is NOT covered under
warranty.
_4,WARNING - Disconnectall
electrical power at the main circuit breaker
or fuse box before installing.
FOR YOUR SAFETY:
-_WARNING - Iftheinformation
in this manual is not followed exactly, a fire,
explosion or gas leak may result causing
property damage, personal injury or death.
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance!
WHAT TO DO IF YOU
SMELL GAS:
Do not try to light any appliance. Do not
touch any electrical switch; do not use any
phone in your building.
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
This cooktop has been design certified
by CSA International. You'll find safety
precautions in your Owner's Manual.
Read them carefully.
Installation of this cooktop must conform
with local codes or, in the absence of local
codes with the National Fuel Gas Code,
ANSI Z223.1/NFPA 54-Latest edition.
Be sure your cooktop is installed properly
by a qualified installer or service technician.
To eliminate reaching over surface burners,
cabinet storage above burner should be
avoided.
• Do not install the unit near an outside door
or where a draft may affect its use.
31-10612-3 (11-08 JR) 1

Installation Instructions

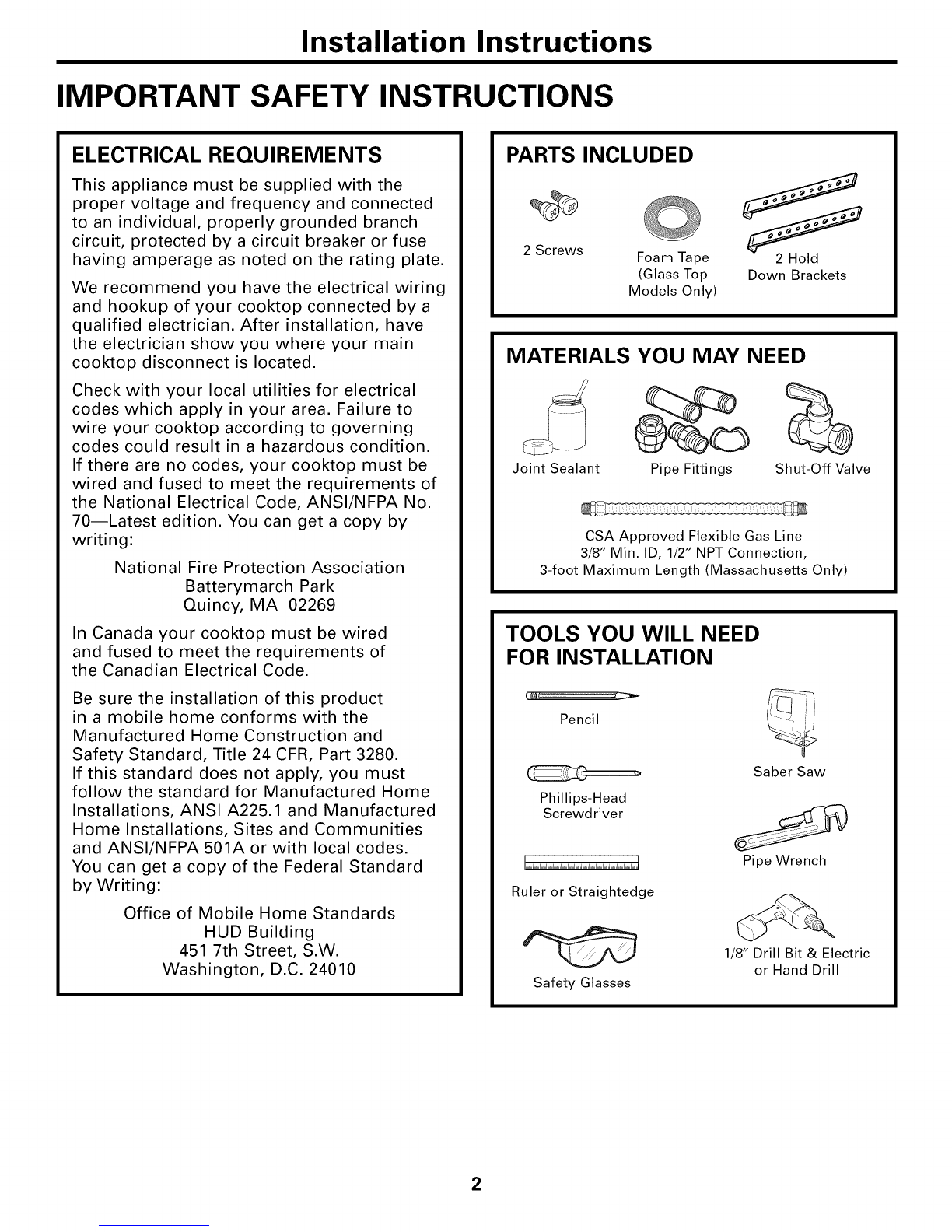

IMPORTANT SAFETY INSTRUCTIONS
ELECTRICAL REQUIREMENTS
This appliance must be supplied with the
proper voltage and frequency and connected
to an individual, properly grounded branch
circuit, protected by a circuit breaker or fuse
having amperage as noted on the rating plate.
We recommend you have the electrical wiring
and hookup of your cooktop connected by a
qualified electrician. After installation, have
the electrician show you where your main
cooktop disconnect is located.
Check with your local utilities for electrical
codes which apply in your area. Failure to
wire your cooktop according to governing
codes could result in a hazardous condition.
If there are no codes, your cooktop must be
wired and fused to meet the requirements of
the National Electrical Code, ANSI/NFPA No.
70--Latest edition. You can get a copy by
writing:
National Fire Protection Association
Batterymarch Park
Quincy, MA 02269
In Canada your cooktop must be wired
and fused to meet the requirements of
the Canadian Electrical Code.
Be sure the installation of this product
in a mobile home conforms with the
Manufactured Home Construction and
Safety Standard, Title 24 CFR, Part 3280.
If this standard does not apply, you must
follow the standard for Manufactured Home
Installations, ANSI A225.1 and Manufactured
Home Installations, Sites and Communities
and ANSI/NFPA 501A or with local codes.
You can get a copy of the Federal Standard
by Writing:
Office of Mobile Home Standards
HUD Building
451 7th Street, S.W.
Washington, D.C. 24010
PARTS INCLUDED
%%
2 Screws Foam Tape
(Glass Top
Models Only)
2 Hold
Down Brackets
MATERIALS YOU MAY NEED
Joint Sealant Pipe Fittings %
Shut-Off Valve
CSA-Approved Flexible Gas Line
3/8" Min. ID, 1/2" NPT Connection,
3-foot Maximum Length (Massachusetts Only)
TOOLS YOU WILL NEED
FOR INSTALLATION
Pencil
Phillips-Head
Screwdriver
Saber Saw
Ruler or Straightedge
Safety Glasses
Pipe Wrench
1/8" Drill Bit & Electric
or Hand Drill
2

Installation Instructions

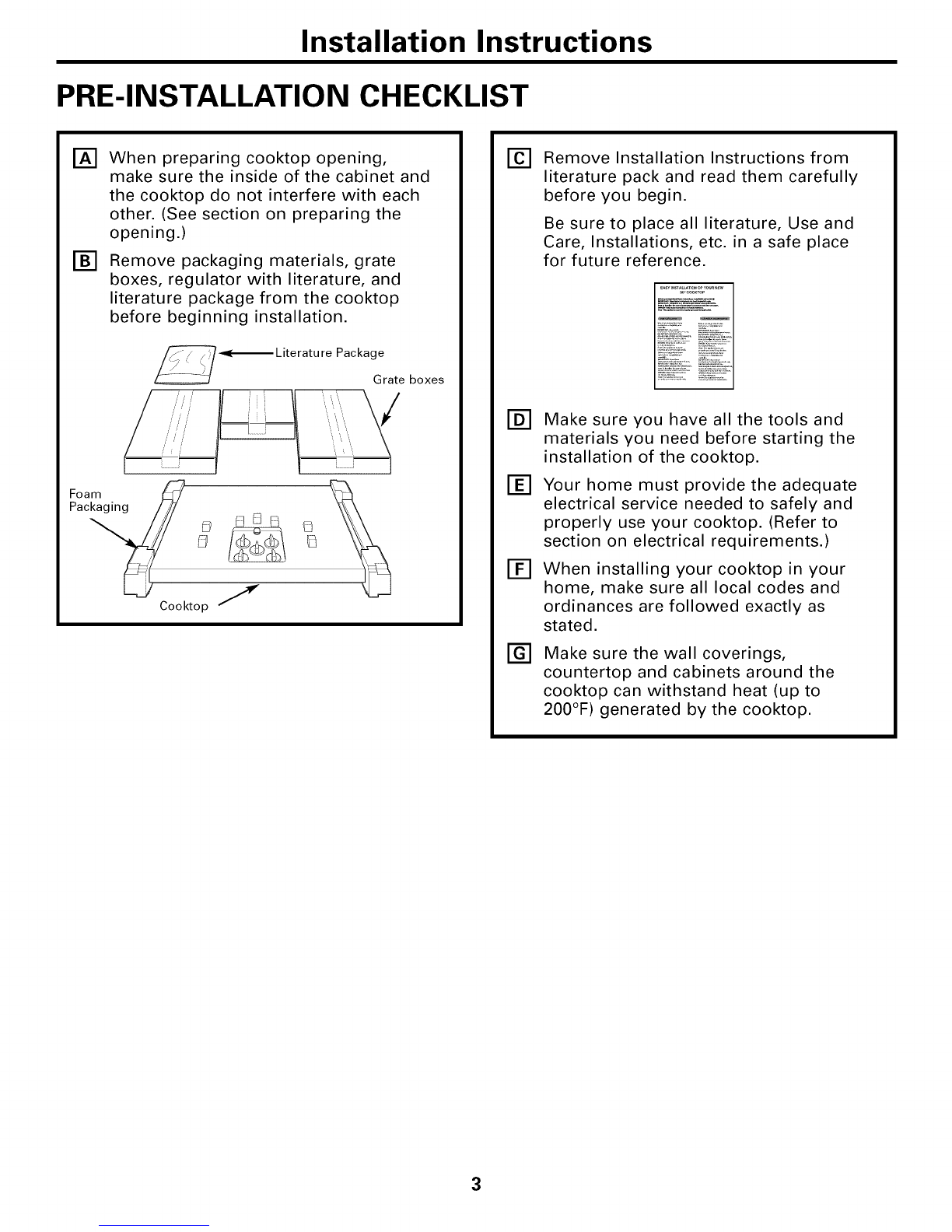

PRE-INSTALLATION CHECKLIST
r_ When preparing cooktop opening,
make sure the inside of the cabinet and
the cooktop do not interfere with each
other. (See section on preparing the
opening.)
_'] Remove packaging materials, grate
boxes, regulator with literature, and
literature package from the cooktop
before beginning installation.
_-_ Literatu re Package
Grate boxes
Foam
Pacy
Cooktop /
@
Fgl
Fgl
@
Remove Installation Instructions from
literature pack and read them carefully
before you begin.
Be sure to place all literature, Use and
Care, Installations, etc. in a safe place
for future reference.
Make sure you have all the tools and
materials you need before starting the
installation of the cooktop.
Your home must provide the adequate
electrical service needed to safely and
properly use your cooktop. (Refer to
section on electrical requirements.)
When installing your cooktop in your
home, make sure all local codes and
ordinances are followed exactly as
stated.
Make sure the wall coverings,
countertop and cabinets around the
cooktop can withstand heat (up to
200°F) generated by the cooktop.
3

Installation Instructions

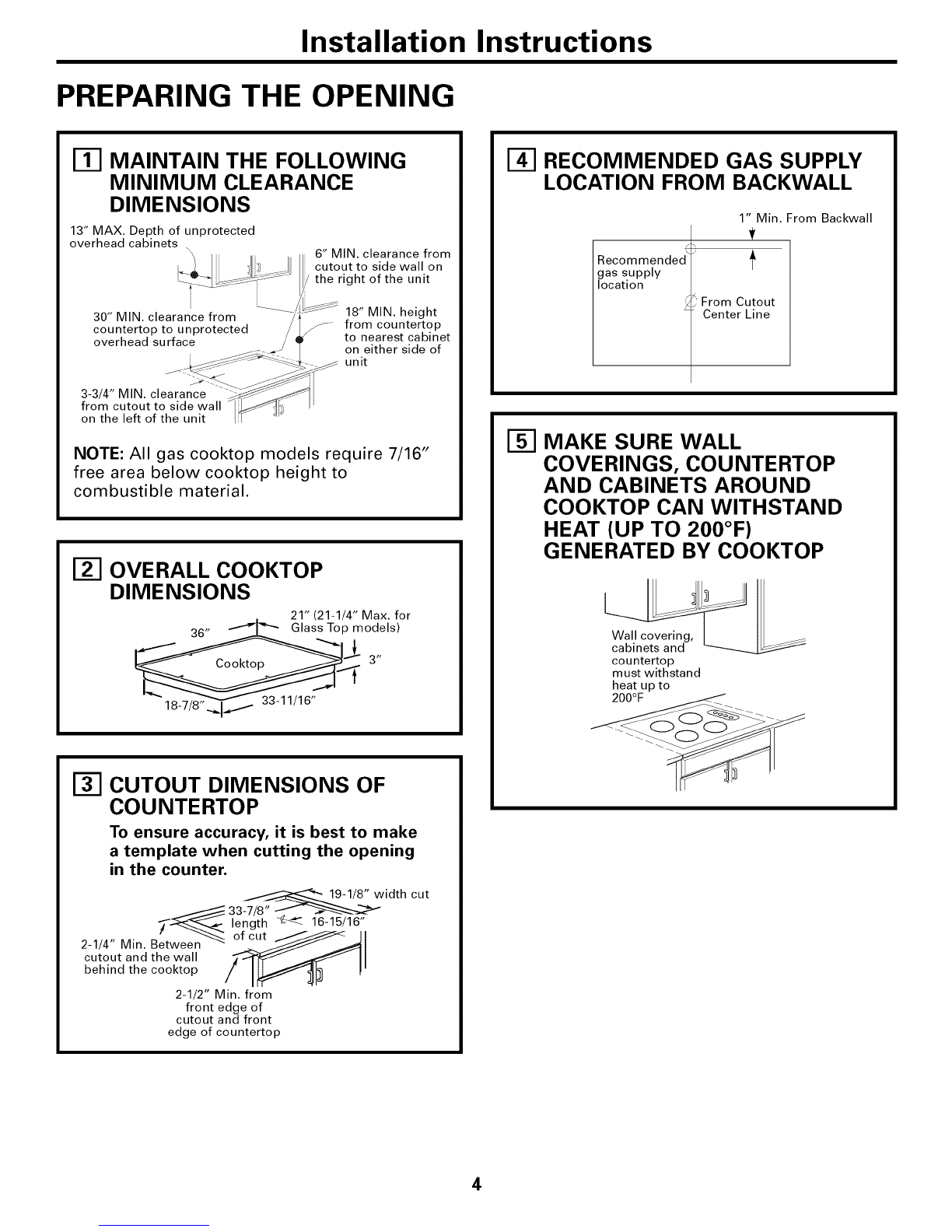

PREPARING THE OPENING
17-1MAINTAIN THE FOLLOWING
MINIMUM CLEARANCE
DIMENSIONS
13" MAX. Depth of unprotected
overhead cabinets \6" MIN. clearance from
cutout to side wall on
the right of the unit
30" MIN. clearance from 18" MIN. height
_-- from countertop
countertop to unprotected /
overhead surface to nearest cabinet
on either side of
unit
3-3/4" MIN. clearance
from cutout to side wall
on the left of the unit
NOTE: All gas cooktop models require 7/16"
free area below cooktop height to
combustible material.
OVERALL COOKTOP
DIMENSIONS
21" (21-1/4" Max. for
_,.,_ odels)
3"
CUTOUT DIMENSIONS OF
COUNTERTOP
To ensure accuracy, it is best to make
a template when cutting the opening
in the counter.
_9-1/8" width
33-7/8" J _'---_
"_--_.._:_ length _ 16-15/16"
2-1/4" Min. Between'n''_ °f_.cut__ I
cutout and the wall _"-_ _ II
behind the cooktop // i 1 lm "
2_1/2- Min. from
front edge of
cutout and front
edge of countertop
cut
RECOMMENDED GAS SUPPLY
LOCATION FROM BACKWALL
Recommended
gas supply
location
1" Min. From Backwall
t
From Cutout
Center Line
MAKE SURE WALL
COVERINGS, COU NTERTOP
AND CABINETS AROUND
COOKTOP CAN WITHSTAND
HEAT (UP TO 200°F)
GENERATED BY COOKTOP
Wall covering,
cabinets and
countertop
must withstand
heat up to
200°F
4

Installation Instructions
INSTALLING THE COOKTOP UNIT
LOCATE ELECTRICAL OUTLET
AND GAS SHUT-OFF VALVE
BENEATH CABINET
NEVER REUSE
OLD CONNECTORS
WHEN INSTALLING
THIS UNIT. _Shut-Off 1
Valve _I_
I
J_J
!_l
II Outlet 12"
I Below
Countertop
Install a manual shut-off valve in the gas line
in an easily accessible location outside the
cooktop. Be sure you know how and where to
shut off the gas supply to the cooktop. Install
the electrical outlet 12" below the countertop.
_-I PROTECT SURFACE OF
COOKTOP
Place a towel or tablecloth onto the
countertop. Lay the cooktop upside down
onto the protected surface.
Bottom of cooktop
Cloth under Cooktop
ATTACH FOAM TAPE
(glass maintop models only)
Apply the foam tape around the outer edge
of the glass. Do not overlap the foam tapes.
Bottom of Cooktop
.\_ Foam Tapes
Cooktop Glass
LOCATE MOUNTING PARTS
Remove the hold down brackets from the
literature package.
ATTACH BRACKETS TO
COOKTOP
Remove the screw from the bottom of the
cooktop and screw the hold-down bracket
to the side of the cooktop unit. Repeat for
opposite side of cooktop.
Pre-drilled
Bottom of
Cooktop
._.. Foam Tapes .=o
Cooktop
Glass
INSERT COOKTOP INTO
CUTOUT
Insert the cooktop centered into the cutout
opening. Make sure the front edge of the
countertop is parallel to the cooktop. Make
final check that all required clearances are met.
Once the unit is in place, screw the hold-
down bracket into the cabinet sides to secure
the unit into place.
5

Installation Instructions

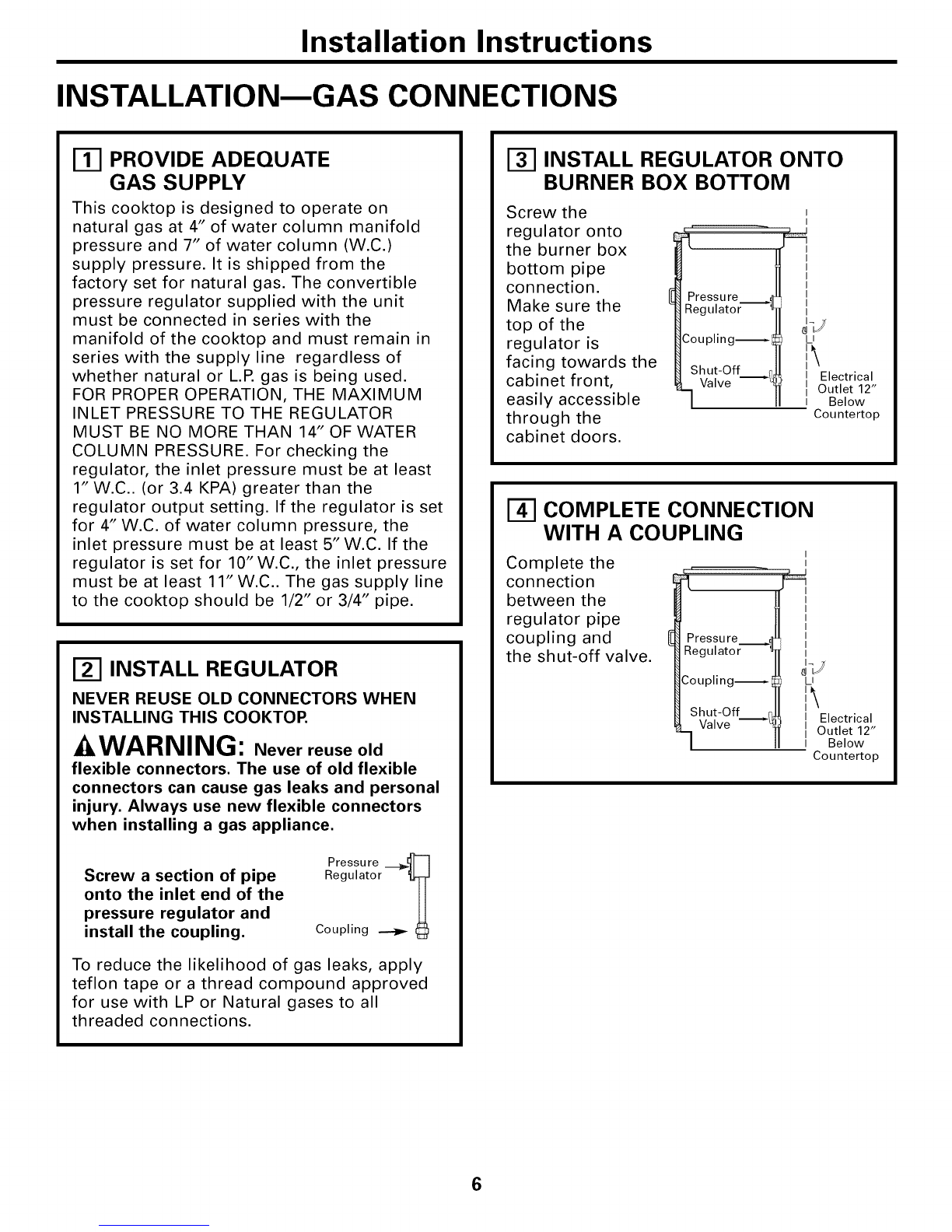

INSTALLATION--GAS CONNECTIONS
ITI PROVIDE ADEQUATE
GAS SUPPLY
This cooktop is designed to operate on
natural gas at 4" of water column manifold
pressure and 7" of water column (W.C.)
supply pressure. It is shipped from the
factory set for natural gas. The convertible
pressure regulator supplied with the unit
must be connected in series with the
manifold of the cooktop and must remain in
series with the supply line regardless of
whether natural or L.P. gas is being used.
FOR PROPER OPERATION, THE MAXIMUM
INLET PRESSURE TO THE REGULATOR
MUST BE NO MORE THAN 14" OF WATER
COLUMN PRESSURE. For checking the
regulator, the inlet pressure must be at least
l"W.C.. (or 3.4 KPA) greater than the
regulator output setting. If the regulator is set
for 4"W.C. of water column pressure, the
inlet pressure must be at least 5"W.C. If the
regulator is set for 10"W.C., the inlet pressure
must be at least 11"W.C.. The gas supply line
to the cooktop should be 1/2" or 3/4" pipe.
_-I INSTALL REGULATOR
NEVER REUSE OLD CONNECTORS WHEN
INSTALLING THIS COOKTOE
-4,WARNING: Neverreuse old
flexible connectors. The use of old flexible
connectors can cause gas leaks and personal
injury. Always use new flexible connectors
when installing a gas appliance.
Screw a section of pipe
onto the inlet end of the
pressure regulator and
install the coupling.
Pressure ---_-7
Regulator
Coupling _
To reduce the likelihood of gas leaks, apply
teflon tape or a thread compound approved
for use with LP or Natural gases to all
threaded connections.
INSTALL REGULATOR ONTO
BURNER BOX BOTTOM
Screw the
regulator onto
the burner box
bottom pipe
connection.
Make sure the
top of the
regulator is
facing towards the
cabinet front,
easily accessible
through the
cabinet doors.
I
I
Pressure
Regulator _
Coupling--I
Shut-Off _,
q Valve --_
LI
II Electrical
IOutlet 12"
I Below
Countertop
COMPLETE CONNECTION
WITH A COUPLING
Complete the
connection
between the
regulator pipe
coupling and
the shut-off valve.
I
I
Pressu re._
Regulator
Coupling--_
Shut-Off _,
Valve --_
LI
I Electrical
Outlet 12"
I Below
Countertop
6

Installation Instructions
CHECK FOR LEAKS
Before testing for leaks, make sure all burner
knobs are in the OFF position.
After connecting the cooktop to gas, check
system for leaks with a manometer. If a
manometer is not available, turn the gas
supply on to the cooktop and use a liquid
leak detector at all joints and connections
to check for leaks.
Tighten all connections if necessary to
prevent gas leakage in the cooktop or
supply line.
DO NOT USE OPEN FLAME TO CHECK
FOR LEAKS!
Disconnect the cooktop and its individual
shut-off valve from the gas supply piping
system during any pressure testing of that
system at test pressures greater than 1/2 psig
(3.5 kPa).
Isolate the cooktop from the gas supply
piping system by closing its individual
shut-off valve during any pressure testing
of the gas supply system at test pressures
equal to or less than 1/2 psig (3.5 kPa).
INSTALLATION OVER
BUILT-IN OVEN
See built-in oven installation for complete
installation instructions.
IT
I _ S"To Center of
l / _] 2" Dia. Hole From
_ C°uitert°p
90°Elbow _ L..... I
2" Dia. Hole
(20 7/8" from front
of Countertop to
Hole Center)
Cabinet Sides _ 7
7

Installation Instructions
INSTALLATIONmE LECTRICAL CONNECTIONS
WARNING -Disconnectall
electrical power at the main circuit breaker
or fuse box before installing.
Ill EXTENSION CORDS
Because of potential safety hazards under
certain conditions, we strongly recommend
against the use of an extension cord.
However, if you still elect to use an extension
cord, it is absolutely necessary that it be a
UL listed 3-wire grounding type appliance
extension cord and that the current carrying
rating of the cord in amperes be equivalent
to or greater than the branch circuit rating.
Such extension cords are obtainable through
your local appliance dealer.
IMPORTANT: (Please read carefully)
FOR PERSONAL SAFETY, THIS APPLIANCE
MUST BE PROPERLY GROUNDED.
_-I ELECTRICAL SUPPLY AND
OUTLET
An adequate electrical supply and outlet must
be used to operate the electrical parts of your
cooktop.
[]
[]
r-cq
The power cord of this appliance is
equipped with a 3-prong (grounding)
plug which must be used with a properly
grounded 3-hole outlet with a standard
120 Volt, 60 cycle AC household current.
If you do not have a 3-hole grounded
outlet, have a qualified electrician
change your old one.
A grounding adaptor will be needed
to convert the old one until the outlet
can be replaced. This method is only
temporary, and a qualified electrician
should test it to be sure it meets
requirements.
Ensure proper
N L ground and
firm connection
before use
TWO-PRONG WALL
RECEPTACLE
Where a standard 2-prong wall receptacle is
encountered, it is the personal responsibility
and obligation of the customer to have it
replaced with a properly grounded 3-prong
wall receptacle.
Do not under any circumstances cut or
remove grounding prong from the cooktop
cord. Failure to provide proper polarization
may create a hazardous condition.
8

Installation Instructions
USAGE SITUATIONS WHERE
APPLIANCE POWER CORD
WILL BE DISCONNECTED
INFREQUENTLY
For 15 amp circuit only. Do not use an adaptor
on a 20 amp circuit. Where local codes permit,
a TEMPORARY CONNECTION may be made to
a properly grounded two-prong wall receptacle
by the use of a UL-listed adaptor available at
most hardware stores. The larger slot in the
adaptor must be aligned with the large slot in
the wall receptacle to provide proper polarity
in the connection of the power cord.
Ensure proper ground and
_. firm connection before use
Align large
prongs/slots
Temporary Method
(Adaptor plugs not permitted in Canada)
.4,CAUTION: Attaching the adaptor
ground terminal to the wall receptacle cover
screw does not ground the appliance unless
the screw is metal, and not insulated, and the
wall receptacle is grounded through the house
wiring. The customer should have the circuit
checked by a qualified electrician to make sure
the receptacle is properly grounded.
When disconnecting the power cord from the
adaptor, always hold the adaptor with one
hand. If this is not done, the adaptor ground
terminal is very likely to break with repeated
use. Should this happen, DO NOT USE the
appliance until a proper ground has again
been established.
Usage situation where appliance power cord
will be disconnected frequently.
Do not use an adaptor plug in these situations
because disconnection of the power cord
places undue strain on the adaptor and leads to
eventual failure of the adaptor ground terminal.
The customer should have the 2-prong
receptacle replaced with a 3-prong (grounding)
receptacle by a qualified electrician before
using the appliance.
9

Installation Instructions

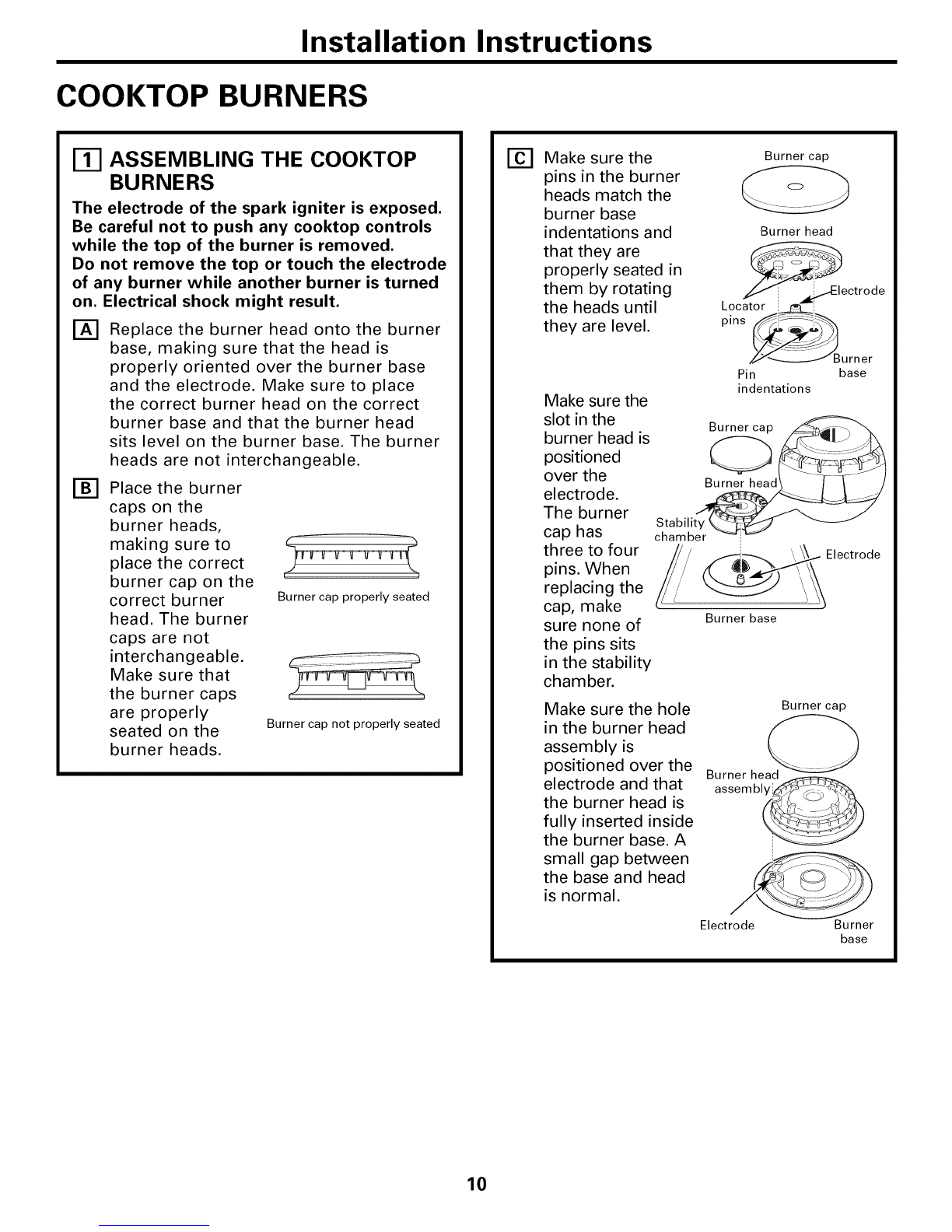

COOKTOP BURNERS
ASSEMBLING THE COOKTOP
BURNERS
The electrode of the spark igniter is exposed.
Be careful not to push any cooktop controls
while the top of the burner is removed.
Do not remove the top or touch the electrode
of any burner while another burner is turned
on. Electrical shock might result.
[]
[]
Replace the burner head onto the burner
base, making sure that the head is
properly oriented over the burner base
and the electrode. Make sure to place
the correct burner head on the correct
burner base and that the burner head
sits level on the burner base. The burner
heads are not interchangeable.
Place the burner
caps on the
burner heads,
making sure to
place the correct
burner cap on the
correct burner
head. The burner
caps are not
interchangeable.
Make sure that
the burner caps
are properly
seated on the
burner heads.
Burner cap properly seated
Burner cap not properly seated
r-cqMake sure the
pins in the burner
heads match the
burner base
indentations and
that they are
properly seated in
them by rotating
the heads until
they are level.
Make sure the
slot in the
burner head is
positioned
over the
electrode.
The burner
cap has
three to four
pins. When
replacing the
cap, make
sure none of
the pins sits
in the stability
chamber.
Burner cap
Burner head
Loc__ ectr°de
p,ns _----!_-_o_
_urner
Pin base
indentations
Burner base
Make sure the hole
in the burner head
assembly is
positioned over the
electrode and that
the burner head is
fully inserted inside
the burner base. A
small gap between
the base and head
is normal.
Burner cap
Burner head@
assemblyi_
Electrode Burner
base
10

Installation Instructions
CHECK IGNITERS
Operation of the electric igniters should be
checked after the cooktop and supply line
have been carefully checked for leaks and
the cooktop has been connected to the
electrical power.
On models so equipped, check to be sure the
cooktop is in the UNLOCKED position.
r_ Push and turn a burner valve to the LITE
position. All spark igniters will make a
series of sparks (ticking sounds), but only
the burner turned to LITE will light.
• The burner should light when gas is
available to the burner.
• Once the burner lights, it should be
turned out of the LITE position.
[] Try each valve separately until all
burners have been checked.
BURNER IGNITION
Cooktop Spark IgnitionmWhen you turn
the cooktop knob to LITE, the spark igniter
makes a series of electric sparks (ticking
sounds) which light the burner. During a
power failure, the burners will not light
automatically. In an emergency, a cooktop
burner may be lit with a match by following
the steps below.
_4,WARNING: Lightinggasburners
with a match is dangerous. You should
match light the cooktop burners only in
an emergency.
On models so equipped, check to be sure the
cooktop is in the UNLOCKED position.
r_ Light a match and hold the flame near
the burner you want to light. Wooden
matches work best.
Push in and turn the control knob slowly.
Be sure you are turning the correct knob
for the burner you are lighting.
NOTE: If the burner does not light within five
seconds, turn the knob off and wait one minute
before trying again.
THE BURNER FLAMES
Turn each burner on. Flames should be blue
in color with no trace of yellow. The burner
flames should not flutter or blow away from
the burner. The flame should be no less than
1/4" on the lowest setting and no greater than
1-1/2" on highest setting.
1/4" to _ Cooktop Burner
1-1/2" /
Burners should be checked frequently
^ WARNING: Ifyouattempt to
measure the flame, please use caution.
Burns could result.
BURNER GRATES
The three cooktop grates are designed for
specific positions. For maximum stability,
these grates should only be used in their
proper position: they should not be
interchanged. For your convenience, the
undersides of the left and right grates are
marked "OUTSIDE" and "INSIDE". Make sure
that the side marked "OUTSIDE" is on the
outer edge of your cooktop. Make sure that
the tabs on either side of the center grate fit
into the slots located on the "INSIDE" edge
of the side grates.
11

Installation Instructions
OPERATION CHECKLIST
[]
[]
Make sure all controls are left in the OFF
position. Check to be sure the cooktop is
in the UNLOCKED position (on models
so equipped).
Make sure the flow of air to and from the
cooktop is unobstructed.
The serial plate for your cooktop is
located on the bottom of the burner box.
In addition to the model and serial
numbers, it tells you the ratings of the
burners and the type of fuel and pressure
the cooktop was adjusted for when it
left the factory.
[_] When ordering parts, always include the
serial number, model number and a code
letter to ensure proper replacement parts.
Recheck Steps:
Double check to make sure everything
in this guide has been completed.
Rechecking steps will ensure safe
use of the cooktop.
12

Installation Instructions

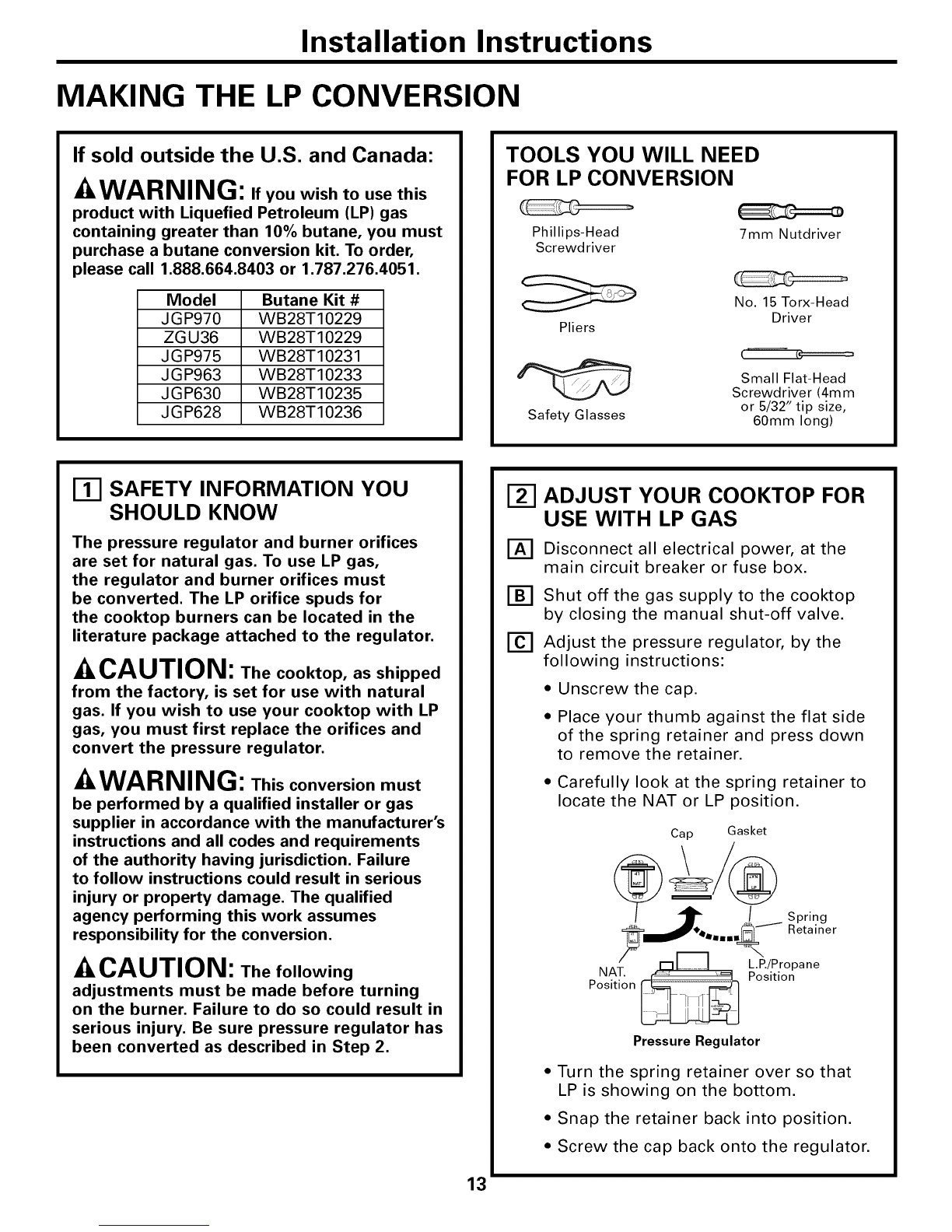

MAKING THE LP CONVERSION
If sold outside the U.S. and Canada:
_4,WARNING:. youwishtouse this
product with Liquefied Petroleum (LP) gas
containing greater than 10% butane, you must
purchase a butane conversion kit. To order,
please call 1.888.664.8403 or 1.787.276.4051.
Model Butane Kit #
JGP970 WB28T10229
ZGU36 WB28T10229
JGP975 WB28T10231
JGP963 WB28T10233
JGP630 WB28T10235
JGP628 WB28T10236
TOOLS YOU WILL NEED
FOR LP CONVERSION
Phillips-Head
Screwdriver 7mm Nutdriver
Pliers
Safety Glasses
No. 15 Torx-Head
Driver
Small Flat-Head
Screwd river (4m m
or 5/32" tip size,
60mm long)
Ill SAFETY INFORMATION YOU
SHOULD KNOW
The pressure regulator and burner orifices
are set for natural gas. To use LP gas,
the regulator and burner orifices must
be converted. The LP orifice spuds for
the cooktop burners can be located in the
literature package attached to the regulator.
CAUTION: The cooktop, as shipped
from the factory, is set for use with natural
gas. If you wish to use your cooktop with LP
gas, you must first replace the orifices and
convert the pressure regulator.
_4,WARNING: Thisconversionmust
be performed by a qualified installer or gas
supplier in accordance with the manufacturer's
instructions and all codes and requirements
of the authority having jurisdiction. Failure
to follow instructions could result in serious
injury or property damage. The qualified
agency performing this work assumes
responsibility for the conversion.
_4,CAUTION: Thefollowing
adjustments must be made before turning
on the burner. Failure to do so could result in
serious injury. Be sure pressure regulator has
been converted as described in Step 2.
_-I ADJUST YOUR COOKTOP FOR
USE WITH LP GAS
F_
B£
[]
Disconnect all electrical power, at the
main circuit breaker or fuse box.
Shut off the gas supply to the cooktop
by closing the manual shut-off valve.
Adjust the pressure regulator, by the
following instructions:
• Unscrew the cap.
• Place your thumb against the flat side
of the spring retainer and press down
to remove the retainer.
• Carefully look at the spring retainer to
locate the NAT or LP position.
Cap Gasket
__/_@ Spring
poNATon_ Position
Pressure Regulator
• Turn the spring retainer over so that
LP is showing on the bottom.
• Snap the retainer back into position.
• Screw the cap back onto the regulator.
13

Installation Instructions

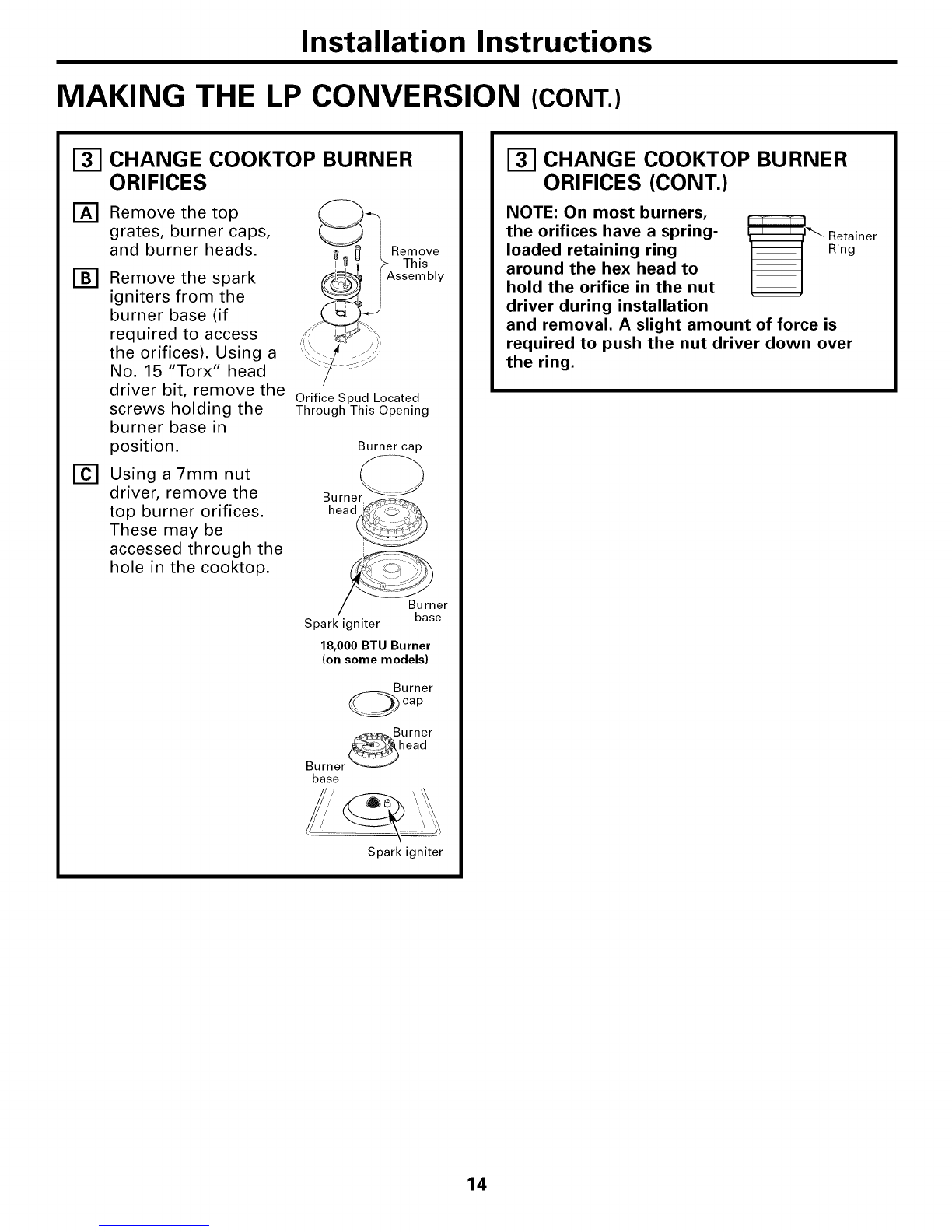

MAKING THE LP CONVERSION (CONT.)
I-_ CHANGE COOKTOP BURNER
ORIFICES
[]
[]
Remove the top
grates, burner caps,
and burner heads.
Remove the spark
igniters from the
burner base (if
required to access
the orifices). Using a
No. 15 "Torx" head
driver bit, remove the
screws holding the
burner base in
position.
Using a 7mm nut
driver, remove the
top burner orifices.
These may be
accessed through the
hole in the cooktop.
Remove
This
Orifice Spud Located
Through This Opening
Burner cap
Burner @
head_
er
Spark igniter base
18,000 BTU Burner
(on some models)
Burner
cap
_._Burner
head
Burner _-------J
base
Spark igniter
I-_ CHANGE COOKTOP BURNER
ORIFICES (CONT.)
NOTE: On most burners,
the orifices have a spring- Retainer
loaded retaining ring Ring
around the hex head to
hold the orifice in the nut
driver during installation
and removal. A slight amount of force is
required to push the nut driver down over
the ring.
14

Installation Instructions

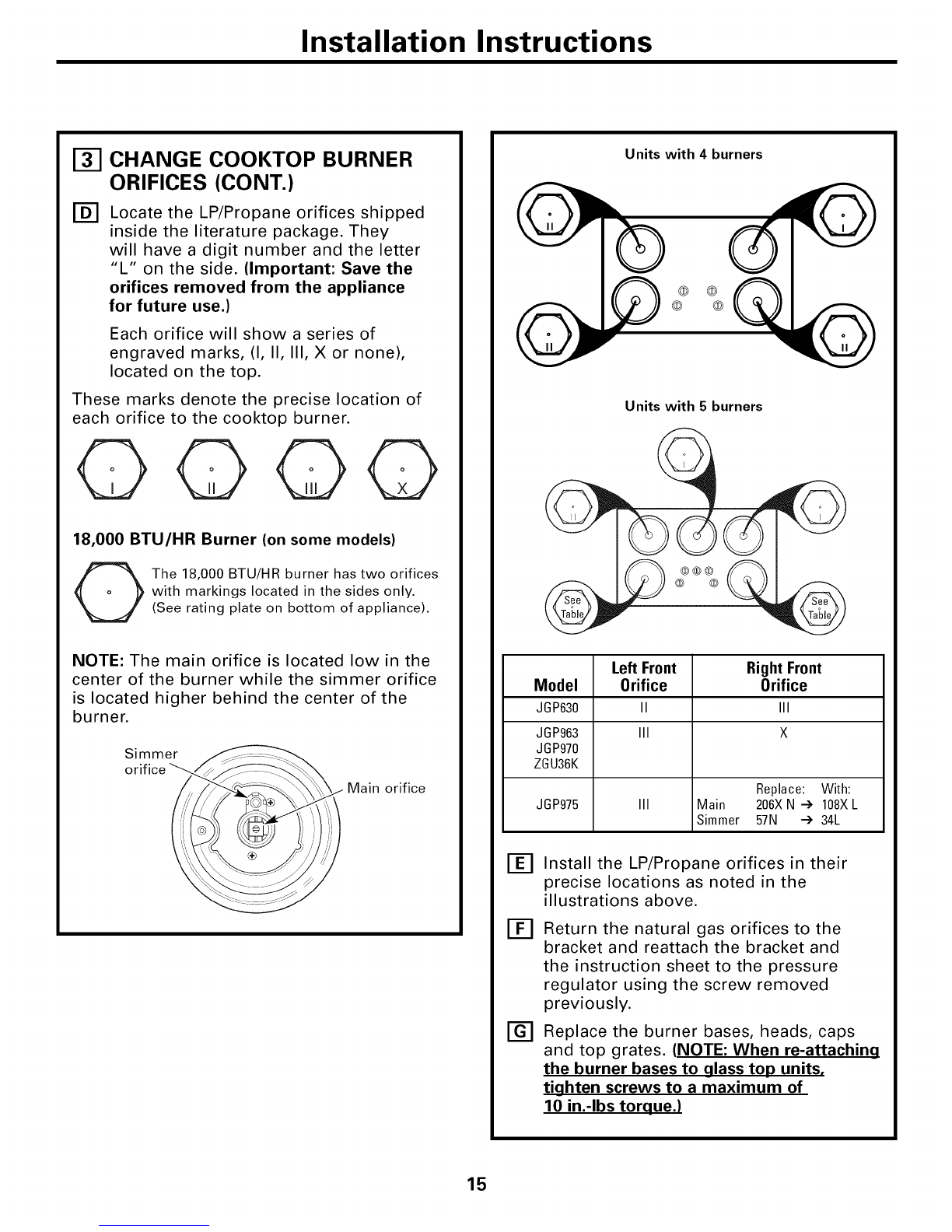

CHANGE COOKTOP BURNER
ORIFICES (CONT.)
FD] Locate the LP/Propane orifices shipped
inside the literature package. They
will have a digit number and the letter
"L" on the side. (Important: Save the
orifices removed from the appliance
for future use.)
Each orifice will show a series of
engraved marks, (I, II, III, X or none),
located on the top.
These marks denote the precise location of
each orifice to the cooktop burner.
OOOO
18,000 BTU/HR Burner (on some models)
OThe 18,000 BTU/HR burner has two orifices
with markings located in the sides only.
(See rating plate on bottom of appliance).
NOTE: The main orifice is located low in the
center of the burner while the simmer orifice
is located higher behind the center of the
burner.
Simmer
Main orifice
Units with 4 burners
Units with 5burners
B£
B9
Left Front Right Front
Model Orifice Orifice
JGP630 II III
JGP963 III X
J6P970
Z6U36K
Replace: With:
J6P975 III Main 206XN _ 108XL
Simmer 57N -) 34L
Install the LP/Propane orifices in their
precise locations as noted in the
illustrations above.
Return the natural gas orifices to the
bracket and reattach the bracket and
the instruction sheet to the pressure
regulator using the screw removed
previously.
Replace the burner bases, heads, caps
and top grates. (NOTE: When re-attachinu
the burner bases to ulass top units.
tiuhten screws to a maximum of
10 in.-Ibs toroue.)
15

Installation Instructions
MAKING THE LP CONVERSION (CONT.)
ADJUST BURNER FLAMES
r_ Turn all burners full on and check the
flames. They should be blue in color with
some yellow tipping at the ends of the
flame. Foreign particles in the gas line
may cause an orange flame at first, but
this will soon disappear.
NOTE: For the 18,000 BTU/HR burner (on
some models) the cooktop burner knob
should be turned to the setting before
the lowest setting. This will ensure that
the entire burner is operating.
[] Turn the cooktop burner knob to the
lowest setting while observing the flame.
Adjust the low flame setting using the valve
bypass screw as follows:
Low-setting adjustments must be made
with two other burners in operation on
a medium setting. This prevents the low
flame from being set too low, resulting in
the flame being extinguished when other
burners are turned on.
To adjust the flame,
remove the knobs.
Insert a screwdriver
through the access
hole in valve switch.
Engage adjustment
screw in valve. Refer
to the illustration
below that matches
the adjustment screw
location for your
model.
• If the flames were
too small or
fluttered, open the
valve more than
the original setting.
• If the flames blew
away from the burner, close the valve
more than the original setting.
[-_ Make the adjustment by slowly turning
the screw until flame appearance is
correct.
[] Testing
Test 1 -
Flame Stability:
Turn the knob from "HI" to the
lowest setting quickly. If the
flame goes out at the lowest
setting, increase the flame size
and test again.
Test 2 -With the burner on the lowest
setting, open and close the
cabinet door under the cooktop.
If the flame is extinguished by
the air currents created by the
door movement, increase the
flame height and test again.
Flame Recheck:
After the adjustment is made, turn all burners
off. Ignite each burner individually. Observe
the flame at the "HI" position. Rotate the
valve to the lowest setting and be sure that
the flame size decreases as the valve is
rotated counterclockwise.
TO CONVERT THE COOKTOP BACK TO
NATURAL GAS, REVERSE THE STEPS
UNDER MAKING THE LP CONVERSION.
Once the conversion is complete and
checked ok, fill out the LP sticker and
include your name, organization and date
conversion was made. Apply the sticker
near the cooktop gas inlet opening to alert
others in the future that this appliance has
been converted to LP gas. If converting back
to natural gas from LP, please remove the
sticker so others know the appliance is set
to use natural gas.
16

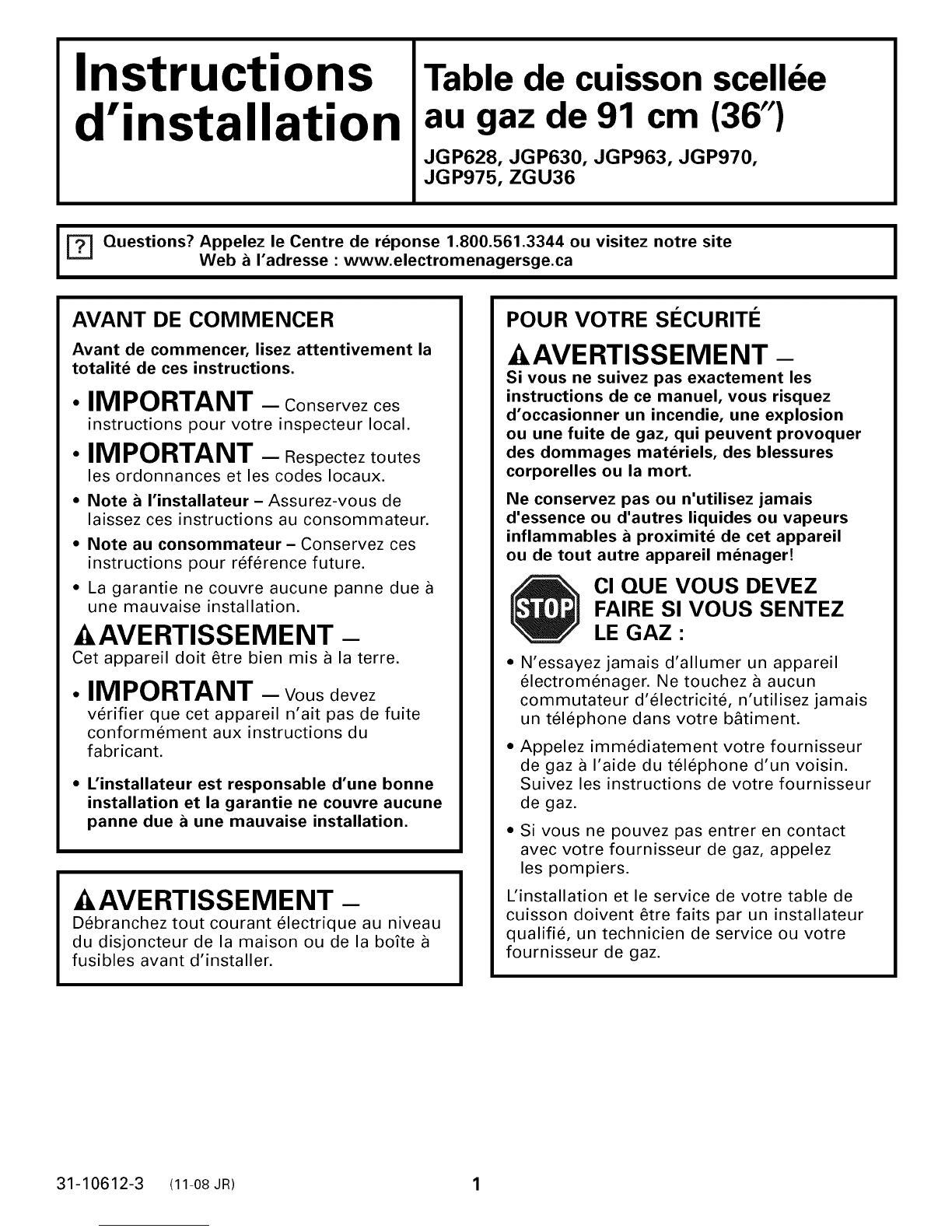

Instructions
d'installation Table de cuisson scellee
au gaz de 91 cm (36")
JGP628, JGP630, JGP963, JGP970,
JGP975, ZGU36
I_ Questions? Appelez le Centre de reponse 1.800.561.3344 ou visitez notre site
Web aI'adresse •www, electromenagersge,ca I
AVANT DE COMMENCER
Avant de commencer, lisez attentivement la
totalite de ces instructions.
• IMPORTANT - Conservezces
instructions pour votre inspecteur local.
• IMPORTANT - Respectez toutes
les ordonnances et les codes Iocaux.
• Note a I'installateur - Assurez-vous de
laissez ces instructions au consommateur.
•Note au consommateur - Conservez ces
instructions pour ref6rence future.
• La garantie ne couvre aucune panne due
une mauvaise installation.
-&AVERTISSEMENT -
Cet appareil doit _tre bien mis a la terre.
•IMPORTANT - vousdevez
verifier que cet appareil n'ait pas de fuite
conformement aux instructions du
fabricant.
•L'installateur est responsable d'une bonne
installation et la garantie ne couvre aucune
panne due aune mauvaise installation.
-&AVERTISSEMENT -
Debranchez tout courant electrique au niveau
du disjoncteur de la maison ou de la bofte
fusibles avant d'installer.
POUR VOTRE SI_CURITI_
-&AVERTISSEMENT -
Si vous ne suivez pas exactement les
instructions de ce manuel, vous risquez
d'occasionner un incendie, une explosion
ou une fuite de gaz, qui peuvent provoquer
des dommages materiels, des blessures
corporelles ou la mort.
Ne conservez pas ou n'utilisez jamais
d'essence ou d'autres liquides ou vapeurs
inflammables aproximite de cet appareil
ou de tout autre appareil menager!
CI QUE VOUS DEVEZ
FAIRE SI VOUS SENTEZ
LE GAZ •
N'essayez jamais d'allumer un appareil
electrom6nager. Ne touchez a aucun
commutateur d'electricit6, n'utilisez jamais
un tel6phone dans votre b_timent.
Appelez immediatement votre fournisseur
de gaz a I'aide du t61ephone d'un voisin.
Suivez les instructions de votre fournisseur
de gaz.
Si vous ne pouvez pas entrer en contact
avec votre fournisseur de gaz, appelez
les pompiers.
L'installation et le service de votre table de
cuisson doivent eve faits par un installateur
qualifie, un technicien de service ou votre
fournisseur de gaz.
31-10612-3 (11-08 JR) 1

Instructions d'installation
INSTRUCTIONS IMPORTANTES DE SI CURITI
La conception de votre table de cuisson a et6
approuve par I'ACNOR International. Vous
trouverez des precautions a prendre en
matiere de securit6 dans votre Guide
d'utilisation et de soins. Lisez-les
attentivement.
• L'installation de votre table de cuisson
doit se conformer aux codes Iocaux ou, en
I'absence de codes Iocaux, au National Fuel
Gas Code, ANSI Z223.1/NFPA 54 Derniere
edition.
• Assurez-vous que votre table de cuisson
soit bien installee par un installateur qualifie
ou un technicien de service.
• Pour eliminer tout mouvement corporel
au dessus des brQleurs de votre table de
cuisson, evitez de placer des armoires de
cuisine au dessus des brQleurs.
• N'installez jamais votre appareil pres d'une
porte d'entree ou dans un emplacement oQ
un courant d'air peut g_ner son usage.
PII_CES COMPRISES
2 vis Bandes de mousse
(Pour les modeles
surface en verre
seulement)
2 Supports de
fixation
MATI_RIAUX DONT VOUS POUVEZ
AVOIR BESOIN
,O
Raccords de tuyaux
Agent de scellement
de tuyau Robinet
d'alimentation de gaz
Raccord flexible de gaz approuve par I'ACNOR
DI min 3/8", Jonction NPT 1/2
BESOINS D'I_LECTRICITI_
Cet appareil menager doit eve livre avec le
bon voltage et la bonne frequence et branche
son propre circuit de derivation bien mis
la terre, proteg6 par un disjoncteur ou un
fusible qui ont I'amperage note sur la plaque
mineralogique de votre appareil.
Nous vous recommandons de faire brancher
le c_blage electrique et la fiche de votre
cuisiniere par un electricien qualifie. Apres
I'installation, demandez a I'electricien de vous
montrer I'emplacement de votre coupe-circuit
principal.
Demandez a votre entreprise de services
publics les codes electriques en vigueur
dans votre region. En ne c_blant pas votre
cuisiniere conformement aux codes en
vigueur, vous provoquez une situation
dangereuse. En I'absence de codes, vous
devez c_bler et isoler votre cuisiniere
conformement aux exigences du Canadian
Electrical Code.
OUTILS DONT VOUS AUREZ
BESOINS
W
Crayon
Scie sauteuse
Tournevis Phillips
Lunettes de securite
Cle a tuyau
Perceuse a main ou
electrique et foret de 1/8po
2

Instructions d'lnstallation
LISTE DE VITRIFICATION AVANT INSTALLATION
[]
[]
Pour preparer I'ouverture de la surface
de cuisson, vous devez vous assurer
que I'interieur de I'armoire ne touche
pas la table de cuisson (consultez la
section sur la preparation de
I'ouverture).
Enlevez les materiaux d'emballage, les
boftes de grille, le regulateur avec sa
documentation et la documentation de
votre table de cuisson avant de
commencer a I'installer.
_-_ Documentation Bokes de
grille
i J
Enmballage _
de/
Table
cuisson
r-cq
@
[]
B3
r-eq
Enlevez les instructions d'installation
de la trousse de documentation et
lisez-les soigneusement avant de
commencer.
Assurez-vous de bien ranger toute la
documentation, le manuel d'utilisation
et d'entretien, etc. dans un endroit sQr
pour ref6rence future.
Assurez-vous d'avoir tousles outils et
tousles materaux necessaires avant de
commencer a installer votre table de
cuisson.
Votre maison doit etre alimentee en
courant electrique adequat pour vous
permettre de bien utiliser en toute
securit6 votre table de cuisson.
(Consultez la section sur les besoins
d'electricit6.)
Pour installer votre table de cuisson
dans votre maison, assurez-vous de
vous conformer scrupuleusement
tousles codes et a toutes les
ordonnances locales.
Assurez-vous que les revetements
de mur, le comptoir et les armoires
autour de la table de cuisson puissent
supporter la chaleur [pouvant atteindre
93°C (200°F)] produite par la table de
cuisson.
3

Instructions d'lnstallation
PRI:!:PARATIONDE UOUVERTURE
17-1VOUS DEVEZ RESPECTER LES
DEGAGEMENTS MINIMAUX
SUIVANT
Profondeur max de 33 cm (13") des
armoires en surplomb non proteg6es Degagement min. de
15 cm (6") decoupage
au mur de c6t6
droite de I'appareil
Degagement min. de 76 cm (30")
du comptoir a la surface en non
surplomb non proteg6es
Degagement min
de 10 cm (3-3/4") du
decoupage au mur de
c6te droite de I'appareil
Hauteur min
de 45 cm (18")
du comptoir
I'armoire la
plus proche de
chaque c6te
de I'appareil
REIVlARQUE : tous les modeles de surface
cuisson au gaz requierent un degagement
de 1,1 cm (7/16 po) sous la hauteur de la
surface pour la matiere combustible.
DIMENSIONS DU DI_COUPAGE
DE LA TABLE DE CUISSON
•53 cm (21") (54,6 cm [21-1/2"]
91cm (36")_ max. pour table decuisson
/__,_ _, en verre)
__. 8 cm/3"/
"---- v 86 cm (33-11/16")
48 cm (18-7/8").._.1_..--I
DIMENSIONS TOTALES DE LA
TABLE DE CUISSON
Pour assurer la justesse du decoupage,
il vaut mieux faire un gabarit pour
couper I'ouverture dans le comptoir.
86 cm (33-7/8 po)
Iongueur du decoupage _ Largeur du decoupage
_8,5 cm (19-1/8")
-/_-...._i = _ (16-15/16")
Distance min de 5,7 cm_(2-1/4") de decoupage
au mur derriere la table
de cuisson 6,4 cm (2-1/2") Distance min.
de I'ar6te avant du
decoupage de I'arr6te avant
de la table de cuisson
[_ EMPLACEMENT
RECOMMANDE DE
L'ALIMENTATION DE G.AZ .A
PARTIR DU MUR ARRIERE
2,5 cm (1") min. du mur arriere
Emplacement t
recommande de
I'alimentation Du
degaz _ decoupage
la ligne
du centre
ASSLIREZ-VOUS QUE LES
REVETEMENTS MUR, LE
COMPTOIR ET LES ARMOIRES
AUTOUR DE LA TABLE DE
CUlSSON PUlSSENT
SUPPORTER LA CHALEUR
(POUVANT ATTEINDRE 93°C
[200°F])
Les rev6tements de
mur, les armoires et
le comptoir doivent
pouvoir supporter
une chaleru pouvant
atteindre 93°C (200°F)
4
