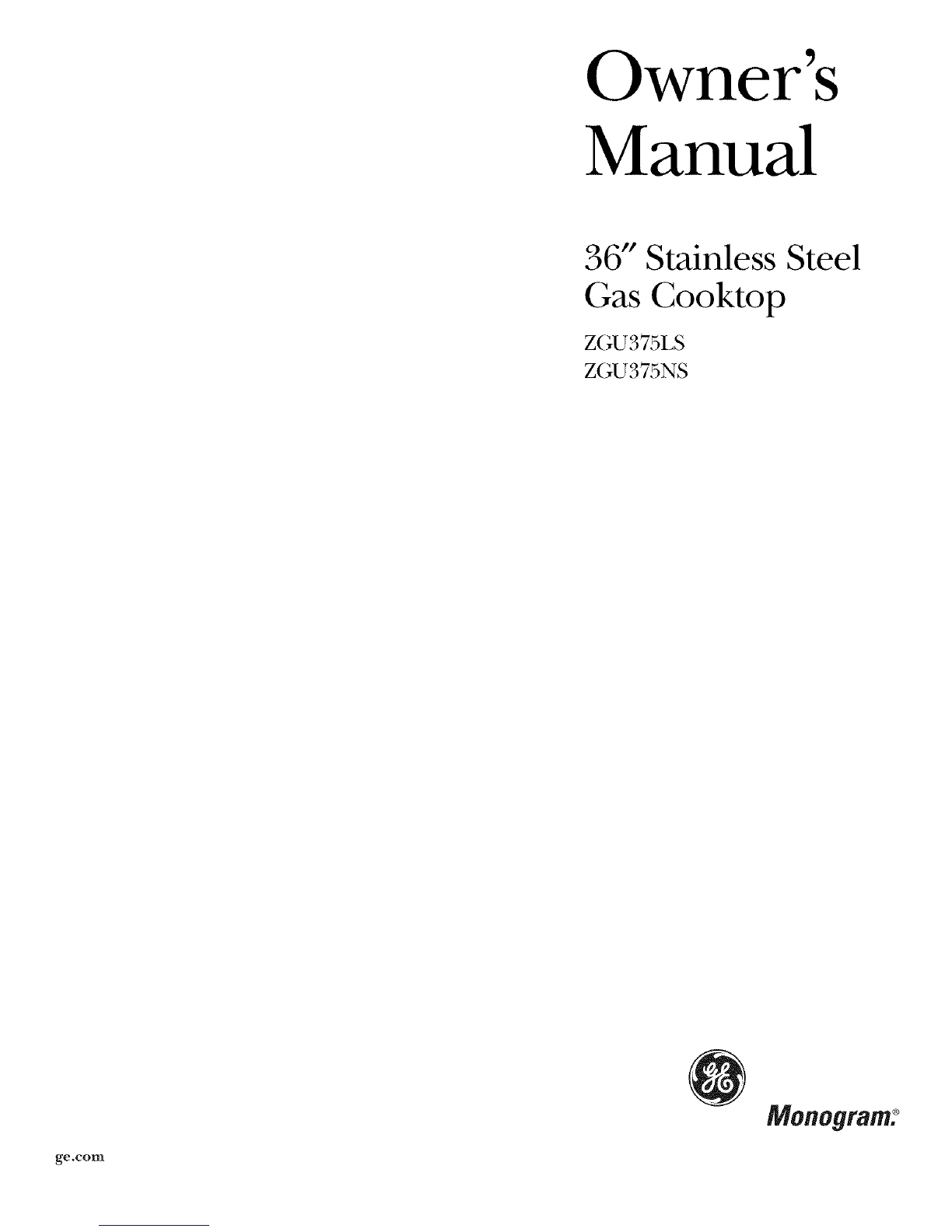

GE Monogram ZGU375LS User manual

Owner's
Manual
36" Stainless Steel
Gas Cooktop
ZGU375LS
ZGU375NS
ge,com
Monogram:

Consumer Inff)nnation
Gas Cookto/)
Introduction Your new Monogram cooktop makes an eloquent statement of style, convenience and kitchen
planning flexibility. Whether you chose it ior its purity of design, assiduous attention to detail--
or for both of these reasons--you'll find that wmr Monogram cooktop's superior blend of form
and hmction will delight you fin" years to come.
Your Monogram cooktop was designed to provide the flexibility to blend in with your kitchen
cabinetry. Its sleek design can be beautifully integrated into the kitchen.
The inflmnation on the fl)llowing pages will hel I) you operate and maintain yore" cooktop properl>
Contents Care and Cleaning
Burner Caps ........................ 15
Burner Grates ....................... 15
Burner Sub-assemblies ................. 14
( ontrol Knobs ....................... 13
Sealed Bm'ner Assemblies .............. 13
Stainless Steel Surihces ................ 13
Consumer Services
Be%re You Call for Service ............. 16
Important Phone Nmnbel_ ............. 17
Model and Serial Number ............... 4
Product Registration ................ 19, 20
SMbtv Instructions ............... 2, 3, 5-8
_'\.uTanty ........................... 18
Using Your Cooktop
Cookware ........................... 12
Dual-Flame Burners ................... 11
Electric Ignition ...................... 10
Features ............................. 9
Flame Size .......................... 10
12 (;as .............................. 9
Optional Griddle Accessory .............. 9
Wok Cooking ........................ 12
WARNING: If the information in this manual
is not followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
-- Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
-WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone
in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
-- Installation and service must be performed by a qualified
installer, service agency or the gas supplier.

AVERTISSEMENT : Si les informations de
ce manuel ne sont pas suivies hla lettre, un incendie ou
une explosion peut r6sulter et causer des dommages
mat6riels, des blessures ou la mort.
-- Ne stockez pas ou n'utilisez pas de l'essence ou d'autres
vapeurs ou liquides inflammables a proximit6 de cet
appareil 61ectrique ou de tout autre.
- QUE FAIRE SI VOUS SENTEZ
DU GAZ
•N'essayez pas d'allumer un appareil quelconque.
•Ne touchez aux interrupteurs 61ectriques ; n'utilisez
pas les t616phones de votre immeuble.
• Appelez imm6diatement votre fournisseur de gaz h
partir du t_l_phone d'un voisin. Suivez les instructions
du fournisseur de gaz.
•Si vous ne pouvez pas contacter votre fournisseur
de gaz, appelez les pompiers.
-- L'installation et l'entretien doivent 6tre effectu6s par
un installateur qua]ifi(_, une agence d'entretien ou le
fournisseur du gaz.

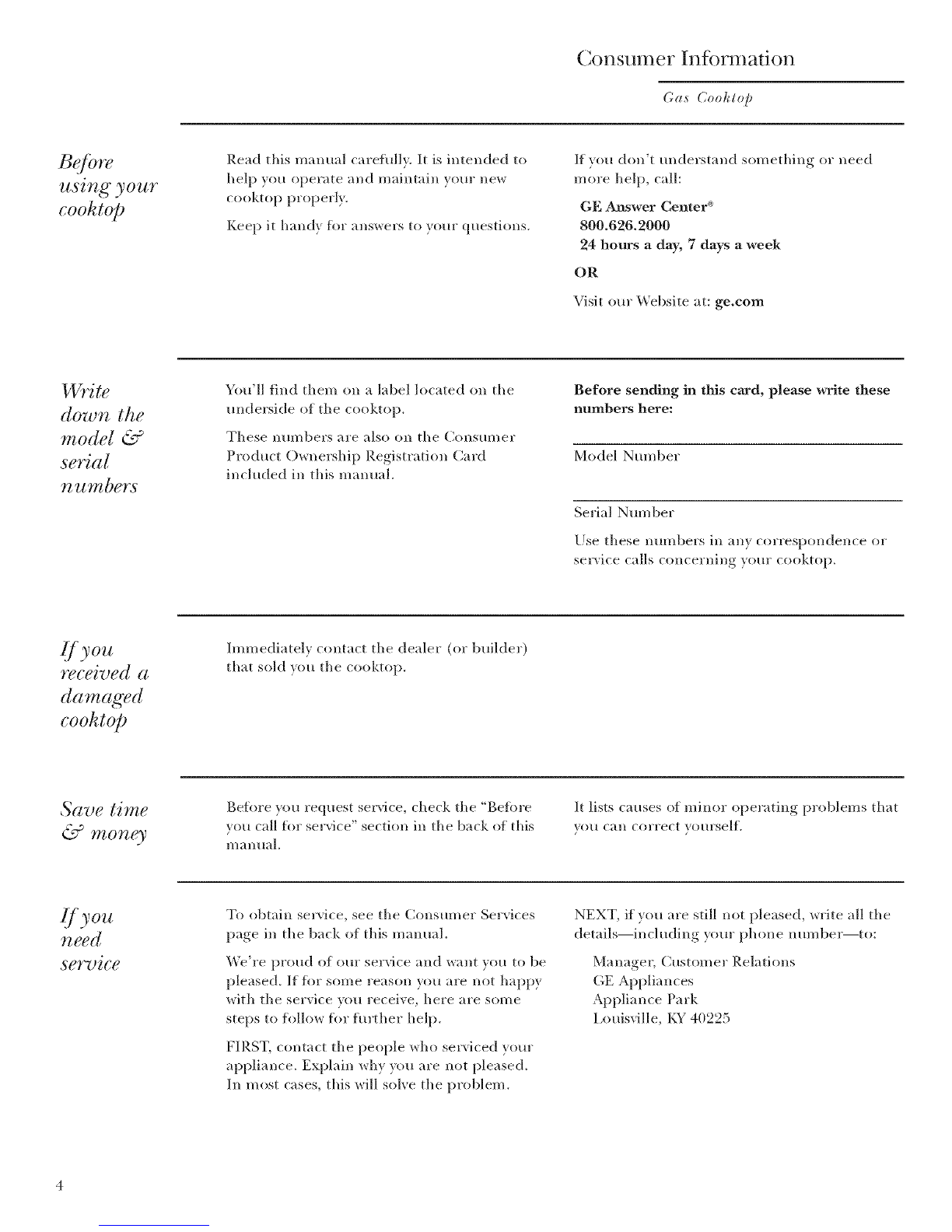

Consumer Inff)rnlation
Gas Cookto/J
Be/bre
using your
eoohtop
Read this manual carefulb:. It is intended to
help you operate and maintain your new
cooktop properly.
Keep it handy for answers to your questions.
If wm don't understand something or need
more help, call:
GE Answer Center _'
800.626.2000
24 hours a day, 7 days a week
OR
Visit our \'\Tebsite at: ge.com
-Wd te
down the
model dr"
serial
n uTylDers
You'll find them on a label located on the
underside of the cooktop.
These nmnbers are also on the ( onsmner
Product Ownership Registration Card
included in this manual.
Before sending in tiffs card, please write these
numbers here:
Model Number
Serial Number
lJse these lltlI/lbel"s ill all}' correspolldellce of
service calls concerning }our cooktop.
[./you
received a
damaged
eooht@
Immediatelx contact the dealer (or builder)
that sold }ou the cooktop.
Save time
& money
Before }on request service, check the "Befi)re
you call for service" section in the back of this
n/alltlal,
It lists causes of minor operating problems that
}ou can correct }ourself.
[./you
;vteed
service
To obtain service, see the Consmner Services
page in the back of this manual.
We're proud of ore" service and want you to be
pleased. If ti)r some reason wm are not happy
with the service you receive, here are some
steps to follow for further help.
FIP, ST, contact the people who serviced yore"
appliance. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT, if wm are still not pleased, write all the
details--including yore" phone numbe_to:
Manager, Customer Relations
GE Appliances
Appliance Park
Louisville, KY 40225

IMPORTANT SAFETY INSTRUCTIONS
SA 37T PRECAUTIONS
IMPORTANT SAFETY
NOTICE:
* The California Safe Drinldng Water and Toxic
Enforcement Act requires the Governor of
Califln_nia to publish a list of substances
known to tile state to cause cancel; birth
detects or other reproductive hamL
and requires businesses to warn customers
of potential exposm'e to such substances.
, Gas appliances can cause minor exposure to
four of these substances, namely benzene,
carbon monoxide, flmnaldehyde and soot,
caused primarily by the incomplete
combustion of natm'al gas or I,P tuels.
Properly ac{justed burners, indicated by
a bhfish rather than a yellow flame, will
minimize incomplete combustion. Exposure
to these substances can be minimized further
by venting with all open window or using the
ventilation tim.
"When you get your cooktop, have the installer
show you the location of the gas shut-off valve
and how to shut it off if necessary.
, Have your cooktop installed a_ad properly
grounded by a qualified installer, in
accordance with tile installation instructions.
Any a@ustment and seswice should be
perflmned only by qualified gas range
installers 05"service technicians.
, Plug your cooktop into a 120=volt grounded
outlet only. Do not relno\ e tile round
grotmding prong ti_om the plug. If ill doubt
about the grotmding of the home electrical
system, it is yore" personal responsibility
and obligation to have an ungrounded
outlet replaced with a i)roperlDgrounded
3-prong outlet in accordance with the
National Electrical Code. Do not use an
extension cord with this appliance.
, Be sure all pacMng materiaJs are removed
from the cooktop befln'e operating it,
to prevent fire or smoke damage should
tile packing material ignite.
" Be sure your cooktop is correctly adjusted
by a qualified service technician or installer
for the type of gas (natura3 or LP) which is
to be used.
*Do not attempt to repair or replace any
part of your cooktop unless it is specifically
recommended in this manual. All other
servicing should be retbrred to a qualified
technician.
" Do not leave children alone or unattended
where a cooktop is hot or in operation.
They could be seriously bm'ned.
.CAUTION: Itemsofinterestto
children should not be stored in cabinets
above acooktop--children climbing on the
cooktop to reach items could be seriously
i*_jm'ed.
, Clean the cooktop with caution. If a wet
sponge or cloth is used to wipe spills on a
hot cooktop, be careful to avoid steam bm'ns.
, Do not clean the cooktop with flammable or
volatile cleaning fluids,
, Do not clean the cooktop when the appliance
is in use,
" Avoid scratching the cooktop with sharp
instrmnents, or with rings and other jewelry.
, Let the burner grates and other surfaces cool
before touching them or leaving them where
children can reach them.
"Never use the cooktop as a cutting board.
•Never wear loose-fitting or hanging garments
while using the appliance. Be careful when
reaching flw items stored in cabinets over the
cooktop. Flamnlable material could be ignited
it brought in contact with flame or hot
sm'thces and may cause severe burns.
, For your safety, never use your appliance for
warming or heating the room.
, Do not use water on grease fires. Never pick
up a flaming pan. Tm_n the controls off.
Smother a flaming pan on a surthce burner
by covering the pan completely with a
well-fitting lid, cookie sheet or flat tray. Llse
a multi-purl)ose dry chemical or timm-t)])e
fire extinguisher.
Flaming grease outside a pan can be put
out by coveting it with baking soda or, if
available, by using a multi-pin'pose dry
chemical or fl/am-t_pe fire extinguisher.
" Do not store flammahle materials near the
cooktop. Do not store or use gasoline or
other flammable vapors and liquids in the
vicinity of this or any other appliance.
*Do not let cooking grease or other flammable
materials accumulate on or near the cooktop.
, Never leave surface burners unattended at
high flame settings. Boilo\ ers cause smoking
and greasy spillovers that may catch on fire.
" Adjust surface burner fla_m size so it does
not extend beyond the edge of the cookware.
Excessive flame is hazardous.

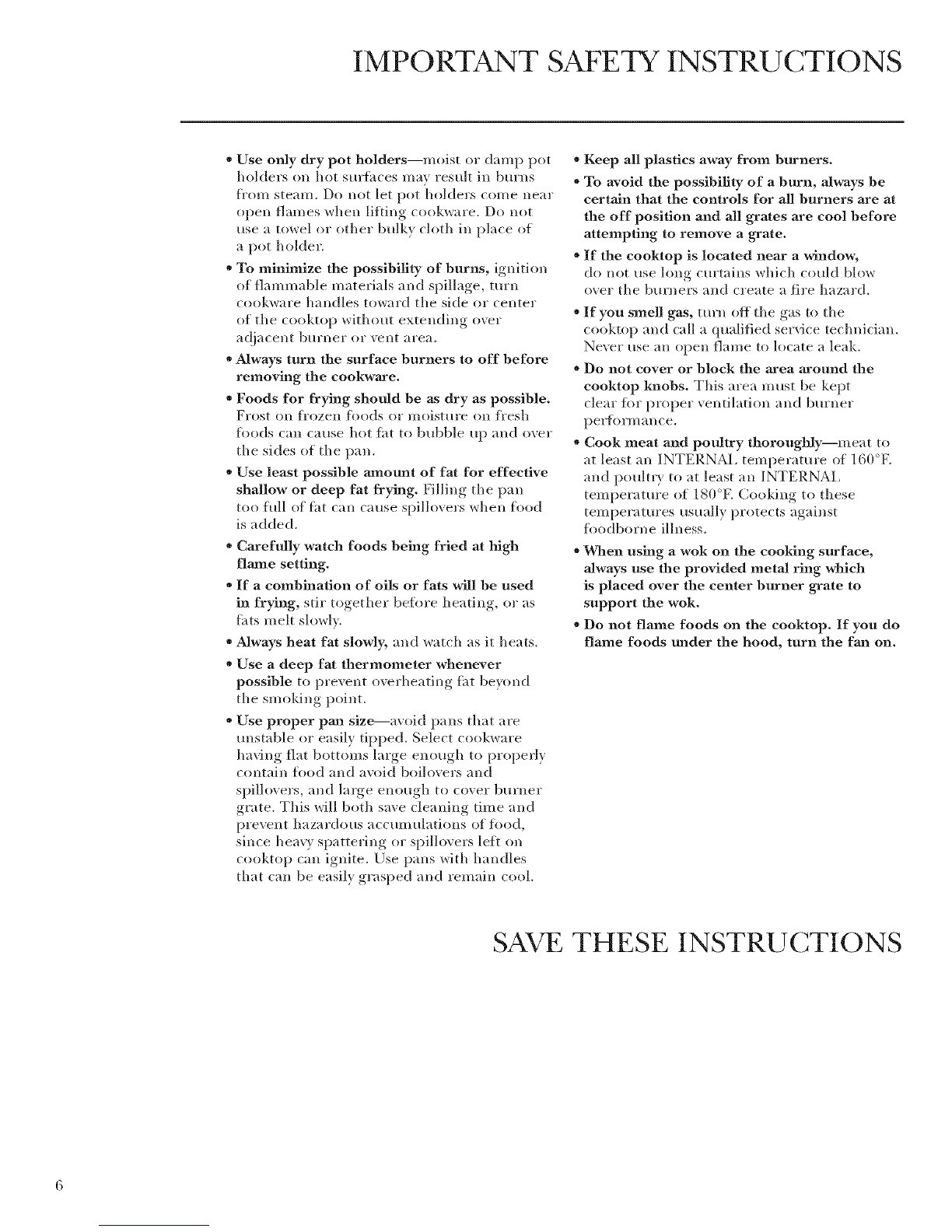

IMPORTANT SAFETY INSTRUCTIONS
" Use only dry pot holders--moist or damp pot
holders on hot surfhces may result in burns
fl'om steam. Do not let pot holders come near
open flames when litfing cookware. Do not
use a towel or ()tiler bulky cloth in place of
a pot hokler.
" To minimize the possibility of burns, ignition
of flammable materials and spillage, turn
cookware handles toward tile side or center
of tile cooktop without extending over
ac{jacent btlrner or vent area.
, Always turn the surface burners to off before
removing the cookwaxe.
, Foods for frying should be as dry as possible.
Frost (211 [l"ozen tk)o(ls or llloisttlre o21 t_'esh
foods call cause hot tht to bubble III) and over
tile sides of tile pan.
" Use least possible amount of fat for effective
shallow or deep fat frying, Filling the pan
too full of tht can cause spillovers when food
is added.
" Carefully watch foods being fried at high
flmne setting.
, If a combination of oils or fats will be used
in frying, stir together betore heating, or as
ti_ts melt slowly.
" Always heat fat slowly, and watch as it heats.
" Use a deep fat thermometer whenever
possible to prevent overheating _ht beyond
the smoking point.
, Use proper pan size--avoid pans that are
unstable or easily tipped. Select cookware
having fiat bottoms large enough to properly
contain fl_od and avoid boilovers and
spillovers, and large enough to cover burner
grate. This will both save cleaning time and
prevent hazardous accumulations of fl2od,
since hea W spattering or spillo\ ers let* on
cooktop call ignite. Use pans with handles
that can be easily grasped and remain cool.
" Keep all plastics away from burners.
* To avoid the possibility of a burn, always be
certain that the controls for all burners are at
the off position and all grates are cool before
attempting to remove a grate.
* If the cooktop is located near a window,
do IIot rise long curtains which cotlld blow
over the burners and create a fire hazard.
" If you smell gas, turn off tile gas to tile
cooktop and call a qualified service technician.
Never use an open flame to locate a leak.
, Do not cover or block the area around the
cooktop knobs, This area must be kept
clear tor proper ventilation and burner
pert)finance.
, Cook meat and poultry thoroughly--meat to
at least all INTERNAl, temperature of 160°K
and poult_ T to at least all INTERNAl,
temperature of 180°E Cooking to these
temperatm'es usually protects against
fl)odborne illness.
, When using a wok on the cooMng surface,
always use the provided metal ring which
is placed over the center burner grate to
support the wok.
,Do not flame foods on the cooktop. If you do
flame foods under the hood, turn the fan on.
SAVE THESE INSTRUCTIONS

INSTRUCTIONS DE SECURITE IMPORTANTES
PRECA U770NS DE SECURIT>
AVIS IMPORTANT DE
SECURITE•.
" La loi de l'6tat de Californie sur Feau potable
s6curis6e et Fapplication des lois sur les
produits toxiques exige que le Gouvernem" de
Califl)rnie publie une liste de substances qui,
selon les connaissances de l'Otat, causent le
cancer, les maladies cong6nitales on autre
16sion reproductive, et exige que les
entreprises avertissent leurs clients de leur
exposition potentielle a de telles substances.
,Les appaaeeils fi gaz peuvent causer une
exposition mineure a quatre de ces
substances, soit le benz&ne, le monoxvde de
carbone, le fbrmak|_hyde et la suie, st/rtotlt
5 cause de la combustion incompl&te du gaz
naturel ou des carburants PI.
Des brOleurs correctement ajust_s, ce qui est
indiqu(_ pa_ des flammes bleui_tres plut6t que
jaunes, r(_duiront au minilnum la combustion
incompl&te. L'exposition fi ces substances
peut 6tre r(4duite davantage ell a_rant avec
une fbnOtre ouverte ou en utilisant le
ventilateur d'aOration.
, Lorsque vous recevez votre cuisinibre,
demaaadez _tl'installatenr de vous montrer
l'emplacement de la soupape d'arr6t et la
fagon de la fermer en cas de besoin.
, Demandez a tm instaJlateur qualifi6 d'installer
et de mettre a la terre correctement votre
cuisini_re, confbrmg_ment an* instructions
d'installation. Tout ajustement ou entretien
dolt &tre eflbctuO settlement par des
installateurs de cuisini_re _'lgaz qualifi_s
ou des techniciens de seiMce,
" Branchez votre cnisinibre seulement snr une
prise de 120 volts raise fi la terre. Ne retirez
pas la broche ronde de raise ir_la terre de la
prise. En cas de doute concernant la raise ir_la
terre du svstbme 61ectfique de la r6sidence,
wins assumez la responsabilit_ et l'obligation
personnelles de taire remplacer toute prise
non raise i?_la terre par tree prise 5 trois
broches correctement raise fi la terre
conformg_ment au Code national de
l'_lectricit_. N'utilisez pas de rallonge de
ci_ble avec cet appareil.
, Assnrez-vous que tous les mat6riaux
d'emballage sont retir6s de la cuisini6re ax:mt
de la mettre ell marche, pour emp6cher les
dommages d'incendie et de fumg_e au cas (>t'l
le matg_riau d'emballage s'enflammerait.
,Assurez-vous que la cuisini&re est ajust6e
correctement par tm tecbnicien de service on
tm instaJlateur qualifi6 en fonction du type de
gaz (naturel ou PL) qtti sera utilis&
, N'essavez pas de r6paacer on de remplacer
toute piece de la cnisini6re sauf si cela est
sp6cifiqnement recommand6 dans ce manuel.
Tomes les autres actions de service doivent
&tre r_f&'_es _'lun technicien qualifi_.
, Ne laissez pas les enfaaats seuls on non
snrveill6s lorsqu'une cuisini_re est chaude
on en marche. Ils pom'raient &tre brfil6s
gri_vement.
ATTENTION •
" . Les articles
snscitaaat l'int6r6t des enfants ne doivent pas
6tre raaag6s dams les armoires au-dessns de la
cttisini_re-les enfimts grimpant sin" la
cuisini_re pore" saisir ces articles pourraient
6tre gri_vement blessg_s.
, Nettoyez la cttisinibre avec pr6caution. Si une
_ponge ou un chiflim mouill_ est utilis_ pour
essuyer les renversements sur une cuisinibre
chaude, fidtes attention d'6viter les brOlures
caus6es par la x;q)eur.
, Ne nettoyez pas la cuisinibre avec des
nettoyants inflammables ou volatils.
, Ne nettoyez pas la cuisini6re lorsqu'elle est
en marche,
, Evitez de raver la cuisinibre avec des
instruments pointus (m avec des bagues
ou d'autres b{joux.
,Laissez refroidir les grilles des brNeurs et les
autres surfaces avant de les toucher on de les
laisser la off les enfants peuvent les atteindre,
" N'utilisez jmnais la cuisini_re comme plaaache
fi d6couper,
• Ne portez jamais de v6tements lfiches on
a_nples lorsque vous utilisez cet appaaeeil,
Faites attention pour saisir des articles ranges
dans les armoires au-dessus de la cuisini&re.
I.a mati_re inflammable petit s'enflammer
si elle entre ell contact avec les flamn/es ou
les surthces chaudes et pent causer des
brfllures groves.
,Pour votre s6curit6, n'utilisez jaJmais votre
appaJ_eil pour chauffer ou r6chauffer la piece.

INSTRUCTIONS DE SECURITE IMPORTANTES
"N'utilisez pas de l'eau sur les incendies de
graisse. Ne saJsissez jamaJs tree po61e
enflaxnm&e. Arr&tez les contr61es. Etonttez les
flammes d'une poOle plac(_es sur t111brOleur
de surihce en la recouvrant enti&rement d'un
couvercle bien ajust(4, d'un plateau a gateau
ou d'un plateau plat. Utilisez t111extincteur 5
produit chimique secm ulti-nsages ou du type
;'! Ill o51sse.
Le graisse enflamm(4e _'ll'ext(4rieur d'tme
poOle pent 6tre &einte en la convrant de
bicarbonate de sonde otl, s'il est disponible,
en utilisant t111extincteur "l produit chimique
sec multi-usages ou du type a mousse.
, Ne stoekez pas de marl&re inflammable pr&s
de la euisini6re. Ne stockez pas et n'utilisez
}:)as d'essence ou d'autres vapem's ou liquides
inflammables 5 proximit(_ de cet appareil otl
de font atltre.
"Ne laissez pas la graisse de cnisson ou autre
marl&re inflammable s'accumuler sur ou pr&s
de la cuisini&re.
, Ne laissez jmnaJs les brffleurs de surface sans
surveillance lorsqn'tis sont r_gl_s pour des
flaammes hautes. Les d(4bordements excessits
causent de la fumg_e et des renversements
graisseux qui pourraient s'enflammer.
*Ajustez la taJlle des flmnmes des brflleurs de
surface pour qn'elles ne dOpassent pas du
bord du eonteneur. Les flammes excessives
sont dangereuses.
* Utilisez seulement des gants sees pour saisir
les plats--les gants 11umides otl monill& plac(4s
sur des sm'ihces chaudes peuvent causer des
brfilures dues a la vapem'. Ne mettez pas les
gants pr&s des flammes vives pour soulever
les plats. N'utilisez pas de serviette ou autre
chiflim encombrant au lieu des gants de plat.
* Pour r6dnire au minimum la possibilit&
de brfllnres, d'inflammation de mati&re
inflammable et de renversement, tournez les
poign6es des plats veFs le c6t6 on le centre
de la cuisinibre, sans les placer au-dessus d'un
b*fileur ac{jacent ou Hne ZOlle d'a(4ration.
*Arr6tez toujours les br_eurs de surface avant
de retirer les plats.
*Les aliments fi frire doivent 6tre aussi sees
qne possible. Le gel des aliments congelt_s ou
l'hmnidit_ des aliments fl'ais pent causer le
bouillonnement des matibres grasses chaudes
et leur dOversement sur le c6tO de la po61e.
*Utiliser la qnaaatit& de graisse la pins faible
possible pour la friture fi la po61e ou it la
friteuse. Si l'ustensile est trop rempli de
graisse, celle-ci pent &4border lorsque les
aliments sont ajoutOs.
* Observez avee soin les aliments frits sur
flaJmmes bautes.
, Si tm mblange d'hutie et de mati&res grasses
va 6tre utilis& pour la friture, m(qangez avant
le chauflhge ou _'lmesure que les mati_res
grasses timdent lentement.
* R6ehauffez toujours lentement les matibres
grasses et obse,xez lem" r(4chauflbment.
* Uttiisez un thermom&tre de friteuse lorsque
cela est possible possible pore" empOcher de
surchaufler les matibres grasses au-dela de
lem" point de fmn(4e.
* Uttiiser des po61es de taJlle appropri6e--
&itez les poOles qui sont instables ou qui
peuvent basculer thdlement. S(qecfionnez
des ustensiles de cuisine avec des tkmds
plats, suflisamment grlmds pour pomoir
correctement contenir les aliments et &'iter
les dObo_dements et les dOversements, et
suflisamment grlmds pour reconwir les grilles
des brt_dem_. Cela r(4duira le temps de netto}zlge
et empOchera les accumulations dlmgereuses
d'aliments, (4taut donn_ que les (4clabonssm'es
ou les dt_ve>ements importants laiss_s sur la
cuisinibre peuvent s'enflammer. Utilisez des
poOles avec des poign(4es qui petaent 6tre
fi_dlement saisies et qui restent fl'oides.
* Eloignez tons les mat&riaux en plastiqne
des brfileurs.
* Pour 6viter les risques de brfllures, assurez:vous
toujours que les contr61es des brffleurs sont it la
position d'arr6t et tomes les grilles sont froides
avaaat d'essayer de retirer tree grille.
* Si la cnisinii_re est sitube pri_s d'tme fen6tre,
11'utilisez pas de longs Hdeaux qui pore'talent
6tre pro jet(4s au-dessus des brOleurs et
constituer tm risque d'incendie.
* Si vous sentez du gaz, coupez l'arriv(% du gaz
a la cuisinibre et appelez t111technicien de
service qualifi& N'utilisezjamais de flamme
rive pour rechercher les fuites.
* Ne eouvrez pas et ne bloquez pas la zone
autour des boutons de la euisinii_re. Cette
zone dolt rester d(_gag(4e potn" assurer une
bonne ventilation et tree bonne perti)rmance
des brfileurs.
* Cnisez la viande et la volatile compli_tement--
la viande i?ttree temp(4rature INTERNE d'au
moins l(;0°F, et la volaille i_Jtree temp(4ratm'e
INTERNE d'au moins 180°K La cnisson aces
temp(_ratures protege en ggmg_ral contre les
maladies causOes par les aliments contaminOs.
*Lorsque vous uttiisez un wok sur la surface de
cuisson, uttiisez toujours l'anneau m&tallique
fourni qui est plae& sur la grille du brfileur
central pour supporter le wok.
* Ne pr6parez pas des mets flamb&s sur la
cttisini&re. Si vous pr6parez des mets flamb&s
sous la botte, mettez le venttiateur en marcbe.
CONSERVEZ CES INSTRUCTIONS

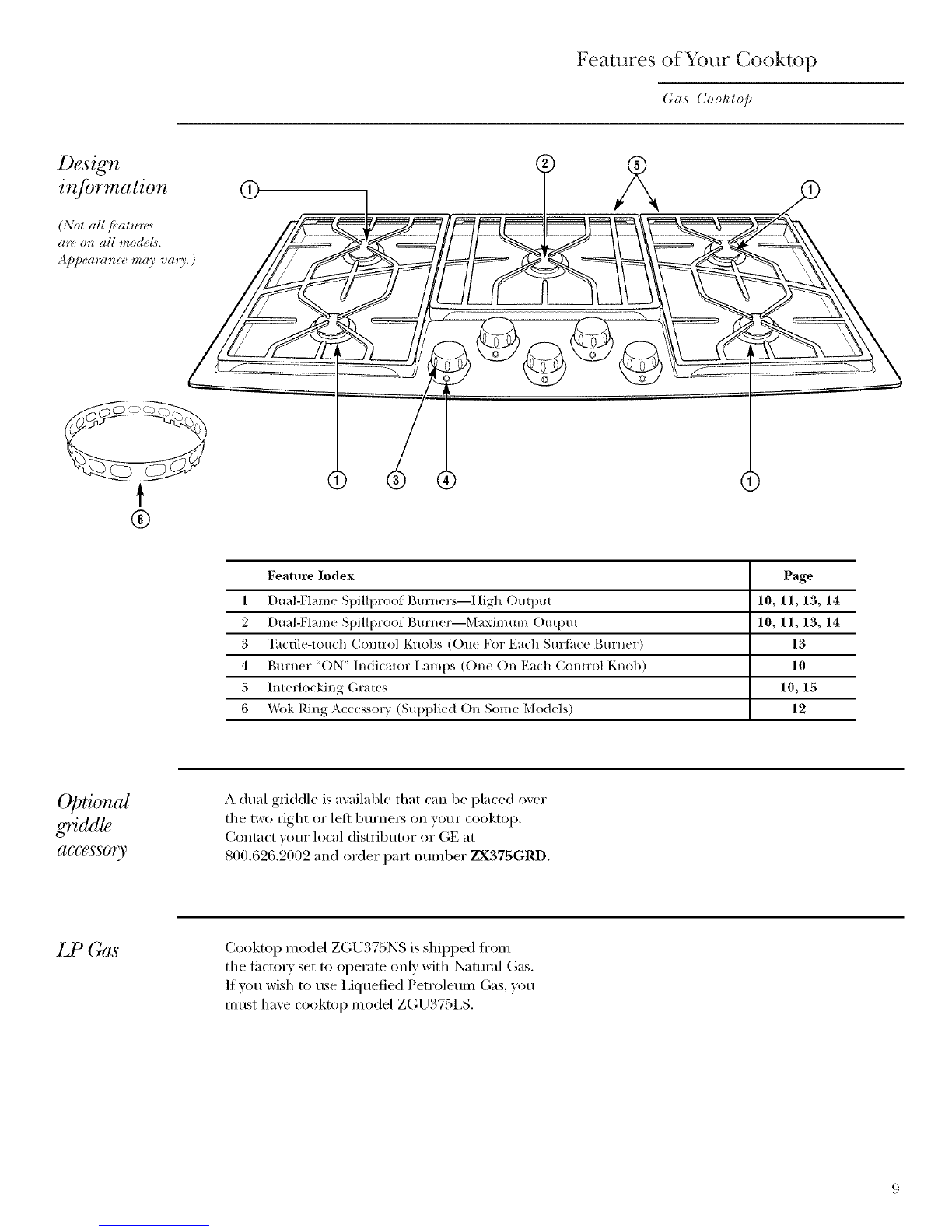

Features of Your Cooktop
Gas Cookto/)
Design
inJbrmation
®
©
Feature Index Page
1Dual-Flame Spillproof Burners--Itigh ()utput 10, 11, 13, 14
2 Dual-Flame Spillproof BurnetmMaximun_ ()utput 10, 11, 13, 14
3 Tactile-touch Control Knobs (()he For Each Sm:tiiee Bin:her) 13
4 Burner "()N" Indicator I,amps (()he ()n Each Control Knob) 10
5 Interlocking (',rates 10, 15
6 \_i)k Ring Accessory (Supplied ()n Some Models) 12
Optional A dual griddle is awfilable that can be placed over
the two fight or lett burnei_ on your cooktop,
Cont;_ct wmr local distributor or GE at
800.626.2002 and order part nulnber ZX375GRD.
lJ Gas Cooktop model ZGU375NS is shipped fl'om
the ti_ctorv set to operate only with Natural Gas.
If wm wish to use I,iquefied Petroleuln Gas, you
nlust have cooktop model ZGU375I,S.

Using Your Cooktop
Gas Cookto/)
Electric
igrzitiorz
& relight
Your sur_hce burners are lit by electric ignition,
eliminating tile need tot standing pilot lights
with constantly burning flames.
All five igniters make clicking sounds and si)ark
even when only a single burner is being turned
on. Do not touch any of the bm'ners when the
igniters are clicking.
The burners on this cooktop relight
automatically if the flame goes out. This
heli)s prevent the inconvenience of having
to manually relight a burner.
Occasionally, the burners may spark if excess
wind or dratt blows the flame away i_'om the
btlrner's flame sensor.
All of the burner ignite_ spark while a burner
is relighting.
In case of a power outage, you can light the
surthce burners on your cooktop with a match.
Hold a lighted match to the burner, then turn
the knob to the HIGH position. Use extreme
caution when lighting burners this way.
Sur_hce btu'ners in use when an electrical power
ihilure occurs will continue to operate normall>
Push the control knob down and turn it
counterclockwise to the desired position f]'om
HI to LO or simmer (SIM).
After the burner ignites, turn the knob in
either direction to at!just the flame size.
To turn a burner off, ttu'n the knob clockwise,
as lhr as it will go, to the OFF position.
, All of the burners can be used _br both
general cooking and simmering. The center
burner is tile maximum output btu'ner fi)r
larger pans or f_lst boiling operations.
" Do not operate a burner fox" an extended
period of time without cookware on the
grate. The finish on the grate may chip
without cookware to absorb the heat.
, Be sure the bm'ners and grates are cool
before you place your hand, a pot holder,
cleaning cloths or other materials on them.
" For your convenience, the indicator lamp in
the bezel for each knob verifies the burner
is "ON".
" Be sure you turn the control knob to "OFF"
when you finish cooking.
How to
seh?ct
Jlame size
Watch the flalne, not the knob, as vou
reduce heat.
The flaxne size on a gas burner should inatch
the cookware you are using.
FOR SAFE HANDI.ING OF COOKX4_RE,
NEVER I,ET THE FIAME EXTEND UP THE
SIDES OF THE COOKX4_I_,E. Any flame larger
than the bottom of the cookware is wasted aim
only serves to heat the handle. NOTE: The center nlaxinmm output
burner has an extra large flalne. Use 10"
or larger dialneter cookware when using
high heat settings,
10
