GE GSD1000G User manual

ge.com
ADW1000
GSD1000 Series
GSD2000 Series
GSD3100 Series
GSD3200 Series
GSD3900 Series
GSD4000 Series
GSM2100
HDA1000 Series
HDA2000 Series
HDA3000 Series
Owner’s Manual
Dishwashers
165D4700P349 49-55030 10-06 JR
Safety nstructions . . . . . . . . 2, 3
Operating nstructions
Care and Cleaning . . . . . . . . . . . . . .12
Control Panels . . . . . . . . . . . . . . . . . . .4
Control Settings . . . . . . . . . . . . . . 5–7

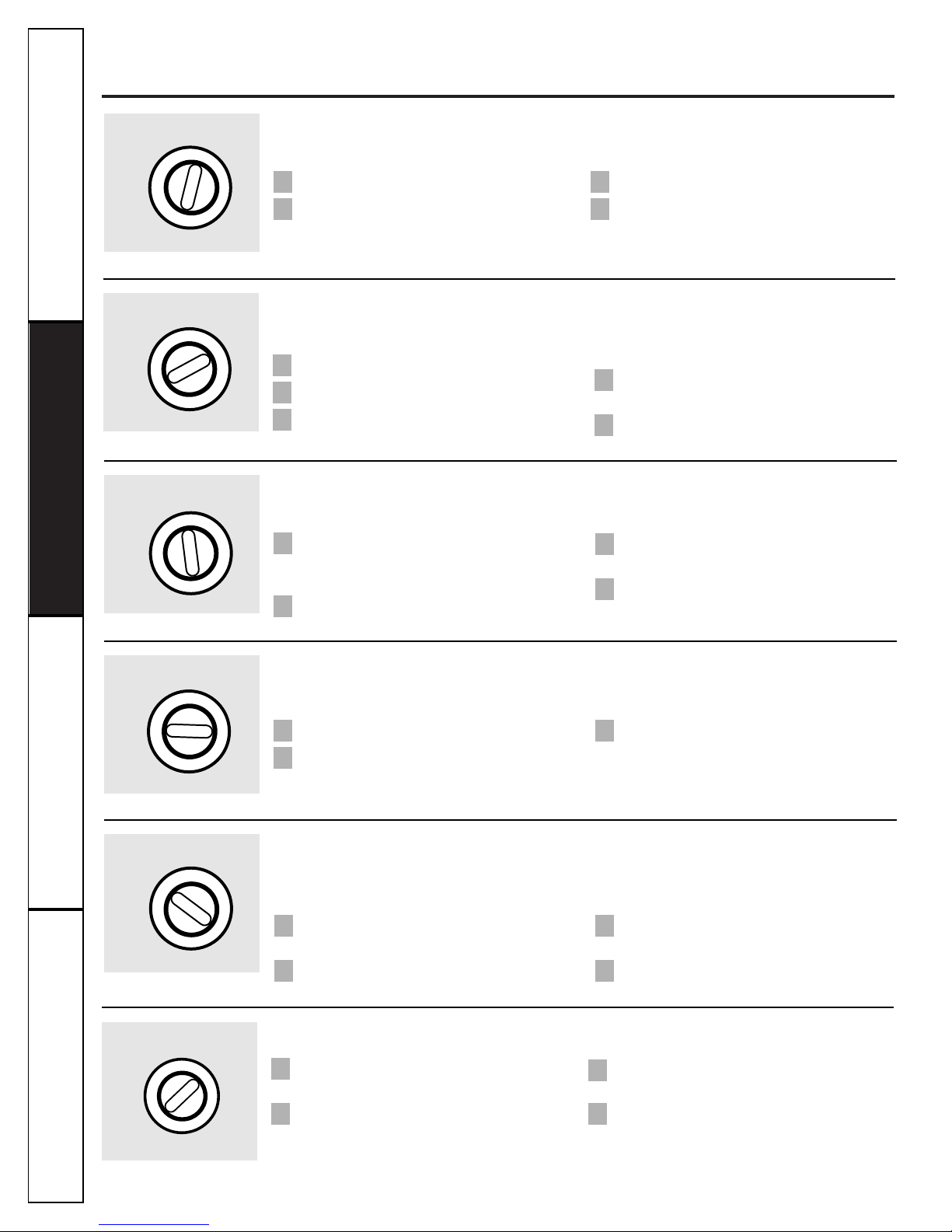

Dial Cycles . . . . . . . . . . . . . . . . . . . . . .8
Flashing Display ights . . . . . . . . . . .9
oading the
Dishwasher Racks . . . . . . . . . . . . . .11
Optional Accessories . . . . . . . . . . . .12
Using the Dishwasher . . . . . . . .9, 10

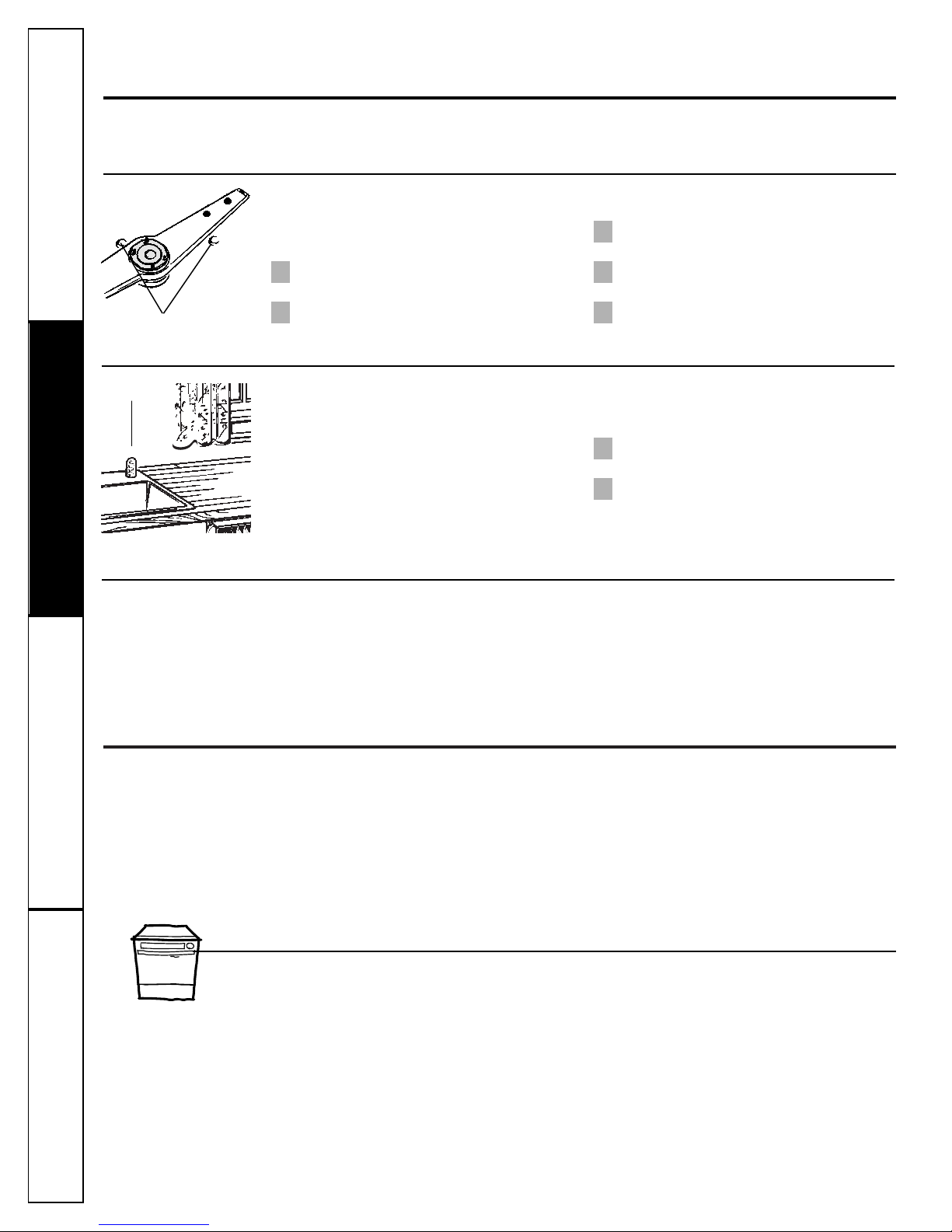

Troubleshooting Tips . . . 13, 14
Consumer Support
Consumer Support . . . . . Back Cover
Warranty . . . . . . . . . . . . . . . . . . . . . 15
Write the model and serial
numbers here:
Model #____________________
Serial # ____________________
You can find them on a label on the
tub wall just inside the door.

2
Operating nstructions Safety nstructionsConsumer Support Troubleshooting Tips

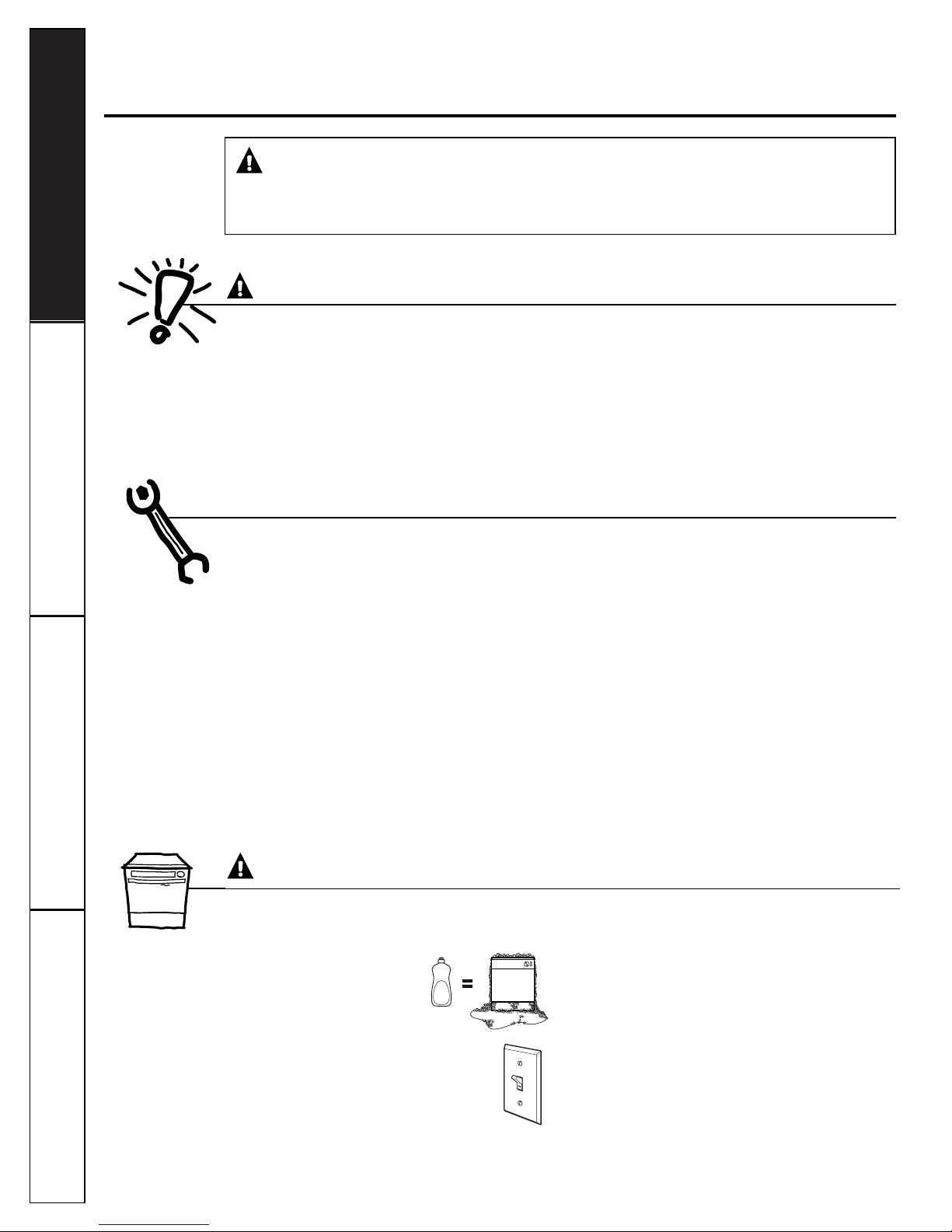

MPORTANT SAFETY NFORMAT ON.
READ ALL NSTRUCT ONS BEFORE US NG —
SAVE THESE NSTRUCT ONS
WARN NG!
For your safety, the information in this manual must be followed to minimize the risk of fire
or explosion, electric shock, and to prevent property damage, personal injury, or death.
WATER HEATER SAFETY
PROPER INSTA ATION AND MAINTENANCE
This dishwasher must be properly installed and located in accordance with the Installation
Instructions before it is used. If you did not receive an Installation Instructions sheet with
your dishwasher, you can receive one by visiting our website at ge.com.
■Contents washed in Anti-bacterial mode, if
available, may be hot to the touch. Use care
before handling.
■Using a detergent that is
not specifically designed
for dishwashers will cause
the dishwasher to fill with
suds.
■If your dishwasher is connected to a
wall switch, ensure that the switch is
on prior to use.
■On dishwashers with electronic controls,
if you choose to turn the wall switch off
between wash cycles, allow 5-10
seconds after turning the switch on before
touching START/RESET to allow the control to
reboot.
■Non-Dishware Items: Do not wash items such
as electronic air cleaner filters, furnace filters and
paint brushes in your dishwasher. Damage to
dishwasher and discoloration or staining of
dishwasher may result.
■Close supervision is necessary if this appliance
is used by or near children.
■oad light, plastic items so they will not
become dislodged and drop to the bottom
of the dishwasher—they might come into
contact with the heating element and be
damaged.
■Connect to a grounded metal, permanent wiring
system; or run an equipment-grounding
conductor with the circuit conductors and
connect to the equipment-grounding terminal
or lead of the appliance.
■Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded.
■Dispose of discarded appliances and shipping
or packing material properly.
■Do not attempt to repair or replace any part
of your dishwasher unless it is specifically
recommended in this manual. All other servicing
should be referred to a qualified technician.
■To minimize the possibility of electric shock,
disconnect this appliance from the power supply
before attempting any maintenance.
NOTE: Turning the dishwasher off does not
disconnect the appliance from the power supply.
We recommend having a qualified technician
service your appliance.
WARN NG!
CAUT ON: To prevent minor injury or property damage
Under certain conditions hydrogen gas may be produced in a water heater that has not been used
for two weeks or more. HYDROGEN GAS S EXPLOS VE.
If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury
by turning on all hot water faucets and allow them to run for several minutes. Do this before using any
electrical appliance which is connected to the hot water system. This simple procedure will allow any built-
up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance
during this process.

Consumer SupportTroubleshooting TipsOperating nstructionsSafety nstructions
3
PROPER DISPOSA OF THE DISHWASHER
Junked or abandoned dishwashers are
dangerous…even if they will sit for “just a few
days.” If you are getting rid of your old
dishwasher, please follow the instructions below
to help prevent accidents.
Before You Throw Away Your Old
Dishwasher:
■Take off the door of the washing compartment
or remove the door latch keeper (as shown).
WARN NG! R SK OF CH LD ENTRAPMENT
Door latch keeper
ge.com
READ AND FO OW THIS SAFETY INFORMATION
CAREFU Y.
SAVE THESE NSTRUCT ONS
■Use this appliance only for its intended purpose
as described in this Owner's Manual.
■Use only powder, tabs, liquid detergents or rinse
agents recommended for use in a dishwasher and
keep them out of the reach of children. Cascade®,
Cascade®Complete and Electrasol®Automatic
Dishwashing Detergents, and Jet-Dry®and
Cascade Rinse Aid®rinse agents have been
approved for use in all GE dishwashers.
■ocate sharp items so that they are not likely
to damage the door seal.
■oad sharp knives with the handles up to reduce
the risk of cut-type injuries.
■Do not wash plastic items unless marked
dishwasher safe or the equivalent. For plastic
items not so marked, check the manufacturer's
recommendations.
■Do not touch the heating element during or
immediately after use.
■Do not operate your dishwasher unless all
enclosure panels are properly in place.
■Do not tamper with controls.
■Do not abuse, sit on or stand on the door or dish
rack of the dishwasher.
■Do not allow children to play around dishwasher
when opening or closing door due to the possibility
of small fingers being pinched in door.
■Do not discard a dishwasher without first removing
the door of the washing compartment.
■Do not store or use combustible materials, gasoline
or other flammable vapors and liquids in the
vicinity of this or any other appliance.
■Do not allow children to play with, on or inside this
appliance or any discarded appliance.
WARN NG! When using your dishwasher, follow basic precautions,
including the following:

Operating nstructions Safety nstructions
Consumer Support Troubleshooting Tips
4
About the dishwasher control panel.
You can locate your model number on the tub wall just inside the door. Throughout this manual,
features and appearance may vary from your model.
HEATED
DRY OFF
HEATED
DRY ON
OFF
HEAVY WASH
RINSE ONLY (HEATED DRY OFF)
DRYING OR
PLATE WARMER
(HEATED DRY ON)
NORMAL WASH
SHORT
WASH
HOT WASH OPTION
OR
HOT START OPTION
WATER SAVER
OFF
START
RINSE ONLY (HEATED DRY OFF)
PLATE WARMER
(HEATED DRY ON)
SHORT WASH
HOT PRE-WASH OPTION
OR
HOT START OPTION WATER SAVER OR LIGHT WASH
OFF
START OR POTS & PANS STAR
T
HEAVY/NORMAL START
START DELAY
(HRS)
(HEATED DRY OFF) RINSE ONLY
PLATE WARMER
(HEATED DRY ON)
SHORT
WASH
HOT PRE-WASH OPTION
OR
HOT START OPTION
WATER SAVER
CLEAN
OPTIONSCYCLE SELECTIONS
START
RESET
DELAY
2 4 8
HOURS
LOCK
(2 TIMES)
HEATED
DRY
HI TEMP
WASH
HI TEMP
RINSE
RINSE
ONLY
CHINA
CRYSTAL
LIGHT
WASH
NORMAL
POTS
& PANS
Please match the control panel for your unit to a similar control panel below.

Consumer SupportTroubleshooting TipsOperating nstructionsSafety nstructions
5
Cycles
POTS & PANS/ For heavily soiled dishes or cookware with dried-on or baked-on soils. Everyday dishes may be included.
HEAVY WASH This cycle will not remove burned-on foods.
(on some models)
NORMAL/ For loads of everyday dishes, glasses and cookware with medium soils. NOTE: Many dishes have lighter
NORMAL WASH soil than normal. Choosing a cycle other than NORMAL WASH will save energy and water.
SHORT WASH For quickly washing loads of everyday dishes with medium soils
that have not dried on, such as loads
(on some models) consisting mostly of glasses.
WATER SAVER For dishes with light soils.
LI HT WASH
(on some models)
RINSE ONLY For rinsing partial loads that will be washed later. Do not use detergent.
DRYIN For warming clean dishes and serving plates. This cycle will take approximately 30 minutes.
PLATE WARMER
HOT PREWASH Preheats wash water to the correct temperature.
HOT START
CHINA CRYSTAL For lightly soiled china and crystal.
(on some models)
Start (Models with a Dial)
Slowly turn t he Dial to the START or ON position, or the selected cycle. Don’t turn it past the START, ON
or cycle position, or you could accidentally miss a rinse.
There is a time delay between start-up and water fill so you will not hear any wash action right away.
■atch the door to begin the cycle.
Control Settings
ge.com
Options
The light above the selected pad will be ON to indicate which OPT ON has been selected.
H TEMP Turns on the heater in all postrinse and final rinse cycles to help prevent spotting on dishware. This
R NSE option may be turned ON or OFF during the wash cycle.
(on some models)
H TEMP Energizes the heater to boost water temperature in all prewash and main wash fill cycles. Recommended
WASH for use with heavily soiled dishes. Option may be turned ON or OFF during the wash cycle.
HEATED DRY Shuts off the drying heat option. Dishes air dry naturally and energy is saved.
OFF
HEATED DRY Turns the heater on for fast drying. This cycle will extend the time to your wash cycle by 30 minutes.
ON NOTE: Cannot be selected with R NSE ONLY cycle.
LOCK When the LOCK pad is touched twice within 3 seconds, all pads become inoperative. You can lock the controls to
(on some models) prevent any selections from being made. Or you can lock the controls after you have started a cycle or selected
DELAY START so the cycle or DELAY START is not interrupted.
Children cannot accidentally start dishwasher by touching pads with this option selected.
To unlock the dishwasher after it has been locked, touch the LOCK pad twice within 3 seconds. The light above
the LOCK pad will turn off.
DELAY HOURS You can delay the start of a wash cycle for up to 8 hours. Press the DELAY HOURS pad to choose the
(on some models) number of hours you want to delay the start of the cycle, then press START/RESET. The machine will count
down and start automatically
at the correct time. Pressing START/RESET a second time will cancel the
DELAY HOURS selection.
NOTE: If you forget to fully close the door, a reminder signal will beep until you do so.
RESET To change a cycle after washing starts, touch the START/RESET pad to cancel the cycle. After water is
(on some models) pumped out and the motor stops, you can reprogram and restart the dishwasher. This will take
approximately 90 seconds.
NOTE: On GSD3900 model, the light above the selected pad will be ON to indicate which OPTION has been selected.

6
Customer Service Troubleshooting Tips Operating nstructions Safety nstructions
nstallation
nstructions
Customer Service Troubleshooting Tips nstallation
nstructions Safety nstructions
Operating nstructions
Customer Service Troubleshooting Tips nstallation
nstructions Safety nstructions
Operating nstructions
Start (Models without a Dial)
Close and latch the door. Touch the START/RESET pad to begin the cycle. Water fill begins and
approximately 60 seconds later the wash action begins.
NOTE: The dishwasher remembers your last cycle so you don’t have to reprogram each time.
When the dishwasher is loaded and the door latch is in the locked position, the control panel lights
will be ON and display the last settings you selected.
If you don’t want to change any of the settings, simply touch the START/RESET pad to begin
the cycle.
Also, if a power failure occurs, NORMAL and HEATED DRY will automatically be programmed. Make
any new selections and touch the START/RESET pad to begin the cycle.
Clean (Model GSD3900 only)
This light is illuminated when a wash cycle is complete. The light will stay ON until the door is opened.
Control Settings
About the dishwasher control panel.

7
Cycle Chart
Model Cycle Water Usage (gal.) Cycle Time (min.)
GSD1000 Hot Start Option13.4 26
GSD1100 Heavy Wash 9.9 71
Normal Wash .4 66
Rinse Only 4.1 13
Drying/Plate Warmer 0.0 30
HDA1000 Hot PreWash Option13.4 26
HDA1200 Normal Wash .4 71
ADW1000 Drying/Plate Warmer 0.0 30
Rinse Only 3.9 13
GSD1200 Hot Start Option13.4 26
Heavy Wash 9.9 71
Normal Wash .4 66
Short Wash 6.9 62
Rinse Only 4.1 13
Drying/Plate Warmer 0.0 30
GSD2000 Hot Start Option13.4 26
GSD2001 Heavy Wash 9.2 71
Normal Wash 6.5 62
Short Wash 5.2 5
Rinse Only 3.9 13
Drying/Plate Warmer 0.0 27
HDA2000 Hot PreWash Option13.4 26
Heavy Wash 9.2 71
Normal Wash 6.5 62
Water Saver 5.2 5
Rinse Only 3.9 13
Drying/Plate Warmer 0.0 27
HDA3700 Hot PreWash Option11.7 31
Pots & Pans 9.0 66
Heavy Wash 7.7 62
Normal Wash* 6. 62
Water Saver* 5.0 5
Rinse Only* 2.5 14
Drying/Plate Warmer 0.0 29
GSD2200 Hot Start Option13.4 26
GSD2201 Pots & Pans 9.2 71
GSM2100 Normal Wash* 6.3 71
Short Wash* 3. 5
Rinse Only* 2.5 13
Drying/Plate Warmer 0.0 27
GSD2600 Hot Start Option13.4 26
HDA3400 Heavy Wash 9.2 71
Normal Wash* 6.3 71
Light Wash/Water Saver* 5.0 62
Rinse Only* 2.5 13
Drying/Plate Warmer 0.0 27
GSD3100 Series Hot Start Option13.4 26
Pots & Pans 9.2 71
Heavy Wash 6.3 71
Normal Wash* 5.0 62
Rinse Only* 2.5 13
Drying/Plate Warmer 0.0 27
GSD3200 Series Hot Start Option13.4 26
Heavy Wash 10.9 61
Normal Wash* 6. 61
Short Wash* 6.2 4
Rinse Only* 4.5 13
Drying/Plate Warmer 0.0 30
GSD4000 Series Hot Start Option11.7 33
Pots & Pans 10.9 71
Heavy Wash 9.3 71
Normal Wash* 6. 71
China/Crystal 9.3 71
Short Wash* 6.2 5
Rinse Only*/Rinse & Hold 30 13
Drying/Plate Warmer 0.0 30
GSD3900 Series Pots & Pans 11.5 66
Normal Wash 7.0 5
Light Wash .2 52
China/Crystal .2 36
Rinse Only 1.6 4
* Normal Wash button should be pushed to run this cycle.
1Hot Start Option adds water amount and cycle time shown when selected.
Control Settings
ge.com
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
NOTE: Not all models have every cycle listed.

About the dial cycles.
Operating nstructions Safety nstructions
Consumer Support Troubleshooting Tips
8
Rinse Only
For rinsing partial loads that will be washed later. Do not use detergent.
Make sure HEATED DRY is not selected. Slowly turn the Dial to R NSE ONLY.
Be sure the door is unlatched. atch the door to start the cycle.
42
31
SHORT
WASH
START DELAY
(HRS)
PLATE WARMER
(HEATED DRY ON)
START
HOT START
OPTION
(HEATED DRY OFF) RINSE ONLY
OFF
2
4
3
5
6
1
Be sure the door is unlatched.
Slowly turn the Dial to SHORT WASH,
L GHT WASH or WATER SAVER.
atch the door to start the cycle.
3
2
1
Plate Warmer or Drying
oad clean dishware to be warmed.
Select HEATED DRY ON.
Be sure the door is unlatched.
Slowly turn the Dial to PLATE WARMER or
DRY NG.
atch the door to start the cycle.
5
4
3
2
1
SHORT
WASH
START DELAY
(HRS)
PLATE WARMER
(HEATED DRY ON)
START
HOT START
OPTION
(HEATED DRY OFF) RINSE ONLY
OFF
2
4
3
5
6
1
SHORT
WASH
START DELAY
(HRS)
PLATE WARMER
(HEATED DRY ON)
START
HOT START
OPTION
(HEATED DRY OFF) RINSE ONLY
OFF
2
4
3
5
6
1
Start Delay (on some models)
The START DELAY will allow you to delay the start time of any cycle not on the Dial automatically
for up to either 5 or 6 hours (depending on model).
SHORT
WASH
START DELAY
(HRS)
PLATE WARMER
(HEATED DRY ON)
START
HOT START
OPTION
(HEATED DRY OFF) RINSE ONLY
OFF
2
4
3
5
6
1
Hot Start or Hot Prestart Option
Preheats wash water to the correct temperature.
Select the HOT START or HOT PRESTART
cycle and any other option on the push
button pad.
Be sure the door is unlatched.
Slowly turn the Dial to HOT START or
HOT PRESTART.
atch the door to start the cycle.
4
3
2
1
SHORT
WASH
START DELAY
(HRS)
PLATE WARMER
(HEATED DRY ON)
START
HOT START
OPTION
(HEATED DRY OFF) RINSE ONLY
OFF
2
4
3
5
6
1
For warming clean dishes and serving plates. This cycle will take approximately 32 minutes.
Short Wash or Light Wash or Water Saver
For quickly washing loads of everyday dishes with light to medium soils that have not dried on.
Heavy or Normal
Be sure the door is unlatched. Select any options.
Slowly turn the Dial to the cycle you want. atch the door to start the cycle.
Don’t turn past this position or you could
accidentally miss a rinse.
42
3
1
HEAVY/NORMAL
START
LIGHT WASH
START
START DELAY
(HRS)
PLATE WARMER
(HEATED DRY ON)
POTS & PANS
START
HOT START
OPTION
(HEATED DRY OFF) RINSE ONLY
OFF
2
4
3
5
6
1
Be sure the door is unlatched.
Select the wash cycle and option you want.
Slowly turn the Dial to the desired time.
The CYCLE ON light will come on.
atch the door to start the cycle.
4
3
2
1

9
Flashing display lights (model GSD3900 only). ge.com
Lights What t Means What To Do
This is normal. Allow the dishwasher to drain and reset before you start a new wash cycle.
The START/RESET pad
has been pressed.
Control Error Press the START/RESET pad to turn off the beeper. If the CLEAN light continues
to flash, call for service.
Control Error Press the START/RESET pad to turn off the beeper and the dishwasher will
attempt to reset. Then restart the wash cycle. If this error continues, call
for service.
NORMAL
PLUS A
BEEP NG
SOUND
RESET
STARTSTART
CLEANCLEAN
PLUS A
BEEP NG
SOUND
Using the Dishwasher Door (model GSD3900 only)
The door must be closed and locked into place to select a LOAD SELECT ON or an OPT ON.
If the door is opened during a cycle and left open, the dishwasher will beep once every minute until the door
is closed and latched into place.
2
1
Consumer SupportTroubleshooting TipsOperating nstructionsSafety nstructions

Filling the Dispenser
Fill the rinse agent dispenser until it reaches the bottom of
lip inside the opening. Replace cap.
To check if rinse agent is needed, remove the cap and look
into the dispenser.
A full dispenser should last about one month.
If rinse agent spills, wipe up the excess.
Check the Water Temperature
The entering water must be at least 120°F and not
more than 150°F, for effective cleaning and to
prevent dish damage. Check the water temperature
with a candy or meat thermometer. Turn on the hot
water faucet nearest the dishwasher, place
the thermometer in a glass and let the water run
continuously into the glass until the temperature
stops rising.
Use Jet-Dry®Rinse Agent
Proper Use of Detergent
Jet-Dry®or Cascade Crystal Clear®rinse agents remove spots and prevent new film buildup on your dishes,
glasses, flatware, cookware and plastic.
Use only detergent specifically made for use in
dishwashers. Cascade®and Electrasol®Automatic
Dishwashing Detergents have been approved for use
in all GE dishwashers. Keep your detergent fresh and
dry. Don’t put powder detergent into the dispenser
until you’re ready to wash dishes.
The amount of detergent to use depends on whether
your water is hard or soft. With hard water, you need
extra detergent. With soft water, you need less
detergent.
Protect your dishes and dishwasher by contacting
your water department and asking how hard your
water is. Twelve or more grains is extremely hard
water. A water softener is recommended. Without it,
lime can build up in the water valve, which could
stick while open and cause flooding. Too much
detergent with soft water can cause a permanent
cloudiness of glassware, called etching.
Use the information in the table below as a guideline
to determine the amount of automatic dishwasher
detergent to place in the dispenser.
You’ll find two detergent dispensers on the inside door
of your dishwasher. All wash cycles require detergent
in the main cup. When using automatic dishwashing
detergent tabs, simply place one tab in the main cup
and close.
Be sure the Dial is OFF before adding detergent.
Otherwise, the
detergent cup will not close and latch
properly.
Add detergent then close the main cup.
NOTE: To open detergent cup after it has been
closed, simply turn the detergent cup handle
counterclockwise until it releases. A snapping sound
may be heard.
DO NOT USE HAND D SH DETERGENT
NOTE: Using a detergent that is not specifically
designed for dishwashers will cause the dishwasher
to fill with suds. During operation, these suds will spill
out of the dishwasher vents, covering the kitchen floor
and making the floor wet.
Because so many detergent containers look alike,
store the dishwasher detergent in a separate space
from all other cleaners. Show anyone who may use
the dishwasher the correct detergent and where it
is stored.
While there will be no lasting damage to the
dishwasher, your dishes will not get clean using
a dishwashing detergent that is not formulated
to work with dishwashers.
10
Using the dishwasher.
Detergent Cups to Fill
Fill to 1/3 of main cup
Fill to 2/3 of main cup
Fill main cup
Fill main cup and open cup
Number
of Grains
ess than 4
4 to 8
8 to 12
Greater than 12
Operating nstructions Safety nstructions
Consumer Support Troubleshooting Tips
Open cup
Main cup

Forget to Add a Dish?
A forgotten dish can be added any time before the main wash.
Push the door latch to the left.
Once the water calms, open the door. Steam may rise out of the dishwasher.
Add forgotten dishes.
Close the door and push the latch to the far right.
4
3
2
1
Loading the dishwasher racks. ge.com
11
Upper Rack
The upper rack is for glasses, cups and
saucers. Cups and glasses fit best along
the sides. This is also a secure place for
dishwasher-safe plastics. The upper rack is
good for all kinds of odd-shaped utensils.
Saucepans, mixing bowls and other items
should be placed face down.
Secure larger dishwasher-safe plastics over
two fingers when possible.
Make sure small plastic items are secure so
they can’t fall onto the heating element.
Don’t block it or load tall things
next to it.
Also, be careful not to let a
portion of an item such as a pot
or dish handle extend through
the bottom rack. This could
block the wash arm and cause
poor washing results.
Wash Tower
Keep the center area clear in the lower
rack.
The wash tower rises through the center
of the lower rack during the wash and
rinse portions of the cycle.
Lower Rack
When loading the lower rack, do not load
large platters or trays in the front right
corner. They may prevent detergent from
circulating during the wash cycle.
The lower rack is best used for plates,
saucers and cookware. arge items such as
broiler pans and racks should go along the
sides. oad platters, pots and bowls along
the sides, in corners or in the back. The
soiled side of items should face the center
of the rack.
Be sure items don’t fall through rack and
block rotation of the spray arm.
Silverware Basket
Put flatware in the removable basket with fork
and knife handles up to protect your hands.
Place spoons in the basket with handles down.
Mix knives, forks and spoons so they don’t
nest together. Distribute evenly. Small plastic
items, such as measuring spoons and lids
from small containers, should go in the
bottom of the silverware basket with
silverware on top.
For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware
baskets may vary from your model.
Don’t let any
item extend
through
bottom.
Consumer SupportTroubleshooting TipsOperating nstructionsSafety nstructions

About optional accessories.
You can change the door and lower access
panel appearance of your dishwasher by
ordering one of these optional accessories:
■Color Panels
■1/4” Wood Panel Trim Kit
■3/4” Trimless Wood Panel Kit
These accessories are available at extra cost
(VISA, MasterCard or Discover
cards accepted)
by calling 800.626.2002.
Specify accessory number when ordering.
Caring for the dishwasher.
To clean the control panel, use a lightly dampened cloth, then dry thoroughly. To clean the exterior, use a good appliance
polish. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
If your dishwasher is left in an unheated place
during the winter, ask a service technician to:
Cut off electrical power to the dishwasher.
Remove fuses or trip circuit breaker.
Turn off the water supply and disconnect the
water inlet line from the water valve.
Drain water from the inlet line and water
valve. (Use a pan to catch the water.)
Reconnect the water inlet line to the
water valve.
Remove the plastic sump cover in the tub
bottom and use a sponge to soak up water
in the rubber boot.
5
4
3
2
1
Sump cover screws
An air gap protects your dishwasher against
water backing up into it if a drain clogs.
The air gap is not a part of the dishwasher.
It is not covered by your warranty. Not all
plumbing codes require air gaps, so you may
not have one.
The air gap is easy to clean.
Turn off the dishwasher and lift off the
chrome cover.
Unscrew the plastic cap and clean with
a toothpick.
2
1
Check the air gap any time your
dishwasher isn’t draining well.
Air gap Does Your Dishwasher Have an Air Gap?
Protect Against Freezing
Operating nstructions Safety nstructions
Consumer Support Troubleshooting Tips
12
The stainless steel panels can be cleaned
with Stainless Steel Magic or a similar
product using a clean, soft cloth.
You can order Stainless Steel Magic
#WX10X15 through GE Parts by calling
800.626.2002.
Stainless Steel Panels
Descriptions of Optional Accessories
Wood panel trim kit—This accessory contains
trim and instructions for you to supply and install
a 1 ⁄ 4″thick decorative wood door and lower
access panel:
■GPF325B (Black) ■GPF325W (White)
■GPF325C (Bisque)
NOTE: The GPF100 dishwasher door spring kit
must also be ordered and installed when the
door panel weighs four lbs. or more.
For GSD3900, GSD4000 Series and GSD4200 Series
Models:
■GPF425B (Black) ■GPF425W (White)
■GPF425C (Bisque) ■GPF475
Trimless wood panel kit—This accessory
contains parts and instructions for you to supply
and install a 3 ⁄ 4″thick decorative wood door and
lower access panel:
■GPF375
NOTE: The GPF100 dishwasher door spring kit
will be included with the trimless wood panel kit
and must be installed with it.

Problem Possible Causes What To Do
Dishwasher won’t run Fuse is blown, or the • Replace fuse or reset circuit breaker. Remove any other appliances
circuit breaker tripped from the circuit.
•Try resetting the START/RESET pad.
Power is turned off • In some installations, power to the dishwasher is provided through a wall
switch, often located next to the disposer switch. Make sure it is on.
Noise Some of the sounds • Soft food disposal shredding action.
you’ll hear are normal •Drain valve opening to pump water out.
•Timer control as cycle progresses.
•Detergent cup opening.
•The motor stopping during the drying period.
•Water draining out of tub immediately after touching the START/RESET pad.
Utensils are not secure • Make sure everything is secured in dishwasher.
in rack or something small
has dropped into rack
Rattling dishes when • Make sure dishes are properly loaded. See the oading the
the spray arm rotates dishwasher racks section.
Motor hums • Dishwasher has not been used on a regular basis. If you do not use
your dishwasher often, set it to fill and pump out once every week.
This will help keep the seal moist.
Water standing in This is normal • A small amount of clean water around the outlet on the tub bottom
the bottom of the tub at the back of the tub keeps the water seal lubricated.
Water won’t pump Drain is clogged • If you have an air gap, clean it.
out of the tub •Check to see if your kitchen sink is draining well. If not, you may need
a plumber.
•If the dishwasher drains into a disposer, run disposer clear.
Suds in the tub Correct detergent • Use only automatic dishwasher detergents to avoid sudsing.
wasn’t used Cascade®, Cascade®Complete and Electrasol®Automatic Dishwashing
Detergents have been approved for use in all GE dishwashers.
•To remove suds from the tub, open the dishwasher and let suds
dissipate. Add 1 gallon of cold water to the tub. On Models with a Dial:
Close and latch the dishwasher. Pump out water by slowly turning the
Dial until a drain period is reached. Repeat if necessary. On Models with
Electronic Control: Pump out water by pressing the START/RESET pad,
then 10 seconds later, press START/RESET pad again. Repeat if necessary.
Rinse agent was spilled • Always wipe up rinse agent spills immediately.
Stained tub interior Some tomato-based • Use of the R NSE ONLY cycle after adding the dish to the load
foods can cause reddish can decrease the level of staining. GE recommends Cascade®
stains Plastic Booster to help remove these types of stains.
Tea or coffee stains • Remove the stain by hand, using a solution of 1/2 cup bleach
and 3 cups warm water.
WARN NG
Before cleaning interior, wait at least 20 minutes after a cycle for the
heating elements to cool down. Failure to do so can result in burns.
An overall yellow or • A special filter in the water supply line is the only way to correct
brown film can be this problem. Contact a water softener company.
caused by iron deposits
in water
White film on inside • GE recommends Jet-Dry ®or Cascade Crystal Clear®to help
surface—hard water prevent hard water mineral deposits from forming.
minerals •Run dishwasher with citric acid to remove mineral deposits. Citric
acid (Part number: WD35X151) can be ordered through GE Parts.
See back cover for ordering information.
Consumer SupportTroubleshooting TipsOperating nstructionsSafety nstructions
13
Before you call for service… ge.com
Troubleshooting Tips
Save time and money! Review the charts on
the following pages, or visit ge.com. You may
not need to call for service.

Problem Possible Causes What To Do
Dishes don’t dry Low inlet water • Make sure inlet water temperature is at least 120°F.
temperature •Select HEATED DRY.
•Use HOT START and ADDED HEAT options.
•Select a higher cycle, such as POTS & PANS or HEAVY WASH.
Rinse agent dispenser • Check the rinse agent dispenser and fill as required.
is empty
Dishes and flatware Inlet water temperature • Raise the water heater temperature to 120°F.
not clean is below 120°F. •Use HOT START,POTS & PANS or HEAVY WASH and H TEMP WASH.
Too little detergent • See Using the dishwasher section, refer to Proper Use of Detergent for
detergent recommendations.
Old or damp powdered • See Using the dishwasher section, refer to Proper Use of Detergent for
detergent detergent recommendations.
Water pressure is • Turn on a faucet. Is water coming out more slowly than usual? If so,
temporarily low wait until pressure is normal before using your dishwasher.
Air gap is clogged • Clean the air gap.
Improper rack loading • Make sure large dishware does not block detergent dispenser or wash arm.
No air gap or high • Verify that you have an air gap or a high drain loop. Refer to
drain loop the Installation Instructions.
Spots and filming •Use Jet-Dry®or Cascade Crystal Clear®rinse agents to remove spots
on glasses and and prevent new film buildup.
flatware •To remove stubborn spots and pre-existing film from glassware:
1 Remove all metal utensils from the dishwasher.
2Do not add detergent.
3Select the longest cycle.
4Start the dishwasher and allow to run for 18 to 22 minutes.
Dishwasher will now be in the main wash.
5Open the door and pour 2 cups (500 ml) of white vinegar into the
bottom of the dishwasher.
6Close the door and allow to complete the cycle. If vinegar rinse
doesn’t work: Repeat as above, except use 1/4 cup (60 ml) of citric
acid crystals instead of vinegar.
Cloudiness on Combination of soft • This is called etching and is permanent. To prevent this from
glassware water and too much happening, use less detergent if you have soft water. Wash glassware in
detergent the shortest cycle that will get them clean.
Water temperature • ower the water heater temperature.
entering the dishwasher
exceeds 150°F.
Detergent cup lid Dial is not in the OFF •Turn the Timer Dial to OFF.
won’t latch position
Detergent left in Dishes are blocking the • Reposition the dishes.
dispenser cups detergent cups
Steam This is normal • Steam comes through the vent by the door latch during drying and
when water is being pumped out.
Black or gray Aluminum utensils have • Remove marks with a mild, abrasive cleaner.
marks on dishes rubbed against dishes
Control panel lights Time too long between • Each pad must be touched within 30 seconds of the others. To relight,
go off when you are touching or selecting touch any pad again or unlock and relatch the door.
setting controls pads
Control panel Door latch may not • Call for service.
responded to inputs be properly seated
but dishwasher never
filled with water
14
Operating nstructions Safety nstructions
Consumer Support Troubleshooting Tips
Before you call for service…
Extremely hard water
Low inlet water
temperature
Overloading the
dishwasher
Improper loading
Old or damp powder
detergent
Rinse agent dispenser
empty
Too little detergent

15
Consumer SupportTroubleshooting TipsOperating nstructionsSafety nstructions
What s Not Covered:
For The Period Of: GE Will Replace:
One Year Any part of the dishwasher which fails due to a defect in materials or workmanship. During
From the date of the this limited one-year warranty, GE will also provide, free of charge, all labor and in-home service
original purchase to replace the defective part.
GE Dishwasher Warranty.
■Service trips to your home to teach you how to use
the product.
■Improper installation, delivery or maintenance.
■Failure of the product if it is abused, misused, or used for
other than the intended purpose or used commercially.
■Replacement of house fuses or resetting of circuit
breakers.
■Damage to the product caused by accident, fire, floods
or acts of od.
■Incidental or consequential damage caused by possible
defects with this appliance.
■Cleaning or servicing of the air gap device in the
drain line.
■Damage caused afer delivery.
■Product not accessible to provide required service.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for
home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not
available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE
Service location. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know
what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care®technician. To schedule
service, on-line, 24 hours a day, visit us at ge.com, or call
800.GE.CARES (800.432.2737). Please have serial number and
model number available when calling for service.
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
EXCLUS ON OF MPL ED WARRANT ES—Your sole and exclusive remedy is product repair as provided in this Limited
Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular
purpose, are limited to one year or the shortest period allowed by law.

Consumer Support.
GE Appliances Website ge.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,
order parts or even schedule service on-line.
Schedule Service ge.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service
at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal
business hours.
Real ife Design Studio ge.com
GE supports the Universal Design concept—products, services and environments that can be used by
people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and
mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas
for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC
(800.833.4322).
Extended Warranties ge.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty
is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours.
GE Consumer Home Services will still be there after your warranty expires.
Parts and Accessories ge.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at
800.626.2002 during normal business hours.
nstructions contained in this manual cover procedures to be performed by any user. Other servicing
generally should be referred to qualified service personnel. Caution must be exercised, since improper
servicing may cause unsafe operation.
Contact Us ge.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
ouisville, KY 40225
In Canada write to: Director, Customer Relations, Mabe Canada Inc.
Suite 310, 1 Factory ane
Moncton, N.B. E1C 9M3
Register Your Appliance ge.com
Register your new appliance on-line—at your convenience! Timely product registration will allow
for enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the pre-printed registration card included in the packing material.
Printed in the United States
Printed on Recycled Paper
