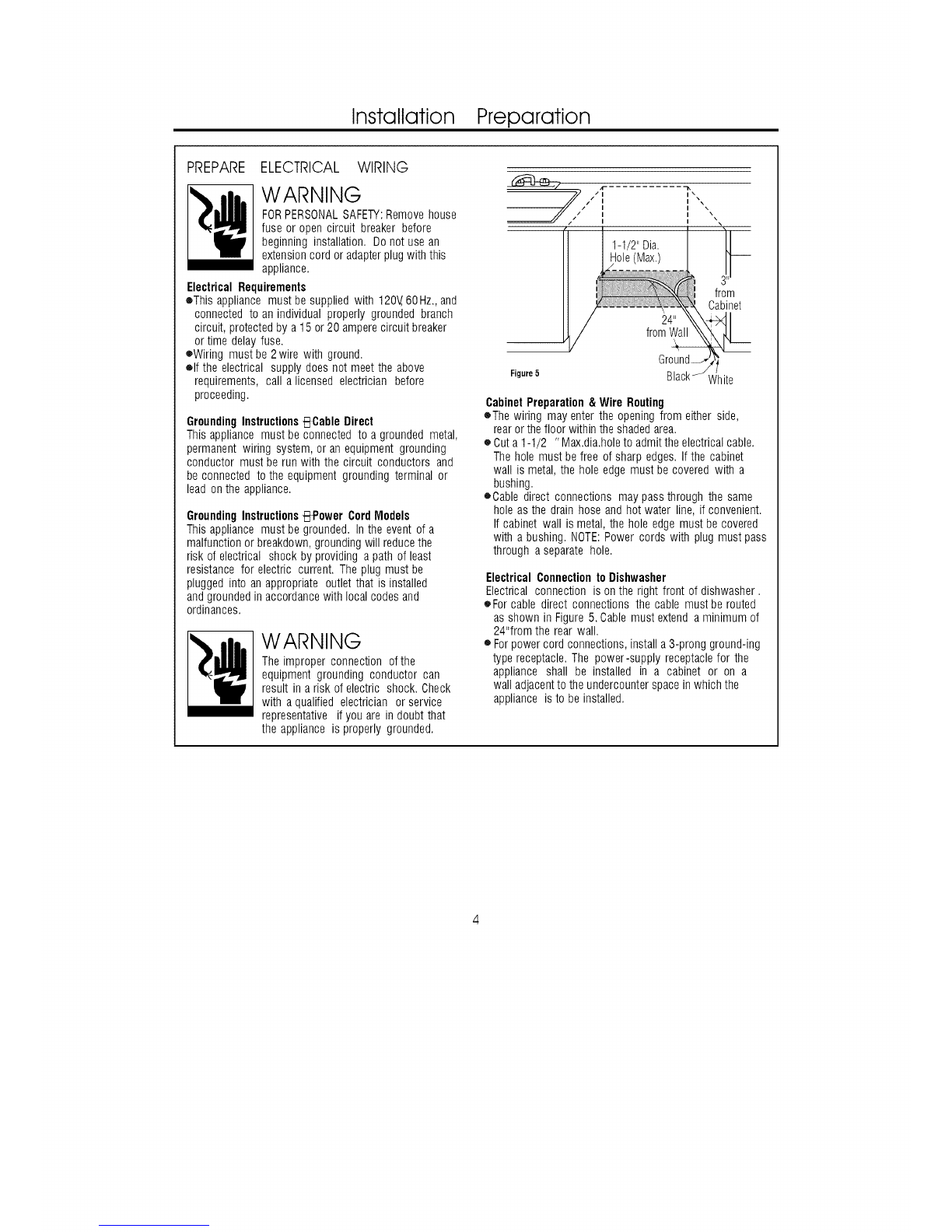

Installation Preparation
PREPARE ELECTRICAL WIRING
WARNING
FORPERSONALSAFETY:Removehouse
fuse or opencircuit breakerbefore
beginninginstallation.Donot usean
extensioncordor adapterplugwiththis
appliance.
Electrical Requirements
oThis appliance must be supplied with 120V,60Hz., and
connected to an individual properly grounded branch
circuit, protected by a 15 or 20 ampere circuit breaker
or time delay fuse.
oWiring must be 2wire with ground.
elf the electrical supply does not meet the above
requirements, call a licensed electrician before
proceeding.
GroundingInstructionsBCable Direct
Thisappliancemust beconnectedto a groundedmetal,
permanentwiring system,or anequipmentgrounding
conductormustbe runwith the circuit conductorsand
beconnectedto the equipmentgroundingterminalor
leadonthe appliance.
GroundingInstructionsBPower CordModels
Thisappliancemust begrounded.Inthe event ofa
malfunctionor breakdown,groundingwill reducethe
riskofelectrical shockbyprovidingapathofleast
resistanceforelectric current.Theplugmust be
pluggedintoanappropriateoutletthatis installed
andgroundedinaccordancewithlocalcodesand
ordinances.
WARNING
Theimproperconnectionofthe
equipmentgroundingconductorcan
resultin a risk of electric shock.Check
with a qualifiedelectricianor service
representativeif youare in doubtthat
the applianceis properlygrounded.
Figure5
Cabinet Preparation & Wire Routing
eThe wiring may enter the opening from either side,
rear or the floor within the shaded area.
o Cut a 1-1/2 "Max.dia.hole to admit the electrical cable.
The hole must be free of sharp edges. If the cabinet
wall is metal, the hole edge must be covered with a
bushing.
OCable direct connections may pass through the same
hole as the drain hose and hot water line, if convenient.
If cabinet wall is metal, the hole edge must be covered
with a bushing. NOTE: Power cords with plug must pass
through a separate hole.
ElectricalConnectiontoDishwasher
Electricalconnectionison the rightfront ofdishwasher.
oFor cable directconnectionsthe cable mustberouted
as shownin Figure5.Cablemustextenda minimumof
24"fromthe rearwall.
e Forpowercordconnections,installa3-prongground-ing
typereceptacle.The power-supplyreceptaclefor the
appliance shall be installed in a cabinet or on a
walladjacentto theundercounterspacein whichthe
applianceisto be installed.
