GE Spacemaker GSM2200V Manual

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Specification Created 4/11 350518
Listed by
Underwriters
Laboratories
Note: Undersink dishwashers can be installed only
under sinks and not under other appliances.
Plumbing—Hot Water Only: Use 3/8" O.D. copper
tubing or 1/2" O.D. plastic tubing minimum inlet
line. Water valve has 3/8" internal threads. Hand
cut-off valve is recommended.
Electrical: Fuse circuit with 15 amp or 20 amp
standard fuse or circuit breaker. Total amp load is
8.6. Dishwasher operates on 120V, 60HZ power,
Two-wire cable (14 Ga. Min.) with ground must be
installed.
Specifications: Inlet water temperature
recommended—minimum 120°F at dishwasher.
Inlet water pressure required—15 to 120 lbs./sq.
inch.
Note: All rough-in, both plumbing and electrical,
must be completed before the dishwasher is
installed. All plumbing and electrical work must be
in accordance with local codes.
Spacemaker Dishwasher Dimensions
(Pub. 1-G003 pg. 132B) May 12, 1993
2" From
cabinet
6
4
2" From
floor
19" From
wallCable 24"
from wall
3
White (neutral)
Black (line)
Ground
Plumbing and
wiring must enter
within this area
from either side,
rear or bottom
DW PLUMBING/ELECTRICAL
ROUGH-IN (IN INCHES)
FRONT VIEW
Hot
Cold
GSM2200V
GE Spacemaker® Under-the-Sink Dishwasher
Dimensions and Installation Information (in inches)

Specification Created 4/11 350518
GSM2200V
GE Spacemaker® Under-the-Sink Dishwasher
Note: A close-fitting elbow or special
shallow sink strainer is necessary to
provide clearance between sink drain
and dishwasher. Dishwasher furnished
with 1/2" I.D. drain hose, 78" long. If using
copper tubing, 2" length of 1/2" I.D. rubber
hose must be provided to connect copper
tubing to pump outlet. Disposer should
have 7/8" I.D. dishwasher drain connector.
6
4
10"
from
cabinet
Allow a 5"
radius to
prevent kinking
1-1/2" MAX.
dia. hole
Directional flow tee
Waste air gap
12" From wall
Waste tee
or disposer
Remove hopper plug
before connecting
dishwasher drain
FRONT VIEW
Drain
connection
To
air
gap
Cold water
Hot water
Valve to shut off
water to dishwasher
Hot water supply
to dishwasher
1-1/2"
Directional
flow tee
Dishwasher
drain hose
Electrical
junction box
(on dishwasher)
Dishwasher
water inlet
valve
6" Double-bowl
stainless steel sink
Sink
strainer
assembly
Countertop
25" deep
1-1/2" thick
1-1/2" Close
elbow
GFC290/300/700
Disposall®
unit
Spacemaker®
dishwasher
6
4
10"
from
cabinet
Allow a 5"
radius to
prevent kinking
1-1/2" MAX.
dia. hole
Directional flow tee
Waste air gap
12" From wall
Waste tee
or disposer
Remove hopper plug
before connecting
dishwasher drain
FRONT VIEW
Drain
connection
To
air
gap
Cold water
Hot water
Valve to shut off
water to dishwasher
Hot water supply
to dishwasher
1-1/2"
Directional
flow tee
Dishwasher
drain hose
Electrical
junction box
(on dishwasher)
Dishwasher
water inlet
valve
6" Double-bowl
stainless steel sink
Sink
strainer
assembly
Countertop
25" deep
1-1/2" thick
1-1/2" Close
elbow
GFC290/300/700
Disposall®
unit
Spacemaker®
dishwasher
Listed by
Underwriters
Laboratories

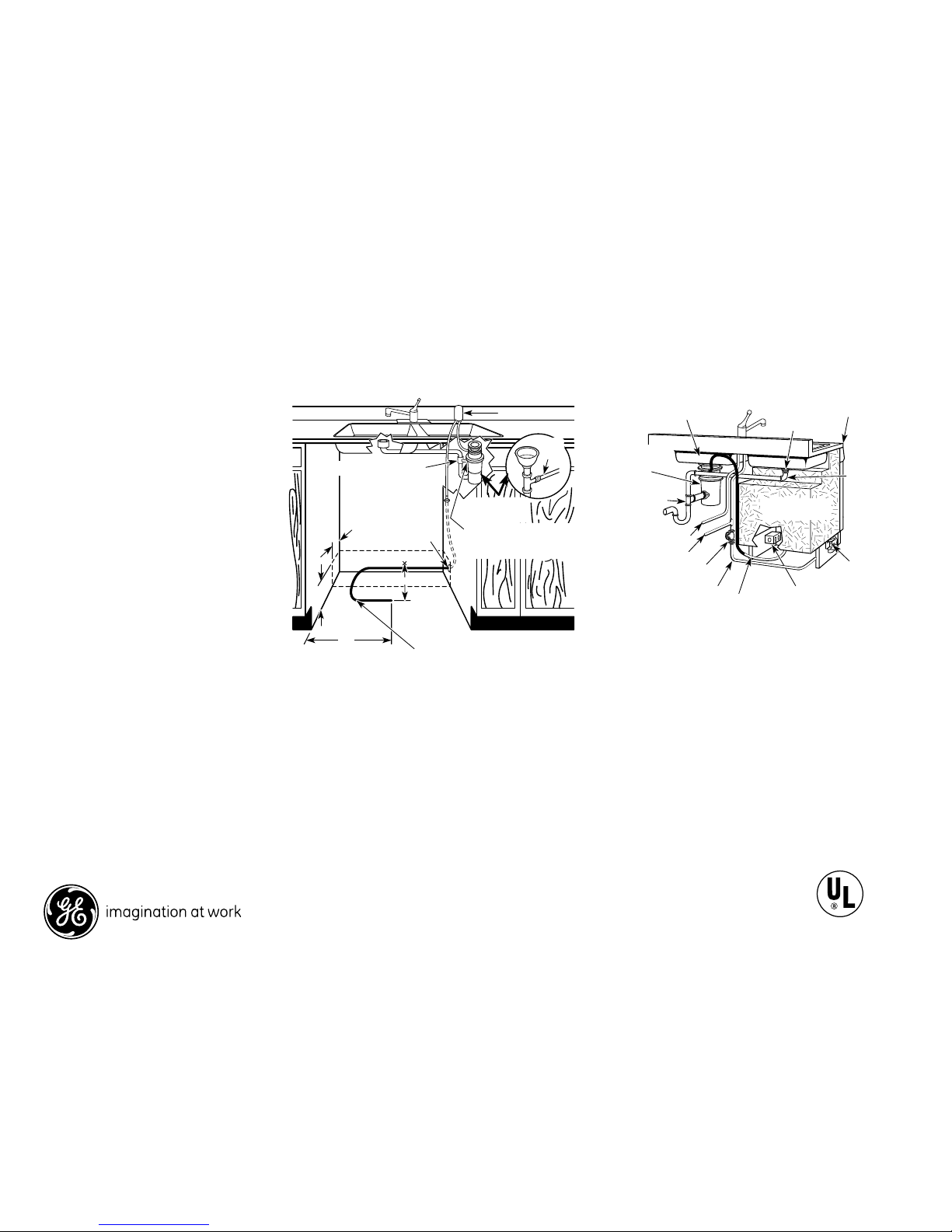

Rough-In for Installation with Disposer Dimensions
(in inches)
Rear View Plumbing Arrangement Dimensions
(in inches)

Specification Created 4/11 350518
GSM2200V
GE Spacemaker® Under-the-Sink Dishwasher
Listed by
Underwriters
Laboratories
Cabinet Rough-In Note: Either single- or
double-bowl sink may be used, centered
or offset, as shown in the front view
illustration.
The 20-1/2" maximum dimension from wall
to front of sink bowl must be accurate if
dishwasher is to fit properly under sink.
Water lines to sink faucet and drain from
sink can be run through area “A.”
HOT WATER line to dishwasher is installed
in area “B.”
Garbage disposer, water lines to faucet,
trap, waste air gap and water cutoff valve
are installed in 12" wide cabinet shown
in area “C.” Sink opening for garbage
disposer must be dimensioned as shown in
front view, area “C” (7-1/2"). This will provide
clearance for the disposer and plumbing in
cabinet “C” when using double bowl sink.
If the sink bowl is more than 20-1/2"
maximum specified distance form the
wall, or if the base cabinet is less than the
24" minimum depth from the wall, a gap
between the tub front flange and the front
of the base cabinet may result.
12
3-1/4
12-1/2
5
5
Sink
installation
cutout
8" x 20" Adjacent
cabinet rear cutout
Cabinet side
adjacent to D/W
FRONT VIEW
Access insert
Door insert
3-11/16
23-9/16
18-7/8
Cabinet cutouts for offset single and double
bowl sinks. Dishwasher not provided with
complete enclosure. Enclosures for sides,
top, bottom and back must be provided by
installer at time of installation.
Inserts must not
exceed 1/4" thickness
within 5/16" of
edge around full
circumference.
Countertop 1-1/2" MIN. thick
FRONT VIEW
7-1/2
C
6" MAX.
24 12"
MIN.
Floor
Toe
kick
area
Front of cabinet
Flange
4" MAX.
11-3/4"
MAX. Plumbing
1-1/4"
MIN. I.R.
34-1/4
± 1/4
3/4" MIN.
Wall
Floor
6" MAX.
C
L
11" MIN
Drain
20-1/2" MAX.
Sink bowl 1" MAX. to
sink flange
10-1/4" MAX.
Plumbing depth
SIDE VIEW
Dishwasher
Either single- or double-bowl sink may be used, centered or offset, as
shown in the front view illustration. The 20-1/2" MAX. dimension from wall
to front of sink bowl must be accurate if dishwasher is to fit properly
under sink. Water lines to sink faucet and drain from sink can be run
through area “A.” HOT WATER line to dishwasher is installed in area “B.”
Garbage disposer, water lines to faucet, trap, waste air gap and water
cutoff valve are installed in 12" wide cabinet shown in area “C.” Sink
opening for garbage disposer must be dimensioned as shown in front
view, area “C” (7-1/2"). This will provide clearance for disposer and
plumbing in cabinet “C” when using double bowl sink. If the sink bowl is
more than 20-1/2" MAX. specified distance from the wall, or if the base
cabinet is less than the 24" MIN. depth from the wall, a gap between the
tub front flange and the front of the base cabinet may result.
B
10-1/4" MAX. AA
B
11-3/4
24"
min. cabinet
12
3-1/4
12-1/2
5
5
Sink
installation
cutout
8" x 20" Adjacent
cabinet rear cutout
Cabinet side
adjacent to D/W
FRONT VIEW Access insert
Door insert
3-11/16
23-9/16
18-7/8
Cabinet cutouts for offset single and double
bowl sinks. Dishwasher not provided with
complete enclosure. Enclosures for sides,
top, bottom and back must be provided by
installer at time of installation.
Inserts must not
exceed 1/4" thickness
within 5/16" of
edge around full
circumference.
Countertop 1-1/2" MIN. thick
FRONT VIEW
7-1/2
C
6" MAX.
24 12"
MIN.
Floor
Toe
kick
area
Front of cabinet
Flange
4" MAX.
11-3/4"
MAX. Plumbing
1-1/4"
MIN. I.R.
34-1/4
± 1/4
3/4" MIN.
Wall
Floor
6" MAX.
C
L
11" MIN
Drain
20-1/2" MAX.
Sink bowl 1" MAX. to
sink flange
10-1/4" MAX.
Plumbing depth
SIDE VIEW
Dishwasher
Either single- or double-bowl sink may be used, centered or offset, as
shown in the front view illustration. The 20-1/2" MAX. dimension from wall
to front of sink bowl must be accurate if dishwasher is to fit properly
under sink. Water lines to sink faucet and drain from sink can be run
through area “A.” HOT WATER line to dishwasher is installed in area “B.”
Garbage disposer, water lines to faucet, trap, waste air gap and water
cutoff valve are installed in 12" wide cabinet shown in area “C.” Sink
opening for garbage disposer must be dimensioned as shown in front
view, area “C” (7-1/2"). This will provide clearance for disposer and
plumbing in cabinet “C” when using double bowl sink. If the sink bowl is
more than 20-1/2" MAX. specified distance from the wall, or if the base
cabinet is less than the 24" MIN. depth from the wall, a gap between the
tub front flange and the front of the base cabinet may result.
B
10-1/4" MAX. A
A
B
11-3/4
24"
min. cabinet
12
3-1/4
12-1/2
5
5
Sink
installation
cutout
8" x 20" Adjacent
cabinet rear cutout
Cabinet side
adjacent to D/W
FRONT VIEW Access insert
Door insert
3-11/16
23-9/16
18-7/8
Cabinet cutouts for offset single and double
bowl sinks. Dishwasher not provided with
complete enclosure. Enclosures for sides,
top, bottom and back must be provided by
installer at time of installation.
Inserts must not
exceed 1/4" thickness
within 5/16" of
edge around full
circumference.
Countertop 1-1/2" MIN. thick
FRONT VIEW
7-1/2
C
6" MAX.
24 12"
MIN.
Floor
Toe
kick
area
Front of cabinet
Flange
4" MAX.
11-3/4"
MAX. Plumbing
1-1/4"
MIN. I.R.
34-1/4
± 1/4
3/4" MIN.
Wall
Floor
6" MAX.
C
L
11" MIN
Drain
20-1/2" MAX.
Sink bowl 1" MAX. to
sink flange
10-1/4" MAX.
Plumbing depth
SIDE VIEW
Dishwasher
Either single- or double-bowl sink may be used, centered or offset, as
shown in the front view illustration. The 20-1/2" MAX. dimension from wall
to front of sink bowl must be accurate if dishwasher is to fit properly
under sink. Water lines to sink faucet and drain from sink can be run
through area “A.” HOT WATER line to dishwasher is installed in area “B.”
Garbage disposer, water lines to faucet, trap, waste air gap and water
cutoff valve are installed in 12" wide cabinet shown in area “C.” Sink
opening for garbage disposer must be dimensioned as shown in front
view, area “C” (7-1/2"). This will provide clearance for disposer and
plumbing in cabinet “C” when using double bowl sink. If the sink bowl is
more than 20-1/2" MAX. specified distance from the wall, or if the base
cabinet is less than the 24" MIN. depth from the wall, a gap between the
tub front flange and the front of the base cabinet may result.
B
10-1/4" MAX. A
A
B
11-3/4
24"
min. cabinet

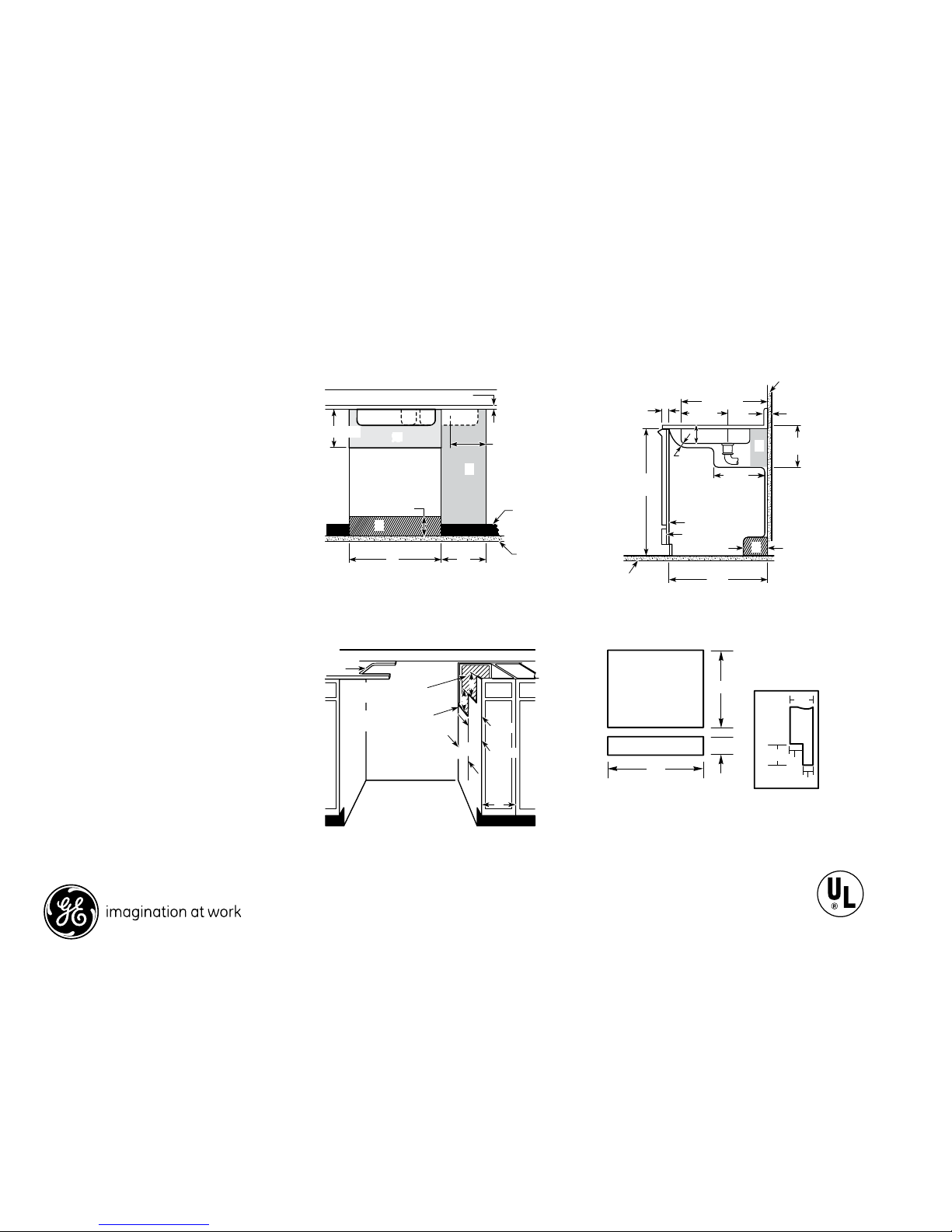

Cabinet Rough-In Dimensions (in inches)
Cabinet Cut-Out for Sink Dimensions (in inches)
C
B
Access insert
Panel Thickness
Door insert
Front
of
Panel
Dishwashers Installation
(Pub. 1-G003 pg. 131B) May 12, 1993
Wood Insert Cut-Out Dimensions (in inches)
GE/Hotpoint/RCA
A
1-1/2 1/2
When using GPF325
1/4" custom dishwasher
door and access panel kit.
When using GPF375
3/4" custom dishwasher
door and access panel kit.
1/4
3/4
C
B
Access insert
Panel Thickness
Door insert
Front
of
Panel
Dishwashers Installation
(Pub. 1-G003 pg. 131B) May 12, 1993
Wood Insert Cut-Out Dimensions (in inches)
GE/Hotpoint/RCA
A
1-1/2 1/2
When using GPF325
1/4" custom dishwasher
door and access panel kit.
When using GPF375
3/4" custom dishwasher
door and access panel kit.
1/4
3/4
C
B
Access insert
Panel Thickness
Door insert
Front
of
Panel
Dishwashers Installation
(Pub. 1-G003 pg. 131B) May 12, 1993
Wood Insert Cut-Out Dimensions (in inches)
GE/Hotpoint/RCA
A
1-1/2 1/2
When using GPF325
1/4" custom dishwasher
door and access panel kit.
When using GPF375
3/4" custom dishwasher
door and access panel kit.
1/4
3/4
Undersink Dishwasher Wood Insert Dimensions
(in inches)

GSM2200N
Features and Benefits
• 4-level PowerScrub™wash system - Powerful wash cleans dishes thoroughly
• Two-stage filtration with ExtraFine™filter - Extra filtration keeps water clean
• Piranha™hard food disposer - Grinds food into small particles that are washed away
• HotStart™option - Provides optimal water temperature for dependable performance
• 64 dBA - motor runs quietly to keep kitchen peaceful
• Spacemaker®upper rack - Maximizes space without losing cabinets
• Deluxe silverware basket - Provides convenient space and capacity to clean
silverware efficiently
• ENERGY STAR®Qualified - Meets or exceeds 2011 federal guidelines for energy
efficiency for year-round energy and money savings
• Model GSM2200VWW - White on white
• Model GSM2200VCC - Bisque on bisque
• Model GSM2200VBB - Black on black
Specification Created 4/11 350518
GSM2200V

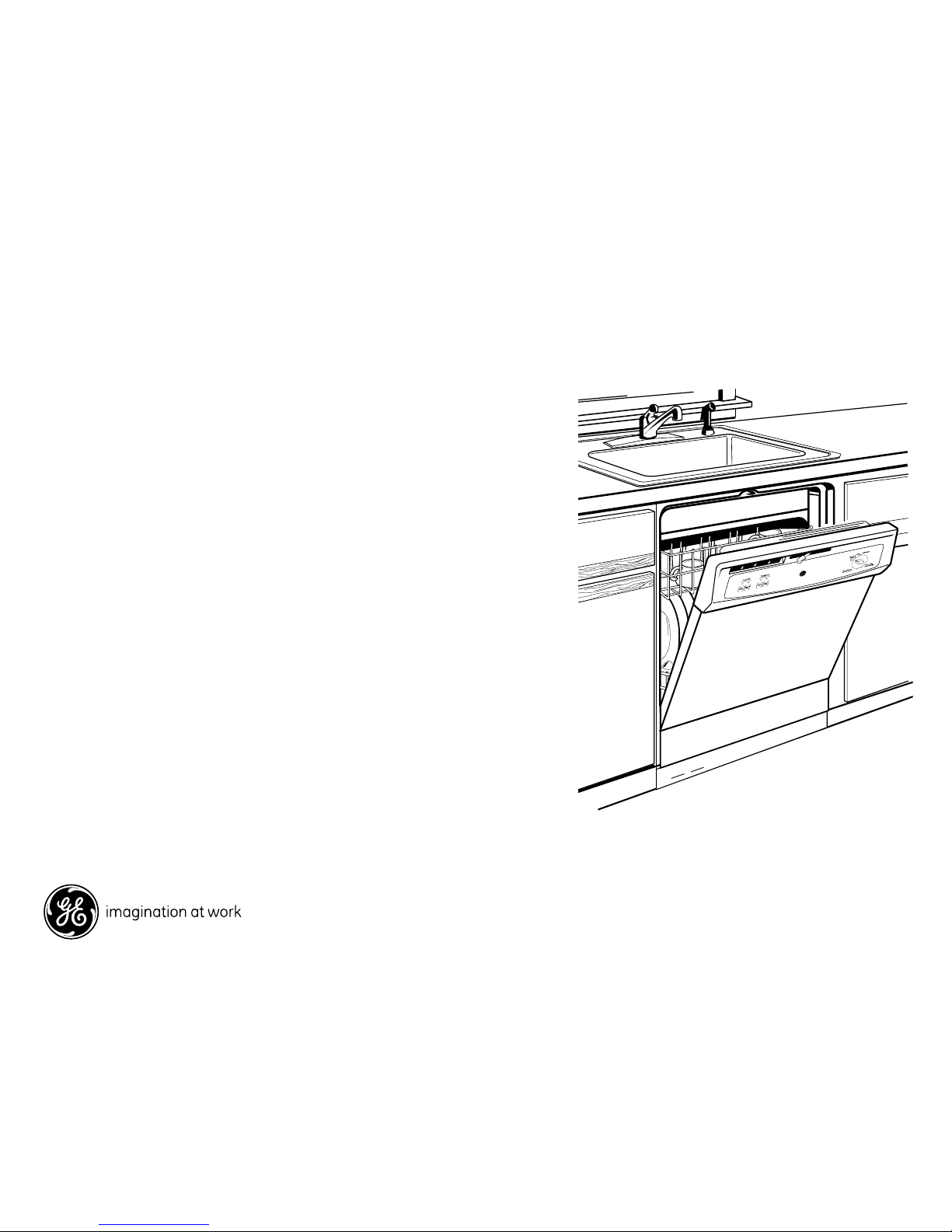

GE Spacemaker® Under-the-Sink Dishwasher
