GE DBVH520 User manual

0ge.com
Safety Instructions ........ 2-5
Operating Instructions
Control Panels ................. 6-8
Cgcle Options ................. 9, 10
Drger Features .................. 10
Loading and Using
the Drger ..................... 16, 17

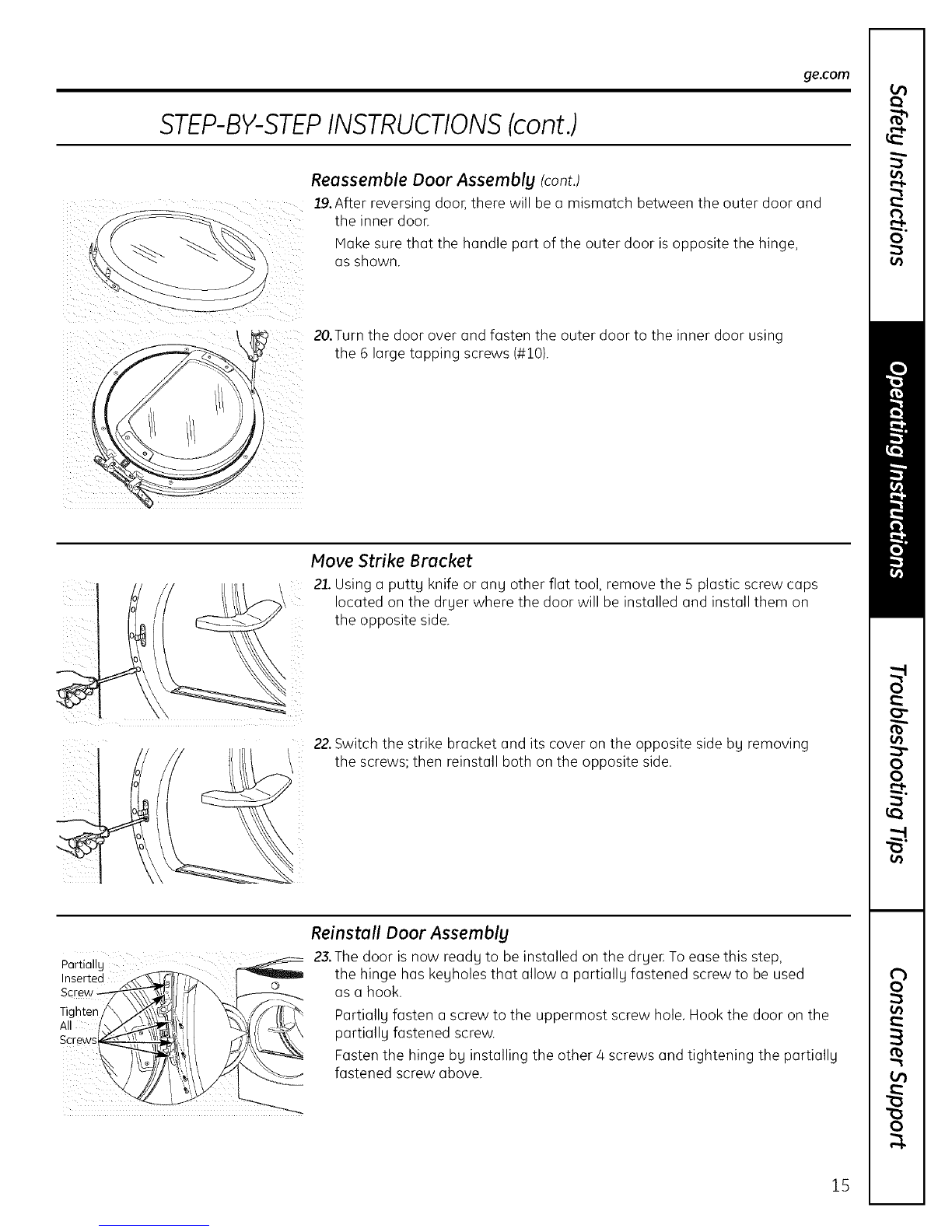

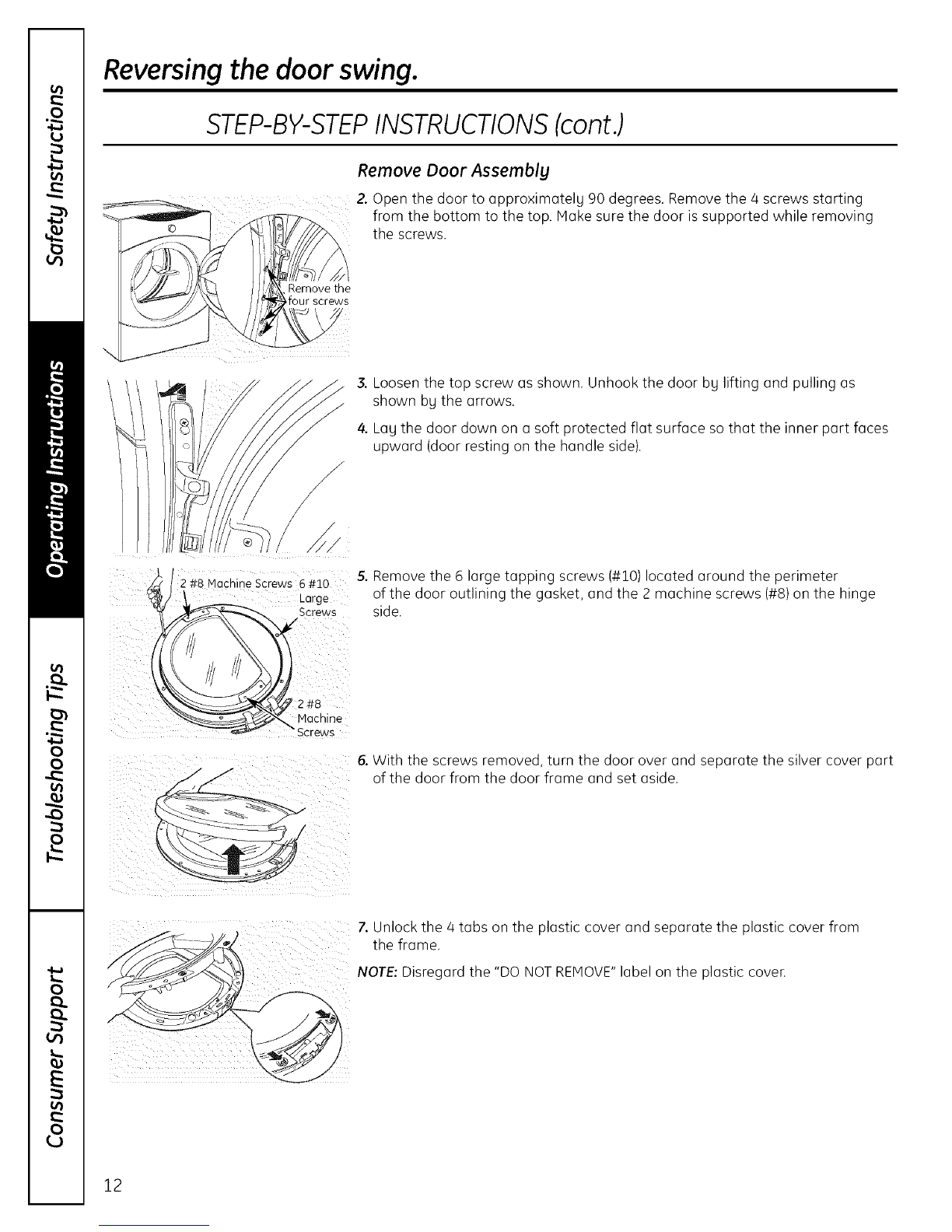

Reversing the Door Swing .... 11-15
Stacking ..................... 19-22
Venting the Drger ............... 18
Troubleshooting Tips .... 23-25
Consumer Support
Consumer Support ............. 28
Warrantg ....................... 27
DBVH520
DCVH640
DCVH680
DHDVH68
Write the model and serial
numbers here:
Model #
Serial #
Theg are on the label on
the front of the drger behind
the door.
175D1807P611 49-90545 ll-07JR

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk
of fire or explosion, electric shock, or to prevent property damage, personal inJury, or
death.
•Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
• Installation end service must be
performed by o qualified installer,
service agency or the gas supplier.
WHAT TO DO IF VOU SMELL GAS:
[] Do not try to light a match, or cigarette,
or turn on any gas or electrical
appliance.
[] Do not touch any electrical switch;
do not use any phone in your building.
[] Clear the room, building or area of all
occupants.
[] Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions carefully.
]If you cannot reach your gas supplier,
call the fire department.
California Safe Drinking Water and Toxic Enforcement Act
Thisact requiresthe governor ofCaliforniato publisha list of substancesknown to the stateto causecancer,
birth defects or other reproductiveharm and requires businessesto warn customers of potential exposure
to such substances.
Gasappliances can cause minor exposure to four of these substances,namelu benzene,carbon monoxide,
formaldehyde and soot, caused primarilu bg the incomplete combustion of natural gasor LPfuels.
Properluadjusted dryers will minimize incomplete combustion. Exposureto these substances can be minimized
further bg properly venting the dryer to the outdoors.

ge.colTi
PROPERINSTALLATION
This dryer must be properly installed and located in accordance with the Installation Instructions
before it is used. tf blou did not receive an Installation Instructions sheet, you can receive one by
visiting ge.com, or bg calling 800.GE.CARES (800.432.2737).
• Properlyground dryer to conform with all
governing codes and ordinances.Follow details
in Installation Instructions.
• Installor store where it will not be exposed
to temperatures below freezing or exposed
to the weatheE
• Connectto a properly rated, protected and sized
power supply circuit to avoid electrical overload.
• Removethe colored protective film from both
the control panel and the dooE
• Removeall sharp packing items and dispose
of all shipping materials properly.
• Donot removethe ventprotector from the back
of the dryer {on some models).
• Pullthe protector out and down to its lowest
position and connect the exhaust duct to the drgeE
Thelowered protector will prevent the duct from
getting crushed (onsome models).

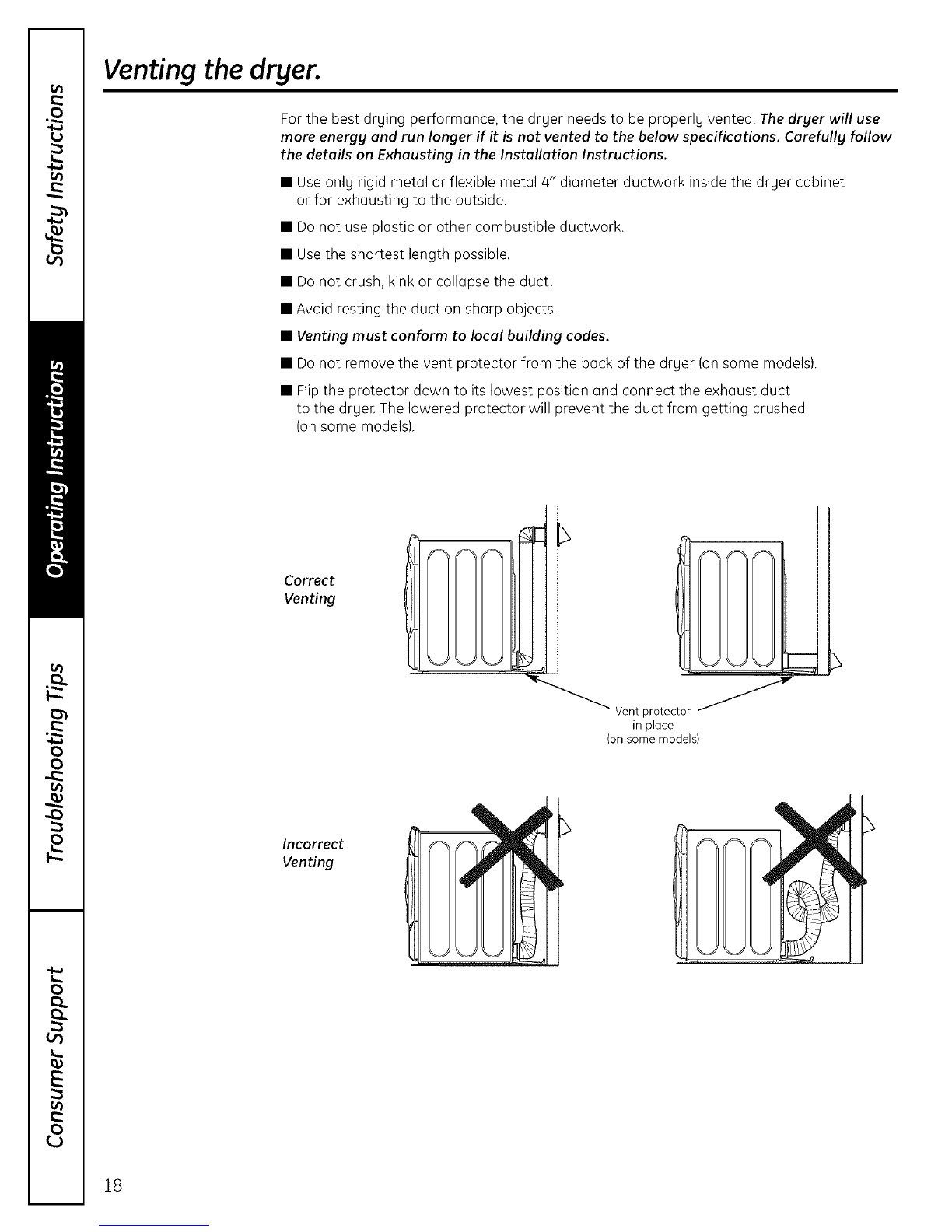

Exhaust/Ducting:
I_1 DrgersMUSTbe exhausted to the outside to
prevent large amounts of moisture and lint from
being blown into the room.
I_ Useonly rigid metal or flexible metal 4" diameter
L_Jductwork insidethe drger cabinet or for
exhausting to the outside.USEOFPLASTICOR
OTHERCOMBUSTIBLEDUCTWORKCANCAUSE
A FIRE.PUNCTUREDDUCTWORKCANCAUSEA
FIREIF ITCOLLAPSESORBECOMESOTHERWISE
RESTRICTEDIN USEORDURINGINSTALLATION.
For complete details, follow the Installation
Instructions.

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
,it WARNING!
YOUR LAUNDRY AREA
• Keepthe area underneath and around your
appliances free of combustible materials
(lint,paper,rags, etc.),gasoline, chemicals
and other flammable vapors and liquids.
• Keepthe floor around your appliances clean
and dry to reducethe possibility of slipping.
• Closesupervisionis necessary ifthis appliance
is usedby or near children. Do not allow childrento
play on,with or insidethis or any other appliance.
• Keep all laundry aids(suchas detergents,
bleaches,etc.)out of the reach of children,
preferably in a locked cabinet. Observeall
warnings on container labelsto avoid injury.
• Never climb on or stand on the dryer top.
WHEN USING YOUR DRYER
• Neverreach into the dryer while the drum is
moving. Beforeloading, unloading or adding
clothes,wait until the drum has completely
stopped.
• Cleanthe lint filter before each load to prevent lint
accumulation insidethe dryer or in the room.
DONOTOPERATETHEDRYERWITHOUT
THELINT FILTERIN PLACE.
• Do not wash or dry articlesthat have been
cleaned in,washed in,soaked in or spotted
with combustible or explosivesubstances
(suchas wax,oil,paint, gasoline, degreasers,
dry-cleaning solvents,kerosene,etc.)which may
ignite or explode.Do not add these substances
to the wash water. Donot use or placethese
substances around your washer or dryer during
operation.
• Do not place items exposedto cooking oilsinyour
dryer Items contaminated with cooking oilsmay
contribute to a chemical reaction that could cause
a clothesload to catch fire.
• Any article onwhich you have used acleaning
solvent or that contains flammable materials
(suchas cleaning cloths, mops,towels used in
beauty salons,restaurants or barber shops,etc.)
must not be placed in or near the dryer until
solvents or flammable materials have been
removed.Thereare many highly flammable items
used in homes such asacetone, denatured alcohol,
gasoline,kerosene,some household cleaners,some
spot removers,turpentines, waxes, wax removers
and products containing petroleum distillates.
• Thelaundry processcan reduce the flame
retardancy offabrics. Toavoid such a result,
carefully follow the garment manufacturer's
care instructions.
• Do not dry articles containing rubber,plastic,foam
or similar materials such as padded bras,tennis
shoes,galoshes,bath mats, rugs,bibs, baby pants,
plastic bags, pillows,etc.,that may melt or burn.
Somerubber materials,when heated, can under
certain circumstances producefire by spontaneous
combustion.
• Do not store plastic,paper or clothing that may
burn or melt ontop of the dryer during operation.
• Garments labeled Dry Away from Heat or DoNot
TumbleDry (suchas lifejackets containing kapok)
must not be put in your dryer.
• Do not dry fiberglassarticles in your dryer.
Skinirritation could result from the remaining
particles that may be picked up by clothing
during subsequent dryer uses.
• Tominimizethe possibility of electric shock, unplug
this appliance from the power supply or disconnect
the dryer at the building'sdistribution panel by
removing the fuse or switching off the circuit
breaker before attempting any maintenance or
cleaning (exceptthe removal and cleaning ofthe
lint filter) NOTE:PressingSTART,STOPor POWER
doesNOTdisconnect the appliance from the power
supply.
4

ge.com
WHEN USING YOUR DRYER(cont.)
• Never attempt to operate this appliance ifit is
damaged, malfunctioning, partially disassembled,
or has missing or brokenparts, including a
damaged cord or plug.
• Theinterior of the machine andthe exhaust
duct connection insidethe dryer should be cleaned
at least oncea gear bg a qualifiedtechnician.
Seethe Loading and Usingthe Dryer section.
• If yoursisa gas dryer,it isequipped with an
automatic electric ignition and does not have
a pilot light.DO NOTATTEMPTTOLIGHTWITHA
MATCH.Burnsmay result from having your hand
in the vicinity ofthe burner when the automatic
ignition turns on.
• Youmag wish to soften gour laundered fabrics
or reducethe static electricitg in them bg using
a dryer-applied fabric softeneror an anti-static
conditioneEWe recommend you use either
a fabric softener in the wash cgcle,according
to the manufacturer's instructions for those
products, or try a drger-added product for which
the manufacturer giveswritten assurance on
the package that their product can be safely
used in your dryer.Serviceor performance
problems caused bg useof these products
are the responsibility of the manufacturers
of those products and are not covered under
the warrantg to this appliance,
CWHEN NOT USING YOUR DRYER
• Graspthe plug firmly when disconnecting this
appliance to avoid damage to the cord while
pulling. Placethe cord awag from traffic areas
so itwill not be stepped on,tripped overor
subjected to damage.
• Do not attempt to repair or replaceang part
of this applianceor attempt ang servicingunless
specificallyrecommended in this Owner's Manual
or in publisheduser-repairinstructions that you
understand and havethe skillsto carrg out.
• Beforediscarding a drger,or removing it from
service,remove the drger door to prevent children
from hiding inside.
• Do not tamper with controls.
READAND FOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS

About the drger control panel.
You con locate your model number at the top inside of the door opening.
Model DHDVH68
Model DCVH680
Model DCVH640
Model DBVH520
6

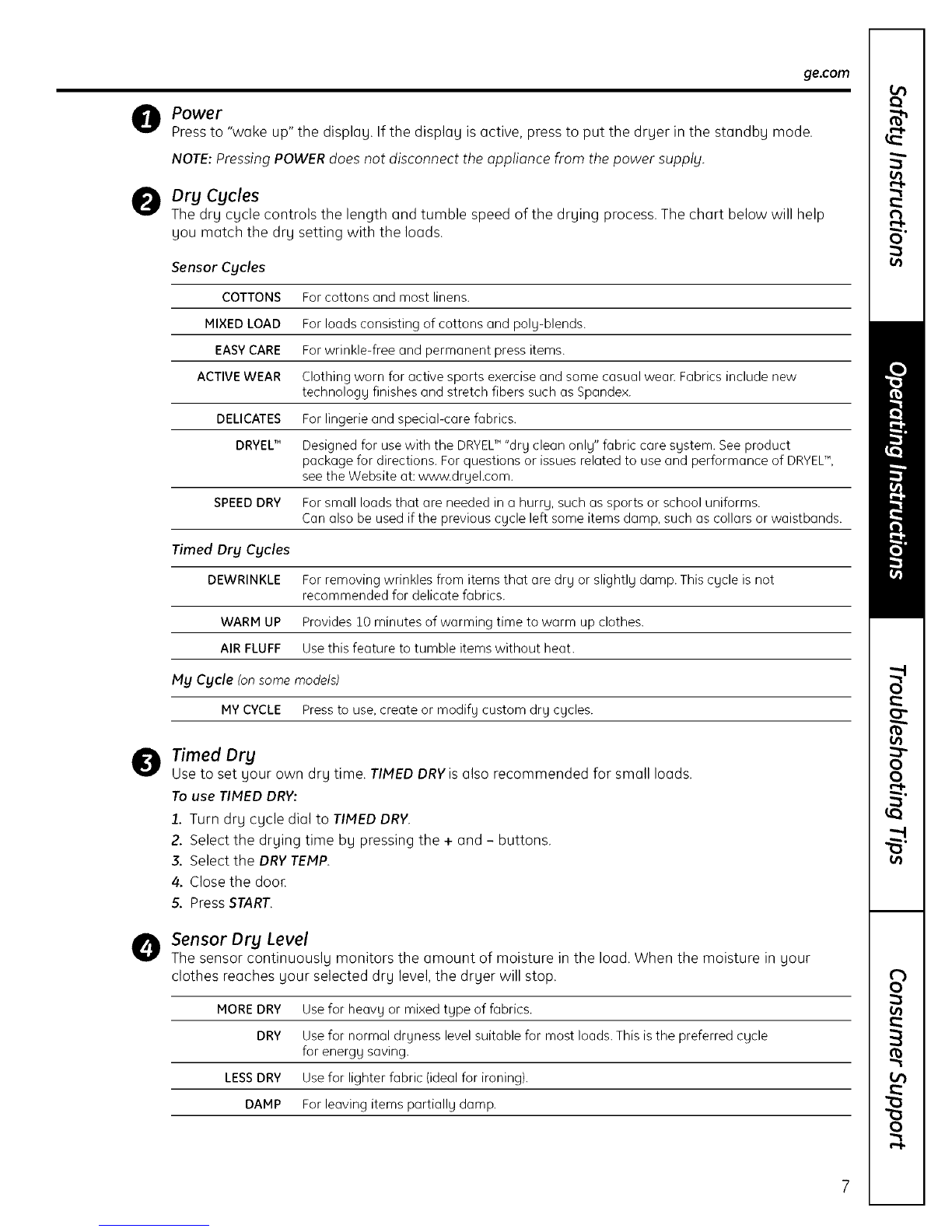

ePower
Press to "wake up" the display. If the display is active, press to put the dryer in the standby mode.
NOTE: Pressing POWER does not disconnect the appliance from the power supply.
eDry Cycles
The dry cycle controls the length and tumble speed of the drying process. The chart below will help
you match the dry setting with the loads.
ge.com
Sensor Cycles
COTTONS For cottons and most linens.
MIXED LOAD For loads consisting of cottons and polg-blends.
EASY CARE For wrinkle-free and permanent press items.
ACTIVE WEAR Clothing worn for active sports exercise and some casual wear Fabrics include new
technology finishes and stretch fibers such as Spandex.
DELICATES For lingerie and special-care fabrics.
DRYEU" Designed for use with the DRYEU" "drg clean onlg" fabric care sgstem. See product
package for directions. For questions or issues related to use and performance of DRYELT",
see the Website at: www.drgel.com.
SPEED DRY For small loads that are needed in a hurrg, such as sports or school uniforms.
Can also be used if the previous cycle left some items damp, such as collars or waistbands.
Timed Dry Cycles
DEWRINKLE For removing wrinkles from items that are dry or slightly damp. This cycle is not
recommended for delicate fabrics.
WARM UP Provides 10 minutes of warming time to warm up clothes.
AIR FLUFF Use this feature to tumble items without heat.
My Cycle (on some models)
MY CYCLE Press to use, create or modify custom dry cycles.
0
0
Timed Dry
Use to set your own dry time. TIMED DRYis also recommended for small loads.
To use TIMED DRY:
2.. Turn dry cycle dial to TIMED DRY.
2. Select the drying time by pressing the + and - buttons.
3. Select the DRY TEMP.
4. Close the dooE
5. Press START.
Sensor Dry Level
The sensor continuously monitors the amount of moisture in the load. When the moisture in your
clothes reaches your selected dry level, the dryer will stop.
MORE DRY Use for heavy or mixed type of fabrics.
DRY Use for normal dryness level suitable for most loads. This is the preferred cgcle
for energg saving.
LESS DRY Use for lighter fabric (ideal for ironing).
DAMP For leaving items partiallg damp.

About the dryer control panel.

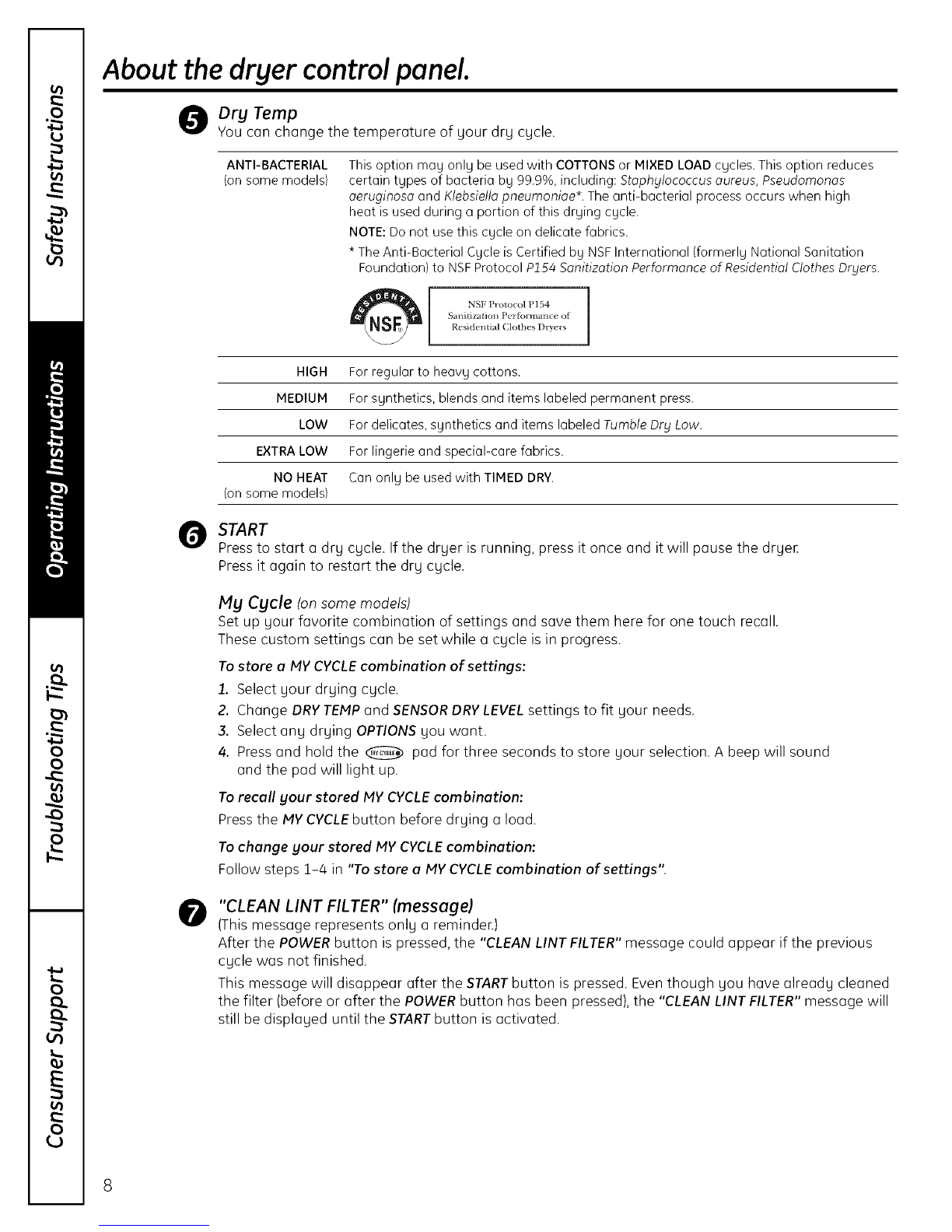

ODry Temp
You can change the temperature of your dry cgcle.
ANTI-BACTERIAL
(on some models) This option may only be used with COTTONS or MIXED LOAD cycles. This option reduces
certain types of bacteria by 99.9%, including: Staphylococcus oureus, Pseudomonos
oeruginoso and Klebsiello pneumonioe*. The anti-bacterial process occurs when high
heat is used during u portion of this drying cycle.
NOTE: Do not use this cycle on delicate fabrics.
* The Anti-Bacterial Cycle is Certified by NSF International {formerly Notional Sanitation
Foundation) to NSF Protocol P154 Sonitizotion Performance of Residential Clothes Dryers.
NSF Protocol P154 ]
S mitJz_doll Perfbrma_tc_' of
Residential (_]othes Dryers
HIGH For regular to heavy cottons.
MEDIUM For synthetics, blends and items labeled permanent press.
LOW For delicates, synthetics and items labeled Tumble Dry Low.
EXTRA LOW For lingerie and special-care fabrics.
NO HEAT Can only be used with TIMED DRY.
(on some models)
OSTART
Press to start a dry cycle. If the dryer is running, press it once and it will pause the drgeE
Press it again to restart the dry cycle.
My Cycle tonsomemodels)
Set up your favorite combination of settings and save them here for one touch recall,
These custom settings can be set while a cycle is in progress.
Tostore a MYCYCLEcombination of settings:
/.. Select your drying cycle.
2. Change DRYTEMP and SENSORDRYLEVELsettings to fit gout needs,
3. Select any drying OPTIONSyou want.
4. Press and hold the _ pad for three seconds to store gout selection. A beep will sound
and the pad will light up.
Torecall your stored MV CYCLEcombination:
Press the MYCYCLEbutton before drying a load.
To change your stored MY CYCLEcombination:
Follow steps 1-4 in "To store a MY CYCLE combination of settings'.
0"CLEAN LINT FILTER" (message)
(This message represents only a reminden)
After the POWERbutton is pressed, the "CLEAN LINT FILTER"message could appear if the previous
cycle was not finished.
This message will disappear after the STARTbutton is pressed. Eventhough you have already cleaned
the filter (before or after the POWERbutton has been pressed),the "CLEAN LINT FILTER"message will
still be displayed until the STARTbutton is activated.
8

About cycle options.
NOTE: Not all features are available on all dryer models.
Extend Tumble
Minimizeswrinkles by adding approximately
60 minutes of no-heat tumbling after clothes
are dry. Thebeeper will sound every
2 minutes to remind you to remove
the clothes.TheESTIMATEDTIMEREMAINING
display will show 00.
ge.com
Damp Alert (on some models)
This option causesthe dryer to beep when
clotheshave driedto a damp level.Remove
itemsthat you wish to hang dry. TheDAMP
ALERTwillonly beep when this option is
selected.
Removingclothes and hanging them when
they are damp can reducethe need to iron
some items.
Signal
Alerts you that the cycle iscomplete.
The beeper will continue to sound every
two minutes for the next 6 minutes, until
the clothes have been removed.Theclothes
should be removed when the beeper goes
off sowrinkles don't set in.
PressSIGNALto select low, medium or high
volume,orto turn the beeper off.
L LII
Delag Start
Useto delay the start of your dryer
1. Chooseyour dry cycle and any options.
2. PressDELAYSTART.Youcan change
the delay time in 1 hour increments using
the + or - arrow pads.
& Pressthe STARTpad to start
the countdown.
Thecountdown time will be shown in
the ESTIMATEDTIMEREMAININGdisplay.
NOTES:
•tf the door is opened while the dryer is
in DELAY, the countdown time will not
restart unless the door is closed and
START has been pressed again.
• You con delobl the start of a dry chicle
up to 18 hours for models DCVH640,
DCVH680, DHDVH68 and up to 10 hours
for model DBVH520.

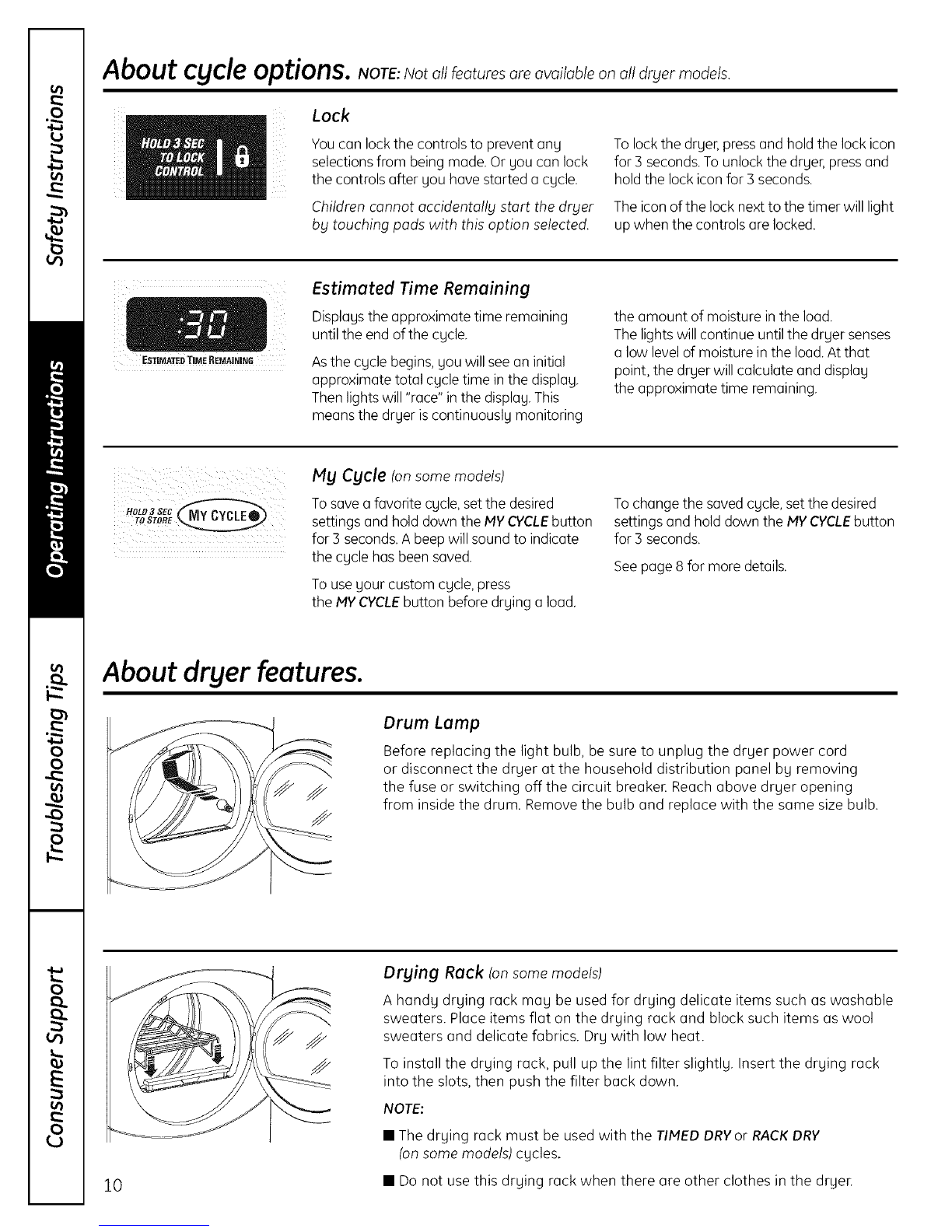

About cycle options. NOTE:Notoileoturesoreovoilobleonoildryermodels.
Lock
Youcan lockthe controls to prevent ang
selectionsfrom being made. Or you can lock
the controls after you have started a cgcle.
Children cannot occidentally stort the dryer
bg touching pods with this option selected.
Tolock the dryer,pressand hold the lock icon
for 3 seconds.To unlock the dryer, pressand
hold the lock icon for 3 seconds.
Theicon of the lock next to the timer will light
up when the controls are locked.
Estimated Time Remaining
Displagsthe approximate time remaining
untilthe end of the cgcle,
Asthe cgcle begins,you will see an initial
approximate total cgcle time in the displag,
Thenlights will "race" in the displag,This
means the dryer iscontinuously monitoring
the amount of moisture in the load.
Thelights will continue untilthe dryer senses
a low levelof moisture in the load.At that
point, the dryer will calculate and display
the approximate time remaining.
HOLD3 SEC __
My Cycle (on some models)
Tosave a favorite cgcle,setthe desired
settings and hold down the MY CYCLEbutton
for 3 seconds.A beep willsound to indicate
the cgcle has been saved.
Tousegour custom cgcle,press
the MYCYCLEbutton beforedrying a load.
Tochange the saved cgcle,setthe desired
settings and hold down the MYCYCLEbutton
for 3 seconds.
Seepage 8 for more details.
About dryer features.
Drum Lamp
Before replacing the light bulb, be sure to unplug the dryer power cord
or disconnect the drger at the household distribution panel bg removing
the fuse or switching off the circuit breaker. Reach above dryer opening
from inside the drum. Removethe bulb and replace with the same size bulb.
10
Drying Rack (onsomemodels)
A handg drying rack mag be used for drying delicate items such as washable
sweaters. Place items flat on the drying rack and block such items as wool
sweaters and delicate fabrics. Dry with low heat.
To install the drying rack, pull up the lint filter slightly. Insert the drying rack
into the slots, then push the filter back down.
NOTE:
• The drying rack must be used with the TIMED DRVor RACKDRV
(on some models) cgcles.
• Do not use this drying rack when there are other clothes in the dryer.

Reversing the door swing, ge.com
IMPORTANT NOTES:
• Readthe instructions all the woy
through before storting,
• Handle parts carefullu to avoid
scratching paint.
• Set screws down by their related parts
to avoid using them in the wrong places.
• Provide a non-scratching work surface
for the doors.
• Normal completion time to reverse
the door swing is 30-60 minutes.
IMPORTANT:Once you begin, do not move
the cabinet until door-swing reversal is
completed.
These instructions are for changing
the hinges from the right side to the left
side-if 9ou ever want to switch them
back to the right side, follow these same
instructions and reverse all references
to the left and right,
TOOLSYOUWILLNEED
Adjustable Crescent Wrench
Phillips Head Screwdriver
DOOR PARTS
Puttg Knife or
Thin-Blade
Screwdriver
Cover
Hinge Assemblg
Plastic Cover
Nut (#8} - 2
Large Tapping
Screw (#10) - 6
©
Washer- 2
A
Tapping Screw (#8) - 2 Machine Screw (#8} - 6
STEP-BY-STEPINSTRUCTIONS
Before You Stort
1. Unplug the dryer from its electrical
outlet.
11

Reversing the door swing.
STEP-BY-STEPINSTRUCTIONS(cont.)
Remove Door Assemblg
2. Open the door to approximatelg 90 degrees. Remove the 4 screws starting
from the bottom to the top. Make sure the door is supported while removing
the screws.
Remove the
four screws
3. Loosen the top screw as shown. Unhook the door by lifting and pulling as
shown bg the arrows.
4. Lag the door down on a soft protected flat surface so that the inner part faces
upward (door resting on the handle side).
(
2#8 Machine Screws 6 #10
_ _arrge s
e
5. Remove the 6 large tapping screws (#10)located around the perimeter
of the door outlining the gasket, and the 2 machine screws (#8) on the hinge
side.
6. With the screws removed, turn the door over and separate the silver cover part
of the door from the door frame and set aside.
7. Unlock the 4 tabs on the plastic cover and separate the plastic cover from
frame.
,__ .......- the
NOTE:
Disregard the "DO NOTREMOVE"label on the plastic cover.
12

ge.com
STEP-BY-STEPINSTRUCTIONS(cont.)
Remove Hinge
IMPORTANT:Note the location of the hinge (left or right) before removing.
&With the door frame part of the door laid down on a protected soft surface,
remove the hinge cover by removing the 2 tapping screws (#8) that fasten
it to the frame. The hinge cover is located at the opposite side of the hinge
assembly,
9.Remove the 2 nuts, washers and the 2 machine screws (#8).
lO.Remove the hinge assembly by removing the 2 machine screws (#8)that
fasten it to the frame. Pull the hinge assembly out and set it aside.
Reinstall Hinge Assembly
ll. Place the hinge assembly in the opposite side of the doon Align the hinge
holes with the door holes.
12. Loosely fasten the hinge assembly to the edge using 2 machine screws (#8).
13.Hold the door on its side with one hand and fasten the remaining 2 screws as
shown. Then tighten the 2 screws (#8) holding the hinge assembly.
13

Reversing the door swing.
STEP-BY-STEPINSTRUCTIONS(cont.)
Reinstall Nuts and Hinge Cover
14.Place the door on its edge. Assemble the 2 machine screws (#8),washers
and nuts. Tighten using a wrench and screwdriver.
./.5.Place the hinge cover in position. Align the hinge cover holes with the holes
in the door.
./i
r 16.Secure the hinge cover with the 2 tapping screws (#8).
Reassemble Door Assemblg
IMPORTANT:Make sure there is no dirt or ang other foreign material in between
the window panes.
17.Place the plastic cover onto the inner door and lock in place with the 4 tabs.
18.Place the outer door onto the inner doon
W_ Oute-
_.--. Door
" Door
TODof Door
14

ge.com
STEP-BY-STEPINSTRUCTIONS(cont.)
Reassemble Door Assembly (cont.)
19.After reversing door, there will be a mismatch between the outer door and
the inner doon
Make sure that the handle part of the outer door is opposite the hinge,
as shown.
\20.Turn the door over and fasten the outer door to the inner door using
the 6 large tapping screws (#10).
i
i
Move Strike Bracket
"/ 1!!/I \ 21.Using a puttg knife or ang other flat tool, remove the S plastic screw caps
located on the drger where the door will be installed and install them on
the opposite side.
.X
22.Switch the strike bracket and its cover on the opposite side bg removing
the then reinstall both the side.screws; on opposite
Partiallg
Inserted ®
Screw
Tighten
All
Reinstall Door Assembly
2&The door is now readg to be installed on the drger. To ease this step,
the hinge has kegholes that allow a partiallg fastened screw to be used
as a hook
Partiallg fasten a screw to the uppermost screw hole Hook the door on the
partiallg fastened screw
Fasten the hinge bg installing the other 4 screws and tightening the partiallg
fastened screw above
15

Loadingand using the dryer.
Always follow the fabric manufacturer's care label when laundering.
FabricCareLabels
Below are fabric care label "sgmbols" that affect the clothing gOdwill be laundering.
WASH LABELS
wash m m
cycle Normal p.......... t Press/ Gentle'_/ Do not wash Do not wring
wrinkle resistant delicate Hand wash
Torget Automatic
Front load Category Water Temperature Temperature Control
target water Tap Cold inlet Water Temperature Not used
Cold 27°C/80°F Used
temperature Warm 40°C/105°F Used
Hot 50°C/120°F Used
Sanitize 70°C/160°F Used
DRY LABELS r-1 FoqFo-1to1
dry Donotdry
Dry Normal Permanent Press/ Gentle/ Do not tumble dry (used with
wrinkle resistant delicate do not wash)
setting High Medium Low No heat/air
D D D
Line dry/ Drip dry Dry fiat In the shade
hang to dry
BLEACH LABELS
SylIIuOIS Any bleach Only ....... tllorine bleach Do not bleach
(when needed) (when needed)
16
Sorting and Loading Hints
Asa general rule, if clothes are sorted
properlg for the washer, they are sorted properly
for the dryer Try also to sort items according to size.
For example, do not dry a sheet with socks or other
small items.
Do not add fabric softener sheetsonce the load
has become warm. Theg mag cause fabric softener
stains. Bounce®Fabric Conditioner Drger Sheetshave
been approved for use in all GEDrgers when used
in accordance with the manufacturer's instructions.
Do not overload. Thiswastes energg and causes
wrinkling.
Do not drg the following items: fiberglass items,
woolens, rubber-coated items, plastics, items with
plastic trim and foam-filled items.

Always follow the fabric manufacturer's care label when laundering.
ge.com
Careand Cleaningof the Dryer
TheExterior: Wipe or dust any spills or washing The Exheust Duct: Inspect and clean the exhaust
compounds with a damp cloth. Dryer control ducting at least once a year to prevent clogging.
panel and finishes may be damaged by some
laundry pretreatment soil and stain remover
products. Apply these products away from
the dryer. Thefabric may then be washed and
dried normally. Damage to your dryer caused by
these products is not covered by your warranty.
A partially clogged exhaust can lengthen the
drying time.
Follow these steps:
[]Turn off electrical supply by disconnecting
the plug from the wall socket.
TheLint Filter: Clean the lint
filter before each use.
Pull out the lint filter.
Moisten your fingers and
remove the captured lint.
Once clean, slidethe filter
back into position. Have a
qualified technician vacuum
the lint from the dryer once a year.
_J Disconnect the duct from the dryer.
[]Vacuum the duct with the hose attachment
and reconnect the duct.
TheExhaust Hood: Checkwith a mirror that
the inside flaps of the hood move freely when
operating. Hake surethat there is no wildlife
(birds,insects,etc.)nesting insidethe duct
or hood.
NEVER OPERATE THE DRYER WITHOUT ITS FILTER
IN PLACE.
17

Venting the dryer.
For the best drying performance, the dryer needs to be properly vented. The dryer will use
more energy end run longer if it is not vented to the below specifications. Carefully follow
the details on Exhausting in the Installation Instructions.
• Useonly rigid metal or flexible metal 4" diameter ductwork inside the dryer cabinet
or for exhausting to the outside.
• Do not use plastic or other combustible ductwork.
• Use the shortest length possible,
• Do not crush, kink or collapse the duct.
• Avoid resting the duct on sharp objects.
•Venting must conform to local building codes.
• Do not remove the vent protector from the back of the dryer (on some models).
• Flipthe protector down to its lowest position and connect the exhaust duct
to the dryer, The lowered protector will prevent the duct from getting crushed
(on some models).
Correct
Venting
Vent protector _ _
in place
(on some models)
i
Incorrect
Venting
18

Stacking. ge.com
BEFOREYOUBEGIN
Read these instructions completely and
carefully.
•IMPORTANT:Savethese instructions for local
electrical inspector's use.
•IMPORTANT:Observeall governing codes and
ordinances.
• Note to Installer - Be sure to leave these
instructions with the Consumer
• Note to Consumer - Keep these instructions
for future reference,
•Installation must be performed bg a qualified
installer
•Proper installation is the responsibility
of the installer
FOR YOURSAFETY
WARNING!
•Electric Shock Hazard. Disconnect power before
installing. Failure to do so could result in serious
injurg or death.
• Potential Personal InJury. More than two
people are recommended to lift the dryer into
position because of its weight and size. Failure
to do so could result in personal injury or
death.
•Avoid Tipping and Rupture of Utilitg Services.
Drger must be securelg attached to the washer,
DONOT place the washer on top of the drger:
Failure to do so could result in personal
injurg/death or propertg damage,
•Mobile Home or Manufactured Home
Installation - Stacking of a gas drger is not
permitted in a mobile home or manufactured
home.
MINIMUM CLEARANCEOTHERTHANALCOVEORCLOSET
INSTALLATION
Minimum clearance to combustible surfaces
and for air opening are: 0" both sides and 1" rear:
Consideration must be given to provide adequate
clearance for installation and service.
ALCOVEORCLOSETINSTALLATION
•If gour drger is approved for installation
in an alcove or closet, it will be stated on
a label on the drger back.
•The drger HUSTbe vented to the outdoors.
Refer to drger Installation Instructions for
details.
•Minimum clearance between drger cabinet and
adjacent walls or other surfaces is:
0" either side
3" front and rear
•Minimum vertical space from floor to overhead
cabinets, ceiling, etc. is 43" without pedestal,
55" with pedestal and 84" stacked.
•Closet doors must be Iouvered or otherwise
ventilated and must contain a minimum
of 60 square inches of open area equallg
distributed. If the closet contains both a washer
and a drger, doors must contain a minimum
of 120 square inches of open area equallg
distributed.
19

Stacking.
KITCONTENTS
l
Right Hand Bracket
Left Hand Bracket
4 Rubber Pads 4 #12 x 1" Screws
4 #8 x 1/2" Screws
TOOLSYOUWILLNEED
Phillips Screwdriver Pliers Gloves
Open-Ended Wrench Level
INSTALLATIONPREPARATION
Remove the packaging.
Flatten the product carton to use as a pad
to lay the dryer down on its side. Continue using
the carton to protect the finished floor in front of
the installation location.
20
