DWXR483GBWW – GE Extra-Large 6.0 Cu. Ft. Capacity Dryer
For answers to your Monogram,
® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Specification Revised 3/03
GE Appliances
Dryer Dimensions (in inches)
Exhaust Options:
When viewed from the front of the unit, exhaust 3-way via rear, left and bottom.
Dryer is shipped exhausted to the rear. Alternate exhausting knockouts are supplied.
Gas:
An individual properly-grounded branch circuit, with a three-prong grounding-
type receptacle, protected by a 15 or 20 amp circuit breaker or a time-delay fuse
is required.
Gas Dryer Electric Rating:
120V, 60Hz, 6A
Gas (BTU/HR):
22,000. Factory-equipped for natural gas. Tested for LP gas. LP gas supply requires
a conversion kit. Check installation instructions for correct kit and have a
qualified gas technician install a conversion kit. See dryer ducting information
for proper installation.
Note:
Dryer wall outlet must be located within 36" of service cord entry and accessible
when dryer is mounted in position.
Installation Information:
For complete information, see installation instructions packed with your dryer.
36 42
27
23-1/2
2-1/2
25-1/2*
Side View Rear View
5-1/4
25-3/4
23-1/2
11-1/2
*24-1/2" from the edge of the side panel to the front.
25-1/2" from the front edge of endcaps.

GE Appliances
DWXR483GBWW – GE Extra-Large 6.0 Cu. Ft. Capacity Dryer
For complete information, see installation instructions packed with your dryer.
Ducting Materials:
For best performance, this dryer should be vented with 4" diameter all rigid metal exhaust duct. If “all
rigid metal” duct cannot be used, then “flexible all metal” venting can be used, but it will reduce the
maximum recommended duct length.
Exhaust Length Calculation:
1. Determine the number of 90° turns needed for your installation. If you exhaust to the side or
bottom of dryer, add one turn.
2. The maximum length of 4" rigid (aluminum or galvanized) duct which can be tolerated is shown in
the table. The maximum length for flexible ducts are less than for rigid duct.
A turn of 45° or less may be ignored. Two 45° turns within the duct length should be treated as a
90° elbow. A turn over 45° should be treated as a 90° elbow.
Exhausting the dryer to the outside is strongly recommended to prevent large amounts of
moisture and lint from being blown into the room. Gas dryers or any dryer located in a closet must be
exhausted to the outside.
Caution: For personal safety do not terminate exhaust into a chimney, under any enclosed house
floor (crawl space), or into an attic, since the accumulated lint could create a fire hazard or moisture
could cause damage. Never terminate the exhaust into a common duct or plenum with a kitchen
exhaust, since the combination of lint and grease could create a fire hazard.
Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts, bird nesting, etc.
The wall cap must also be located at least 12” above the ground or any other obstruction with the
opening pointed Down.
Other terminations, such as louvered wall boxes, are acceptable provided they are equivalent to a 4"
opening dampered wall cap.
For more information on venting kits and accessories, please call 1-800-GE CARES.
For answers to your Monogram,
® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Specification Revised 3/03

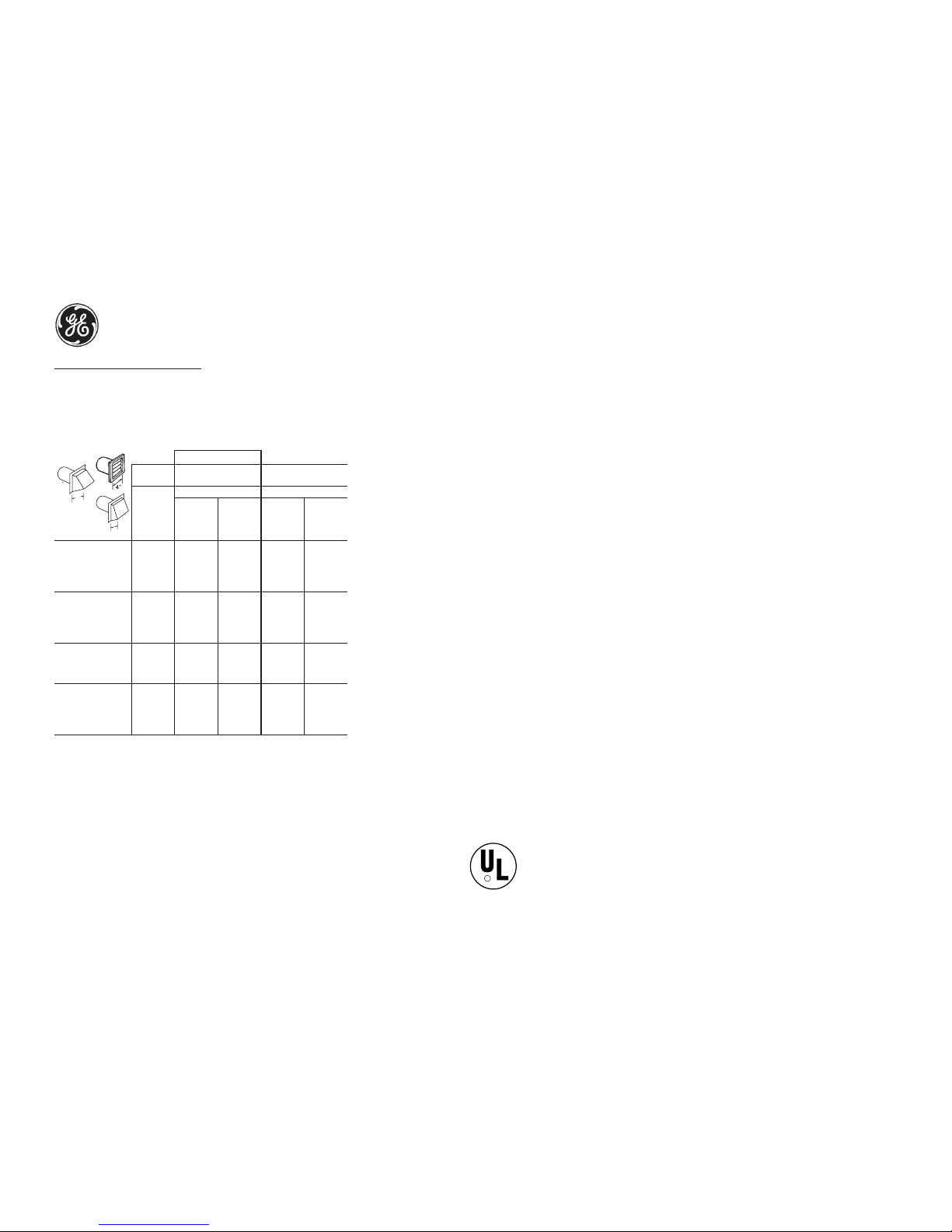

Dryer Exhausting Information – Use Metal Duct Only
Vertical and Horizontal Ducting
0150 ft. 127 ft. 75 ft. 52 ft.
1140 ft. 117 ft. 65 ft. 42 ft.
2130 ft. 107 ft. 55 ft. 32 ft.
7.3 Capacity Electric 3 120 ft. 97 ft. 45 ft. 22 ft.
and Gas Dryers 4 110 ft. 87 ft. 35 ft. 12 ft.
090 ft. 60 ft. 55 ft. 45 ft.
160 ft. 45 ft. 40 ft. 30 ft.
7.0 and 6.0 2 45 ft. 35 ft. 30 ft. 20 ft.
Capacity Models 3 35 ft. 25 ft. 20 ft. 15 ft.
all Electric Dryers 4 25 ft. 15 ft. 15 ft. 10 ft.
090 ft. 60 ft. 55 ft. 45 ft.
7.0 and 6.0 1 60 ft. 45 ft. 40 ft. 30 ft.
Capacity Models 2 45 ft. 35 ft. 30 ft. 20 ft.
all Gas Dryers 3 35 ft. 25 ft. 20 ft. 15 ft.
060 ft. 48 ft. 30 ft. 18 ft.
152 ft. 40 ft. 22 ft. 14 ft.
244 ft. 32 ft. 14 ft. 10 ft.
5.7 Capacity Electric 3 32 ft. 24 ft. — —
and Gas Dryers 4 28 ft. 16 ft. — —
Number
of
90°
Turns
Maximum Length of 4"
Dia. Rigid Metal Duct Maximum Length of 4"
Dia. Flexible Metal Duct
Exhaust Hood Type Exhaust Hood Type
Domestic
Dryer Models
A
4" Opening B 2-1/2"
Opening
A
4" Opening B 2-1/2"
Opening
A
4
Best Performance
B
2-1/2
A
Special Installation Requirements
Alcove or Closet Installation:
• If your dryer is approved for installation in an alcove or closet, it will be stated on a label on the dryer back.
• The dryer MUST be exhausted to the outside.
• Minimum clearances between dryer cabinet and adjacent walls or other surfaces are:
0" either side
3" front and rear
• Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 52”.
• Closet doors must be louvered or otherwise ventilated and must contain a minimum of 60 sq. in. of
open area equally distributed. If this closet contains both a washer and a dryer, doors must contain
a minimum of 120 sq. in. of open area equally distributed.
• No other fuel-burning appliance shall be installed in the same closet with a gas dryer.
Bathroom or Bedroom Installation:
• The dryer MUST be exhausted to the outdoors.
• The installation must conform with the local codes, or in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.
Minimum Clearances other than Alcove or Closet Installation:
• Minimum clearances to combustible surfaces
0" both sides
3" rear

GE Appliances
Specification Revised 3/03
DWXR483GBWW – GE Extra-Large 6.0 Cu. Ft. Capacity Dryer
FABRICCARE
4HeatSettings
WRINKLE CARE
ExtendedCoolAirTumble
SIGNAL
START
COTTONS
AUTOMATIC
MOREDRY
MOREDRY
COOLDOWN
OPTIMUMDRY
LESSDRY
WRINKLECARE
WRINKLE
CARE
LESSDRY
DEWRINKLE
DAMPDRY
MIN
20
QUICKFLUFF
10
30405060
70
80
EASYCARE
TIMEDDRY
STARTCOTTONS
REG.HEAT
FLUFF
NOHEAT
DELICATES
LOWHEAT
EASYCARE
MED.HEAT
OFFOFF
ONLOUD
MEDIUM
AUTOMATIC
WRINKLEFREE
PERM.PRESS
DELICATES
8
C
l
o
t
h
e
s
C
a
r
e
C
y
c
l
e
s
-
S u
p
e
r
C
a
p
a
c
i
t
y
Features and Benefits
• 6.0 cu. ft. Extra-Large Capacity Dryer
• Automatic Dry Control
• 4 Heat Selections
• 8 Cycles:
– Cottons with Auto Cotton and Optional Wrinkle Care
– Easy Care Cycle with Auto Easy Care and Optional Wrinkle Care
– Timed Dry (80 Min.) with Damp Dry, Dewrinkle and Quick Fluff (no heat)
• Variable End-of-Cycle Signal
• Dryer Interior Light
• Removable Upfront Lint Filter
• DuraDrum™Interior
• Quiet-By-Design™Performance
• Reverse-A-Door
• 100% Front Serviceable
• Model DWXR483EBWW – White on white (Electric)
• Model DWXR483EBCC – Bisque on bisque (Electric)
• Model DWXR483GBWW – White on white (Gas)
