GE JGRP20WEJWWGE User manual

1
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IN THE COMMONWEALTH OF
MASSACHUSETTS:
ŶThis product must be installed by a licensed
plumber or gas fitter.
ŶWhen using ball-type gas shut-off valves, they shall
be the T-handle type.
ŶA flexible gas connector, when used, must not
exceed 3 feet.
ŶIMPORTANT— Save these instructions
for local inspector’s use.
ŶIMPORTANT— Observe all governing
codes and ordinances.
ŶIMPORTANT— Leak testing of the
appliance shall be conducted according to the
manufacturer’s instructions.
ŶNote to Installer – Be sure to leave these
instructions with the Consumer.
ŶNote to Consumer – Keep these instructions for
future reference.
ŶSkill level – Installation of this appliance requires
basic mechanical skills.
ŶCompletion time – 1 to 3 hours
ŶProper installation is the responsibility of the
installer.
ŶProduct failure due to improper installation is not
covered under the Warranty.
WARNING This appliance must be properly
grounded.
FOR YOUR SAFETY
WARNING If the information in this manual is
not followed exactly, a fire, explosion or gas leak may
result, causing property damage, personal injury or
death.
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS AND LIQUIDS IN THE
VICINITY OF THIS OR ANY OTHER APPLIANCE!
WHAT TO DO IF YOU
SMELL GAS:
ŶDo not try to light any appliance.
ŶDo not touch any electrical switch; do not use any
phone in your building.
ŶImmediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
ŶIf you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a
qualified installer, service agency or the gas supplier.
ŶBe sure your oven is installed properly by a
qualified installer or service technician.
ŶBe sure the oven is securely installed in a cabinet
that is firmly attached to the house structure.
Weight on the oven door could cause the oven to
tip, resulting in serious personal injury or death.
Never allow anyone to climb, sit,
Installation
Instructions 24” Gas Built-In Oven
JGRP20
If you have questions, call GE Appliances at 800.GE.CARES (800.432.2737) or Visit our Website at:
GEAppliances.com.
31-2000792 Rev. 0 07-20

231-2000792 Rev. 0
TOOLS YOU WILL NEED
12” Spirit Level
Safety Glasses
Drill with 1/8” Bit
Pencil
Installation Preparation
Adjustable Wrench
Pipe wrench
3/16” Hex Socket
Driver
#1 or #2
Phillips Screwdriver
Ruler
Hand Saw
MATERIALS YOU MAY NEED
FOR FLEXIBLE CONNECTION WHERE
LOCAL CODES PERMIT:
• Coated and approved flexible metal tubing (same
ƎRUƎ,'DVJDVVXSSO\OLQH
• Adaptor or connector
FOR RIGID CONNECTION:
• Pipe fittings or union as required
Gas line
shut-off valve Pipe joint sealant 1/2” pipe nipple
1GAS REQUIREMENTS
You must follow local codes when installing your
built-in oven. Check with your local utilities for
codes and ordinances that apply in your area.
If there are no local codes, you must follow the
National Fuel Gas Code ANSI/Z223.1 – Latest
Edition. To get a copy write to:
American Gas Association
1515 Wilson Boulevard
$UOLQJWRQ5RVVO\Q9$
This standard does not cover the thermal
efficiency of household cooking gas appliances
since it is regulated by the Energy Policy and
Conservation Act of 1975, the National Energy
Conservation Policy Act of 1978 and the National
Appliance Energy Conservation Act of 1987.
If the oven is to be installed in a mobile home,
the installation must conform to the Manufactured
Home Construction and Safety Standard, Title
24, CFR, Part 3280 or, when not applicable, the
Standard for Manufactured Home Installations
ANSI/ A225.1 – Latest Edition and Manufactured
Home Installations, Sites and Communities ANSI/
NFPA 501A, or with local codes. You can get a
copy of the Federal Standard by writing:
Office of Mobile Home Standards
HUD Building
451 7th Street, S.W.
Washington, D.C. 24010.
2ELECTRICAL REQUIREMENTS
This appliance must be electrically grounded.
Check with your local codes which apply in
your area. If no local codes apply, the National
Electrical Code, ANSI/NFPA No. 70 – Latest
Edition must be followed. Write to:
NATIONAL FIRE PROTECTION
ASSOCIATION
BATTERYMARCH PARK
QUINCY, MA 02269

31-2000792 Rev. 0 3
Installation Preparation

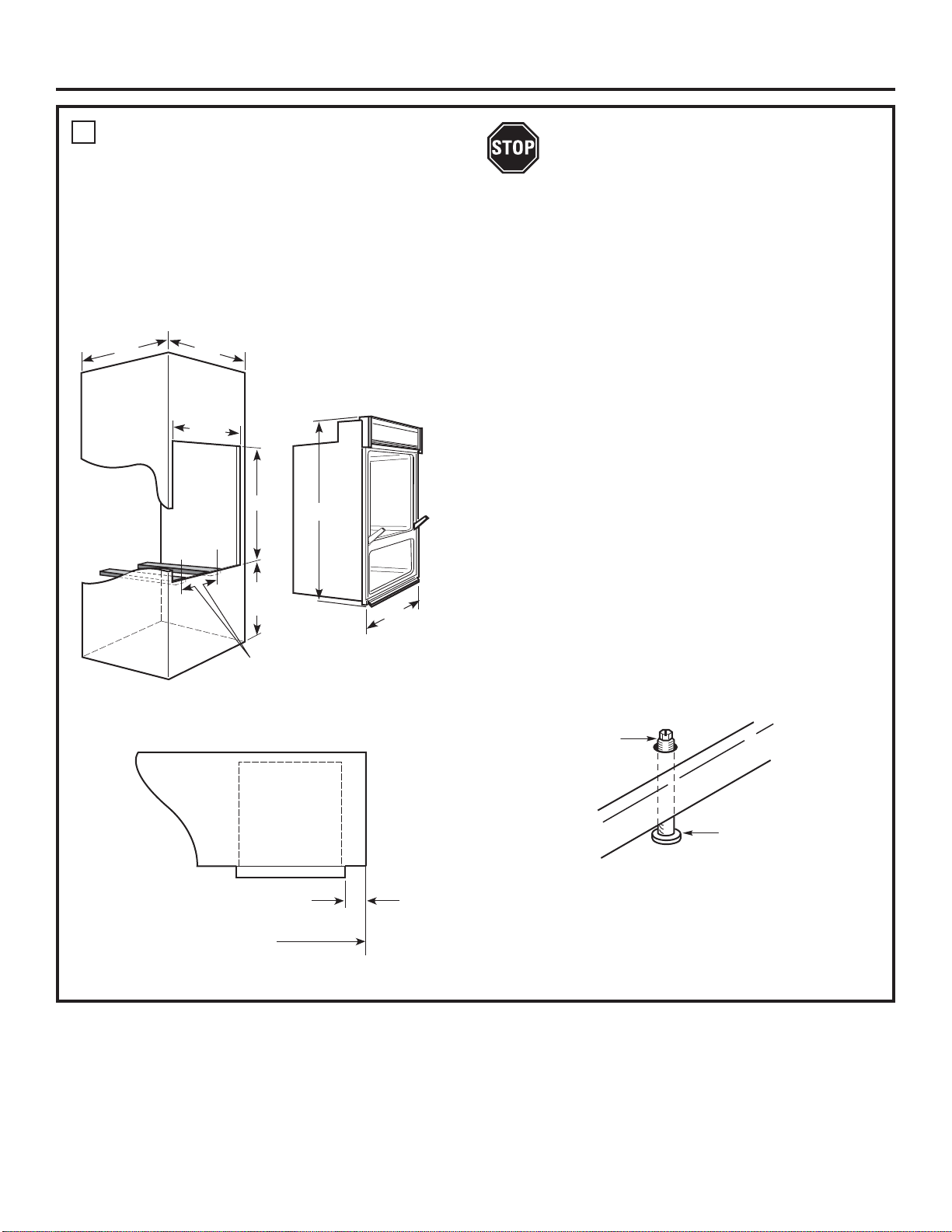

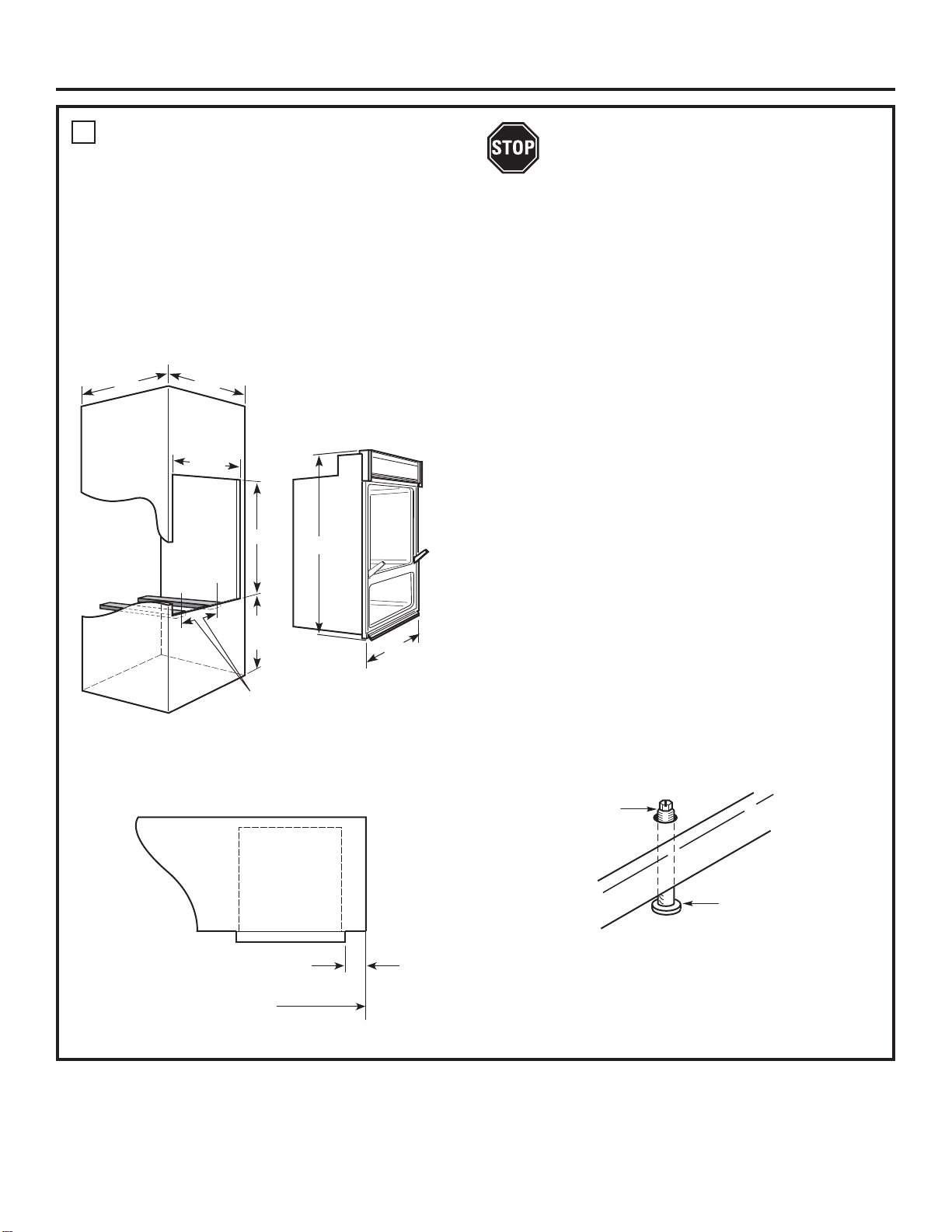

3PREPARE THE OPENING
&DELQHWVSDFH ƎPLQGHSWK
 ƎPLQZLGWK
&XWRXW ƎZLGWK
 ƎKHLJKW
 ƎPLQRQHLWKHUVLGH
 6HH)LJ
It’s best to use a template to make a straight cut. Place
WKHWHPSODWHRQDOHYHOEDVHOLQHƎWRƎDERYHWKH
IORRU7KLVZLOOSODFHWKHRYHQFDYLW\ƎRUƎDERYHWKH
floor.
* SHOULD BE ADJUSTED TO SUIT BOTH
STANDARD CABINETRY AND DESIRED OVEN
WORKING HEIGHT
The cabinet must have solid sides, back and
bottom. The bottom must be solid either at
floor level or with the bottom edge of the
cutout. Any openings around the gas or
electrical outlets must be sealed. All cabinet
openings must be sealed at the time of installation
to prevent drafts. Drafts will affect safe use of the
oven.
SPECIAL NOTES:
• Make sure the oven is installed at the specified height.
The unit has been tested and approved for installation,
in accordance with safety standards at this height.
• If the floor is to be the solid bottom, two runners,
FHQWHUHGZLWKLQWKHFXWRXWRSHQLQJƎDSDUWPD\EH
used to support the oven. These runners must support
130 lbs. and must be level and straight.
• The wall coverings, countertops and cabinets around
the oven should be able to withstand temperatures of
up to 200°F generated by the oven.
IF YOU ARE REPLACING A UNIT THAT HAS A
&87287+(,*+72)025(7+$1Ǝ
A. Shut off the main gas supply before removing the
existing oven. Leave the gas off until the new hookup
is complete.
B.0HDVXUHKRZPXFK\RXUFXWRXWKHLJKWH[FHHGVƎ
C. Raise your gas inlet pipe if necessary.
D. Remove the storage drawer.
E.([WHQGWKHOHJOHYHOHUVXVLQJDƎKH[VRFNHW
GULYHUE\WKHDPRXQWPHDVXUHGLQ6WHS%
F. Insert the oven into the cutout and adjust the levelers
so that the oven racks are level and the top of the
control panel overlaps the top of the cutout.
24”
Min. 24”
Min.
38” 39”
22” to
28”
22-3/16”
23-3/4”
2 Runners on
11” Centers Fig. 1
Oven
Fig. 2
3/8” Min.
Wall or
Cabinet
3/16” Slotted
Hex Head
Leg Leveler
Fig. 3

431-2000792 Rev. 0
Installation Instructions

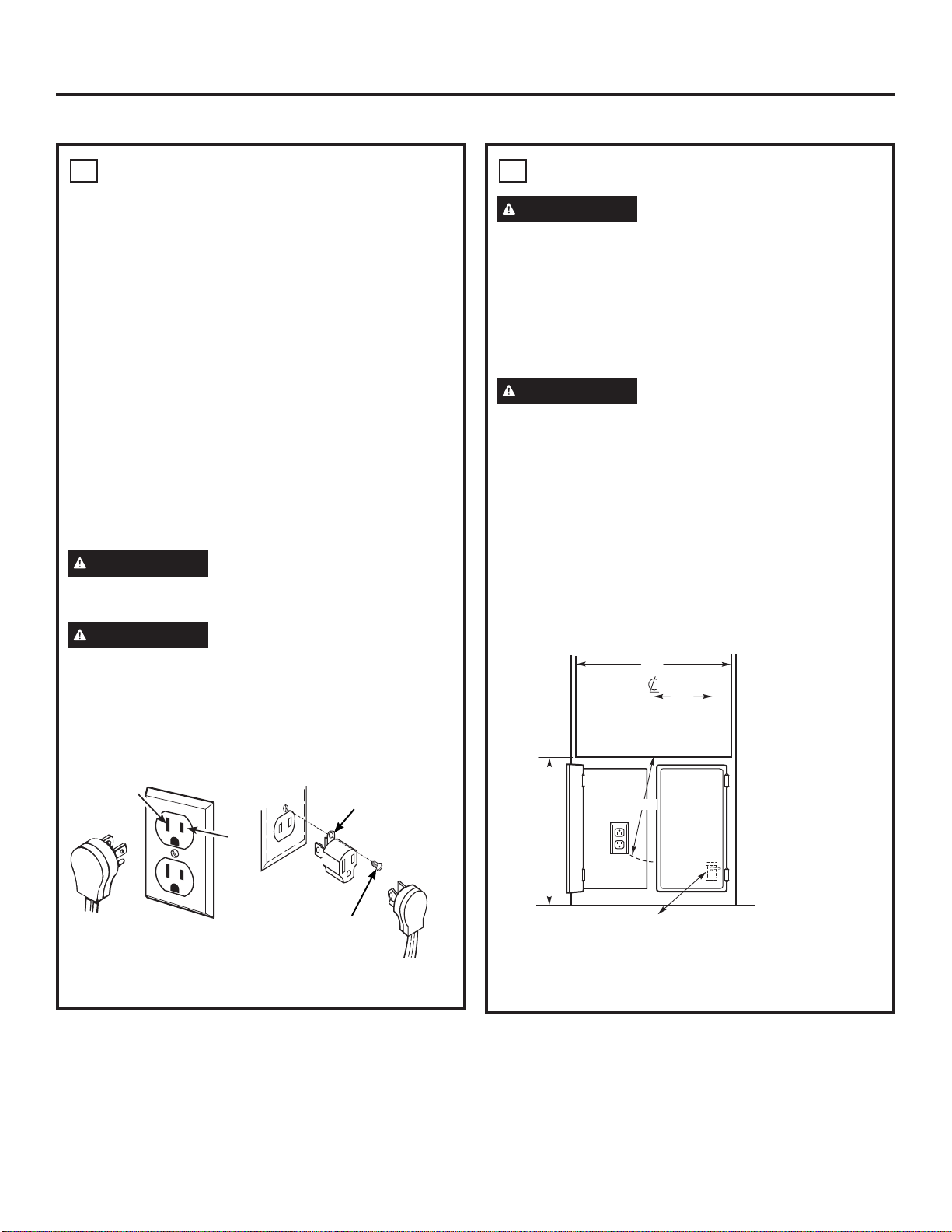

4ELECTRICAL CONNECTIONS
An adequate electrical supply and outlet must be used
to operate the electrical parts of your oven.
A. The oven cord has a three-prong plug and must be
used with a properly grounded three-hole outlet with
a standard 120 Volt, 60 cycle AC household current.
B. Install the electrical outlet below the oven on the left
side, in a location that is easily reached through the
FDELQHWGRRUVVHH)LJ
C. If you do not have a three-hole grounded outlet,
have a qualified electrician change your old one.
D. A grounding adaptor will be needed to convert the
old one until the outlet can be replaced. This method
is only temporary, and a qualified electrician should
test it to be sure it meets requirements.
Always unplug the oven cord before making any
electrical repairs to the oven. When unplugging the
oven, always grasp the plug, never the cord.
WARNING NEVER USE AN EXTENSION CORD
TO CONNECT THE OVEN TO THE ELECTRICAL
SUPPLY.
WARNING Do not under any circumstances
cut or remove grounding prong from oven cord.
Failure to provide proper polarization may create a
hazardous condition.
5GAS CONNECTIONS
WARNING Do not operate the burners of
this oven when using LP (bottled) gas before
converting the pressure regulator and burner
orifice for LP gas usage.
See page 2 for all gas requirements.
A. Shut off the gas supply at the shut-off valve.
B.5HPRYHWKHH[LVWLQJRYHQLIQHFHVVDU\
C. Discard any old or used connectors.
WARNING Never reuse old flexible
connectors. The use of old flexible connectors can
cause gas leaks and personal injury. Always use
new connectors when installing a gas appliance.
D. Be sure no strain has been placed on the
connecting line assembly.
To prevent any leaks, use a pipe joint compound
that resists the action of LP gas on the male outside
threads.
E. 8VHDƎJDVLQOHWSLSH
F. 7KHKROHIRUWKHLQOHWSLSHVKRXOGEHƎPLQWR
ƎPD[ULJKWRIWKHFHQWHUOLQHDQGƎEHKLQGWKH
front surface of the cabinet.
G. Install a shut-off valve to the pipe.
H. Remove the storage drawer and the oven door.
L
N
Plug with ground prong
properly polarized and
grounded receptacle. Polarized receptacle
properly grounded.
Metal Eyelet
Ground
Receptacle Plate
Mounting Screw
Preferred Method
Temporary Method
Fig. 4
Fig. 5 Recommended Main Shut-Off Location
(The regulator also has a shut-off lever)
8-1/2”
Min.
9-5/8”
Max.
22”
13-1/2”
22”
to
28”
Fig. 6
INSTALL THE OVEN

31-2000792 Rev. 0 5
Installation Instructions
5GAS CONNECTIONS (Cont.)
I. Place the oven in the cutout.
J. Level the oven:
1. Place a spirit level on one of the oven racks.
2. If the oven is not level, adjust the leg levelers.

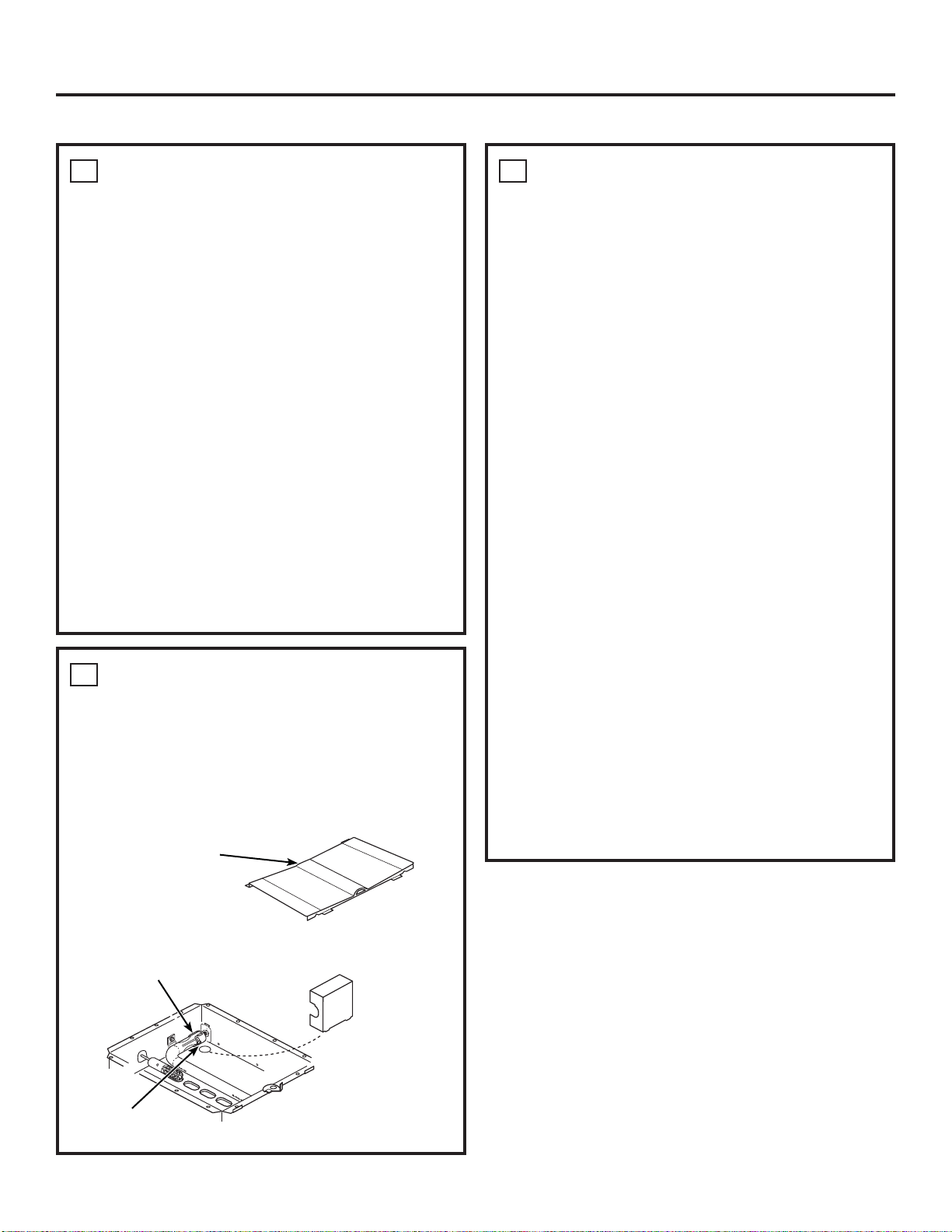

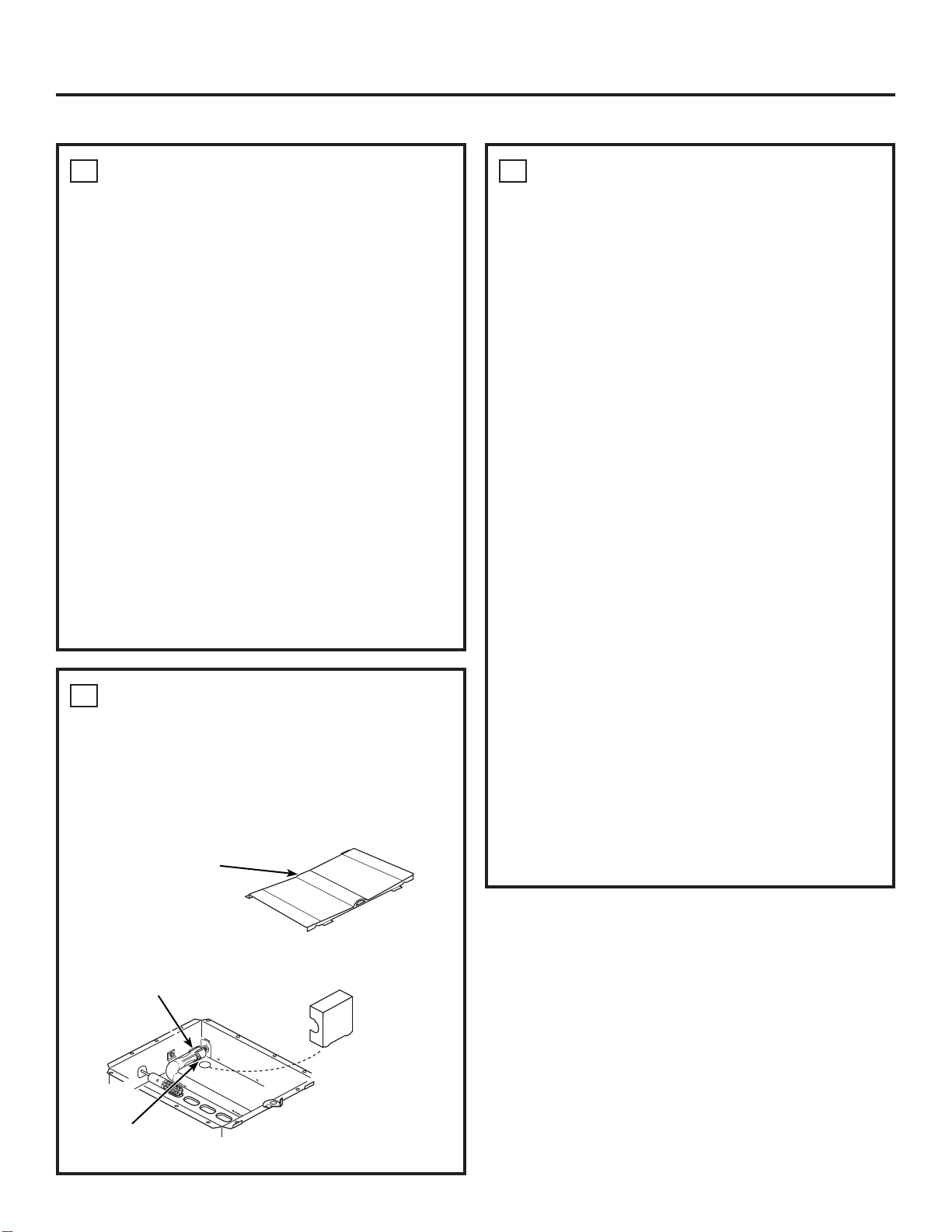

3. Remove regulator cover at the back of the storage
drawer area by removing 4 screws.
With the oven in place, the pressure regulator inlet is
accessible through the opening in the main back.
K. Through this opening connect:
1. 7KHIOH[LEOHFRQQHFWLRQDQGWKHDGDSWRUVHH)LJ
or
2. The rigid pipe connection and union to the shutoff
YDOYHVHH)LJ
L. Tighten the fitting.
WARNING DO NOT FORCE! FORCING COULD
DAMAGE THE FITTING, TUBING OR CAUSE
LEAKING.
6CHECK FOR LEAKS
WARNING DO NOT USE OPEN FLAME TO
CHECK FOR LEAKS!
A. Apply a soap solution to all connections: supply line,
manifold and oven.
B. Turn on the main gas supply.
C. Check for any bubbles to form.
D. Turn off main gas supply.
E. Stop any leaks found.
F. Turn main gas supply on to make sure all leaks were
stopped.
G. Replace the regulator cover using the 4 screws
previously removed.
WARNING ALL LEAKS MUST BE STOPPED
BEFORE ATTEMPTING TO LIGHT BURNERS.
7PRESSURE TEST INFORMATION
A. The maximum allowable pressure for the regulator is
Ǝ:&
B. The minimum pressure needed to check the
UHJXODWRUVHWWLQJLVƎ:&IRU/3JDVDQGƎ:&
for Natural.
CAUTION The range and its individual shutoff
valve must be disconnected from the gas supply
piping system during any pressure testing of the
gas supply system at test pressures in excess of
1/2 psig (pound per square inch gauge).
The range must be isolated from the gas supply piping
system by closing its individual manual shut-off valve
during any pressure testing of the gas supply system at
test pressures equal to or less than 1/2 psig.

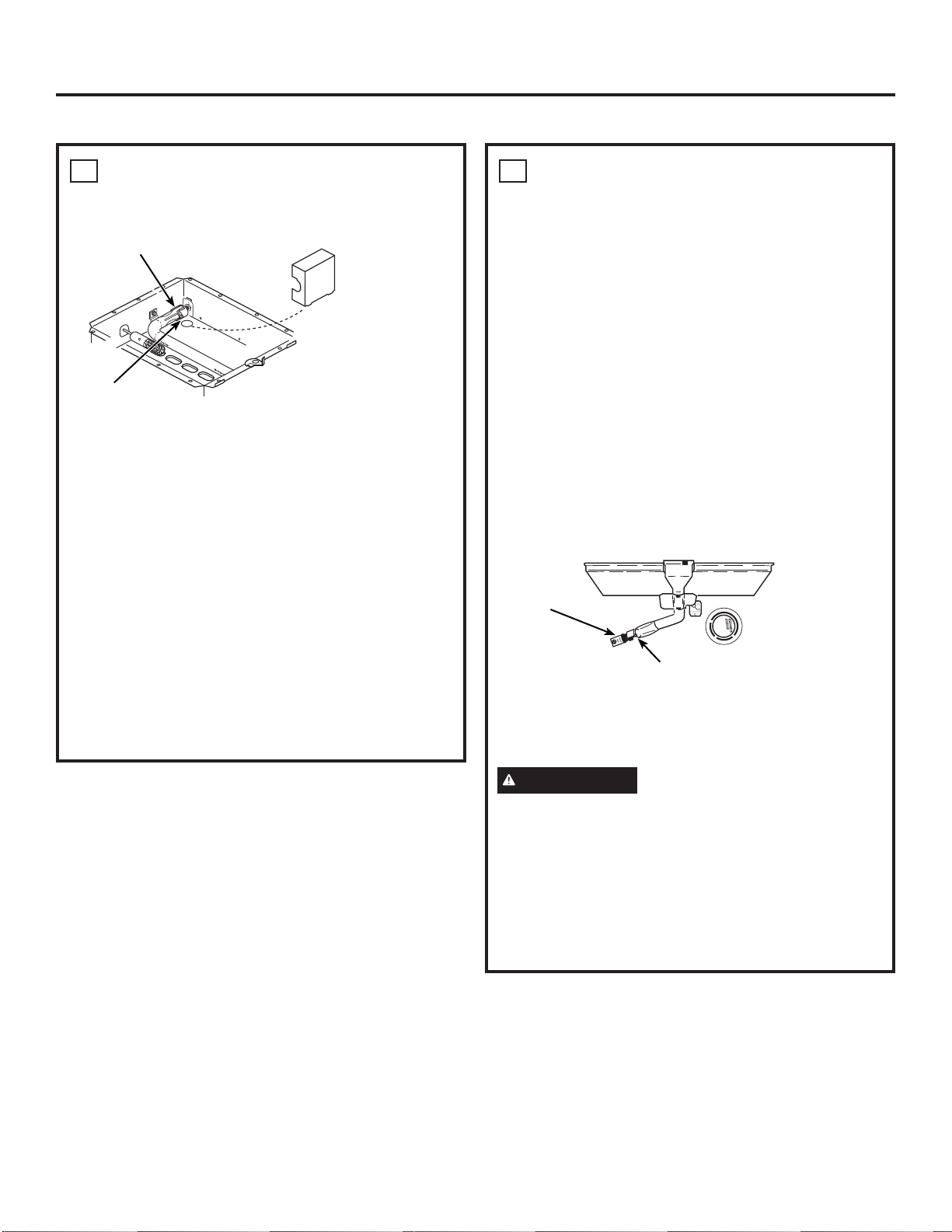

Union
RIGID HOOK-UP
Pressure
Regulator
Regulator
Cover
Plate
FLEXIBLE HOOK-UP
Pressure Regulator
with Built-In Shut-Off
Valve
Adaptor Flexible
Connection
Regulator
Cover Plate
Fig. 7
Fig. 8

631-2000792 Rev. 0
Installation Instructions
8CHECK THE BURNER FLAMES FOR
NATURAL GAS
The oven is factory-adjusted for use with Natural Gas
in most areas. But, since the gas in some areas may
vary, you should check all adjustments described
below. If you are to use LP Gas, see LP Adjustments
at the back of this guide.
NOTE: Bake and broil flame must be checked with the
door closed to properly check flame characteristics. To
properly check the bake burner, the oven bottom and
oven baffle must be removed.
Turn on the bake or broil burner.
As you watch the flame with the oven door
closed, check the following through the oven door
window:
1. Burner flames should not flutter or blow away
from the burner.
2. They should be blue in color with no trace of
yellow.
3. The inner cone of the flame should be
DSSUR[LPDWHO\ƎWRƎORQJ
BURNERS SHOULD BE CHECKED FREQUENTLY.
9MAKE THE BURNER FLAME
ADJUSTMENTS (Cont.)
E. Use a screwdriver to loosen the air shutter screw.
1. If the flames were yellow, open the air shutter
more than the original setting.
2. If the flames blew away or fluttered from the
burner, close the air shutter more than the
original setting.
F. Make the adjustment.
G. Retighten the air shutter screw.
H. Close the door and recheck the flame.
When the results are satisfactory:
1. Replace the orifice fitting cover.
2.5HSODFHWKHRYHQEDIIOHIODPHVSUHDGHU
3. Replace the oven bottom.
BROIL BURNER
A. The broil burner is located and accessible in the top
rear of the oven.
B. Use a screwdriver to loosen the air shutter
adjustment screw.
1. Check air shutter to ensure it’s in the fully open
position and clear of any obstructions. For NG
application ensure that the regulator is in the NG
position. For LP applications ensure that the hood
has been tightened to the LP position.
2. If the flames blew away or fluttered from the
burner, close the air shutter more than the
original setting.
C. Make the adjustment.
D. Retighten the air shutter screw.
E. Close the oven door and recheck the flame.
9MAKE THE BURNER FLAME
ADJUSTEMENT
BAKE BURNER
A. Open the oven door.
B. Remove the oven bottom.
C. 5HPRYHVFUHZVWRUHPRYHEDIIOHIODPHVSUHDGHU
D. Remove orifice fitting cover.
INSTALL THE OVEN (Cont.)
Oven Bottom
Burner Baffle
Fig. 9
Air Shutter Orifice
Fitting
Cover
Air Shutter
Screw Fig. 10

31-2000792 Rev. 0 7
Installation Instructions
10 SECURE THE OVEN
IMPORTANT: Remove all packing
material and literature from the oven
before connecting any electrical supplies.
A. Using a 1/8” drill bit, drill holes through the side trim
and into the cabinet front.
B. With the screws provided, secure the oven to the
wall.
C. If the cabinet cutout is 38” high, use the short trim
and attach to the bottom of the front frame, with
screws provided.
,IWKHFXWRXWLVKLJKHUWKDQ´XVHWKHWDOOHUWULP
11 RECHECK STEPS
Double check to make sure everything in this guide has
been completed. Rechecking steps will ensure safe
use of the oven.
WARNING The trim permits air entry into the
cabinet below the unit and must not be blocked.

831-2000792 Rev. 0
Installation Instructions
1ADJUST PRESSURE REGULATOR
FROM NATURAL GAS TO LP
(Cont.)
D. Remove the retainer from the cap.
E. Turn the retainer over so LP is showing on the
bottom of the retainer.
F. Return the retainer inside the cap.
G. Replace the cap on the regulator.
H. Replace the Regulator Cover Plate using the 2
screws that held it originally.
1ADJUST PRESSURE REGULATOR
FROM NATURAL GAS TO LP
A. Remove the Regulator Cover Plate at the back of
the storage drawer area by removing 2 screws.
B. Locate the regulator.
C. Unscrew the cap. Fig. 11
MAKE THE LP GAS CONVERSION
WARNING If you are using LP (bottled) gas,
all the adjustments described below must be made
before you make any burner adjustments or use
the oven.
WARNING This conversion must be
performed by a qualified installer or gas supplier
in accordance with the manufacturer’s instructions
and all codes and requirements of the authority
having jurisdiction. Failure to follow instructions
could result in serious injury or property damage.
The qualified agency performing this work
assumes responsibility for the conversion.
NOTE: Disconnect all electrical power and turn off the
gas supply at the shut-off valve before beginning the
conversion.
NAT. l..P.
Cap
Gasket
Spring
Retainer
LP
Nat
Fig. 12
2ADJUST BURNER ORIFICE FROM
NATURAL TO LP GAS
CAUTION The adjustments in the next
column must be made before turning on the
burners. Failure to do so could result in serious
injury due to high flames and toxic fumes.
Your Broil burner is located in the upper portion of
the oven and is easilly accessible.
To access your Bake burner follow the steps
below:
A. Open the oven door.
B. Remove the oven bottom.
C. Remove 4 screws holding the oven baffle (flame
VSUHDGHU
D. Remove the orifice fitting cover.
Oven Bottom
Burner Baffle
Fig. 13
Air Shutter Orifice
Fitting
Cover
Air Shutter
Screw Fig. 14
FLEXIBLE HOOK-UP
Pressure Regulator
with Built-In Shut-Off
Valve
Adaptor Flexible
Connection
Regulator
Cover Plate

31-2000792 Rev. 0 9
Installation Instructions
3FOR BAKE AND BROIL BURNERS
Use a 1/2” open end or adjustable wrench to turn the
orifice hood in the LP direction, about 1-1/2 turns, until
snug.
IMPORTANT: Do not overtighten or you may bend
the orifice hood or needle.
5ADJUST AIR SHUTTER
NOTE: The Bake and Broil burner flame must be
checked with the door closed to properly check flame
characteristics.
Turn on the bake or broil burner.
As you watch the flame with the oven door closed,
check the following through the oven door window:
A. Burner flames should not flutter or blow away from
the burner.
B. They should be blue in color with no trace of yellow.
C. The inner cone of the flame should be approximately
1/2” to 3/4” long.
IN SOME CASES
A. With LP gas, some yellow tipping on the outer cone
is normal.
B. Foreign particles in the gas line may cause an
orange flame at first, but this will soon disappear.
4CHECK FLAME SIZE
Check the inner cone of
the flame. It should be
approximately 1/2” to 3/4”
long for the oven and broil
burners until snug.
If the flame size is too long,
use a 1/2” open-end wrench
or adjustable joint pliers to
adjust the orifice hood, by
turning in the LP direction.
WARNING If you attempt to measure the inner
cone of the flame, please use caution; burns could
result.
NAT.
NAT.
NAT.-LP
Adjustment Made
to Orifice Hood
LP
LP
Air Shutter
Air Shutter
Air Shutter Screw
Fig. 15
Fig. 16
Bake Burner
Broil Burner
1/2” to 3/4”
Inner Cone
of Flame Fig. 17
“A”
Yellow Flames
Call for Service
“B”
Yellow Tipping
Normal for LP Gas
“C”
Soft Blue Flames
Normal for Natural Gas
Fig. 18

10 31-2000792 Rev. 0
Installation Instructions
5ADJUST AIR SHUTTER (Cont.)
BAKE BURNER
A. Use a screwdriver to loosen the air shutter screw.
1. If the flames were yellow, open the air shutter
more than the original setting.
2. If the flames blew away or fluttered from the
burner, close the air shutter more than the
original setting.
B. Make the adjustment.
C. Retighten the air shutter screw.
D. Close the oven door and recheck the flame.
E. When all adjustments are made and the results are
satisfactory:
1. Replace the orifice fitting cover.
2.5HSODFHWKHRYHQEDIIOHIODPHVSUHDGHU
3. Replace the oven bottom.
5ADJUST AIR SHUTTER (Cont.)
BROIL BURNER
A. The broil burner is located and accessible in the top
rear of the oven.
B. Use a screwdriver to loosen the air shutter
adjustment screw.
1. Check air shutter to ensure it’s in the fully open
position and clear of any obstructions. For NG
application ensure that the regulator is in the NG
position. For LP applications ensure that the
hood has been tightened to the LP position.
2. If the flames blew away or fluttered from the
burner, close the air shutter more than the
original.
C. Make the adjustment.
D. Retighten the air shutter screw.
E. Close the oven door and recheck the flame.
SPECIAL NOTE: To convert the oven back to natural
gas, reverse the instructions given in making LP
Adjustments.
WARNING Once the conversion is complete,
locate the LP Conversion Sticker under the storage
drawer on the main bottom. When the Conversion
checks OK, fill out the LP sticker and include your
name, organization and date conversion was made.
Apply the sticker to the front frame opposite the
name and number plate behind the storage drawer
to alert others in the future that this appliance has
been converted to LP If converting back to natural
gas from LP, please remove the sticker so others
know the appliance is set to use natural gas.
MAKE THE LP GAS CONVERSION (Cont.)
Air Shutter Orifice
Fitting
Cover
Air Shutter
Screw Fig. 19
Air Shutter
Screw
Air Shutter
Fig. 20
