Dimensions and Installation Information (in inches)
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
Specification Revised 10/08 330541
24
30" FS Gas Ranges-CL
30
8
4
9
2
2-1/2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
46-1/8
26-1/4*
46-3/8
36-1/4±1/4

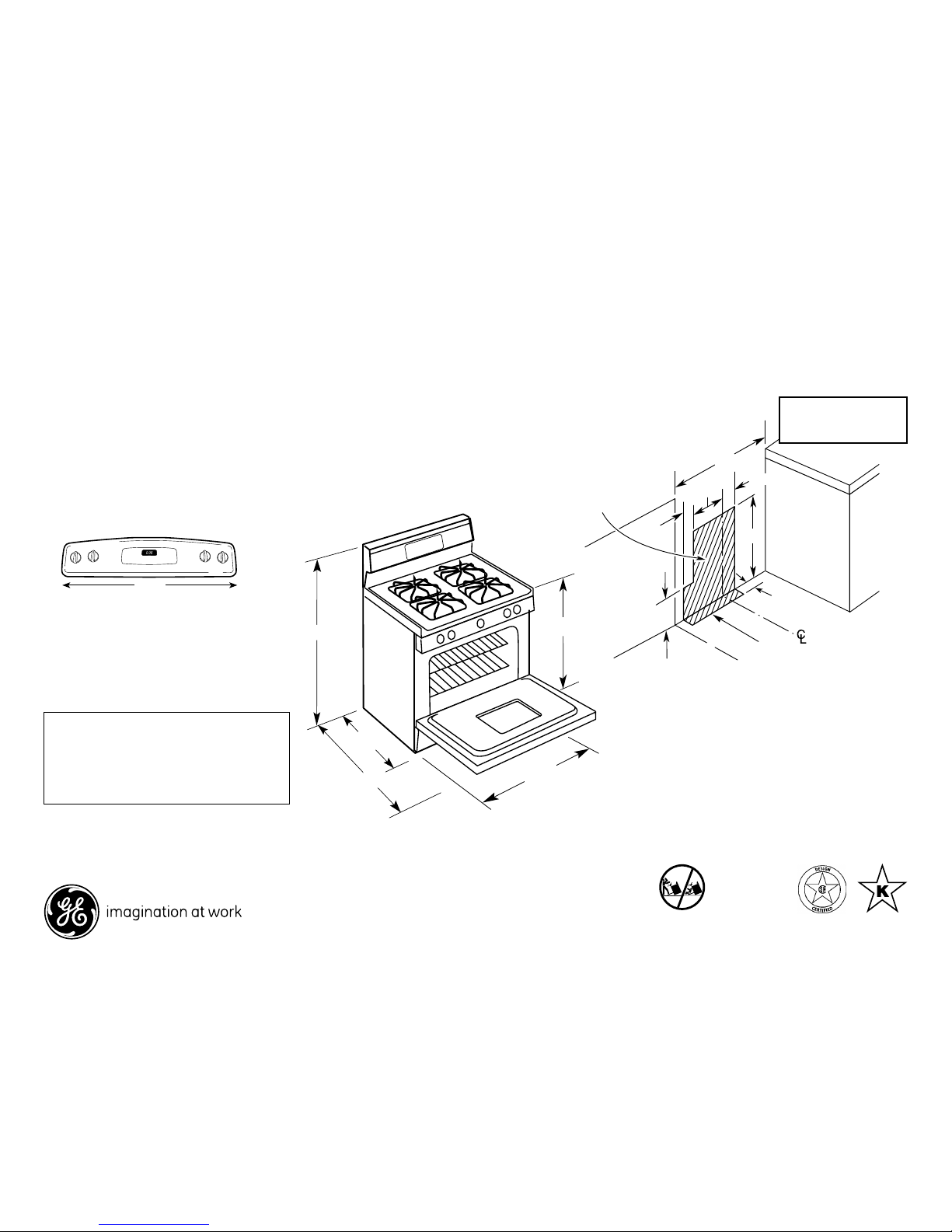

Installation Information (Dimensions in inches)
Recommended common
area for gas outlet and
electrical outlet
*Dimension from wall
to front of closed
door handle is 29".
30
Optional Gas Range Accessory Drip Pans for Sealed and Standard
Burner Models
(Available at additional cost)
To order these accessory drip pans, call toll-free 800-626-2002
Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
24
30" FS Gas Ranges-CL
30
8
4
9
2
2-1/2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
46-1/8
26-1/4*
46-3/8
36-1/4±1/4
Installation Information (Dimensions in inches)
Recommended common
area for gas outlet and
electrical outlet
*Dimension from wall
to front of closed
door handle is 29".
30
JGB280DEN
GE® 30" Free-Standing Self-Clean Gas Range
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
All 30" GE gas and electric range backguards
are 30-7/8" wide.*
Note: 30" ranges conform to U.L. requirements
for 0" spacing from adjacent walls below
countertops. To reduce possible scorching of
walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended,
high heat, no-load heating element operation.
*Except these models: JGBS07, JGBS04, JGBP90,
all GE Profile free-standing electric and gas
ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.
30-7/8"

Features and Benefits
• Self-Clean Oven - Conveniently cleans the oven cavity without need of scrubbing
• Extra-Large Oven Capacity - Provides a large oven interior ideal for cooking more
items at once
• TrueTemp™System - Delivers even heat distribution and maximum oven control
• Deluxe Grates - Provide a sturdy and durable cookware surface for everyday cooking
• All Purpose Burners - Deliver a wide range of heat output ideal for most cooking
requirements
• Precise Simmer Burner - Offers a low setting of 600 BTUs, ensuring more
temperature control for simmering
• Sealed Cooktop Burners - Eliminate the space between the burners and the cooktop
to help contain spills and boil over liquids, ensuring easy cleanup
• QuickSet III Oven Controls - Feature an easy to use design that lets you set precise
cooking temperatures
• Frameless Glass Oven Door - Offers an easy-to-clean and stylish design that blends
seamlessly into existing cabinetry
• Two Oven Racks - Feature a durable construction to help accommodate any size or
type of cookware
• Model JGB280DENBB - Black on black
• Model JGB280DENWW - White on white
JGB280DEN
BROILSELF
CLEAN
OVEN
LIGHT
CLOCK
TIMECONTROLS
OVENCONTROLS TrueTemp
ON
TEMP
NORMAL
HILOOFF
KITCHEN
TIMER
ONOFF
BAKESTART
ON
CLEAR
OFF
Specification Revised 10/08 330541
