GE Monogram®23 Cu. Ft. Counter-Depth Free-Standing
Side-by-Side Refrigerator with Dispenser
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
Specification Created 4/08 110212
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
Dimensions and Specifications (in inches)
Installation Note:
Door and passageways into the installation location require a
36" minimum opening. If the opening is less than 36", the top
cap and doors must be removed. See installation instructions
for details.
Electrical
A 115V, 60Hz., 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded 3-
prong electrical receptable recessed into the back wall.
Note: GFI (ground fault interrupter) is not recommended.
Water Line
The water line can enter the opening through the
floor or back wall. Route 1/4" O.D. copper tubing or GE
QuickConnect kit between the cold water line and the
water connection location at the rear of the refrigerator.
The installation of an easily accessible shut-off valve in the
water line is required. Allow 19" minimum clearance on the
fresh food side for a full 160° door swing and pan removal.
Allow 14-1/4" clearance on the freezer side for removal of
ice bin.
• 4" minimum clearance is required when the door swing is
restricted to 90°.
Air Circulation Clearances
Allow 1/8" on each side and 1" at the top and back side for
proper air circulation.
Door Swing Clearances
The installtion must allow for clearances to adjacent walls
or cabinets. These refrigerators are factory set for a 160°
door swing.

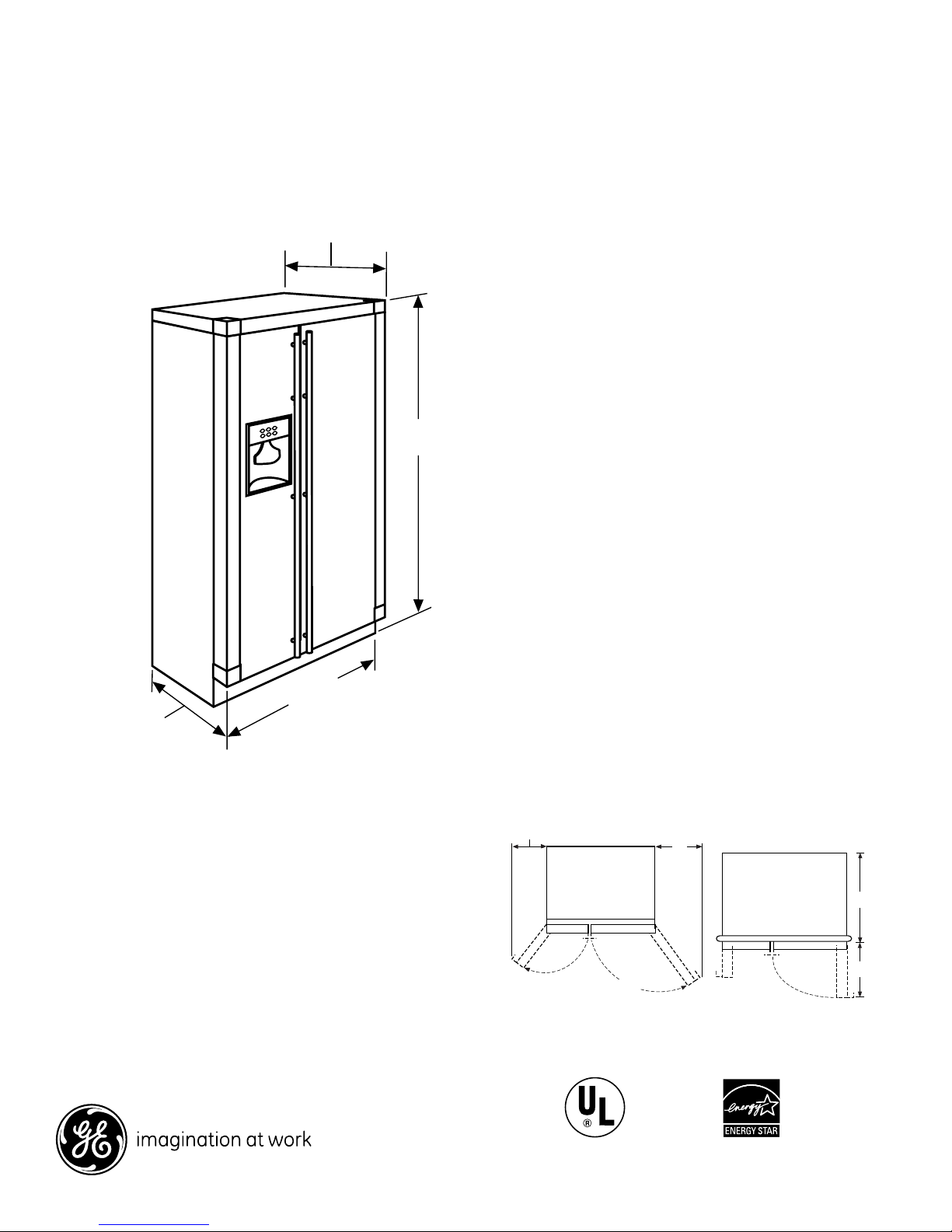

36"
72"
29-1/2"
Including
Handles
605Dia42
27-1/2"
251Dia46
19
14-1/4
160°
160° Door Swing
213Dia22
24-5/8
22
90° Door Swing

ZFSB23DXSS
GE Monogram®23 Cu. Ft. Counter-Depth Free-Standing
Side-by-Side Refrigerator with Dispenser
Specification Created 4/08 110212
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
ZFSB25DMSS.EPS
QUICK
ICE
CONTROL
LOCK
DOOR
ALARM
RESET
WA
TERFILTER
Features and Benefits
• Counter-Depth — Aligns nearly flush with
surrounding cabinetry
• Integrated Design — Stainless steel-wrapped with signature
Monogram handles matches with other Monogram
integrated appliances
• Advanced Temperature Management System with
Multi-Shelf Air Tower — Provides even distribution of air
throughout the refrigerator
• Tri-Level Lighting - GE Reveal®and LED lighting illuminates
the entire refrigerator
• Climate-Control Drawer —Express-chill beverages, express-
thaw meats and select specific temperatures for
perishable foods
• ENERGYSTAR®Qualification —Higher energy efficiency
means lower utility bills
• Full-Extension Freezer Baskets — Extends 12" beyond the
cabinet, providing easy loading and unloading
• Tilt-Out Freezer Door Bins - Move forward for
convenient access
• Integrated Ice™System - Frees up valuable freezer space; It
tilts down, providing easy access to bulk ice
• GE Water Filtration System - Delivers clean great-tasting
water and ice through the dispenser
• Adjustable Slide-Out, Spillproof Glass Shelves - Raised edges
help contain spills and slide-out shelves make clean up
quick and easy
• In-the-Door Beverage Rack - Conveniently located inside
the refrigerator door to increase flexibility and to free up
valuable shelf space
• Model ZFSB23DXSS – Stainless steel
