GE GIE21 Original instructions

ENGLISH/FRANÇAIS/
ESPAÑOL
Write the model and serial
numbers here:
Model #_________________
Serial # _________________
Find these numbers on a label
inside the fresh food compartment.
49-60726-2 10-17 GEA
GTE21
GIE21
OWNER’S MANUAL &
INSTALLATION
INSTRUCTIONS
REFRIGERATORS
Top Freezer
GE is a trademark of the General Electric Company. Manufactured under trademark license.
SAFETY INFORMATION .........3
USING THE REFRIGERATOR
Controls ..............................5
Shelves and Bins.......................6
Crispers and Pans......................7
Automatic Icemaker....................8
CARE AND CLEANING ...........9
Cleaning the Outside ...................9
Cleaning the Inside ....................9
Condenser ............................9
Moving the Refrigerator ...............10
Preparing for Vacation ................10
Preparing to Move ....................10
Replacing the Light Bulb ..............10
INSTALLATION INSTRUCTIONS

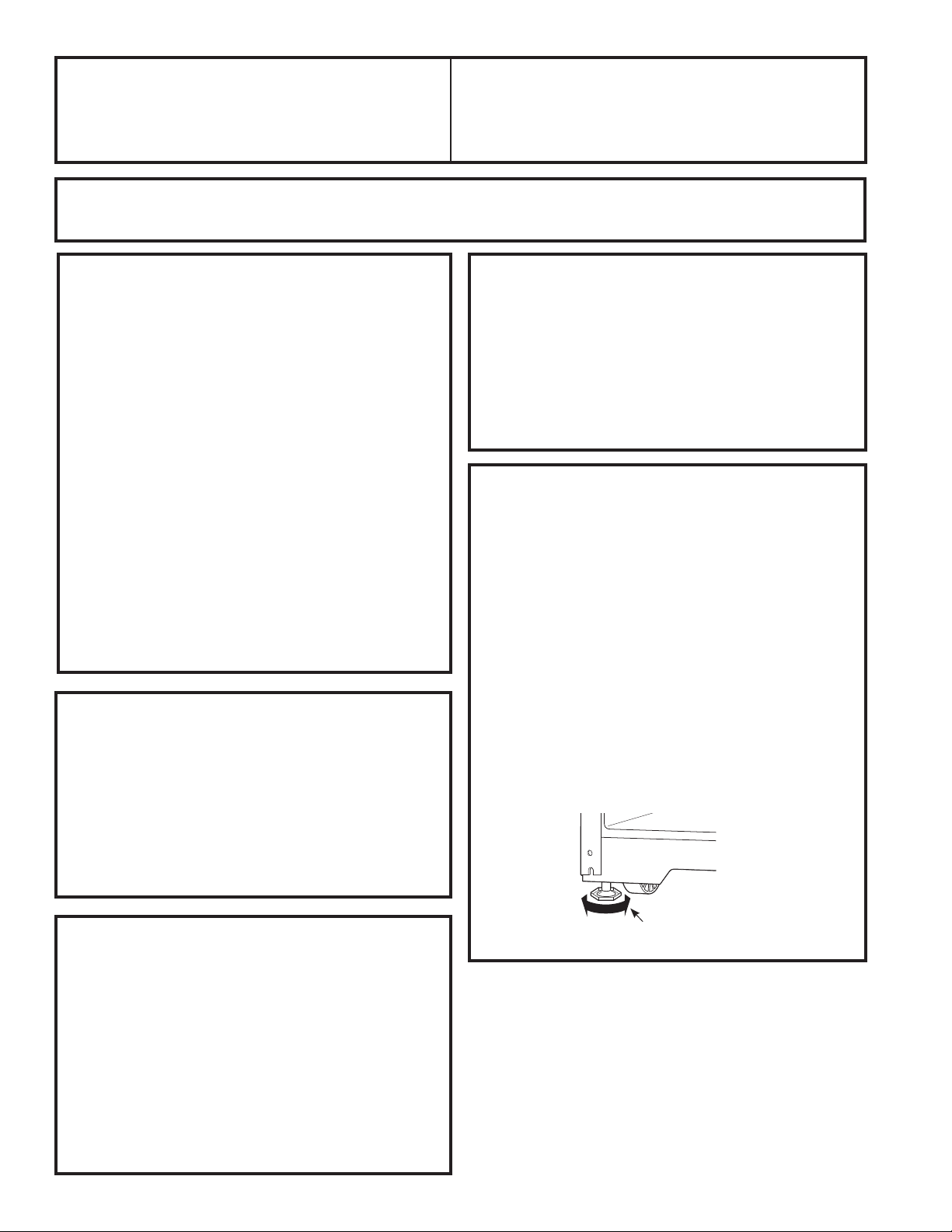

Preparing to Install the Refrigerator..... 11

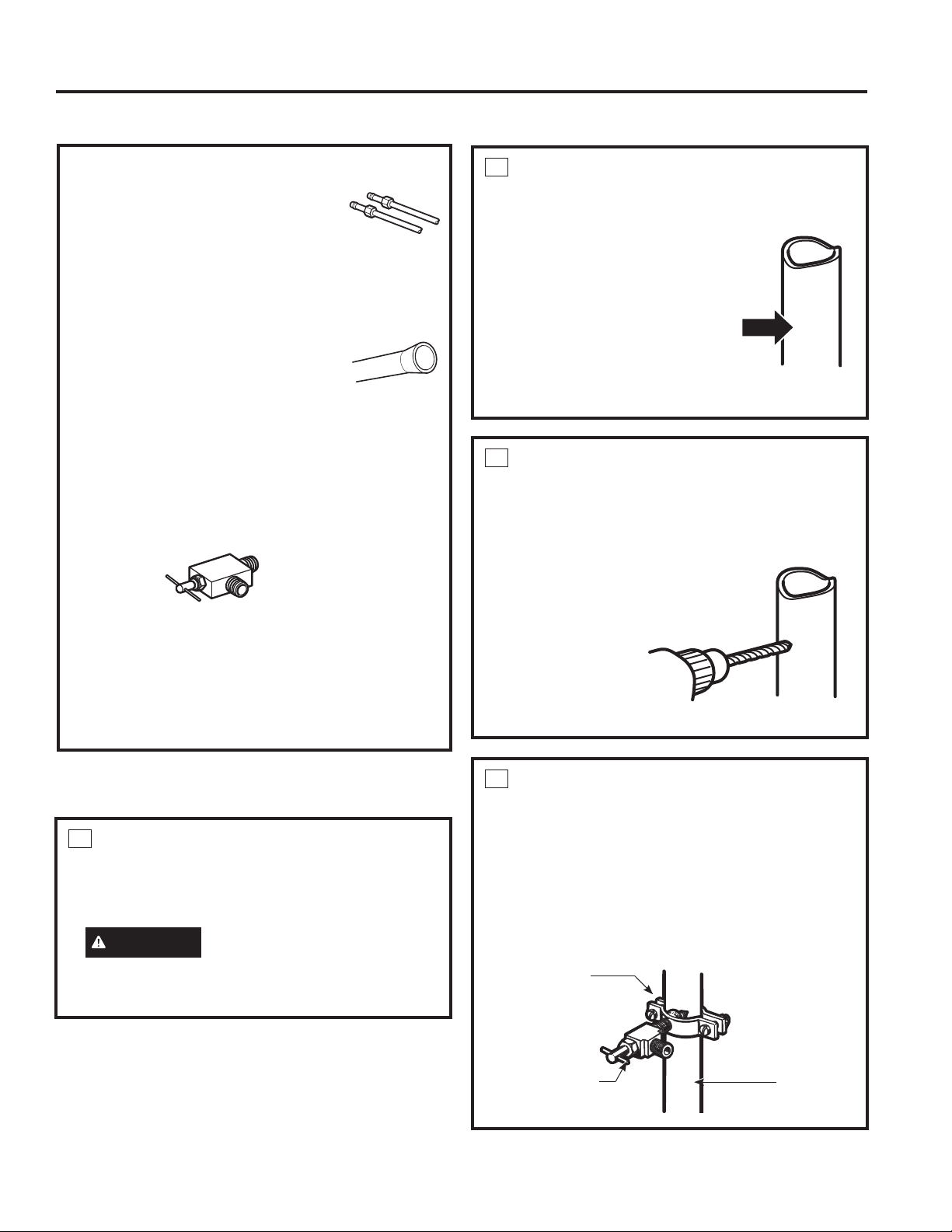

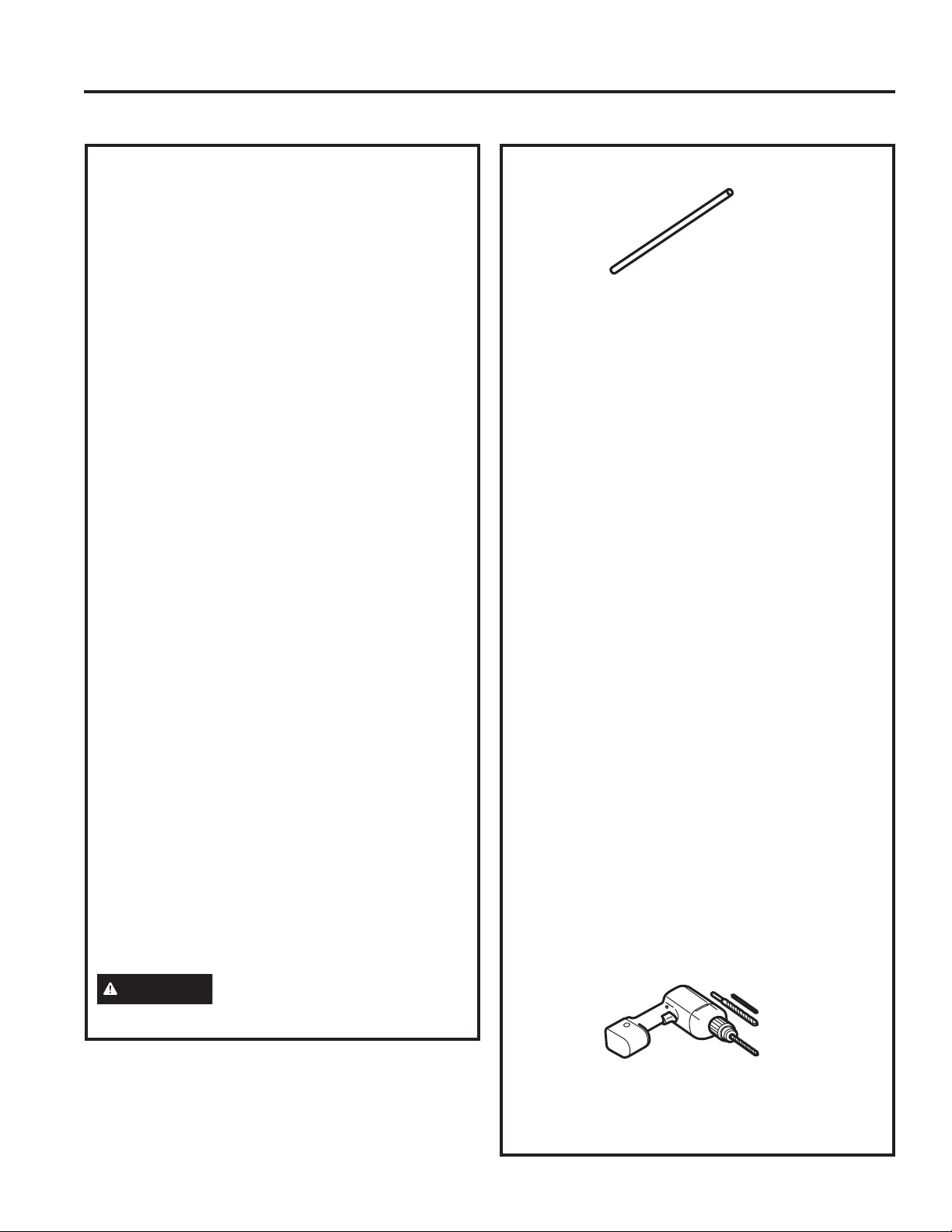

Installing the Water Line...............12

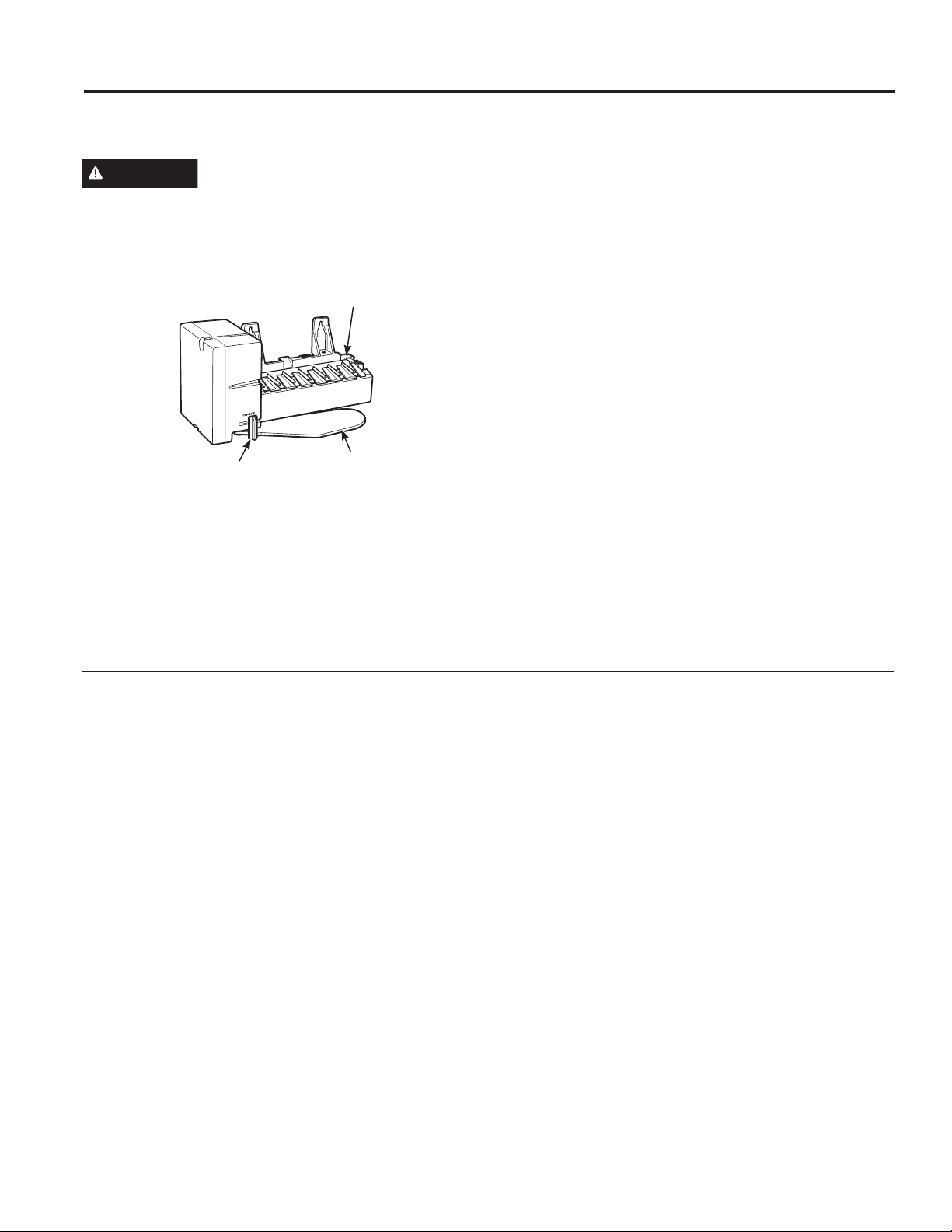

Icemaker Installation ..................16

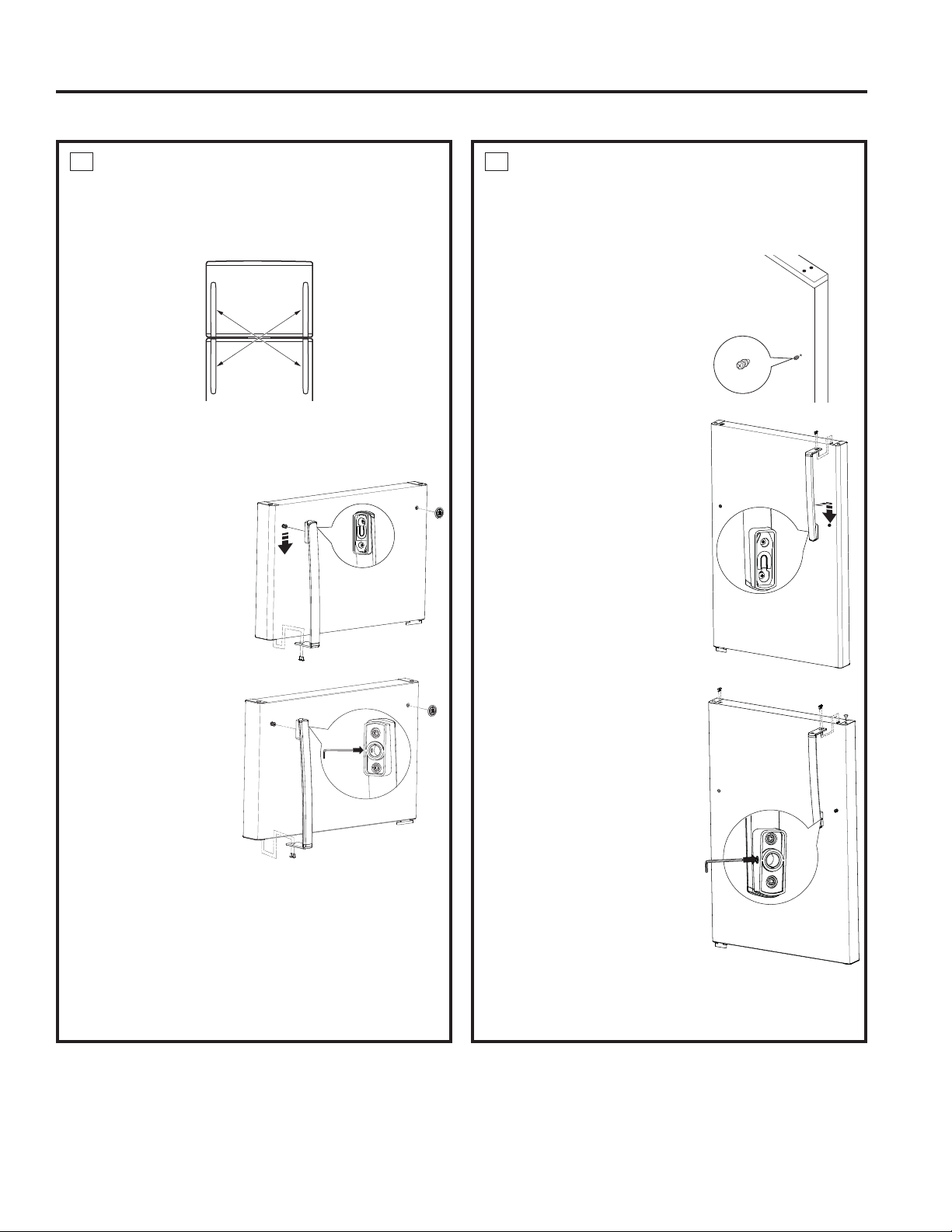

Reversing the Door Swing .............17
TROUBLESHOOTING
Normal Operating Sounds .............22
Troubleshooting Tips..................23
WARRANTY .......................25
CONSUMER SUPPORT ......... 26

249-60726-2
THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.
Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family.
We take pride in the craftsmanship, innovation and design that goes into every GE Appliances
product, and we think you will too. Among other things, registration of your appliance ensures that we
can deliver important product information and warranty details when you need them.
Register your GE appliance now online. Helpful websites and phone numbers are available in the
Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration
card included in the packing material.

49-60726-2 3
CAUTION To reduce the risk of injury when using your refrigerator, follow these basic safety
precautions.
Ŷ 'RQRWFOHDQJODVVVKHOYHVRUFRYHUVZLWKZDUP
water when they are cold. Glass shelves and
covers may break if exposed to sudden temperature
changes or impact, such as bumping or dropping.
Tempered glass is designed to shatter into many
small pieces if it breaks.
Ŷ .HHSILQJHUVRXWRIWKH³SLQFKSRLQW´DUHDV
clearances between the doors and between the
doors and cabinet are necessarily small. Be careful
closing doors when children are in the area.
Ŷ 'RQRWWRXFKWKHFROGVXUIDFHVLQWKHIUHH]HU
compartment when hands are damp or wet, skin
may stick to these extremely cold surfaces.
Ŷ 'RQRWUHIUHH]HIUR]HQIRRGVZKLFKKDYHWKDZHG
completely.
Ŷ ,QUHIULJHUDWRUVZLWKDXWRPDWLFLFHPDNHUVDYRLG
contact with the moving parts of the ejector
mechanism, or with the heating element that
UHOHDVHVWKHFXEHV'RQRWSODFHILQJHUVRUKDQGV
on the automatic ice making mechanism while the
refrigerator is plugged in.
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
WARNING To reduce the risk of fire, explosion, electric shock, or injury when using your
refrigerator, follow these basic safety precautions:
Ŷ 7KLVUHIULJHUDWRUPXVWEHSURSHUO\LQVWDOOHG
DQGORFDWHGLQDFFRUGDQFHZLWKWKH,QVWDOODWLRQ
,QVWUXFWLRQVEHIRUHLWLVXVHG
Ŷ 8QSOXJWKHUHIULJHUDWRUEHIRUHPDNLQJUHSDLUV
replacing a light bulb, or cleaning.
NOTE: Power to the refrigerator cannot be
disconnected by any setting on the control panel.
NOTE: Repairs must be performed by a qualified
Service Professional.
Ŷ 5HSODFHDOOSDUWVDQGSDQHOVEHIRUHRSHUDWLQJ
Ŷ 'RQRWVWRUHRUXVHJDVROLQHRURWKHUIODPPDEOH
vapors and liquids in the vicinity of this or any other
appliance.
Ŷ 'RQRWVWRUHH[SORVLYHVXEVWDQFHVVXFKDVDHURVRO
cans with a flammable propellant in this appliance.
Ŷ 'RQRWXVHDQH[WHQVLRQFRUG
Ŷ 7RSUHYHQWVXIIRFDWLRQDQGHQWUDSPHQWKD]DUGV
WRFKLOGUHQUHPRYHWKHIUHVKIRRGDQGIUHH]HU
doors from any refrigerator before disposing of it or
discontinuing its use.
Ŷ 7RDYRLGVHULRXVLQMXU\RUGHDWKFKLOGUHQVKRXOGQRW
stand on, or play in or with the appliance.
Ŷ &KLOGUHQDQGSHUVRQVZLWKUHGXFHGSK\VLFDOVHQVRU\
or mental capabilities or lack of experience and
knowledge can use this appliance only if they are
supervised or have been given instructions on safe
XVHDQGXQGHUVWDQGWKHKD]DUGVLQYROYHG
Ŷ 7KLVDSSOLDQFHLVLQWHQGHGWREHXVHGLQKRXVHKROG
and similar applications such as: staff kitchen areas
LQVKRSVRIILFHVDQGRWKHUZRUNLQJHQYLURQPHQWV
IDUPKRXVHVE\FOLHQWVLQKRWHOVPRWHOVEHG
EUHDNIDVWDQGRWKHUUHVLGHQWLDOHQYLURQPHQWV
catering and similar non-retail applications.
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
INSTALLATION
WARNING EXPLOSION HAZARD
.HHSIODPPDEOHPDWHULDOVDQGYDSRUVVXFKDVJDVROLQHDZD\IURPUHIULJHUDWRU)DLOXUHWRGRVRFDQUHVXOWLQILUH
explosion, or death.
STATE OF CALIFORNIA PROPOSITION 65 WARNINGS
WARNING This product contains one or more chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.

449-60726-2
WARNING SUFFOCATION AND ENTRAPMENT HAZARD
)DLOXUHWRIROORZWKHVHGLVSRVDOLQVWUXFWLRQVFDQUHVXOWLQGHDWKRUVHULRXVLQMXU\
IMPORTANT: Child entrapment and suffocation
are not problems of the past. Junked or abandoned
UHIULJHUDWRUVRUIUHH]HUVDUHVWLOOGDQJHURXVHYHQLIWKH\
ZLOOVLWIRU³MXVWDIHZGD\V´,I\RXDUHJHWWLQJULGRI\RXU
ROGUHIULJHUDWRURUIUHH]HUSOHDVHIROORZWKHLQVWUXFWLRQV
below to help prevent accidents.
Before You Throw Away Your Old Appliance
Ŷ7DNHRIIWKHIUHVKIRRGDQGIUHH]HUGRRUV
Ŷ Leave the shelves in place so that children may not
easily climb inside.
Refrigerant and Foam Disposal:
'LVSRVHRIDSSOLDQFHLQDFFRUGDQFHZLWK)HGHUDODQG/RFDO5HJXODWLRQV)ODPPDEOHLQVXODWLRQPDWHULDOXVHG
requires special disposal procedures. Contact your local authorities for the environmentally safe disposal of your
appliance.
PROPER DISPOSAL OF YOUR OLD REFRIGERATOR
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For
personal safety, this appliance must be properly grounded.
The power cord of this appliance is equipped with a
3-prong (grounding) plug which mates with a standard
SURQJJURXQGLQJZDOORXWOHWWRPLQLPL]HWKH
SRVVLELOLW\RIHOHFWULFVKRFNKD]DUGIURPWKLVDSSOLDQFH
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly
grounded.
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
'RQRWXVHDQDGDSWHU
The refrigerator should always be plugged into its own
individual electrical outlet which has a voltage rating
that matches the rating plate.
$9ROW$&+]RUDPSIXVHGJURXQGHG
electrical supply is required. This provides the best
performance and also prevents overloading house
ZLULQJFLUFXLWVZKLFKFRXOGFDXVHDILUHKD]DUGIURP
overheated wires.
Never unplug your refrigerator by pulling on the power
cord. Always grip plug firmly and pull straight out from
the outlet.
,PPHGLDWHO\GLVFRQWLQXHXVHRIDGDPDJHGVXSSO\
FRUG,IWKHVXSSO\FRUGLVGDPDJHGLWPXVWEH
replaced by a qualified service professional with an
DXWKRUL]HGVHUYLFHSDUWIURPWKHPDQXIDFWXUHU
When moving the refrigerator away from the wall, be
careful not to roll over or damage the power cord.
CONNECTING ELECTRICITY
WARNING ELECTRICAL SHOCK HAZARD
Plug into a grounded 3-prong outlet
'RQRWUHPRYHWKHJURXQGSURQJ
'RQRWXVHDQDGDSWHU
'RQRWXVHDQH[WHQVLRQFRUG
)DLOXUHWRIROORZWKHVHLQVWUXFWLRQVFDQUHVXOWLQGHDWKILUHRUHOHFWULFDOVKRFN
SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
READ AND SAVE THESE INSTRUCTIONS

49-60726-2 5
Control Settings
,QLWLDOO\VHWWKHUHIULJHUDWRUFRQWUROWRWKHUHFRPPHQGHG
VHWWLQJ$OORZKRXUVIRUWKHWHPSHUDWXUHWRVWDELOL]H
Several adjustments may be required. Adjust the
refrigerator control one increment at a time and allow 12
hours after each adjustment for the refrigerator to reach
the temperature you have set.
Setting the refrigerator control to Off stops cooling in
ERWKWKHIUHH]HUDQGUHIULJHUDWRUFRPSDUWPHQWVEXWGRHV
not shut off electrical power to the refrigerator.
Control settings will vary based on personal preferences,
usage and operating conditions, and may require more
WKDQRQHDGMXVWPHQW)DFWRUVWKDWDIIHFWWHPSHUDWXUH
LQFOXGHWKHDPRXQWRIIRRGLQWKHUHIULJHUDWRURUIUHH]HU
the frequency of door opening and the temperature of
food when it is placed in the refrigerator.
Controls
USING THE REFRIGERATOR: Controls
The controls on your refrigerator will look like the following:

649-60726-2

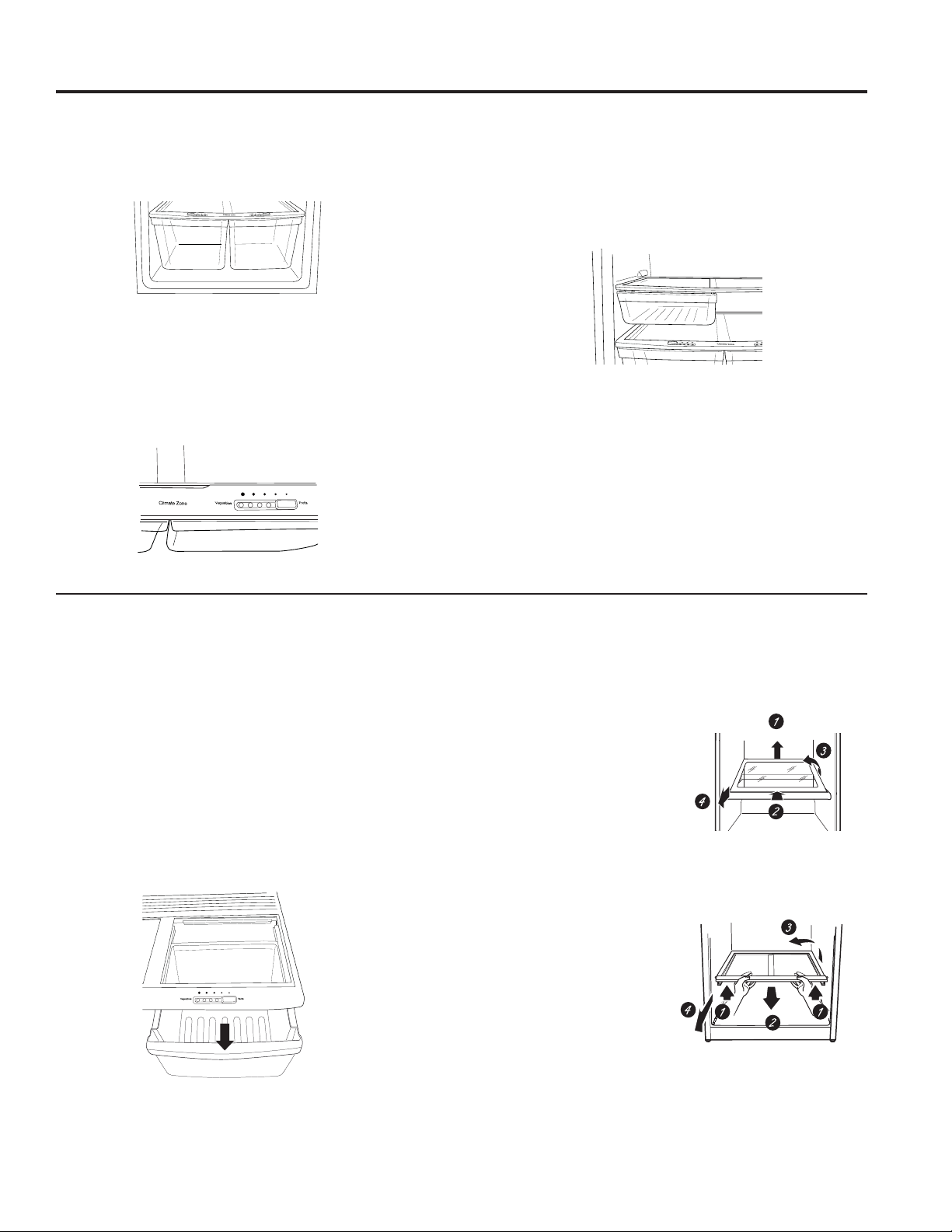

Shelves and Bins
USING THE REFRIGERATOR: Shelves and Bins
Rearranging the Shelves
6KHOYHVLQWKHUHIULJHUDWRUDQGIUHH]HUFRPSDUWPHQWVDUHDGMXVWDEOH
REFRIGERATOR COMPARTMENT
Full Width Shelves
The shelf rests on a molded side-wall support and locks
into a track on the rear cabinet wall on each side.
To remove:
1. Lift the shelf up through the space in the track.
2. Slide the shelf forward along the track.
3. Pull the shelf out of the unit.
To replace:
Reverse removal steps above.
CAUTION
'RQRWFOHDQJODVVVKHOYHVRUFRYHUVZLWKZDUPZDWHU
when they are cold. Glass shelves and covers may
break if exposed to sudden temperature changes or
impact such as bumping or dropping. Tempered glass is
designed to shatter into many small pieces if it breaks.
'RQRWZDVKDQ\SODVWLFUHIULJHUDWRUSDUWVLQWKH
dishwasher.
FREEZER COMPARTMENT
To remove:
1. Lift up both sides of the shelf and slide it left into the
center of the shelf supports.
2. Rotate the right side of the shelf up and out of the
shelf supports.
To replace:
1. Holding the shelf diagonally, insert the left end of the
shelf into the top of the shelf supports on the side wall.
,QVHUWWKHULJKWHQGRIWKHVKHOILQWRWKHVKHOIVXSSRUWV
on the side wall. Rest each end of the shelf on the
bottom of the shelf supports.
Not all features are on all models.
Slide
forward
Lift up
Track

49-60726-2 7
Crispers and Pans
Not all features are on all models.
Fruit and Vegetable Crispers
Excess water that may accumulate in the bottom of the
drawers or under the drawers should be wiped dry.
Adjustable Humidity Crisper
Slide the control all the way to the Vegetables setting
to provide high humidity recommended for most
vegetables.
6OLGHWKHFRQWURODOOWKHZD\WRWKH)UXLWVVHWWLQJWR
provide lower humidity levels recommended for most
fruits.
Snack Pan
This pan can be moved to the most useful location for
your family’s needs.
To remove, slide the pan out to the stop position, lift the
pan up and past the stop position, and lift out.
Crisper Removal
8QORDGWKHERWWRPVKHOIEHIRUHDWWHPSWLQJWRUHPRYHWKH
storage drawers.
To remove:
Lift the drawers up slightly while pulling them past the
stop location.
,IWKHGRRUSUHYHQWV\RXIURPWDNLQJRXWWKHGUDZHUVILUVW
WU\WRUHPRYHWKHGRRUELQV,IWKLVGRHVQRWRIIHUHQRXJK
clearance, the refrigerator will need to be rolled forward
XQWLOWKHGRRURSHQVHQRXJKWRVOLGHWKHGUDZHUVRXW,Q
some cases, when you roll the refrigerator out, you will
need to move the refrigerator to the left or right as you
roll it out.
To remove the glass cover:
Remove the glass, then the frame. When replacing the
glass, push the front edge firmly into the frame.
1. Push up the glass cover at
the rear.
2. Slide the glass cover
backwards until the front
edge comes out of the
frame.
3. Rotate the side of the glass
cover up.
4. Remove the glass cover.
To remove the frame:
1. Lift up the front of the
frame using both hands.
2. Slide the frame forward.
3. Rotate the side of the
frame up.
4. Remove the frame.
Removing the glass cover
Removing the frame
USING THE REFRIGERATOR: Crispers and Pans

849-60726-2
Automatic Icemaker
USING THE REFRIGERATOR: $XWRPDWLF,FHPDNHU
Automatic Icemaker (on some models)
CAUTION
Avoid contact with the moving parts of the ejector
mechanism, or with the heating element (located on the
ERWWRPRIWKHLFHPDNHUWKDWUHOHDVHVWKHFXEHV'R
not place fingers or hands on the automatic ice making
mechanism while the refrigerator is plugged in.
The icemaker will produce approximately 3 to 3-1/2 lbs.
(1.36 to 1.59 kg) of ice in a 24-hour period, depending on
WKHIUHH]HUFRPSDUWPHQWWHPSHUDWXUHURRPWHPSHUDWXUH
number of door openings and other use conditions.
,IWKHUHIULJHUDWRULVRSHUDWHGEHIRUHWKHZDWHUFRQQHFWLRQ
LVPDGHWRWKHLFHPDNHUPRYHWKHSRZHUVZLWFKWR2))
When the refrigerator has been connected to the water
supply, set power switch to ON
7KHLFHPDNHUZLOOILOOZLWKZDWHUZKHQLWFRROVWR)
(-9°C). A newly-installed refrigerator may take 12 to 24
hours to begin making ice cubes.
Once the icemaker starts to make ice, it may take up to
48 hours to fill the bin, depending on the temperature
settings and number of door openings.
<RXZLOOKHDUDEX]]LQJVRXQGHDFKWLPHWKHLFHPDNHU
fills with water.
Throw away the first few batches of ice to allow the
water line to clear.
Be sure nothing interferes with the sweep of the feeler
arm.
When the bin fills to the level of the feeler arm, the
icemaker will stop producing ice.
,WLVQRUPDOIRUVHYHUDOFXEHVWREHMRLQHGWRJHWKHU
,ILFHLVQRWXVHGIUHTXHQWO\ROGLFHFXEHVZLOOEHFRPH
cloudy, taste stale, shrink or fuse together.
NOTE: ,QKRPHVZLWKORZHUWKDQDYHUDJHZDWHU
pressure, you may hear the icemaker cycle multiple
times when making one batch of ice.
Icemaker Accessory Kit
,I\RXUUHIULJHUDWRUGLGQRWDOUHDG\FRPHHTXLSSHGZLWK
an automatic icemaker, an icemaker accessory kit is
available at extra cost.
Check the back of the refrigerator for the specific ice
maker kit needed for your model.
A newly-installed refrigerator may take 12–24 hours to begin making ice.
)HHOHU$UP
,FHPDNHU
Power Switch

49-60726-2 9
CARE AND CLEANING
Care And Cleaning
Cleaning the Outside
The door handles and trim. Clean with a cloth dampened
ZLWKVRDS\ZDWHU'U\ZLWKDVRIWFORWK
.HHSWKHRXWVLGHFOHDQ:LSHZLWKDFOHDQFORWKOLJKWO\
dampened with kitchen appliance wax or mild liquid dish
GHWHUJHQW'U\DQGSROLVKZLWKDFOHDQVRIWFORWK
The stainless steel panels and door handles (on some
models) can be cleaned with a commercially available
stainless steel cleaner. Cleaners with oxalic acid such
DV%DU.HHSHUV)ULHQG6RIW&OHDQVHUZLOOUHPRYHUXVW
WDUQLVKDQGVPDOOEOHPLVKHV8VHRQO\DOLTXLGFOHDQVHU
free of grit and rub in the direction of the brush lines with
DGDPSVRIWVSRQJH'RQRWXVHDSSOLDQFHZD[RUSROLVK
on the stainless steel.
'RQRWZLSHWKHUHIULJHUDWRUZLWKDVRLOHGGLVKFORWKRU
wet towel. These may leave a residue that can erode
WKHSDLQW'RQRWXVHVFRXULQJSDGVSRZGHUHGFOHDQHUV
bleach or cleaners containing bleach because these
products can scratch and weaken the paint finish.
Cleaning the Inside
To help prevent odors, leave an open box of baking
VRGDLQWKHIUHVKIRRGDQGIUHH]HUFRPSDUWPHQWV
Unplug the refrigerator before cleaning.
,IWKLVLVQRWSUDFWLFDOZULQJH[FHVVPRLVWXUHRXWRI
sponge or cloth when cleaning around switches, lights or
controls.
Use warm water and baking soda solution—about a
tablespoon (15 ml) of baking soda to a quart (1 liter) of
ZDWHU7KLVERWKFOHDQVDQGQHXWUDOL]HVRGRUV5LQVHDQG
wipe dry.
'RQRWFOHDQZLWKDQ\SURGXFWVFRQWDLQLQJGHWHUJHQW
bleach or ammonia. They may damage the refrigerator.
After cleaning the door gaskets, apply a thin layer of
petroleum jelly to the door gaskets at the hinge side.
This helps keep the gaskets from sticking and bending
RXWRIVKDSH'RQRWXVHFOHDQVLQJSRZGHUVRURWKHU
abrasive cleaners.
CAUTION 'RQRWFOHDQJODVVVKHOYHVRUFRYHUV
with warm water when they are cold. Glass shelves and
covers may break if exposed to sudden temperature
changes or impact such as bumping or dropping.
Tempered glass is designed to shatter into many small
pieces if it breaks.
'RQRWZDVKDQ\SODVWLFUHIULJHUDWRUSDUWVLQWKH
dishwasher.
Condenser
There is no need for routine condenser cleanings in
normal home operating environments. However, in
environments that may be particularly dusty or greasy,
the condenser should be cleaned periodically for efficient
refrigerator operation.
Cleaning the condenser:
Sweep away or vacuum up dust.
WARNING To reduce the risk of death or
electric shock, you must follow these
instructions:
Ŷ Unplug the refrigerator before removing any
panels.
Ŷ Do not contact or damage any wiring while the
panel is removed.
Ŷ Replace all parts and panels before plugging
the refrigerator back in.

10 49-60726-2
Care and Cleaning
Replacing the Light Bulb
6HWWLQJWKHUHIULJHUDWRUFRQWUROWR2))GRHVQRWUHPRYH
power to the light circuit.
8QSOXJWKHUHIULJHUDWRU
2. Remove the top shelf (if necessary).
3. The bulb is located behind a light lens in the ceiling
of the refrigerator section. Remove the light lens
by removing the single screw using a Phillips head
screwdriver.
4. Replace the bulb with an appliance bulb of the same
or lower wattage.
5. Replace the light lens.
6. Plug the refrigerator back in.
CARE AND CLEANING
Preparing for Vacation
)RUORQJYDFDWLRQVRUDEVHQFHVUHPRYHIRRGDQG
unplug the refrigerator. Move the refrigerator control to
WKH2))SRVLWLRQDQGFOHDQWKHLQWHULRUZLWKDEDNLQJ
soda solution of one tablespoon (15 ml) of baking soda
to one quart (1 liter) of water. Leave the doors open.
6HWWKHLFHPDNHUSRZHUVZLWFKWRWKH2))SRVLWLRQDQG
shut off the water supply to the refrigerator.
,IWKHWHPSHUDWXUHFDQGURSEHORZIUHH]LQJKDYHD
qualified servicer drain the water supply system (on
some models) to prevent serious property damage due
to flooding.
Moving the Refrigerator
Be careful when moving the refrigerator away from
the wall. All types of floor coverings can be damaged,
particularly cushioned coverings and those with
embossed surfaces.
Turn the leveling legs at each front corner of the
refrigerator counterclockwise until the rollers support the
refrigerator. Pull the refrigerator straight out and return it
to position by pushing it straight in.
Moving the refrigerator in a side direction may result in
damage to the floor covering or refrigerator.
After rolling the refrigerator back into place, turn the legs
clockwise until the legs again bear the weight of the
refrigerator.
Preparing to Move
Secure all loose items such as grille, shelves and
drawers by taping them securely in place to prevent
damage. To prevent the doors from opening while
moving, secure them to the case with tape.
Be sure the refrigerator stays in an upright position
during moving.
WARNING
ELECTRICAL SHOCK HAZARD
When pushing the refrigerator back, make sure you
don’t roll over the power cord or icemaker supply line
(on some models).
Screw

49-60726-2 11
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT – Save these instructions for
local inspector’s use.
• IMPORTANT – Observe all governing
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – .HHSWKHVHLQVWUXFWLRQV
for future reference.
• Skill level±,QVWDOODWLRQRIWKLVDSSOLDQFHUHTXLUHV
basic mechanical skills.
• Completion time±5HIULJHUDWRU,QVWDOODWLRQ
15 minutes
• Proper installation is the responsibility of the
installer.
• Product failure due to improper installation is not
covered under the Warranty.
WATER SUPPLY TO THE
ICEMAKER (On Some Models)
,IWKHUHIULJHUDWRUKDVDQLFHPDNHULWZLOOKDYHWREH
connected to a cold water line. A GE Appliances
water supply kit (containing tubing, shutoff valve,
fittings and instructions) is available at extra cost
from your dealer or by visiting our Website at
GEAppliances.com (in Canada at www.geappliances.
ca) or from Parts and Accessories, 1.877.959.8688.
REFRIGERATOR LOCATION
• 'RQRWLQVWDOOWKHUHIULJHUDWRUZKHUHWKHWHPSHUDWXUH
ZLOOJREHORZ)&EHFDXVHLWZLOOQRWUXQ
often enough to maintain proper temperatures.
• 'RQRWLQVWDOOWKHUHIULJHUDWRUZKHUHWKH
WHPSHUDWXUHZLOOJRDERYH)&EHFDXVH
it will not perform properly.
• 'RQRWLQVWDOOWKHUHIULJHUDWRULQDORFDWLRQH[SRVHG
to water (rain, etc.) or direct sunlight.
,QVWDOOLWRQDIORRUVWURQJHQRXJKWRVXSSRUWLWIXOO\
loaded.
INSTALLATION INSTRUCTIONS
CLEARANCES
Allow the following clearances for ease of installation,
proper air circulation and plumbing and electrical
connections.
6LGHV ´PP
7RS ´PP
%DFN ´PP
,IWKHUHIULJHUDWRULVWREHLQVWDOOHGQH[WWRDZDOORQWKH
KLQJHVLGHDOORZƎPPGRRUFOHDUDQFH
ROLLERS AND LEVELING LEGS
Leveling legs near each front corner of the refriger-
DWRUDUHDGMXVWDEOH7KH\¿UPO\SRVLWLRQWKHUHIULJHU-
ator and prevent it from moving when the doors are
opened. Leveling legs should be set so the front of the
refrigerator is raised just enough that the doors close
easily when opened about halfway.
Turn the leveling legs clockwise to raise the refrigera-
tor, counterclockwise to lower it.
Rollers next to the leveling legs allow you to move the
refrigerator away from the wall for cleaning.
Turn the legs counterclockwise until the weight of the
refrigerator is transferred from them to the rollers.
After rolling the refrigerator back into place, turn the
legs clockwise until the legs again bear the weight of
the refrigerator.
Installation
Instructions
Refrigerator
Models GTE21 and GIE21
Questions? Call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com
In Canada, call 1.800.561.3344 or visit our Website at: www.GEAppliances.ca
Clockwise to raise
refrigerator

12 49-60726-2
INSTALLATION INSTRUCTIONS
INSTALLING THE WATER LINE
Installation Instructions
BEFORE YOU BEGIN
Recommended copper water supply kits are WX8X2,
WX8X3 or WX8X4, depending on the amount of
tubing you need. Approved plastic water supply
lines are SmartConnect™ Refrigerator Tubing
(WX08X10002, WX08X10006, WX08X10015 and
WX08X10025).
When connecting your refrigerator to a GE
Appliances Reverse Osmosis Water System, the only
DSSURYHGLQVWDOODWLRQLVZLWKD*($SSOLDQFHV59.LW
)RURWKHUUHYHUVHRVPRVLVZDWHUV\VWHPVIROORZWKH
manufacturer’s recommendations.
,IWKHZDWHUVXSSO\WRWKHUHIULJHUDWRULVIURP
D5HYHUVH2VPRVLV:DWHU)LOWUDWLRQ6\VWHP
$1'WKHUHIULJHUDWRUDOVRKDVDZDWHUILOWHUXVH
WKHUHIULJHUDWRU¶VILOWHUE\SDVVSOXJ8VLQJWKH
refrigerator’s water filtration cartridge in conjunction
with the RO filter can result in hollow ice cubes and
slower water flow from the water dispenser.
This water line installation is not warranted by
WKHUHIULJHUDWRURULFHPDNHUPDQXIDFWXUHU)ROORZ
WKHVHLQVWUXFWLRQVFDUHIXOO\WRPLQLPL]HWKHULVNRI
expensive water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and
lead to water leakage or flooding. Call a qualified
plumber to correct water hammer before installing
the water supply line to the refrigerator.
To prevent burns and product damage, do not hook
up the water line to the hot water line.
,I\RXXVH\RXUUHIULJHUDWRUEHIRUHFRQQHFWLQJWKH
ZDWHUOLQHPDNHVXUHWKHIHHOHUDUPLVLQWKH2))
position.
'RQRWLQVWDOOWKHLFHPDNHUWXELQJLQDUHDVZKHUH
WHPSHUDWXUHVIDOOEHORZIUHH]LQJ
When using any electrical device (such as a power
drill) during installation, be sure the device is double
insulated or grounded in a manner to prevent the
KD]DUGRIHOHFWULFVKRFNRULVEDWWHU\SRZHUHG
All installations must be in accordance with local
plumbing code requirements.
WARNING Connect to potable water
supply only.
WHAT YOU WILL NEED
• Copper or SmartConnect™ Refrigerator Tubing kit,
1/4" outer diameter to connect the refrigerator to the
ZDWHUVXSSO\,IXVLQJFRSSHUEHVXUHERWKHQGVRI
the tubing are cut square.
To determine how much tubing you need: measure
the distance from the water valve on the back of the
refrigerator to the water supply pipe. Then add 8 feet
(2.4 m). Be sure there is sufficient extra tubing (about
8 feet [2.4 m] coiled into 3 turns of about 10" [25 cm]
diameter) to allow the refrigerator to move out from
the wall after installation.
6PDUW&RQQHFW5HIULJHUDWRU7XELQJ.LWVDUH
available in the following lengths:
2' (.6 m) – WX08X10002
8' (2.4 m) – WX08X10006
15' (4.6 m) – WX08X10015
25' (7.6 m) – WX08X10025
Be sure that the kit you select allows at least 8 feet
(2.4 m) as described above.
NOTE: The only GE Appliances approved
plastic tubing is that supplied in SmartConnect™
5HIULJHUDWRU7XELQJNLWV'RQRWXVHDQ\RWKHUSODVWLF
water supply line because the line is under pressure
at all times. Certain types of plastic will crack or
rupture with age and cause water damage to your
home.
• A GE Appliances water supply kit (containing
tubing, shutoff valve and fittings listed below) is
available at extra cost from your dealer or from
Parts and Accessories, 877.959.8688.
• A cold water supply. The water pressure must be
between 20 and 120 p.s.i. (138-827 kilopascals) on
models without a water filter and between 40 and
120 p.s.i. (138-827 kilopascals) on models with a
water filter.
• Power drill.
• 1/2" or adjustable wrench.
• Straight and Phillips blade screwdriver.

49-60726-2 13
INSTALLATION INSTRUCTIONS
Installation Instructions
INSTALLING THE WATER LINE (Continued)
WHAT YOU WILL NEED (Cont.)
7ZR´RXWHUGLDPHWHUFRPSUHVVLRQ
nuts and 2 ferrules (sleeves)—to
connect the copper tubing to the
shutoff valve and the refrigerator water
valve.
OR
,I\RXDUHXVLQJD6PDUW&RQQHFW5HIULJHUDWRU
Tubing kit, the necessary fittings are preassembled
to the tubing.
,I\RXUH[LVWLQJFRSSHUZDWHUOLQHKDVDIODUHGILWWLQJ
at the end, you will need an adapter (available
at plumbing supply stores) to connect the water
line to the refrigerator OR you can cut off the
flared fitting with a tube cutter and then use a
FRPSUHVVLRQILWWLQJ'RQRWFXWIRUPHGHQGIURP
SmartConnect™ Refrigerator tubing.
• Shutoff valve to connect to the cold water line.
The shutoff valve should have a water inlet with a
PLQLPXPLQVLGHGLDPHWHURI´DWWKHSRLQWRI
FRQQHFWLRQWRWKH&2/':$7(5/,1(6DGGOHW\SH
shutoff valves are included in many water supply
kits. Before purchasing, make sure a saddle-type
valve complies with your local plumbing codes.
1 SHUT OFF THE MAIN WATER
SUPPLY
Turn on the nearest faucet long enough to clear
the line of water.
WARNING To reduce the risk of electric
shock or injury during installation, you must first
unplug the refrigerator before proceeding.
2 CHOOSE THE VALVE
LOCATION
Choose a location for the
valve that is easily accessible.
,WLVEHVWWRFRQQHFWLQWR
the side of a vertical water
pipe. When it is necessary
WRFRQQHFWLQWRDKRUL]RQWDO
water pipe, make the
connection to the top or side,
rather than at the bottom,
to avoid drawing off any
sediment from the water pipe.
3 DRILL THE HOLE FOR THE
VALVE
'ULOODKROHLQWKHZDWHUSLSHHYHQLIXVLQJ
a self-piercing valve) using a sharp bit. Remove
any burrs resulting from drilling the hole in
the pipe. Take
care not to allow
water to drain
into the drill.
)DLOXUHWRGULOO a
1/4" hole may
result in reduced
ice production or
smaller cubes.
4 FASTEN THE SHUTOFF
VALVE
)DVWHQWKHVKXWRIIYDOYHWRWKHFROGZDWHUSLSH
with the pipe clamp.
NOTE: Commonwealth of Massachusetts
Plumbing Codes 248CMR shall be adhered
to. Saddle valves are illegal and use is not
permitted in Massachusetts. Consult with your
licensed plumber.
,QVWDOOWKHVKXWRIIYDOYHRQWKHQHDUHVWIUHTXHQWO\XVHG
drinking water line.
Vertical Cold
Water Pipe
Saddle-Type
6KXWRႇ9DOYH
Pipe Clamp

14 49-60726-2
Installation Instructions
INSTALLATION INSTRUCTIONS
6 ROUTE THE TUBING
Route the tubing between the cold water line
and the refrigerator.
Route the tubing through a hole drilled in the
wall or floor (behind the refrigerator or adjacent
base cabinet) as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing
[about 8 feet (244 cm) coiled into 3 turns
of about 10" (25 cm) diameter] to allow the
refrigerator to move out from the wall after
installation.
7 CONNECT THE TUBING TO
THE VALVE
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing and
connect it to the shutoff valve.
Make sure the tubing is fully inserted into the
valve. Tighten the compression nut securely.
)RUSODVWLFWXELQJIURPD6PDUW&RQQHFW
Refrigerator Tubing kit, insert the molded
end of the tubing into the shutoff valve and
tighten compression nut until it is hand tight,
then tighten one additional turn with a wrench.
Overtightening may cause leaks.
5 TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing
washer begins to swell.
NOTE:'RQRWRYHUWLJKWHQRU\RXPD\FUXVKWKH
tubing. 8 FLUSH OUT THE TUBING
Turn the main water supply on and flush out the
tubing until the water is clear.
Shut the water off at the water valve after about
one quart (1 liter) of water has been flushed
through the tubing.
INSTALLING THE WATER LINE (Continued)
Washer
,QOHW(QG
Pipe Clamp
Clamp
Screw
Saddle-Type
6KXWRႇ9DOYH
Compression
Nut
SmartConnect™
Tubing
Packing Nut
Outlet Valve )HUUXOHVOHHYH
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
9 CONNECT THE TUBING TO
THE REFRIGERATOR
NOTES:
• Before making the connection to the
refrigerator, be sure the refrigerator power
cord is not plugged into the wall outlet.
,I\RXUUHIULJHUDWRUGRHVQRWKDYHDZDWHUILOWHU
ZHUHFRPPHQGLQVWDOOLQJRQH,I\RXUZDWHU
supply has sand or particles that could clog
the screen of the refrigerator’s water valve.
,QVWDOOLWLQWKHZDWHUOLQHQHDUWKHUHIULJHUDWRU
,IXVLQJ6PDUW&RQQHFW5HIULJHUDWRU
Tubing kit, you will need an additional tube
:;;WRFRQQHFWWKHILOWHU'RQRWFXW
plastic tube to install filter.
WARNING To reduce the risk of death
or electric shock, you must follow these
instructions:
Ŷ Unplug the refrigerator before removing
any panels.
Ŷ Do not contact or damage any wiring while
the panel is removed.
Ŷ Replace all parts and panels before
plugging the refrigerator back in.

49-60726-2 15
Installation Instructions
11 INSTALLING THE
REFRIGERATOR
Plug in the refrigerator.
Arrange the coil of
tubing so that it does
not vibrate against the
back of the refrigerator
or against the wall.
Push the refrigerator
back to the wall.
12 START THE ICEMAKER
Set the icemaker power switch to the ON
position. The icemaker will not begin to operate
until it reaches its operating temperature
RI)±&RUEHORZ,WZLOOWKHQEHJLQ
operation automatically if the icemaker power
switch is in the ON position.
INSTALLATION INSTRUCTIONS
9 CONNECT THE TUBING TO
THE REFRIGERATOR (CONT.)
Remove the access
cover.
Remove the plastic
flexible cap from the water valve
(refrigerator connection).
Place the compression nut and
ferrule (sleeve) onto the end
of the tubing as shown. On SmartConnect™
Refrigerator Tubing kit, the nuts are already
assembled to the tubing.
,QVHUWWKHHQGRIWKHWXELQJLQWRWKHZDWHUYDOYH
connection as far as possible. While holding the
tubing, tighten the fitting.
)RUSODVWLFWXELQJIURPD6PDUW&RQQHFW
Refrigerator Tubing kit, insert the molded end of
the tubing into the refrigerator connection and
tighten compression nut until it is hand tight,
then tighten one additional turn with a wrench.
Overtightening may cause leaks.
)DVWHQWKHWXELQJLQWRWKHFODPSSURYLGHGWR
hold it in a vertical position. You may need to pry
open the clamp.
Tubing
Clamp
1/4"
Compression
Nut
SmartConnect™
Tubing
Refrigerator
Connection
1/4" Tubing
)HUUXOH
(sleeve)
10 TURN THE WATER ON AT THE
SHUTOFF VALVE
Tighten any connections
that leak.
Reattach the
compressor
compartment access
cover.
INSTALLING THE WATER LINE (Continued)
WARNING ELECTRICAL SHOCK
HAZARD
$WWDFKWXELQJFODPSXVLQJH[LVWLQJKROHRQO\'2
NOT drill into the refrigerator.

16 49-60726-2
Installation Instructions
INSTALLATION INSTRUCTIONS
ICEMAKER INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
WARNING To eliminate the risk of
electric shock or injury during installation,
you must first unplug the refrigerator
EHIRUHSURFHHGLQJ)DLOXUHWRIROORZWKHVH
instructions can result in electrical shock.
TOOLS YOU WILL NEED
)ODWEODGHDQG3KLOOLSV
screwdrivers Pliers Sharp knife
1 PREPARE FOR INSTALLATION
• Remove and discard the large white plug
IURPWKHUHDUIUHH]HUZDOO
• Remove the outlet cover with a flat-blade
screwdriver.
2 REPOSITION FREEZER SHELF
0DNHVXUHWKHIUHH]HUVKHOILVLQWKHORZHVW
position.
3 PREPARE FOR INSTALLATION
)RUXQLWZLWKRXWIDFWRU\LQVWDOOHGLFHPDNHUWKHUH
is an installation instruction label on the back of
the unit that indicates which installation method
WRXVH)ROORZWKHLFHPDNHULQVWDOODWLRQPDQXDO
that comes with your icemaker kit carefully to
complete the icemaker installation.
Remove
plug

49-60726-2 17
Installation Instructions
REVERSING THE DOOR SWING
IMPORTANT NOTES
When reversing the door swing:
• Read the instructions all the way through before
starting.
• Handle parts carefully to avoid scratching paint.
• Set screws down by their related parts to avoid
using them in the wrong places.
• Provide a non-scratching work surface for the
doors.
IMPORTANT: Once you begin, do not move the
cabinet until door-swing reversal is completed.
These instructions are for changing the hinges from
the right side to the left side—if you ever want to
change the hinges back to the right side, follow these
same instructions and reverse all references to left
and right.
8QSOXJWKHUHIULJHUDWRUIURPLWVHOHFWULFDORXWOHW
NOTE: 'RQRWOHWHLWKHUGRRUGURSWRWKHIORRU7RGR
so could damage the door stop.
CAUTION Lifting Hazard
7KH)UHVK)RRGDQG)UHH]HUGRRUVDUHKHDY\8VH
both hands to secure the doors before lifting.
INSTALLATION INSTRUCTIONS
TOOLS YOU WILL NEED
ƎVRFNHWDQGUDWFKHW
Phillips screwdriver
Putty knife or
thin-blade screwdriver
Masking tape
Allen wrench (Stainless
Steel Handle Models)
1 REMOVE FREEZER DOOR
1. Remove all food from the inner door liner.
2. Tape the door shut with masking tape.
 5HPRYHWKHKLQJHFRYHURQWRSRIWKHIUHH]HU
door with a thin-blade screwdriver.
 5HPRYHWKHWKUHHVFUHZVZLWKDƎVRFNHW
and ratchet, then lift the hinge straight up to
free the hinge pin from the socket in the top
of the door.
5. Remove the tape and tilt the door away from
the cabinet. Lift it off the center hinge pin.
6 Remove the hole covers with a putty knife on
the opposite side of the three hinges.
7. Set the door on a non-scratching surface with
the inside up.
Top
Hinge
Hole Cover Center Hinge
Hole Covers
Bottom Hinge
Hole Covers
WARNING )ROORZDOOVWHSVZKHQUHYHUVLQJWKH
GRRUVZLQJ)DLOXUHWRIROORZWKHVHLQVWUXFWLRQV
leaving off parts, or overtightening screws, can lead to
the door falling off and result in injury and property
damage.

18 49-60726-2
Installation Instructions
INSTALLATION INSTRUCTIONS
REVERSING THE DOOR SWING (Cont.)
2 REMOVE REFRIGERATOR
DOOR
1. Remove all food from the inner door liner.
2. Tape the door shut with masking tape.
3. Remove the center hinge pin with a Phillips
screwdriver.
4. Remove the center hinge by removing two
KLQJHVFUHZVZLWKDƎVRFNHWDQGUDWFKHW
Save the center hinge, hinge pin, screws and
center hinge gasket.
5. Remove the tape and tilt the door away from
the cabinet. Lift the door straight up to free
its bottom socket from the pin in the bottom
hinge bracket.
6. Set the door on a non-scratching surface with
the inside up.
 ,QVWDOOWKHKROHSOXJVIURPWKHRSSRVLWHVLGH
of the cabinet to the screw holes vacated by
the center hinge removal.
3 TRANSFER BOTTOM HINGE
TO THE LEFT
 8VLQJD
Socket and
ratchet, remove
the 2 screws from
the bottom hinge.
2. Move the bottom
hinge pin from the
right to the left side
with a thin-blade
screwdriver until
the shoulder of
the hinge pin
is touching the
hinge.
3. Move the bottom
hinge from the
right to the left
side and tighten
the 2 screws.
 ,QVWDOOWKHKROH
plugs from the
opposite side
of the cabinet
to the screw
holes vacated
by the bottom
hinge removal.
4 TRANSFER DOOR STOP TO
THE LEFT
 2QERWKWKHUHIULJHUDWRUDQGIUHH]HUGRRUV
remove the screws from the door stop on the
right with a Phillips screwdriver.
 ,QVWDOOWKHGRRUVWRSRQWKHOHIWRIHDFKGRRU
Center
Hinge Pin
Center Hinge
Gasket
WARNING )ROORZDOOVWHSVZKHQUHYHUVLQJWKH
GRRUVZLQJ)DLOXUHWRIROORZWKHVHLQVWUXFWLRQV
leaving off parts, or overtightening screws, can lead to
the door falling off and result in injury and property
damage.

49-60726-2 19
Installation Instructions
REVERSING THE DOOR SWING (Cont.)
INSTALLATION INSTRUCTIONS
3 REVERSING DOOR HANDLES –
TRANSFER FREEZER DOOR
HANDLE TO THE RIGHT SIDE OF
THE REFRIGERATOR DOOR
1. Remove the two screws securing the bottom
end of the handle with a Phillips screwdriver
and remove the GE Appliances badge.
2. For Plastic
handles: Pull
handle down and
off of the fastener
on the door.
For Stainless
Steel handeles:
Loosen the set
screw on the
KDQGOHZLWK´
wrench and
remove handle.
3. Remove the fastener from the surface of the
IUHH]HUGRRUDQGFRYHUWKHQHZYDFDQWKROH
ZLWKWKH*($SSOLDQFHV%DGJH)RUDQHZ
unit, the GE Appliances Badge can be found
LQ\RXUKDQGOHNLW,I\RXQHHGDQHZEDGJH
call 800.GE.CARES (800.432.2737) (in
Canada call 800.561.3344).
3 REVERSING DOOR HANDLES –
TRANSFER FREEZER DOOR
HANDLE TO THE RIGHT SIDE OF
THE REFRIGERATOR DOOR (Cont.)
4. Remove the plug
button from the
surface of the right
side of the refrigerator
door and insert the
fastener with
a Phillips screwdriver.
5. For Plasic handle:
Attach handle to fresh
food door on fastener
and slide downward to
lock in place with the
screws at the top of the
handle.
For Stainless Steel
handle: Attach handle
to fresh food door with
screws at the top of the
KDQGOH8VH´DOOHQ
wrench to tighten the
set screw at the bottom
of the handle.
NOTE:'RQRWRYHU
tighten.

20 49-60726-2
Installation Instructions
INSTALLATION INSTRUCTIONS
REVERSING THE DOOR SWING (Cont.)
4 REVERSING DOOR HANDLES –
TRANSFER REFRIGERATOR DOOR
HANDLE TO THE RIGHT SIDE OF
THE FREEZER DOOR
1. Remove the two screws securing the top end
of the handle with a Phillips screwdriver and
remove the GE Appliances badge.
2. For Plactic handle: Pull
handle up and off of the
fastener on the door
For Stainless
Steel handle:
Loosen set
screw on
handle with
´ZUHQFK
and remove
handle.
3. Remove the fastener from the surface of the
refrigerator door, and cover the new vacant
hole with the plug from the opposite side.
4 REVERSING DOOR HANDLES –
TRANSFER REFRIGERATOR DOOR
HANDLE TO THE RIGHT SIDE OF THE
FREEZER DOOR (Cont.)
4. Remove the plug
button from the surface
of the right side of the
refrigerator door and
insert the fastener with
a Phillips screwdriver.
5. For Plasic handle:
Attach handle to
fresh food door
on fastener and
slide downward
to lock in place
with the screws
at the top of the
handle.
For Stainless Steel handle:
Attach handle
to fresh food
door with
screws at
the top of the
KDQGOH8VH
´DOOHQ
wrench to
tighten the set
screw at the
bottom of the
handle.
NOTE:'RQRWRYHUWLJKWHQ
