ZISS360DXSS
GE Monogram® 36" Stainless Steel Built-In Side-by-Side Refrigerator
with Dispenser and Water Filter

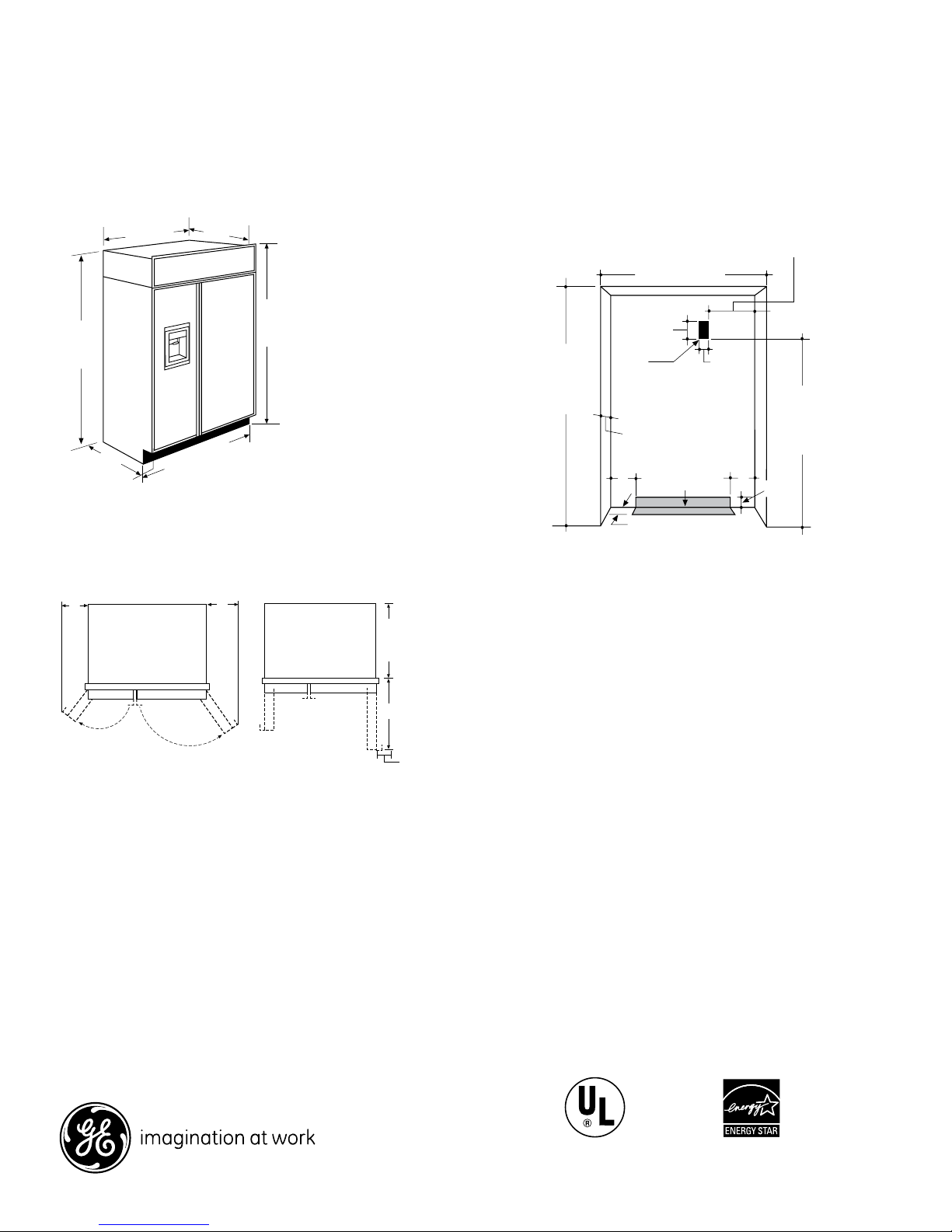

Dimensions and Installation Information (in inches)
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
15"
13"
*84" From
Floor to
Top Frame
36"
Frame to Frame
35"
Case Width
*83-1/2"
at
Rear
25-3/4"
27-3/4"
including
handle
23-7/8"
Behind
Frame
20-5/8
4" Min.
to Wall
Water and electrical locations
The opening must be prepared with the electrical and water
supply located as shown.
The cutout depth must be 24".
The refrigerator will project forward, slightly beyond
adjacent cabinetry, depending on your installation.
The cutout depth beneath a soffit:
When installed beneath a soffit, the soffit cannot exceed the
24" installation depth shown. The top case trim overlaps the
bottom of the soffit.
Frameless cabinets:
The case trim overlaps cabinets at the top and sides.
Therefore, frameless cabinets may require filler strips to
prevent interference with cabinet door swing. The opening
must allow for filler strips.
Additional Specifications
• A 115 volt 60Hz., 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded 3-
prong electrical receptacle recessed into the back wall.
Electrical must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
• Water line can enter the opening through the floor or back
wall. The water line should be 1/4" O.D. copper tubing or
GE SmartConnect™kit between the cold water line and
water connection location, long enough to extend to the
front of the refrigerator. Installation of an easily accessible
shut off valve in the water line is recommended.
The Installation Space
* Shipping height.
The refrigerator
can be adjusted to
fit into a cutout that
is 83-1/2" min. to
84-1/2” max. height.
Note that the top
case trim at the
front is 1/2" higher
and will overlap
upper cabinetry or
soffit. Use leveling
legs and wheels
for a maximum 1"
height adjustment.
Product Clearances
These refrigerators are equipped with a 2 position door stop.
The factory set 130° door swing can be adjusted to 90° if
clearance to adjacent cabinets or walls is restricted.
Allow minimum clearances for freezer door and fresh food
door for a full 130° door swing and to allow for pan removal.
5" minimum clearance is required when door swing is
adjusted to 90°. If the 90° door stop position is used, pan
access is maintained, but pan removal is restricted.
Installation Information: Before installing, consult
installation instructions packed with product, or online
at Monogram.com, for current dimensional data.
Dimensions and Installation Information (in inches)
*Finished Width
6"
5"
Electrical
Area
84-1/2" max
83-1/2" min
Finished
Opening 75" From Floor
to Bottom
of Electrical
Area
24"
5" 5" 3-1/2"
Water Supply
3-1/2"
36" Models 12"
42" Models 18"
48" Models 20"
696Dia15
