GE PSJC5YGX - Profile: 24.6 cu. Ft User manual

†Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 13-15/16" on freezer
side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-5/8".
Allow additional space for any necessary leveling adjustments.
A
Front View
Top View
G
D
C
F
BE
H
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
Specification Created 2/08 210222
Dimensions and Installation Information (in inches)
Overall
Dimensions
Height to top of hinge (in.) A 72-1/8
Height to top of case (in.) B 71-5/8
Case depth without door (in.) C†23-7/8
Case depth less door handle (in.) D†27-1/2
Case depth with door handle (in.) E†28-3/4
Depth with fresh food door open 90° (in.) F†46
Width (in.) G 35-3/4
Width with door open 90° inc. door handle (in.) H 39-3/8
Air
Clearances
Each side (in.) 1/8
Top (in.) 1
Back (in.) 1/2
PSJC5YGX
GE Profile™ Counter-Depth24.6 Cu. Ft. Side-By-Side Refrigerator

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner’s manual)
*The rough-in dimensions of 70" for 23 cu. ft. models and 72-
1/2" for 25 cu. ft. models are minimum and measured from the
finished floor to top of opening (or the underside of the overhead
cabinets). For Models with Trim Kit: If frameless style cabinets
are planned for above the refrigerator, you may need to consider
adding a maximum of 1/4" (70-1/4") to height of opening for 23
cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow for
additional clearance between the cabinet doors and the top of
refrigerator trim when the cabinet doors are in open position.
† Model PSDW3YGX is 71-3/4"

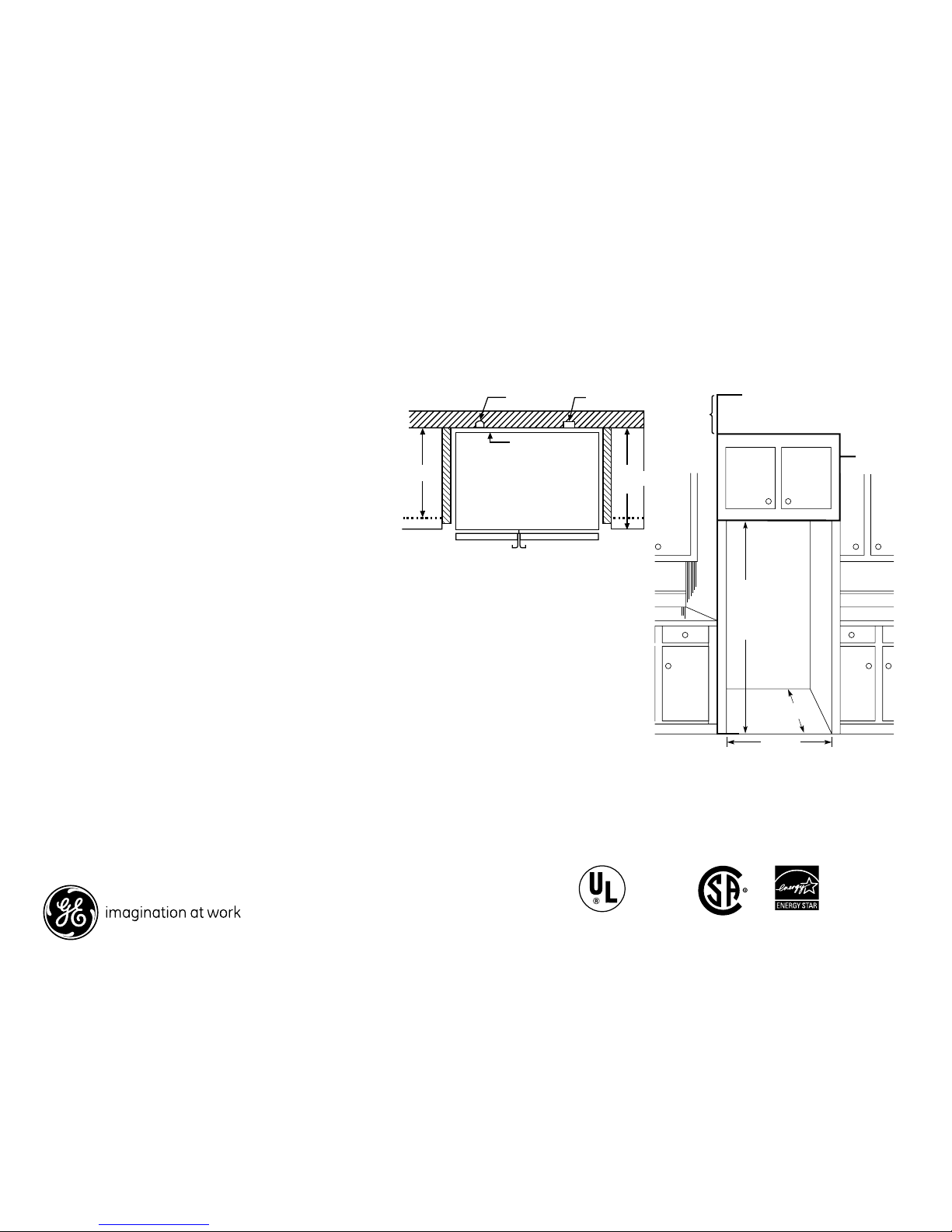

Rough-In Dimensions and Installation Information (in inches)
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
36-1/8"
24-1/2"
Collar Trim In. w/ceiling
70"*†
23 cu. ft. models
72-1/2"*
25 cu. ft. models
*The rough-in dimensions of 70" for 23 cu. ft. models and 72-1/2" for 25 cu. ft.
models are minimum and measured from the finished floor to top of opening
(or the underside of the overhead cabinets). For Models with Trim Kit:
If frameless style cabinets are planned for above the refridgerator, you may
need to consider adding a maximum of 1/4" (70-1/4") to height of opening
for 23 cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow additional
clearance between cabinet doors and top of refridgerator trim when cabinet
doors are in open position.
†Model PSDW3YGX is 71-3/4".
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
ElectricalWater
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
FOR 24 CUBIC FOOT MODELS
Fig 2A eps
Specification Created 2/08 210222
PSJC5YGX
GE Profile™ Counter-Depth24.6 Cu. Ft. Side-By-Side Refrigerator

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
210222
Specification Created 2/08
Listed by
Underwriters
Laboratories

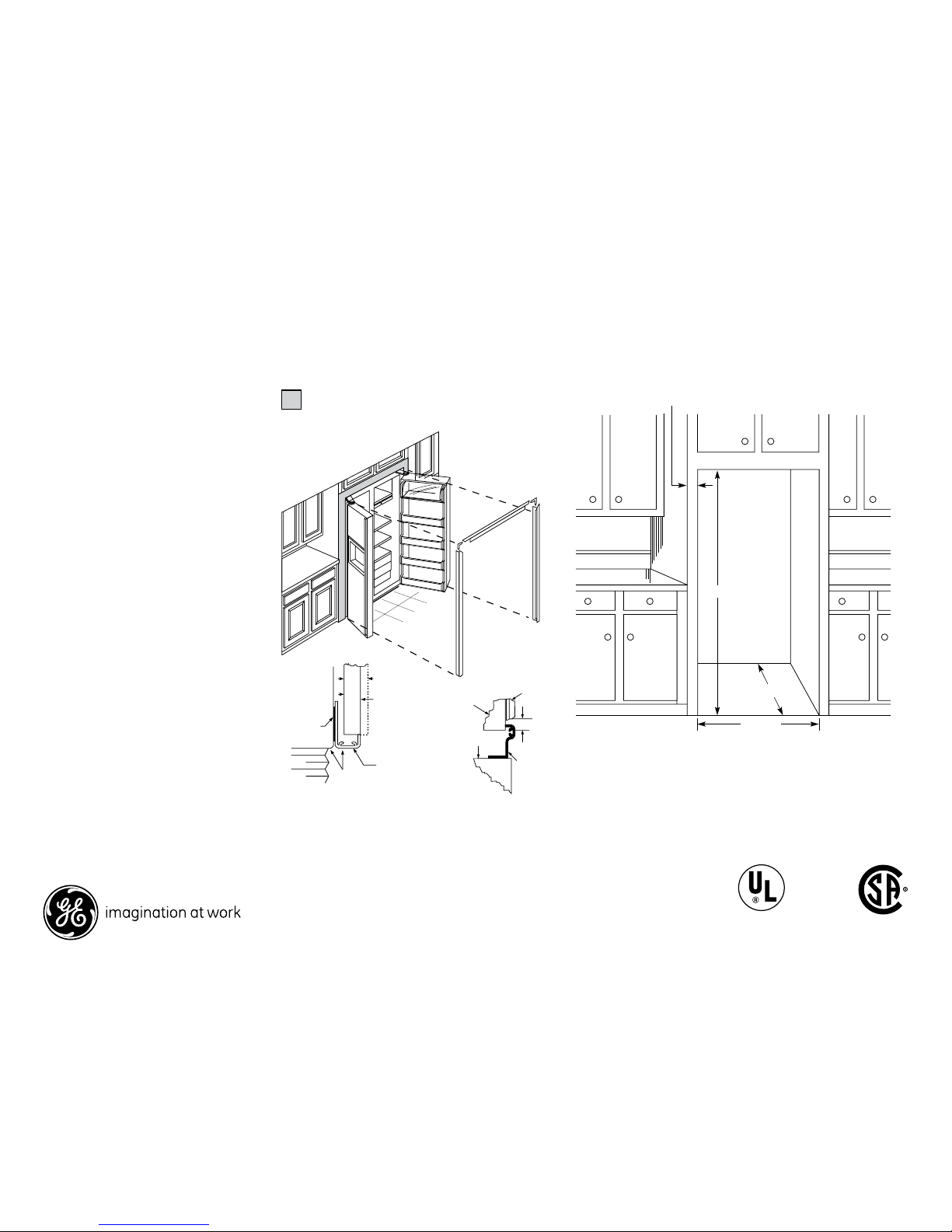

Collar Trim Installation
An enclosure is required to match up to the
trim, see Typical Installation. To obtain the
most integrated look, the cabinet or soffit
above the refrigerator should extend out
to the same depth as the side panels. The
refrigerator opening must have minimum
dimensions of 72-1/2" high x 36-1/8" wide
x 24-1/2" deep as shown at right. If there is
an overhead cabinet, allow 1" for cabinet
door clearance with the top trim piece so
the cabinet doors can be opened without
hitting the top trim. If 1/2" side panels are
used, then side trim and panel will be even.
If 3/4" side panels are used, then some of
the side panel will extend beyond the trim
and must be finished.
IMPORTANT: Before finalizing specifications
for your GE Profile Counter-Depth
Refrigerator, please NOTE:
• A minimum of 36-1/8" is required for
refrigerator installation with collar
• Be sure to allow for 1/2" or 3/4" side
panels in addition to the 36-1/8"
minimum.
Typical Installation
Shaded areas represent front surfaces of side panels and
overhead cabinet or soffit that contacts trim.
Refer collar trim install
70-1/2"*
36-1/8"
24-1/2"*
1/2" minimum
*The rough-in dimension of 72-1/2" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (72-5/8") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
Collar Trim Installation Art
Rough-In Dimensions and Installation Information (in inches)
Magnetic
Tape
3/4" Cabinet
Side Panel
1/2" Cabinet
Side Panel
Side trim must be installed
flush with the gasket contact
surface on the case.
Refrigerator
Case
Side TrimDoor Gasket
Overhead
Cabinet
Cabinet
Door
Top Trim
Case
1"
PSJC5YGX
GE Profile™ Counter-Depth24.6 Cu. Ft. Side-By-Side Refrigerator

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
Order your own custom wood panels to match cabinetry
or other decor.
Panels up to 1/4" thick will fit door frame with no special
preparation. Add filler behind material thinner than 1/4"
for proper fit.
Weight Limits: Total weight of panels (i.e., both freezer
panels)—Fresh Food = 38 lbs., Freezer = 28 lbs.
NOTE: Panels up to 3/4” will require special routing area
around handles. Dimensions may vary depending on
depth of panel.
IMPORTANT: Before finalizing specifications for your
GE Profile Counter-Depth Refrigerator, please NOTE:
• A minimum of 36-1/8" is required for refrigerator
installation with collar
• Be sure to allow for 1/2" or 3/4" side panels in addition
to the 36-1/8" minimum.
210222
Door Panel Dimensions and Installation Information (in inches)
Installation of Water Outlets
Freezer Panel
without Dispenser
Freezer Panel
with Dispenser
Fresh Food
Panel
(Fresh Food panel shown)
Notch required at top
corner as noted.
Detail C
Freezer Panel
Without Dispenser
Freezer Panel
With Dispenser
Fresh Food
Panel
Cut
out
1/8 1/8
14-15/32 14-15/32
14-15/32
36-1/4
17
19-15/32
5/16
Cut
out
Cut
out 1/8
5/16 5/16
FRONT
6969
FRONT FRONT
Alternate
water
line location
through floor
1/2"
Water hook-up
on the refrigerator
Recommended water line
location using recess
in rear wall
Recommended
single loop of 1/4" copper water line
Water hook-up
on the refrigerator
Rear Wall View
18"
24"
Allow 48" minimum water
line to enable refrigerator
to be pulled forward
Alternate
water
line location
through floor
1/2"
Recommended water line
location using recess
in rear wall
Recommended single loop
of 1/4" copper water line
Water hook-up
on the refrigerator
Rear Wall View
Top View
Top View
18"
24"
Allow 48" minimum water
line to enable refrigerator
to be pulled forward
In.of water & Electric Ot. Art
Alternate
water
line location
through floor
1/2"
Water hook-up
on the refrigerator
Recommended water line
location using recess
in rear wall
Recommended
single loop of 1/4" copper water line
Water hook-up
on the refrigerator
Rear Wall View
18"
24"
Allow 48" minimum water
line to enable refrigerator
to be pulled forward
Alternate
water
line location
through floor
1/2"
Recommended water line
location using recess
in rear wall
Recommended single loop
of 1/4" copper water line
Water hook-up
on the refrigerator
Rear Wall View
Top View
Top View
18"
24"
Allow 48" minimum water
line to enable refrigerator
to be pulled forward
In.of water & Electric Ot. Art
5/16"
1/8"
Dr. Panel Dim. Detail C
1/4" Max.
Panels 1/4" thick
or less
Dr. Panel Dim. Panel 1/4 Thic
k
Specification Created 2/08
PSJC5YGX
GE Profile™ Counter-Depth24.6 Cu. Ft. Side-By-Side Refrigerator
Listed by
Underwriters
Laboratories

As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
Features and Benefits
• Counter-Depth Design - Offers a built-in look without the built-in expense
• ClimateKeeper2™System - Keeps food garden fresh longer, while protecting ice from odor transfer,
with its unique dual-evaporator system
• Color LCD Controls with Touch Screen - Makes it easy to control all the functions of the refrigerator
with just a touch
• LED Lighting - Casts a clean, beautiful light throughout the fresh food area of the refrigerator
• Dispenser with LED Lighting, PreciseFill & UltraFlow100 - Illuminates the dispenser; pours water in
accurate increments or up to 100 ounces per minute
• QuickFreeze Setting - Provides faster, fresher freezing to maintain the flavor and quality of meats
• CustomCool™Technology - Chills in minutes, thaws in hours and keeps foods fresher, longer
• Slide 'n Store™Full-Extension Freezer Baskets - Extends 12" to 16" beyond the cabinet, providing easy
loading and unloading
• Quick Ice™Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
• TurboCool™Setting - Cools the refrigerator quickly after frequent door openings
• Integrated Ice™System - Frees up valuable freezer space; It tilts down, providing easy access to bulk ice
• Tilt-Out Freezer Door Bins - Move forward for convenient access
• Integrated Shelf Support System - Provides strong, yet flexible support
• Adjustable ClearLook™Door Bins - Hold gallon-size containers with style and ease
• Adjustable Slide-Out, Spillproof Glass Shelves - Raised edges help contain spills and slide-out shelves
make clean up quick and easy
• Model PSJC5YGXWV - White
• Model PSJC5YGXBV - Black
PSH23PGWWV
PSH23PGWBV
PSH25PGWWV
PSH25PGWBV
LOCK
Hold3for Seconds
HELP
HOME
CRUSHED
WATER
CUBED
Specification Created 2/08 210222
PSJC5YGX
GE Profile™ Counter-Depth24.6 Cu. Ft. Side-By-Side Refrigerator
