GE Monogram ZVB30 User manual

Owner's
Manual
Downdrc]ft Vent System
ZVB30
ZVB36
149-80572-2 I
07-11 GE

Consumer Information
Downdraft Vent System
Contents Care and Cleaning
Grease Filters.................................... 7
Painted or Stainless SteelSurfaces............... 7
Consumer Services
Before You Call For Service ...................... 8
Important Phone Numbers ...................... 9
Model and Serial Numbers ....................... 2
Safety Instructions ............................. 4, 5
Warranty .......................................10
Downdreft Vent System
Canning ......................................... 6
Cooking Tips ..................................... 6
Raising or Lowering the Vent System ............ 6
Selector Switch .................................. 6
Before
using your
downdraft
vent system
Read this manual carefully. It is intended to help
you operate and maintain your new downdraft
vent system properly.
Keep it handy for answers to your questions.
PLEASE NOTE: The downdraft vent system you
have purchased was designed to be used with
GE or Monogram cooktops.
If you don't understand something or need more
help, there isa list of toll-free consumer service
numbers included in the back section of this
manual.
OR
Visit our Website at: monogram.cam
Write down
the model
and serial
numbers
These numbers are on the Consumer Product
Ownership Registration Card packed separately
with your downdraft vent system.
Before sending in this card, please write these
numbers here:
Model Number
Serial Number
Use these numbers in any correspondence
or service calls concerning your downdraft
vent system.

If you
received a
damaged
downdraft
vent system
Immediately contact the dealer (or builder) that
sold you the downdraft vent system.
Save time
&money Before you request service, check the Before You It lists causes of minor operating problems that
Call ForService section in the back of this manual, you can correct yourself.
If you need
service To obtain service, see the Consumer Services
page in the back of this manual.
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are two steps
to follow for further help.
FIRST,contact the people who serviced your
appliance. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT,if you are still not pleased, write all the
details-including your phone number-to:
Manager, Customer Relations
GEAppliances
Appliance Park
Louisville, KV/40225

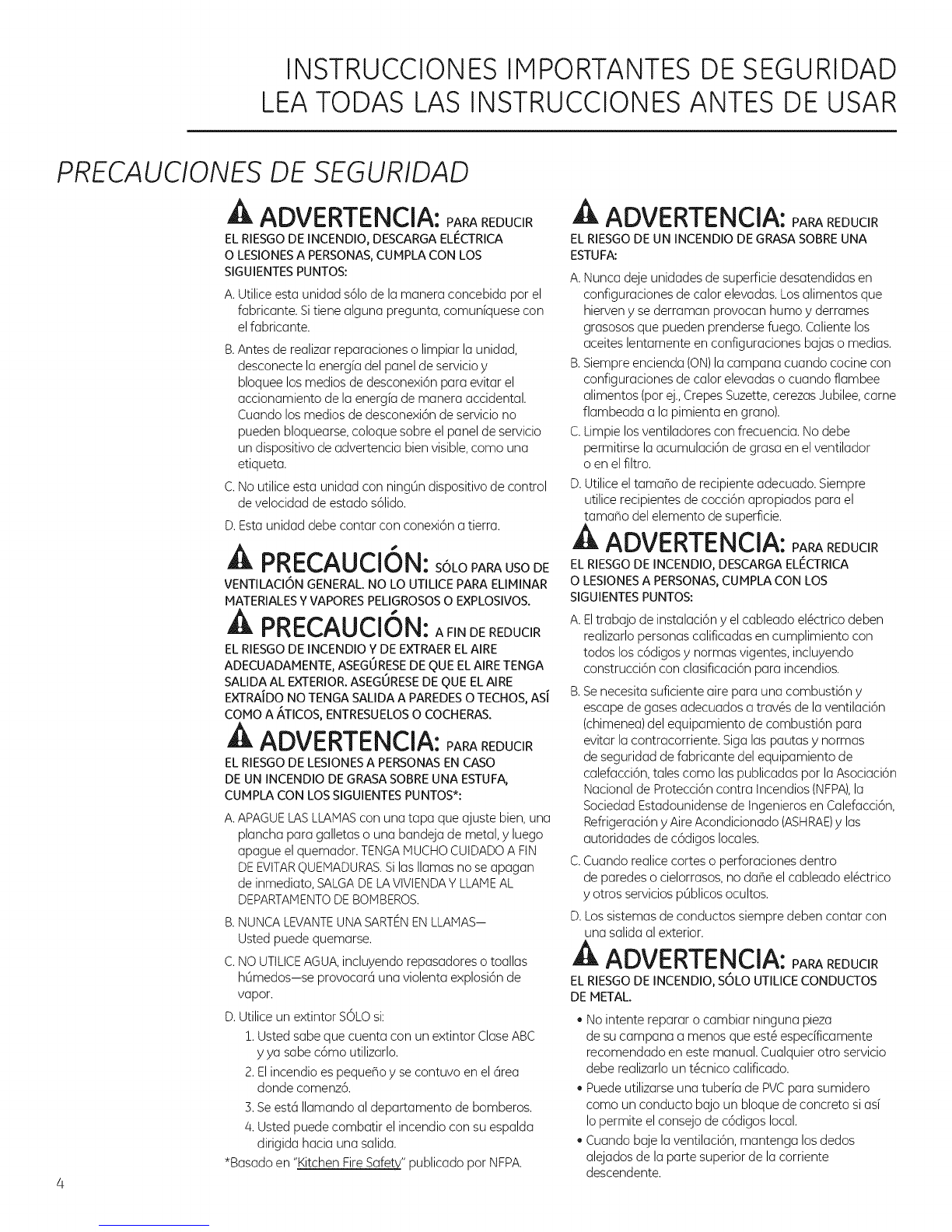

IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING
SAFETY PRECAUTIONS
,A,WARNING: ToREDUCETHERISK
OFFIRE,ELECTRICSHOCKORINJURYTO
PERSONS,OBSERVETHEFOLLOWING:
A.Usethis unit only in the manner intended by the
manufacturer. If you havequestions, contact the
manufacturer.
B.Beforeservicingor cleaning unit, switch power
off at servicepanel and lockthe service
disconnecting means to prevent power from
being switched on accidentally.When the service
disconnecting means cannot be locked,securely
fasten a prominent warning device,such as a tag,
to the service panel.
C.Donot usethis unit with any solid-state speed
control device.
D.Thisunit must be grounded.
A CAUTION: FORGENERAL
VENTILATINGUSEONLY.DO NOT USE
TOEXHAUSTHAZARDOUSOREXPLOSIVE
MATERIALSANDVAPORS.
,A,CAUTION: ToREDUCERISKOFFIRE
AND TO PROPERLYEXHAUST AIR,BE SURETO
DUCT AIROUTSIDE.DO NOT VENT EXHAUST AIR
INTOSPACESWITHIN WALLS OR CEILINGSOR
INTO ATTICS,CRAWL SPACES OR GARAGES.
WARNING: TOREDUCETHERISK
OFINJURYTOPERSONSINTHE EVENTOFA
RANGETOPGREASEFIRE,OBSERVETHE
FOLLOWING*:
A.SMOTHERFLAMESwith a close-fitting lid,cookie
sheet or metal tray, then turn off the burner. BE
CAREFULTOPREVENTBURNS.If the flames do
not go out immediately, EVACUATEANDCALLTHE
FIREDEPARTMENT.
B.NEVERPICKUPA FLAMINGPAN--
You may be burned.
C.DONOTUSEWATER,including wet dishcloths or
towels-a violent steam explosionwill result.
D. Usean extinguisher ONLYif.
1.You know you have a ClassABCextinguisher,
and you already know how to operate it.
2.Thefire issmall and contained in the area
where it started.
3.Thefire department isbeing called.
4.Youcan fight the fire with your back to
an exit.
*Based on "Kitchen FireSafety"published by NFPA.
,A,WARNING: TOREDUCETHERISK
OF A RANGE TOP GREASE FIRE:
A.Never leavesurface units unattended at high
settings.Boiloverscause smoking and greasy
spilloversthat may ignite. Heat oils slowly on
low or medium settings.
B.Always turn hood ONwhen cooking at high heat
or when flamb_ing food (i.e.,CrepesSuzette,
CherriesJubilee, Peppercorn BeefFlambG).
C.Cleanventilating fans frequently. Greaseshould
not be allowed to accumulate on fan or filter.
D. Useproper pan size.Always usecookware
appropriate for the sizeof the surface element.
WARNING: TOREDUCETHERISK
OF FIRE,ELECTRICSHOCK OR INJURYTO
PERSONS,OBSERVE THE FOLLOWING:
A.Installation work and electrical wiring must be
done by qualified person(s)inaccordance with all
applicable codes and standards, including fire-
related construction.
B.Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney)of
fuel burning equipment to prevent back drafting.
Followthe heating equipment manufacturer's
guidelines and safety standards such as those
published bythe National FireProtection
Association (NFPA),the American Societyfor
Heating, Refrigerationand Air Conditioning
Engineers(ASHRAE)and the localcode authorities.
C.When cutting or drilling into wall or ceiling,do
not damage electrical wiring and other hidden
utilities.
D. Ductedfans must always be vented to the
outdoors.
,AWARNING: TOREDUCETHERISK
OF FIRE,USE ONLY METAL DUCTWORK.
.Donot attempt to repair or replaceany part of
your hood unlessit isspecifically recommended
inthis manual. Allother servicingshould be
referredto a qualified technician.
. PVCsewer pipe can be usedas duct under
concrete slab ifallowed by local code board.
. Make sureall fingers are away from the
downdraft top when it islowered.

IMPORTANT SAFETY INSTRUCTIONS
READALL INSTRUCTIONS BEFOREUSING
SERVICING
If You Need Service...
Do not attempt to repair or replace any part
of the downdruft system unless it is specifically
recommended in this manual. All other servicing
should be referred to u qualified technician.
Be sure electrical power is off before servicing
the unit.
It may be necessary to remove the downdruft
blower system in order to service components
such us the blower motor or air vent mechanism.
Disconnect power to the cooktop and remove
it first. Reversethe steps in the Install the
Downdruft section in the Installation Instructions
to remove the blower.
Service parts are available from u GEService and
Parts Center.
READ AND SAVE THESE INSTRUCTIONS.

Using the Downdroft System
Downdraft Vent System
To use the
downdraft
system
When
using the
downdraft
system...
To raise the downdraft vent, press the ON/OFF
pad on the control. The vent will rise.
All models have a remote mounted control pad.
Press the Fan Speed HIGHERpad to start the
blower. Adjust the blower by pressing HIGHERor
LOWER.The blower, if left on, will automatically
turn off when the vent is lowered.
NOTE:For most convenient operation, set the
blower to the speed you use most often. The
blower will come on to this speed whenever
the unit is raised.
IMPORTANT:The vent can be activated by
pressing the pads on the switch. Do not use
excessive force or sharp objects to activate
the switch. Damage could occur and void
the warranty.
,_ Controls
\. _ _...... jY'
CAUTION: Becarefulwhenraising
or lowering the downdraft. Besure pots, pot
handles and other objects are clear of the
downdraft and cannot be struck or tipped by the
downdraft being raised.
NOTE:There is a slight trim overhang on each
side of the vent.
, To avoid injury, be sure fingers are clear of the
downdraft cover when it is being lowered.
, Keep hands and fingers away from all
downdraft parts.
IMPORTANT:If the vent isobstructed by an
object while it is being raised or lowered, it will
stop. Remove the obstruction and press the ON/
OFFpad again.
Cooking tips The high air movement of this downdraft
system can increase the cooking times for some
foods. It may take longer to reach high cooking
temperatures if the downdraft isturned to high
right away. Adjust the fan speed for best cooking
results.
For best results when heating oil for deep frying
or when boiling water, use the front surface
units or wait until the water is boiling or the oil
is at frying temperatures before turning on the
downdraft.
The downdraft may not completely capture all
the steam from pans on the front burners.
Conning When canning foods in a water-bath canner,
a gentle but steady boil must be maintained
continuously for the required time.
When canning foods in a pressure canner, the
pressure must be maintained continuously for
the required time.
Use of the blower on a high fan speed setting
when canning may reduce the temperature
enough to stop boiling. While canning, we
recommend using the downdraft at a lower
speed and using the front surface unit.

Careand Cleaning
Downdraft Vent System
Grease filters Theefficiency ofyour downdraft depends on a
clean filter. Frequencyof cleaning depends on the
type of cooking you do.Greasefilters should be
cleaned at least once a month. Never operate the
downdraft without the filters in place.
To remove: Slipfingers into the vent holes, lift the
vent straight up and pull forward. Graspthe filter
tabs, pushdown and out of the retainer.
To clean: Soakand then agitate in a hot detergent
solution.Light brushing may be usedto remove
embedded soil.Rinse,shake and remove moisture
before replacing. Do not clean the filters in the
dishwasher.
With careful handling,the filter will lastfor years.
If replacement becomes necessary,order the part
from your dealer.
IZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZ_
Filter Tabs
Painted or
stainless
steel
surfaces
Do not use a steel wool pad; it will scratch
the surface.
Toclean the stainless steelsurface, usewarm,
sudsywater or a stainless steelcleaner or polish.
Alwayswipe the surface in the direction of the grain.
Follow the cleaner instructions for cleaning the
stainlesssteel surface.
Fordifficult stainson stainlesssteel,usea cleaner
that contains lactic acid or citric acid.
Toinquire about purchasing stainless steel
appliance cleaner or polish,or to find the location
of a dealer nearest you, please callour toll-free
number:
National Parts Center 800.626.2002 (U.S.)
GEAppliances.com

Before You Call For Service...
Downdraft Vent System
Save time
and money!
Review the
troubleshooting
tips on this page
first and you
may not need to
call for service.
PROBLEM POSSIBLE CAUSE
FAN DOES ,The vent is not fully extended. Press the ON/OFF pad.
NOT WORK
VENT DOES
NOT WORK .The vent is not plugged into an outlet. Plug the vent into a 120V
power outlet.
.The raise/lower pad did not engage the lift motor. Hold down the
pad for a couple of seconds to activate the motor.
.The circuit breaker may have tripped. Check the circuit breaker-
reset if necessary.

Consumer Services
Downdraft Vent System
With the purchase of your new Monogram appliance,
receive the assurance that if you ever need information
or assistance from GE, we'll be there. All you have to do
is call--toll- free!
GE Answer
Center ®
800.626.2000
Whatever your question about any Monogram major appliance, GEAnswer Center®information
service is available to help. Your call-and your question-will be answered promptly and
courteously. Call the GEAnswer Center®Monday to Friday, 8 a.m. to 10 p.m. EST,and Saturday,
8 a.m. to 7 p.m. EST.
OR
Visit our Website at: monogram.corn
In-Home Repair
Service
800.444.1845
A GEconsumer service professional will provide expert repair service, scheduled at a time
that's convenient for you. To schedule service, cull Monday to Friday, 7 a.m. to 10 p.m. EST,or
Saturday and Sunday, 8 a.m. to 6 p.m. EST.Many GEConsumer Service company-operated
locutions offer you service today or tomorrow, or at your convenience. Our factory-trained
technicians know your appliance inside and out-so most repairs can be handled injust one
visit.
For Customers
With Special
Needs...
800.626.2000 ...... ,,o,
• , I I
SECTION A-A
GEoffers, free of charge, a brochure to assist in planning a barrier-free
kitchen for persons with limited mobility.
Consumers with impaired hearing or speech who have access to a TDD
or a conventional teletypewriter may call 800.TDD.GEAC(800.833.4322)
to request information or service.
Service
Contracts
800.626.2224
You can have the secure feeling that GEConsumer Service will still be there after your warranty
expires. Purchase a GEcontract while your warranty is still in effect and you'll receive a
substantial discount. With a multiple-year contract, you're assured of future service at
today's prices.
Parts and
Accessories
800.626.2002
Individuals qualified to service their own appliances can have parts or accessories sent directly
to their home. The GE parts system provides access to over 47,000 parts...and all GEGenuine
Renewal Parts are fully warranted. VISA,iVlasterCardand Discover cards are accepted.
User maintenance instructions contained in this guide cover procedures intended to be
performed by any user. Other servicing generally should be referred to qualified service
personnel. Caution must be e×ercised, since improper servicing may cause unsafe operation.

Warranty for customers in the USA
Downdraft Vent System
YOUR MONOGRAM DOWNDRAFT SYSTEM WARRANTY
Staple sales slip or cancelled check here. Proof of original
purchase date is needed to obtain service under warranty.
WHA T IS
COVERED
From the Date
of the Original
Purchase
LIMITED ONE-YEAR WARRANTY
For one year from date of original purchase,
we will provide, free of charge, parts and
service labor in your home to repair or replace
any part of the downdraft system that fails
because of a manufacturing defect.
This warranty is extended to the original
purchaser and any succeeding owner for
products purchased for ordinary home
use in the 48 mainland states, Hawaii and
Washington, D.C.If the product is located
in an area where service by a GEAuthorized
Servicer is not available, you may be
responsible for a trip charge or you may be
required to bring the product to an Authorized
GEService Location for service.
In Alaska the warranty is the same except that
it is LIMITEDbecause you must pay to ship the
product to the service shop or for the service
technician's travel costs to your home.
All warranty service will be provided by our
Factory Service Centers or by our authorized
Customer Care®servicers during normal
working hours.
Should your appliance need service, during
warranty period or beyond, call 800.444.!845.
Please have serial number and model number
available when calling for service.
WHAT IS NOT
COVERED Service trips to your home to teach you
how to use the product.
Replacement of house fuses or resetting
of circuit breakers.
, Failure of the product if it is used for
other than its intended purpose or used
commercially.
Improper installation, delivery or
maintenance.
Replacement of the replaceable filters.
Damage to the product caused by
accident, fire, floods or acts of God.
Incidental or consequential damage
caused by possible defects with this
appliance.
Damage caused after delivery.
_Product not accessible to provide required
service.
EXCLUSIONOFIMPLIED WARRANTIES--Yoursole and exclusive remedy is product repair
as provided in this Limited Warranty. Any implied warranties, including the implied
warranties of merchantability or fitness for a particular purpose, are limited to one year
or the shortest period allowed by law.
Printed in the United States
10
Some states do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you. This warranty gives you specific
legal rights, and you may also have other rights which vary from state to state.
To know what your legal rights are inyour state, consult your local or state consumer affairs
office or your state's Attorney General.
Warrantor: General Electric Company, Louisville, KY 40225
