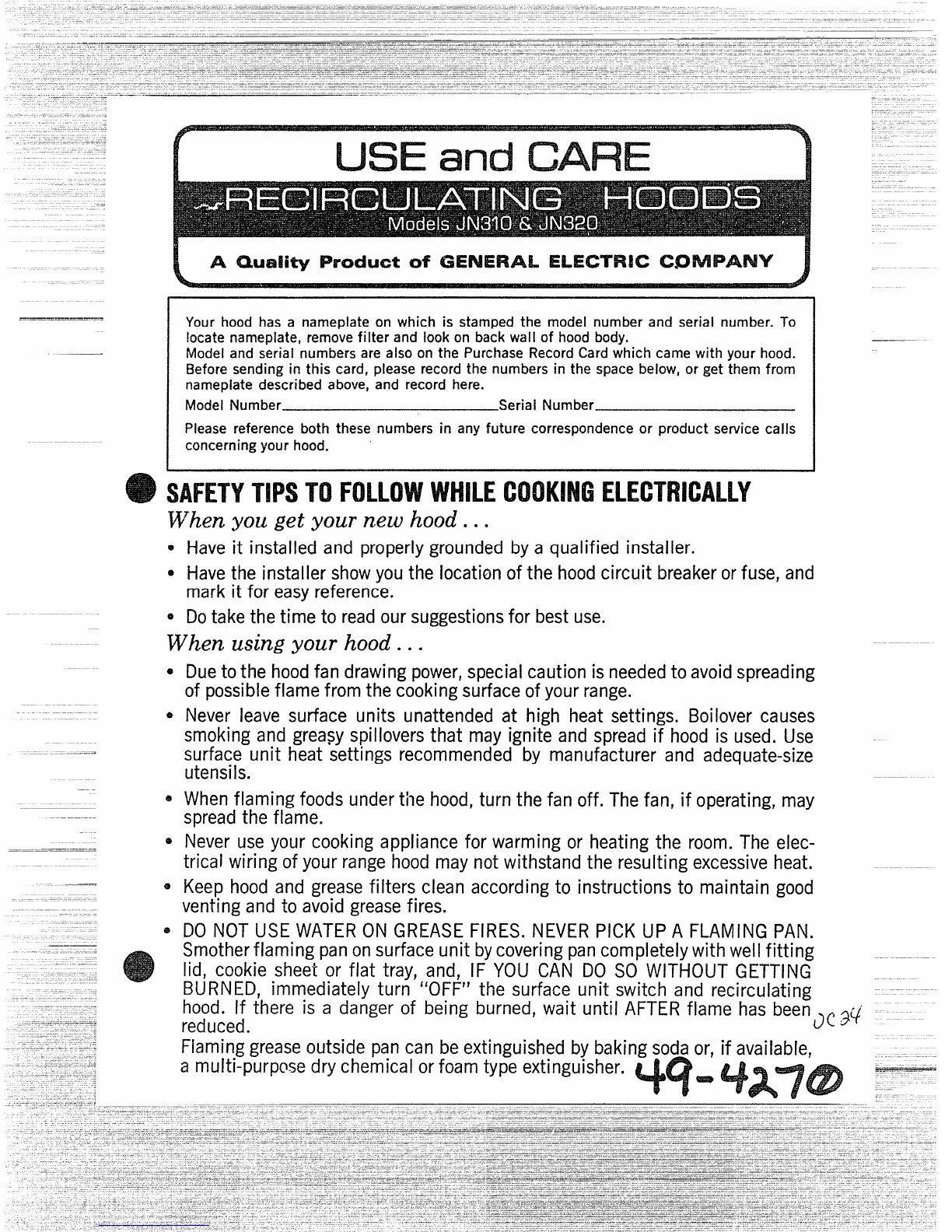

Your hood has anameplate on which is stamped the model number and serial number. To
locate nameplate, remove filter and look on back wall of hood body.
Model and serial numbers are also on the Purchase Record Card which came with your hood.
Before sending in this card, pIease record the numbers in the space below, or get them from
nameplate described above, and record here.
Model Number Serial Number
Please reference both these numbers in any future correspondence or product service calls
concerning your hood.
SAFETYTll%T’(IFOLLOWWHILE COOKINGELECTRICALLY
When you get your new hood. ..
*Have it installed and properly grounded by aqualified installer.
“Have the installer show you the location of the hood circuit breaker or fuse, and
mark it for easy reference.
~Do take the time to read our suggestions for best use.
When using your hood. . .
——
Due to the hood fan drawing power, special caution is needed to avoid spreading
of possible flame from the cooking surface of your range.
Never leave surface units unattended at high heat settings. Boilover causes
smoking and greasy spillovers that may ignite and spread if hood is used. Use
surface unit heat settings recommended by manufacturer and adequate-size
utensils.
When flaming foods under tile hood, turn the fan off. The fan, if operating, may
spread the flame.
Never use your cooking appliance for warming or heating the room. The elec-
trical wiring of your range hood may not withstand the resulting excessive heat.
Keep hood and grease filters clean according to instructions to maintain good
venting and to avoid grease fires.
DO NOT USE WATER ON GREASE FIRES. NEVER PICK UP AFLAMING PAN.
Smother flaming pan on surface unit by covering pan completely with well fitting
lid, cookie sheet or flat tray, and, IF YOU CAN DO SO WITHOUT GETTING
BURNED, immediately turn “OFF” the surface unit switch and recirculating
hood. If there is adanger of being burned, wait until AFTER flame has been
reduced. Jc gq’
Flaming grease outside pan can be extinguished by baking soda or, if available,
amulti-purpose dry chemical or foam type extinguisher. +q-qA7

If sou needservice. . .
Read “When You Call for Product Service,” back page.
Don’t attempt to repair or replace any part of your hood unless it is specifically
recoi-llmen~ed in the book. All other servicing should be referred to aqualified
technician.
Read the warranty on the warranty sheet* which accompanies your Use and Care
Book.
Disconnect hood at range circuit breaker or main fuse before performing any
~Qrvir@.
WV. ., ---
‘If you did notreceivethe warrantysheet,dropacardto the PublicationsDistribution SectionrGeneralElectric
Co.,P.O.Box111,NewConcord,Ohio 43762.
_- Give them the complete model number of your hood plus your name, address and zip code, and awarranty
will be sent you.
60 WATTLAMP
Your hood is equipped with ametal filterwhich removesgreaseandacharcoal filterwhich
absorbs odors. When the fan is operated, air is drawnup through the two filters and is
then discharged out into the room through the openingsinthe top front of thehood body.
CAUTION
eREMOVE the plastic and paper outer wrappings from the charcoal filter before op-
erating the hood fan. Remove metal filter and check to see that charcoal filter is
unwrapped.
el%fore you operate your hood, BE CERTAIN that both metal and charcoal filtersare
installed as shown in sketch.
T= =p~~~=~
The recirculatinghood drawscooking vapors from the surrounding area only if the fan is
operating. Locate the FAN button on the front of the hood, using the following pictures,
and follow the instructions for operation desired.
eT-HE RECIRCULATING HOOD SHOULD BE OPERATED WHENEVER
ODORS, VAPORS OR SMOKE ARE EXPECTED TO BE THE RESULT OF A
COOKING OPERATION.
“START FAN AT THE .BEGINNING OF COOKING.

—_ —
.-
*USE R.E.4RUNW17SFOR MAXIMUM HOOD EFFECTIJTENESS WHEN HEAVY
SiMOKING IS EXPECTED.
*SHUT OFF FAN WHEN COOKING IS COMPLETED.
MODEL JN3’10
“-”- 5----
\/-.
LAMP AND FAN SWITCH LAMP SWITCH Press ONCE for HIGH speed Press T}YICE
Lamp and Ian on lhree.way swtctr Press for OFF for LOW speed Press agawrfor OFF
$equem elight. fan. light and Ian. off and ON
Filters become soiled over aperiod of time. The efficiencyof your recirculatinghood de-
pends on how clean the filtersare. Frequency of cleaningor replacingdependson thetype
of cooking you do, BUT FILTERS SHOULD BE CLEANED AT LEAST ONCE A
MONTH. NEVER OPERATE HOOD WITHOUT FILTERS IN PLACE.
TO REMOVE GREASE Fl LTER, Insert the tip of ablunt instrument in the right side of
the filter. Push filter to left and pull down. (See diagram.)
TO CLEAN, soak, then agitate filter in hot detergent solution. Do not use ammonia or
other alkaline material because metal or filter will darken. Light brushing may be used
to removeimbedded soil. Rinse, shakeand remove moisture before replacing.With careful
handlingthefilterwill lastfor years. If replacementbecomes necessary, orderpart number
WB2X2893 from your dealer.
TO REMOVE CHARCOAL FILTER, grasp handle and pull to the left and down. This
filter should be replaced when it is no longer effective,about 6to 24 months dependingon
hood usage. Order part number WB2X2891 from your dealer.
TO REPLACE FILTERS
~Remove plastic and other outer wrapping from the new charcoal filter. Insert filterrim
in the TOP frame slot on the left hand side of the opening. Push to the left and upward
into place allowing the filter to slide back to the right and to lock into place in the frame.
oMetal (grease) filtershould be returned to hood in the samemanner asabove, but inthe
LOWER frame.
oHOOD body w-Mbecome dusty and grease laden over aperiod of time. Clean grease
laden surfaces of the hood frequently, especiallythe filters.Use warmdetergent solution.
About 1tablespoon of ammonia may be added to the waterand WITH CARE NOT TO
COME IN CONTA.CT WITH FILTERS AND OTHER NON-ENAMELED SUR-
FACES, the hood shell can be washed, rinsed then dried with asoft cloth.
CAUTION: BE CERTAIN whencleaninghood surfacesyou do not touch lamp bulbwith
moist hands or cloth. Awarm or hot lamp bulb may break if touched with amoist surface.
ALWAYS let lamp cool COMPLETELY before cleaning around it.

To Chxm Motor and Fan:
4.
5.
DISCONNECT POWER AT MAIN FUSE BOX.
Remove filters.
Wipe fan blade and motor with cloth, dampened
solution.
Replace filters.
Connect power at main fuse.
only in ammonia and warm water
LAMP HEPLACEMENT
ALL MODELS: Your hood is equipped with an ordinary screw-base lamp bulb recep-
tacle. The lamp bulb is not supplied but DO NOT USE ALAMP OF MORE THAN 60 -
WATTS IN THIS HOOD.
To replace lamp bulb: ALWAYS let lamp cool COMPLETELY. Awarmlamp bulb may
break if toucheclwith amoist cloth or hand. When cool, unscrewlampand replacewith a
new lamp as specified above.
If the fan (and light on Model JN31O) does not operate when the switch is on, check
the main fuse or circuit breaker.
If the fan operates, but slower than normal,the filtermay needcleaning.If that doesnot
correct the problem, call your General Electric serviceman.
If the fan keeps going off and on, the motor isprobably overheatingand turningitselfoff.
This can be harmful to the motor. Check to besurethefilterisclean.If it shouldcontinue
off and on cycling, call your GeneralElectric serviceman.
When You Cdl forProduct Service
Help therm give you prompt service by giving:
1. The complete model number of your hood. For Model JN320, the nameplate is
located on the inside back wall of the hood. For Model JN31O, the nameplate is lo-
cated at the rearof the hood and covered by the filters.
2. An accurate description of the trouble.
hTote:When serviceis required,be sure to specify genuineGeneralElectric renewalparts.
Pub.No,49-4270
RANGE MARKETING OPERATION
GENERAL ELECTRIC COMPANY
Appliance Park, Louisville, Kentucky 40225
