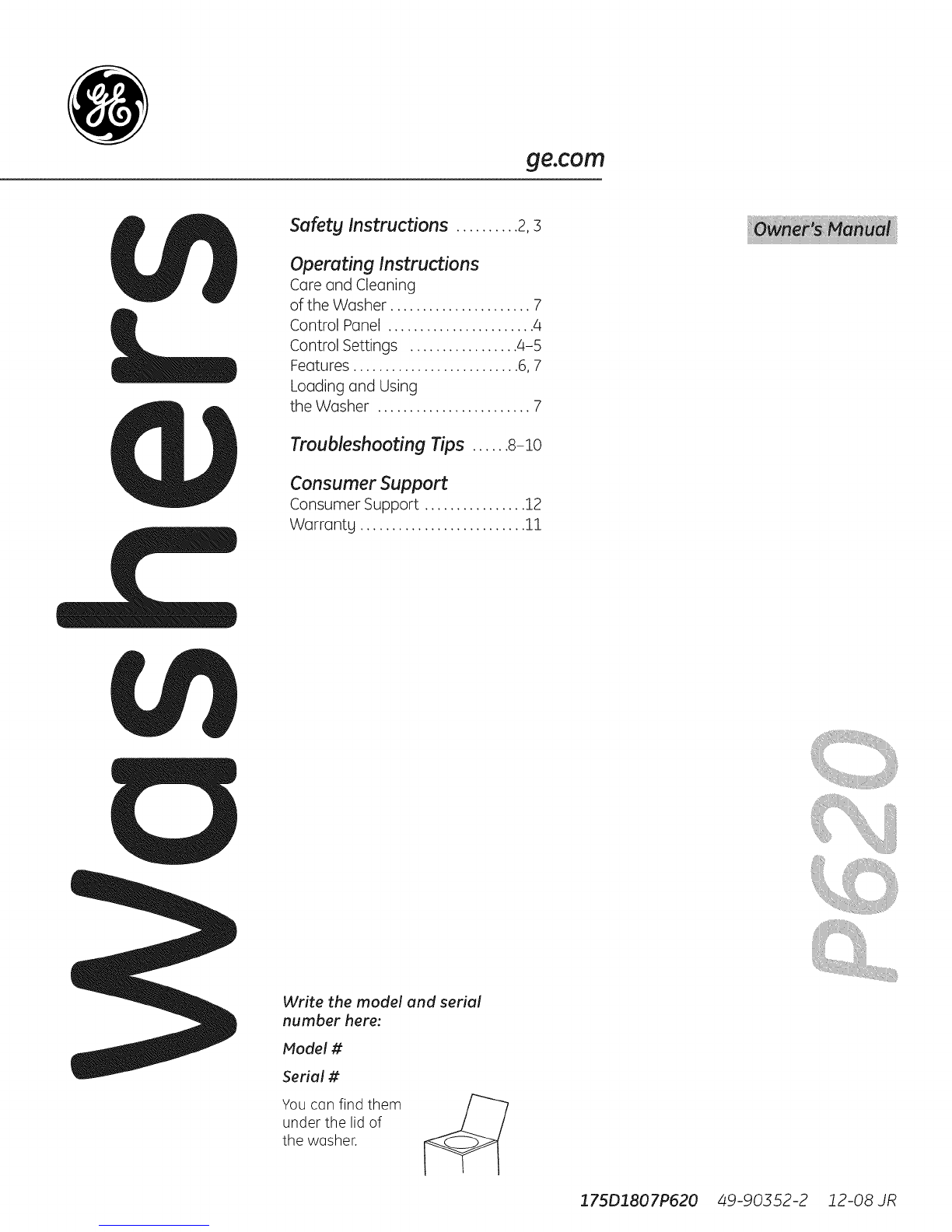

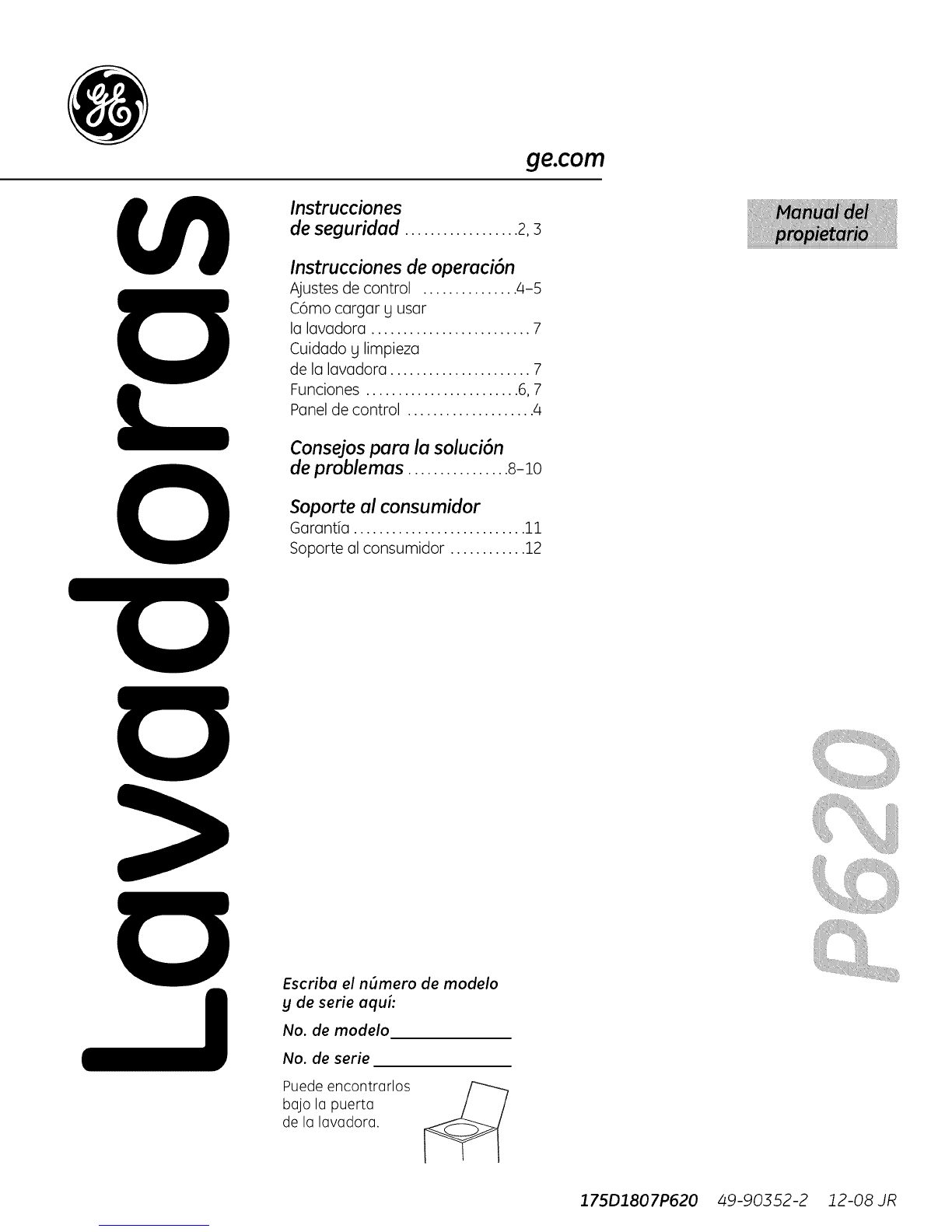

GE WCRE6270K0WW User manual

0ge.com
Safety instructions .......... 2,s
Operating instructions
Care and Cleaning
of the Washer ...................... 7
Control Panel ....................... 4
Control Settings ................. 4-5
Features .......................... 6, 7
Loading and Using
the Washer ........................ 7

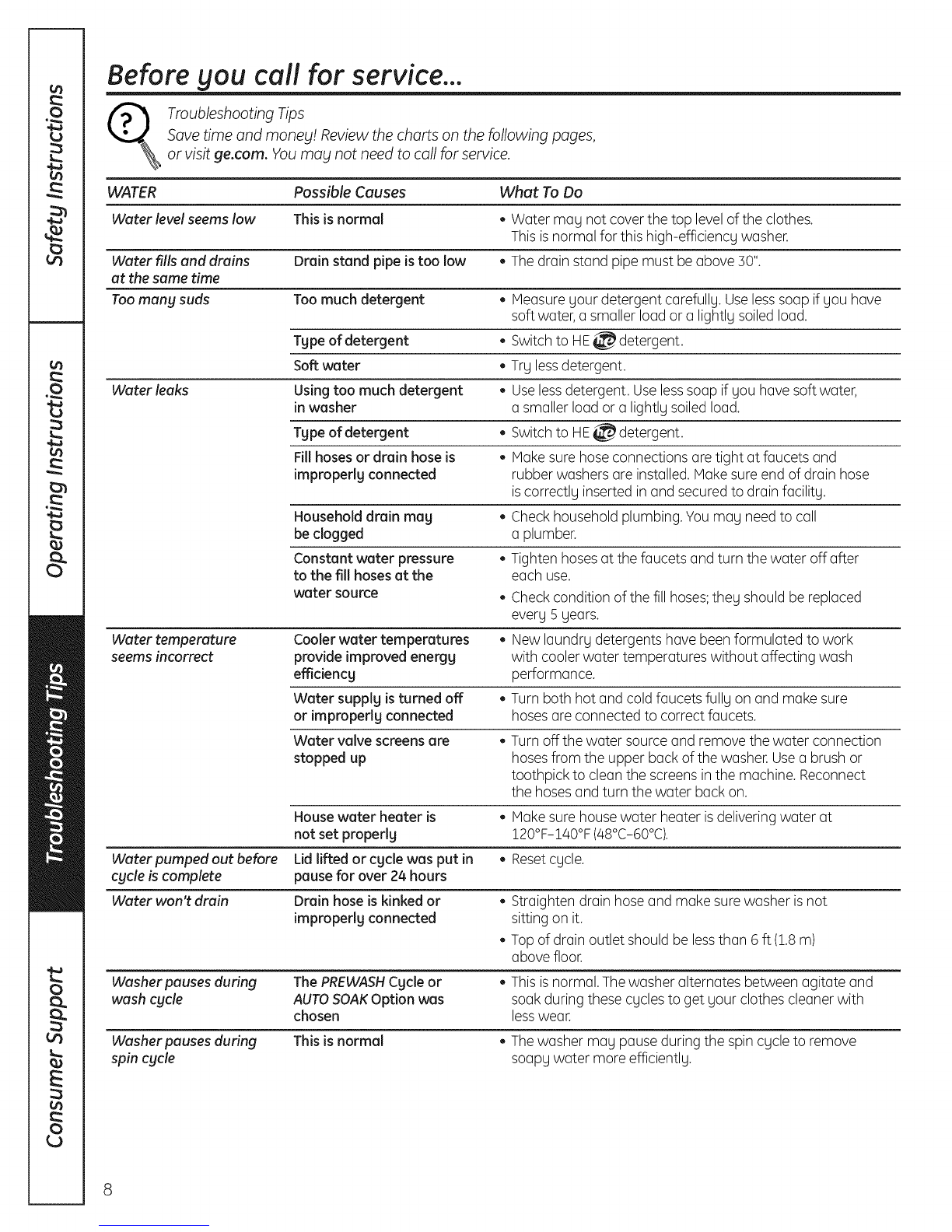

Troubleshooting Tips ...... 8-1o
Consumer Support
Consumer Support ................ 12

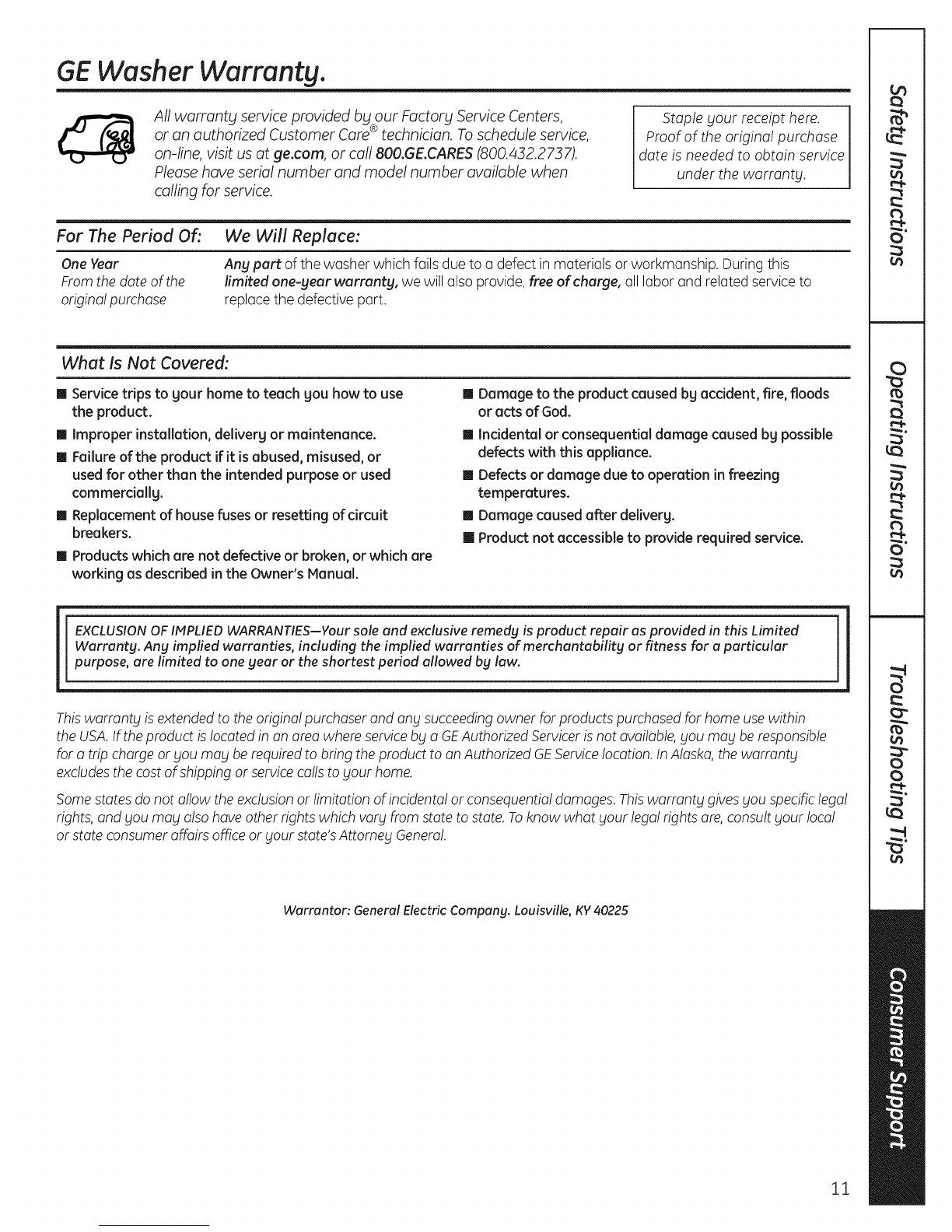

Warrantg .......................... 11
Write the model and serial
number here:
Model #
Serial #
You can find them
under the lid of
the washer.
175D1807P620 49-90552-2 12-08JR

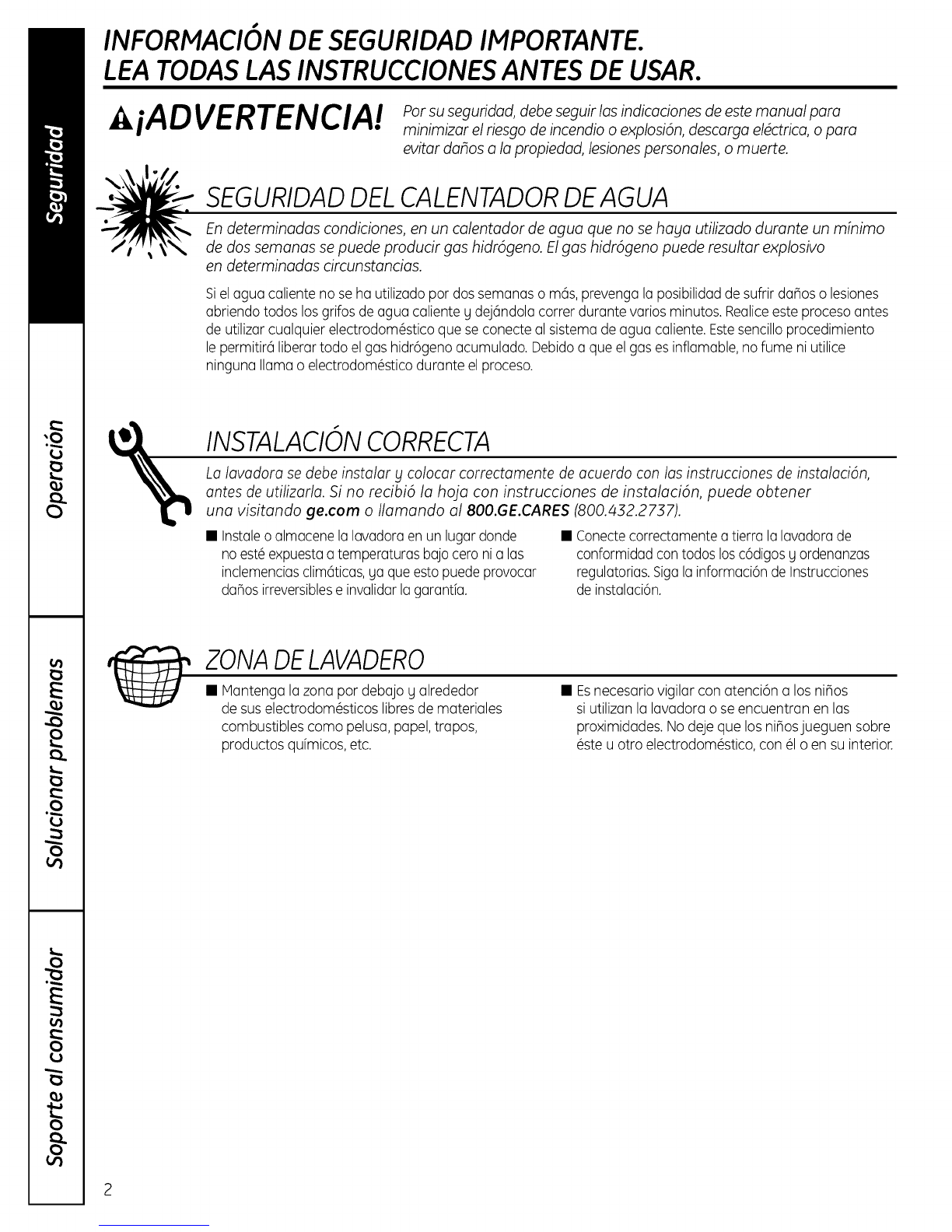

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
of fire or explosion, electric shock, or to prevent property damage, personal injury,
or loss of life.
WATERHEATERSAFETY
Under certain conditions, hydrogen gas may be produced in a water heater that has not been
used for two weeks or more. Hydrogen gas can be explosive under these circumstances.
If the hot water has not beenusedfor two weeks or more, prevent the possibility of damage or injury by
turning on all hot water faucets and allowing them to run for several minutes. Dothis before usingany
electrical appliance which isconnected to the hot water system. Thissimple procedurewill allow any
built-up hydrogen gasto escape.Sincethe gas isflammable, do not smoke or usean open flame or
appliance during this process.
PROPERINSTALLATION
This washer must be properly installed and located in accordance with the Installation
Instructions before it is used. If you did not receive an Installation Instructions sheet, _lOUcan
receive one b_l visiting ge.com or bg calling 800.GECARES (800.432.27.37).
Installor store where itwill not be exposed to m Properlyground washer to conform with all
temperatures below freezing or exposed to the governing codes and ordinances. Followdetails
weather,which could cause permanent damage in Installation Instructions.
and invalidate the warranty.
YOURLAUNDRYAREA
m Keepthe area underneath and around your
appliances free of combustible materials such as
lint, paper,rags, chemicals,etc.
m Closesupervisionis necessary ifthis appliance is
used by or near children. Do not allow children to
play on,with or insidethis or any other appliance.
2

_e.com
Use this
appliance
onlg for its
intended
purpose as
described in
this Owner's
Nanual,

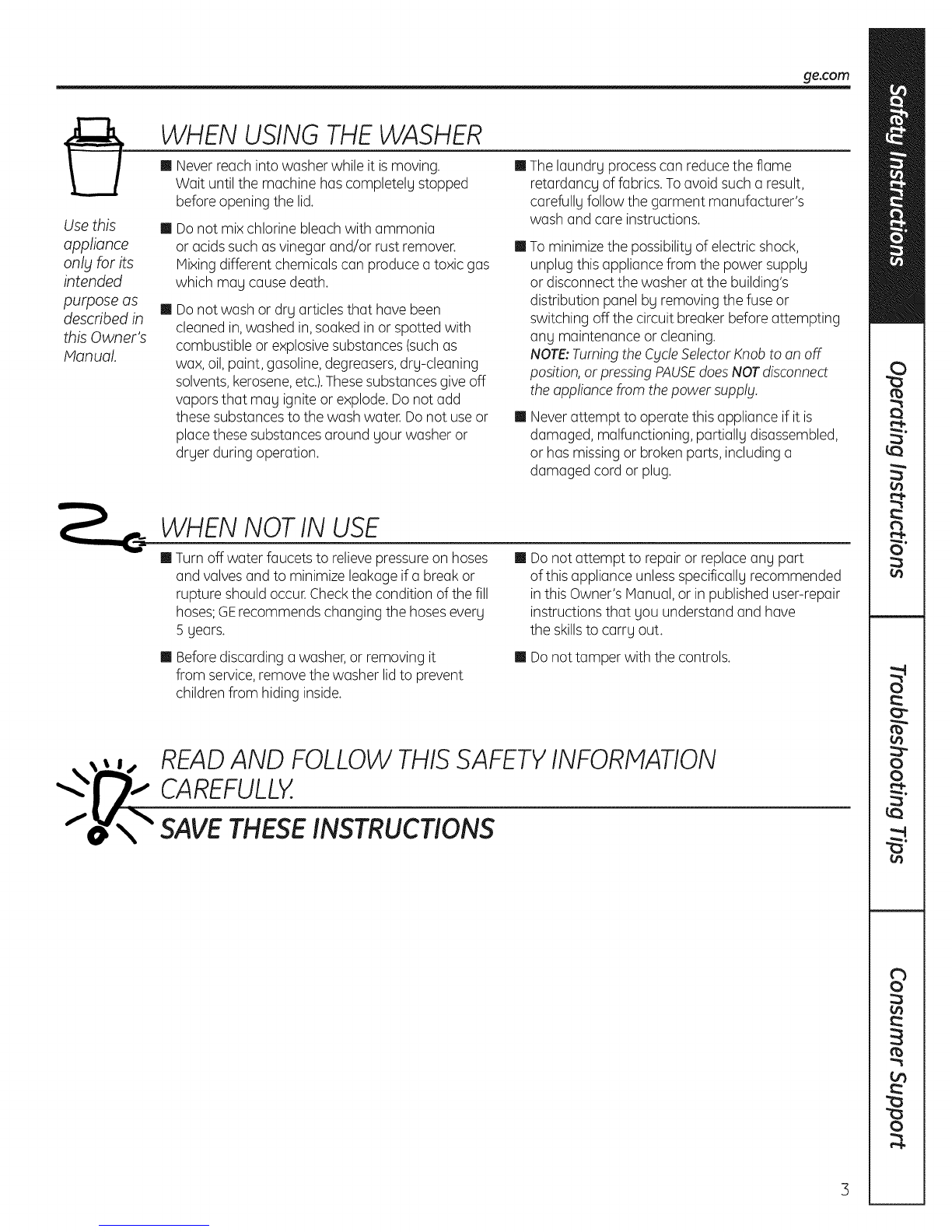

WHEN USING THE WASHER
Never reach into washer while it ismoving.
Wait until the machine has completely stopped
before opening the lid.
m Donot mix chlorine bleachwith ammonia
or acids such asvinegar and/or rust remover.
Mixing different chemicals can produce a toxic gas
which may cause death.
m Donot wash or dry articlesthat have been
cleaned in,washed in,soaked in or spotted with
combustible or explosivesubstances (suchas
wax,oil,paint, gasoline, degreasers,dry-cleaning
solvents,kerosene,etc.).Thesesubstancesgive off
vapors that may igniteor explode. Donot add
these substancesto the wash water.Do not useor
placethese substancesaround your washer or
dryer during operation.
m
m
m
Thelaundry processcan reducethe flame
retardancy of fabrics.Toavoid such a result,
carefully follow the garment manufacturer's
wash and care instructions.
Tominimize the possibility of electricshock,
unplug this appliance from the power supply
or disconnect the washer at the building's
distribution panel by removing the fuse or
switching off the circuit breaker beforeattempting
any maintenance or cleaning.
NOTE:Turningthe CgcleSelectorKnob to an off
position,or pressing PAUSEdoesNOTdisconnect
the app!iance from the power supplg.
Neverattempt to operate this appliance if it is
damaged, malfunctioning, partially disassembled,
or has missingor broken parts, including a
damaged cord or plug.
WHEN NOT IN USE
m Turn off water faucets to relievepressureon hoses
and valves and to minimize leakage ifa break or
rupture should occur.Checkthe condition of the fill
hoses;GErecommends changing the hosesevery
5 gears.
Ill Donot attempt to repair or replace any part
of this appliance unless specifically recommended
inthis Owner's Manual,or in published user-repair
instructions that you understand and have
the skillsto carry out.
m Beforediscarding a washer,or removing it
from service,remove the washer lidto prevent
childrenfrom hiding inside.
m Do not tamper with the controls.
READ AND FOLLOW THISSAFETYINFORMATION
CAREFULLY.
SAVE THESE INSTRUCTIONS

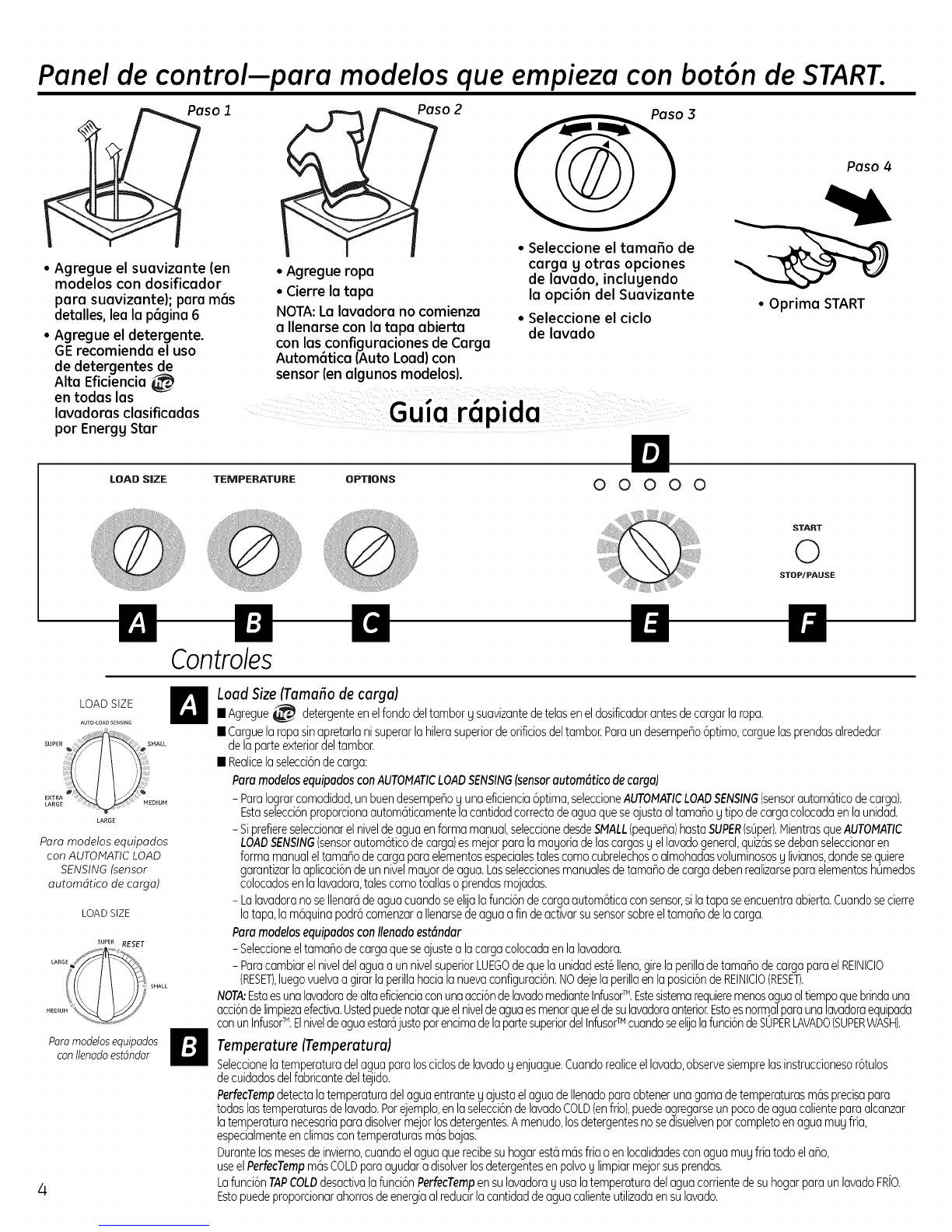

About the control panel-for models with STARTbutton.
7
• Add fabric softener (on models
with a fabric softener dispenser);
see page 6 for details
• Add detergent. GE recommends
the use of High Efficiency
detergents in all Energy
Star-rated washers
Step 2
• Add clothes
• Close lid
NOTE:Washer will not start to fill
with lid open on Auto Load sensing
settings (on some models)
ep 3Step 4
• Select load size and
other wash options,
including Fabric
Softener option
• Select wash cycle
• Push START
OuickStortG.idedt
LOAD SIZE TEMPERATURE OPTIONS O0000
START
0
STOP/PAUSE
Controls
DLoad Size
[] Add_ detergenttothebottomofthebasketandfabricsoftenertothedispenserpriorto loadingclothes.
[] Looselyloadclothesnohigherthanthetoprowofholesinthebasket.Foroptimalperformance,loaditemsaround
theoutsideofthe basket.
[] Hake the load selection:
AUTOMATICLOAD
SENSINGequipped
models
LOAD SIZE
SUPER RESET
STANDARDFILLequipped
models
ForAUTOMATICLOADSENSINGequippedmodels
- Forconvenience,bestperformanceandoptimalefficiency,selectAUTOMATICLOADSENSING.Thisselection
automaticallyprovidesthecorrectamountofwatersuitedtothesizeandtypeof loadplacedinthe unit.
- Ifyoupreferto manuallyselectthewater level,selectSMALLthroughSUPER.WhileAUTOMATICLOADSENSINGisbest
formostloadsandgeneralwashing,youmaywantto manuallyselecttheloadsizeforspecialtyitemssuchasbulky,
lightweightcomfortersor pillows,whereyouwanttoensurea largerwaterlevelisapplied.Hanualloadsizeselections
shouldbemadeforwetitemsplacedinthewasher,suchassoakedtowelsorgarments.
- Thewasher will notfill with water when automatic load sensing isselected ifthe lid isopened.
When the lid isclosed the machine isable to begin fillingwith water in order to sensethe load size.
Forstandardfill equippedmodels
- Selecttheloadsizethat matchestheloadpiecedintothewasher.
- Forchangingthewaterleveltoa higherlevelAFTERtheunithasfilled,turn loadsizeknobto RESET,thenturntheknob
backto yournewsetting.DONOTleavetheknobintheRESETposition.
NOTE:Thisisa high-efficiencywashingmachinewith InfuserTM washaction.Thissystemrequireslesswaterwhileproviding
effectivecleaningaction.Youmay noticethat thewaterlevelislowerthanonyourpreviouswasher.Thisisnormalforan
Infusorm-equippedwasher.Thewater levelwill bejust abovethe top of the InfuserTM when the SUPERWASHsize
isselected.
4

ge.com
Temperature
Selectthewatertemperatureforthewashandrinsecycles.Alwaysfollowfabricmanufacturer'scarelabelor instructionswhen
laundering.
PerfecTernpsensestheincomingwatertemperatureandadjuststhefillwaterto obtaina moreprecisetemperaturerangeforall
washtemperatures.Forexample,in aCOLDwashselection,somewarmwatermay beaddedto reacha temperatureneededto
betterdissolvedetergents.Often,detergentsarenotcompletelydissolvedinverycoldwater,especiallyincoolerclimates.
Duringwintermonths,whenthewaterenteringyourhomeiscolder,or forlocationswithverycoldwateryearround,
usethePerfecTempplusCOLDtohelpdissolvepowdereddetergentsandtoimprovethecleaningofyourclothes.
TheTAPCOLDfeatureturnsthePerfecTempfeatureon yourwasheroffandusesyourhouseholdtapwatertemperature
fora COLDwash.Thiscanprovideenergysavingsbyreducingtheamountofhotwaterusedinyourwash.
Options
Autosoak Option (onsome models)
Thisoption beginswith a brief agitation, soaksfor a specified period of time, then moves through the rest ofthe cycle
automatically. On some models,this option islocated on the Cycle Selectorknob.
2nd RinseOption (onsome models)
When you use extra detergent or bleach to clean heavily soiledclothes, you may want to usethe 2nd Rinseoption.
It provides a second deep cold rinse.
Extended Spin Option (onsome models)
Usethis option to extract more water from your clothes. Clotheswill be drier when this option is selectedand will dry
more quickly in your dryer.
Fabric Softener
Setthis option when adding fabric softener to the washer.
NOTE:Donot usefabric softener dispensing ballswith this washer.They do not work correctly in high-efficiency
washers.
Status indicator Lights
TheCycle Indicator Lights show what stage the washer isin.When the Selectorknob isset to a new cycle, the Indicator
Lightswill flash momentarily, showing what stages the cycle will go through. Onmodels without an AUTOSOAKoption,
the SOAKlight will not light up.
OOOOO
FILL SOAK WASH RINSE SPIN
Wash Cgcle-Cgcle Selector Knob
Thewash cycle controls the length and intensity of the washing process.The knob can be turned in either direction.
Turningthe CycleSelector knob after starting a cycle will stop the washer and reset the cycle to the new selection.
PressSTARTtobegin the new cycle selection.
Thechart below will help you match the wash cycle setting with your clothing.
COTTONS Forheavy to lightly soiledcottons, household linens,work and play clothes.Thiscycle provides
the best overallcleaningand shouldbe usedfor most everyday items. Providesa high speedspin.
PREWASH Forremoving surface dirt from heavily soiledclothes. Make sure to follow with a
regular wash cycle.
CASUALS Forwrinkle-free and permanent pressitems and knits.Providesa low speed spin.
EASYCARE Forwrinkle-free and permanent pressitems and knits. Providesa high speedspin.
DELICATES Forlingerieand special-care fabricswith light soil. Providesa low speedspin.
HANDWASH Foritems labeled handwashable with light soil.Providesan extra low speedspin.
SPEEDWASH Forsmall loadsof lightly soileditems that are needed in a hurry. Providesa high speed spin.
DRAIN&SPIN Fordraining the tub and spinning water out ofthe clothes. Providesa high speed spin.
OR
SPiNONLY
AUTOSOAK Forvery soiledclothes. Beginswith a briefagitation, soaksfor a specifiedperiod of time,
then movesthrough the rest of the cycle automatically.
START
PressSTARTto begin the cycle. PressingSTARTagain will PAUSEthe cycle and the Cycle indicator lightwill blink.
Tocontinue the cycle, pressSTARTagain or close the lid.If machine is paused morethan 24 hours,the cyclewill be
cancelled.Tostop the cycle, hold the button for 3 seconds.If water remains in the machine, selectthe DRAIN&SPIN
ORSPINONLYcycle to drain tub and spinwater out of the washer tub.
Raisingthe lidwill stop agitation or spin action but does not pausethe cycle.

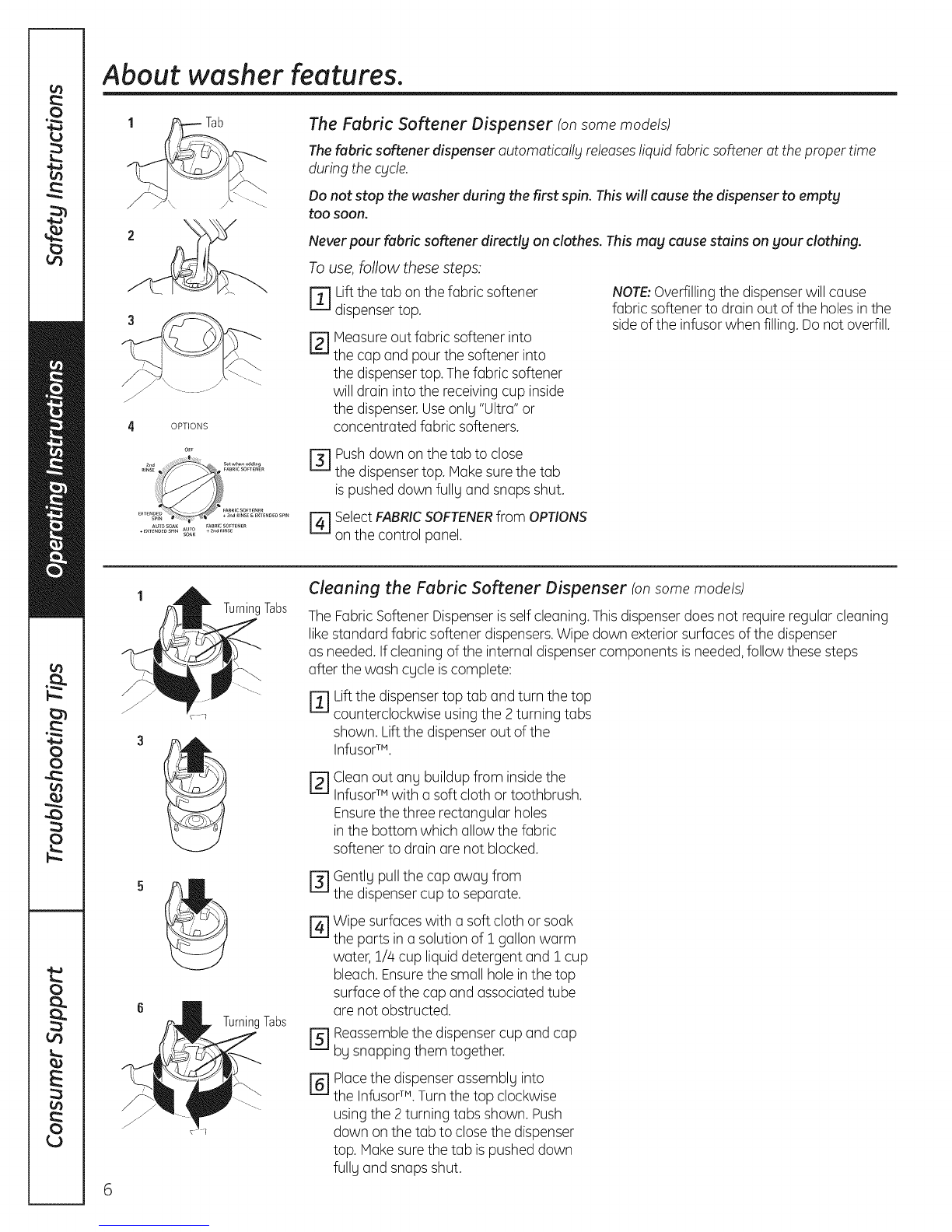

About washer features.
3 N
4 OPTIONS
AUTOSeAS FABRICSOFTenER
_E×TEN_EOSP_ AUTO +_d _S_
SOAK

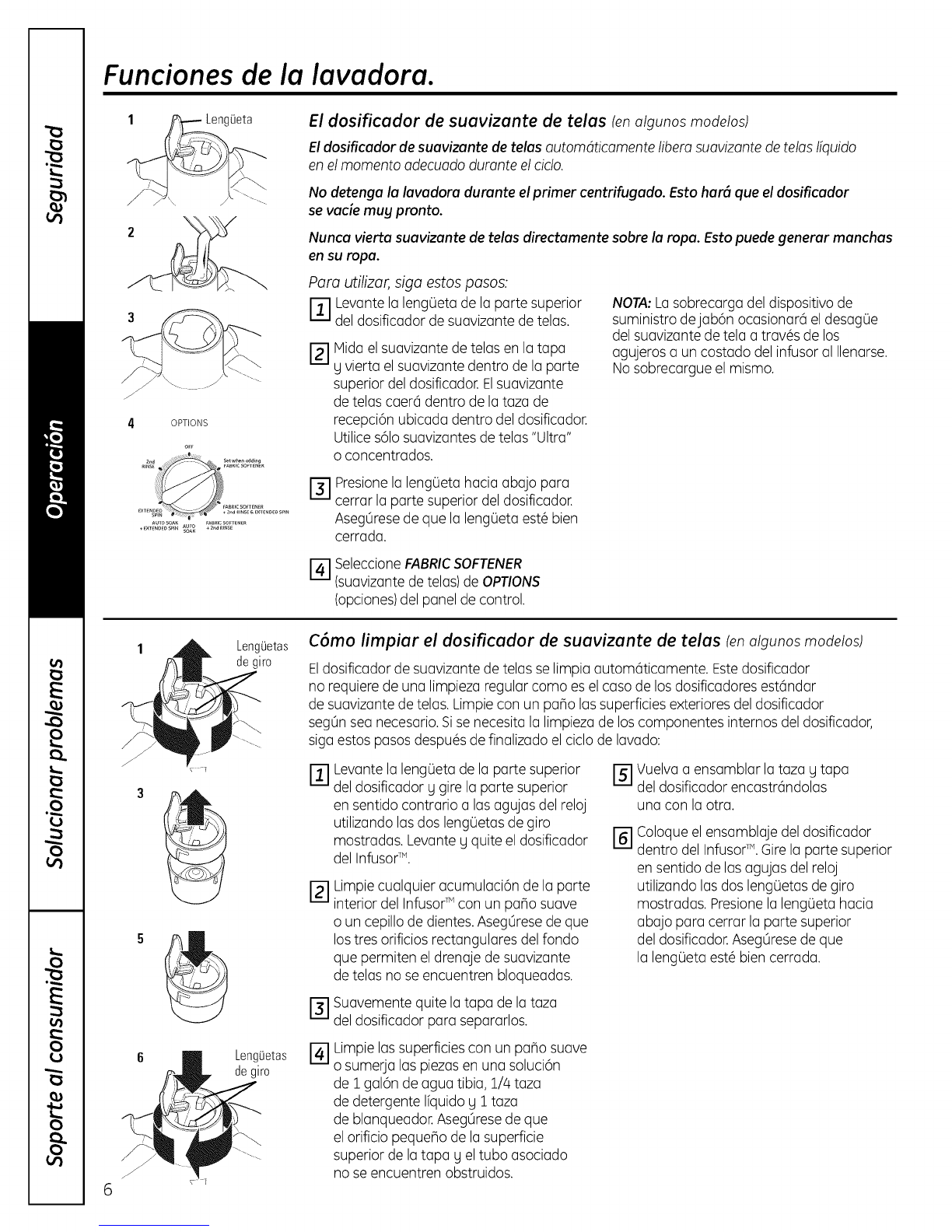

The Fabric Softener Dispenser (on some models)
The fabric softener dispenser automatically releases liquid fabric softener at the proper time
during the cycle.
Do not stop the washer during the first spin. This will cause the dispenser to empty
too soon.
Never pour fabric softener directly on clothes. This mug cause stains on gout clothing.
To use, follow these steps:
-] ift the tab on the fabric softener
dispensertop.
Heasure out fabric softener into
the cap and pour the softener into
the dispenser top.Thefabric softener
will drain into the receiving cup inside
the dispenser.Useonly "Ultra"or
concentrated fabric softeners.
NOTE:Overfilling the dispenserwill cause
fabric softener to drain out ofthe holesin the
sideof the infusor when filling. Do not overfill.
%Pushdown on the tab to close
the dispensertop. Hake surethe tab
ispushed down fully and snaps shut.
E] SelectFABRICSOFTENERfrom OPTIONS
on the control panel.
6
TurningTabs
TurningTabs
Cleaning the Fabric Softener Dispenser (onsome models)
TheFabric Softener Dispenserisself cleaning.This dispenserdoes not require regular cleaning
likestandard fabric softener dispensers.Wipe down exterior surfaces of the dispenser
as needed.If cleaning of the internal dispenser components isneeded,follow these steps
after the wash cycle iscomplete:
E]Liftthe dispenser top tab and turn the top
counterclockwise using the 2 turning tabs
shown. Liftthe dispenser out of the
InfusorTM.
@Cleanout any buildup from insidethe
InfusorTM with a soft cloth or toothbrush.
Ensurethe three rectangular holes
in the bottom which allow the fabric
softener to drain are not blocked.
Gently pullthe cap away from
the dispenser cup to separate.
Wipe surfaces with a soft cloth or soak
the parts in a solution of I gallon warm
water, 1/4 cup liquid detergent and I cup
bleach. Ensurethe small hole in the top
surface of the cap and associated tube
are not obstructed.
Reassemblethe dispensercup and cap
by snapping them together.
Placethe dispenser assemblLjinto
the InfusorTM. Turnthe top clockwise
using the 2 turning tabs shown. Push
down on the tab to close the dispenser
top. Hake surethe tab ispusheddown
fully and snaps shut.

ge.com
Liquid Bleach Funnel
Thewater fill dilutes liquid chlorine bleach asthe washer fills for the wash cycle.
F_ Checkclothing care labelsfor special instructions.
r21 Measureliquid bleach carefully, following instructions on the bottle.
Neverpour undiluted liquid chlorinebleachdirectly onto clothesor into the wash basket.
mOonot pour powdered bleachinto bleach funne!.
F_l Beforestarting the washer,pour measured amount of bleachdirectly into bleach funnel.
Avoidsplashing or over-filling dispenser.If you preferto usepowdered bleach,add it into
the wash basket with your detergent.
mDonot mix chlorinebleachwith ammonia or acidssuch asvinegar and/or rust remover.
Mixing canproduce a toxicgas which may causedeath.
Loading and using the washer.
Alwabls follow fabric manufacturer's care label when laundering.
WashLoads
Sort bu color (whites, lights,colors),soillevel,
fabric type (sturdycottons, easy care,delicates)
and whether the fabric produces lint (terry cloth,
chenille)or collects lint (velveteen,corduroy).
Pro ent
Add detergent and fabric softener before adding
clothes sothat the detergent can work effectively.
Usingtoo little or too much detergent is a common
cause of laundry problems.
Uselessdetergent if you havesoft water, a smaller
load or a lightly soiledload.
GErecommends the useof HighEfficiency
detergents in all EnergyStar rated washers.
HEdetergents are formulated to work with low water
wash and rinsesystems. HEdetergents reduce
the oversudsing problems commonly associated
with regular detergents.
theWasher
ff_k-_X-_ Loaddry items Ioos---_ly,no highert------------_an the top
V v row of holes inthe washer basket. Forbest results,
"_ load items evenly and loosely around the outside
of the basket. Toadd itemsafter washer has started,
lift the lid and submerge additional itemsaround
the outside of the basket.
mDonot place large itemssuch assheets,blankets
and towels acrossthe InfusorTM. Load them around
the outside ofthe basket.
mDonot wash fabricscontaining flammable
materials (waxes,cleaningfluids,etc.).
mAgitation wi!! not start with thelid up.
Care and cleaning of the washer.
Wash Basket: Leavethe lid open after washing to
allow moisture to evaporate. If you want to clean
the basket, use a clean,soft cloth dampened with
liquid detergent;then rinse.(Donot use harshor
gritty cleaners.)
FillHoses: GErecommends changing the hoses
every 5 years.
Exterior: Immediately wipe off any spills.Wipe
with damp cloth.Try not to hit surfacewith
sharp objects.
interior:The occasional useof a cycle that contains
bleachwill keepthe insideof the washer clean.
Moving end Storage: Ask the servicetechnician
to remove water from drain pump and hoses.
Seethe Installation Instructions packed with product
for information on how to reinstall the shipping
rod to keepthe tub stationary when moving
the washer.Formore information, visitgo.cam
or call 800.G&CARES(800./452.2757).Do not store
the washer where it will be exposed to the weather.
Long Vocations: Besurewater supply isshut off
at faucets. Drainall water from hoses ifweather will
be belowfreezing.

Before you call for service...
R roubleshooting Tips
Save time and money! Review the charts on the following pages,
or visit ge.com. You may not need to call for service.
WATER Possible Causes What To Do
Water levelseems low This isnormal • Water may not cover the top levelofthe clothes.
This isnormal for this high-efficiency washer.
Water fills and drains Drain stand pipe is too low • The drain stand pipe must be above 30".
at the same time
Toomany suds Too much detergent • Measureyour detergent carefully. Uselesssoap if you have
soft water, a smaller load or a lightly soiledload.
Tgpe of detergent •Switch to HE_ detergent.
Soft water •Try lessdetergent.
Water leaks Using too much detergent • Use less detergent. Use less soap ifyou have soft water,
in washer a smaller load or a lightly soiledload.
Tgpe of detergent •Switch to HE_ detergent.
Fillhoses or drain hose is •Makesure hoseconnections are tight at faucets and
improperlg connected rubber washers are installed.Makesure end of drain hose
iscorrectly inserted in and secured to drain facility.
Household drain mag •Checkhousehold plumbing. You may needto call
be clogged a plumber.
Constant water pressure •Tighten hoses at the faucets and turn the water off after
to the fill hoses at the each use.
water source • Checkcondition of the fill hoses;they should be replaced
every 5 years.
Water temperature Cooler water temperatures •New laundry detergents have been formulated to work
seems incorrect provide improved energg with coolerwater temperatures without affecting wash
efficiencg performance.
Water supplg is turned off • Turn both hot and cold faucets fully on and make sure
or improperlg connected hosesare connected to correct faucets.
Water valve screens are • Turnoff the water source and remove the water connection
stopped up hosesfrom the upper back of the washer.Usea brush or
toothpick to clean the screensin the machine. Reconnect
the hosesand turn the water back on.
Housewater heater is • Makesure housewater heater isdelivering water at
not set properlg !20°F-!40°F (48°C-ro0°C).
Water pumped out before Lid lifted or cgcle was put in • Reset cycle.
cycle is complete pause for over 24 hours
Water won't drain Drain hose is kinked or • Straighten drain hoseand make sure washer isnot
improperlg connected sitting on it.
Topof drain outlet should be lessthan roft (!.8 m)
above floor.
Washer pauses during The PREWASHCgcle or • This isnormal.Thewasher alternates between agitate and
wash cycle AUTOSOAKOption was soak during these cycles to get your clothes cleaner with
chosen lesswear.
Washer pauses during This isnormal • Thewasher may pauseduring the spincycle to remove
spin cycle soapy water more efficiently.
8

ge.com
OPERATION Possible Causes What To Do
Washer won't operate Washer is unplugged * Hake surecord isplugged securely into o working outlet.
Water supplg isturned off * Turn both hot and cold faucets fully on.
Controls are not set propedg * Checkcontrols.
Lid isopen--safetg feature • Closelid end reset cycle,to the beginning if necesso%.
prevents agitation and
spinning when lid is up
Circuit breaker/fuse is • Checkhousecircuit breakers/fuses.Replacefusesor
tripped/blown reset breaker.Washer should hove o separate outlet.
Electronics need to be reset • Unplug washer,wait 2 minutes, plug beck in and pressSTART.
STARTwas not pressed • PressSTART.
Lid magnet missing • Coilfor service.
Time not shown Unit filling • This isnormal. Estimatedtime remaining is updated during
on displag filltime.
Movement inside machine Shifting mechanism is • When the machine ismanually turned off,the shifterwill
when shut off disengaging the motor disengage the motor beforecompletely shutting down.
If lid is raisedbefore the motor isdisengaged, itwill resume
when lid isclosed.
PERFORMANCE Possible Causes What To Do
Clothes too wet incorrectcgde selected. • Hake surethe cycle selectedmatches the load you ore
washing.Somefabricswillfeelwetter whenrinsedwith coldwater.
Wash loudout of belance • Redistributeload inwasher end run through Drain& Spincycle.
Colored spots Incorrect useof fabric • Checkfabric softener package for instructions and follow
softener directionsfor using dispenser.
Hake sure you hove selectedthe FabricSoftener option.
Pretreot stein end rewash.
Dge transfer • Sortwhites or lightly colored itemsfrom dark colors.
Graged or gellowed Detergent amount • Be sureto follow detergent manufacturer's directions.
clothes Herd water • Usea water conditioner likeColgon band or install
o water softener.
Water isnot hot enough • Hake surewater heater isdelivering water ot
120°F-140°F(48°C-60°C).
Washer isoverloaded • Loosely loadclothes no higher then the top row of holes in the
washer basket. Forbest results,load items around the outside
of the basket.
Detergent is not • Add detergent to the wash basketbefore you load clothes.
dissolving
Dge transfer • Sortclothes by color.If fabric label states wash separatelg,
unstable dyes may be indicated.
Lint or residue on Clothes are air or line dried • If you do not dry your clothes with o clothes dryer, your
clothes clothes meg retain more lint.
Incorrect sorting • Separate lint producers from lint collectors.
Washing too long • Wash smell leedsfor o shorter time then larger leeds.
Detergent not dissolving • Add detergent to wash basket before you load clothes.
• Try a liquid detergent.
• Usewormer water temperature.
Overloading • Loosely load clothes no higher then the top row of holes in the
washer basket. Forbest results,load items around the outside
of the basket.
• Checkfabric softener package for instructions
end follow directionsfor using dispenser.
Incorrect useof fabric
softener 9

Before you call for service...
_Troubleshooting Tips
PERFORMANCE (cont.) Possible Causes What To Do
Pilfing Result of normal wear on •Whilethis isnot caused by the washer,you can slow the
polg-cotton blends and pilling processby washing garments insideout.
fuzzy fabrics
Snags, holes, tears, rips Pins,snaps,hooks, sharp • Fastensnaps,hooks,buttons and zippers.
or excessivewear buttons, belt buckles, • Removelooseitems likepins, objectsin pockets and
zippers and sharp objects sharp buttons.
left in pockets •Turn knits (which snag easily)inside out.
Undiluted chlorine bleach •Checkbleach package instructions for proper amount.
• Never add undiluted bleach to wash or allow clothes to
come in contact with undiluted bleach.
Chemicals like hair bleach or •Rinseitemsthat may have chemicals on them before
dye, permanent wave solution washing.
Wrinkling Improper sorting • Avoidmixing heavy items(likework clothes)with light items
(likeblouses).
Try a fabric softener.
Overloading or incorrect • Load clothes no higher than the top row of holes inthe washer
water level basket.
Incorrect wash and • Hatch Cycleselectionto the type of fabric you are washing
dry cycles (especiallyfor easy care loads).
Repeated washing in • Wash inwarm or cold water.
water that istoo hot
SOUNDS Possible Causes What To Do
"Netallic clicking" Shifter mechanism is • The drivesystem will engage at the start of agitate and
engaging or disengaging disengage when agitate iscomplete. Thisoccurs multiple
times during the wash.
Back and forth "swoosh" Electric motor reversing • Thismachine has a drive system that doesn't usegears.
or light "clicking" sound direction This sound isthe motor rotating back and forth to clean
during agitate your laundry.
Quick short agitation Clothing redistribution •Atthe end of agitate, the motor makes short agitation strokes
sounds at end of agitate to redistribute the load.
"Click" when water Relay switch • The relay makes a click sound when activated. Thewater
stops filling levelactivates the relay and stops filling.
"Clicking" behind Control Automatic Temperature • This valve mixes in cold and hot water.The"clicking" isthe
Panel during fill Control Valve valve turning on and off.
Water volume changes Automatic Temperature • This valve mixes in cold and hot water.Thesound changes
during fill Control Valve when the valvesare turned on and off.
Motor "whining up" or Motor ramping up/down • The motor will speed up incrementally during the spin cycle.
"coasting down" in spin during spincycle When spin iscomplete, it will coast until itstops.
"Humming" Water drain pump • The drain pump will make a humming soundwhen pumping
out water after agitation stopsand continue until spin is
complete.
"Gurgling" Water drain pump • When the pump starts drawing in air,It starts to gurgle.
Thewasher should then begin spinning and the sound will
continue until it isdone spinning.
Water "swishing" This is normal *Thiswasher usesa InfusorTM wash action.Water swishingwhile
the unit isagitating isnormal, especiallywith smallerloads.
Washer is noisy Washer is uneven • To levelthe front of the washer,adjust the front levelinglegs
by rotating the individual leginthe proper direction for up
or down. Tolevelthe back ofthe washer, lift the back
of the machine 4" (11cm)and set down.
To remove the shipping rod from the washer,pull the yellow
10 tag and attached rod from the bottom right hand side
of the washer.
Shipping rod isstillassembled
in the unit

GE Washer Warranty.
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care ®technician. To schedule service,
on-line, visit us at go.cam, or call 800.GE.CARES (800.432.2737).
Please have serial number and model number available when
calling for service.
Staple sour receipt here.
Proof of the origina! purchase
date is needed to obtain service
under the warrantg.
For The Period Of: We Will Replace:
One Year
From the dateof the
origina!purchase
Any pert ofthe washer which fails due to a defect in materiQIsor workmanship. Duringthis
limited one-year warranty, we will also provide, freeof charge, all lobar and relQtedserviceto
replQcethe defective port.
What Is Not Covered:
[] Service trips to your home to teach you how to use
the product.
[] Improper installation, delivery or maintenance.
[] Failure of the product ifit is abused, misused, or
used for other than the intended purpose or used
commerdallg.
[] Replacement of house fuses or resetting of circuit
breakers.
[] Products which are not defective or broken, or which are
working as described in the Owner's Manual.
[] Damage to the product caused bg accident, fire, floods
or acts of God.
[] Incidental or consequential damage caused bg possible
defects with this appliance.
[] Defects or damage due to operation in freezing
temperatures.
[] Damage caused after delivers.
m Product not accessible to provide required service.
EXCLUSION OF IMPLIED WARRANTIES--Your sole end exclusive remedy is product repair us provided in this Limited
Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for o particular
purpose, ore limited to one gear or the shortest period allowed bg low.
Thiswarrants isextendedto theorigina!purchaser and ang succeedingowner for products purchasedfor home usewithin
the USA.If theproduct is located in an area where servicebg a GEAuthorized Servicerisnot available,SOUmag beresponsible
for a trip chargeor SOUmag be required to bring the product to an Authorized GEServicelocation.InAlaska,the warrants
excludesthe costof shipping or servicecallsto Four home.
Somestates do not allow the exclusionor limitation ofinddentol or consequentialdamages. Thiswarrants givesyou specificlega!
rights,and you may alsohaveother rights which vary from state to state. Toknow what your legal rights are,consultyour local
or state consumeraffairs office or your state'sAttomeg Genera!.
Warrantor: General Electric Company. Louisville, KY 40225
11

Consumer Support.
GEAppliances Website
Have a question or need assistancewith your appliance?Try the GEAppliancesWebsite 24 hours a day,
any day ofthe year! Forgreater convenience and faster service,you can now download Owner's Hanuals,
order parts or evenschedule service on-line.
ge.corrl
ScheduleService
Expert GErepair service isonly one step away from your door.Geton-line and schedule your serviceat
your convenience any day of the year! Or call 800.GE.CARES(800.412.2717)during normal businesshours.
ge.corrl
Real LifeDesign Studio ge.com
GEsupports the Universal Design concept-products, services and environments that can be used by
people of all ages, sizesand capabilities.We recognizethe need to design for awide range of physical and
mental abilities and impairments. Fordetails of GE'sUniversalDesignapplications, including kitchen design ideas
for people with disabilities,check out our Website today. Forthe hearing impaired, pleasecall 800.TDD.GEAC
(800.8]].4122).
Extended Warranties
Purchasea GEextended warranty and learn about special discounts that are available while your warranty
isstill in effect. You can purchase iton-line anytime, or call800.626.222/4during normal businesshours.
GEConsumer Home Serviceswill still be there after your warranty expires.
ge.corrl
Parts and Accessories ge.corrl
Individualsqualified to servicetheir own appliances can have parts or accessoriessent directly to their homes
(VISA,HasterCard and Discovercards are accepted).Orderon-line today, 2/4hours every day or by phone
at 800.626.2002during normal businesshours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing
generally should be referred to qualified service personnel. Caution must be exercised, since improper
servicing may cause unsafe operation.
Contact Us
If you are not satisfiedwith the service you receive from GE,contact uson our Website with all the details
including your phone number,or write to: General Hanager, Customer Relations
GEAppliances,Appliance Park
Louisville,KY/40225
ge.corrl
Register YourAppliance
Register gour new upplience on-Iine--et your convenience! Timely product registration will allow for
enhanced communication and prompt serviceunder the terms of your warranty, should the need arise.
Youmay alsomail inthe pre-printed registration card included in the packing material.
ge.corrl
Printed in the United States

0ge.com
1._
Instrucciones
de seguridad .................. 2,3
Instrucciones de operaci6n
Ajustes de control ............... 4-5
C6mo cargar y usar
la lavadora ......................... 7
Cuidado y Iimpieza
de la lavadora ...................... 7
Funciones ........................ 6, 7
Panel de control .................... 4
Consejos para la soluci6n
de problemas ................ s-lo
Soporte al consumidor
Garantia........................... ii
Soportealconsumidor ............12
Escriba el n(_mero de modelo
gde serie aqui:
No. de modelo
No. de serie
Puede encontrarlos
bajo la puerta
de la lavadora.
175D1807P620 49-90352-212-08JR

INFORMACION DESEGURIDADIMPORTANTE.
LEA TODAS LAS INSTRUCCIONES ANTES DE USAR.
iAD VERTENCIA! g. idod, indi o ion mon.olno o
minimizar el riesgo de incendio o explosi6n, descarga el4ctrica, o para
evitar dafios a la propiedad, lesiones personales, o muerte.
__ SEGURIDAD DELCALENTADORDEAGUA
En determinadas condiciones, en un calentador de agua que no se habla utilizado durante un minima
de dos semanas se puede producir gas hidr6geno. Elgas hidr6geno puede resultar explosivo
en determinadas circunstancias.
Si el agua caliente no se ha utilizado por dos semanas o m6s, prevenga la posibilidad de sufrir daflos o lesiones
abriendo todos los grifos de agua caliente g dej6ndola correr durante varios minutos. Realice este proceso antes
de utilizar cualquier electrodom@stico que se conecte al sistema de agua caliente. Este sencillo procedimiento
le permitir6 liberar todo el gas hidr6geno acumulado. Debido aque el gas es inflamable, no fume ni utilice
ninguna llama o electrodom_stico durante el proceso.
%INSTALACION CORRECTA
Lo lavadora se debe instalar y colocar correctamente de acuerdo con los instrucciones de insto!ociOn,
antes de utilizor!o. Si no recibi6 la hoja con instrucciones de instalaci6n, puede obtener
una visitando ge.com o Ilamando a1800.GE.CARES (800.432.2737).
• Instaleo almacene la lavadoraen un lugardonde • Conectecorrectamentea tierrala lavadorade
no est_expuestaatemperaturas bajocero nialas conformidadcon todos losc6digosy ordenanzas
inclemenciasclim6ticas,ua queesto puedeprovocar regulatorias.Sigala informaci6nde Instrucciones
daflos irreversiblese invalidarla garantia, de instalaci6n.
ZONADELAVADERO
• Mantenga lazona par debajo Ualrededor
de sus electrodom@sticoslibresde materiales
combustibles coma pelusa, papel,trapos,
productos qufmicos,etc.
• Esnecesario vigilar con atenci6n a losniflos
siutilizan la lavadora o se encuentran en las
proximidades. No deje que los niflosjueguen sobre
@steu otro electrodom@stico,con 61o en su interior.
2

ge.com
AL UTILIZARLA LAVADORA
Utiliceeste •
electrodomdstico
s61opare elusa
quesedescribe
enestemanual
delpropietario.
Noabra la lavadora mientras est_ en movimiento.
Esperea que sehaua detenido par completo antes
de abrir la puerta.
No mezcleblanqueadores clorados con amonfaco
o 6cidos coma vinagre o desoxidantes.La mezcla
de distintos productos qufmicos puede producir
gasest6xicos que pueden causar la muerte.
No laveni sequeprendas que se hayan limpiado,
lavado, empapado o manchado con sustancias
inflamables o explosivas (coma cera,aceite,
pintura, gasolina, desengrasantes,disolventes
de limpieza en seco,queroseno,etc.)que puedan
prenderseo explosionar.No afiada ninguna de
estassustancias al agua de lavado. Noutilice
ni coloque ninguna de estassustancias
en torno a la lavadora o la secadora
durante elfuncionamiento.
Elproceso de lavado puede reducir el tiempo
previoa la inflamaci6n de lostejidos. Paraevitar
este efecto, siga con atenci6n lasinstrucciones
de lavado Ucuidado del fabricante de la prenda.
Paraminimizar la posibilidad de descarga el@ctrica,
desenchufe el electrodom@sticode la corriente o
desconecte la lavadora en el panel de distribuci6n
de la vivienda quitando el fusible o apagando
el interruptor antes de realizarcualquier tarea
de mantenimiento o limpieza.
NOTA:El llevarla perilla selectom de dclo
a la posici6n OFFu oprimir PAUSENOdesconecta
el electmdomdsticode la alimentodOn.
Nointente en ningOncaso utilizar la lavadora
si est6 danada, funciona incorrectamente, est6
parcialmente desmontada, le faltan piezaso
algunas est6n rotas, incluidosel cable o el enchufe.
CUANDO NO ESTdLEN USO
•Cierrelas Ilavesde pasopara reducir la presi6n
de lastuberfas g lasv61vulas,g minimizar lasfugas
en caso de que seproduzca una rotura o grieta.
Compruebe el estado de las mangueras de Ilenado;
GErecomienda el cambio de las mangueras cada
5 a_os.
•Antes de deshacersede una lavadora o de
desecharla,quite la puerta de la lavadora para
evitar que losni_os seescondan en su interior.
•Nointente reparar n_sustituir ninguna piezade
este electrodom@stico,a menos que se recomiende
de manera explfcitaen el manual del propietario
o en instrucciones publicadas de usa Ureparaci6n
que seancomprensiblesy que pueda realizarusted.
•Nomanipule loscontroles.
LEAVSIGAESTAINFORMAClON
DESEGURIDADCUIDADOSANIENTE.
CONSERVE ESTASINSTRUCCIONES

Panel de control-para modelos que empieza con bot6n de START.
•Agregue el suavizante (en
modelos con dosificador
para suavizante); para mas
detalles, lea la pGgina 6
• Agregue el detergente.
GE recomienda el uso
de detergentes de
Alta Eficiencia
en todas las
lavadoras clasificadas
por Energy Star
Paso 2
Z
• Agregue ropa
•CJerre la tapa
NOTA: La lavadora no comienza
aIlenarse con la tapa abierta
con las configuracJones de Carga
AutomGtica (Auto Load) con
sensor (en algunos modelos).
• Seleccione el tamafio de
carga g otras opciones
de lavado, inclugendo
la opci6n del Suavizante
• Seleccione el ciclo
de lavado
GUiarGpida
Paso 4
•Oprima START
LOAD SiZE TEMPERATURE OPTIONS O0000
START
0
STOP/PAUSE
LOAD SIZE
AUTO-LOA_SENSENG
SUPER ......... SMALL
LARGE_×TRA@MEDIUM
LARGE
Para modetos equipados
con AUTOMATICLOAD
SENSING(sensor
automdtico de cargo)
LOAD SIZE
suPE_ RESET
LARGE It ;,'
Paramoddosequipados
conIlenadoestdndar
4
Controles
Load Size (TamaSode carga)
•Agregue_ detergenteenelfondodeltamborg suavizantedetelaseneldosificadorantesdecargarlaropa.
• Carguelaropasinapretarlanisuperarlahilerasuperiordeorificiosdeltambo_Paraundesempe5o6ptimo,carguelasprendasalrededor
delaparteexteriordeltambor.
• Realicelaselecci6ndecarga:
ParamodelosequipadosconAUTOMATICLOADSENSING(sensorautom6ticodecarga)
- ParaIograrcomodidad,unbuendesempe5ogunaeficiencia6ptima,seleccioneAUTOHATICLOADSENSING(sensorautom6ticodecarga).
Estaselecci6nproporcionaautomaticamentelacantidadcorrectadeaguaqueseajustaaltama5oytipodecargacolocadaenlaunidad.
- Siprefiereseleccionarelniveldeaguaenformamanual,seleccionedes@SMALL(peque5a)hastaSUPER(s%er).MientrasqueAUTOMATIC
LOADSENSING(sensorautom6ticodecarga)esmejorparalamayo@delascargasy ellavadogeneral,quiz6sse@banseleccionaren
formamanualeltama5odecargaparaelementosespecialestalescomocubrelechoso almohadasvoluminososy livianos,don@sequiere
garantizarlaaplicaci6ndeunnivelm%ordeagua.Lasseleccionesmanualesdetama5odecarga@benrealizarseparaelementoshOmedos
colocadosenlalavadora,talescomotoallasoprendasmojadas.
- LalavadoranoseIlenaradeaguacuandoseelijalafunci6ndecargaautom6ticaconsensor,silatapaseencuentraabierta.Cuandosecierre
latapa,lamaquinapodracomenzaraIlenarsedeaguaafindeactivarsusensorsobreeltama5odelacarga.
ParamodelosequipadosconIlenadoest6ndar
- Seleccioneeltama_odecargaqueseajustea lacargacolocadaenlalavadora.
- Paracambiarelniveldelaguaa unnivelsuperiorLUEGOdequela unidadest@Ilena,girela perilladetama_odecargaparaelREINICIO
(RESET),hegovuelvaa girarlaperillahaciala nuevaconfiguraci6n.NOde]elaperillaenla posici6ndeREINICIO(RESET).
NORA:Estaesunalavadoradealtaeficienciaconunaacci6ndelavadomedianteInfusorTM. Estesistemarequieremenosaguaaltiempoquebrindauna
acci6ndelimpiezaefectiva.UstedpuedenotarqueelniveldeaguaesmenorqueeldesulavadoraanterioEEstoesnormalparaunalavadoraequipada
]M TM
conunInfusor.Elniveldeaguaestar6justoporencimadelapartesuperiordelInfusor cuandoseelialafunci6ndeSUPERLAVADO(SUPERWASH).
Temperature (Temperatura)
Seleccionelatemperaturadelaguaparalosciclosdelavadoyenjuague.Cuandorealiceellavado,observesiemprelasinstruccionesor6tulos
decuidadosdelfabricantedeltejido.
Perfedremp@tectalatemperaturadelaguaentrantega]ustaelaguadeIlenadoparaobtenerunagamadetemperaturasmasprecisapara
todaslastemperaturasdelavado.Pore]emplo,enlaselecci6ndelavadoCOLD(enfrio),puedeagregarseunpocodeaguacalienteparaalcanzar
latemperaturanecesariaparadisolverme]orlosdetergentes.Amenudo,losdetergentesnosedisuelvenporcompletoenaguamugfib,
especialmenteenclimascontemperaturasmasba]as.
Durantelosmesesdeinvierno,cuandoelaguaquerecibesuhogarest6m6sfriao enIocalidadesconaguamugfriatodoela_o,
useelPeffecTempm6sCOLDparaayudaradisolverlosdetergentesenpolvoy limpiarme]orsusprendas.
Lafunci6nTAPCOLDdesactivalafunci6nPeffedrempensulavadorayusalatemperaturadelaguacorrientedesuhogarparaunlavadoFRJO.
Estopuedeproporcionarahorrosdeenergiaal reducirlacantidaddeaguacalienteutilizadaensulavado.

ge.com
Options (Opciones)
Opci6nAutosoak(remojoautom6tico)(ena/gunosmoddos)
Estaopci6ncomienzaconunaagitaci6nbreve,remojaporunperiododetiempoespecificadog contin0aconetrestodetcicloautom6ticamente.
Enalgunosmodetos,estaopci6nseencuentraenla periltasetectoradeciclo.
Opd6n de2do enjuague(enalgunosmodelos)
Cuandoutilizam6sdetergenteo blanqueadorparalimpiarropamugsucia,puedequedeseeutilizarla opci6nde2do enjuague.Estoleproporciona
un segundoenjuagueprofundoenfrio.
Opci6ndecentrifugadoextendido(enalgunosmodelog
Useestaopci6nparaextraerm6saguadesusprendas.Cuandoseseteccioneestaopci6n,lasprendassaldr6nm6ssecasgsesecar6nm6sr6pido
ensusecadora.
Suavizante
Configureesteopci6ncuandoagreguesuavizantea la lavadora.
NOTA:Noutilice esferasdosificadoras de suavizante de telas con esta lavadora. No funcionan bien en lavadoras de alta eficiencia.
Status Indicator Lights (Lucesindicadoras deestado)
Laslucesindicadorasdecidomuestranenqu_ciclodelavadose encuentralatavadora.Cuandoseajustala periltasetectoraa uncido nuevo,
laslucesindicadorasdestetlar6nmoment6neamente,indicandoqu6etapasefectuar6etciclo.EnlosmodetossinlaopciOnAUTOSOAK(REMOJO
AUTOMATICO),no seencender6laluzSOAK(REHOJO).
00000I
FILL SOAK WASH RINSE SPIN
Wash Cycle-Cycle SelectorKnob (¢iclo delavado-perilla selectora delciclo)
Elciclodetavadocontrotala duraci6ne intensidaddetprocesodelavado.Laperiltapuedesergiradaenambasdirecciones.Sisegira taperilta
setectoradecidodespu6sdecomenzarlo,la lavadorasedetendr6g etcidosereajustar6deacuerdoconla nuevasetecci6n.OptimaSTART
paracomenzarlasetecci6ndetciclonuevo.
Elgr6ficodeabajoleagudar6a combinarlaconfiguraci6ndetciclodelavadoconsu ropa.
COTTONS(ALGODONES)Paraprendas,ropadecama,detrabajog dejuegodealgod6nmugo medianamentesucias.Estecido brindala mejor
limpiezageneralgsedeberiausarconla magoriadelositemstodoslosdias.BrindaungirDdealtavetocidad.
PREWASH(PRELAVADO)Paraetiminarlasuciedadsuperficialdeprendasmugsucias.AsegOresedeseguirconunciclodelavadoregular.
CASUALSParaprendassinarrugasgconptanchadopermanenteg ropadepunto.BrindaungirDdebajavetocidad.
EASYCARE(CUIDADOFACE}Paraprendassinarrugasgconplanchadopermanenteg ropadepunto.BrindaungirDdealtavetocidad.
DELICATES(DELICADAS)
HANDWASH
(LAVADOAMANO)
SPEEDWASH
(LAVADOR/_PIDO)
DRAIN&SPINORSPINONLY
(SECARYCENTRIFUGAR0
CENTRIFUGARSOLAMENTE}
AUTO SOAK
(REMOJOAUTOMATICO)
Pararopainteriorg tetasquerequierencuidadosespecialesconsuciedadleve.BrindaungirDdebajavetocidad.
Paraprendasetiquetadasconlavadoa manogsuciedadleve.BrindaungirDdevetocidadextrabaja.
Parapequehascantidadesdeitemsconpocasuciedadquesenecesitandeformar6pida.BrindaungirD
dealtavetocidad.
ParaetdesagOedetcestomet61icogetaguadetcentrifugadodela ropa.BrindaungirDdealtavetocidad.
Paraprendasmugsucias.Iniciaconuna agitaci6nbreve,remojaporunperiododetiempo
determinado,luegoavanzaautom6ticamentepotetrestodetciclo.
START(INICIO)
OptimaSTARTparacomenzaretciclo.AIvolvera oprimirSTARTotravezseINTERRUMPIRAetcidog la luzindicadoradetciclotitilar6.
Paracontinuaretcidovuetvaa oprimirSTARTocierrela puerta.Silalavadoraquedaenpausapot m6sde 24horas,etcicloser6cancetado.
Paradeteneretcido,sostengaetbotOnoprimidopor5 segundos.Siquedaaguaenla lavadora,seteccioneetcidoDRAIN&SPINORSPINONLY
paradrenaretcestogetaguadecentrifugadodetrecipientemet61icodelalavadora.
Siselevantela puerta,la lavadorasedetendr6laagitaci6no etcentrifugado,peronoseinterrumpir6etciclo.

Funciones de la lavadora.
6
__.1 Leng(J_a
3 N
4 OPTIONS
OFF
El dosificador de suavizante de telas tenalgunos modelos)
Eldosificador de suavizante de telasautom4ticamente liberasuavizante de telas lfquido
en el memento adecuado durante el cido.
No detenga la lavadora durante el primer centrifugado. Esto har(_ que eldosificador
se vacie muy pronto.
Nunca vierta suavizante de telas directamente sobre la ropa. Esto puede generar manchas
en su ropa.
Pare utilizer, siga estos pesos:
Fil Levantela lengOetade la porte superior
del dosificador de suavizante de telas.
Hide el suovizonte de telas en la tope
g vierto el suovizonte dentro de la porte
superior del dosificador.Elsuavizante
de telas caer6 dentro de la taza de
recepci6n ubicoda dentro del dosificador.
Utilices61osuavizantesde telas "Ultra"
o concentrados.
NOTA:Lasobrecargo del dispositivo de
suministro dejab6n ocasionar6 eldesagOe
del suavizante de telo o trov@sde los
agujeros a un costado del infuser al Ilenarse.
Nosobrecargue el mismo.
%Presionela lengOetahacia obajo pare
cerrar la porte superior del dosificodor.
Aseg0resede que la lengOetaest@bien
cerrada.
r_l SeleccioneFABRICSOFTENER
(suavizantede telas)de OPTIONS
(opciones)del panel de control.
Leng(Jetas
degiro
Leng(Jetas
degiro
C6mo limpiar el dosificador de suavizante de telas (enolgunos modelos)
Eldosificador de suavizante de telas selimpia outom6ticamente. Estedosificador
no requiere de una limpieza regular come es el case de losdosificadores est6ndar
de suavizante de telas. Limpiecon un patio lossuperficies exterioresdel dosificador
seg0n seanecesario.Sisenecesita la limpieza de los componentes internes del dosificador,
sigaestos poses despu@sde finalizado el ciclo de lavado:
mLevantela lenqOetade la porte superior rs]
del dosificador g gire la porte superior
en sentido contrario a losagujas del reloj
utilizando losdos lengOetasde giro
mostradas. Levante g quite el dosificador
del Infuser_.
Limpiecualquier acumulaci6n de la porte
interior del InfuserTMcon un patio suave
o un cepillode dientes.AsegLiresede que
lostres orificiosrectangulares del fondo
que permiten el drenoje de suavizante
de telas no seencuentren bloqueadas.
Vuelvoo ensomblor Iotozo g tope
del dosificodor encostrcindolas
una con Iootro.
Coloqueel ensambloje del dosificador
dentro del InfuserTM.Girela porte superior
en sentido de losogujos del reloj
utilizondo losdos lengOetasde giro
mostrados. PresioneIo lengOetahocio
abojo pora cerrar la porte superior
del dosificador.AsegLiresede que
la lengOetaest_ bien cerrada.
r-_] Suavemente quite la tapa de la taza
del dosificador para separarlos.
@Limpielassuperficiescon un patio suave
o sumerja las piezasen una soluci6n
de I gal6n de agua tibia, 1/4 taza
de detergente liquido g 1 taza
de blanqueador.Aseg0resede que
el orificio pequetio de la superficie
superior dela tapa g eltubo asociado
no seencuentren obstruidos.

ge.com
Embudo poro el blonqueodor liquido
ElIlenado de agua diluye el blanqueador liquido con clara a medida que seva Ilenando para
el ciclo de lavado.
V]'l Lealas etiquetasde cuidado de lasprendaspara determinar si hay instruccionesespeciales.
r_-i Mida la cantidad de blanqueador liquido con todo cuidado siguiendo las instrucciones de la botella.
•No vierta nunca 9tanqueador tiquido con ctorosin diluir directamente sabreto ropa ni en el cesta
de tavado.
• No vierta 9tanqueador en potvoen el embudo det 9tanqueadon
-_ ntes de encender la lavadora, vierta la cantidad medida de blanqueador directamente
en el embudo. Evitesalpicar o Ilenar el dosificador en exceso. Siprefiere usar blanqueador en polvo,
agr@gueloen el cestade lavado con sudetergente.
• No mezcte5tanqueador con ctorocon amoniaco odcidos coma vinagre g/o removedor de6xido.
Lamezda de quimicosdistintospuedeproducirun gast6xicoque causetamuerte.
C6mo cargar gusar la lavadora.
Siempre siga los instrucciones del fabricante de la ropa cuando lave.
Separaci6ndecargos
Separe parcolor (blancos,claros,colores),nivelde suciedad,
tipo de tela (algodonesrOsticos,limpiezafhcil, delicados)g si la tela produce pelusa (telade toalla,felpilla) ojunta pelusa (terciopelo,pana).
Usacorrectodeldetergente
Agregue detergente g suavizante de telas antes de agregar
las prendas para que el detergente pueda trabajar con
eficacia. Elusade demasiado poco ocantidades excesivas
de detergente es causacom0n de problemas con lacolada.
Usemenos detergente sitiene agua blanda, una carga m6s
liviana o ropa poco sucia.
GErecomienda el usa de detergentes de Alta Eficiencia
en todas las lavadoras clasificadas par Energy Star.
Losdetergentes HEest6n formulados para funcionar
en sistemas de lavado g enjuague con poca agua.
Losdetergentes HEreducen los problemas de espuma
excesiva com0nmente asociados con los detergentes
comunes.
Cargodelalavadora
Carguela ropasecasinapretarlani superarlahilera
superiordeorificiosdeltambordela lavadora.Para
mejoresresultados,carguelasprendasenforma uniforme
g sinapretarlasalrededordelaparteexteriordeltambor.
Paraagregarprendasdespu@sdequelalavadora
hacomenzadoa funcionar,levantelatapag sumerja
lasprendasadicionalesalrededorde laparteexterior
deltambor.
• No cotoque prendas grandes tales coma sdbanas,
cotchas g toattas sabre el Infusor :'_.Cdrguetas atrededor
de ta porte exterior det tamboL
• No lave tetas que contengan materiates inflamabtes
(ceras, tiquidos de timpieza, etc.).
• Lo agitaciOn no comienza si ta tapa se encuentra
tevantoda.
Cuidado g limpieza de la lavadora.
Cestade lavado: Deje la tapa abierta despu6sde lavar para
que se evapore la humedad. Sidesealimpiar el cesto, use
un paho suave g limpio empapado en detergente liquido;
luegoenju6guelo. (Nouse limpiadores duros.)
Mangueras de Ilenado: GErecomienda el cambio
de las mangueras cada 5ahos.
Exterior: Sequelos derrames de inmediato. S6quelos
con un paho hOmedo.Evitegolpear la superficie con
objetos cortantes.
Interior: Elusa ocasional de un ciclo que contiene lejia
mantendrh limpia la parte interna de la lavadora.
Traslado g almacenamiento: Pidaleal t6cnico de servicio
que elimine el agua de la bomba g las mangueras.
Consultelas instrucciones de instalaci6n que se inclugen
con el producto para recibir informaci6n sobre c6mo
reinstalar la varilla de embarque para mantener el cesto
met61icoestacionario cuando secambie la lavadora de
lugar.Para magor informaci6n, visite ge.cam o Ilame
a1800.GE.CARES(800./432.2737).No guarde la lavadora
donde pudiera quedar expuesta alas condiciones
climhticas.
Vacaciones pralongadas: Aseg0rese de cerrar la provisi6n
de agua en los grifos.Drenetoda el agua de las mangueras
sila temperatura Ilegarcia valores inferiores a cero. 7

Antes de Ilamar para solicitar servicio...
_onssjos poro Io soluci6n de problemos
jAhorre tiempo ydinero! Consulte primero los tobias de los pdginas
siguientes o visite ge.com _Iquizds no necesite Ilomor ol servicio.
AGUA Causas posibles Qu6 hacer
Elnivel de agua Estoes normal • Elagua puede no cubrir el nivel superiorde losprendas.
parece bajo Estoes normal para esta lavadora de alta eficiencia.
Elagua ingresa y sale La tuberia vertical dedesagLie • La tuberfa vertical de desagOedebe encontrarse par encima
al mismo tiempo est6 mug baja de los SOt
Oemasiada espuma Demasiado detergente • Midael detergente con cuidado. Usemenosjab6n sitiene agua
blanda, una cargo m6s livianao ropa poco sucia.
Tipo de detergente • Cambie a detergente HE@.
Agua blanda • Pruebecon menos detergente.
Fugas de agua Demasiado detergente • Use menos detegente. Usemenosjab6n sitiene agua blanda,
en la lavadora una cargo m6s liviana o ropa poco sucia.
Tipo de detergente • Cambie a detergente HE@.
La manguera de Ilenado • AsegOresede que losconexionesde la manguera est6nfirmes
o la de desagLie est6 mal en losgrifos gque losarandelas de goma est6n instaladas.
conectada Aseg0resede que elextremo de la manguera de desag0e
est6 insertado coma corresponde g bien seguro al desagQe.
EldesagiJede lacasaest6tapado • Examinelatuberfade la casa.Tendr6que Ilamaral fontanero.
Presi6n de agua constante • Ajuste losmangueras a losgrifos g cierre elagua despu6s
a los mangueras de Ilenado de coda usa.
en la fuente de agua • Verifiquela condici6n de losmangueras de Ilenado;se deben
reemplazar coda 5 aBos.
La temperatura del agua Temperaturas m6s frias • Se han formulado nuevos detergentes para colada que
parece incorrecta del agua proporcionan trabajan con temperaturas m6s iffas del agua sin afectar
magor eficiencia energ@tica el rendimiento del lavado.
La provisi6n de agua esta • Abra losgrifos de agua caliente g frfa g asegOresede que
cerrada omal conectada los mangueras estdn conectadas a losgrifos correctos.
Losfiltrosde malla de • Cierrela fuente de agua g retirelosmangueras deconexi6n de
la v_lvula deagua est6n agua de la portesuperiortraserade la lavadora.Useuncepilloo
tapados mondadientes para limpiar losfiltros de malla de la lavadora.
Vuelvaa conectar los mangueras g abra el agua de nuevo.
Elcalentador de agua de • AsegOresede que elcalentador est6 suministrando agua
la casa no est6 configurado a 120°F-140°F(48°C-60°C).
correctamente
Agua bombeada antes La puerto est6 levantada o• Reconflgureel ciclo.
de completarse el ciclo el ciclo se puso en pausa par
m6s de 24 horns
Elagua no drena La manguera de desagLie • Enderece la manguera de desagOe g asegOrese de que
est6 doblada o mal conectada la lavadora no est6 apogada sobre ella.
• La parte superior de la salida del desagOe debe estar
a menos de 6 pies (1,8 m) por encima del piso.
La lavadora se interrumpe Se eligi6 el ciclo PREWASH o • Esto es normal. Lalavadora alterna entre agitar g remojer
durante el ciclo de lavado la opci6n AUTO SOAK durante estos ciclos para que sus prendas se limpien mejor
con menos desgaste.
La lavadora se interrurnpe Esto es normal • La lavadora puede hacer pausas durante el ciclo de
durante el ciclo de centrifugado para eliminar el agua jabonosa con m6s
centrifugada eficiencia.
8
