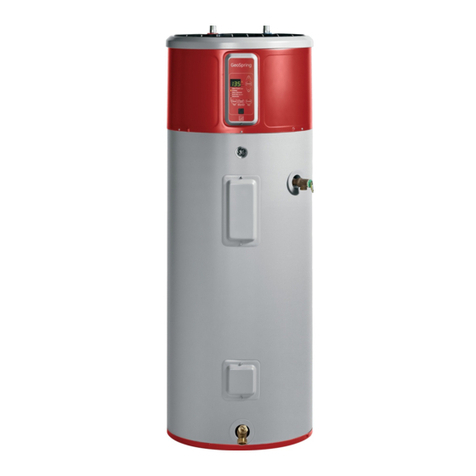

Hybrid Electric Heat Pump Water Heater
Hybrid Electric Heat Pump Water HeaterHybrid Electric Heat Pump Water Heater
Hybrid Electric Heat Pump Water Heater
Model GEH50DNSRSA
Model GEH50DNSRSAModel GEH50DNSRSA
Model GEH50DNSRSA
Preliminary
Preliminary Preliminary
Preliminary –
––
– Subject to c ange
Subject to c angeSubject to c ange
Subject to c ange
Updated on 08/18/2009
Model View
Model ViewModel View
Model View
Front View Side View
Capacity (gallons) 50
First Hour Delivery (gallons) 63
Estimate Yearly Operation Cost (@ 0.10/KWh) 198 in Hybrid Mode
Fuel Type Electric
Electronic Controls with LCD Display Integrated
20 Character x 4 Line LCD Display Yes
Backlit LCD Display Yes
Multiple Operating Modes
eHeat
TM
Hybrid (Factory Default Mode*) 2.35 EF
High Demand
Standard Electric
Vacation/Away Mode 3 to 90 days
Service Diagnostics Integrated
Demand Response Ready Yes
Temperature Setting Range 100 to 140
o
F
Temperature Setting Factory Default 120
o
F
Temperature Setting Memory Yes
Precise Temperature +/- 3
o
F
Renewable Air Filter Washable (included)
Condensate Collector Integrated (tubing included)*
Color Appearance Silver Metallic
Color Appearance Code SA
Electrical Power Required 240/208 Volts (L1, L2, Ground), 60 Hz
Electrical Circuit Required Dedicated 30 Amp Min.
Energy Factor (EF) 2.35 in Hybrid Mode
Electrical Consumption Maximum Heating 4,500 Watts
Electrical Consumption Minimum Heating 550 Watts
Electrical Consumption Standby 2.0 Watts
Operating Air Temperature Range
eHeat
TM
, Hybrid, and High Demand Modes 45 to 120
o
F
Standard Electric Mode 32 to 150
o
F
Operating Water Pressure 20 to 125 PSI
Limited 1-year** Parts & Labor
Limited 10-year** 2
nd
-10
th
year parts only
* Condensate tube must be directed into a drain below 36" from the floor,
or a condensate drain pump (not included) is required.
Warranty
CAPACITY
FEATURES
APPEARANCE
POWER / RATINGS
Temperature
& Pressure
Safety Valve
21.75” Dia.
0.5”
1.5”
8”
Electrical
Connections
45
o
13”
11”
Recommend 7” Min.
Service Clearance
Recommend 7”
Min. Service
Clearance
Water
Connections
Clearance
to
Clean Filter
Washable
Filter
Temperature & Pressure
Safety Valve Included
Demand
Response
Connection
Air Vents
14” Min
~
~
Condensate Overflow Tube
(3 In) Included
Condensate Tube**
( Ft) Included
Product Weig t 200 Lbs.
Product Weig t 200 Lbs.Product Weig t 200 Lbs.
Product Weig t 200 Lbs.
S ipping Weig t 220 Lbs.
S ipping Weig t 220 Lbs.S ipping Weig t 220 Lbs.
S ipping Weig t 220 Lbs.
**See warranty for details.
3”
