Geemarc AMPLICALL30 User manual

FEATURES
AMPLICALL50: Vibrating Signal Indicator
 Wireless Amplicall Range Compatible Receiver
 Pair with up to 4 different devices
 4 visual indicators options
 Volume control (off, low, high) up to 80dB
 Vibrating switch on/off
 Operates on batteries 3xAAA included
AMPLICALL30: Baby monitor
 Wireless Transmitter for the Amplicall Range
 Emergency call push button
 Dectection Time Adjustment
 Sensivity Adjustement
 Jack socket for connection to an external alarm system
 Operates on batteries 3xAAA included
OPTIONAL EXTRAS
 AMPLICALL20
 AMPLICALL40
A
A
M
M
P
P
L
L
I
I
C
C
A
A
L
L
L
L
5
5
0
0
3
3
0
0
B
Ba ab by y m mo on ni it to or r
www.geemarc.com
™
LL
AMPLICALL5030UK
AMPLICALL30 AMPLICALL50
Items pictured and details are subject to
change at the manufacturer’s discretion.
Bedroom
Kitchen
APPLICATION

0
AMPLICALL50
Portable Alert Unit
English

1
CONTENTS 1
INTRODUCTION 3
Unpacking the AMPLICALLTM50
5
DESCRIPTION 6
General Description 6
INSTALLATION 8
Setting Up 8
Mounting 9
Range 10
PAIRING 11
Pairing Procedure 11
CONTENTS

2
Deregister the Pairing 13
AMPLICALLTM50 16
Power On/Off Setting 16
Vibrate On/Off Setting 16
Volume Setting 16
AMPLICALLTM50 Use 17
TROUBLESHOOTING 18
SAFETY INFORMATION 21
GUARANTEE 26
RECYCLING DIRECTIVES 29
CONTENTS

3
Congratulations on purchasing
your Geemarc AMPLICALLTM50.
This is the portable unit that
receives a transmitted signal from
any number of transmitters e.g.
AMPLICALLTM30/40. The
AMPLICALLTM50 will flash and can
emit an alarm sound and/or vibrate
in order to alert you to help the
person/baby in need.
The AMPLICALLTM50 is a fantastic
receiver able to link to many
different types of transmitter within
the range together with the
obvious requirements of good,
INTRODUCTION

4
clear reception and easy setup and
use.
Its is important that you read the
instructions below in order to use
your Geemarc AMPLICALLTM50
its full potential. Keep this user
guide in a safe place for future
reference.
INTRODUCTION

5
Unpacking the
AMPLICALLTM50
When unpacking the
AMPLICALLTM50, you should find
the following in the box:
•1 AMPLICALLTM50 Unit
•3 AAA batteries (supplied)
For product support and help visit
our website at www.geemarc.com
Telephone [phone]
Or fax [phone]
INTRODUCTION

6
General Description
Front Description
Built in microphone
Four red LED Volume
Off/Low/High
switch
Vibrate
On/Off switch
Power
On/Off switch
Power on LED
indicator
INTRODUCTION

7

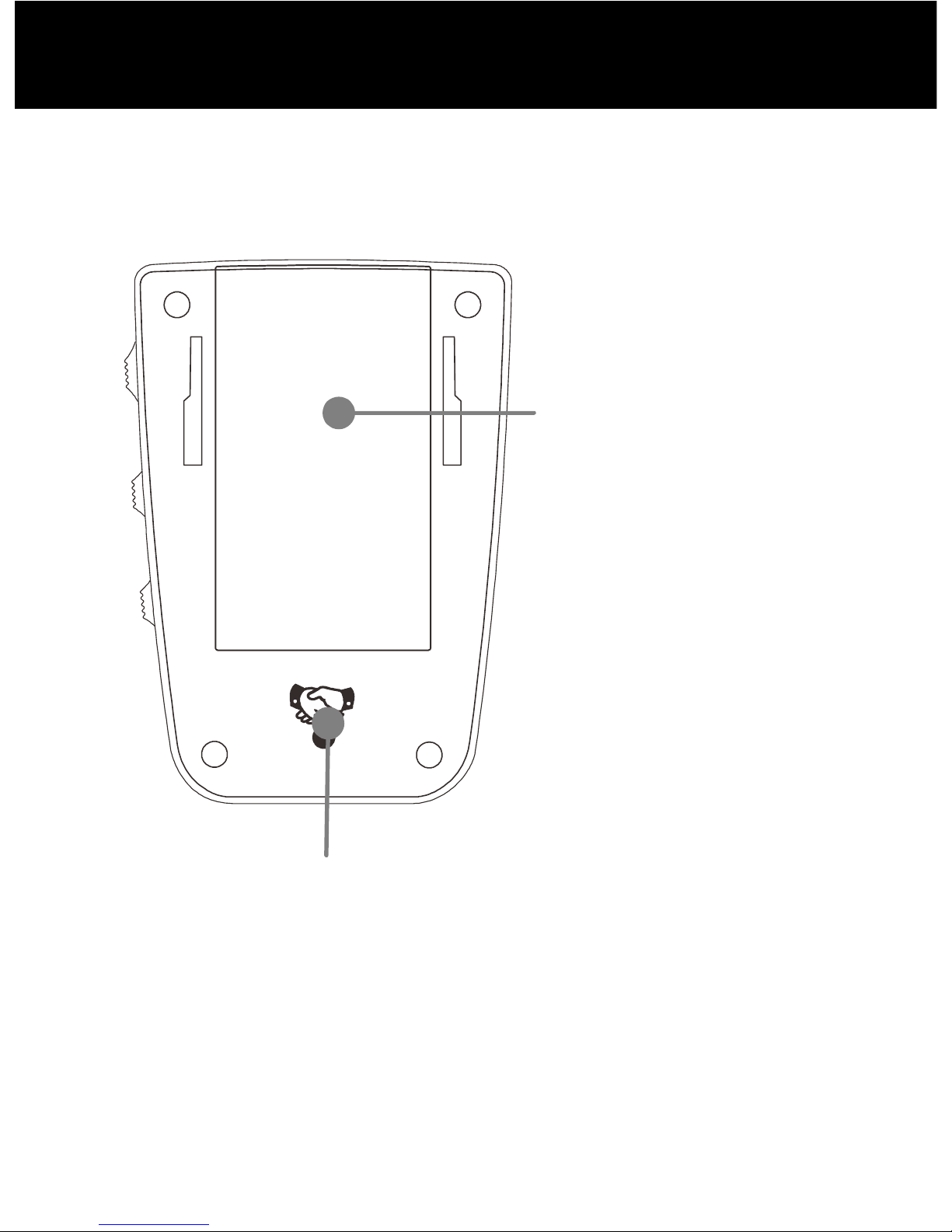

Rear Description
Pairing button
Battery
Compartment
INTRODUCTION

8
Setting Up
For portable monitoring, remove
the battery compartment cover
found on the rear of the unit.
Insert 3 alkaline batteries (AAA
size, 1.5V type, these are supplied)
into the battery compartment.
Check the battery polarity
diagrams in the battery
compartment when inserting the
batteries. Replace the battery
cover – it will snap back into place.
Slide the Power On/Off switch to
On to activate.
INTRODUCTION

9
When the LED indicator flashes
ySlowly-Normal
yQuickly-Low battery(replace
battery)
Mounting

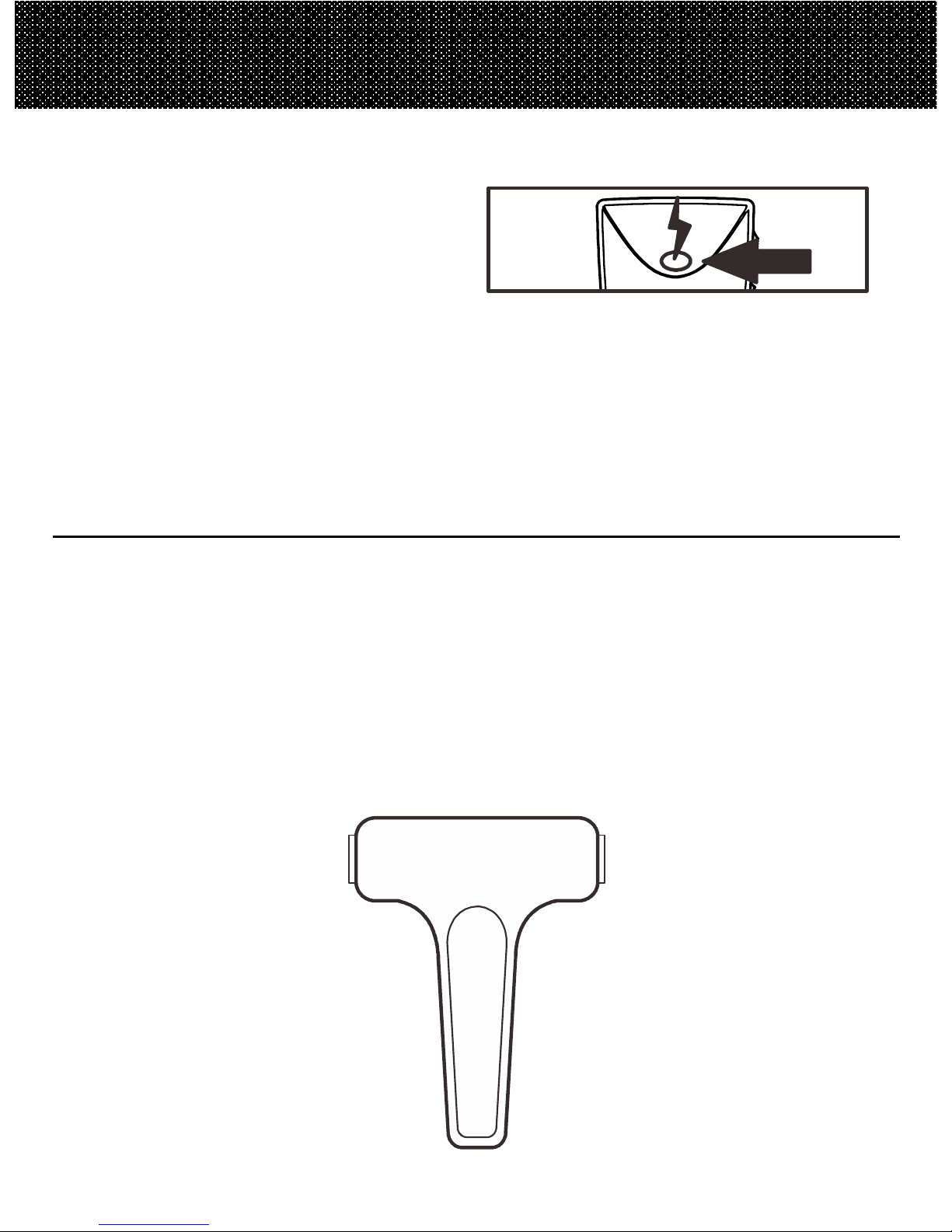

The AMPLICALLTM50 can be
