Gefei MIO ENC-HD-AUD User manual

MIO ENC-HD-AUD 3G/HD/SD to Analog Video and Audio
User Manual V1.0
www.gefei-tech.com
[Gefei Tech.Co.,Ltd]

Table of Content
I. Description.......................................................................................................................................................1
II.Features of products...................................................................................................................................1
III. Interfaces on the panel..........................................................................................................................2
3.1 Overview.................................................................................................................................2
3.2 Left panel................................................................................................................................2
3.3 Right panel................................................................................................................................4
3.4 Front panel................................................................................................................................4
IV. Technical specification...........................................................................................................................7
V.Contact Us.......................................................................................................................................................9
Device List.........................................................................................................................................................10
Accessories List.............................................................................................................................................10

Copyright
Copyright © 2009 Gefei Tech. Co., Ltd all rights reserved. This document may not be
copied in whole or in part.
Trademarks
Gefei-Tech，Magi，MIO，VIO，XIO，MVS，MRS are either registered trademarks or
trademarks of Gefei Tech. Co., Ltd in China and/or other countries. Other trademarks
used in this document are either registered trademarks or trademarks of the
manufacturers or vendors of the associated products.
Disclaimer
Product options and specifications subject can be changed without notice. The
information in this manual is furnished for informational use only, is subject to change
without notice, and should not be construed as a commitment by Gefei Tech. Co., Ltd.
Gefei Tech. Co., Ltd assumes no responsibility or liability for any errors or inaccuracies
that may appear in this publication.
Revision Status
Rev Date
Description
January 14, 2011
Initial release of the MIO ENC-HD-AUD User Manual
Firmware V1.0

MIO ENC-HD-AUD 3G/HD/SD to analog converter with analog audio output User manual
1/ 10
MIO ENC-HD-AUD
I.Description
Based on Mini BOX platform, MIO ENC-HD-AUD is a small converter which can
convert 3G/HD/SD-SDI to analog composite video signal, analog component video
signal, S-video signal, or HD YUV signal and supports the input format of 480i 59.94,
576i 50, 720p, 1080i and 1080p. It can extract one analog audio stereo signal from a
single serial digital signal. The de-embedded audio channel can be selected through
DIP Switch. However, MIO ENC-HD-AUD cannot change the frame frequency, that is,
the frame frequency of output signal is the same as the one of input signal.
It supplies the loop function, which ensures the extension of more devices. Users can
choose analog video output mode by DIP switches. The LED lights on the Mini box
indicate the status of input signal and power, so as to let the user know the information
immediately.
Be known for compact function, the converter is widely used in variety of environments,
like TV program post production, studio, broadcast, etc.
II. Features of products
one analog audio stereo signal extracted from a single serial digital signal
Input signal for SD-SDI, 1.5Gb/s HD-SDI and 3.0Gb/s HD-SDI
Select the mode of output signal (CVBS/SD YUV/YC/HD YUV) freely via DIP
Switch
Support self-defined de-embedded audio channel via DIP Switch
All audio interfaces adopt 3-PIN connector, balanced output

MIO ENC-HD-AUD 3G/HD/SD to analog converter with analog audio output User manual
2/ 10
Supply real-time input signal status indicator and power indicator
Support loop function with power on
III. Interfaces on the panel

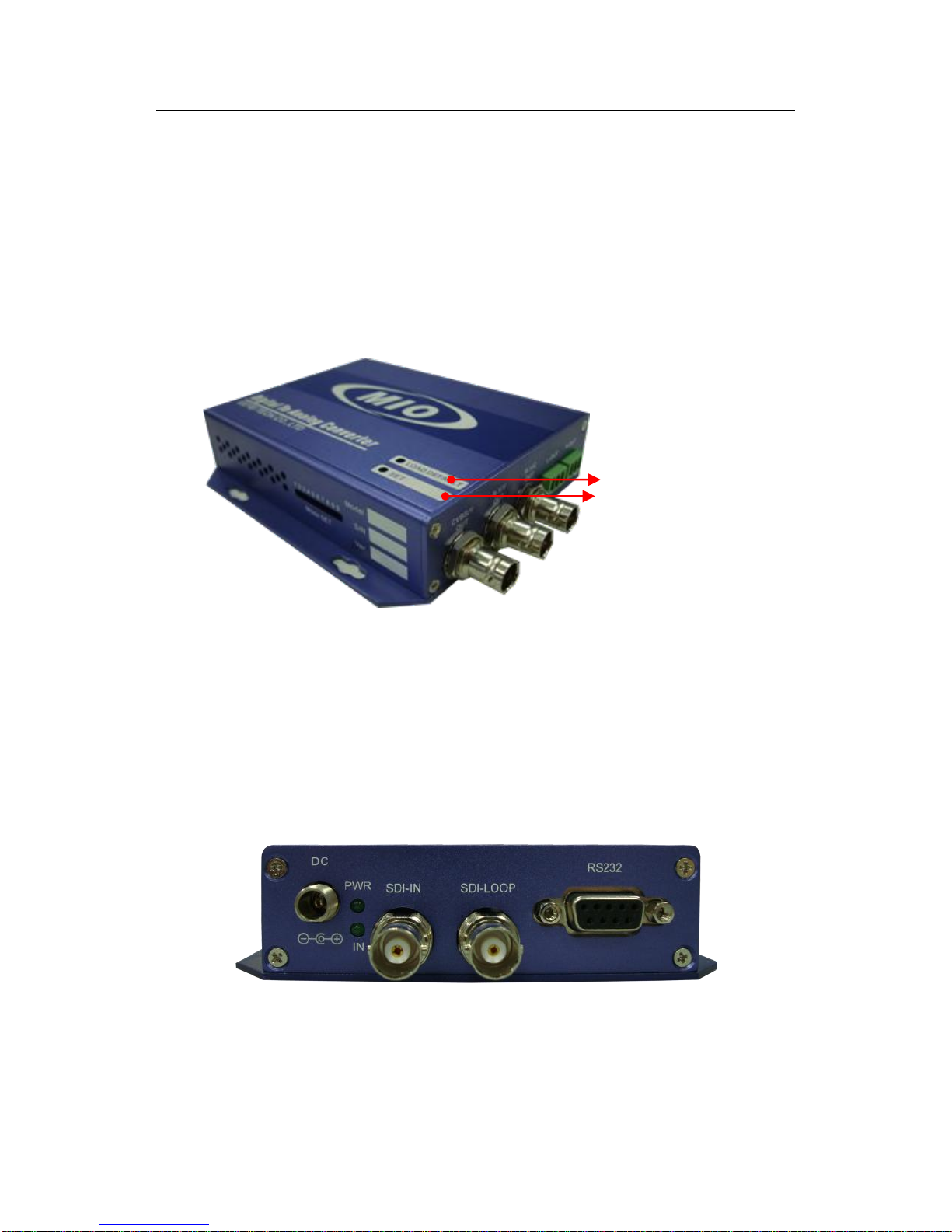

3.1Overview
Load Default: Using a push pin to press the button to restore the default settings. The
default parameters: CVBS + YC output, G1 CH1&CH2.
SET: Using a push pin to press the button to make the settings of DIP Switch taking
effect.
3.2Left panel
DC IN：Power supply with 12V 1A.
PWR：Power indicator, the indicator shows green as the power is working normally.
Load Default
SET

MIO ENC-HD-AUD 3G/HD/SD to analog converter with analog audio output User manual
3/ 10
IN：Signal indicator, the indicator shows green as the video is locked with no errors.
SDI-IN：BNC interface, digital video signal input (support SDI with embedded audio).
MIO ENC-HD-AUD cannot change the frame frequency, that is, the frame
frequency of output signal is the same as the one of input signal.
Convert HD/SD signal to CVBS/SD YUV/YC, the allowed input format is shown
as below：
SD：625i 50, 525i 59.94
HD：720p 50/59.94
1080i 50/59.94
1080p 50/59.94
Note ： The 16:9 of HD signal is auto-stretched to 4:3 with full coded frame when HD
signal is down-converted to analog video signal.
Convert HD/SD signal to HD YUV, the allowed input format is shown as below：
SD：525i 59.94
HD：720p 59.94/60
1080i 59.94/60
1080p 59.94/60
Note ： The 4:3 of SD signal is auto-stretched to 16:9 of HD YUV signal with full coded
frame when SD signal is up-converted to HD YUV signal.
SDI-LOOP：BNC interface, it supports loop function with power on.
RS232: Serial port. The function is reserved.

MIO ENC-HD-AUD 3G/HD/SD to analog converter with analog audio output User manual
4/ 10
3.3 Right panel
Analog Video OUT：BNC interface, outputs analog video signal and supports three
kinds of output: CVBS/YUV/YC. MIO ENC-HD-AUD cannot change the frame
frequency, that is, the frame frequency of output signal is the same as the one of input
signal.
i. When analog composite signal is selected, the first interface is CVBS
output (from left), others are invalid;
ii. When analog or HD component signal is selected, the output interfaces
from left are Y signal, B-Y signal, and R-Y signal;
iii. When S-video signal is selected, the output interfaces from left are: none, Y,
and C signal.
Note ： The analog composite signal and YC signal is output at the same time, that is,
the BNC interfaces from the left are CVBS, Y signal, and C signal.
ANA AUDIO OUT：3-pin interface, one stereo analog audio signal output. Please make
sure audio is connected correctly in terms of positive and negative.
3.4 Front panel

MIO ENC-HD-AUD 3G/HD/SD to analog converter with analog audio output User manual
5/ 10
MODE SET: DIP dial switch; Users can set the DIP to get more functions according to
their actual demand. Please refer to the specific meanings switch table：
Function
DIP switch
1
2
3
4
5
6
7
8
9
0(10)
Video
output
CVBS+YC
output
M/A
/
/
/
/
on
off
off
off
Adjustment
YUV output
M/A
/
/
/
/
on
off
off
on
Adjustment
HD YUV
720p
M/A
/
/
/
/
on
off
on
off
Adjustment
HD YUV
1080i
M/A
/
/
/
/
on
off
on
on
Adjustment
Analog
audio
output
G1 CH1&2
M/A
/
/
/
/
off
off
off
off
Adjustment
G1 CH3&4
M/A
/
/
/
/
off
off
off
on
Adjustment
G2 CH1&2
M/A
/
/
/
/
off
off
on
off
Adjustment
G2 CH3&4
M/A
/
/
/
/
off
off
on
on
Adjustment
G3 CH1&2
M/A
/
/
/
/
off
on
off
off
Adjustment
G3 CH3&4
M/A
/
/
/
/
off
on
off
on
Adjustment
G4 CH1&2
M/A
/
/
/
/
off
on
on
off
Adjustment
G4 CH3&4
M/A
/
/
/
/
off
on
on
on
Adjustment
Remarks: Power switch ON= DOWN OFF =UP
DIP indicates by 10 figures:
1) The NO. 1 indicates manual or automatic configuration. Place it at ON, the device
is under manual status, it can achieve the functions by setting the DIP switch;
Place it at OFF, the equipment is under auto status, the function is planned to be

MIO ENC-HD-AUD 3G/HD/SD to analog converter with analog audio output User manual
6/ 10
set by the computer.
2) NO. 0 (10) determines whether the device under adjustment status. Put it at ON, it
indicates the device under adjustment status, users can adjust the other switches
to achieve the functions in the list; Put it at OFF, the device is under working status,
the DIP switch is invalid.
3) NO.6~9, through the different settings to achieve specific functions, for example:
set NO.6-9 as: on off off off;it means analog composite video signal and YC
signal will output at the same time through the three BNC interfaces, then press
“SET” button (On the right corner of cover) to make adjustment into effect.
Note:
1. When user sets the DIP switch, only if the NO. 1 and NO.0 (10) are at ON status, can
the DIP switch takes effect. Others (No.2-5) are reserved without any use in this
product.
2. After adjust parameters manually, please make sure all switches are at OFF to under
working status.

MIO ENC-HD-AUD 3G/HD/SD to analog converter with analog audio output User manual
7/ 10
IV.Technical specification
Digital video input:
Input interface: 1*3G/HD/SD-SDI, BNC connection
Impedance: 75Ω
Format: 525i 59.94, 625i 50, SMPTE 259M-C；270Mb/s
720p 50/59.94/60, 1080i 50/59.94/60, SMPTE-292M；1.485Gps
1080p 50/59.94/60, SMPTE-425；2.970Gps
Video Output:
Output interface: 3*BNC connection (Can be set as CVBS/SD YUV/YC/HD YUV output
mode)
Impedance: 75Ω
Digital video output:
Output interface: 1*SDI-LOOP, BNC connection
Impedance: 75Ω
Format: SMPTE 259M-C；270Mb/s
SMPTE-292M；1.485Gps
SMPTE-425；2.970Gps
Eye pattern: 800mV±10%
Rise time: 750~1500PS (20%-80%)
Fall time: 750~1500PS (20%-80%)
The difference between rise and fall: ≤500PS
Jitter: <0.2UI
Analog audio output:
Output interface: 2*3pin (Balanced)

MIO ENC-HD-AUD 3G/HD/SD to analog converter with analog audio output User manual
8/ 10
Impedance: 600Ω
Status indicator:
Input signal status indicator
Power indicator
(Indicate by shining or extinguishing of the green LED)
Power consumption:
Power: 12VDC 1 A
Dimension: 123mm*92mm*29mm

MIO ENC-HD-AUD 3G/HD/SD to analog converter with analog audio output User manual
9/ 10
V. Contact Us
Technical support
Tel: [phone]
Fax: [phone]
Website
www.gefei-tech.com
E-mail：suppor[email protected]m
Address
Beijing Gefei Tech. Co., Ltd
A-603 Power Creative Plaza
NO.1 Shangdi E.Rd.
Haidian District Beijing 100085
To Find More information , please visit www.gefei-tech.com

MIO ENC-HD-AUD 3G/HD/SD to analog converter with analog audio output User manual
10 / 10
Device List
Name
Specification
Quantity
Remark
MIO ENC-HD-AUD
AC-DC power
3G/HD/SD to analog converter
with analog audio output
12VDC 1A
1
1
Total
2
Accessories List
Name
Specification
Quantity
Remark
Video Cable/interface
Audio Cable/interface
3-pin interface (green)
2
Quick Guide
User’s Manual (or Disk)
1
Certification
Others
Total
3
