Gefen Pro GEF-3GSDI-2-HDS User manual

Audio
Embedder
3GSDI
Release A6
User Manual
GEF-3GSDI-2-HDS
3GSDItoHDMI
Scaler

3GSDI to HDMI Scaler
Important Safety Instructions
ii
GENERAL SAFETY INFORMATION
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install or place this product near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. To reduce the risk of electric shock and/or damage to this product, never handle or
touch this unit or power cord if your hands are wet or damp. Do not expose this
product to rain or moisture.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally,
or has been dropped.
15. Batteries that may be included with this product and/or accessories should never be
exposed to open ame or excessive heat. Always dispose of used batteries
according to the instructions.
RACK MOUNT SAFETY INFORMATION
1. Maximum recommended ambient temperature: 40 ˚C (104 ˚F).
2. Increase the air ow as needed to maintain the recommended temperature
inside the rack.
3. Do not exceed maximum weight loads for the rack. Install heavier equipment in the
lower part of the rack to maintain stability.

3GSDI to HDMI Scaler
Warranty Information
Gefen warrants the equipment it manufactures to be free from defects in material and
workmanship.
If equipment fails because of such defects and Gefen is notied within two (2) years from
the date of shipment, Gefen will, at its option, repair or replace the equipment, provided
that the equipment has not been subjected to mechanical, electrical, or other abuse or
modications. Equipment that fails under conditions other than those covered will be
repaired at the current price of parts and labor in effect at the time of repair. Such repairs
are warranted for ninety (90) days from the day of reshipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or tness for any particular purpose, all of
which are expressly disclaimed.
1. Proof of sale may be required in order to claim warranty.
2. Customers outside the US are responsible for shipping charges to and from Gefen.
3. Copper cables are limited to a 30 day warranty and cables must be in their original
condition.
The information in this manual has been carefully checked and is believed to be accurate.
However, Gefen assumes no responsibility for any inaccuracies that may be contained
in this manual. In no event will Gefen be liable for direct, indirect, special, incidental, or
consequential damages resulting from any defect or omission in this manual, even if
advised of the possibility of such damages. The technical information contained herein
regarding the features and specications is subject to change without notice.
For the latest warranty coverage information, refer to the Warranty and Return Policy under
the Support section of the Gefen Web site at www.gefen.com.
PRODUCT REGISTRATION
Please register your product online by visiting the Register Product page under the
Support section of the Gefen Web site.
iii

iv
3GSDI to HDMI Scaler
Gefen, LLC
c/o Customer Service
20600 Nordhoff St.
Chatsworth, CA 91311
Telephone: (818) 772-9100
(800) 545-6900
Fax: (818) 772-9120
Visit us on the Web: www.gefenpro.com
Technical Support Hours: 8:00 AM to 5:00 PM Monday - Friday, Pacic Time
For 24 / 7 support, see the back of the product for the
support number
3GSDI to HDMI Scaler is a trademark of Gefen, LLC.
Important Notice
Gefen, LLC reserves the right to make changes in the hardware, packaging, and any
accompanying documentation without prior written notice.
HDMI, the HDMI logo, and High-Denition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing in the United States and other countries.
© 2013 Gefen, LLC. All Rights Reserved.
All trademarks are the property of their respective owners.
Contacting Gefen Technical Support
iv

vv
3GSDI Audio Embedder
Operating Notes
3GSDI to HDMI Scaler
• The built-in On-Screen Display (OSD) provides convenient operation of the Scaler.
The supplied IR Remote control operates the OSD.
• The IR Remote Control IR channel must be identical to that of the Scaler.
• The 3GSDI to HD Scaler supports many input and output resolutions. For a complete
list of supported formats, see Supported Video and Graphic Formats.
• Supports SMPTE standards 259M, 292M, SMPTE 274M, SMPTE 296M,
ITU-R BT.656 and ITU-R BT.601. Handles 3G-SDI SMPTE 425-A and 425-B / formats
1080P 50/59.94/60.
• Supports HDMI 1.3 with 225 MHz Video Bandwidth, 10-bit Deep Color
(RGB & YCbCr 4:4:4 only), and up to 8 channels of converted SDI audio embedded
into HDMI.
• Internal software (rmware) may be upgraded via the built-in Serial or USB ports.
The included DB-9 cable is provided for this purpose. Note that software updates
performed on the USB port will be quicker due to its higher data transfer rate.

vi
Features
• Maximum image output resolution supported: 2048 x 1080p (2K)
• Pattern generation of color bars, and cross-hatch patterns
• 10-bit Deep Color support at when using YCbCr 4:4:4 or RGB 4:4:4
output color spaces
• Four aspect ratio modes (Full Screen, Panoramic, Letter/Pillar Box, Extract/Crop)
• Film Mode (produces a progressively scanned output image from an interlaced
scanned input image accounting for cadence (e.g. 3:2 / 2:2 pull-down)
• Conguration of clean aperture size and position
• SDI audio channel selection for audio output
• Fully integrated sprite-based Menu System
• Supports 8-Channel PCM audio and Dolby® Digital / DTS® AC3-encoded audio
• Custom frame rate and/or video timings on output
• Digital audio output (S/PDIF Coax)
• RS-232 port for automation
• Rack-mountable
Packing List
The 3GSDI to HDMI Scaler ships with the items listed below. If any of these items are not
present in your box when you rst open it, immediately contact your dealer or Gefen.
• 1 x 3GSDI to HDMI Scaler
• 1 x IR remote contol unit
• 1 x AC power cord
• 1 x Set of rack ears
• 1 x Quick-Start Guide
3GSDI to HDMI Scaler
Features and Packing List
1080P
®


3GSDI Audio Embedder3GSDI to HDMI Scaler
Table of Contents
viii
01 Getting Started
Panel Layout ......................................................................................................... 2
Front Panel.................................................................................................... 2
Back Panel .................................................................................................... 3

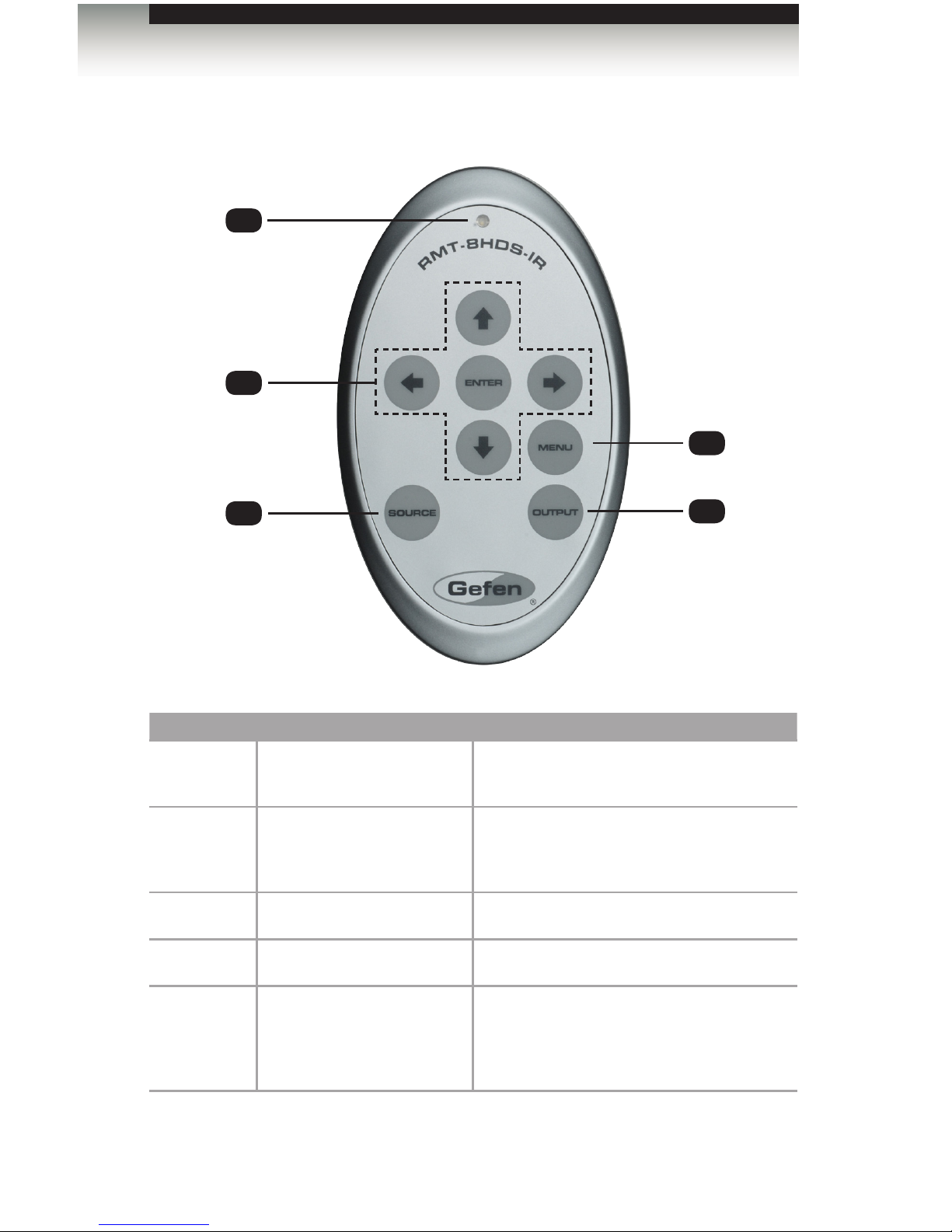

IR Remote Control Unit ......................................................................................... 4
Front.............................................................................................................. 4
Back .............................................................................................................. 5
Installing the Battery...................................................................................... 6

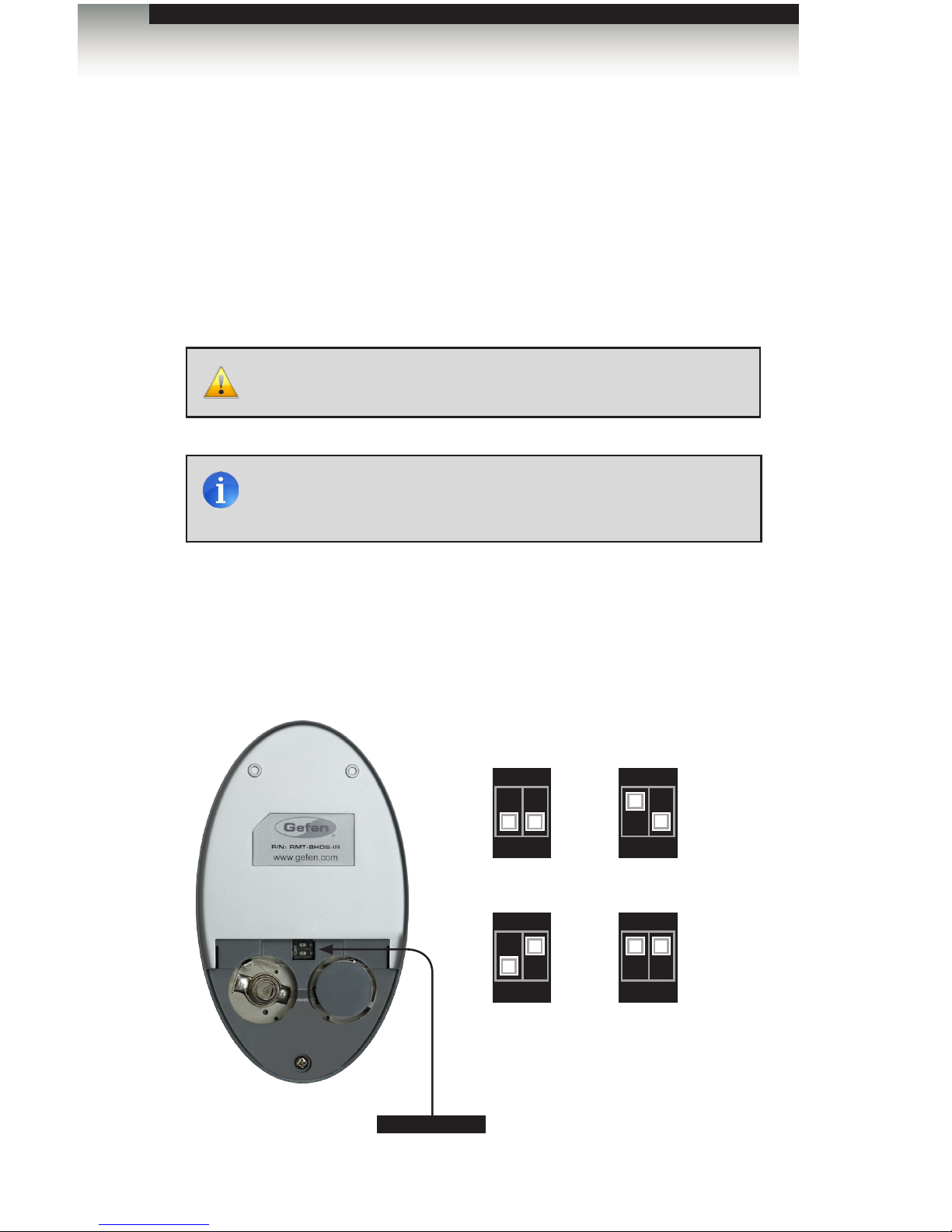

Setting the IR Channel .................................................................................. 6
Installation ............................................................................................................. 7
Connecting the 3GSDI to HDMI Scaler......................................................... 7
Sample Wiring Diagram ................................................................................ 7
02 Operating the 3GSDI to HDMI Scaler
The On-Screen Display....................................................................................... 10
Accessing the On-Screen Display............................................................... 10
Moving Around in the OSD ......................................................................... 11
General Menu ............................................................................................. 12
Patterns Menu............................................................................................. 13
Output Menu ............................................................................................... 14
Input Menu .................................................................................................. 18
Picture Menu ............................................................................................... 21
Layout Menu ............................................................................................... 24
Aspect Menu ............................................................................................... 25
03 Advanced Operation
RS-232 Conguration.......................................................................................... 30
RS-232 Interface ......................................................................................... 30
RS-232 Settings .......................................................................................... 30
RS-232 Commands............................................................................................. 31
04 Appendix
Supported Video and Graphic Formats............................................................... 56
Uploading an EDID.............................................................................................. 58
Gamma Look-up Table ........................................................................................ 59
Mounting Plate Installation .................................................................................. 60
Fuse Replacement .............................................................................................. 61
Firmware Update Procedure ............................................................................... 63
Specications ...................................................................................................... 64



3GSDItoHDMI
Scaler
01 Getting Started
Panel Layout ......................................................................................................... 2
Front Panel.................................................................................................... 2
Back Panel .................................................................................................... 3
IR Remote Control Unit ......................................................................................... 4
Front.............................................................................................................. 4
Back .............................................................................................................. 5
Installing the Battery...................................................................................... 6
Setting the IR Channel .................................................................................. 6
Installation ............................................................................................................. 7
Connecting the 3GSDI to HDMI Scaler......................................................... 7
Sample Wiring Diagram ................................................................................ 7

page | 2
Front Panel
ID Name Description
1 IR This IR sensor receives signals from the IR
remote control unit (not included).
23GSDI This LED will glow blue when 3GSDI signals
are detected on the output.
3 Power This LED indicator will glow bright red when
the scaler is powered ON.
Getting Started
Panel Layout
1
2
3

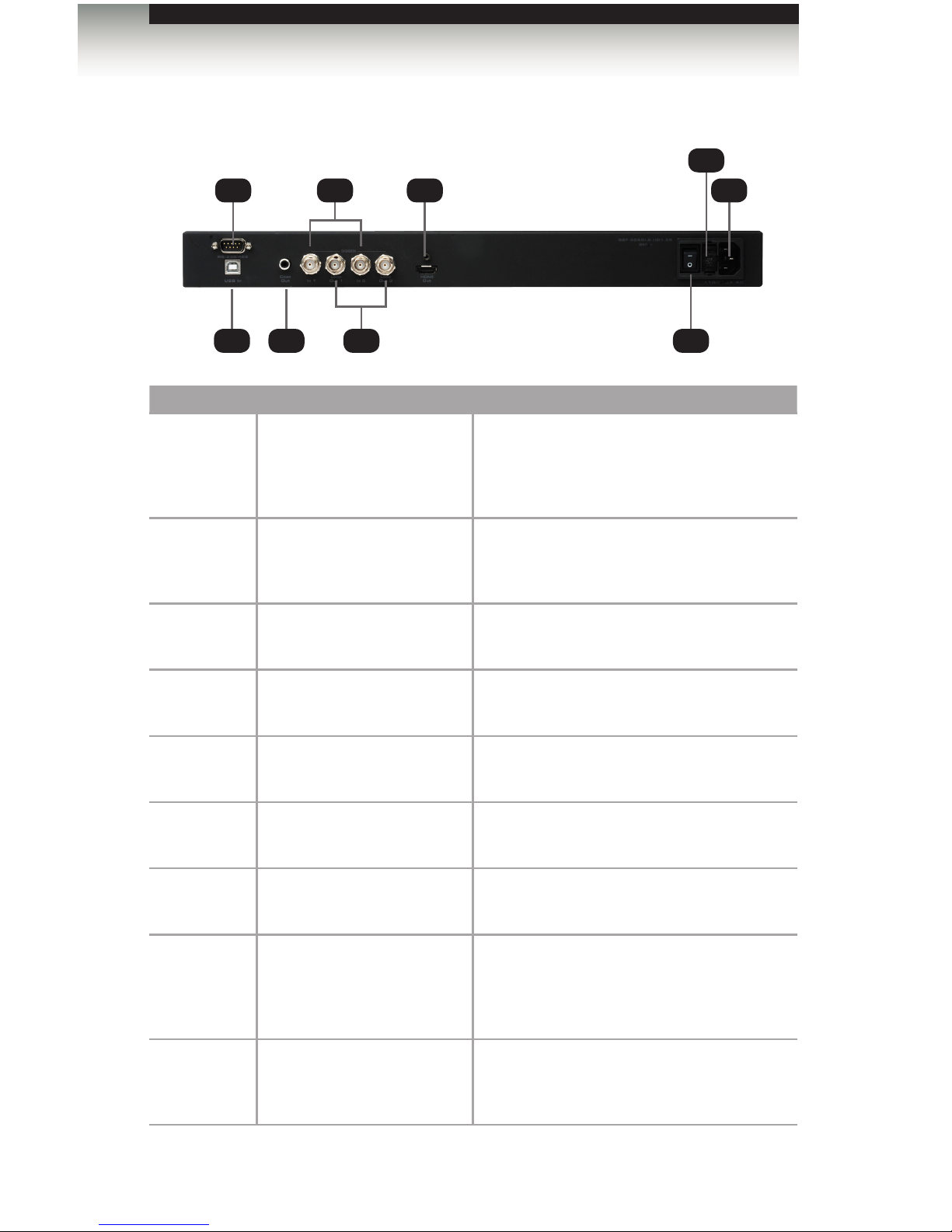

Back Panel
ID Name Description
1RS-232-422 Connect the included RS-232 cable between
this port and the RS-232 control device.
See RS-232 Conguration for more
information.
2USB In This USB port is used to update the rmware
on the scaler. See Firmware Update
Procedure for more information.
3 Coax Out Connect a coax cable from this S/PDIF port
to an amplier or other A/V device.
4 In 1 / In 2 Connect a 3GSDI source to these BNC
connectors.
5 Loop Out 1 / Loop Out 2 Connect 3GSDI displays to these BNC
connectors to monitor the input signal.
6 HDMI Out Connect an HDTV display (or other sink
device) to this HDMI port.
7 Power switch Use this switch to power ON or power-OFF
the scaler.
8 Fuse drawer The power receptacle houses a fuse drawer
which contains one 250V fuse. See Fuse
Replacement for information on replacing
the fuse.
9 110 / 220V AC Connect the included AC power cord from
this receptacle to an available electrical
outlet.
1 4
8
72 3 5
96
Getting Started
page | 3
Panel Layout

page | 4
Getting Started
IR Remote Control Unit
Front
ID Name Description
1 Activity indicator This LED glows bright orange when a key
is pressed on the remote.
2A/S/D/W/ENTER Used to control features in the On-Screen
Display. See The On-Screen Display for
details.
3MENU Displays / hides the On-Screen Display
4SOURCE This button has no function.
5 OUTPUT Consecutively press this button to cycle
through the available output resolutions.
See Supported Video and Graphic Formats
for a list of available formats.
1
2
4
3
5

page | 5
IR Remote Control Unit
Getting Started
Back
(shown with cover removed)
ID Name Description
1 DIP switch bank Use these DIP switches to set the IR
channel of the remote. See Setting the IR
Channel for details.
2 Primary battery slot
(shown without battery)
Holds the battery for operating the remote.
Use only 3V CR2032-type batteries. Make
sure that the positive (+) side of the battery
is facing up.
3 Alternate battery slot Allows for the installation of secondary
(backup) battery.
2
1
3

page | 6
Installing the Battery
The IR remote control unit ships with two batteries. Only one battery is required for
operation. The second battery is a spare. Use only 3V CR2032-type batteries.
1. Remove the back cover the IR Remote Control unit.
2. Insert the included battery into the primary battery slot. The positive (+) side of the
battery should be facing up.
3. Replace the back cover.
Setting the IR Channel
In order for the included IR remote control to communicate with the 3GSDI to HDMI
Scaler, the IR remote control must be set to the same channel as the scaler. Use the
#remotechan command to set the IR channel of the scaler.
Getting Started
IR Remote Control Unit
WARNING: Risk of explosion if battery is replaced by an incorrect
type. Dispose of used batteries according to the instructions.
DIP switches
Remote Channel 2: Remote Channel 3:
Channel 0 (default): Remote Channel 1:
1 2
ON
1 21 2
ON
1 2
ON
1 2
ON
NOTE: An Activity Indicator that ashes quickly while holding down
any one of the buttons indicates a low battery. Replace the battery
as soon as possible.

page | 7
Getting Started
Installation
Connecting the 3GSDI to HDMI Scaler
1. Use the included locking HDMI cable to connect a Hi-Def source to the HDMI In port
on the scaler.
2. Connect a BNC-type cable from the Ref In connector, on the scaler, to an external
clock reference.
3. Connect a coax cable from the Coax Out connector to an external audio amplier.
4. Connect a BNC-type cable from the Out A / Out B connector(s) to the 3GSDI
destination.
5. Connect the included AC power cord from the power supply to an available electrical
outlet.
Sample Wiring Diagram
WARNING: This product should always be connected to a grounded
electrical AC outlet.
NOTE: In order to output dual link 1080p Full HD, when using
HD-SDI, both Out A and Out B must be connected to the destination.
SDI CABLE
HD Display
COAX AUDIO CABLE
HDMI CABLE
3G-SDI Source
3G-SDI Source
Scaler
Audio Receiver
3G-SDI
Loop Output
3G-SDI
Loop Output
GEF-3GSDI-2-HDS


3GSDItoHDMI
Scaler
02 Operating the
3GSDI to HDMI Scaler
The On-Screen Display....................................................................................... 10
Accessing the On-Screen Display............................................................... 10
Moving Around in the OSD ......................................................................... 11
General Menu ............................................................................................. 12
Patterns Menu............................................................................................. 13
Output Menu ............................................................................................... 14
Input Menu .................................................................................................. 18
Picture Menu ............................................................................................... 21
Layout Menu ............................................................................................... 24
Aspect Menu ............................................................................................... 25

page | 10
Using the 3GSDI to HDMI Scaler
The On-Screen Display
Accessing the On-Screen Display
The 3GSDI to HDMI Scaler uses a built-in OSD (On-Screen Display) to manage and control
all scaler features. To access the OSD, point the included IR remote control unit at the
IR sensor on the front panel of the scaler and press the MENU button. Press the MENU
button again to dismiss the OSD.
The OSD contains seven menu buttons, each of which contains one or more set of
functions for controlling the scaler. Each time the OSD is displayed, the General menu
button is automatically selected.
The bottom of the OSD will always display the current input and output resolution.
LED indicates a
button was pressed
Press MENU to
display the OSD
Current input resoltuion Current output resolution
Other manuals for GEF-3GSDI-2-HDS
1
Table of contents
Other Gefen Pro Media Converter manuals
