Gefen Toolbox GTB-HDMI-3DTV User manual

Gefen
Extender
for HDMI®3DTV
GTB-HDMI-3DTV
GTB-HDMI-3DTV-BLK
User Manual

ASKING FOR ASSISTANCE
Rev A5
29.6
Technical Support:
Telephone [phone]
[phone]
Fax [phone]
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday, Pacific Time
Write To:
Gefen, LLC.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefentoolbox.com
[email protected]
Notice
Gefen, LLC reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
GefenToolBox Extender for HDMI 3DTV is a trademark of Gefen, LLC
HDMI, the logo, and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing in the United States and
other countries.
© 2010 Gefen, LLC, All Rights Reserved
All trademarks are the property of their respective owners

CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Sender Unit Layout
5 Sender Unit Descriptions
6 Receiver Unit Layout
7 Receiver Unit Descriptions
8 Connecting and Operating The Extender For HDMI 3DTV
9 DIP Switch Configuration
11 Network Cable Wiring Diagram
12 Wall Mounting Instructions
13 Specifications
14 Warranty

1
INTRODUCTION
Congratulations on your purchase of the Extender for HDMI®3DTV. Your
complete satisfaction is very important to us.
GefenToolbox
GefenToolbox is a unique product line catering to the growing needs for
innovative home theater solutions. We specialize in total integration for your
home theater, while also focusing on going above and beyond customer
expectations to ensure you get the most from your hardware. We invite you to
explore our distinct product line and hope you find your solutions. Don’t see what
you are looking for here? Please call us so we can better assist you with your
particular needs.
The GefenToolbox Extender for HDMI 3DTV
The GefenToolbox Extender for HDMI 3DTV extends HDMI®and 3D content
including multi-channel digital audio at resolutions of up to 1080p Full HD up
to 330 feet (100 meters) from any Hi-Def source using one CAT-5 cable. This
product also provides an IR backchannel to control AV sources using the same
CAT-5 cable extension. Using this remote IR back-channel with an optional IR
Blaster, you can point to any one of the of the AV device sources, by pointing
towards the IR sensor to control Hi-Def sources as if they were located in the
same room or proximity to the display.
How It Works
Connect the GefenToolbox Extender for HDMI 3DTV sender unit to the 3D Hi-Def
source using the supplied HDMI cable. Connect the receiver unit to the 3DTV
Display. Use a single CAT-5 cable, up to 330 feet (100 meters) in length, to
connect the sender and the receiver units. Connect the locking power supplies
to both sender and receiver units and apply power to the 3D Hi-Def source and
3DTV Display. 3D content can now be displayed on the 3DTV Display along with
audio embedded in the HDMI signal.

2
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE EXTENDER FOR HDMI 3DTV
• CAT-5 or CAT-6 cables should not exceed 330 feet (100 meters).
• Shielded (STP) CAT-5 or CAT-6 is recommended. However, unshielded
(UTP) CAT-5 or CAT-6 is acceptable.
• NOTE: Shielded cable has an advantage by providing immunity to
Electromagnetic Interference (EMI) from cell phones and A/C motors.
• The Extender for HDMI 3DTV features the ability to generate compatible
EDID and Hot Plug signals for troubleshooting purposes when dealing with
difficult interfacing issues between Source devices and Displays. See the
section on pages 9 - 10 for troubleshooting purposes.
• HDCP content is not supported when the unit is in DVI mode. See page 10
for details.
OPERATION NOTES

3
FEATURES
HDMI 1.3 Features
• 225 MHz (up to 12-bit YUV 4:4:4 @ 1080p60)
• Deep Color
• Dolby TrueHD and DTS-HD Master Audio
• Lip-Sync
• CEC Pass-Through
Features
• Extends HDMI at 1080p up to 330 ft (100 m).
• 3DTV Pass-Through.
• Supports high bit-rate multi-channel audio formats (Dolby TrueHD / DTS
Master Audio) embedded in the HDMI 1.3 signal.
• Internal / External EDID Management.
• Locking power connectors.
• Built-in IR backchannel allows IR remote control of Source devices.
• Metal enclosure improves RF shielding.
• All-digital signal transmission for zero signal loss.
• Optional IR Blaster allowing IR remote control of Hi-Def source devices from
the remote viewing location.
• This product is HDMI and HDCP-compliant.
Package Includes
(1) Extender for HDMI 3DTV Sender Unit
(1) Extender for HDMI 3DTV Receiver Unit
(1) 6 ft. HDMI cable (M-M)
(2) 5V DC Locking Power Supplies
(1) User Manual

4
SENDER UNIT LAYOUT
Left
Right
3 4
12
Top
3
4
5
5
1
2

1 CAT-5 Output Jack
Connects the Sender to the Receiver unit using CAT-5 cabling.
2 IR Blaster Port
Connect an IR Blaster cable from this port to the Hi-Def source to control the
source from the viewing location (IR Blaster not included).
3 5V DC Locking Power Connector
Connect the included 5V DC locking power supply to this connector. Only use
the power supply shipped with this unit.
4 Power Indicator
This LED will turn bright red once the included 5V DC locking power supply has
been properly connected to the unit and the locking power supply has been
connected to an available wall outlet.
5 Locking HDMI Port
Connect a 3D Hi-Def source device to this HDMI port. Please see the Features
section on page 3 for supported HDMI 1.3 features.
5
SENDER UNIT DESCRIPTIONS

6
RECEIVER UNIT LAYOUT
Left
Right
3 4
12
Top
4
5
6
5
1
2
3
6

7
RECEIVER UNIT DESCRIPTIONS
1 IR Extender Port
Connect an IR extender to this port.
2 CAT-5 Input Port
Connects the Receiver to the Sender unit using CAT-5 cabling.
3 IR Sensor
Receives signals from the 3D source IR remote control. The IR signals are sent
back to the source device, when using an IR Blaster on the Sender.
4 Locking HDMI Port
Connect a 3D display to this HDMI port. Please see the Features section on
page 3 for supported HDMI 1.3 features.
5 Power Indicator
This LED will turn bright red once the included 5V DC locking power supply has
been properly connected to the unit and the locking power supply has been
connected to an available wall outlet.
6 5V DC Locking Power Connector
Connect the included 5V DC locking power supply to this connector. Only use
the power supply shipped with this unit.

8
CONNECTING AND OPERATING
THE EXTENDER FOR HDMI 3DTV
How to Connect the Extender for HDMI 3DTV
1. Position the Extender for HDMI 3DTV sender unit near the Hi-Def source and
the receiver unit next to the display. Connect the Hi-Def source to the sender
with the provided locking HDMI cable. Connect the HDTV display to the
receiver unit with an HDMI cable.
2. Connect the sender and receiver units together using a single user-supplied
CAT-5e or CAT-6 cables.
NOTE: If terminating network cables in the field, please adhere to the TIA/
EIA568B specification (please see page 11).
3. Connect a 5V DC locking power supplies to the sender unit. Connect a 5V
DC locking power supply to the receiver unit. Do not overtighten the locking
connectors. Plug the two power supplies to an available wall outlet. The
LED on both the Sender and Receiver will turn bright red, indicating that
both units are powered.
4. Power on the HDTV display and the Hi-Def source. A vibrant HDTV HD
picture will be seen, along with multichannel digital audio (if the display
supports audio).
NOTE: If the source and display support 3D then the Extender for HDMI
3DTV will pass through the 3D signal.
GTB-HDMI-3DTV
CAT5 LINK CABLE
(Up to 330 ft)
HDMI CABLE
Sender
Set-top Box
IR Blaster
HDMI Display
Receiver
e
r
Recei
ve
r
Wiring Diagram for the Extender for HDMI 3DTV

9
DIP SWITCH CONFIGURATION
NOTE: DIP switch 4
is not used.
Default settings for DIP switches
DIP Switch Position
1 OFF
2 OFF
3 OFF
4 NOT USED
DIP Switch Location
On the bottom of the Extender for HDMI 3DTV Receiver unit there are four (4)
DIP switches.
The DIP switches allow advanced EDID management of the Extender for HDMI
3DTV which may be necessary when troubleshooting or using different brands of
hardware. The DIP switches allow control over the EDID and the HPD (Hot Plug
Detect) status.
DIP Switch
Bank
Receiver Unit (bottom)

10
DIP SWITCH CONFIGURATION
DIP 1 - EDID Mode
ON (default) - External EDID Mode
• DDC and HPD are passed through. Both the connection status and the full
A/V capabilities of the display. The HPD status will also be detected by the
source device.
OFF - Internal EDID Mode
• Local EDID is used instead of the EDID from the display device. EDID
features newer than HDMI 1.3 are removed when the display is read. This
provides a general EDID which is compatible with more displays.
DIP 2 - Hot-Plug Detect
DIP switch 2 only works when DIP switch 1 is set to the OFF position.
ON - HPD Pass-Through
• HPD follows upstream HPD towards the source. The HPD signal will reflect
the connection status between the display device and the source device. If
the source or display is temporarily disconnected then reconnected, there
will be a delay of 20 - 30 seconds before the A/V content is restored to the
display.
OFF (default) - HPD Always High
• The HPD signal remains high regardless of the downstream HPD state. If
the source or display device does not properly handle HPD (no picture after
connecting / reconnecting source or display), set this DIP switch to the OFF
position.
DIP 3 - Supports DVI Connections
ON
• Set DIP switch 3 to the ON position when using a DVI source or display.
HDCP content is not supported in this mode.
OFF (default)
• If HDMI is connected, set DIP 3 in the OFF position.

11
12345678

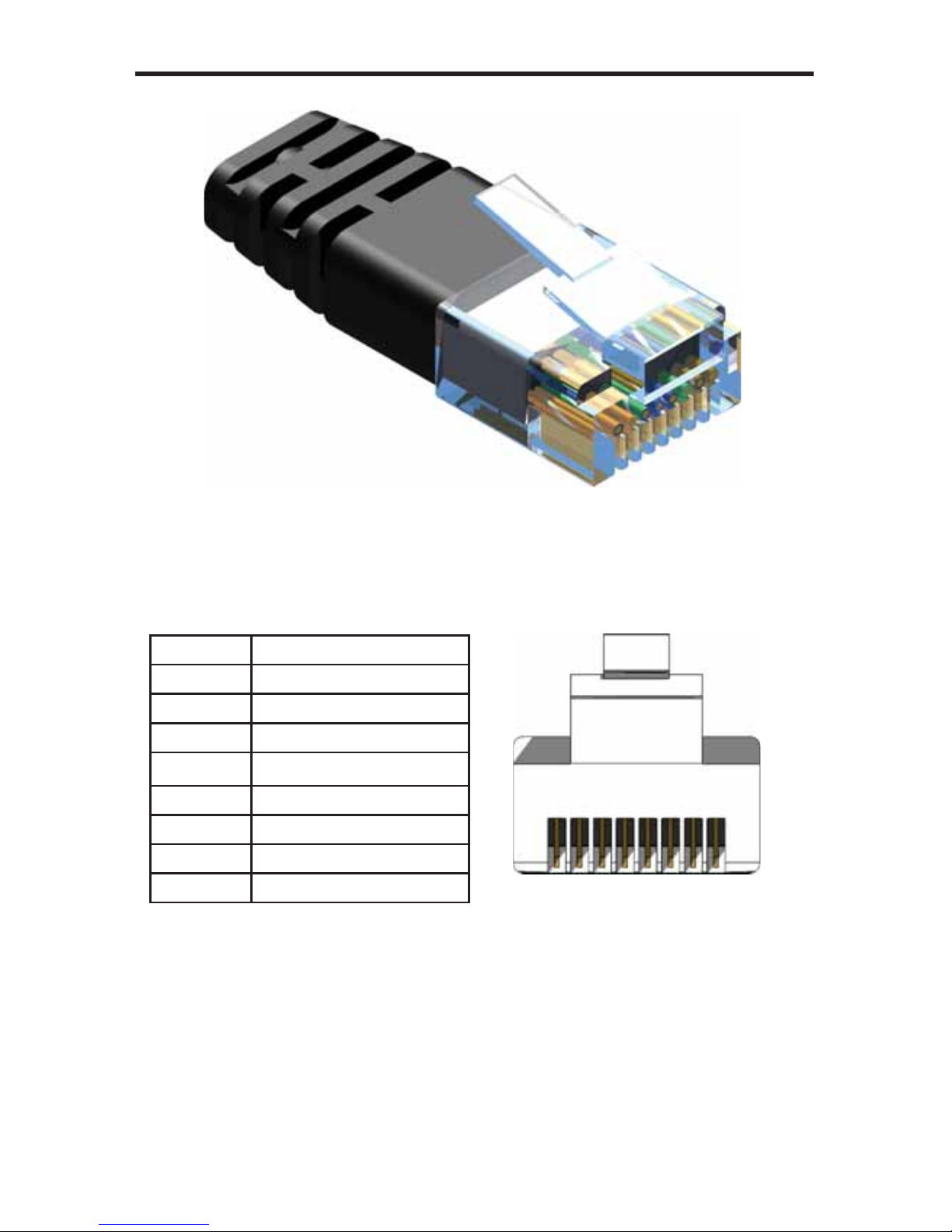

Gefen recommends the TIA/EIA-568-B wiring option. Please adhere to the table
below when field terminating cable for use with Gefen products.
CAT-5, CAT-5e, and CAT-6 cabling comes in stranded and solid core types.
Gefen recommends using solid core cabling. CAT-6 cable is also recommended.
It is recommended to use one continuous run from one end to the other. In some
cases, connecting through a patch might not work.
Pin Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
NETWORK CABLE WIRING DIAGRAM

12
WALL MOUNTING INSTRUCTIONS
The GefenToolbox Extender for HDMI 3DTV should be mounted vertically on
a wall or inside / outside a cabinet with wood / drywall screws as shown in the
diagram above. There should be an inch or two of clearance between the edges
of the unit and any walls or vertical surfaces to allow for enough clearance for
connection and disconnection of the HDMI cable.
For installation on a drywall surface, use a #6 drywall screw. When installing, it is
recommended to use the center hole on a stud.

13
SPECIFICATIONS
Video Amplifier Bandwidth.........................................................................225 MHz
Input Video Signal.....................................................................................1.2 V p-p
Input DDC Signal................................................................................5 V p-p (TTL)
Maximum Video Resolution................................1080p, supports 3D HDMI signals
HDMI Input Connector..................................................................Type A 19-pin (F)
Link Connector.................................................................................RJ-45 Shielded
Power Indicator.........................................................................................LED (red)
Dimensions.......................................................................4.5” L x 3.25” W x 1.0” H
Power Supply................................................................................................5 V DC
Power Consumption................................................................10 W per unit (max.)
Operating Temperature .............................................................................0 - 40 °C
Color Options.....................................................................................Ivory or Black
Shipping Weight...............................................................................................2 lbs

14
WARRANTY
Gefen warrants the equipment it manufactures to be free from defects in material
and workmanship.
If equipment fails because of such defects and Gefen is notified within two (2)
years from the date of shipment, Gefen will, at its option, repair or replace the
equipment, provided that the equipment has not been subjected to mechanical,
electrical, or other abuse or modifications. Equipment that fails under conditions
other than those covered will be repaired at the current price of parts and labor in
effect at the time of repair. Such repairs are warranted for ninety (90) days from
the day of reshipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including
without limitation, any implied warranty or merchantability or fitness for any
particular purpose, all of which are expressly disclaimed.
1. Proof of sale may be required in order to claim warranty.
2. Customers outside the US are responsible for shipping charges to and from
Gefen.
3. Copper cables are limited to a 30 day warranty and cables must be in their
original condition.
The information in this manual has been carefully checked and is believed to
be accurate. However, Gefen assumes no responsibility for any inaccuracies
that may be contained in this manual. In no event will Gefen be liable for
direct, indirect, special, incidental, or consequential damages resulting from
any defect or omission in this manual, even if advised of the possibility of such
damages. The technical information contained herein regarding the features and
specifications is subject to change without notice.
For the latest warranty coverage information, please visit Gefen’s Warranty web
page at http://www.gefen.com/kvm/aboutus/warranty.jsp
PRODUCT REGISTRATION
Please register your product online by visiting Gefen’s web site at
http://www.gefen.com/kvm/Registry/Registration.jsp

Rev A5
29.6
Pb
20600 Nordhoff St., Chatsworth CA 91311
1-800-545-6900 818-772-9100 fax: [phone]
www.gefentoolbox.com [email protected]
