Power Rack 54
EXT-PS5-4R
User Manual
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
Power Rack 54 is a trademark of Gefen Inc.
© 2009 Gefen Inc., All Rights Reserved
All trademarks are the property of their respective companies
ASKING FOR ASSISTANCE
Rev A
CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Panel Layout
5 Panel Descriptions
6 Connecting And Operating The Power Rack 54
7 Specifications
8 Warranty
1
Congratulations on your purchase of the Power Rack 54. Your complete
satisfaction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen Power Rack 54
The Gefen Power Rack 54 is the perfect solution for cleaning up a messy rack
space filled with individual power supply cables from several 5-Volt A/V devices.
The Power Rack eliminates the need for multiple power supplies, centralizes
power distribution, and saves space.
How It Works
The Gefen Power Rack 54 is rack mounted in a single 1U rack space near up to
four 5V DC / 2.5A rated devices. The 24-Volt power supply of the Power Rack 54
is connected to a wall outlet or power strip and a red LED appears on the front
panel, indicating successful power-on. 5-Volt power cables run from the rear of
the Power Rack to the power input of each 5-Volt powered device.
On the front side of the Power Rack 54, there are 1 Power LED (red) and 4x
Dual-State (green/red) LEDs, one for each power feed that is connected to an
external device. A Green LED color indicates normal power output at 5V ±0.3V. If
the output voltage of this feed is below or above this voltage range, the dual-state
LED turns red to indicate an error condition.
Note: All power outputs have a grounding wire that is connected back to the
Power Rack for maximum safety when powering external devices.
INTRODUCTION
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE POWER RACK 54
• The Power Rack 54 can supply power to up to four 5V Gefen products that
do not exceed 2.5 amps/12.5 Watts (max).
• The LED indicators will indicate the status of each of the power outputs. A
GREEN LED will indicate a good status. A RED LED will indicate an output
fault. This will occur when the output voltage dips below or beyond 0.3V of
the 5V norm.
2
OPERATION NOTES
3
Features
• Rack-mounted central power distribution eliminates multiple power supplies
and messy cables
• Four individual 5V DC / 3A max. power outputs for powering external devices
• Four dual-state red/green LED lights indicate correct voltage range for each
power output
• Locking connectors ensure secure attachment of output power cables
• Red LED indicates successful power status on the Power Rack 54
• RoHS Compliant -- Environmentally Safe Materials used in construction
Package Includes
(1) Power Rack 54
(4) 4-foot Power Output Cables (to provide power to 5V devices)
(1) User’s Manual
(1) Set of Rack Ears
FEATURES
4

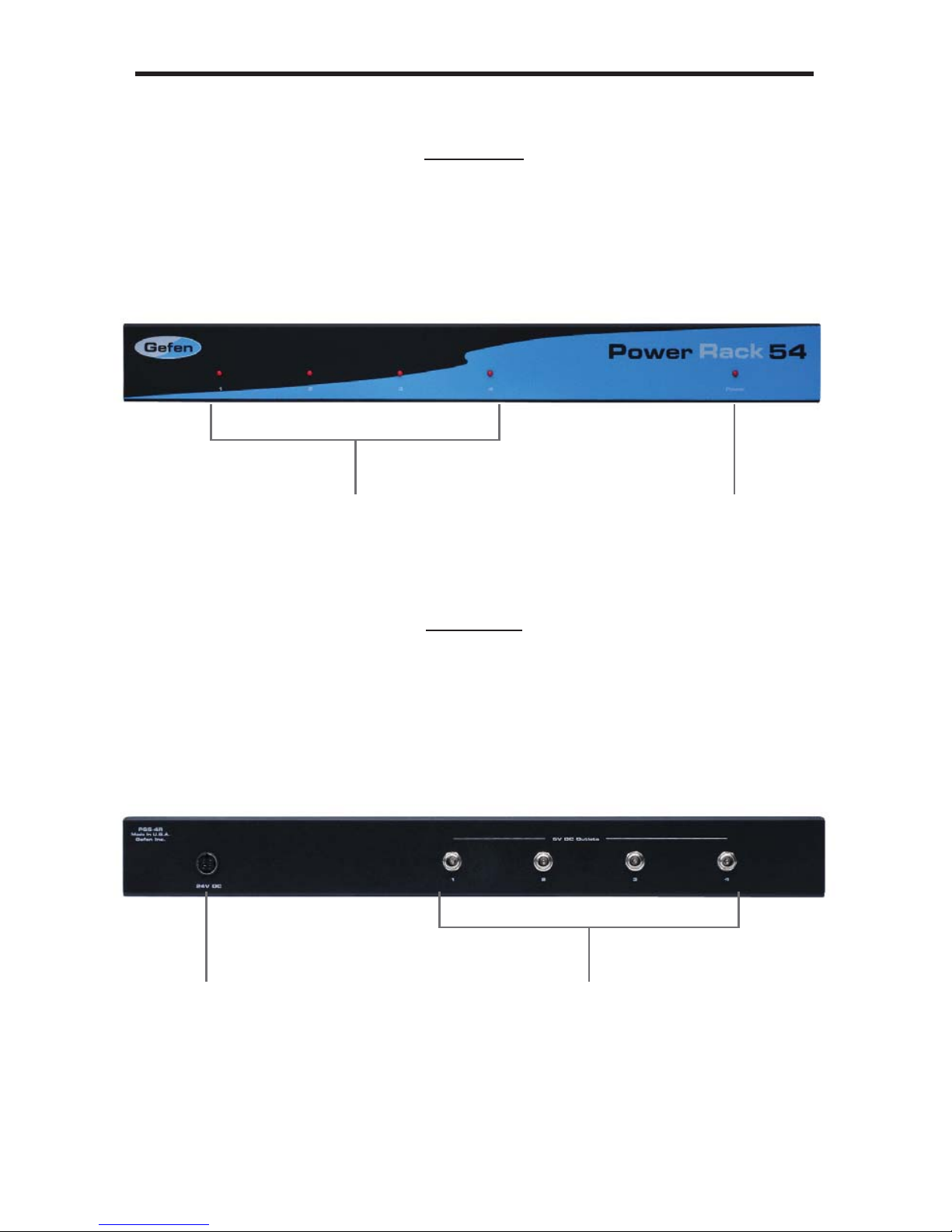

Front Panel
Back Panel
1
4
2
3
PANEL LAYOUT
5
1 Dual Color Status LED 1-4
Each LED will indicate the current status of the output voltage.
Green Voltage is within specification
Red Voltage is at least 0.3V above or below the 5V norm
2 Main Power LED
This LED will become active once the included 24V DC power supply has been
properly connected and powers is supplied.
3 24V DC Power Receptacle
The included 24V DC power supply will connect between this port and an open
wall power socket. Only use the included power supply with this unit.
4 Power Output Receptacles 1-4
4 power supply ports are provided for use with 5V Gefen devices. 4 locking
cables with locking connectors are provided.
PANEL DESCRIPTIONS
6
How to Connect the Power Rack 54
1. Connect up to 4 power output cables (4 are included) to the Power Rack 54
unit.
2. Connect the opposite ends of the power output cables to compatible Gefen
products.
NOTE: The amperage draw of each connected device must not exceed 2.5A.
3. Connect the included 24V DC power supply to the power receptacle on the
Power Rack 54. Connect the power plug into an available power source.
How to Operate the Power Rack 54
No further configuration is necessary to operate the Power Rack 54.
CONNECTING AND OPERATING THE POWER RACK 54
7
Power Input Voltage ........................................................... 24V / 3A power supply
Power Output Voltage ............................................. 5V DC / 2.5A max. per output
Power Consumption ...................................................................... 60 Watts (max.)
Power Outputs ................................................ Locking screw-down type, 1/4” dia.
Dimensions ................................................................... 17.1” W x 1.7” H x 4.25” D
Shipping Weight ............................................................................................. 6 lbs
SPECIFICATIONS
