Gefen EXT-CAT5-1500HD User manual

www.gefen.com
®
CAT5 • 1500HD
EXT-CAT5-1500HD
USER MANUAL

Technical Support:
Telephone [phone]
[phone]
Fax [phone]
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday PST
Write To:
Gefen, LLC
c/o Customer Service
20600 Nordhoff St.
Chatsworth, CA 91311
[email protected]
www.gefen.com
Notice
Gefen, LLC reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
CAT5•1500HD is a trademark of Gefen, LLC
© 2010 Gefen, LLC, All Rights Reserved
All trademarks are the property of their respective owners.
ASKING FOR ASSISTANCE
Rev X3

TABLE OF CONTENTS
Introduction
How It Works
CAT5•1500HDS Back Panel Layout
CAT5•1500HDS Back Panel Function Descriptions
CAT5•1500HDR Back Panel Layout
CAT5•1500HDR Back Panel Functions Descriptions
Link Cable Wiring Diagrams
CAT5•1500HD - Wiring Diagram
Service Switch Usage Guide
Frequently Asked Questions
Features
System Specifications
Terminology

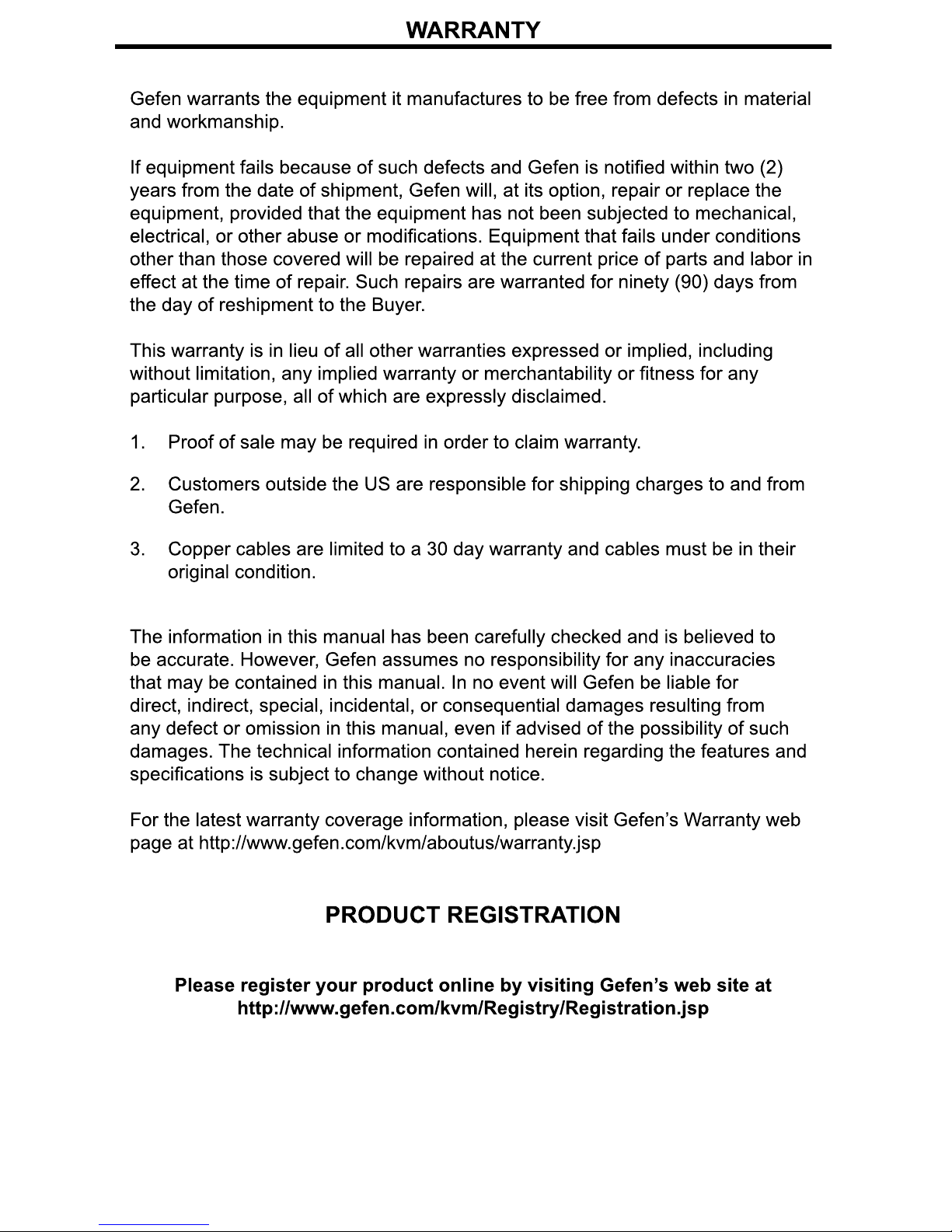

Warranty
1
2
3
4
5
6
7
8
9
10
11
12
13
14

READ THESE NOTES BEFORE INSTALLING
OR OPERATING THE CAT5•1500HD SYSTEM
* The CAT5•1500HD units are housed in a metal box for better RF shielding.
* In order to extend the full 50 meters, a high quality CAT5e or CAT6 cable is needed.
* CAT6 cable is suitable for high resolution at 50 meters.
* If using a ADC-DVI Adapter, the "5V to cable" jumper by the input connector on the
sender unit needs to be enabled.
OPERATION NOTES

INTRODUCTION
Thank you for purchasing the new CAT5•1500HD series by Gefen, Inc.
TheCAT5•1500HD byGefenallowsusers thebenefits ofextending aDVI displayand USB
beyond the desktop. In a growing number of applications, broadcast stations and produc-
tion facilities need to locate a computer remotely from the keyboard, mouse, and video
monitor. A CPU may need to be shared between several users, for example, or moved to
another room because of annoying fan noise.
The CAT5•1500HD series can be used to extend computers with noisy fans, printers, hard
drives, scanners, cameras, keyboards, mouse, and other USB devices. With the potential
to cover the distance of 150 feet, industry standard Category 5 (CAT-5) cables are used
for the extension of all the devices.
1

2
CONTENTS
The CAT5•1500HD system consists of:
--- (1) CAT5•1500HDS sender unit
--- (1) CAT5•1500HDR receiver unit
--- (2) 5V DC locking power supplies
--- (1) DVI cable M-M (6 FT)
--- (1) USB cable (6 FT)
--- (1) User's Manual
--- (1) Set of Rack Ears
HOW IT WORKS
The CAT5•1500HD sender unit sits next to your computer. The cables supplied with the
CAT5•1500HD connects your DVI source and USB to the send unit. The CAT5•1500HD
receiverunitsitsnextto yourDVIdisplay upto150 feetaway.Thedisplayand USBpluginto
theback ofthe CAT5•1500HDreceiverunit.TwoCAT-5cables connectthe CAT5•1500HD-
S and the CAT5•1500HD-R units to each other.
HOW IT WORKS

CAT5•1500HDS BACK PANEL LAYOUT
3
123 4 5

CAT5•1500HDS BACK PANEL FUNCTIONS
POWER - Connector for 5 VDC external power supply (screw-on locking type)
CAT5 Video - RJ-45 input extends DVI input with CAT-5 cable
CAT5 USB/DDC - RJ-45 input extends USB and DDC signals with CAT-5 cable
DVI INPUT - DVI Input connects to your computer with the supplied DVI cable
USB IN - USB Input from computer
4
1
2
3
4
5

CAT5•1500HDR BACK PANEL LAYOUT
5
12 3 4 5

CAT5•1500HDR BACK PANEL FUNCTIONS
6
POWER - Connector for 5 VDC external power supply (screw-on locking type)
CAT5 USB/DDC - RJ-45 input extends USB and DDC signals with CAT-5 cable
CAT5 Video - RJ-45 input extends video input with CAT-5 cable
DVI OUTPUT - DVI output connects to the monitor for local video
USB Out - USB Output to computer
1
2
3
4
5

CAT5 LINK CABLE - WIRING DIAGRAM
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
RJ-45 Jack RJ-45 Jack
2 3 4 5
6
7 8 1
2 3 4 5
6
7 8 1
1818
7

CAT5•1500HD WIRING DIAGRAM
8

9
SERVICE SWITCH USAGE GUIDE
Gefen CAT5 HD products (sender and receiver) both contain a pair of service switches
(also called dip switches) located underneath the unit. These service switches are
used to select from sets of configurations that will equalize the signal to best match
the conditions in your setup. For the CAT5•1500HD, there is 1 set of switches for the
monitor under both the sender and receiver units. The switches are hidden beneath
black stickers. Each bank of dip switches have 4 switches. Switches 3 and 4 are not
used. (*Note: Adjustments should be done with sources and display on.)
Sender Dip Switch Settings
Setting Switch 1 Switch 2
No Boost OFF ON
Normal Boost (Default) OFF OFF
Strong Boost ON OFF
Undefined ON ON
Receiver Dip Switch Settings
Setting Switch 1 Switch 2
No EQ (Default) OFF OFF
EQ Setting 2 ON OFF
EQ Setting 3 OFF ON
Maximum EQ ON ON
Adjustment Guidelines:
1) Strong boost should not be used on stranded cables. Strong boosting will cause
pixels or no picture on these cables.
2) Using the wrong settings will not damage the units; it will either produce no
image or a noisy image.
3) To eliminate the possibility of cross talk and interference, cables must be
terminated with 568B scheduling. (See page 7 for details)

Frequently Asked Questions
What kind of CAT-5e cable should I be using?
Solid core CAT-5e cable rated at 350 Mhz and terminated in 568a or 568b is the
minimum requirement. For resolutions greater than 1280x1024 or 1080i, Gefen
recommends solid CAT-6 cables.
I’m getting no video on the screens, how can I troubleshoot this problem?
First thing to check is make sure that the video CAT5 is linked to the other video CAT5 port
andthe samewith theDDCports.Test tomake surethe unitsare workingwith shortCAT-5e
cables 15-20 feet. You can also make sure you have the correct boost setting configured
(refer to page 9).
I’m getting no video on the screens using ADC to DVI adapters, what is wrong?
ADC to DVI adapters remove the necessary 5V line that the extenders require on the input
to operate. To enable the 5V you will need to open up the sender unit. Next to each DVI/
HDMI input connector will be a jumper that needs to be shorted to enable 5V to the input.
This should only be enabled when using aADC to DVIAdapter otherwise damage to your
video card may result.
How can I fix the flickering picture?
Flickering or a blinking image is the result of a loss of sync between the display and the
source. Try lowering the resolution to see if that helps, if it does, the CAT-5 cables you
are using are unable to handle the bandwidth of the higher resolution and thus you are
losing sync. Try a shielded CAT-6 cable on the video line to reduce interference. You
can also try adjusting the service switches. Usually this is caused by EMI and a shielded
CAT-6 with metal RJ-45 connectors with the drain wire soldered to the connectors will
resolve the issue. Please refer to the service switch guide on page 9 for the different
combinations.
Can I run the CAT-5 cable through a patch bay?
This is not advised. The A/V signals will not be transmitted reliably to the Receiver unit
and thus the signal extension will fail.
TROUBLESHOOTING
10

- Extends any DVI compliant device up to 150 feet (45 meters) from the computer at
1920x1200
- Extends any DVI compliant device up to 200 feet (60 meters) from the computer at
1280x1024
-Extends USB 1.1 compliant devices up to 200 feet
- Uses CAT-5e cable for DDC and control signals
- Video is transmitted digitally for zero signal loss
- Supports resolutions up to 1080p, 2K, and 1920 x 1200
- Supports DDWG standard for DVI compliant monitors
- Includes rack ears
- HDCP compliant
FEATURES
11

Video Amplifier Bandwidth ................................................................................. 165 MHz
Single Link Range .............................................................................1080p / 1920 x 1200
Input Video Signal ......................................................................................... 1.2 volts p-p
Input DDC Signal .................................................................................... 5 volts p-p (TTL)
Video Connector Type ................................................... DVI-I 29 pin female (digital only)
USB Input .................................................................................... USB type "B" connector
USB Output ............................................................................... USB type "A" connectors
Link Connector ......................................................................................... RJ-45 Shielded
Power Supply ...................................................................... 5V DC with locking power tip
Power Consumption .................................................................. 10 watts each unit (max)
Dimensions ............................................................................ 17” W x 1.75” H x 4.375” D
Shipping Weight ....................................................................................................... 7 lbs.
SPECIFICATIONS
12

13
CAT-5
Category 5 cable, commonly known as Cat 5, is an unshielded twisted pair type cable
designed for high signal integrity. The actual standard defines specific electrical properties
of the wire, but it is most commonly known as being rated for its Ethernet capability of 100
Mbit/s. Its specific standard designation is EIA/TIA-568. Cat 5 cable typically has three
twists per inch of each twisted pair of 24 gauge copper wires within the cable.
CAT-5e
Similar to Cat 5 cable, but is enhanced to support speeds of up to 1500 megabits per
second
DDC
Short form for Display Data Channel. It is a VESA standard for communication between
a monitor and a video adapter. Using DDC, a monitor can inform the video card about its
properties, such as maximum resolution and color depth. The video card can then use
this information to ensure that the user is presented with valid options for configuring the
display
DDWG
Digital Display Working Group DDWG are the creators of the DVI specification.
DVI
Digital Visual Interface. Connection standard developed by Intel for connecting computers
to digital monitors such as flat panels and DLP projectors.Aconsumer electronics version,
notnecessarily compatiblewith thePC version,is usedasaconnectionstandard forHDTV
tuners and displays. Transmits an uncompressed digital signal to the display. The latter
version uses HDCP copy protection to prevent unauthorized copying
USB
UniversalSerial Bus.Anexternal peripheralinterface standardfor communicationbetween
a computer and external peripherals over a cable using bi-serial transmission.
VESA
VideoElectronicStandardsAssociation, aconsortium ofmanufacturersformed toestablish
andmaintain industrywidestandards forvideo cardsandmonitors. VESAwasinstrumental
in the introduction of the Super VGA and Extended VGA video graphics standards with
a refresh rate of 70 Hz, minimizing flicker and helping to reduce user eyestrain and
fatigue.
PS/2
Aport type developed by IBM for the purpose of connecting a keyboard or mouse to a PC.
The PS/2 port has a mini DIN plug containing 6 pins. PS/2 ports are used so that the serial
port can be used by another device. The PS/2 port is often called the mouse port.
TERMINOLOGY

14
