Gefen 4K Ultra HD HDBaseT EXT-4K300A-MF-41-HBTLS User manual
EXT-4K300A-MF-41-HBTLS
EXT-UHDA-HBTL-RX
User Manual
Version A1
4K Ultra HD HDBaseT™
Multi-Format 4x1 Scaler w/ Auto-Switching & HDBaseT™Output
HDBaseT™ Receiver w/ Audio-De-Embedder and POH

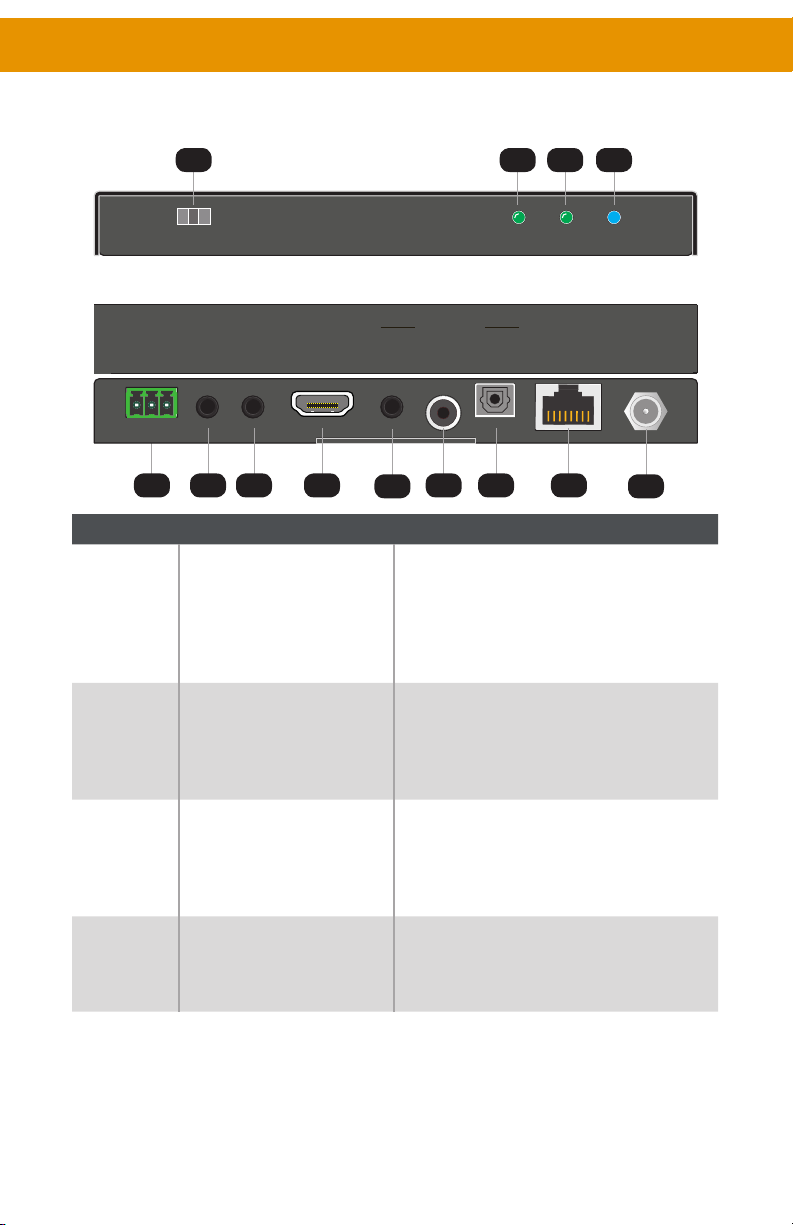

EXT-UHDA-HBTL-RX
Powe r
Link HDCP
Prog 1 Prog 2
RS-232 Pass-Thru
2
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install or place this product near any heat sources such as radiators, heat registers,
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong are provided for your
-
ment of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11.
12. To reduce the risk of electric shock and/or damage to this product, never handle or touch
this unit or power cord if your hands are wet or damp. Do not expose this
product to rain or moisture.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14.
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally,
or has been dropped.
15. Batteries that may be included with this product and/or accessories should never be
according to the instructions.
4
Contact Us
Technical Support
1-707-283-5900 1-800-472-5555
Email
support@gefen.com
Web
http://www.gefen.com
Mailing Address
Gefen
All trademarks are the property of their respective owners.
packaging, and any accompanying documentation without prior notice.
5
Operating Notes
Important
•
6A may be acceptable depending on cable quality. Care should always be given
to keep these cables away from power lines and other sources of electromagnetic
interference.
• Cable quality is critical when handling HDMI, DVI, and DisplayPort™ signals.
We highly recommend Gefen HDMI , DVI, and DisplayPort™ cables. They have been
designed and tested to reliably transport the the full throughput of HDMI and
DisplayPort™standards.
•
cannot
•
together, can pass both HDCP 2.2 and 1.4 through the HDMI and DisplayPort™
inputs. The DVI input can pass HDCP 1.4 only.
• The information in this manual has been carefully checked and is believed
responsibility for any inaccuracies that may be contained in this manual. In no
special, incidental, or consequential damages resulting from any defect or omission
in this manual.
• All information contained herein is subject to change without notice.
6
For three years from date of activation of this product, any party may request, and we will
readable copy of the corresponding open source code on a medium customarily used for
subject to their respective open source licenses:
• lwIP
• jQuery
All rights reserved.
are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of
conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials
provided with the distribution.
3. The name of the author may not be used to endorse or promote products derived from
Licensing
7
EXT-4K300A-MF-41-HBTLS*
• Automatic switching of the 4 video inputs
• Manual switching of video inputs via front panel button, handheld IR remote, electrical
•
• Inputs:
1x HDMI
1x DisplayPort™
1x DVI
1x VGA
• Outputs:
1x HDMI
1x HDBaseT™
•
•
•
the video
•
• HDMI features supported:
HDMI 2.0
HDCP 2.2 and 1.4
through
3DTV pass-through
Features
8
Features
• DisplayPort™ features supported:
DP 1.1
HDCP 2.2 and 1.4
• DVI input supported formats:
• VGA input supported formats:
•
•
•
•
• Uses Gefen’s implementation of HDBaseT™ technology with enhanced features
•
•
•
•
•
•
from a third-party controller
•
All trademarks and registered trademarks are properties of their respective owners.
9
EXT-UHDA-HBTL-RX*
HDMI 2.0
HDCP 2.2 and 1.4
through
3DTV pass-through
• Uses Gefen’s implementation of HDBaseT™ technology with enhanced features
Features
10
EXT-4K300A-MF-41-HBTLS*
. If any of these
as soon as possible.
HDBaseT™ Output
EXT-UHDA-HBTL-RX*
. If any of these items are not
possible.
All trademarks and registered trademarks are properties of their respective owners.
Packing Lists
11
Table of Contents
Controls, Connectors, and Indicators........................................................................... 12
.................................................................................................... 12
RMT-MF-41A.......................................................................................................................... 16
............................................................................................................ 18
Installation .................................................................................................................... 21
............................................................. 21
....................................................................... 21
.......................................................................................................22
.................................................................................................22
LED Status...................................................................................................................... 23
Scaler Functions and Picture Adjustments.................................................................24
EDID Management ....................................................................................................... 25
RS-232 ............................................................................................................................26
Features ..............................................................................................................................26
Commands ............................................................................................................................29
IR Control ....................................................................................................................... 32
Controlling the Display from the ..............................................................32
Controlling the ........................................................... 33
Firmware Update ..........................................................................................................34
................................................................................................................ 35
12
EXT-4K300A-MF-41-HBTLS
Controls, Connectors, and Indicators
1
2
3
4
5
6
789
11 12 13 14 15 16 17
ID Name Description
1 Power Indicator
for more information.
2
for
more information.
3 HDMI Indicator
HDMI input has been selected.
for more information.
4 DP Indicator
the DisplayPort™ input has been selected.
for more
information.
5 DVI Indicator
DVI input has been selected.
for more information.
6 VGA Indicator
VGA input has been selected.
for more information.
7 Auto Indicator
for more information.
10
18 19 20 21 22
13
Controls, Connectors, and Indicators
ID Name Description
8 Firmware
Page 34
9 POH When using an HDBaseT™ Receiver that
complies with the Power-Over-HDBaseT
on the front panel to On by sliding it to the
right. Please remember that POH is a HDBa-
using a non-POH-compliant Receiver or not
using an HDBaseT Receiver at all, this switch
10 To switch between HDMI, DisplayPort™, DVI,
and VGA inputs, press and release this button.
and hold this button for 3 seconds or longer
until the function engages or disengages.
for more info.
11 HDBaseT™ Out Connect a CAT-5e or better cable, up to the
recommended length for a given resolution,
from this port to the HDBaseT™ In port of the
Receiver unit. This Switcher can send power to
the EXT-UHDA-HBTL-RX or another POH-
compatible Receiver over the CAT-5 cable,but
12 HDMI Out Use a Gefen HDMI cable to connect an HDMI
display to this port.
13 Audio Output
channels of audio de-embedded from the
HDMI Output signal, for use with outboard
audio cable from this port to the analog
connector.
14
Controls, Connectors, and Indicators
ID Name Description
14 HDMI In Connect a Gefen HDMI cable from your
source to this input.
15 DisplayPort™ In Connect a Gefen DisplayPort™ cable from
your source to this input.
16 DVI In Connect a Gefen DVI cable from your source
to this input.
17 Use an audio cable with 3.5mm stereo plugs to
connect your DVI or VGA or a separate audio
source to the Line In
VGA and DVI signals,but the DVI in port can be
embedded in the video signal.
18 VGA In Connect a VGA cable from your source to this
input.
19 Input Control This connector can be used with a
momentary switch, where each press and
release of the button would switch to the
next input. This switch should be connected
button press. Please see
.
20
IR from the source side to the viewing
location over the HDBaseT™ cable, so that
the remote display or another remotely
located decvice can be controlled from the
source side using the display’s IR remote or
a third-part controller. Instead of providing
IR extension to the Receiver, this port can
included EXT-RMT-EXTIRN
module or the IR output of an automation
control device (using a patch cable with
stereo or mono 3.5mm mini-phone plugs
IR In/Ext port. Please
note that the 4x1 Switcher cannot receive IR
combination.
15
ID Name Description
21
and the Receiver over the HDBaseT™ cable.
Using this feature, the remote display can
be controlled from the source side by an
be controlled from the remote location.
cable.
22 12V DC In This power receptacle is used to connect the
included 12V DC power supply. When used
with a POH-compliant Receiver such as the
HDBaseT™
16
Controls, Connectors, and Indicators
RMT-MF-41A
1
2
5
9
8
7
6
3
4
10
11
NOTE: When using this IR remote, please make sure that there is unobstructed, clear line of
17
Controls, Connectors, and Indicators
ID Name Description
1 HDMI Press and release this button to select the
HDMI input.
2DVI Press and release this button to select the
DVI input.
3 DP Press and release this button to select the
DisplayPort™ input.
4VGA Press and release this button to select the
VGA input.
5Auto Press and release this butt0n to enter and exit
DVI/VGA Picture Mode Press and release either of these two buttons
to scroll through the available Picture
Modes:
Dynamic
Vivid
User
DVI/VGA Aspect Ratio Press and release either of these two buttons
to scroll through the available Aspect Ratio
settings:
16:9
4:3
Auto
DVI/VGA Resolution Press and release either of these two buttons
to scroll through the available resolutions
for the DVI and VGA pictures:
1360 x 768 60 Hz
1024 x 768 60 Hz
1280 x 720 50 Hz
1280 x 720 60 Hz
1280 x 800 60 Hz
1600 x 1200 60 Hz
1920 x 1080 50 Hz
1920 x 1080 60 Hz
1920 x 1200 60 Hz
18
5
EXT-UHDA-HBTL-RX
Powe r
Link HDCP
Prog 1 Prog 2
RS-232 Pass-Thru
Tx G Rx
RS-23 2
IR In/Ex t IR Out HDM I Ou t
Audi o Ou t
Line Coax Optical HDBaseT ™ In 12 V DC
EXT-UHDA-HBTL-RX
4321
6 7 8 910 11 12 13
ID Name Description
1 This 3-position slide switch places the
During normal
operation, this switch should be in “RS-232
Pass-Thru” (middle) position.
2
for
more information.
3 HDCP Indicator
the active HDMI, DisplayPort™, or DVI signal
contains HDCP encryption.
for more information.
4 Power Indicator
for more information.
Controls, Connectors, and Indicators
19
Controls, Connectors, and Indicators
ID Name Description
5
RS-232 communications between the 4x1
Switcher and the Receiver. Connect Tx, Rx,
and Ground from an automation control
Phoenix connector. To ensure proper
connector as printed on each unit’s enclosure.
6 This port is not used when connected to
the EXT-4K300A-MF-41-HBTL: 3.5mm mini-
stereo jack. Connect an
to this port. Alternatively, connect a 3.5mm
mini-stereo connector from this port to the
output of an automation system with an
electrical IR output.
7 IR Out
the device to be controlled.
8 HDMI Out Use a Gefen HDMI cable to connect an
HDMI display to this port.
9
channels of audio de-embedded from
the HDMI signal, for use with outboard
audio cable from this port to the analog
20
Controls, Connectors, and Indicators
ID Name Description
10 Coaxial Digital Out This port provides up to 5.1 channels of
and Right channels of PCM digital audio
de-embedded from the HDMI signal, for
a coaxial digital audio cable with RCA
connectors from this port to the coaxial
11 Optical Digital Out This port provides up to 5.1 channels of
and Right channels of PCM digital audio
de-embedded from the HDMI signal, for use
connectors from this port to the optical
12
Connector
Connect a CAT-5e or better cable, up to the
recommended length for a given resolution,
from this port to the HDBaseT™ Out port on
This Receiver can send power
over the CAT-5 cable to some POH compliant
Sender units but NOT the EXT-4K300A-MF-
41-HBTLS. It can also receive power over the
such as the EXT-UHDV-HBTLS-TX and
EXT-4K300A-MF-41-HBTLS,but NOT the EXT-
UHDV-WP-HBTLS-TX.
13 12V DC In This power receptacle is used to connect the
included 12V DC power supply.
This manual suits for next models
1
Table of contents
Other Gefen Switch manuals
Gefen
Gefen EXT-HDMI-442 User manual
Gefen
Gefen ex-tend-it 4x4 DVI Matrix User manual
Gefen
Gefen DVI-841 User manual
Gefen
Gefen 4x2 HDMI User manual
Gefen
Gefen MINIDVI-241 User manual
Gefen
Gefen HD-SDI User manual
Gefen
Gefen HDMI-244 User manual
Gefen
Gefen EXT-TV-MFS User manual
Gefen
Gefen EXT-DVIK-MV-441 User manual
Gefen
Gefen DVI KVM DL User manual
Gefen
Gefen EXT-DVIKVM-LAN User manual
Gefen
Gefen 4x1 DVI DL User manual
Gefen
Gefen EXT-USB-400FON User manual
Gefen
Gefen 4x1 DVIKVM Switcher series User manual
Gefen
Gefen GTV-AUDDEC-N User manual
Gefen
Gefen Multiview EXT-HD-MVSL-441 User manual
Gefen
Gefen HD Digital Audio Switcher User manual
Gefen
Gefen GTVGTV-HDMI1 User manual
Gefen
Gefen HDTV-241AA User manual
Gefen
Gefen HD-241 User manual
Popular Switch manuals by other brands
Cisco
Cisco Catalyst 3032 Software configuration guide
ADDER
ADDER View Matrix AVM208 Installation and use manual
Pilz
Pilz PSEN ma1.4p-50 operating manual
Xenteq
Xenteq PTS Series instruction manual
NETGEAR
NETGEAR FS700TS Hardware installation guide
ARP
ARP Cutout switch and Coupling Insulator installation instructions
TIVAL
TIVAL FF4 operating instructions
LevelOne
LevelOne KVM-0261 Quick installation guide
Konig
Konig KN-HDMISW10 manual
Moxa Technologies
Moxa Technologies NPort S8000 Series Quick installation guide
Hewlett Packard Enterprise
Hewlett Packard Enterprise Altoline 6921 Product End-of-Life Disassembly Instructions
Ametek
Ametek Drexelbrook IntelliPoint RF RNL Series Installation and operating instructions
