8x8 DVI Matrix
EXT-DVI-848
User Manual
®

ASKING FOR ASSISTANCE
Technical Support:
Telephone [phone]
[phone]
Fax [phone]
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday Pacific Time
Write To:
Gefen, LLC
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
[email protected]
Notice
Gefen, LLC reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
8x8 DVI Matrix is a trademark of Gefen, LLC
© 2010 Gefen, LLC, All Rights Reserved
All trademarks are the property of their respective owners.
Rev A7

CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 8x8 DVI Matrix Front Panel Layout
5 8x8 DVI Matrix Front Panel Descriptions
6 8x8 DVI Matrix Back Panel Layout
7 8x8 DVI Matrix Back Panel Descriptions
8 EXT-RMT-Matrix-848 Panel Layout
9 EXT-RMT-Matrix-848 Panel Descriptions
10 Connecting And Operating The 8x8 DVI Matrix
11 8x8 DVI Matrix Remote Description & Operation
12 RMT-848IR IR Channel Configuration
13 EXT-RMT-Matrix-848 Remote Operation
14 RMT-8-IR IR Channel Configuration
15 RS-232 Serial Control Interface

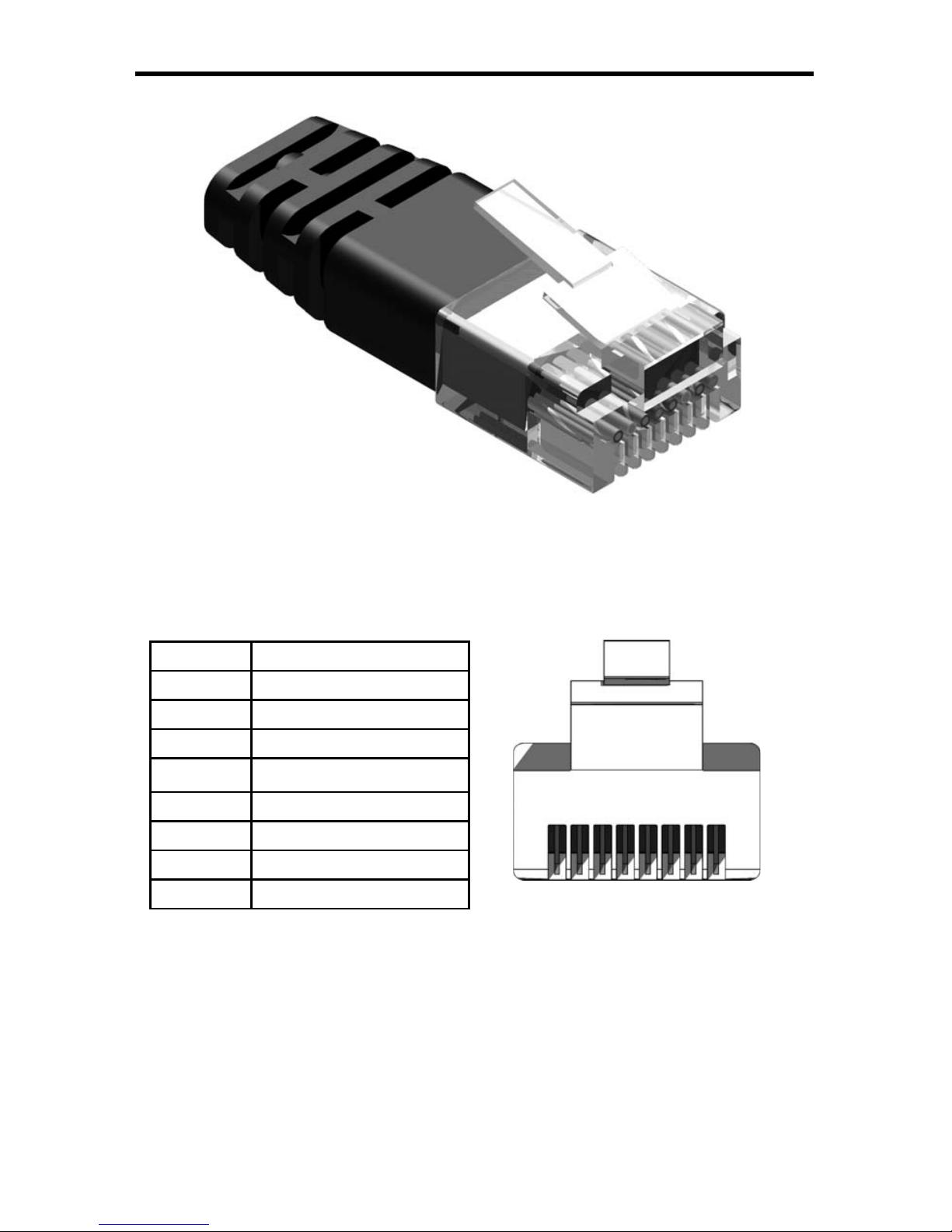

16 Network Cable Wiring Diagram
17 Appendix A
19 Appendix B
24 Specifications
25 Warranty

1
Congratulations on your purchase of the 8x8 DVI Matrix. Your complete
satisfaction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen 8x8 DVI Matrix
Now you can easily combine eight cross-platform computers and eight digital
displays without networking. Our 8x8 DVI Matrix provides a simple, reliable and
highly effective method of creating multiple computer workstations, with each
workstation capable of accessing any one of the computers or sources at any
time by remote control. You also have the option of setting up the eight stations
locally or extending them with a Gefen extender.
How It Works
The 8x8 Matrix has eight DVI inputs and eight DVI outputs. You simply connect
your eight computer DVI ports to the 8x8 Matrix inputs, then connect your eight
DVI displays to the 8x8 Matrix outputs.
INTRODUCTION

2
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE 8X8 DVI MATRIX
• The 8x8 DVI Matrix is HDCP compliant when used in EDID pass-through
mode (when a single DVI input is mapped to a single DVI output). Additional
Matrix outputs which attempt to route video signals to a source device that
has already made an HDCP connection with an HDCP-compliant display will
not be able to display an image.
• By default, EDID routing is based on the first connected source and display.
For example, if monitor A is the first display to connect to source 1 its EDID
will be used. All other displays that connect to source 1 thereafter will
have its EDID ignored. If display 1 switches to another source a hot-plug
signal will be sent and the EDID from the next display that is connected, in
numerical order, will be used.
• The Status Output display will only list the current display/source routing.
• There is no internal scaling in the 8x8 DVI Matrix. All of the attached
monitors must be able to display the resolutions output by the source
devices. For maximum compatibility it is recommended that only one
compatible/common resolution be used by all of the source devices.
OPERATION NOTES

3
Features
• Increases your productivity by providing you with access to eight computers
from eight workstations
• Maintains beautiful, sharp HDTV resolutions up to 1080p, 2K, and
1920x1200
• Discrete IR remote control included
• Long-distance remote control at distances of up to 330 feet using optional
wired CAT5 cabled remotes
• Serial RS232 port for remote control via computer or a control automation
device such as Crestron
• Supports DDWG standards for DVI monitors.
Package Includes
(1) 8x8 DVI Matrix
(1) RMT-848IR IR Remote Control
(1) 24V DC Power Supply
(8) 6-foot DVI cables
(1) Rack Ears
(1) User’s Manual
FEATURES

4
4
1
23
8X8 DVI MATRIX FRONT PANEL LAYOUT

5
1 LED Status Display
This display will list the current display/source routes.
Selected Source (1~8)
Monitor (A~H) 

Monitor Output’s are labeled 1 through 8 on the rear panel of the 8x8 DVI
Matrix. These numbers correspond to the lettersAthrough H on the LED Status
Display. The top row of letters will remain static while each input number below
will represent which source each of the displays are currently viewing.
HPD (Hot Plug Detect)
Whenever a display is connected/disconnected an HPD event will occur. This
will be displayed on the LED Status Display. A2 stage status update will occur
whenever a HPD event occurs
1.

 The first stage will return the HPD status for all
outputs. H means that the HPD status is HIGH and an Lindicates that the
HPD status is LOW. In the example above, all outputs except forAhas an
HPD that is LOW, while outputAhas an HPD that is HIGH.
2.

 The second stage will return the active monitor
status for all outputs. M means that a monitor has been detected and an S
indicates that no monitor is attached or is active. In the example above, all
outputs except forA are not detecting a monitor, while outputAdetects a
monitor on its output.
3 IR Receiver
Use the included RMT-848IR remote control to route video to the different
displays.
4 Power LED Indicator
This input indicator will become active once the included 24V DC power adapter
has been properly connected.
8X8 DVI MATRIX FRONT PANEL DESCRIPTIONS

6
12345678
10
18
11
19
12
20
13
21
14
22
15
23
16
24
17
2625
9

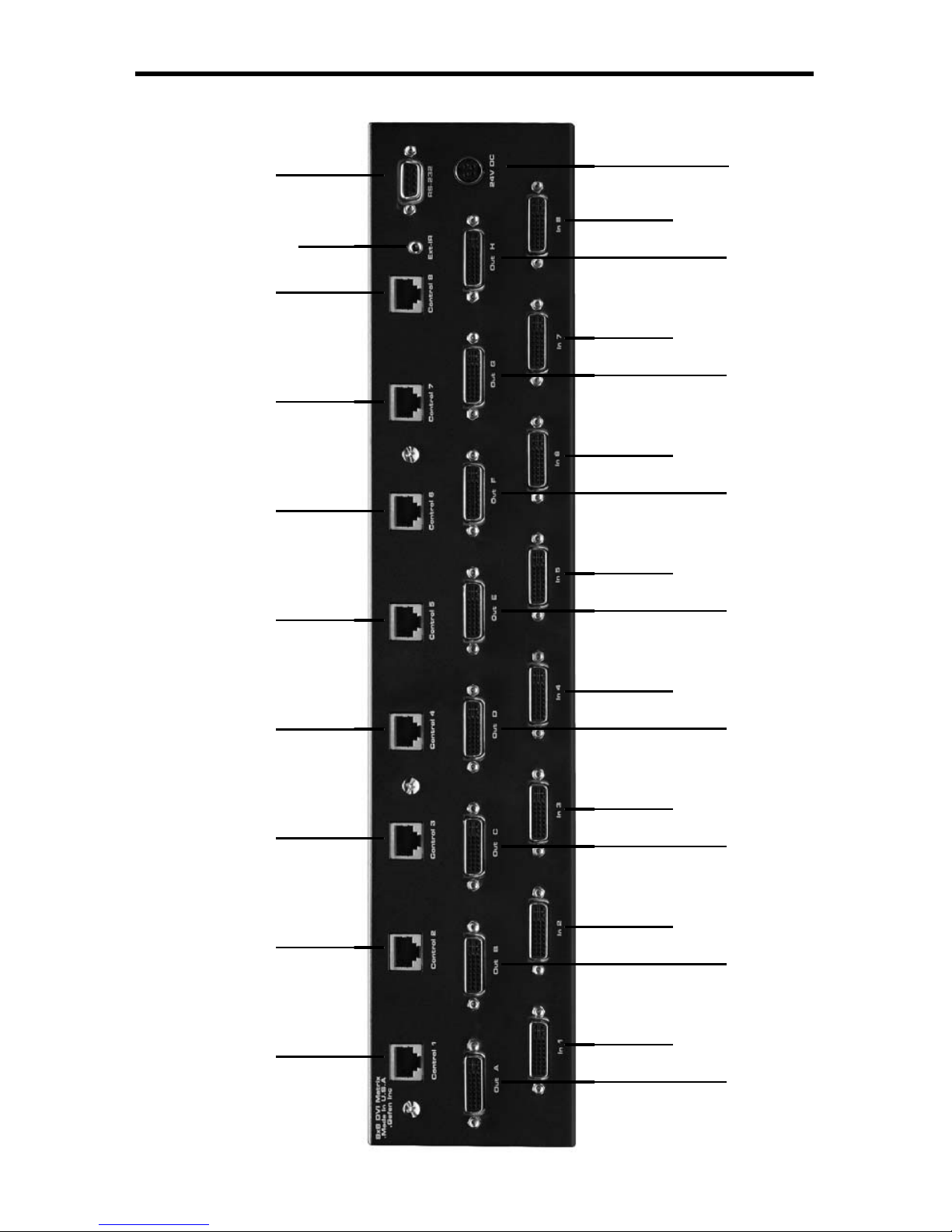

8X8 DVI MATRIX BACK PANEL LAYOUT
27

7
1-8 Optional Remote Switching Ports
Ports 1 through 8 are used for remote switching using the optional
component EXT-RMT-MATRIX-848.
9 RS-232 Serial Control Interface
This port is used for serial communication for multiple functions.Access to
certain features are only through the RS-232 interface.
10-17 DVI Input Ports
Connect up to 8 DVI sources to DVI Input Ports 1 through 8.
18-25 DVI Output Ports
Connect up to 8 DVI displays to DVI Output Ports 1 through 8. These
output ports correspond to Monitors Athrough Hon the LED Status
Display.
26 24V DC Power Input
Connect the included 24V DC power supply to this input.
27 IR Extender mini-jack input
Connect the optional separately-sold Gefen IR Extender (shown below) to
this input to conceal the Matrix and expose only the IR sensor, extend the
range of the IR remote, or simply beautify installations by creating a sleek,
custom appearance to theA/V setup.
8X8 DVI MATRIX BACK PANEL DESCRIPTIONS

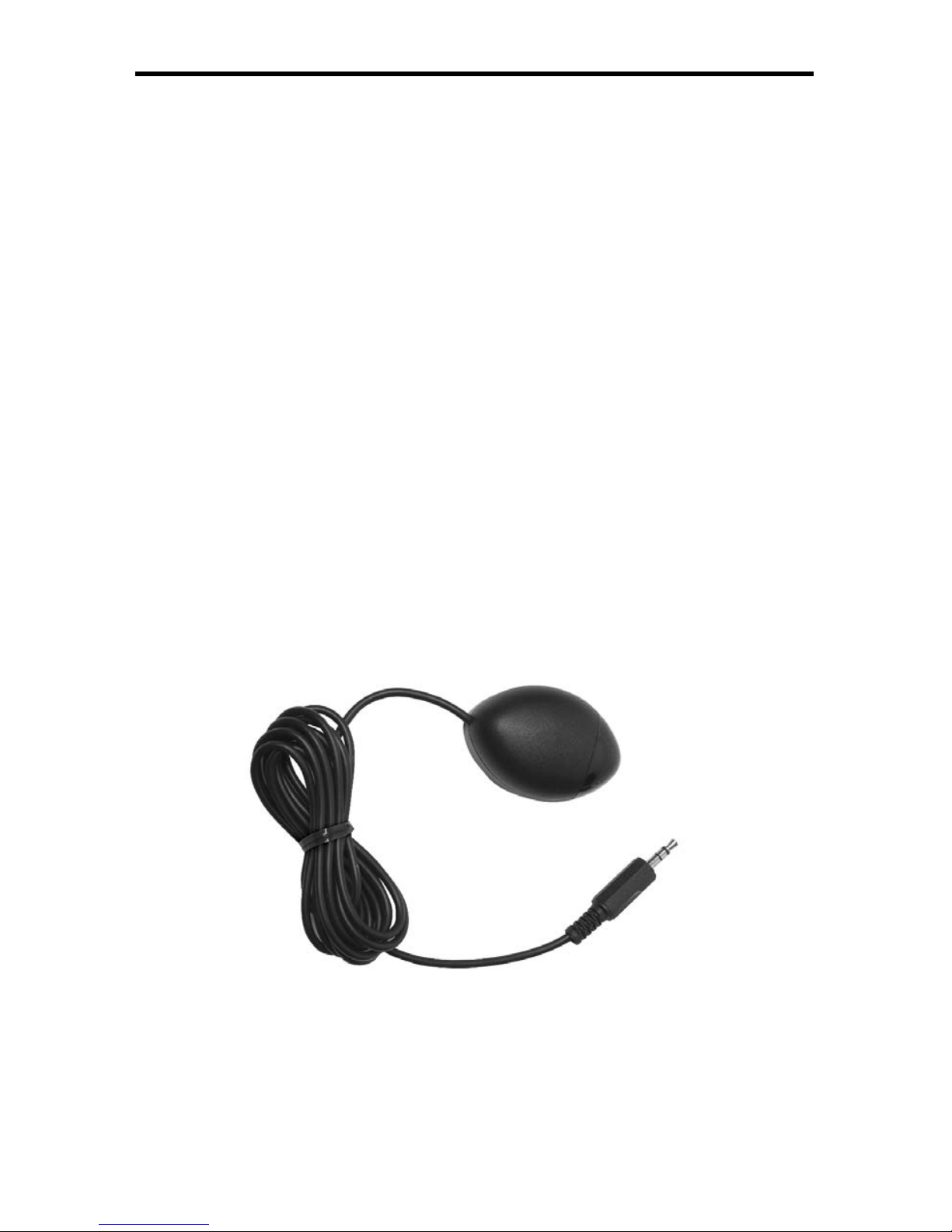

Gefen’s IR Extender, part # EXT-RMT-EXTIR

8
Front Panel
Back Panel
1
23
45 6

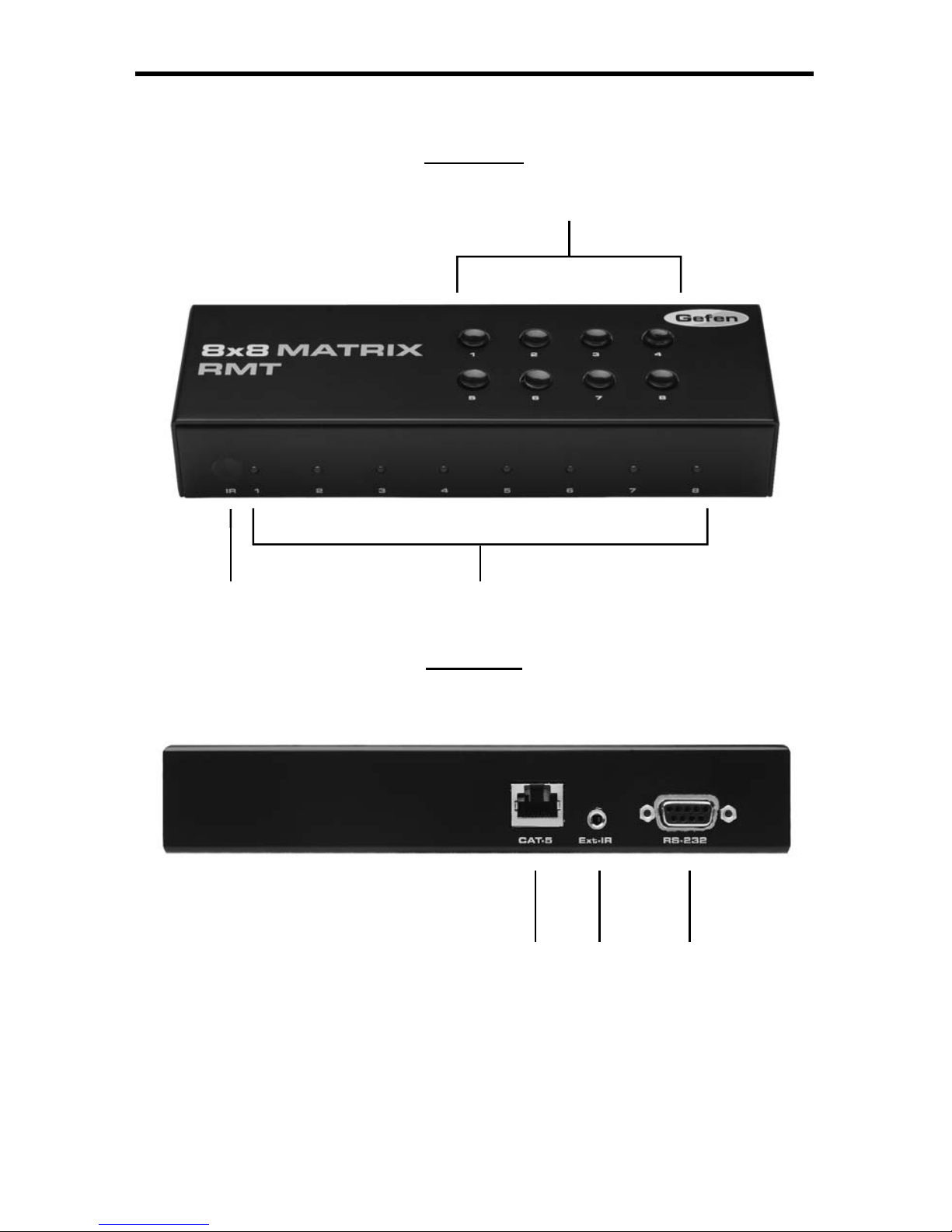

EXT-RMT-MATRIX-848 PANEL LAYOUT
(PRODUCT SOLD SEPARATELY)

9
1 Direct Select Buttons
When this unit is attached to a CAT-5 port that corresponds to a display on
the 8x8 DVI Matrix, use buttons 1 through 8 to select what source that display
will be viewing. Buttons 1 through 8 directly correspond to DVI source inputs 1
through 8 on the 8x8 DVI Matrix.
2 IR Receiver
This port will receive commands from the RMT-8-IR remote control (included
with the EXT-RMT-MATRIX-848) for remote controlled switching at the extended
location.
3 Active Input LED Indicator
1 through 8 LED indicators that will visually acknowledge which source is
currently selected.
4 CAT-5 Input Port
Connect a CAT-5 cable between this port and the CAT-5 remote switching ports
(Item 1 through 8 on page 6) for remote switching.
5 IR EXTension Eye
Connect the optional IR Receiver Extender (part# EXT-RMT-EXTIR) to this port.
6 RS-232 Serial Control Port
This port can be used to control switching via RS-232 serial communication.
EXT-RMT-MATRIX-848 PANEL DESCRIPTIONS

10
How to Connect the 8x8 DVI Matrix
1. Connect up to 8 DVI sources to the DVI Input ports on the 8x8 DVI Matrix
using the supplied DVI cables.
2. Connect up to 8 DVI displays to the DVI Output ports on the 8x8 DVI Matrix
using user supplied DVI cables.
3. Optionally connect up to 8 remote switching units (Part# EXT-RMT-MATRIX-
848) to the RJ-45 Input ports on the rear panel on the 8x8 DVI Matrix using
user supplied CAT-5, CAT-5e or CAT-6.
NOTE: Maximum extension of the EXT-RMT-MATRIX-848 units are 330 Feet
(100 Meters).
Operating the 8x8 DVI Matrix
There are 2 main ways to control the 8x8 DVI Matrix. Local and remote control.
Local control is done using the included RMT-848IR remote control. Remote
control is done using the optional EXT-RMT-MATRIX-848 switching units.
Local Control
To control the unit locally, please use the included RMT-848IR remote control.
Please see page 12 for usage information.
Remote control
To control the unit remotely, please use the EXT-RMT-MATRIX-848 remote
switcher. Each remote switcher has 8 direct select push-buttons that correspond
to DVI inputs 1 through 8. Press the push-button corresponding to the desired
source for viewing. There is also the option to use RS-232 switching via the RS-
232 port located on the rear panel of the EXT-RMT-MATRIX-848.
CONNECTING AND OPERATING THE 8X8 DVI MATRIX

11
8X8 DVI MATRIX REMOTE DESCRIPTION & OPERATION
Input Sources and Displays connect to the Matrix on the rear panel. Sources use
input connectors 1 thru 8 while Displays use connectorsA thru H. Please see page 6
for the Matrix Back Panel Layout diagram for details.
Routing a Source to a Display is done with the RMT-848IR Remote Control unit,
shown immediately below.
Number Keys (Sources)
Letter Keys (Displays)
How to Route Sources to Displays
Routing is done in two simple steps. There is one button-press for each step. For
example, here is how to route Source 4 to Display C:
1. Press the “C” letter key on the Remote once to select Output/Display “C”.
2. Press the “4” number key once to select Input Source 4.
Source 4 will now be routed to Display C and a crisp, vibrant picture of the Source 4
will now appear on Display C. The LCD Display will show the route created (circled
below):
Repeat these steps to route any video source to any display.





12
8x8 DVI Matrix DIP Switches
IR CHANNEL CONFIGURATION
Remote Channel 1:
Default
1 2
Remote Channel 2:
1 2
Remote Channel 3:
1 2
Remote Channel 4:
1 2
Remote Channel 1:
Default
1 2
Remote Channel 2:
1 2
Remote Channel 3:
1 2
Remote Channel 4:
1 2
RMT-848IR REMOTE CONTROL 8x8 DVI Matrix

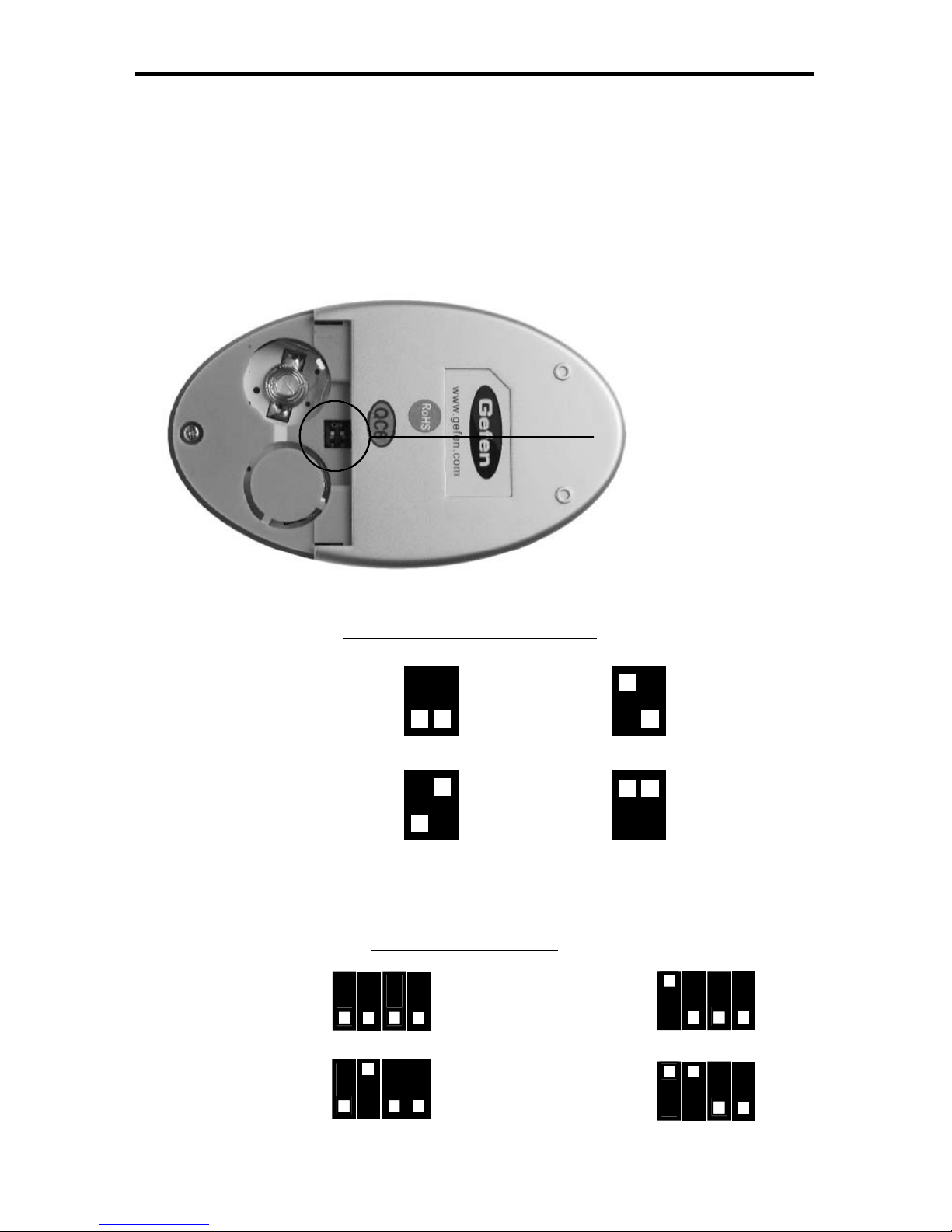

The RMT-848IR remote control has 4 discrete channels for use if the default IR
code set conflicts with other remote control commands in your setup. There are 2
DIP Switches underneath the battery on the RMT-848IR remote control. These DIP
Switches must match the IR channel in use on the 8x8 DVI Matrix. The underside

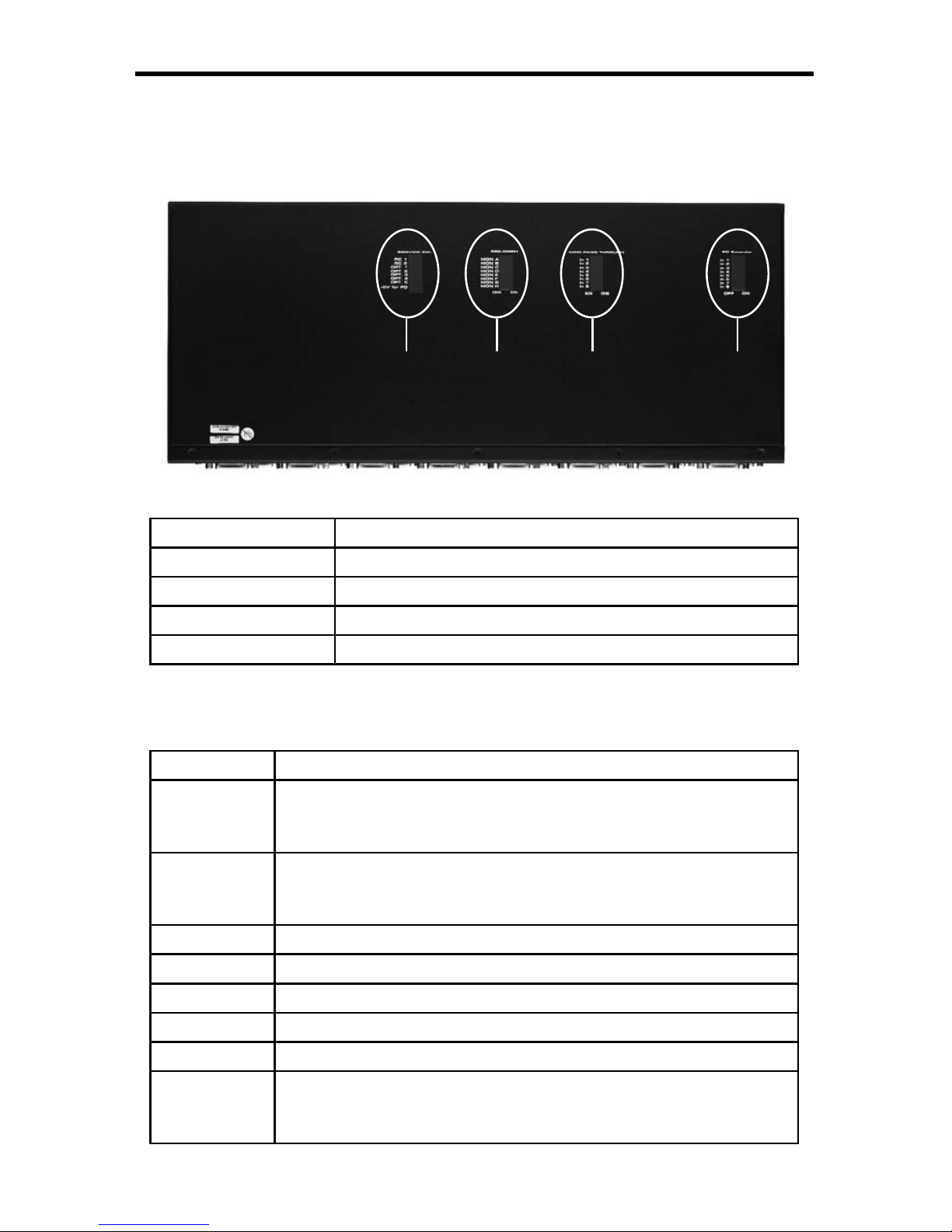

of the 8x8 DVI has multiple banks of DIP Switches. Please see the diagram of the
8x8 DVI Matrix below for the correct bank and DIP Switches that are used for IR
channel configuration. Information on the remaining DIP Switch banks can be found
inAppendix A. See below for DIP Switch configurations for each of the available
remote channels.
RMT-848IR IR CHANNEL CONFIGURATION
RMT-848IR DIP Switches

13
The RMT-8-IR remote control can be used to select the source that will be displayed
on the monitor connected to the EXT-RMT-MATRIX-848.
RMT-8-IR Button DVI Source
11
22
33
44
55
66
77
88
LED Indicator
Input Selection
Buttons
(REMOTE SOLD SEPARATELY)
(PRODUCT SOLD SEPARATELY)
(PRODUCT SOLD SEPARATELY
)
Once the EXT-RMT-MATRIX-848 Remote is installed and connected to a remote
output port on the 8x8 DVI Matrix, use the direct selection buttons to chose a source
to view. Once a source is chosen, its corresponding LED should become active.
Optionally, switching can be done using the RMT-8-IR remote control included with
the optional EXT-RMT-MATRIX-848 or through the RS-232 serial communications
port on the rear panel.
EXT-RMT-MATRIX-848 REMOTE OPERATION

14
RMT-8-IR IR CHANNEL CONFIGURATION
The RMT-8-IR remote control (included with purchase of the EXT-RMT-MATRIX-848)
has 4 discrete IR channels for use if the default IR code set conflicts with other
remote control commands in your setup. There are 2 DIP Switches underneath the
battery compartment cover on the RMT-8-IR remote control that must match DIP
Switches on the EXT-RMT-MATRIX-848. There are 4 DIP Switches located on the
underside of the EXT-RMT-MATRIX-848. DIP Switches 1 and 2 on the EXT-RMT-
MATRIX-848 correspond to DIP Switches 1 and 2 on the RMT-8-IR remote control.
See below for DIP Switch configuration of each of the available remote channels.
Remote Channel 1:
Default
1 2
Remote Channel 2:
1 2
Remote Channel 3:
1 2
Remote Channel 4:
1 2
RMT-8-IR REMOTE CONTROL
EXT-RMT-MATRIX-848
Remote Channel 1:
Default
Remote Channel 4:
1
1
2
2
3
3
4
4
Remote Channel 3:
1234
Remote Channel 2:
1234
RMT-8-IR DIP Switches

15
RS232 Settings
Bits per second ................................................................................................. 19200
Data bits .................................................................................................................... 8
Parity .................................................................................................................. None
Stop bits .....................................................................................................................1
Flow Control ....................................................................................................... None
Please see Appendix B for information on the available RS-232 commands.
54321
9876
12345
6789
Only Pins 2 (RX), 3 (TX), and 5 (Ground) are used on the RS-232 serial interface
RS-232 SERIAL CONTROL INTERFACE

12345678
Gefen has specifically engineered their products to work with the TIA/EIA-568-B
specification. Please adhere to the table below when field terminating cable for
use with Gefen products. Failure to do so may produce unexpected results and
reduced performance.
CAT-5, CAT-5e, and CAT-6 cabling comes in stranded and solid core types.
Gefen recommends using solid core cabling. CAT-6 cable is also recommended
for best results.
Each cable run must be one continuous run from one end to the other. No splices
or use of punch down blocks.
Pin Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
16
NETWORK CABLE WIRING DIAGRAM

17
The 8X8 DVI Matrix has 4 banks of DIP Switches located on the underside of the
main unit. This section will outline the function of each DIP Switch bank.
DIP SWITCH BANKS
DIP Switch Description
1RMT-848IR remote control channel configuration. This setting must match DIP Switch 1 on the RMT-848IR remote
control.
2RMT-848IR remote control channel configuration. This setting must match DIP Switch 2 on the RMT-848IR remote
control.
3 NOT USED
4 NOT USED
5 NOT USED
6 NOT USED
7 NOT USED
8General +5V enable on all outputs for use with fiber optic products that require 5V for operation.
[OFF] Feature disabled [ON] +5V DC enabled.
DIP Switch Bank Description
A RMT-848IR channel configuration
B Monitor Pre-Emphasis
C EDID Pass Through
D Individual +5V Enable for Fiber Optic extenders
DIP SWITCH BANK A
APPENDIX A
Rear Panel
Front Panel
Bank A Bank B Bank C Bank D
