Gefen ADC-241 User manual

1
2
9
Congratulations
on your purchase of the ex•tend•it ADC Switcher.
Your complete satisfaction is very important to us.
Gefen’s line of KVM (Keyboard Video & Mouse), DVI, ADC, USB, switches,
extenders, converters and hubs is designed to make computer use more
comfortable, more productive and less expensive.
KVM switches allow access to multiple computers from a single keyboard,
while the extenders give the user control over a computer up to 330 feet
away from the work area.
The ex•tend•it line offers solutions for noise, space and security concerns,
data center control, information distribution, conference room presentation,
and school and corporate training environments.
Our Committment
Gefen will always offer the finest quality product at the best possible
price. Included in that price is a lifetime of free support from a team of out-
standing engineers.
Introduction
The ADC Switcher switches ADC, DVI, USB and Audio
between any combination of two computers.
Now you can switch easily and reliably between any combination
of two computers using only one ADC display monitor.
The ADC Switcher saves space – there’s no need to work on a desk
crowded with double monitors, keyboards and mouse devices. It saves time –
there’s no need to move from one monitor to another to access different
computers. And it saves money – there’s no need to purchase additional
monitors, mouse devices, keyboards etc.
The ADC Switcher allows you to choose between a Macintosh or PC, using
a USB keyboard and mouse connected to the flat panel display..
extenders
DVI Repeater
ADC Repeater
DVI•100
CAT5•5000
CAT5•4000
CAT5•3000
CAT5•2000
CAT5•1000
USB•100
USB•400
USB•500
hubs
DVI Hub
USB•200
USB•400
switchers
4x1 DVI Switcher
2x2 DVI Switcher
DVI Switcher
USB•241
PC/Mac 2000
mini P/C Mac
USB Switcher
convertors
DVImate
ADC to DVI Adapter
DVI to ADC
Conversion Box
VGA to DVI
Conversion Box
DVI to VGA
Conversion Box
VGA to ADC
Conversion Box
DVI to VGA
Conversion Box
Warranty
Gefen Inc. warrants the equipment it manufactures to be free from defects
in material and workmanship. If equipment fails because of such defects
and Gefen Inc. is notified within one (1) year from the date of shipment,
Gefen Inc. will, at its option, repair or replace the equipment, provided
that the equipment has not been subjected to mechanical, electrical, or
other abuse or modifications. Equipment that fails under conditions other
than those covered will be repaired at the current price of parts and
labor in effect at the time of the repair. Such repairs are warranted for
ninety (90) days from the day of re-shipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied,
including without limitation, any implied warranty or merchantability or
fitness for any particular purpose, all of which are expressly disclaimed.
The information in this manual has been carefully checked and is
believed to be accurate. However, Gefen Inc. assumes no responsibility for
any inaccuracies that may be contained in this manual. In no event will
Gefen Inc. be liable for direct, indirect, special incidental, or consequential
damages resulting from any defect or omission in this manual, even if
advised of the possibility of such damages. The technical information
contained herein regarding the ADC Switcher features and specifications
is subject to change without notice.
All Rights Reserved © Copyright 2002 Gefen Inc.
20600 Nordhoff St., CA 91311
voice: 818 772-9100 fax: [phone]
email:[e-mail] website: http://www.gefen.com
User Manual
ex•tend•it products
10
theADCSwitcher
ADC, DVI, USB and Audio Switcher
ex•tend•it

4
How to connect the
ADC Switcher to your computers
1- Connect the cable from your first computer into the DVI 1, USB 1 and
Audio 1 connection in the back of the ADC Switcher.
2- Connect the cable from your second computer into the DVI 2, USB 1and
Audio 1 connection in the back of the ADC Switcher.
3- Connect the monitor to the ADC Out connection.
4- Plug the 24-28v power supply into the ADC Switcher.
5- Plug the 24-28v power supply into the wall outlet.
6- Start your computers only after you’ve made all the connections.
7- Press select, to switch between Computer 1 and Computer 2 or
switch remotely using the optional contact closure remote control.
35
6

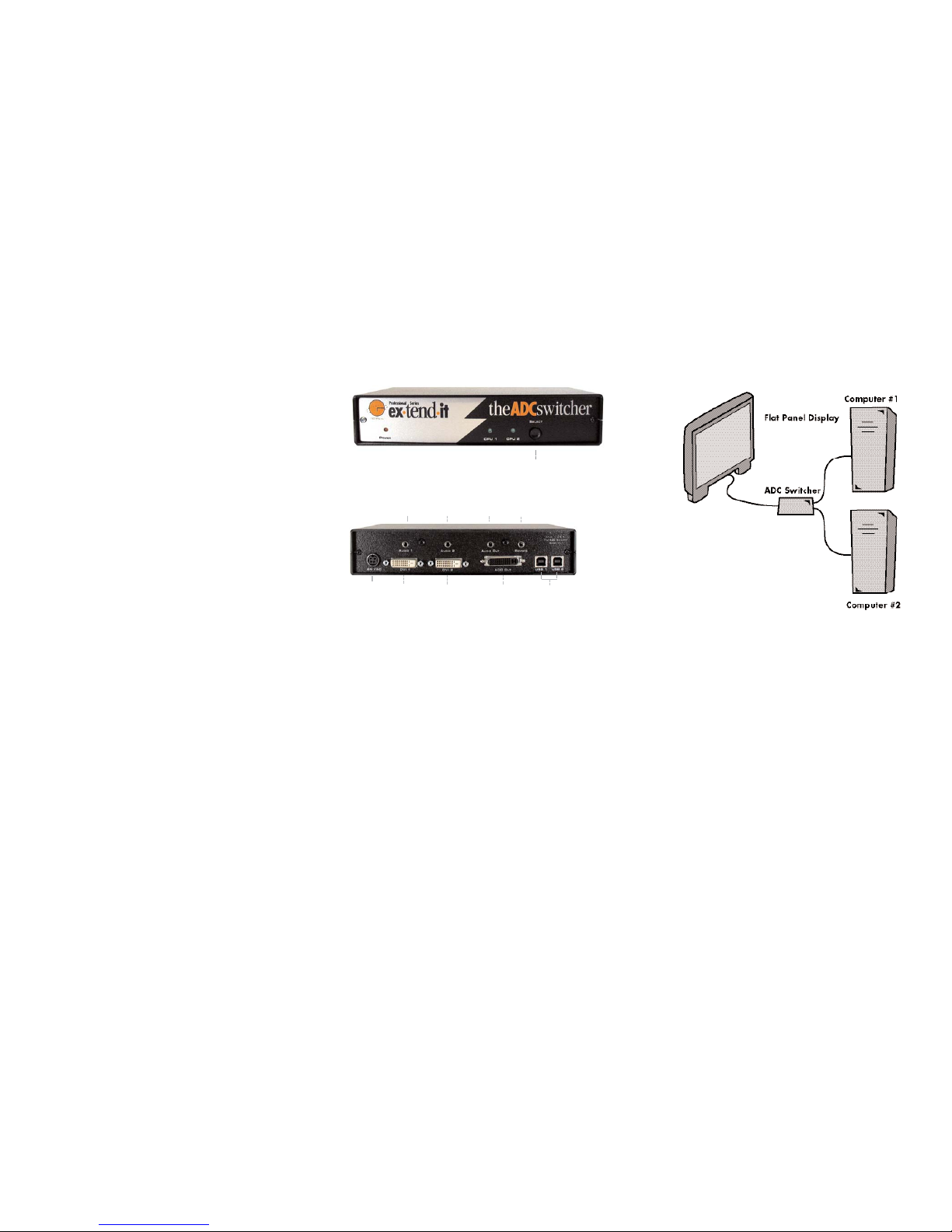

Wiring Diagram
• Saves money on hardware costs
• Saves space on your desktop
• Saves time - increases
productivity
• Maintains highest resolution
video
• Connect to any Flat Panel Display
with ADC
• Use either PC or Mac with
USB keyboard/mouse
• Switches easily between any
two computers
• Remote control
• Rackmountable
7
8
Technical Support:
phone: [phone]
fax: [phone]
email: [e-mail]
web: www.gefen.com
Technical Support Hours:
8:00 am – 5:00 pm PST
Monday -– Friday
Write to:
Gefen, Inc.
c/o Customer Service
20600 Nordhoff Street
Chatsworth
CA 91311
USA
Asking for Assistance
Trademarks:
Macintosh is a trademark of Apple Computer Inc.
ex•tend•it is a trademark of Gefen Inc.
The ADC Switcher is a trademark of Gefen Inc.
© Copyright 2002 Gefen Inc. All Rights Reserved
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
Features
Specifications:
Video Amplifier Bandwidth: 1.65 GHz
Input Video Signal: 1.2 volts p-p
Input Sync Signal: 5 volts p-p (TTL)
Single Link Range: 1920x1200x60HZ
Vertical Frequency Range: 60 Hz
USB Input Connectors: Type “B”
USB Output Connectors: Type ”A”
Power Consumption: 18 Watts (max.)
Power Supply: 24-28 volts AC
Dimensions: 8” W x 1.75” H x 4” D
Rackmountable: 1 Rack Space
Shipping Weight: 8 lbs.
Technical Specifications
Includes:
2 x 6' DVI cable (m-m)
2x6’ USB Cable A-B
2x6’ Audio cable (ministereo)
24-28v external power supply
The ADC Switcher
Select
front view
back view
USB 1 & 2
DVI 1
Power DVI 2 ADC out
Remote
Audio Out
Audio 2
Audio 1
