• When connecting a HDMI cable between the source and the HDMI Detective Plus,
the cable should not exceed 30 feet (10 meters) in length.
• The HDMI cable between the HDMI Detective Plus and the display (or other sink
device) should not exceed 50 feet (15 meters) in length.
• The HDMI Detective Plus comes pre-programmed with 6 default EDID proles as well
as 6 user-programmable EDID banks. If these default EDID proles are erased or
overwritten with other EDID data, the original default EDID proles cannot be restored.
v
3GSDI Audio Embedder
Operating Notes
HDMI Detective Plus

vi
Features
• Supports resolutions up to 1080p Full HD, and 1920 x 1200 (WUXGA)
• HDMI Features Supported:
►HDCP
►12-bit Deep Color
► LPCM 7.1 audio, Dolby® TrueHD, Dolby Digital® Plus,
and DTS-HD Master Audio™
►3DTV pass-through
► Lip-Sync pass-through
► CEC pass-through
• USB port for advanced programming of features such as EDID management
• Congurable using Gefen EDID Tool+ software, downloadable from Gefen website
• DDC re-clocking
• Records the EDID from a display
• 6 pre-programmed EDID proles
• 6 user-programmable EDID banks
• Selectable HDCP pass-through
• Field upgradable rmware via USB port
• Compact and portable
Packing List
The HDMI Detective Plus ships with the items listed below. If any of these items are not
present in your box when you rst open it, immediately contact your dealer or Gefen.
• 1 x HDMI Detective Plus
• 1 x 1ft. Locking HDMI Cable
• 1 x 6ft. Mini USB to USB Cable
• 1 x 5V DC power supply
• 1 x Quick-Start Guide
HDMI Detective Plus
Features and Packing List

3GSDI Audio EmbedderHDMI Detective Plus
Table of Contents
viii
01 Getting Started
Panel Layout ......................................................................................................... 2
Back .............................................................................................................. 2
Top ................................................................................................................ 2
Front.............................................................................................................. 2
Left ................................................................................................................ 2
Installation ............................................................................................................. 4
Connecting the HDMI Detective Plus............................................................ 4
Sample Wiring Diagram ................................................................................ 4
02 Operating the HDMI Detective Plus
EDID Programming ............................................................................................... 8
Programming an External EDID.................................................................... 8
Passing HDCP Content................................................................................. 9
Recording an EDID to a EDID Bank ........................................................... 10
Loading an EDID from a EDID Bank........................................................... 11
Saving the Local EDID to a File .................................................................. 12
Uploading an EDID le to the Local Input ................................................... 13
Uploading an EDID le to a EDID Bank ...................................................... 14
03 Advanced Operation
Using the Virtual COM Port................................................................................. 18
Installing the Driver ..................................................................................... 19
Commands.......................................................................................................... 21
04 Appendix
Installing the Gefen EDID Tool+ .......................................................................... 36
Firmware Upgrade Procedure............................................................................. 40
Using the #fw_upgrade command .............................................................. 40
Specications ...................................................................................................... 41

HDMI
Detective Plus
01 Getting Started
Panel Layout ......................................................................................................... 2
Back .............................................................................................................. 2
Top ................................................................................................................ 2
Front.............................................................................................................. 2
Left ................................................................................................................ 2
Installation ............................................................................................................. 4
Connecting the HDMI Detective Plus............................................................ 4
Sample Wiring Diagram ................................................................................ 4

page | 2
Getting Started

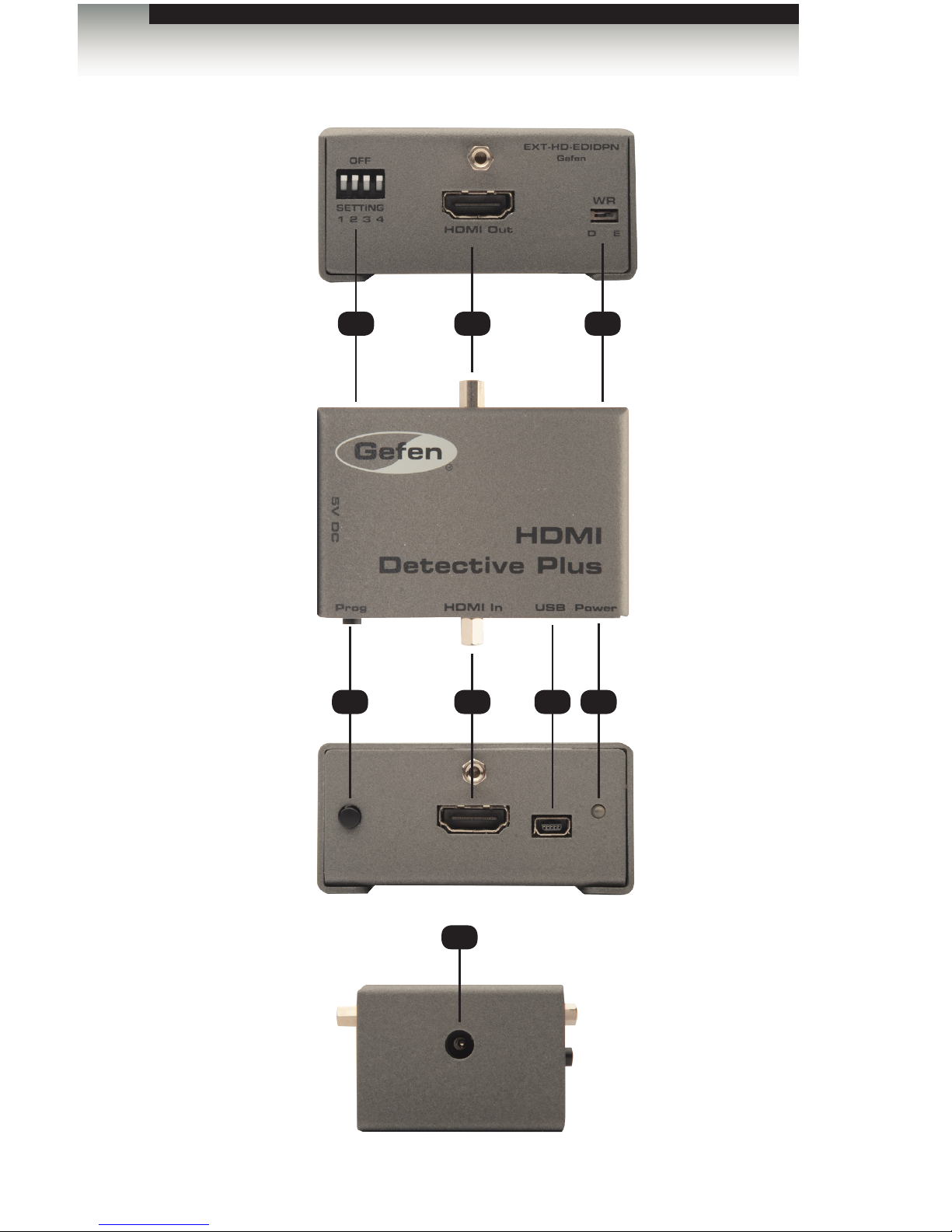

Panel Layout
4
1
5
2
6 7
3
TopFrontLeft Back
8

ID Name Description
1DIP Switches Use this DIP switch bank to select a
pre-programmed EDID. See EDID
Programming for more information.
2HDMI Out Connect the Hi-Def display to this port using
an HDMI cable.
3 WR Write-enable switch. Flip this switch to the
“E” position to allow the HDMI Detective
Plus to be programmed with an EDID. Set
this switch to the “D” position to disable
programming and prevent an accidental
erasure of the current EDID.
4 Prog Press this button to begin programming an
EDID. See EDID Programming for more
information.
5HDMI In Connect the Hi-Def source to this port using
the included HDMI cable.
6USB Connect the included USB Type A to Mini-
USB Type B cable to this connector. This
interface provides serial control for the
detective.
7 Power This LED will glow bright green when the unit
is powered.
8 5V DC Connect the included 5V DC power supply to
this power receptacle.
Getting Started
page | 3
Panel Layout

Page Title
page | 4
Getting Started
Installation
Connecting the HDMI Detective Plus
1. Connect the included HDMI cable from the Hi-Def source to the HDMI input on the
detective. If using a different HDMI cable, this cable should not exceed 30 feet
(10 meters) in length.
2. Use another HDMI cable to connect the display (or other sink) to the HDMI Out
port on the detective. The HDMI cable should not exceed 50 feet (15 meters)
in length.
3. OPTIONAL: Connect a USB-to-Mini USB cable to control the detective using
serial commands. See Using the Virtual COM Port for more information on using this
feature.
4. Connect the included 5V DC power supply to the power receptacle on the detective.
5. Connect the power supply to an available electrical outlet.
Sample Wiring Diagram
STOP: Before connecting the HDMI Detective Plus, the unit must
be programmed with an EDID. See EDID Programming for more
information, before continuing.
EXT-HD-EDIDPN
Hi-Def Source
HD Monitor
HDMI Detective Plus
HDMI CABLE

HDMI
Detective Plus
02 Operating the
HDMI Detective Plus
EDID Programming ............................................................................................... 8
Programming an External EDID.................................................................... 8
Passing HDCP Content................................................................................. 9
Recording an EDID to a EDID Bank ........................................................... 10
Loading an EDID from a EDID Bank........................................................... 11
Saving the Local EDID to a File .................................................................. 12
Uploading an EDID le to the Local Input ................................................... 13
Uploading an EDID le to a EDID Bank ...................................................... 14

page | 8
Before using the HDMI Detective Plus, the unit must be programmed with an EDID. Once
programmed, the EDID data will be read by the source, providing all the necessary details
of the type of signal that the display (or other sink device) can process. When a source
device uses the EDID stored in the HDMI Detective Plus, this is called local mode.
Programming an External EDID
1. Begin by powering-on the display (or other sink device) containing the EDID to be
recorded.
2. Connect a HDMI cable from the sink device to the HDMI Out port on the detective.
3. Make sure all DIP switches are in the OFF position.
4. Set the WR (write) switch to the “E” position in order to allow the EDID to be written
to the detective.
5. Connect the included 5V DC power supply to the detective. The Power LED, on the
other side of the unit, will glow solid green if the sink device contains a valid EDID.
If the EDID is corrupt or invalid, then the Power LED will glow bright red.
6. Press Prog button. The Power LED will slowly ash as the EDID is recorded.
7. Once the EDID has been recorded, the Power LED glow bright green.

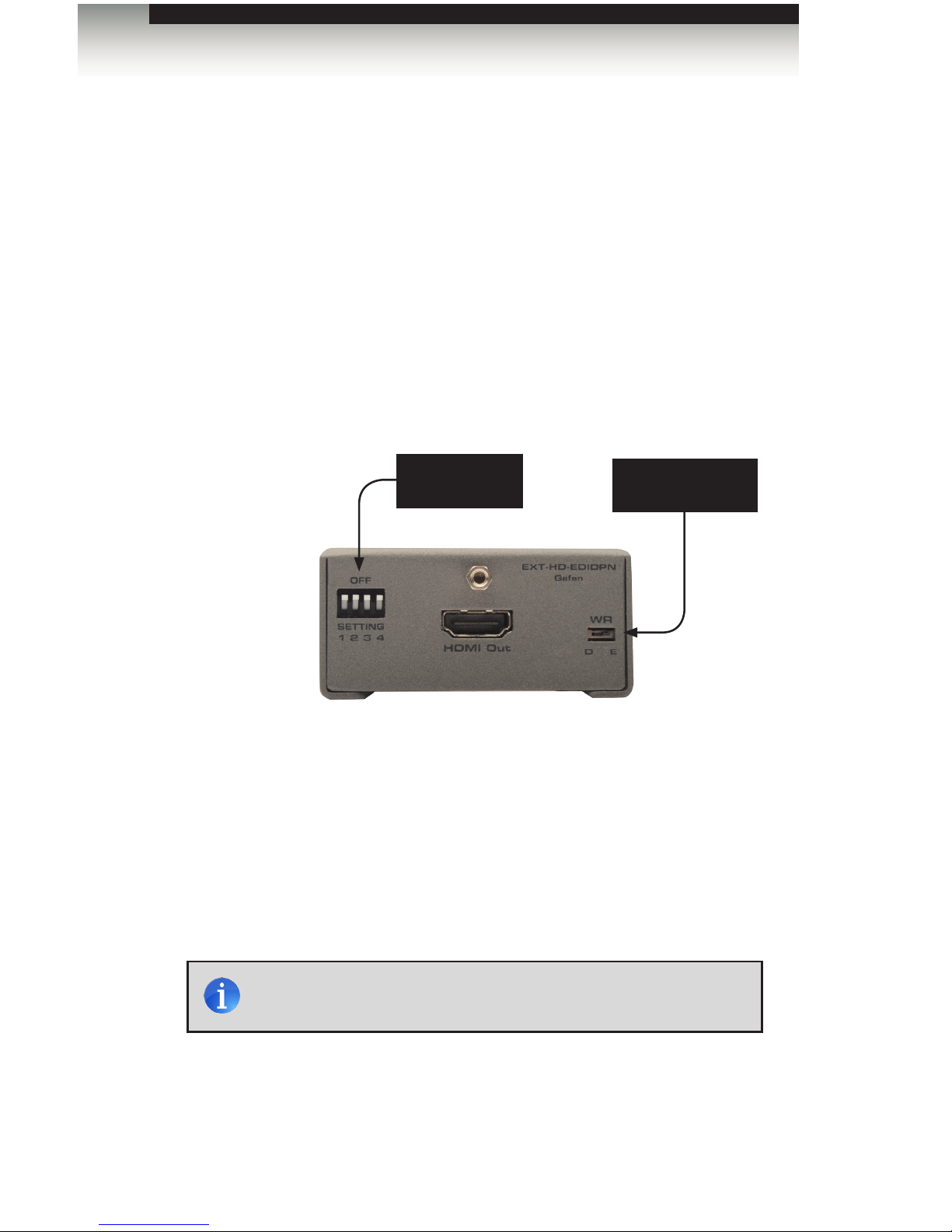

Operating the HDMI Detective Plus
EDID Programming
DIP switches
in OFF position
Slide switch to
the “E” position
NOTE: When the HDMI Detective Plus is used in local mode, HPD
(Hot-Plug Detect) is always high.

page | 9
The table below provides a status summary of the Power LED.
LED Status Conditions
Power Solid green • Detective is powered
• HPD is high
• EDID has been successfully written
(to a EDID bank or the local input)
Solid red • Bad EDID
• HPD is low
Flashing
green
• EDID is being read from sink
• EDID is being read from EDID bank
Passing HDCP Content
In order for the HDMI Detective Plus to pass HDCP content (e.g. Blu-ray, etc.), set DIP
switch 4 to the ON (down) position.
After setting DIP switch 4 to the ON position, reboot the HDMI Detective Plus by
disconnecting and then reconnecting the power.
Page Title
Operating the HDMI Detective Plus
DIP switch 4 in
ON position
EDID Programming
IMPORTANT: When enabling or disabling HDCP pass-through,
the HDMI Detective Plus must be power-cycled in order for the DIP
switch setting to take effect.

page | 10
Operating the HDMI Detective Plus
Recording an EDID to a EDID Bank
When an EDID is recorded, the EDID data is stored on the local input (HDMI input) port.
However, the HDMI Detective Plus also allows EDID data to be stored directly to any of 6
EDID banks. Each EDID can then be recalled at any time. The data in an EDID bank is
saved even when the power is disconnected.
1. Begin by powering-on the display (or other sink device) containing the EDID to be
recorded.
2. Connect a HDMI cable from the sink device to the HDMI Out port on the detective.
3. Connect a USB-to-Mini-USB cable between the detective and a PC. The USB
connection will power the detective.
4. On the PC, launch a terminal-emulation program (e.g. Hyperterminal, etc).
Refer to Using the Virtual COM Port for more information on terminal communication
settings.
5. Execute the #ediddstoba command, speciying the bank in which to store the EDID.
For example, if we wanted to store the EDID in bank 3, we would type and enter the
following command:
#ediddstoba 3
EDID Programming
