GefenTV GTV-HDMI1.3-CAT6 User manual

www.gefentv.com
Extender for HDMI 1.3 over CAT6
GTV-HDMI1.3-CAT6
User Manual

ASKING FOR ASSISTANCE
Rev A1
Technical Support:
Telephone [phone]
[phone]
Fax [phone]
Technical Support Hours:
8:00 AM to 5:00 PM Monday through Friday, Pacific Time
Write To:
Gefen, LLC.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefentv.com
[e-mail]
Notice
Gefen, LLC reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
Extender for HDMI 1.3 Over CAT6 is a trademark of Gefen, LLC
HDMI, the logo, and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing in the United States and
other countries.
© 2009 Gefen, LLC, All Rights Reserved
All trademarks are the property of their respective owners

CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Sender Unit Panel Layout
5 Sender Unit Panel Descriptions
6 Receiver Unit Panel Layout
7 Receiver Unit Panel Descriptions
8 Connecting And Operating The Extender For HDMI 1.3 Over CAT-6
9 Network Cable Wiring Diagram
10 Mounting Plate Installation
11 Specifications
12 Warranty

1
Congratulations on your purchase of the Extender for HDMI 1.3 Over CAT-6.
Your complete satisfaction is very important to us.
Gefen TV
Gefen TV is a unique product line catering to the growing needs for innovative
home theater solutions. We specialize in total integration for your home theater,
while also focusing on going above and beyond customer expectations to ensure
you get the most from your hardware. We invite you to explore our distinct
product line and hope you find your solutions. Don’t see what you are looking for
here? Please call us so we can better assist you with your particular needs.
The Gefen TV Extender for HDMI 1.3 Over CAT6
The GefenTV HDMI 1.3 Over CAT6 Extender sends HDMI signals over just two
unobtrusive CAT6 cables -- up to 160 feet (50 meters). The GefenTV HDMI 1.3
Over CAT6 Extender supports HDMI 1.2 and the newer HDMI 1.3 with features
such as Deep Color, 1080p and uncompressed 7.1 audio. DVI-D Computer video
can also be transmitted with a DVI-to-HDMI cable (please see the optional ac-
cessories).
By using standard and widely available CAT6 cables, the GefenTV HDMI 1.3
Over CAT6 Extender makes HDMI signal extensions easier than with heavy and
expensive copper cables and more robust than with optical fiber. The Extender’s
pure digital transmission method insures 100% signal integrity over extended
distances.
How It Works
The GefenTV HDMI 1.3 Over CAT6 Extender system consists of a sender and
a receiver. The HDMI source (set-top box, DVD player, or gaming console) con-
nects to the sender box with the supplied 6 foot HDMI cable. The receiver box
connects to the HDTV display in the same way -- up to 160 feet (50 meters)
away. Two CAT6 cables link the sender and receiver. Power is applied to the
sender and receiver with the included 5V DC power supplies. A crisp, flawless
HDMI picture emerges on the HDTV display.
INTRODUCTION

2
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE EXTENDER FOR HDMI 1.3 OVER CAT6
• The distance at which the Extender for HDMI 1.3 Over CAT6 will carry a
signal will vary depending on the source’s resolution and features.
- 160 feet (50 meters) at 1080p with 10-bit Deep Color and all supported
audio formats.
- 125 feet (40 meters) at 1080p with 12-bit Deep Color and all supported
audio formats.
• All The following specifications are based on high-quality CAT-5e cabling:
- 125 feet (40 meters) at 1080p with 10-bit Deep Color and all supported
audio formats.
- 50 feet (15 meters) at 1080p with 12-bit Deep Color and all supported
audio formats.
• Both CAT-6a cables (VIDEO and DDC) must be used for extension.
• HDMI 1.3 compliant. Please see page 3 for a list of supported HDMI 1.3
features.
OPERATION NOTES

3
HDMI 1.3 Features
• 225 MHz (up to 12 bit YUV 444 Supported @ 1080p)
• Deep Color
• Dolby TrueHD and DTS-HD Master Audio Supported
• Lip Sync
• CEC Pass-Through
Features
• Extends 1080p, 10-bit Deep Color up to 160 feet (50 meters)
• Supports lossless compressed digital audio (Dolby TrueHD, Dolby Digital
Plus and DTS-HD Master Audio)
• Audio and video are transmitted digitally over the CAT-6a cable for zero
signal loss.
• Maximum resolutions: 1080p, 12 bit color depth, 1920x1200 @ 60 Hz
• Equalizes and recovers incoming TMDS data before re-transmitting the
signal with optimal quality regardless of the incoming signal quality
• Eliminates equipment noise in the viewing environment
• Improved compensation for cable skew
• Compliant with HDMI 1.3, HDCP 1.1 and DVI1.1 standards
• HDCP compliant
Package Includes
(1) GefenTV Extender for HDMI 1.3 over CAT-6 Sender Unit
(1) GefenTV Extender for HDMI 1.3 over CAT-6 Receiver Unit
(1) 6 ft. HDMI cable (M-M)
(2) 5V DC Power Supply
(1) Set of Wall Mounting Plates
(1) User Manual
FEATURES

4
Back Panel
Front Panel
4 5
3
12
SENDER UNIT PANEL LAYOUT

5
1 HDMI Input Port
Connect the HDMI source to this input port.
2 Power Indicator LED
This LED indicator will become active once the included 5V DC power adapter
has been properly connected between the sender unit and an open wall power
socket.
3 5V DC Power Input Port
Connect the included 5V DC power supply to this input port.
4 CAT-6 Port (DDC)
Connect aANSI/TIA/EIA-568-B terminated CAT-6a cable between this DDC port
and the DDC port on the receiving unit.
5 CAT-6 Port (Video)
Connect aANSI/TIA/EIA-568-B terminated CAT-6a cable between this VIDEO
port and the Video port on the receiving unit.
SENDER UNIT PANEL DESCRIPTIONS

6
Back Panel
Front Panel
4 5
123

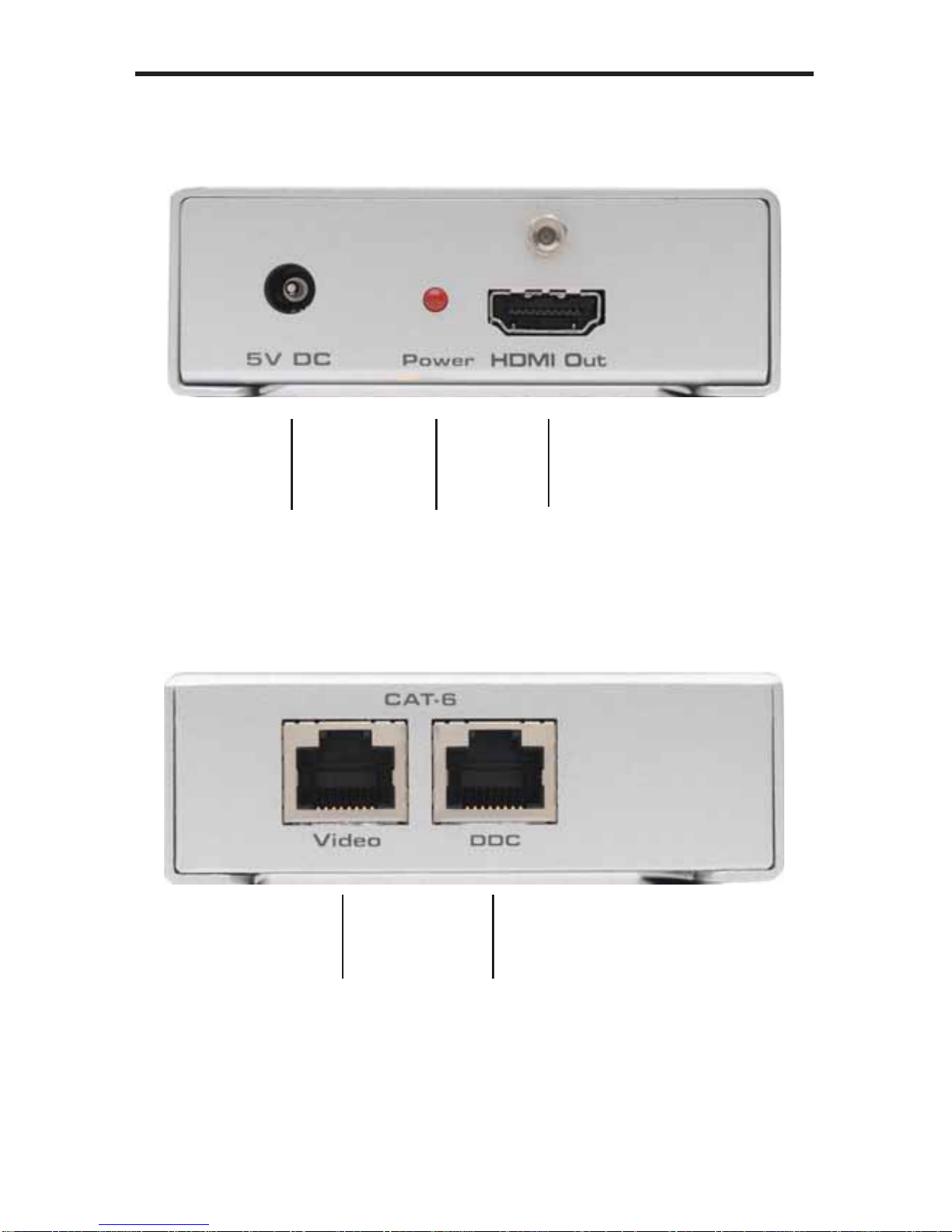

RECEIVER UNIT PANEL LAYOUT

7
1 5V DC Power Input Port
Connect the included 5V DC power supply to this input port.
2 Power Indicator LED
This LED indicator will become active once the included 5V DC power adapter
has been properly connected between the sender unit and an open wall power
socket.
3 HDMI Output Port
Connect the HDMI capable output device to this port.
4 CAT-6 Port (Video)
Connect aANSI/TIA/EIA-568-B terminated CAT-6a cable between this VIDEO
port and the Video port on the sending unit.
5 CAT-6 Port (DDC)
Connect aANSI/TIA/EIA-568-B terminated CAT-6a cable between this DDC port
and the DDC port on the sending unit.
RECEIVER UNIT PANEL DESCRIPTIONS

8
How to Connect the Extender for HDMI 1.3 Over CAT6
1. Connect the HDMI source device to the Extender for HDMI 1.3 Over CAT6
sender unit using the supplied HDMI cable.
2. Connect one pair of CAT-6a* cables between the VIDEO and DDC ports on
the sender and receiver.
*NOTE: This product was designed for use with CAT-6a (Augmented CAT-6)
cabling that is terminated according to the ANSI/TIA/EIA-568B specification. CAT-
5e and CAT-6 cable can be used but distance ratings will be shortened. ANSI/
TIA/EIA-568A termination can be used but may cause marginal distance loss.
3. Connect the HDMI capable output device to the Extender for HDMI 1.3 Over
CAT6 receiver using a user supplied HDMI cable.
4. Connect the included 5V DC power supplies to both the sender and receiver
units.
5. Power on the output device first and the source second.

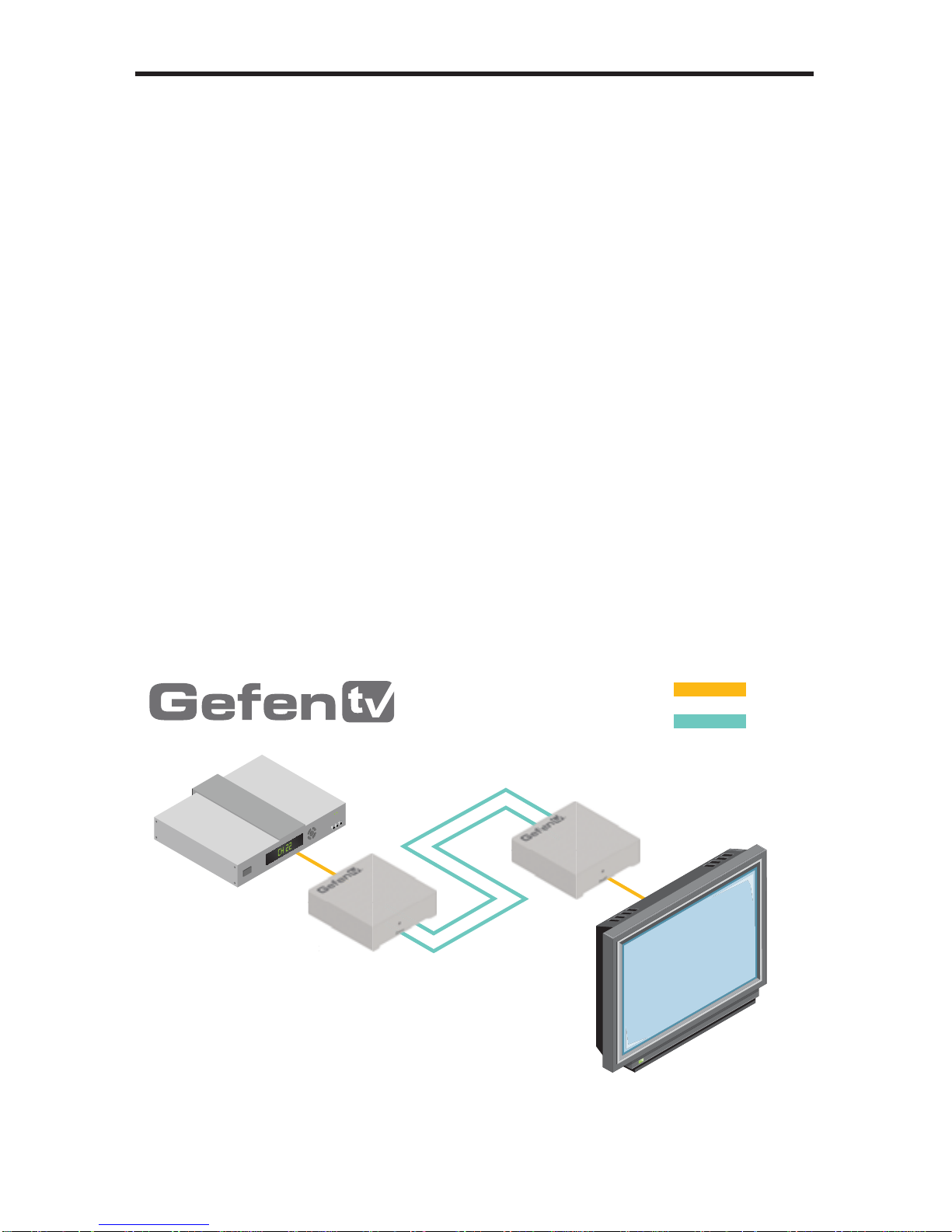

Wiring Diagram for the GefenTV Extender for HDMI 1.3 over CAT6
CONNECTING AND OPERATING THE
EXTENDER FOR HDMI 1.3 OVER CAT6
GTV-HDMI1.3-CAT6
DVD Player
HDTV
Receiver
Sender
HDMI CABLE
CAT-6 CABLE
(Up To 160 FT)
Sender

12345678

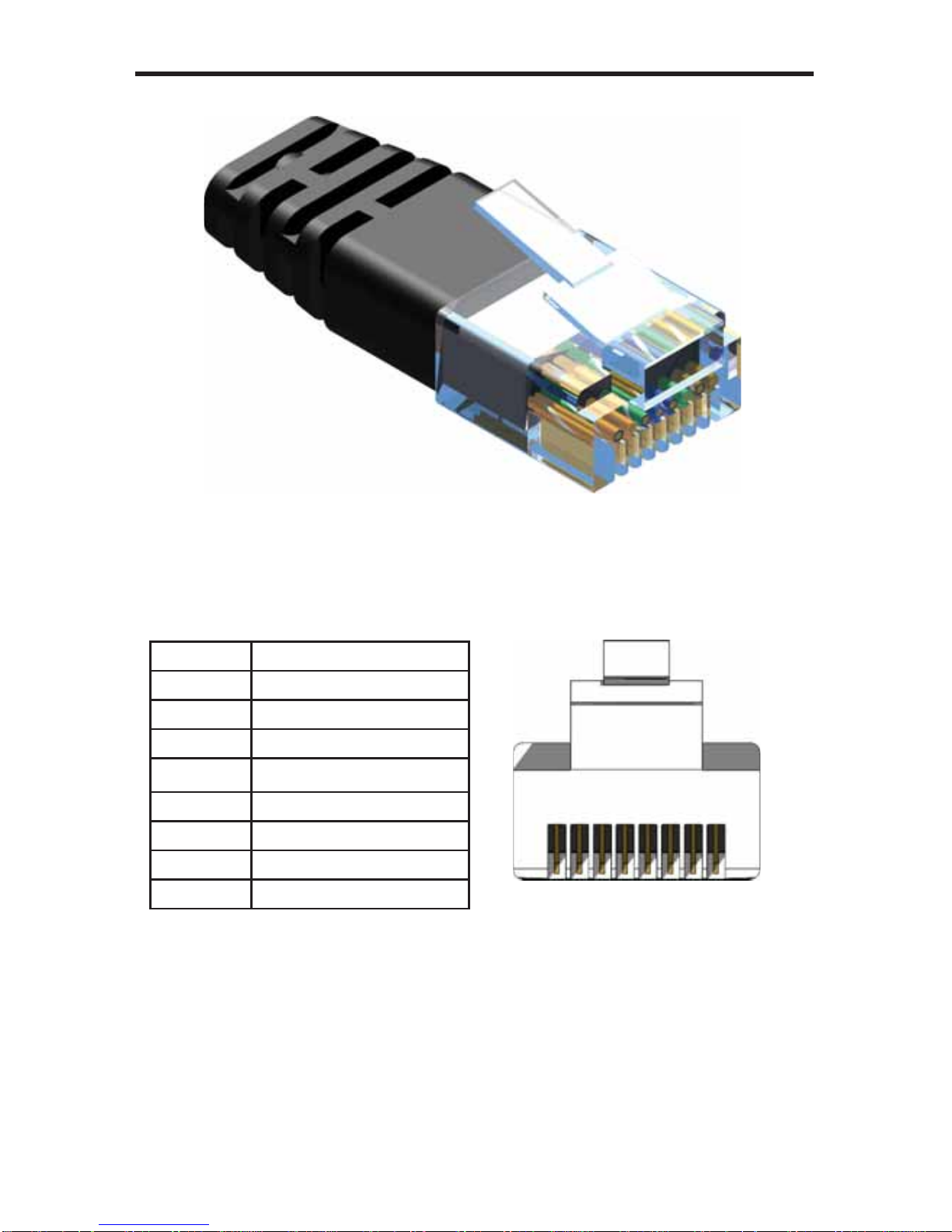

Gefen has specifically engineered their products to work with the TIA/EIA-568-B
specification. Please adhere to the table below when field terminating cable for
use with Gefen products. Failure to do so may produce unexpected results and
reduced performance.
CAT-5, CAT-5e, and CAT-6 cabling comes in stranded and solid core types.
Gefen recommends using solid core cabling. CAT-6 cable is also recommended
for best results.
Each cable run must be one continuous run from one end to the other. No splices
or use of punch down blocks.
Pin Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
9
NETWORK CABLE WIRING DIAGRAM

10

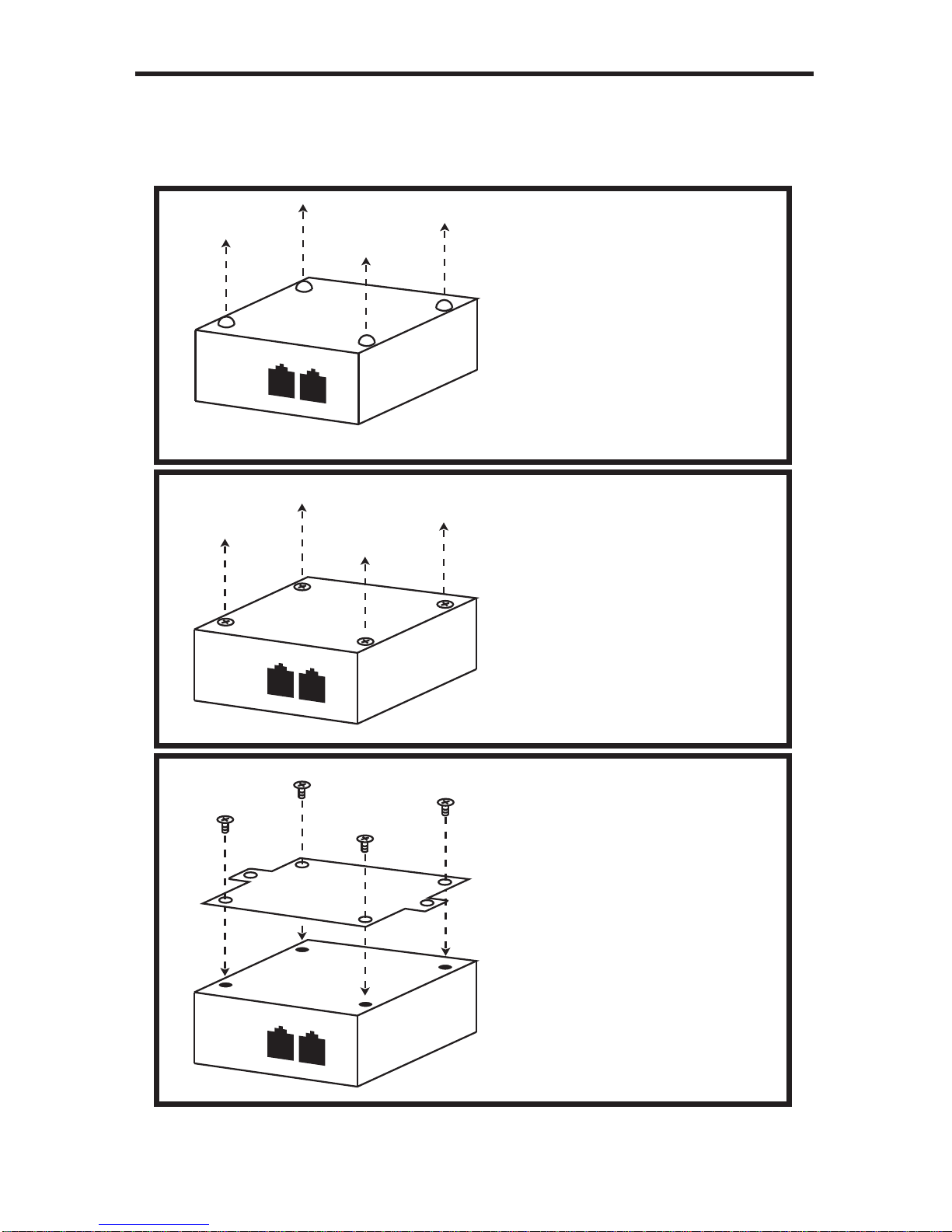

1
2
3
Remove the rubber
feet covering the screws
off the bottom of the
unit.
Remove the screws.
Line up the mounting
plates and screw it on to
the unit.
Mounting Plate Installation
MOUNTING PLATE INSTALLATION

11
Video Amplifier Bandwidth ....................................................................... 225 MHz
Video Output ........................ 1080p, 12 bit color depth, 2k and 1920x1200 (max.)
Input DDC Signal ......................................................................... 5 Volts p-p (TTL)
Input Video Signal .............................................................................. 1.2 Volts p-p
HDMI Connectors (Sender Unit / Receiver Unit) ...........(2) Type A, 19-pin Female
Link Connector (Sender Unit / Receiver Unit) .......................... (2) RJ-45 Shielded
Power Supply .............................................................................................. 5V DC
Power Consumption ...................................................................... 20 Watts (max.)
Operating Temperature ............................................................................ 0 - 40 °C
Shipping Weight ............................................................................................ 3 lbs.
Dimensions ........................................................................3.4” W x 1.3” H x 3.3” D
SPECIFICATIONS

12
WARRANTY
G
e
f
en warrants the equipment it manu
f
actures to be
f
ree
f
rom de
f
ects in material
and workmanship.
I
f
equipment
f
ails because o
f
such de
f
ects and
G
e
f
en is noti
fi
ed within two
(
2
)
y
ears
f
rom the date o
f
shipment,
G
e
f
en will, at its option, repair or replace the
e
quipment, provided that the equipment has not been sub
j
ected to mechanical,
e
lectrical, or other abuse or modi
fi
cations. Equipment that
f
ails under conditions
other than those covered will be repaired at the current price o
f
parts and labor in
eff
ect at the time o
f
repair.
S
uch repairs are warranted
f
or ninet
y
(
90
)
da
y
s
f
rom
the da
y
o
f
reshipment to the Bu
y
er.
This warrant
y
is in lieu o
f
all other warranties expressed or implied, includin
g
without limitation, an
y
implied warrant
y
or merchantabilit
y
or
fi
tness
f
or an
y
p
articular purpose, all o
f
which are expressl
y
disclaimed.
1. Proo
f
o
f
sale ma
y
be required in order to claim warrant
y
.
2.
C
ustomers outside the U
S
are responsible
f
or shippin
g
char
g
es to and
f
rom
G
e
f
en.
3
.
C
opper cables are limited to a 30 da
y
warrant
y
and cables must be in their
ori
g
inal condition.
The in
f
ormation in this manual has been care
f
ull
y
checked and is believed to
be accurate. However,
G
e
f
en assumes no responsibilit
y
f
or an
y
inaccuracies
that ma
y
be contained in this manual. In no event will
G
e
f
en be liable
f
or
direct, indirect, special, incidental, or consequential dama
g
es resultin
g
f
rom
an
y
de
f
ect or omission in this manual, even i
f
advised o
f
the possibilit
y
o
f
such
dama
g
es. The technical in
f
ormation contained herein re
g
ardin
g
the
f
eatures and
s
peci
fi
cations is sub
j
ect to chan
g
e without notice.
For the latest warrant
y
covera
g
e in
f
ormation, please visit
G
e
f
en’s Warrant
y
web
p
a
g
e at http:
//
www.
g
e
f
en.com
/
kvm
/
aboutus
/
warrant
y
.
j
s
p
P
RODUCT REGISTRATIO
N
P
lease re
g
ister
y
our product online b
y
visitin
g
Gefen’s web site at
http://www.
g
efen.com/kvm/Re
g
istr
y
/Re
g
istration.
j
sp

20600 Nordhoff St., Chatsworth CA 91311
1-800-545-6900 818-772-9100 fax: [phone]
www.gefentv.com [email protected]
Rev A1
