1. Electrical outlet
The EnOcean gateway is a serial interface for integrating wireless radio transmitters. EnOcean devices
can be connected to the myGEKKO by means of this interface.
EnOcean radio modules are based on miniaturised energy converters, extremely power-saving elec-
tronics and reliable radio technology.
Technical data
Input voltage range 12 - 30VDC or 12 – 24VAC
Current consumption max. 40 mA
Radio module TCM120
Wireless protocol EnOcean standard (PTM/
STM/CTM)
Antenna integrated
Connection 8-pin plug terminals for T-
wire cable 1x4x0.8mm2
Housing Plastic ABS
Dimensions 80 x 80 x 25 mm
Weight 80g
Protection class IP 20
Operating temperature -5°C ... +40°C, rel. humidity
(non-condensing) 5 ... 90%
EnOcean Gateway
The EnOcean gateway (Art. nr. ACC-ENO01) is con-
nected to an RS232 interface on the myGEKKO.
The gateway can be connected to either a free
interface directly on the myGEKKO Touch or the
interface distributor USB/quadruple RS232 (Art. nr.
ACC-RS201). A maximum of 5 interfaces are avail-
able on a myGEKKO Touch with distributor.
To connect the gateway to an RS232 interface
a RS232/RS485 converter (Art. nr. ACC-RS401) is
required
Connection to the myGEKKO Touch
Connection via Interface
RS485
COM 1
with RS232 / RS485 converter
COM 2
with RS232 / RS485 converter
USB-COM 1-4
vit USB interface distributor and
RS232 / RS485 converter

5

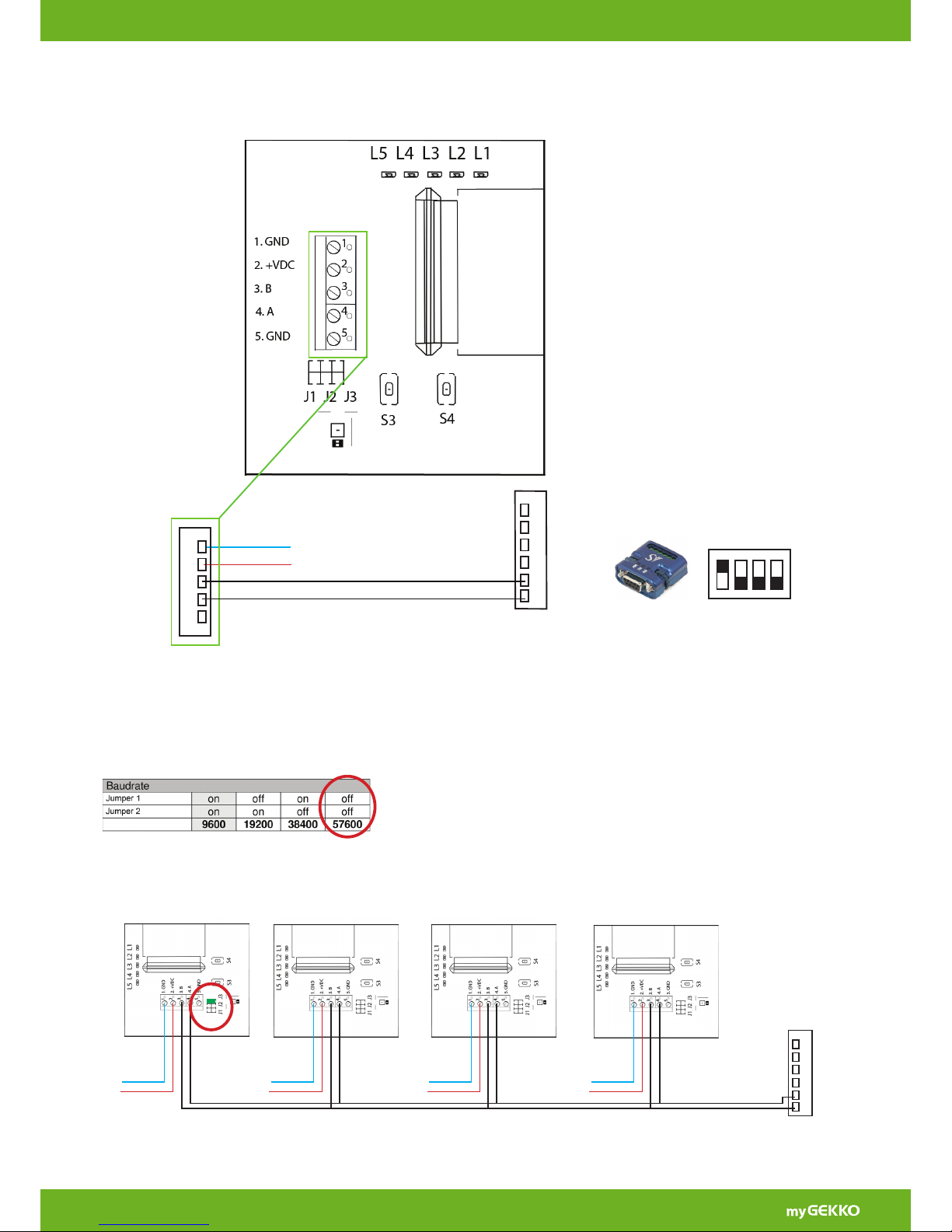

Connection details
Baud rate
The baud rate is to be set to 57600 on the EnOcean gateway, i.e. jumpers J1 and J2 are not set.
Jumper J3 is for setting the terminating resistor. This is set at the last gateway in the line.
PWR+
Terminal 1
Terminal 2
Terminal 3
Terminal 4
Terminal 5
PWR-
RX-
RX+
TRX-
TRX+
+24VDC
GND
Optional power
supply: 7-12VDC
1
2
A
B
Jumper SW1 (485-2W)
must be in position ON!
Interface converter
RS232/RS485 Art. ACC-RS401
PWR+
PWR-
RX-
RX+
TRX-
TRX+
+24VDC +24VDC +24VDC +24VDC
GND GND GND GND

6
2. Software activation on the myGEKKO
Gateway conguration
Log in as congurator.
In the main settings change to IO conguration .1.
The EnOcean gateway can be congured to the IO stations 5-8. For this, set the station to En-2.
Ocean. Select the respective port and set the baud rate to 57600.
Under ‘Conguration >>’tap a free gateway and set the desired address. (each address must be3.
used only once – avoid duplicate addresses)
Now press the S4 button on the EnOcean gateway for more than 1 second to read-in the current4.
ID nr. of the gateway. You can read it out from the ‘LRN-MESSAGE-ID’ eld.
If the current address of the gateway is known you can change it via Change ID. (NEW ID is the new
address)
Caution! For security reasons, the addresses of the EnOcean gateways cannot be changed more than
10 times.
To test the conguration you can use the buttons LED 5 ON/OFF to switch the Led5 on and o. The
connection works properly, if the LED on the gateway switches on/o. Additionally, myGEKKO re-
sponds with an ‘OK’ message.

7
Read-in of radio transmitters
Each radio transmitter has a unique ID. This ID has to be taught-in by the gateway or entered manu-
ally in the list of participants.

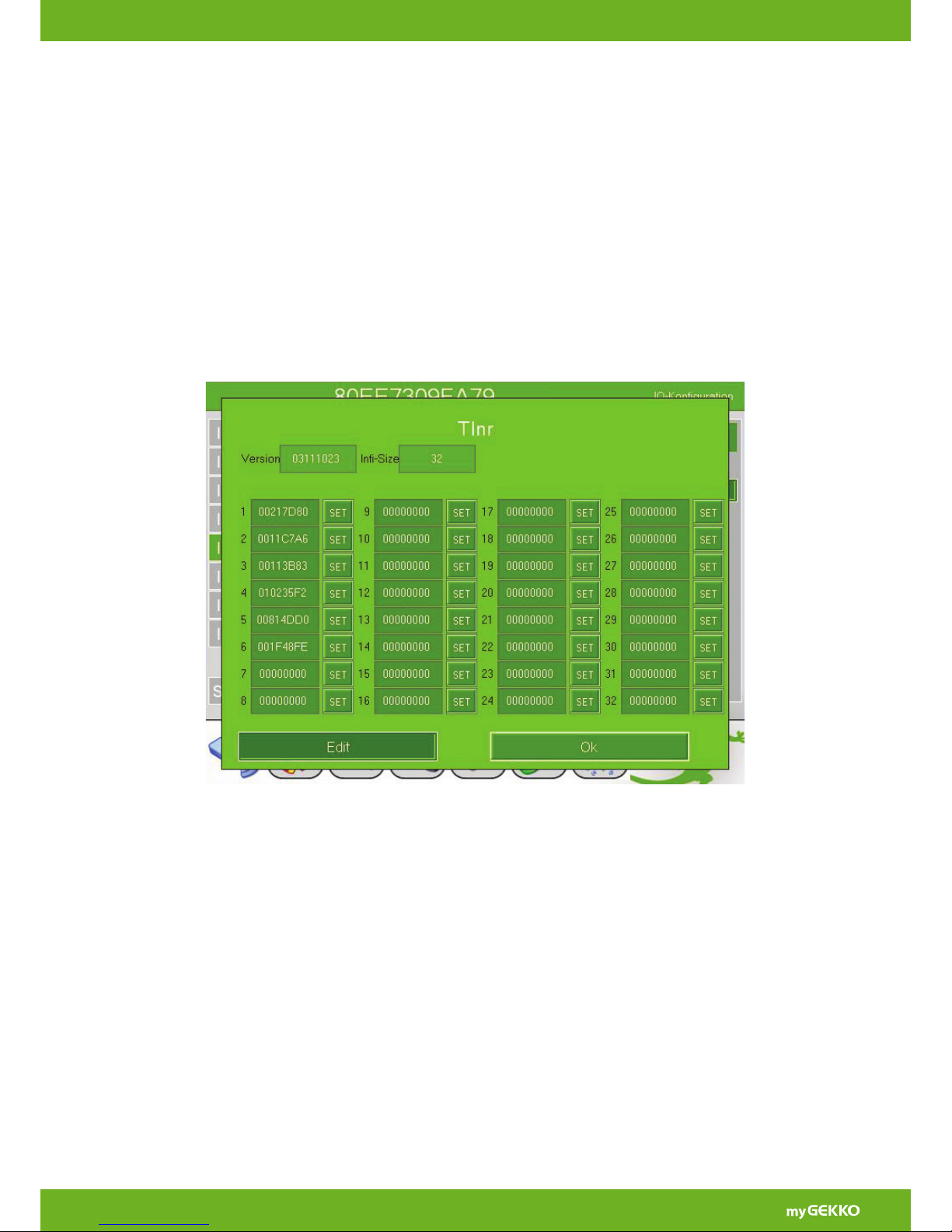

Entering participants manually:
Usually, an 8-digit ID can be found on the backside of the radio transmitter. This ID can be entered in
the list of participants of the myGEKKO. Therefore, go to the ‘TLNR’ menu of the gateway, press ‘Edit’
and set the participant number via ‘SET’. Press EDIT again to exit the edit mode.
Now the gateway can communicate with the wireless transmitter.
Teach-in of participants:
Press the S3 button for more than 1 second to start the read-in mode. Now, LED3 on the gateway is
red and the LRN eld on the myGEKKO orange. Conrm the programming/learn button on the wire-
less transmitter (press push-button at push-button) and it will be taught-in automatically on the gate-
way. Now you can control the newly taught-in ID of the wireless transmitter in the participants list of
the myGEKKO.
After the teach-in the programming/learning mode needs to be deactivated. For this, press the S3
button on the gateway again for 1 second.
Caution! Only one radio transmitter must send when the gateway is in programming/learning mode.
If multiple transmitters send simultaneously, all of them will be read in
