GEM gk300 User manual

Version Changeable
The electric strike can be used automatically and
manually
CSIRO Fire-resistance Certificate
Long life solenoids
2000 LBS jaw strength pull testing
Statement
Features
GIANNI INDUSTRIES, INC.
No.306-1, Hsin Shu Road, Hsin Chuang, Taipei,Taiwan 242
TEL: [phone] FAX: [phone]
E-Mail: [email protected]
Website: gianni.tw
Copyright © 2008 Gianni industries, inc. All rights reserved.
DM-CA-GK300 Ver. D Published on 2008.07.30
The products are manufactured under an ISO
9001 QC 080000 Certified Quality
Management Program environment back its
product quality, performance and commitment
to customer satisfaction.
&
GP001
Gk300
Gk301
GK300M
GK301M
Gk300 series
ANSI Sized Electric Strike
The GK-300 series electric strikes (ANSI-sized) are
designed for used with lockset (ex. spring latch), having up to
12 mm keeper depth for in-swinging doors. The units are
design for using with most hollow metal frames and aluminum
frames. Stainless steel plate ensures strength and long life.
Gk310
Gk311
Gk350
GK310M
GK311M
Unit : mm
Dimension
GK300
GK300M
GK301
GK301M
40
45
18
124
33
17
3
202
GK310
GK310M
GK311
GK311M
40
38
18
124
33
17
3
38
202
Patents
ZL 99 2 48179.1(China)
US 6299225 B1(U.S.A.)
GB2355753 (UK)
166716 (Taiwan)

38
GIANNI INDUSTRIES, INC.
No.306-1, Hsin Shu Road, Hsin Chuang, Taipei,Taiwan 242
TEL: [phone] FAX: [phone]
E-Mail: [email protected]
Website: gianni.tw
The products are manufactured under an ISO
9001 QC 080000 Certified Quality
Management Program environment back its
product quality, performance and commitment
to customer satisfaction.
&
GP001

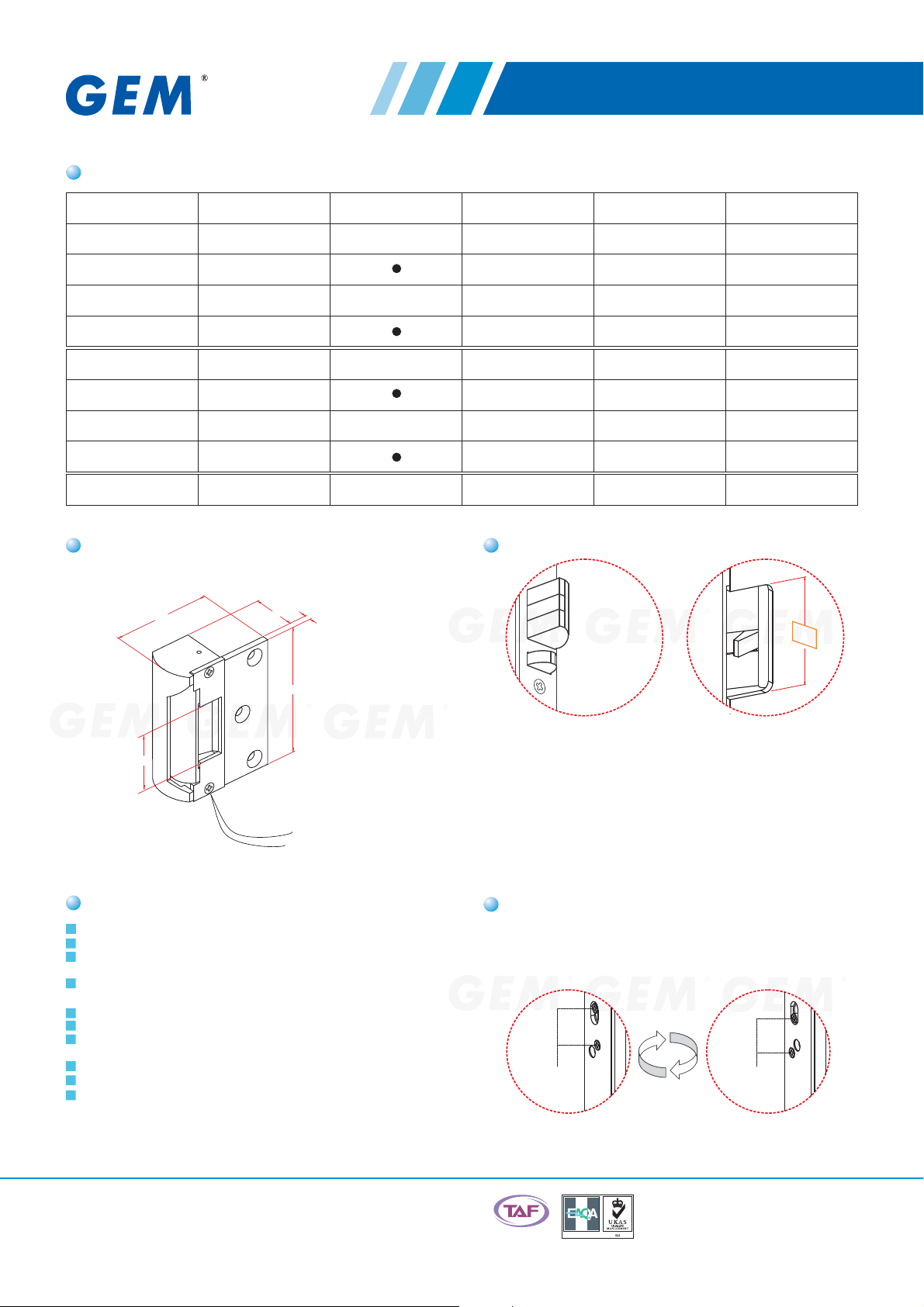

Model Comparison List
Model
GK300
GK300M
GK301
GK301M
GK310
GK310M
GK311
GK311M
Gk350
Door frame Switch
Monitored Installation
Application
Lockset Optional Accessory
Hollow metal
Frames
Hollow metal
Frames
Hollow metal
Frames
Hollow metal
Frames
Hollow metal
& Wood Frames
Wood
Frames
Wood
Frames
Wood
Frames
Wood
Frames
Spring latch
Spring latch
Spring latch
Spring latch
Night Latch
Flush Mounting LP-025, LP-050
LP-025, LP-050
LP-025, LP-050
LP-025, LP-050
LP-025, LP-050
LP-025, LP-050
LP-025, LP-050
LP-025, LP-050
Flush Mounting
Flush Mounting
Flush Mounting
Flush Mounting
Flush Mounting
Flush Mounting
Flush Mounting
Surface Mounting
Specifications
Power Input: 12 V DC (24V DC available by special order)
Voltage Tolerance: 15%
Current Draw: 0.25 A@12 VDC; 0.15 A@24 VDC
at temperature 20°
Sensor Switch monitored output (optional model), Rating
2A@125V, indicates the lockset locked or unlocked status.
Operating Temperature: -10~45°
Humidity: 0~95% non-condensing.
Lock's surface Temperature (when the power is on):
<current temperature +20°
2000 LBS jaw strength pull testing.
Tested to 1,000,000 cycles.
Weight Approx. : 380 g
±
(C)
C
C
()
Dimension What's Latch bolt lock ?
Version Changeable
Unit : mm
28.5
4
40
86
62
The series electric strike is easy changeable between fail-
safe and fail-secure in the field. This unique design can help
our distributors to reduce the inventory and sales pressure
and to meet varying needs and requirements.
1
2
1
2
"Fail-Secure"
(Power to Open)
"Fail-Safe"
(Power to Lock)
Gk300 series
ANSI Sized Electric Strike
Latch bolt
Latch-bolt lock
Latch-bolt lock
Latch-bolt lock
Latch-bolt lock
Nib
A latch-bolt lock that is a lock equipped with a Nib and a latch
bolt. When the door is closed, the Nib will make the latch bolt a
dead latch, and latch bolt will slide from door into frame and
momentarily fills into the cavity of strike keeper that
preventing the door from opening or the latch bolt from
jimmying. The Nib This security feature is more suitable for
outward opening doors.
Copyright © 2008 Gianni industries, inc. All rights reserved.
DM-CA-GK300 Ver. D Published on 2008.07.30

In-swinging
Night Latch
GIANNI INDUSTRIES, INC.
No.306-1, Hsin Shu Road, Hsin Chuang, Taipei,Taiwan 242
TEL: [phone] FAX: [phone]
E-Mail: [email protected]
Website: gianni.tw
The products are manufactured under an ISO
9001 QC 080000 Certified Quality
Management Program environment back its
product quality, performance and commitment
to customer satisfaction.
&
GP001
Gk300, 310 Hollow Metal Frames Flush Installation
In-swinging
Gk301, 311 Wood Frames Flush Installation
Gk350 Surface Mount Installation
Lip extension brackets for the wide jamb.
50
25
LP-050 LP-025
Optional Accessory
CSIRO Fire-resistance Certificate
Long life solenoids
Latch Monitoring Output
Special solenoid designed for strength and long life and is
guaranteed the operating lifetime of at least 1,000,000 times.
The GEM's product of the alternative items of materials or
assemblies have been proved to have withstood a fire
resistance as established in accordance with the test
procedures of Sponsored Investigation FSV 0609 and the
terms of clause 4.1 of Australian Standard 1905, Part 1-1997.
The models with "Sensor Switch monitoring output" function
indicates the lockset locked or unlocked status.
When the door is opened, in the
result the sensor switch will cause
the “green - yellow” wire
connectedtogether.
When the door is closed, in the
result the sensor switch will cause
the “green - blue” wire connected
together.
Gk300 series
ANSI Sized Electric Strike
Copyright © 2008 Gianni industries, inc. All rights reserved.
DM-CA-GK300 Ver. D Published on 2008.07.30

GIANNI INDUSTRIES, INC.
No.306-1, Hsin Shu Road, Hsin Chuang, Taipei,Taiwan 242
TEL: [phone] FAX: [phone]
E-Mail: [email protected]
Website: gianni.tw
The products are manufactured under an ISO
9001 QC 080000 Certified Quality
Management Program environment back its
product quality, performance and commitment
to customer satisfaction.
&
GP001
GK300-9
Hollow metal jamb installation
GK301-9
Wooden jamb installation
GK300M-9
Hollow metal jamb installation
GK301M-9
Wooden jamb installation
Unique narrow strike base designed
for streamline door jamb solution.
narrow jamb
The GK300-9 series electric strikes are designed for use with
Door Latch, having up to 12 mm keeper depth for in-swinging
doors. In addition, an added indent to the latch to overcome
problems with some of the mortice locks sticking on the
opening.
Unit : mm
GK300-9
GK300M-9
GK301-9
GK301M-9
33 33
45
18
124
33
17
3
202
Gk300 series
ANSI Sized Electric Strike
The product is warranted against defects in material and
workmanship while used in normal service for a period of 3
year from the date of sale to the original customer. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
Warranty
