Gembird KBS-1400 User manual

UPS with AVR
UPS with automatic
output voltage regulation

UPS with AVR
Disclaimer
We spared no efforts to make sure that the information in this manual is correct and
complete. However no liability is accepted for any errors or omissions. Gembird
Electronics reserves the right to change the specifications of the hardware and
software described in this manual without prior notice.
No part of this manual may be reproduced, transmitted or translated in any language
in any form, by any means, without the prior written permission of Gembird
Electronics Ltd.
Gembird Electronics makes no warranties for damages resulting from corrupted or
lost data due to a mistaken operation or malfunction of the product, the software,
personal computers or peripheral devices.
Gembird® is a registered trademark of GMB Tech (Holland) bv.
Other names or products not mentioned above may be registered trademarks or
trademarks of their respective owners.
Copyright © 2008 Gembird Electronics Ltd. All rights reserved.

UPS with AVR
Introduction
Thank you for buying the Gembird® UPS with automatic output voltage regulation!
This manual will help you install and use it properly.
UPS User manual

UPS with AVR
Features
Automatic output voltage regulation (AVR)
USB controlling interface (for advanced models)
LED status indication
Short circuit protection
Surge, spike and lightning protection
Audible and visual alarms
Overcharge and over discharge protection
Fax/Modem/Telephone or other protection socket (for advanced models)
Package contents
UPS
Power cord
Spare fuse
USB cable and software CD (for advanced models)

UPS with AVR
Specifications

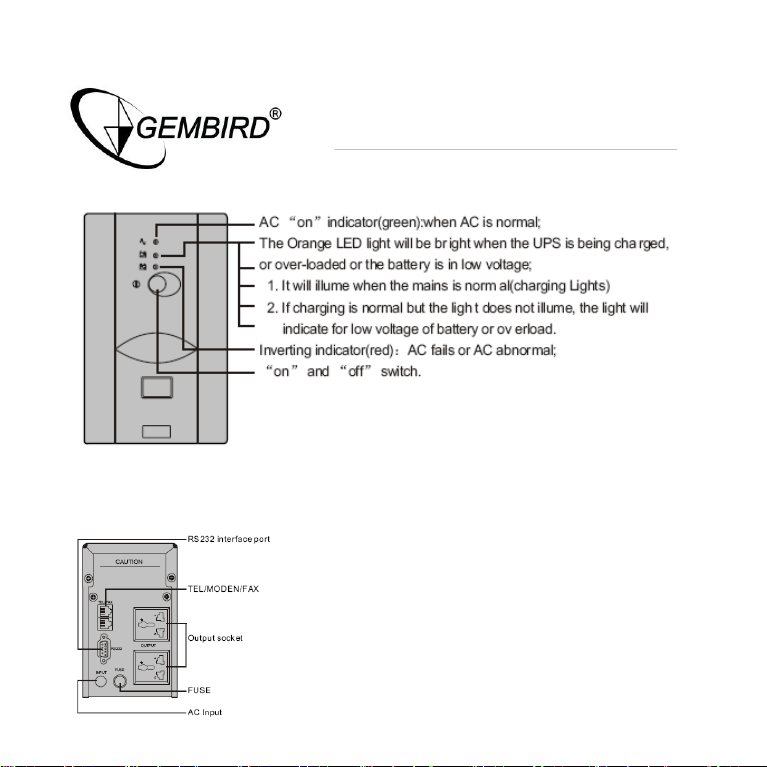

UPS with AVR
Remarks about Safety
In order to keep safe in using the UPS, please comply with the following:
Please charge the battery at least 12 hours before the UPS is in operation.
After the battery is discharged or over three months without operation, the
battery should be charged immediately for at least 12 hours, ensuring the
battery is full and avoiding any unnecessary damage of the battery.
The UPS is specially designed for computer only and it should not be connected
with any inductive or capacitive load, or the pure resistance full load, like
electromotor, daylight lamp, laser printer, etc.
It is normal that the temperature of the UPS surface reaches up to 50 when it is
in operation.
When AC fails and the ON button on the front panel is pressed, the UPS will
output voltage; if the OFF button on the front panel is pressed, the UPS will not
output voltage.
It is forbidden to open the case, because there is danger with electricity. If there
is problem, please handle with the instruction of experts.
It is forbidden to put container containing liquid inside on the UPS, because it will

UPS with AVR
cause danger of electric shock or fire when the UPS short-circuits.
When the UPS work looks abnormal, please cut off power immediately and turn
to experts or the dealer for help.
Do not overload the UPS. Otherwise, it would cause danger.
It is strictly forbidden to place and operate the UPS in the following environment:
oPlace with inflammable gas or corrosive gas or much dust
oPlace with very high temperature or very low temperature (above 42C
or below 0C) or high humidity(above 90C )
oPlace with direct sunlight or near heater
oPlace with strenuous vibration
oOutside
Please use dry powder fire extinguisher in case of fire; it is forbidden t o use fluid
fire extinguisher because it will cause electric shock.
Please put the socket near the UPS, in this way, it is convenient to disconnect the
socket and cut off power in case of emergency.
 The UPS is not suitable for being used in life support systems, because it may
have some problems and bring trouble to the life support systems . The
responsibility will lay on the end-users, if they insist on using the UPS in life

UPS with AVR
support systems.
ALARM: The UPS must be connected to the grounded AC mains!

UPS with AVR
Working Principle
In AC mode
When UPS is in normal working mode, AC goes through the filter and the harmful waves
are filtered. After that, AC charges the battery and meanwhile, passes UPS AVR and the
filter and provide power for the equipment.
AC Failure
When AC fails, the battery will supply power to the inverter and then passes filter and
provide power for the equipment, ensuring the continuous power supply.

UPS with AVR
Battery and Charging
1. When the UPS is connected to AC, the charger will charge the battery fully in
about 10 hours.
2. When the battery is used up, please charge the battery immediately so that to
prolong the life of the battery.
