Gemini GD20SS User manual

GD20SS Dehumdifier
User’s Manual

• Important Safe Guards
• Room Environment For Operating
• Components Diagrams
• Operating Introduction
- Functions of Control Panel & Key Pads
- Operation of Key Pads
- Automatic Defrosting
- Water Full Protect Function
- Compressor Stop / Start Working Function
- Low & High Temperature Protection Function
- Failures Of Humidity & Temperature Sensor
- Refrigerant leakage Test Function
• Maintenances & Cleaning
• Specification Table
• 3-5
6
7
8
8
11
12
12
13
13
13
13
14
15
Index

Do not install and use the unit before carefully reading this instruction guide.
Please retain this manual for product warranty and future reference.
P3
Important Safe Guards
1） Please be sure your electricity is
correct.
2) To protect against electrical
shock, do not place it in near
window or in bathroom.
3） Please ensure the unit is not
placed closely to the high
temperature appliance, in case of
plastic destroying and fire.
4） Never operate this unit in an
explosive or corrosive
atmosphere.
5） Always guide if children operate.
Never disassemble the unit, and
never try to carry out repairs or
adjust the unit yourself.
6) Operate this unit on a horizontal
surface to avoid vibration and
noise.

1. Important Safe Guards
P4
Important Safe Guards
7） Do not use the unit when slanted.
If toppled over, please pull out
the plug at once.
8） Ensure there is 30 cm of clear
space on all sides of the unit.
9） Make sure the inlet and outlet
ventilation is not blocked at all
times.
10） Do not spray water on the unit,
spraying water may cause
malfunctioning and electric
shock.
11） Never pull the socket by using
damp hands.
12） Always switch off at the socket
before unplugging to avoid
electric shock or arcing.

1. Important Safe Guards
P5
Important Safe Guards
13） Switch off and unplug the unit,
empty the water reservoir when
not using the unit for a long time.
14） Do not pull power wire by force
because it will cause damage to
power wire.
15） Never put fingers or other objects
in any openings of the unit.
16） When moving this machine, please
remove the water tank and empty the
water in order to avoid water leakage.

Room Environment For Operating
1. Suitable environment temperature is between 5°C to 35°C
2. Operate the unit indoors, e.g. living room, bedroom, etc. Never use it in wet
environment or outdoors.
3. Make sure the door and window are closed before turning on the unit.
4. Ensure that the unit is placed on a stable and flat floor surface. If the floor
surface is not even there is a risk that the unit may be unstable and topple
over. Also excessive vibration and noise may be result.
P6

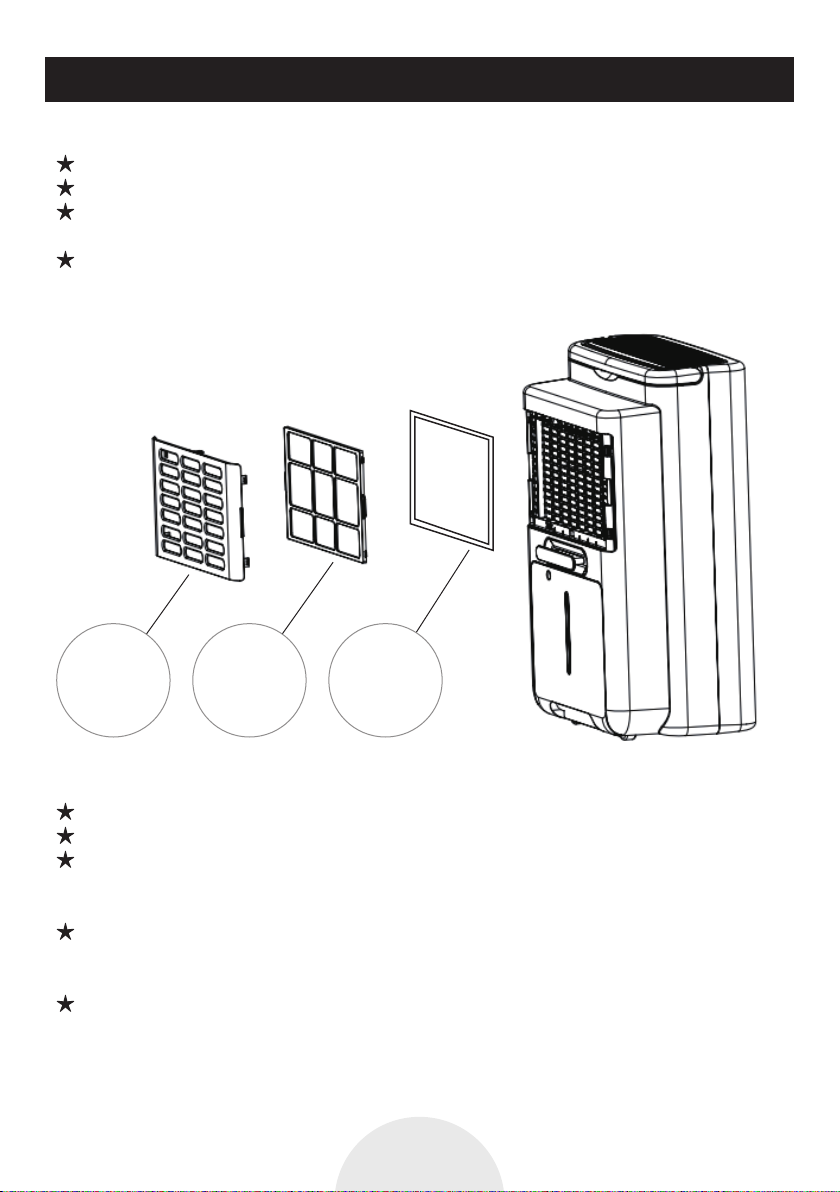

Components Diagrams
P7
Control
panel
Louver
Removable
Filter cover
Handle
Water
tank

2. Operation Of Key Pads:
When plug into power socket,all the LED indicator lamp on control panel and
digit-display lighting 1s then crushing out,the buzzer warning 2 times.
2.1 On/Off: (control turn on/off)
(water tank full switch is on closed condition)
• Pressing On/Off button to start up the machine,the buzzer warning
3times, fan and compressor will start up, high level speed lamp will
light and digit-display tube indicate Room humidity value,
continuing dehumidifying indicator lamp lighting and machine is
going to continuing dehumidifying, stepping motor will turn up
95°(anticlockwise).
• Pressing On/Off button to switch off, the buzzer will warn 3 times,
then it will switch off all the output and indication, stepping motor
will turn down 100°(clockwise), then stop.
2.2 Fan: (Pressing 1st time, machine will operate in low level, pressing
2nd time to operate in high speed; and circularly like this.
 Remark:
  ①If the machine is setted on the low speed level and compressor is operating, when the
Room temperature is ≥32℃ , the fan motor will turn to high-level automatically, the fan
motor’s high-speed level’s indicator’s lamp is lighting and wind speed’s button is
functioning, but the output won’t be changed and the high-speed level indicator lamp will
light and keep it; when Room temperature ≤30℃,machine will turn back original setting
mode automatically.
  ②When the machine is defrosting,fan motor will operate in high speed level all the time, and
corresponding indicator is lighting.
1. On/Off: Switch on/off the power.
2. Fan: Pressing the button to set high or low level
3. Set: Pressing the button to set target Room humidity, you can set: 40%RH, 45%RH, 50%RH,
55%RH, 60%RH, 65%RH, 70%RH, 75%RH, 80%RH and continuing operation.
4. Swing: Pressing the button to set swing.
5. Timer: Pressing the button to set reserve off time, you can set 0H, 1H, 2H, 3H, 4H, 5H … 9H, 10H,
11H and 12H.
Operating introduction
P8
1. Functions of Control Panel & Key Pads

2.3 Set: (Pressing this button to set the value from ~40%~45%~50%~55%~60%~
65%~70%~75%~80%~continuing dehumdifying,circularlly
Remark: The humidity just can be set when humdity setting indicator is lighting.
• Pressing 1st to make the machine from continuing dehumidifying mode to
the 40%RH(target humidity), continuing dehumidifying indicator lamp
crushing out and setting indicator lamp lighting up. When the Room
humidity is lower 1%RH than setted humidity,compressor stop working
and fan operating in low level. Then if the Room humidity is higher
5%RH than set humidity, compressor recover working and fan start
working in high or low speed level.
• Pressing settting button 2nd time to make the machine’s target humidity
from 40%RH turn to 45%RH. When temperature and humidity sensor test
Room humidity ≤1%RH than set humidity(45%RH), the compressor
doesn’t work and fan turn to low-speed level to operate. When product test
Room humidity ≥5%RH,compressor does work and fan operate in high
or low speed level. When the set humidity is in 50%RH, 55%RH, 60%RH,
65%RH, 70%RH, 75%RH, 80%RH, its operation procedure is same with above.
• Pressing Set button 10th time to make it from digit-tube from 80%RH turn to
continuing dehumidifying mode, and humidity setting indicator lamp crushing
out and continuing indicator lamp lighting, digit-tube indicate Room
humidity, compressor working and fan operating in high or low speed level.
• Pressing “Set” button in 11th time,it will circularly like above.
 Remark:
  ①The machine can memory previous working mode when outage suddenly and then powerd on;
  ②When setting humidity, if we don’t do any operating within 3s,machin will turn to indicate
Room temperature value;
  ③Pressing humidity set button for 5s to indicate Room humidity value, if you pressing
humidity setted button all the time, display will indicate Room temperature value all;
Pressing humidity button 5s to indicate Room temperature value, if move hand,it will indicate
Room humidity value;
  ④If product test the Room is 5%RH will change which it’s the Room humidty value indicated
on digit double 8, when Room humidity value is lower 30%RH, digit tube will indicateLO,
when Room humidity higher 90%RH, it will indicate HI;
  ⑤When automatic dehumidifying indicator lighting, pressing humidity setting button 1st time,
digit-tube indicate present set humidity value; pressing humidity button 2nd time, it indicate
setted humidity value;
  ⑥When compressor operating and fan operating in low-speed level, temperature and humidity
sensor test Room temperature value ≥32℃, fan motor turn to operate on high-speed level
automatically and fan motor high-speed level indicator is lighting, and it is functioning when
pressing wind-speed level, but the output won’t change and stop on button 2s, then fan
high-speed level indicator lighting, if product test Room temperature≤30℃, it will turn back to
original working model.
Operating introduction
P9

2.4 Swing button: (controlling the swing confition)
• When the machine is working,pressing air-plate to make stepping motor
ON/OFF, the corresponding swing indicator lamp light/quenching.
Stepping motor turn down(anticlockwise) to make air- plate turn 45°, then
turn up(anti-clockwise) to make air-plate turn 45°, then turn down(clockwise)
to make air-plate 45°, circularly like this.
• If we pressing”Swing”button to let it stop after stepping motor is working,
then pressing”Swing”button again to make stepping motor turn up(anti-
clockwise) to let air-plate turning 95°, then turn down (clockwise) to let air
plate turning 45°, then turning up(anti-clockwise) 45°, circularly like this.
• When powering on, stepping motor open 95°anti-clockwise, then stop, if
we don’t start swing function, the stepping motor will close 25°1 time,
then open 25°to stop in every 15 minutes, (and stepping motor’s turning
speed is faster 2 times than original.
• When powering on,the stepping motor will open 95°(anti-clockwise), then
stop; if we start swing function and then close,stepping motor will close
25°clockwise 1 time and then open 25°anti-clockwise to stop in every
15 minutes, (stepping motor’s turning speed is fater 2 times than original).
Remark:
     ① It is 15 minutes from starting to close swing,
     ② If we start swing within 15 minutes, it will cancel above function,
     ③ Once start swing function, the circular movement will be canceled automatically,
     ④ Once swing function is closed, it will swing up 25°, then swing down 25° to stop circularly
2.5 Timer button: Reserving timing time. (Setting timing powering on or off:
00H, 01H, 02H, 03H, 04H…11H, 12H, 00H circularly)
• Timing powering on automatically condition:
-Powering on,pressing timing button to set timing powering on 00H,
01H, 02H, 03H, 04H......11H, 12H, 00H, the digit tube is blinking to
indicate it is in the state of timing powering on setting, it will turn into
indicating time of timing powering on if don’t set timing, and as times
goes by, it will indicate preset remaining time.
Remark:
     ① When preset timing time is 00H,timing indicator lamp is not lighted(it indicates no setting
timing function), if we set timing time is 01H, 02H, 03H, 04H……11H, 12H, timing indicator
lamp is lighting(it indicate having setting timing function);
     ② If we preset the timing powering on time when machine is under standby mode and preset
the timing powering off time when machine is working;
     ③ When timing powering on is arriving, stepping motor will turn up 95°(anti-clockwise),
then stop, and machine will memorise previous working mode;
     ④ In the standby mode, pressing timing button and ON/OFF will operate and the buzzer
will warn, there is no reaction when pressing other button
Operating introduction
P10

2.4 Swing button: (controlling the swing confition)
• When the machine is working,pressing air-plate to make stepping motor
ON/OFF, the corresponding swing indicator lamp light/quenching.
Stepping motor turn down(anticlockwise) to make air- plate turn 45°, then
turn up(anti-clockwise) to make air-plate turn 45°, then turn down(clockwise)
to make air-plate 45°, circularly like this.
• If we pressing”Swing”button to let it stop after stepping motor is working,
then pressing”Swing”button again to make stepping motor turn up(anti-
clockwise) to let air-plate turning 95°, then turn down (clockwise) to let air
plate turning 45°, then turning up(anti-clockwise) 45°, circularly like this.
• When powering on, stepping motor open 95°anti-clockwise, then stop, if
we don’t start swing function, the stepping motor will close 25°1 time,
then open 25°to stop in every 15 minutes, (and stepping motor’s turning
speed is faster 2 times than original.
• When powering on,the stepping motor will open 95°(anti-clockwise), then
stop; if we start swing function and then close,stepping motor will close
25°clockwise 1 time and then open 25°anti-clockwise to stop in every
15 minutes, (stepping motor’s turning speed is fater 2 times than original).
Remark:
     ① It is 15 minutes from starting to close swing,
     ② If we start swing within 15 minutes, it will cancel above function,
     ③ Once start swing function, the circular movement will be canceled automatically,
     ④ Once swing function is closed, it will swing up 25°, then swing down 25° to stop circularly
2.5 Timer button: Reserving timing time. (Setting timing powering on or off:
00H, 01H, 02H, 03H, 04H…11H, 12H, 00H circularly)
• Timing powering on automatically condition:
-Powering on,pressing timing button to set timing powering on 00H,
01H, 02H, 03H, 04H......11H, 12H, 00H, the digit tube is blinking to
indicate it is in the state of timing powering on setting, it will turn into
indicating time of timing powering on if don’t set timing, and as times
goes by, it will indicate preset remaining time.
Remark:
     ① When preset timing time is 00H,timing indicator lamp is not lighted(it indicates no setting
timing function), if we set timing time is 01H, 02H, 03H, 04H……11H, 12H, timing indicator
lamp is lighting(it indicate having setting timing function);
     ② If we preset the timing powering on time when machine is under standby mode and preset
the timing powering off time when machine is working;
     ③ When timing powering on is arriving, stepping motor will turn up 95°(anti-clockwise),
then stop, and machine will memorise previous working mode;
     ④ In the standby mode, pressing timing button and ON/OFF will operate and the buzzer
will warn, there is no reaction when pressing other button
-When powering on, if the machine has been already set timing
powering on time, and then if you set timing powering on time again,
the timing will be increased from the data of preset remaining time, and
if you don’t set again within 3s, it will turn to indicate timing powering
on time, and as times goes by, it will indicate preset remaining time.
• Timing powering OFF:
- When the machine is operating, pressing timer button to set powering
OFF time from 00H, 01H, 02H, 03H, 04H......11H, 12H, 00H, the digit
tube blinking indicate the condition of powering OFF setting, if we don’t
set within 3s, it will turn to indicate Room humidity value.
Remark:
① When setting the timing is 00H, the timing indicator lamp is not lighting(it indicate no
timing setting), if we set timing time 01H, 02H, 03H, 04H……11H, 12H, the timing indicator
is lighting(it indicate timing setting);
② We can set the powering ON time when it’s under standly mode,and can set powering OFF
time when it’s under working.
③ When the setted time arrived,the machine will stop working immediately and stepping
motor will turn down(clockwise) to make air-plate close 100°;
④ If the setted time is not arrived,water full switch will be closed,machine recover to work
as per before water-full switch cut off;
⑤ As times goes by,it will indicate preset remaining time
- When the machine is under operating, if the timing powering on is
set, the data will increased from preset remaining time if we set
powering OFF time anew, and digit-tube is blinking to indicate timing
powering OFF is being setted. If we don’t operate within 3s, display
will turn to indicate Room value.
Operating introduction
P11

3. Automatic Defrosting:
When machine is working under low-temperature, the evaporator’s surface
will defrost, to guarantee machine’s normal operating, the product has
defrosting-automatically function.
4. Water full protection function:
When machine is operating, if the water tank is full,
the buzzer will warn 10 times, full indicator
lamp will light and machine stop working
at the same time. Please fectch out water tank
and empty water, then put back and it
will work as per the previous model
(dehumidifying function will start after 3 minutes).
Remark:
① When water full switch is cut off and then close,machine will
recover the previous working mode and stepping motor will
turn up(anticlockwise) 95°, if the water full switch is closed
within buzzer warn 10 times, the buzzer will stop warning;
② Water ful switch cut off, the stepping motor will turn down(clockwise) move 100°;
③ Except ON/OFF button,the other button is not useable, and also no buzzer
Operating introduction
P12
• If the temperature sensor test temperature of evaporator’s copper tube ≤-1℃,
compressor will continue working 30 minutes and then it will stop working
(product will defrost), the indicator lamp of fan’s high level and defrosting are
lighting, other indication keep original condition, after temperature sensor test
the temperarure of evaporator’s copper tube ≥2℃ and machine’s defrosting time
must be ≥10 minutes at same time, then compressor can start working and
defrosting indicator lamp going out,the other indication keep original condition.
• Pressing On/Off button to switch off, the buzzer will warn 3 times, then it will
switch off all the output and indication, stepping motor will turn down
100°(clockwise), then stop.

5. Compressor stop/start working function:
When the machine is operating,any operation can cause compressor stop
working.And machine will turn to protection funtion of compressor stop
working 3 minutes and then start up,the other function is normal.
6. Low&High temperature protection function:
When temperature and humdity sensor test Room temperature≤0℃ or ≥40℃
and the sensor’s NTC disconnection or short circuit, compressor and fan motor
haven’t output, buzzer warning all the time and there is no reflection when
pressing any button, and it just will be effective after switch ON anew.
7. Failures Of Humidity&Temperature Sensor:
When the connect wire of humidity and temperature sensor breaks off, the
symbol of continuous dehumidification ”Cont” will wink. It doesn’t work
when pressing humidity setting button, but other function is well.
The appliance comes into continuous dehumidifying mode.
8. Refrigerent leakage test function:
The compressor will test the temperature of temperature and humdity sensor
and NTC of evaporator’s copper tube in every 8 minutes; If compressor test the
temperature different value is ≤3℃ between temperature and humidity sensor
and evaporator’s NTC successive 2 times, then it indicates abnormal, digit tube
blink (lightening 1s and extinguishing 1s)
Operating introduction
P13
If the machine is under dehumidifying or refrigerating,fetching out water tank
or switching OFF and then switching ON, interval time should reach 3 minutes,
and then machine will start dehumidifying.

For its casing is made of plastic, do not place it in direct sunlight.
Remove the water tank with care.
Only use a soft clean cloth for all cleaning purpose. Do not use gasoline,
paint thinner or other chemicals to clean the unit.
Cleaning mesh filter: Remove the filter in arrow direction (as shown on
figures). Use a vacuum cleaner or water to clean, and then put it in
ventilated place until it's dry.
Before any maintenance or cleaning, please switch off and unplug the unit.
Before moving the unit,please switch off and unplug the unit.
If not using the unit for a long time. Please switch off and unplug the unit,
empty the water reservoir, and pack it after 2 days, then, keep it in dry and
ventilated place.
Please seek help from your dealers or the professionals if there are some
problems with the appliance. We will not be responsible for damage or
hurts caused by unauthorized actions.
After the expiry age for the unit, please send it to the environmental
professionals for scrap actions. Do not dispose it carelessly.
Maintenance and Cleaning
P14
Removable
Filter Cover
Ag+
Filter
Active
Carbon
Filter

Specification Table
P15
MODEL
RATED VOLTAGE
RATED FREQUENCY
RATED INPUT
CAPACITY
REFRIGERANT
HIGH PRESSURE
LOW PRESSURE
MAX. PERMITED PRESSURE
GD20SS
220-240V
50Hz
250W (26.7℃ 60%RH)
20L/D (30℃ 80%RH)
12L/D (26.7℃ 60%RH)
R134a(155g)
1.5MPa
0.4Mpa
1.9MPa
