GemVax & KAEL 5aver User manual

Fire evacuation Mask
User’s Guide
Cover-Cap
Nose-Grip
Mouthpiece
Canister
Air shut-off Cap
Mask for emergency evacuation
The canister uses triple filer processing (pre filtering/ CO2 removal / after filtering).
A portable emergency lantern is included in the set (portable/Wall Mounted).
The Portable emergency lantern includes a lithium-ion battery (CR2).
Please remove the plastic from the bottom of the lantern before use.
To use the fire evacuation mask, please remove the sealed sticker
and take off the cover cap.
Cover cap: PC
Canister: Acrylonitrile Butadiene
Styrene resin
Nose-Grip: Stainless steel / silicon
Mouthpiece: Urethane
Air shut-off cap: Urethane
Lantern: Acrylonitrile Butadiene
Styrene resin
Material configuration
of each part
How to use the mask How to use the portable set How to use a wall mounted set
How to use the mask during a fire evacuation
(Note)
Please remove the sealed sticker
on the mask for emergency situations only.
(Note) This product cannot be reused after opening.
Light On/Off
Buzzer On/Off
*No button for
a wall mounted set.
(Brightness 100Lux)
Portable emergency lighting
A lantern is included in the set
(Portable / Wall Mounted)
5aver is an innovative Fire Evacuation Mask which
can be activated within 5 seconds and is equ-
ipped with a triple filter. It is used by biting the
mouthpiece and breathing. It filters many toxic
chemical substances including carbon monox-
ide(CO), a major cause of death in the event of fire.
5aver, using its proprietary absorbent triple filter
mask, it is designed to act as a personal life safety
device during evacuation.

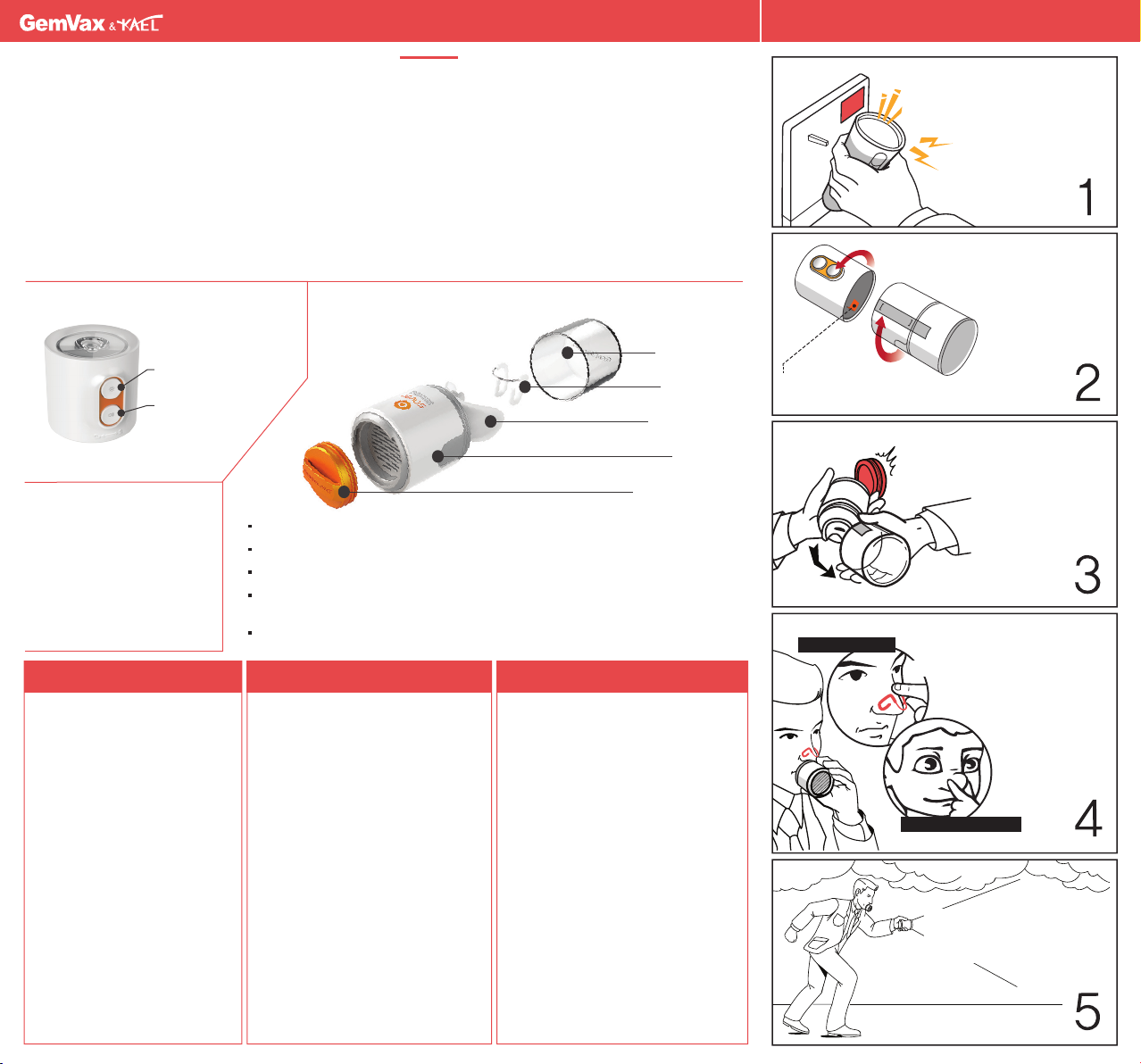

1. Preparation
Remove the sealed sticker by
snapping off the cover cap from
the main body. Then remove the
orange air shut-off cap.
2. Using the mask
Please detach the nose grip and
place it on your nose. The ring
should face towards you.
Bite the mouthpiece and breathe
into it.
3. Evacuation
Evacuate in a low stance, by cro-
uching and walking.
1. Preparation
①Separate the mask and lantern.
Remove the sealed sticker by sna-
pping off the cover cap from the main
body. Then remove the orange air shut
-off cap. ②Please pull the plastic from
the bottom of the lantern to activate
the battery.
2. Using the mask
Please detach the nose grip and place
it on your nose. The ring should face
towards you. Bite the mouthpiece and
breathe into it. Press the light button
and buzzer to work.
3. Evacuation
Carry the lantern and evacuate in a low
stance, by crouching and walking.
1. Preparation
①Detach 5aver from the cradle. ②Se-
parate the mask and the lantern. Re-
move the sealed sticker by snapping off
the cover cap from the main body. Then
remove the orange air shut-off cap. ③
Please pull the plastic from the bottom
of the lantern to activate the battery.
2. Using the mask
Please detach the nose grip and place it
on your nose. The ring should face
towards you. Bite the mouthpiece and
breathe into it. *For a wall mounted
product, when removed from the cradle,
the light and alarm auto-activate.
3. Evacuation
Carry the lantern and evacuate in a low
stance, by crouching and walking.
Detach 5aver from the cradle.
When it is removed from the cradle,
the light and alarm auto-activate.
Remove the sealed sticker by
snapping off the cover cap
from the main body. Then remove
the orange air shut-off cap.
Separate the mask and the lantern.
* For a wall mounted set only.
* Portable and wall mounted
sets only.
*See precautions no.4.
Children and the elderly
may need help.
Remove the plastic from the bottom
of the lantern to activate.
Sticker
Carry the lantern and evacuate
in a low stance,
by crouching and walking.
Youth and above
Please detach the nose grip
and place it on your nose.
The ring should face towards you.
Bite the mouthpiece
and breathe into it.
Children and infants

1) Pre-Filter (Pre Filter): Non-woven fabrics filter smoke and dust
2) CO filter (Hopcalite Filter): Removal of Carbon Monoxide (CO), the main cause of death in the event of a fire
3) The third processing filter (HEPA Filter): Removal of second hand toxic smoke and material
The application of this product is simple and quick ; just put the mouthpiece on to breathe.
Accessible to anyone with various contours of the face.
Mobile with its compact size and space smart.
Able to set for Emergency lighting (LED/siren function to indicate your location).
Designed with a triple filter that saves lives from suffocation due to CO gases and hazardous substances.
Product Features
The filter configuration and specifications
This product as a mask, helps with breathing in emergency situations such as fire and is not for user's
visibility or head protection.
The 5aver mask will not operate correctly and protect you from CO gases and hazardous substances if it is
not fitted correctly. Therefore please place the nose grip on your nose tightly to ensure no gases etc. are
inhaled without the protection of the filter and then bite the mouthpiece.
It is as aid to block incoming harmful gases in your nose in the event of fire. Depending on each individual's
physical differences and the way it is fitted, its efficiency may differ from individual to individual therefore
the user must breath through the mouthpiece.
The Nose-grip is recommended to use for youth and above but children are recommended to hold their noses
with one hand and breathe with the mouthpiece.
)The Lantern with a lithium-ion battery is an optional purchase and needs regular checks to prevent
discharge from the battery.
When a lantern that is in a wall mounted set is detached from the cradle, the light and alarm auto-activate.
The product cannot be reused after removal of the sealed sticker or opening of the air shut-off cap.
Therefore, please use in emergency situations only.
Do not use in an enclosed space with a lack of oxygen (less than 18%)
Keep away from moisture, direct sunlight, and heat.
This product is used for 5 minutes in the event of a fire. However, depending on a user’s breathing quantity
or various environmental conditions such as the concentration of harmful pollutants, humidity and temperature,
there may be a differentiation in performance individually.
The color and appearance of the product is independent of the performance and are subject to change.
Do not eat contents when the canister is broken.
Do not look at the light of the lantern directly.
Please remember that the air shut-off cap or cover cap of the product can be opened by impact and it may
cause the products life span to decrease.
Precautions
5aver Certifications
Exchange or refund within 7 days after purchase.
No exchange or refund for damaged products,
its packing or sticker by a user.
*The expiration date is 3years and 6 months from the manufactured date.
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
Mask
Nose-grip
Lantern
etc.
Certification
of Q mark
ISO, OHSAS Certification
5aver has been certified for its excellent performance in decontamination tests by the Korean
Institute of Construction Technology (KICT).
Quality Assurance / 300million(KW) of Product Liability Insurance of Lotte
Quality management system, ISO9001/ISO14001 certification
Occupational Health and Safety Management System,
OHSAS18001 certification
Q-Mark Quality Assurance 3/29/2013
Quality assurance certification for excellent products that
comply with quality assurance standards
Performance Certification 15/02/2013
The Korean Institute of Construction Technology (KICT),
Product Performance Verification Test Report issued
Filtration performance of CO and SO2
Patent 20/08/2012
Lotte Non-Life Insurance -
Product liability insurance status
300 million KW (About 270,000 USD)
Domestic patent registration - a mouthpiece for respirator
(Application No. 2011-0139764)
International patent applications are currently processing
for America and Japan.
