Genaray RGB Series User manual

USER MANUAL
RGB-CP425
POCKET ON-CAMERA RGB LED
RGB SERIES

RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL
2
THANK YOU FOR CHOOSING GENARAY
Genaray’s RGB-CP425 RGB LED light is small enough to
fit in the palm of your hand, and it features an array of 60
RGBAW LEDs that produce a bright and wide 120° beam of
color-accurate light as well as creative lighting effects.
Use the four operating modes to accurately set color
temperature, manually select any color from the 360 °color
wheel, and simulate the light from one of the industry-
standard gels. And the RGB-CP425 is loaded with 10
animated effects that let you add police car emergency
lights, a flickering candle, or papparazzi camera flashes to
your videos.
The RGB-CP425 is controlled by a simple and intuitive
on-unit interface. Bluetooth support pairs with Genaray’s
RGB Series mobile app, which provides access to even
more powerful features. Use the app to create a universe
of RGB-series lights that can be controlled from a
smartphone or tablet from up to 33 feet away.
RGB-CP425
INTRODUCTION

RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL 3
· Please read and follow these
instructions.
· Keep this product away from water
and flammable gases or liquids.
· Use only the correct, recommended
voltage.
· Do not attempt to disassemble or
repair this product.
· Clean this product with only a soft, dry
cloth.
· Do not to overtighten threaded fittings.
· All images are for illustrative purposes
only.
PRECAUTIONS CONTENTS INCLUDE
· Light
· Diffuser
· Cable
· Shoemount adapter
· Tabletop Tripod
· Carry pouch
Precautions

RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL
4

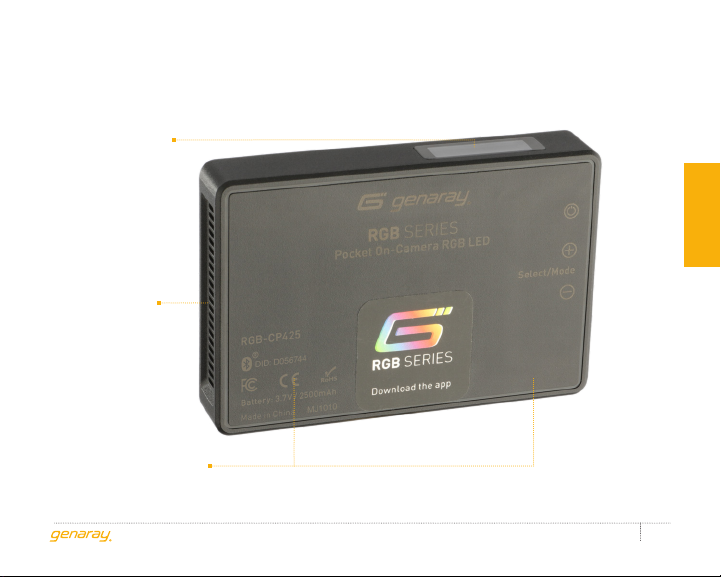

PRODUCT
OVERVIEW
Power switch
Selection rocker
USB-C
charging port
1/4-20 socket

RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL 5
Product overview
OLED screen
Mounting magnets
Heat sinks

RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL
6
MOUNTING THE LIGHT
MOUNTING TO A TRIPOD OR LIGHT
STAND
Screw the light onto a light stand’s 1/4-20
stud, and tighten until secure.
MAGNETIC MOUNTING
Use the built-in lightweight magnets to
attach the light to a metal surface.
MOUNTING TO A CAMERA
1. Slide the mounting foot completely into
the camera’s mounting shoe. Tighten
the bottom washer until it’s snug
against the camera.
2. Screw the light onto the 1/4-20 stud.
Then tighten the top washer until it’s
snug against the light.
instructions
1
2

RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL 7
CHARGING THE LIGHT
Turn on the light by moving the power
switch upwards to the ON position.
The OLED screen continuously calculates
the remaining battery time with the
changing light functions, effects, and
brightness.
WIRED CHARGING
Use the USB-C cable to charge the light
from a powered computer port or use a plug
adapter like the Xcellon Mighty Mini 130 30W
GaN Charger.
WIRELESS CHARGING
Place the back of the light down on a
wireless charging pad. The battery indicator
will appear onscreen to indicate the light is
charging.
The light is fully charged when the 4-step
battery indicator stops blinking.
POWERING THE LIGHT
instructions

RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL
8
USER INTERFACE MODE SELECTION
Press and hold the selection rocker to
access the mode selector.
Turn the rocker up or down to scroll through
the available operation modes. Once the
mode is highlighted, press the rocker or wait
approximately three seconds to activate.
The functions of these indicators are
described below in
Settings Mode
.
OLED SCREEN
1. Mode indicator
2. Intensity
3. Battery time
remaining
4. Group number
5. Light number
6. Master/Slave
mode indicator
instructions
3.4h
G02
L01
M
CCT INT
2950K26%
1
5 6
2 43

RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL 9
CCT: Adjusts the color temperature from
2800 to 8000 K.
Intensity: Adjusts the brightness from 0% to
100% in 1% increments.
Press the selection rocker to switch
between CCT and INT (intensity).
Hue: Adjusts the hue from 0° to 359° of the
color wheel.
Saturation: Controls the saturation of the
hue from 100% to 0% in 1% increments.
Intensity: Adjusts the brightness from 0% to
100% in 1% increments
Press the selection rocker to switch
between HSI, SAT, and INT.
CCT MODE HSI MODE
instructions
3.4h
G02
L01
M
CCT INT
2950K26%
3.4h
G02
L01
M
HSI
180°
INT
26%
SAT
85%

RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL
10
Gel: Select one of 48 industry-standard
colored gels.
Intensity: Adjusts the brightness from 0% to
100% in 1% increments.
Press the selection rocker to switch
between GEL and INT.
GEL MODE
LIST OF GELS
1. Blue
2. 3/4 Blue
3. 1/2 Blue
4. 1/3 Blue
5. 1/4 Blue
6. 1/8 Blue
7. Orange
8. 3/4 Orange
9. 1/2 Orange
10. 1/4 Orange
11. 1/8 Orange
12. Straw
13. 1/2 Straw
14. 1/4 Straw
15. 1/8 Straw
16. 15 Blue
17. 30 Blue
18. 60 Blue
19. 90 Blue
20. 07 Cyan
21. 15 Cyan
22. 30 Cyan
23. 60 Cyan
24. 90 Cyan
25. 15 Green
26. 30 Green
27. 60 Green
28. 90 Green
instructions
3.4h
G02
L01
M
GEL
BLUE
INT
26%

RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL 11
29. 15 Yellow
30. 30 Yellow
31. 60 Yellow
32. 90 Yellow
33. 15 Red
34. 30 Red
35. 60 Red
36. 90 Red
37. 15 Magenta
38. 30 Magenta
39. 60 Magenta
40. 90 Magenta
41. 15 Pink
42. 30 Pink
43. 60 Pink
44. 90 Pink
45. 15 Lavender
46. 30 Lavender
47. 60 Lavender
48. 90 Lavender
EFX MODE
The RGB-CP425 is preset with 10 animated
lighting effects that can be accessed from
the light’s side panel and via the Genaray
RGB Series app.
1. Press and hold the selection rocker, and
select EFX mode. EFX mode will open
to the most recently used effect and
settings.
2. Press the selection rocker to highlight
the effect number, and turn the rocker
to select one of the 10 preloaded effects.
When an effect is selected, it will
automatically play.
instructions
3.4h
G02
L01
M
EFX
1
INT
26%

RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL
12
Pulsing: A steady pulse of white light that
fades on and off.
Explosion: Simulates the light from
explosions with bursts of light that flash on
and fade off.
Television: Simulates the glow from a
television with a constant light and random
color temperature changes.
Fire: Simulates the light of a campfire or
fireplace with a constant light that randomly
fades between a set range of warm color
temperatures.
3. Press the selection rocker to highlight
the intensity, and turn the rocker to
adjust the brightness.
EFFECTS
Color Chase: Scrolls through the color
wheel in 7 steps on a continuous loop.
Lightning: Simulates lighting with short
bursts of light.
Cop Car: Simulates the flashing lights of an
emergency vehicle.
Paparazzi: Simulates multiple camera
flashes with short bursts of white light.
Strobe: Constant flashing white light
simulates strobe lighting.
Fireworks: Simulates the effect of fireworks
with pulses of color or white light.
instructions

RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL 13
Press the selection rocker to select the
desired settings menu.
G#: Set lights in a group for global
adjustments. Set the group number from 0
to 99. The preset value is 0.
L#: Set the light numbers within a group to
adjust settings globally or individually. Set
the individual light numbers from 0 to 99.
The preset value is 0.
M/S: Controls the Master/Slave function.
M: The Master light will control the
settings of all RGB-series lights set to the
same group and number.
S: The Slave light's settings will be
controlled by the Master light when set to
the same group and number.
None (N): Turns off Master/Slave mode.
LNG: Selects the onscreen display
language. Select English (EN-default),
Polish (PL), German (DE), French (FR), or
Spanish (ES).
RFD: Select YES and press the adjustment
rocker to reset the light to the factory
presets.
VER: Displays the light’s firmware version.
SETTINGS MODE
instructions
3.4h
G02
L01
M
G# M/S
>
2
L#
1 N

RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL
14
Dimmer: Sets the brightness of all RGB-
series lights that are set to the same group
and channel or for a light that’s set to its
own channel.
2800–8000 K: Sets the color temperature for
individual lights or all lights set to the same
group number.
Color Picker: Displays an onscreen color
wheel and cursor that allow you to manually
select a color.
HSI: Displays three sliders that let you
individually set the hue, saturation level, and
intensity of each light, or all lights set to the
same group.
Gels: Select one of 48 color gels for all lights
set to the same group or each individually
numbered light.
Effects: Select one of 10 animated lighting
effects. Each effect’s parameters can be
edited in the app.
The Genaray RGB app can control the
Genaray RGB-series lights from up to 33
feet away. The RGB app expands the RGB-
CP425’s capabilities with a wider range of
operating modes and editable parameters.
Download the app for iOS at Apple’s App
Store, or the Android app at the Google Play
Store.
Visit genaray.com for a complete user
manual.
OPERATING MODES VIA THE RGB APP
Important!
For the RGB app to work properly, the
app and the light must be set to the
same light and group numbers.
GENARAY RGB APP
instructions

RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL 15
RECYCLING LITHIUM-ION
BATTERIES
Lithium-ion batteries are recyclable. You can
help preserve the environment by returning
your used rechargeable batteries to a
collection and recycling location near you.
For information about recycling
rechargeable batteries, call the Call2Recycle
helpline at 1-877-2-RECYCLE, or visit www.
call2recycle.org.
instructions

RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL
16
PRODUCT
SPECIFICATIONS
LIGHT FIXTURE
LED Chip Type: RGBAW
Beam Angle: 120°
Color Temperature: 2800 to 8000 K
Color Accuracy Standard: CRI: 96.1 (5600 K)
TLCI: 98 (5600 K)
Cooling System: Passive
Dimming: Yes, built-in dimmer, 0% to 100%
Display: OLED
Included Filters: Integrated diffuser
Housing Material: ABS Plastic
Light Intensity @3 ft.: 150 lx (5600 K)
Number of LEDs: 60 (40 AW, 20 RGB)
Expected Lamp Life: 50,000 Hours
Dimensions (H × W × D): 2.5 × 3.7 × 0.7 in.
(64 × 95 × 17 mm)
Weight: 4.4 oz. (124 g)
sPecifications

RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL 17
CONNECTORS
Power Input Connector: USB Type-C
MOUNTING
Fixture Mount: 1/4-20 socket, cold-shoe adapter,
internal magnets
REMOTE OPERATION
Remote Control Type: Bluetooth
Mobile App Compatible: Yes: iOS and Android
App Name:
Genaray RGB Series
Wireless Range : 33 ft. (10 m)
Wireless Channels/Groups: 99 channels,
99 groups
POWER
DC Input Power: DC 5V 2A
Power Source:
DC, internal battery 3.7 V 2500 mAh
Battery: Li-ion rechargeable
Max Power Consumption: 10 W
Battery Charging: USB-C to USB-A
charging cable
sPecifications

ONE-YEAR LIMITED WARRANTY
This Genaray product is warranted to the original purchaser to be free from defects in materials and
workmanship under normal consumer use for a period of one (1) year from the original purchase date
or thirty (30) days after replacement, whichever occurs later. Genaray’s responsibility with respect
to this limited warranty shall be limited solely to repair or replacement, at Genaray’s discretion, of
any product that fails during normal use of this product in its intended manner and in its intended
environment. Inoperability of the product or part(s) shall be determined by Genaray. If the product
has been discontinued, Genaray reserves the right to replace it with a model of equivalent quality and
function.
This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse,
improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, GENARAY MAKES NEITHER
ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This
warranty provides you with specific legal rights, and you may also have additional rights that vary from
state to state.

To obtain warranty coverage, contact the Genaray Customer Service Department to obtain a return
merchandise authorization (“RMA”) number, and return the defective product to Genaray along with the
RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk
and expense.
For more information, or to arrange service, visit www.genaray.com or contact us at info@genaray.com.
© 2023 Genaray. All Rights Reserved.

GG3
Other manuals for RGB Series
1
This manual suits for next models
1
Table of contents
Other Genaray Camera Accessories manuals

Genaray
Genaray SSL-36 User manual

Genaray
Genaray BLT-60BA User manual

Genaray
Genaray LED-7500T User manual

Genaray
Genaray CRV-5-W User manual

Genaray
Genaray LED-6800 User manual

Genaray
Genaray BATON-BAT User manual

Genaray
Genaray CRV-10-SW User manual

Genaray
Genaray Led-5300 User manual

Genaray
Genaray LED-6200T User manual

Genaray
Genaray OLED-55 User manual
