The following hardware should be
included with this rack adapter kit:
• 1 pcs. Rack mount chassis unit
with cable and con nec tors in place
• 1 pcs. Speaker cable adapter
• 4 pcs. 4x12 mm screws.
The bolts and nuts for at tach ing the
rack adapter into an equipment rack are
not in clud ed in this kit.
Cables to go between the amplifier and
speaker are not in clud ed in this kit. To
com plete the installation, one of the fol-
low ing cable kit is needed:
Order code Length
1039-203 2 meters
1039-204 5 meters
1039-205 10 meters
1039-206 15 meters
1039-207 20 meters
Installation
Place the speaker on a flat surface.
Re move the am pli fi er from the rear of
the speaker cab i net by loos en ing the
six M4 screws at the edge of the longer
sides. Take special care not to stress the
speak er cables that con nect the am pli fi er
and speaker cabinet. Dis con nect the
speaker cables from the amplifier.
Place the am pli fi er and the rack adapter
side by side on a flat surface.
Connect the rack adapter cables (see
fig 1 above) to the am pli fi er board.
Place the amplifier on the rack adapter
chassis and fix it with six M4 screws
(see fig 2 overleaf). Ensure that the rack
adapter cables do not tighten or press
against any am pli fi er com po nents.
Connect the Speakon cables to the rack
adapter (see fig. 2). Push the con nec tor
in and turn it clockwise until the retaining
clip clicks.
The rack adapter can now be mounted
into a stand ard 19 inch rack. The adapter
chassis height is 12 U, but a well ven-
tilated free space of at least 1 U (4,45
cm) is required above and below to
ensure adequate cooling, making the
total space requirement of the assembly
14 U. Please notice that Speakon cable
con nec tors require additional 100 mm (4
inches
) of space behind the amplifier.
Attach the speak er cable adapt er to the
speaker box with four 4 x 12 mm screws
(see fig. 3 overleaf). Connect the speaker
cables and the Speakon cables to the
adapter.
Place the speak er into its recess. Now
the sys tem is ready for operation.
Option 11 (1038-421)
1038A/B Rack Adapter
Installation Manual
Kit Contents

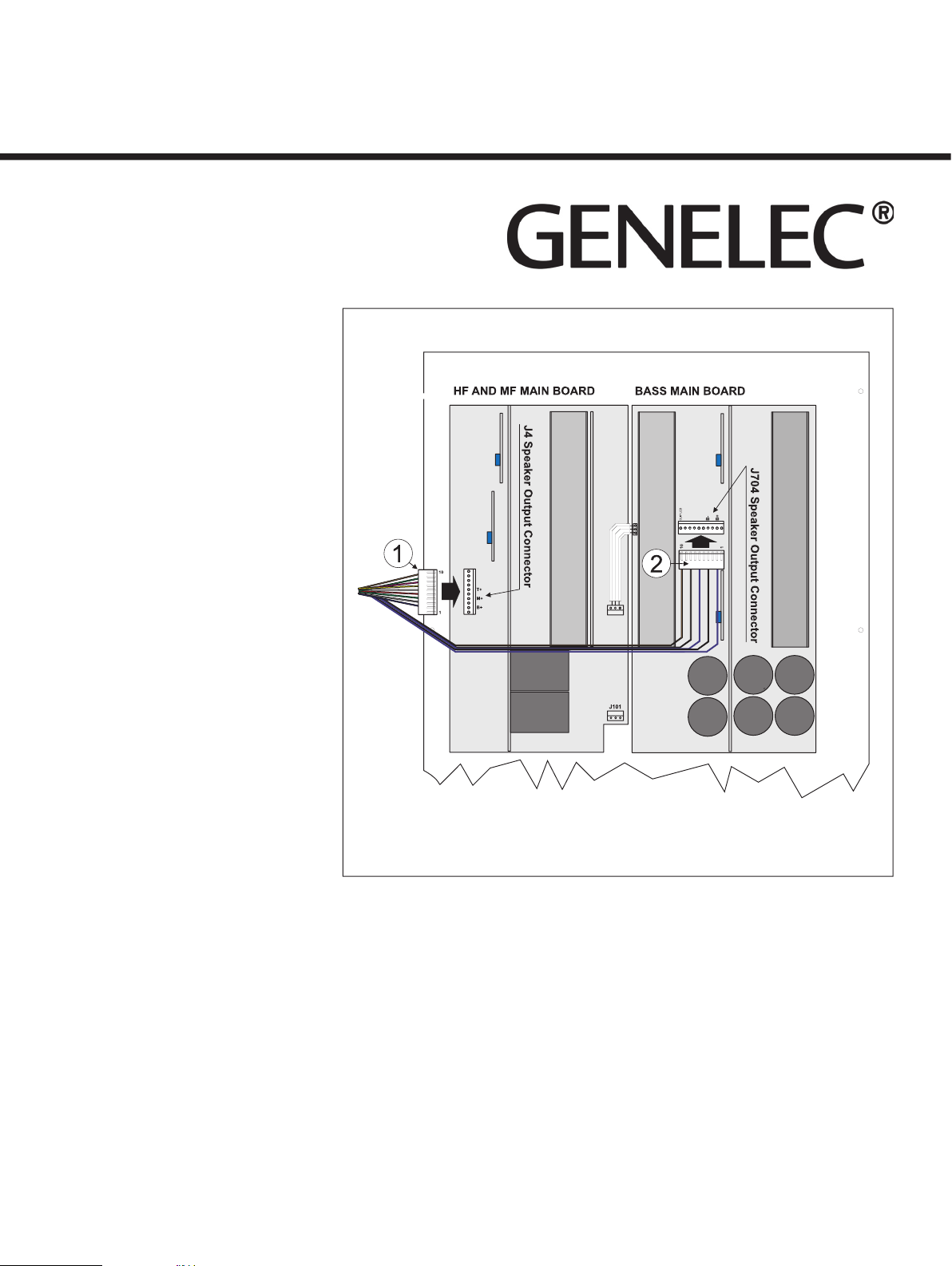

Fig. 1. Connecting the rack adapter cables on the amplifier
1 Treble and Midrange output con nec tor (J4 Speaker Output Connector, 9 wires)
2 Bass output connector (J704 Speaker Output Connector, 5 wires)

Genelec Document D0024R001D. Copyright Genelec Oy 2.2004. All data subject to change without prior notice
International enquiries:
Genelec, Olvitie 5
FIN-74100, Iisalmi, Finland
Phone [phone]
Fax [phone]
Email [email protected]
In the U.S. please contact:
Genelec, Inc., 7 Tech Circle
Natick, MA 01760, U.S.A.
Phone [phone]
Fax [phone]
Email [email protected]
www.genelec.com
In China please contact:
Genelec China Representative Office
Soho New Town, 88 Jianguo Road
D-1504, Chaoyang District
Beijing 100022, China
Phone [phone]
Fax
[phone]
Option 11 (1038-421)
1038A/B Rack Adapter
Installation Manual
Dimensions
W H D
Rack mount chassis
(mm) 480 530 113*
(inches) 18
7
/
8
20
7
/
8
4
7
/
16
*
Speaker cable adapter
(mm) 118 67 57
(inches) 4
5
/
8
2
5
/
8
2
1
/
4
*
Without Speakon connecting cable. Cable
* Without Speakon connecting cable. Cable *
con nec tors require additional 100 mm (4
inches) of space behind the amplifier
Fig. 2. Mounting the amplifier into
the rack adapter chassis
1 M4 screw
2 Amplifier unit
3 Rack adapter cable connector
4 Rack adapter chassis
5 Speakon 8- and 4-pole cables
(not in clud ed in the kit)
Fig. 3. Installing the speak er cable adapt er
1 Speaker cable connector
2 Speaker cable adapter
3 4 x 12 mm screw
4 Speakon 8- and 4-pole cables
(not in clud ed in the kit)
