Rosslare AY-Bx660 Series User manual

AY-Bx660 Family
Full Fingerprint Match-on-Card
Readers
Installation Manual
Models:
AY-B1660
AY-B2660
AY-B1660 AY-B2660

Copyright © 2013 by Rosslare. All rights reserved.
This manual and the information contained herein are proprietary to ROSSLARE
ENTERPRISES LIMITED and/or its related companies and/or subsidiaries’
(hereafter: "ROSSLARE"). Only ROSSLARE and its customers have the right to
use the information.
No part of this manual may be re-produced or transmitted in any form or by any
means, electronic or mechanical, for any purpose, without the express written
permission of ROSSLARE.
ROSSLARE owns patents and patent applications, trademarks, copyrights, or
other intellectual property rights covering the subject matter in this manual.
TEXTS, IMAGES, AND ILLUSTRATIONS INCLUDING THEIR ARRANGEMENT IN
THIS DOCUMENT ARE SUBJECT TO THE PROTECTION OF COPYRIGHT LAWS
AND OTHER LEGAL RIGHTS WORLDWIDE. THEIR USE, REPRODUCTION, AND
TRANSMITTAL TO THIRD PARTIES WITHOUT EXPRESS WRITTEN PERMISSION
MAY RESULT IN LEGAL PROCEEDINGS.
The furnishing of this manual to any party does not give that party or any third
party any license to these patents, trademarks, copyrights or other intellectual
property rights, except as expressly provided in any written agreement of
ROSSLARE.
ROSSLARE reserves the right to revise and change this document at any time,
without being obliged to announce such revisions or changes beforehand or
after the fact.

Table of Contents
AY-Bx660 Family Installation Manual iii
Table of Contents
1. Introduction ................................................................7
1.1 Features.................................................................................. 7
2. Technical Specifications..............................................8
3. Installation ................................................................10
3.1 Mounting Instructions ........................................................... 10
3.2 Wiring Instructions ................................................................ 12
4. Configuring the Reader ............................................14
4.1 Configuration Procedure ....................................................... 14
5. Testing the Reader ....................................................16
6. Modes of Operation ..................................................17
6.1 Boot Mode ........................................................................... 17
6.2 Configuration Mode.............................................................. 17
6.3 Standby Mode ...................................................................... 18
6.4 Read Mode........................................................................... 18
6.4.1 Valid Card/Fingerprint Read ..........................................................18
6.4.2 Invalid Card/Fingerprint Read........................................................19
6.5 Lockout Mode ...................................................................... 20
6.6 Fingerprint Matching Override Mode...................................... 20
6.7 Duress Mode ........................................................................ 20
A. Limited Warranty ......................................................21

List of Figures
iv AY-Bx660 Family Installation Manual
List of Figures
Figure 1: AY-B1660 – Mounting Dimensions...................................................10
Figure 2: AY-B2660 – Mounting Dimensions...................................................11
Figure 3: Removing the Top Cover ..................................................................12

List of Tables
AY-Bx660 Family Installation Manual v
List of Tables
Table 1: Wiring the Reader to the Controller ...................................................13

Notice and Disclaimer
vi AY-Bx660 Family Installation Manual
Notice and Disclaimer
This manual’s sole purpose is to assist installers and/or users in the safe and
efficient installation and usage of the system and/or product, and/or software
described herein.
BEFORE ATTEMPTING TO INSTALL AND/OR USE THE SYSTEM,THE INSTALLER AND THE
USER MUST READ THIS MANUAL AND BECOME FAMILIAR WITH ALL SAFETY
REQUIREMENTS AND OPERATING PROCEDURES.
The system must not be used for purposes other than those for which it
was designed.
The use of the software associated with the system and/or product, if
applicable, is subject to the terms of the license provided as part of the
purchase documents.
ROSSLARE exclusive warranty and liability is limited to the warranty and
liability statement provided in an appendix at the end of this document.
This manual describes the maximum configuration of the system with the
maximum number of functions, including future options. Therefore, not all
functions described in this manual may be available in the specific system
and/or product configuration you purchased.
Incorrect operation or installation, or failure of the user to effectively
maintain the system, relieves the manufacturer (and seller) from all or any
responsibility for consequent noncompliance, damage, or injury.
The text, images and graphics contained in the manual are for the purpose
of illustration and reference only.
All data contained herein subject to change without prior notice.
In no event shall manufacturer be liable for any special, direct, indirect,
incidental, consequential, exemplary or punitive damages (including,
without limitation, any and all damages from business interruption, loss of
profits or revenue, cost of capital or loss of use of any property or capital or
injury).
All graphics in this manual are for reference only, some deviation between
the image(s) and the actual product may occur.
All wiring diagrams are intended for reference only, the photograph or
graphic of the PCB(s) are intended for clearer illustration and
understanding of the product and may differ from the actual PCB(s).

Introduction
AY-Bx660 Family Installation Manual 7
1. Introduction
The MIFARE® Smart Card Fingerprint Capacitive Sensor Match-On-
Card (MOC) readers, utilizing MOC technology developed by Rosslare,
are biometric fingerprint readers that are used with access control
systems.
The AY-Bx660 series of readers use a full finger capacitive type
biometric sensor to check for verification between fingerprint data
and a biometric template stored in the MIFARE card. When
verification is confirmed, the reader then transmits the Card ID or any
ID stored in Sector 0 or 15 for 1K cards, or Sector 0 or 23 and up for
4K cards with dual templates, to the access controller, which
compares the card ID to data stored in the database and determines
access granting.
The readers are compatible with most access control hardware,
including the following hardware manufactured by Rosslare Security
Products: AC-015, AC-115, AC-020, AC-215, AC-225, AC-425, AC-
525, and ExpansE™.
1.1 Features
The AY-Bx660 series of readers include the following features:
Two different designs to accommodate customer requirements
and preferences
Support back tamper sensor and tamper output signal
Support lockout feature for increased security
Compatible with MIFARE (ISO 14443A) 1K and 4K cards
MIFARE card followed by reading fingerprint
Reads up to 2 fingerprint templates stored on the card
Programmable data transmission formats
Programmable LED control and buzzer control inputs

Technical Specifications
8 AY-Bx660 Family Installation Manual
2. Technical Specifications
General Characteristics
Output Formats •Wiegand 26-Bit (default)
•Wiegand 26-Bit with Facility Code
•Wiegand 32-Bit Reversed
•Clock & Data
•Wiegand 32-Bit
•Wiegand 34-Bit
•Wiegand 40-Bit
Read Range (max) 4 cm (1.6 in.)
Electrical Characteristics
Power Supply Type Linear type (recommended)
Input Voltage 5 to 16 VDC
Absolute Maximum (non-
operating)
18 VDC
Maximum Input Current Standby: 60 mA @ 12 VDC
Read: 135 mA @ 12 VDC
Tamper Output Open collector, active low,
max. sink current 32 mA
Maximum Controller
Cable Distance
150 m (500 ft.) (using 18AWG shielded cable)
Frequency 13.56 MHz
Card Compatibility MIFARE ISO14443A-3 standard
Environmental Characteristics
Operating Temp. Range -25°C to 60°C (-13°F to 140°F)
Storage Temp. Range -40°C to 85°C (-40°F to 140°F)
Operating Humidity 30 to 85% (non-condensing)

Technical Specifications
AY-Bx660 Family Installation Manual 9
Physical Characteristics
Dimensions (H x W x D) AY-B1660: 100 x 54 x 42 mm
(3.94 x 2.13 x 1.65 in.)
AY-B2660: 102 x 54 x 32 mm
(4.02 x 2.13 x 1.26 in.)
Weight AY-B1660: 79 g (2.79 oz)
AY-B2660: 156 g (5.50 oz)

Installation
10 AY-Bx660 Family Installation Manual
3. Installation
3.1 Mounting Instructions
Prior to starting, select the location where the reader unit is to be
mounted. Use the supplied drilling template to assist in locating and
drilling the appropriate holes (Figure 1 and Figure 2).
Figure 1: AY-B1660 – Mounting Dimensions

Installation
AY-Bx660 Family Installation Manual 11
Figure 2: AY-B2660 – Mounting Dimensions
Be sure to protect the fingerprint sensor when the reader is
mounted outside.
To mount the reader:
1. Determine an approximate surface location for the reader.
2. Peel off the back of the self-adhesive mounting label template
and place it on the required mounting location.
3. Using the template as a guide, drill two holes (of the size
indicated on the template) on the surface to mount the reader.
4. Insert a suitable wall plug into each hole.
5. Drill a 10-mm (7/16”) hole for the cable. If the surface is metal,
place a grommet or electrical tape around the edge of the hole.
6. Unscrew and remove the case security screw at the bottom using
the security hex key.

Installation
12 AY-Bx660 Family Installation Manual
7. Carefully remove the snap-off front cover of the reader to reveal
two screw holes.

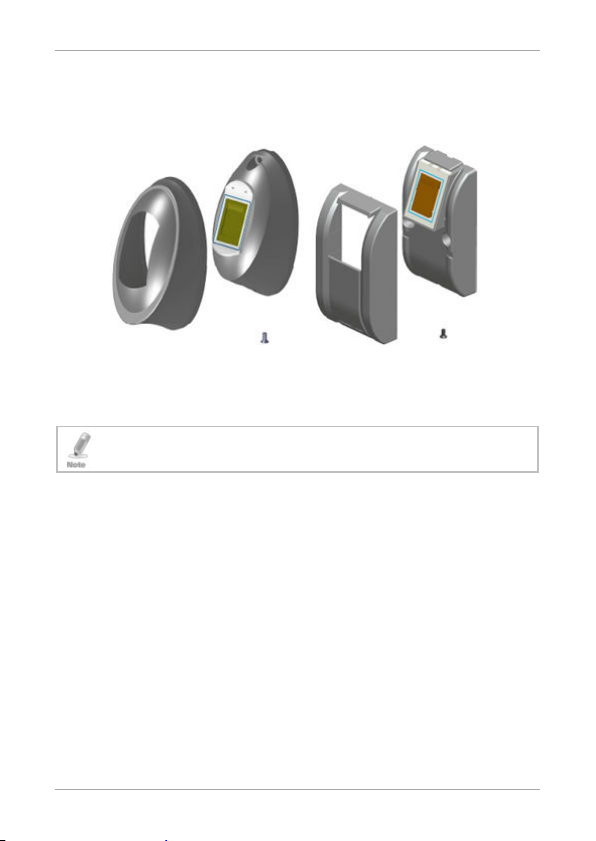

Figure 3: Removing the Top Cover
AY-B1660 AY-B2660
8. Route the interface cable from the reader to the controller (see
Section 3.2).
The reader can also be mounted using strong epoxy glue. After
application, firmly hold the reader in place until the glue dries.
9. Carefully re-attach the snap-off front cover of the reader and
secure the case security screw at the bottom using the security
hex key.
3.2 Wiring Instructions
The AY-Bx660 readers are supplied with a 7-wire, 46-cm (18”) cable.
To connect thereader to the controller:
1. Prepare the unit's cable by cutting the cable jacket back 3.2 cm
(1¼”) and stripping the wire 1.3 cm (½”).
2. Prepare the controller cable by cutting the cable jacket back 3.2
cm (1¼”) and stripping the wire 1.3 cm (½”).
3. Splice the reader pigtail wires to the corresponding controller
wires (see Table 1) and cover each connection.

Installation
AY-Bx660 Family Installation Manual 13
Table 1: Wiring the Reader to the Controller
Color Wiring
Black/ Shield Ground
Red Vin
Green Data 0
White Data 1
Brown LED control
Orange Buzzer control
Purple Tamper
4. If the tamper output is being utilized, connect the purple wire to
the correct input on the controller.
5. Trim and cover all conductors that are not used.
•The individual wires extending from the reader are color-coded
according to the required Wiegand standard.
•When using a separate power supply for the reader, this supply and
the controller’s power supply must have a common ground. A
linear power supply is recommended.
•Attach the cable shield wire on the reader to an earth ground
(best), or to a signal ground connection at the panel or power
supply end of the cable. This configuration is best for shielding the
reader cable from external interference.

Configuring the Reader
14 AY-Bx660 Family Installation Manual
4. Configuring the Reader
To provide the highest level of security, the reader is programmed to
validate only MIFARE cards whose settings correspond to the Master
card that is used to configure the reader. Then, a configuration card is
used to configure the following settings:
Card transfer format
MIFARE card Key A value
LED and buzzer control enable
Lock-out settings
Transmission of Card Serial Number (CSN) or card ID from
dedicated sector
The configuration card is configured using the Desktop
Programmer (CP-R26). Refer to the
CP-R26 Hardware and AS-
B01 Software Manual
for more details.
4.1 Configuration Procedure
The reader will not work until it is configured upon initial use. It is
recommended to configure the reader one time only, following
installation and its initial use. However, if needed, configuring the
reader can be done anytime using the same procedure described
below.
To configure thereader:
1. Present the Master card.
A short beep is generated and the two LEDs begin to blink in
orange, as the reader goes into Configuration mode.
2. Within 30 seconds (while the reader is still in Configuration
mode), present a valid configuration card to the reader.
If the configuration is valid, 3 short beeps are emitted, and both
LEDs flash in green 3 times quickly together.

Configuring the Reader
AY-Bx660 Family Installation Manual 15
If the configuration is not valid, an error beep is generated. If the
reader is being configured for the first time, the reader will not
work until a successful configuration is performed.
If the reader is already in use, then following a failed
configuration, the reader returns to Standby mode and continues
to work with its previous configuration settings.

Testing the Reader
16 AY-Bx660 Family Installation Manual
5. Testing the Reader
After wiring the reader to the controller and to a power supply, test
the reader.
To test the reader:
1. Power up the reader.
Three long beeps are generated and both LEDs flash red
simultaneously for 3 seconds.
2. If you have not yet done so, configure the reader as described in
Section 4.1.
3. Present the User card to the reader.
If the card is valid, a short confirmation beep is generated and the
right LED flashes green indicating a successful read.
4. Following the confirmation, place your finger on the capacitive
sensor.
If the fingerprint matches the template on the card, three short
confirmation beeps are generated and both LEDs flash green
indicating a successful read.
If there is a mismatch, a long and low beep is generated and the
right LED flashes green for 10 seconds at which time another
attempt to place the finger to attempt matching can be made.
If no finger is presented during the 10 seconds, the reader returns
to Standby mode and the left LED lights red.

Modes of Operation
AY-Bx660 Family Installation Manual 17
6. Modes of Operation
The AY-Bx660 readers have the following modes of operation:
Boot Mode (reset)
Configuration Mode
Standby Mode
Read Mode
Lockout Mode
Fingerprint Matching Override Mode
Duress Mode
6.1 Boot Mode
The reader enters Boot mode upon power up or upon restoration of
power after a power failure where the loader runs separately from the
main application. The Boot mode lasts for approximately three
seconds, during which the red LEDs flash simultaneously.
6.2 Configuration Mode
Refer to Section 4.1 on how set the reader to Configuration mode.
The configuration card is configured using the Desktop Reader
(CP-R26) and the card programmer and fingerprint enrollment.
Refer to the
CP-R26 Hardware and AS-B01 Software Manual for
more details.

Modes of Operation
18 AY-Bx660 Family Installation Manual
6.3 Standby Mode
The reader enters Standby mode:
After the Boot (reset) and Configuration modes
After the Lockout mode period
After a successful card or fingerprint read
During Standby mode, the left red LED remains lit to indicate Standby
mode and the reader is ready for normal use.
6.4 Read Mode
The reader enters Read mode when a user presents a MIFARE card
and then places a finger on the capacitive sensor. The card and/or
fingerprint can have a valid or invalid value and/or match.
Following a correct card read the right green LED blinks indicating the
user to place his finger on the reader.
6.4.1 Valid Card/Fingerprint Read
When card and fingerprint reads are valid, the following sequence
occurs:
1. While the reader is in Standby mode, a user presents a MIFARE
card to the reader.
2. A short beep is generated and the right LED flashes green,
indicating that the reader is waiting for the finger to be placed.
3. Place your finger onto the fingerprint reader.
When a match is found, three short beeps are generated, and the
two LEDs flash green indicating a success.
If the user does not place a finger within 10 seconds, the reader
returns to Standby mode and the user must restart the
identification procedure.
4. The data is transmitted to the access controller, according to the
reader’s configured transmission format. The reader then re-
enters Standby mode.

Modes of Operation
AY-Bx660 Family Installation Manual 19
6.4.2 Invalid Card/Fingerprint Read
An invalid card or fingerprint read can occur when:
The card is not verified.
There is an error in fingerprint presentation (for example, the user
places the finger incorrectly).
There is a mismatch between the fingerprint and the template
(for example, the user presents the wrong finger).
When a card or fingerprint read is invalid, the following sequence
occurs:
1. A user presents a MIFARE card to the reader. This can occur
during Standby mode (at the beginning of the identification
procedure), or following a successful read of the first means of
identification.
2. If the card or fingerprint is wrong, the two LEDs turn red and the
buzzer emits a long, low, invalid indication beep is generated.
After this, the user can re-attempt to present the card or finger.
3. Based on the Lockout mode configuration, explained ahead,
several invalid reads within 30 seconds initiates the lockout mode.
If there are fewer than the pre-configured number of invalid
card/fingerprint reads within 30 seconds, the reader enters
Standby mode.
When connected and operating with Rosslare’s controllers and
the AxTrax software, the readers send specific messages when
failures occur. Those messages appear and can be handled on
the AxTrax software:
•Fingerprint data reading from card failed
•Swipe sensor Fingerprint reading failed
•
Fingerprint swipe sensor/card verification failed

Modes of Operation
20 AY-Bx660 Family Installation Manual
6.5 Lockout Mode
The reader enters Lockout mode when there are a number of invalid
card and/or finger reads within a 30-second period. During Lockout
mode, the two LEDs flash red simultaneously for one minute. After
one minute, the reader enters Standby mode.
The default number of invalid reads before the reader enters
Lockout mode is 5. The number of invalid reads can be
programmed to be 1 to 10.
The default duration of Lockout mode is one minute. The
duration can be programmed to be 1–5 minutes.
6.6 Fingerprint Matching Override Mode
It is possible to configure specific user cards to ignore fingerprint
matching for people that may have trouble with fingerprint readings.
This configuration is done during the enrollment process using the
CP-R26 programmer and AS-B01 software. If Override mode is
enabled, the user needs only to place a finger on the sensor and the
reader sends the user’s ID without matching a fingerprint template.
6.7 Duress Mode
The system allows the user to send a duress message when placing
the finger on the reader. The duress signal is then sent to the panel
and appears as an alert in the access control management software.
The duress mode is defined on the user ID card itself during
configuration using the CP-R26 programmer and AS-B01 software. If
Duress mode is enabled, one finger template is used in normal access,
and the other is defined as a duress signal. The user then places the
second finger configured and the reader automatically sends the
user’s ID to the panel along with a duress massage.
